FDM Material Data Sheet
ADDITIVE+

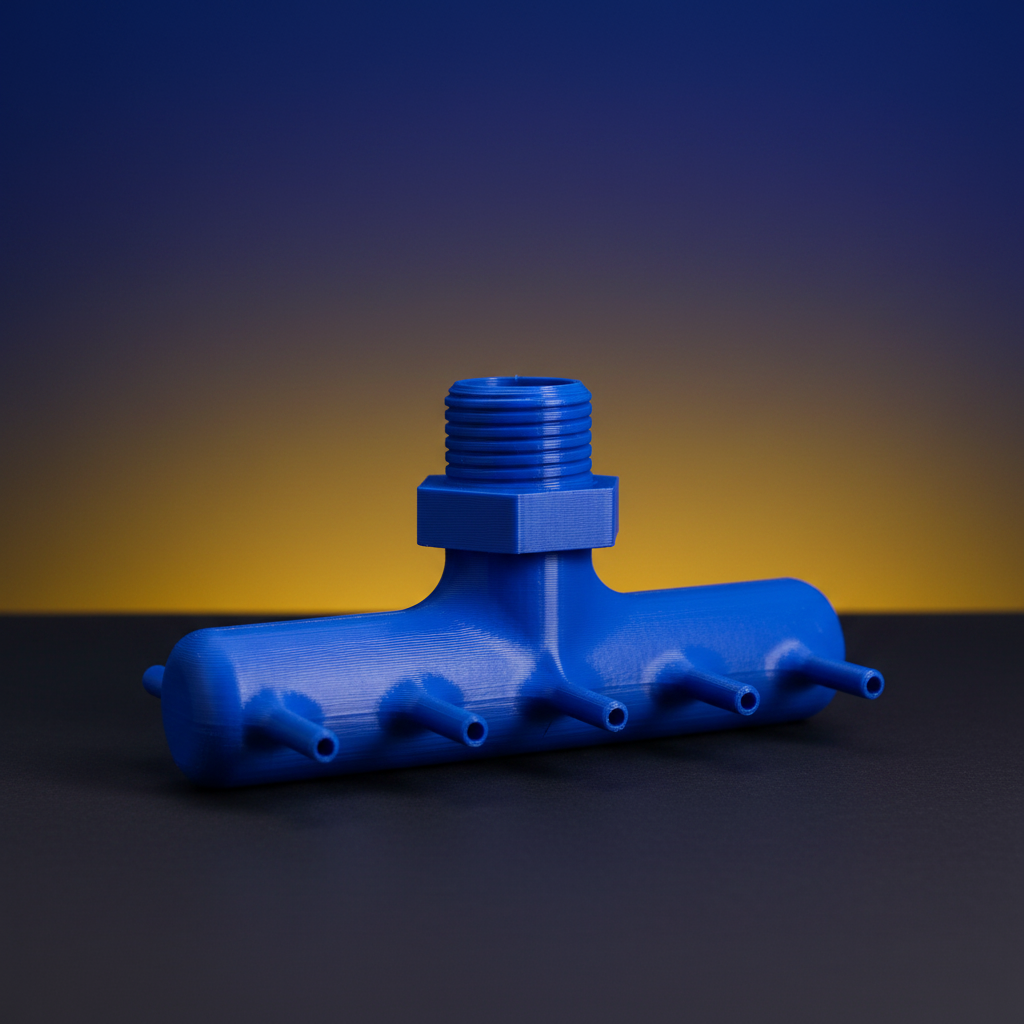

ASA
FDM · Fused Deposition Modeling · UV-stable outdoor parts
ABS-like toughness with UV and weather resistance — for outdoor housings, covers and exterior parts.
ProcessFDM
Tensile streng45
Heat deflectio95
Min order$50
Typical properties
| Property | Typical value | Unit |
|---|---|---|
| Density | 1.07 | g/cm³ |
| Tensile strength | 45 | MPa |
| Elongation at break | 20 | % |
| Flexural modulus | 2.0 | GPa |
| Heat deflection (HDT) | 95 | °C |
| UV resistance | Excellent | — |
Typical applications
Outdoor housings & coversExterior automotive partsWeather-exposed bracketsSignage and enclosures
Process capability
| Spec | Value | Unit |
|---|---|---|
| Layer height | 100–300 | µm |
| Typical tolerance | ±0.3–0.5 | mm |
| Min wall thickness | 1.0–1.2 | mm |
| Min feature | 1.0 | mm |
| Build envelope | engineer | confirmed |
Note on values. Figures are typical reference values for this thermoplastic family and are given for design guidance only — they are not lot-specific certified data and vary with print orientation, layer height, infill and wall count. FDM parts are anisotropic: strength along the layers is higher than across them, so orientation is set for the load case. Confirm critical values with your applications engineer before designing to them.
