FDM Material Data Sheet
ADDITIVE+

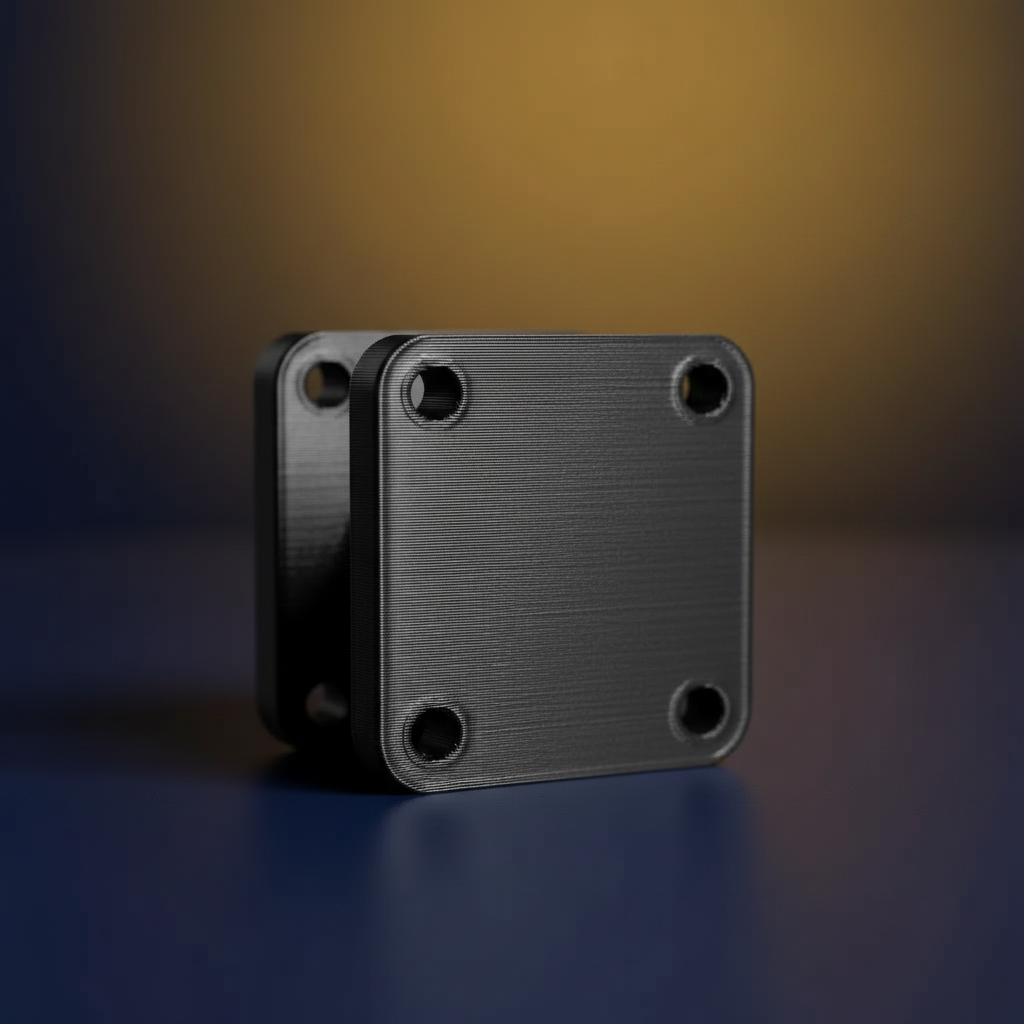

PA12-CF
FDM · Fused Deposition Modeling · Reinforced lightweight nylon
25% carbon-fibre nylon — lightweight, rigid and dimensionally stable for structural components.
ProcessFDM
Tensile streng80
Heat deflectio170
Min order$50
Typical properties
| Property | Typical value | Unit |
|---|---|---|
| Density | 1.10 | g/cm³ |
| Tensile strength | 80 | MPa |
| Elongation at break | 4 | % |
| Flexural modulus | 6.0 | GPa |
| Heat deflection (HDT) | 170 | °C |
| Fibre content | 25 | % carbon |
Typical applications
Lightweight structural partsRobotics componentsAerospace-style bracketsPrecision fixtures
Process capability
| Spec | Value | Unit |
|---|---|---|
| Layer height | 100–300 | µm |
| Typical tolerance | ±0.3–0.5 | mm |
| Min wall thickness | 1.0–1.2 | mm |
| Min feature | 1.0 | mm |
| Build envelope | engineer | confirmed |
Note on values. Figures are typical reference values for this thermoplastic family and are given for design guidance only — they are not lot-specific certified data and vary with print orientation, layer height, infill and wall count. FDM parts are anisotropic: strength along the layers is higher than across them, so orientation is set for the load case. Confirm critical values with your applications engineer before designing to them.
