FDM Material Data Sheet
ADDITIVE+

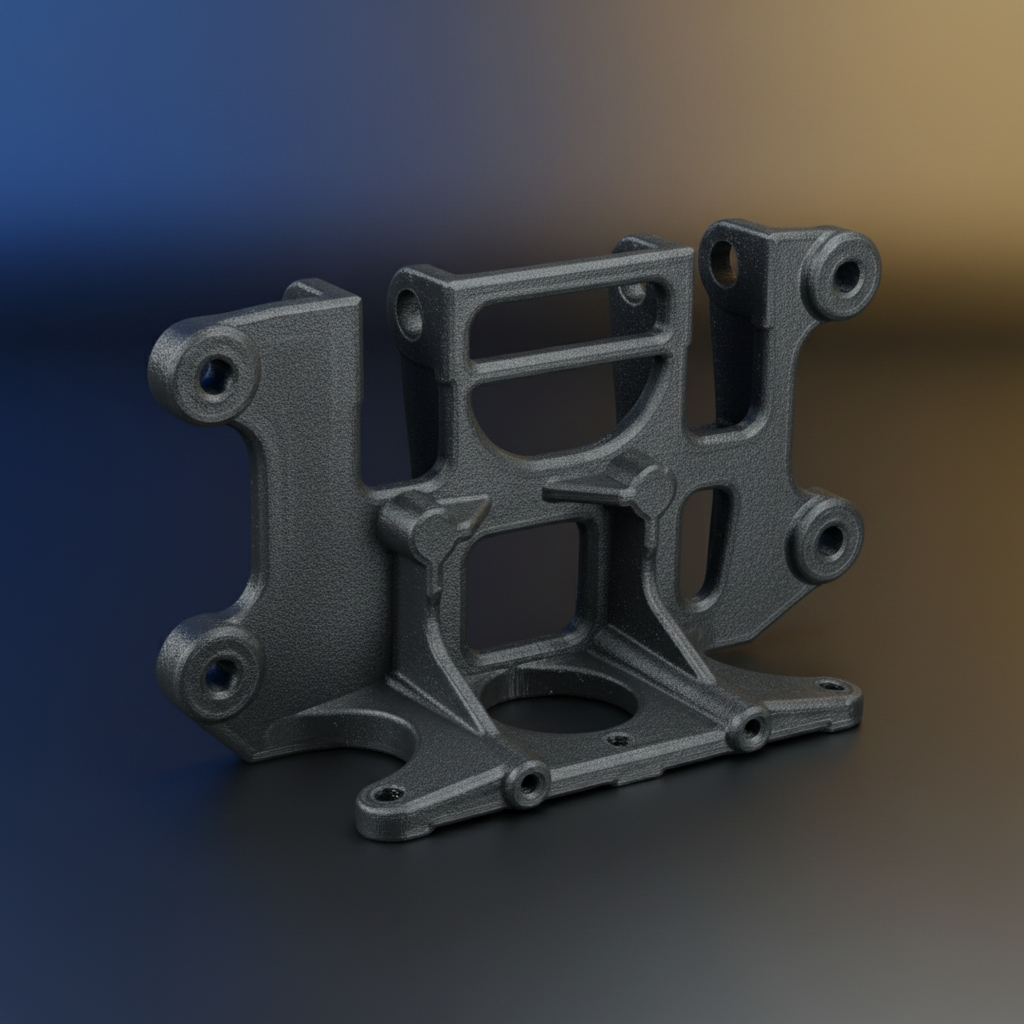

PA6-CF
FDM · Fused Deposition Modeling · High-strength structural
Carbon-filled nylon — high strength, stiffness and heat resistance for structural, load-bearing parts.
ProcessFDM
Tensile streng100
Heat deflectio190
Min order$50
Typical properties
| Property | Typical value | Unit |
|---|---|---|
| Density | 1.20 | g/cm³ |
| Tensile strength | 100 | MPa |
| Elongation at break | 3 | % |
| Flexural modulus | 7.0 | GPa |
| Heat deflection (HDT) | 190 | °C |
| Fibre content | carbon | filled |
Typical applications
Structural bracketsEnd-of-arm toolingLoad-bearing mountsUnder-hood components
Process capability
| Spec | Value | Unit |
|---|---|---|
| Layer height | 100–300 | µm |
| Typical tolerance | ±0.3–0.5 | mm |
| Min wall thickness | 1.0–1.2 | mm |
| Min feature | 1.0 | mm |
| Build envelope | engineer | confirmed |
Note on values. Figures are typical reference values for this thermoplastic family and are given for design guidance only — they are not lot-specific certified data and vary with print orientation, layer height, infill and wall count. FDM parts are anisotropic: strength along the layers is higher than across them, so orientation is set for the load case. Confirm critical values with your applications engineer before designing to them.
