FDM Material Data Sheet ADDITIVE+

PPS-CF

FDM · Fused Deposition Modeling · Chemical & heat-resistant

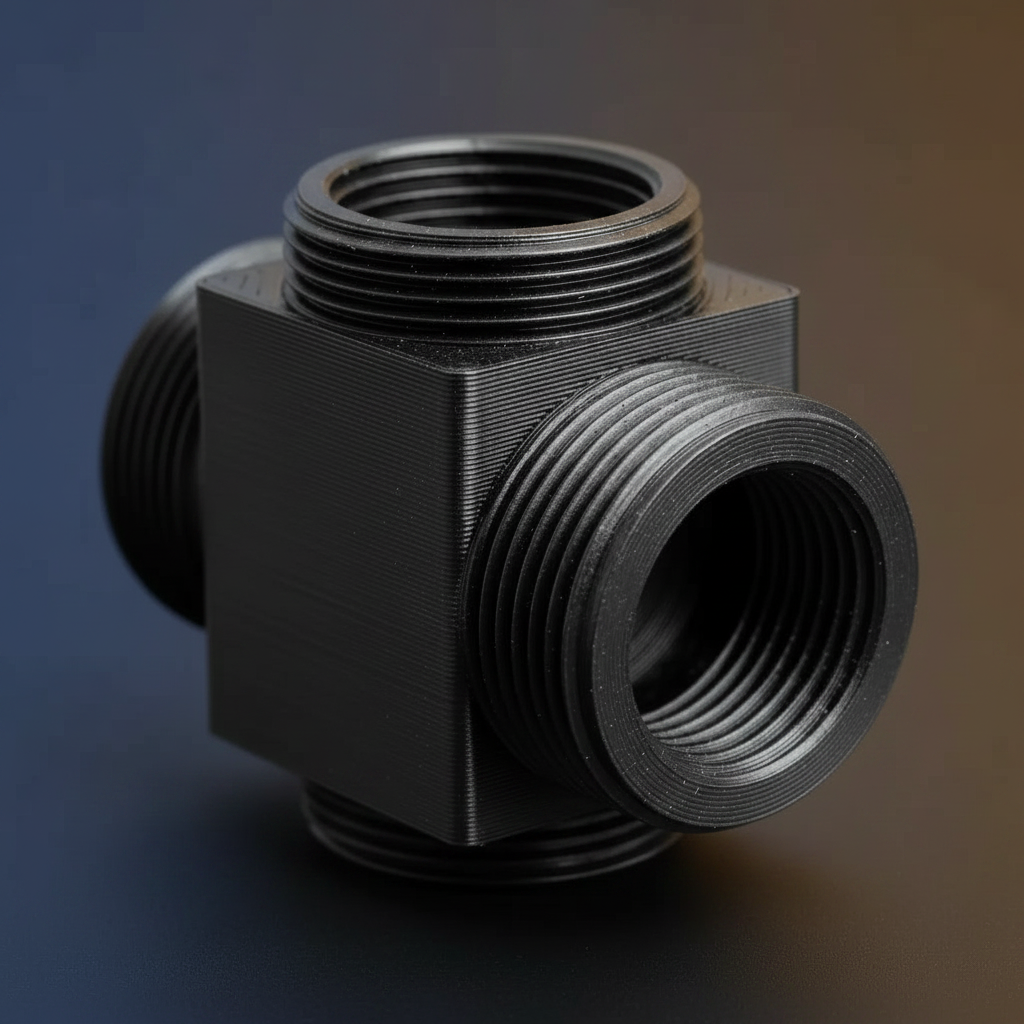

Carbon-filled PPS — outstanding chemical and high-temperature resistance for harsh-service parts.

ProcessFDM

Tensile streng90

Heat deflectio260

Min order$50

Typical properties

Property	Typical value	Unit
Density	1.45	g/cm³
Tensile strength	90	MPa
Elongation at break	2	%
Flexural modulus	12	GPa
Heat deflection (HDT)	260	°C
Chemical resistance	Excellent	—

Typical applications

Harsh-service bracketsSolvent-exposed partsHigh-temperature componentsChemical processing fixtures

Process capability

Spec	Value	Unit
Layer height	100–300	µm
Typical tolerance	±0.3–0.5	mm
Min wall thickness	1.0–1.2	mm
Min feature	1.0	mm
Build envelope	engineer	confirmed

Note on values. Figures are typical reference values for this thermoplastic family and are given for design guidance only — they are not lot-specific certified data and vary with print orientation, layer height, infill and wall count. FDM parts are anisotropic: strength along the layers is higher than across them, so orientation is set for the load case. Confirm critical values with your applications engineer before designing to them.
