Technical Data Sheet
SLS · Carbon-Filled Polyamide
PA12-CF Carbon-Filled
Carbon-fiber-reinforced Nylon 12 · PA-CF
Carbon-fiber-reinforced nylon — an exceptional stiffness-to-weight ratio for drone, robotics and aerospace parts that must be both light and rigid.
SLS
PA12-CF
PA12-CF~5000 MPaTensile modulus
~72 MPaTensile strength
1.05 g/cm³Density
~4 %Elongation
Material overview

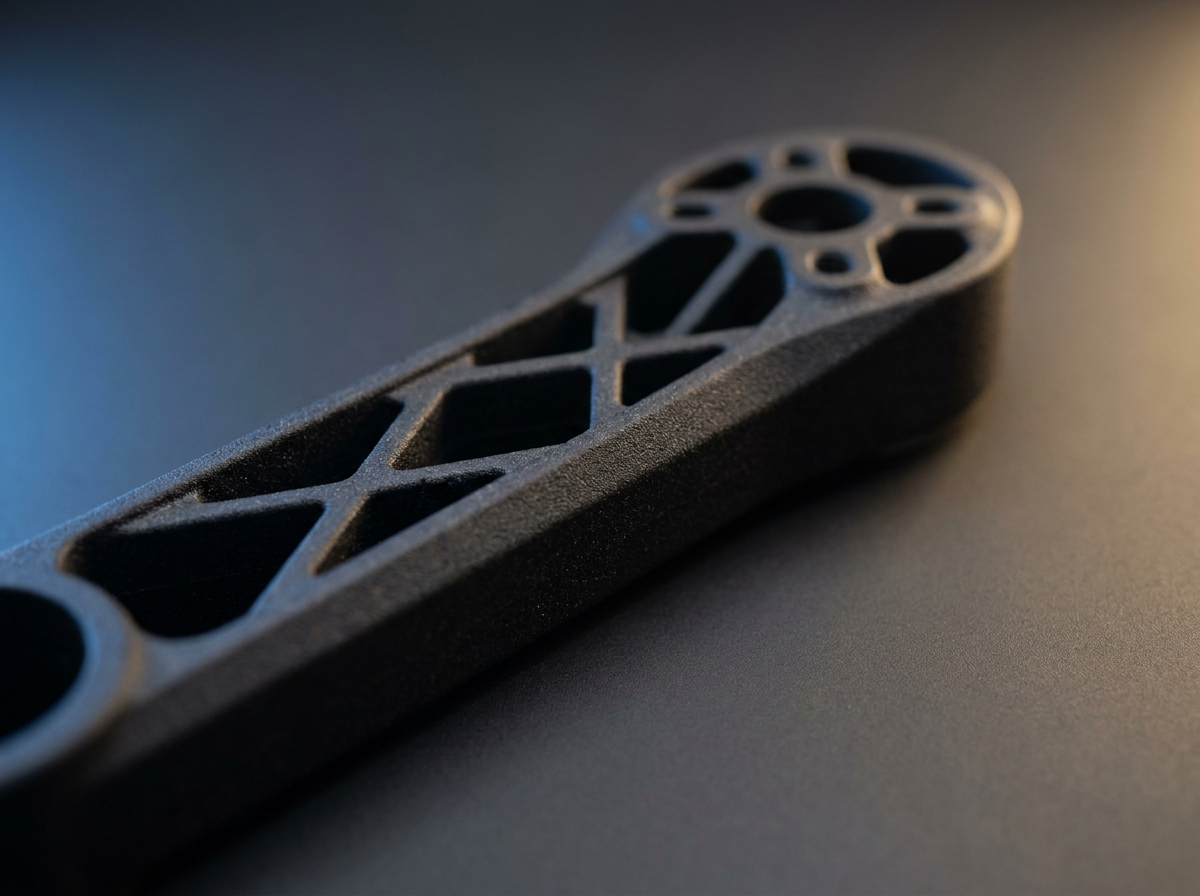

PA12-CF is nylon reinforced with chopped carbon fiber for an outstanding stiffness-to-weight ratio, high strength and good thermal performance. Fibers align with the laser path, giving directional stiffness that engineers can exploit in orientation. Deep matte black with a fine textured surface, it is ideal for drone and robotics arms, end-of-arm tooling, aerospace brackets and motorsport parts. ESD-safe grades are available.
Highlights
- Modulus ~5000 MPa — very high stiffness
- Low density ~1.05 — light & rigid
- Directional fiber alignment
- ESD-safe grades available
Ideal applications
Drone & UAVRobotics / EOATAerospace bracketsMotorsportJigs & fixturesStructural
Mechanical properties
| Property | Value | Unit |
|---|---|---|
| Tensile modulus | ~5000 | MPa |
| Tensile strength | ~72 | MPa |
| Elongation at break | ~4 | % |
| Flexural modulus | ~4000 | MPa |
| Hardness | ~82 | Shore D |
Physical & thermal
| Property | Value | Unit |
|---|---|---|
| Density (part) | ~1.05 | g/cm³ |
| Melting point | ~176 | °C |
| HDT (0.45 MPa) | ~170 | °C |
| Layer thickness | 60–120 | µm |
| Surface | Matte black | — |
| Powder PSD | ~50 | µm |
AADDITIVE+
Innovate. Create. Print the Future.
additiveplus.com · [email protected] · +1 (747) 800-4854 · Gardena, CA · USAScan to request a quote
Property data per the material manufacturer’s technical datasheet and industry references (on file). Values are indicative and may vary with machine, parameters, orientation and post-processing — not a guaranteed specification or a legally binding MSDS; SDS available on request. © 2019–2026 Additive Plus · All rights reserved. AO Metal is our trademark.
