Technical Data Sheet
SLS · Glass-Filled Polyamide
PA12-GF Glass-Filled
Glass-bead-filled Nylon 12 · PA3200-GF-class

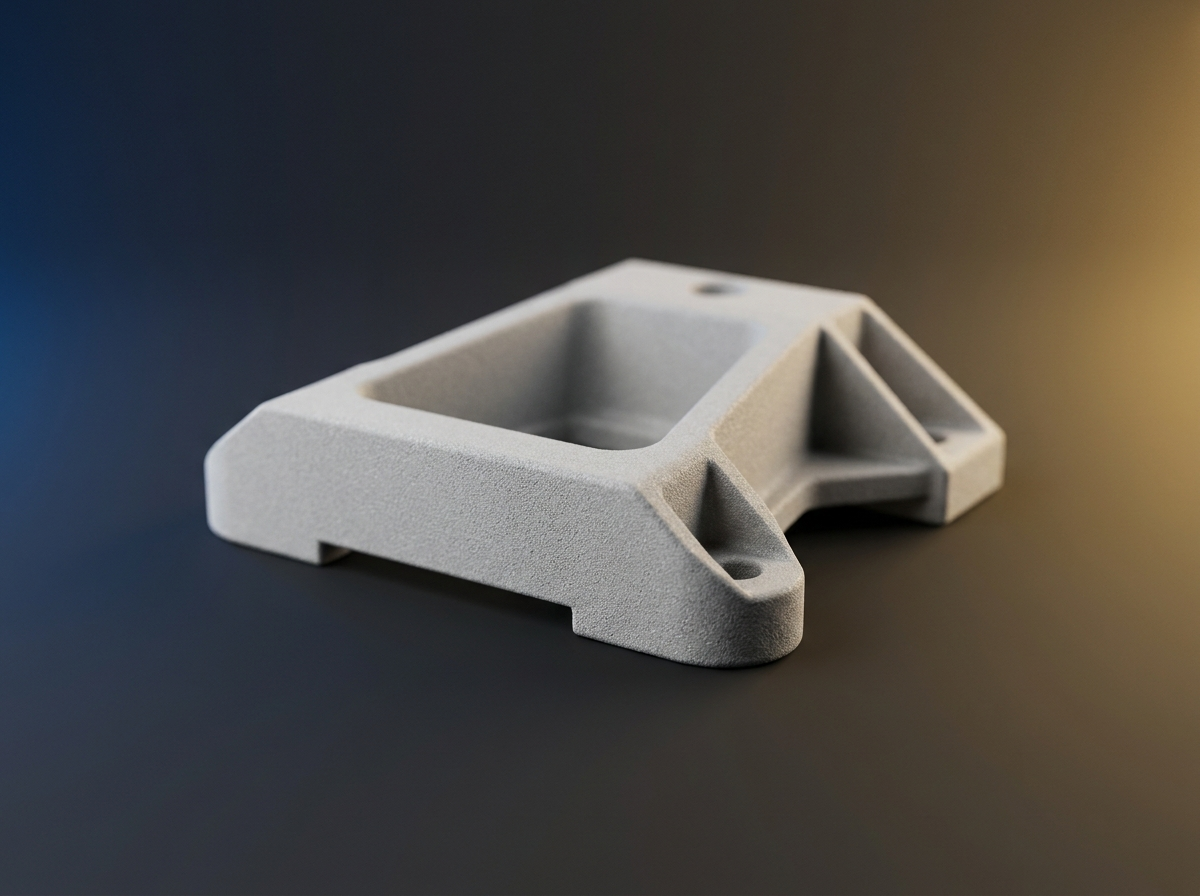

Glass-bead-reinforced PA12 — stiffer, harder and more heat-resistant than unfilled nylon. For load-bearing brackets, housings and jigs that must hold their shape.
SLS
PA12-GF
PA12-GF~3200 MPaTensile modulus
~48 MPaTensile strength
~157 °CHDT (0.45 MPa)
1.22 g/cm³Density
Material overview
PA12-GF is nylon 12 reinforced with glass beads for markedly higher stiffness, hardness, dimensional stability and heat resistance — at the cost of some ductility. It prints support-free like PA12 with a matte grey speckled surface, and is the go-to for load-bearing brackets, housings, jigs and parts that see elevated temperature or wear.
Highlights
- Modulus ~3200 MPa — about 2× PA12
- Higher HDT & wear resistance
- Excellent dimensional stability
- No supports — complex geometry free
Ideal applications
Load-bearing bracketsHousingsJigs & fixturesHeat-exposed partsAutomotiveIndustrial
Mechanical properties
| Property | Value | Unit |
|---|---|---|
| Tensile modulus | ~3200 | MPa |
| Tensile strength | ~48 | MPa |
| Elongation at break | ~4 | % |
| Flexural modulus | ~2600 | MPa |
| Charpy impact | ~5.4 | kJ/m² |
| Hardness | ~80 | Shore D |
Physical & thermal
| Property | Value | Unit |
|---|---|---|
| Density (part) | ~1.22 | g/cm³ |
| Melting point | ~176 | °C |
| HDT (0.45 MPa) | ~157 | °C |
| HDT (1.8 MPa) | ~96 | °C |
| Layer thickness | 60–120 | µm |
| Powder PSD | ~50 | µm |
AADDITIVE+
Innovate. Create. Print the Future.
additiveplus.com · [email protected] · +1 (747) 800-4854 · Gardena, CA · USAScan to request a quote
Property data per the material manufacturer’s technical datasheet and industry references (on file). Values are indicative and may vary with machine, parameters, orientation and post-processing — not a guaranteed specification or a legally binding MSDS; SDS available on request. © 2019–2026 Additive Plus · All rights reserved. AO Metal is our trademark.
