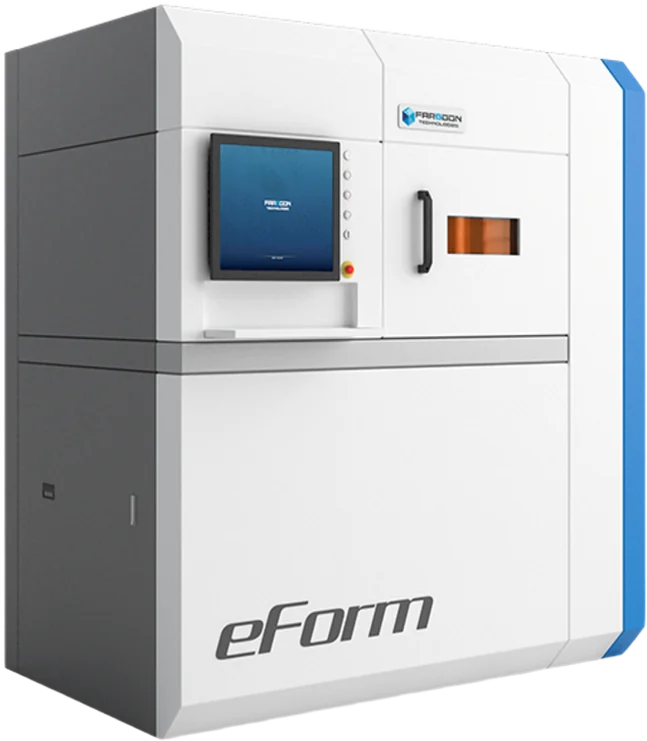

Farsoon eForm
Introducing eForm
With robust small-batch manufacturing capabilities and best flexibility with material selection on the market, eForm is able to produce high quality, repeatable parts that can meet the highest industry standards. Weather you are new to the additive manufacturing market, or looking at expanding your plastic manufacturing production capabilities, eForm can perfectly meet your specific needs of productivity, economy, and reliability.
Accessible industrial Plastic Laser Sintering machine for your additive manufacturing needs.
- Description
- Additional information
- cross-sell
Description
COST PERFORMANCE
The eForm plastic laser sintering system is an entry level system with all the functionality and power of an industrial level system. With state of the art processing systems combined with Farsoon’s powerful control software the eForm is able to achieve highly detailed and functional parts.
PRODUCTION INTERFACE
The eForm comes standard with a streamlined touch screen based UI configuration for the production environment. With this intuitive interface operating laser sintering technology has never been easier.
COMPREHENSIVE SOFTWARE
The eForm like all Farsoon systems is offered with a full set of self-developed Farsoon software. This powerful set of tools enables a variety of functions from build preparation to machine control and operations while remaining completely compatible with third party software and material.
Industrial Applications with FLIGHT® 403P-2 Series
The optimal performance of FLIGHT® 403P-2 Series combining extreme sintering speed and high feature resolution has opened up many potential markets and applications for true series production, such as electronic components, robotics, specialized tools & models, battery units, filter modules as well as many consumer products.
Machine: eForm Material: FS3300PA
The 3D printed surgical guide is used in DDH Surgery (Developmental dysplasia of the hip) requires a high level of operational precision. Designed from CT scan imaging data and produced on Farsoon’s eForm system, the surgical guide helps doctors with patient communication and physical practice in advance; it also enables faster, more accurate position for the depth and angle of the implant during the surgery, reducing overall operation time and complications compared to the traditional surgery.

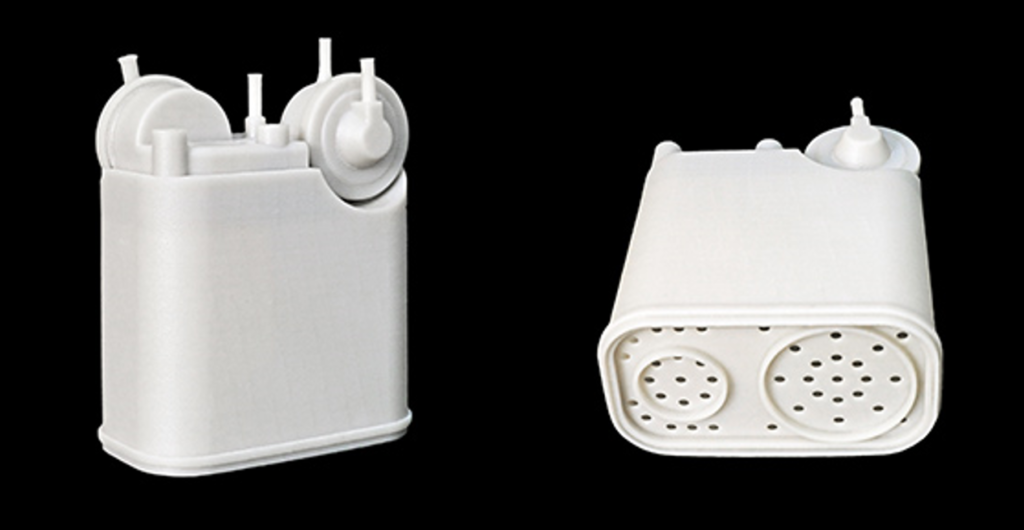

Machine: eForm Material: FS3401GB
Designed to optimize the fuel efficiency of the vehicle, the carbon canister features a complexed structure that requires a long design to market cycle and high prototyping cost with traditional molding. With advanced additive technology the new canister is able to achieve easier and faster design iteration as well as improved fuel efficiency. The new design parts can be produced within one day; it also passes the functional test of maintaining a pressure of 1.5 Bar for 1 minute without any leakage.
Additional information
| Brand | |
|---|---|
| Country | China |
| External Dimensions (L×W×H） | 1735×1205×1975 mm (68.3×47.4×77.8 in) |
| Build Volume | 250×250×320 mm, 9.8×9.8×12.6 in |
| Net Weight | Approx. 1700 kg (3747.9 lb) |
| Laser Type | CO2 laser, 1×30W |
| Scanner | High-precision galvo system |
| Layer thickness | |
| Volume Build Rate2 | Up to 0.8 L/h |
| Scanning Speed | Max. 20 m/s (65.6 ft/s) |
| Max. Chamber Temperature | 190°C ( 374℉ ) |
| Thermal Field Control | Eight-zone heater & Intelligent temperature control systems |
| Temperature Regulation | Continuous real-time build surface temperature monitoring & optimization |
| Operating system | 64 bit Windows 10 |
| Software | BuildStar, MakeStar® |
| Data File Format | STL |
| Key Software Features | Open machine key parameters, real-time build parameter modification, three-dimensional |
| Inert Gas Protection | Nitrogen |
| Power Supply | EUR/China: 400V±10%, 3~/N/PE, 50/60Hz, 32A, US: transformer sold with machine |
| Operating Ambient Temperature | 22-28°C (71.6-82.4℉) |
| Materials | FS3150CF, FS3250MF, FS3300PA, FS3401GB, FS4100PA, Ultrasint® PP nat 01 |
| 3D printers | SLS |
| Printing material | Polyamide |
