In stock
- 1 kg sealed bottle Genuine KeyPrint KeyGuide, translucent/clear.
- Validated settings Nexa3D LSPc print + post-cure profile and lot documentation.

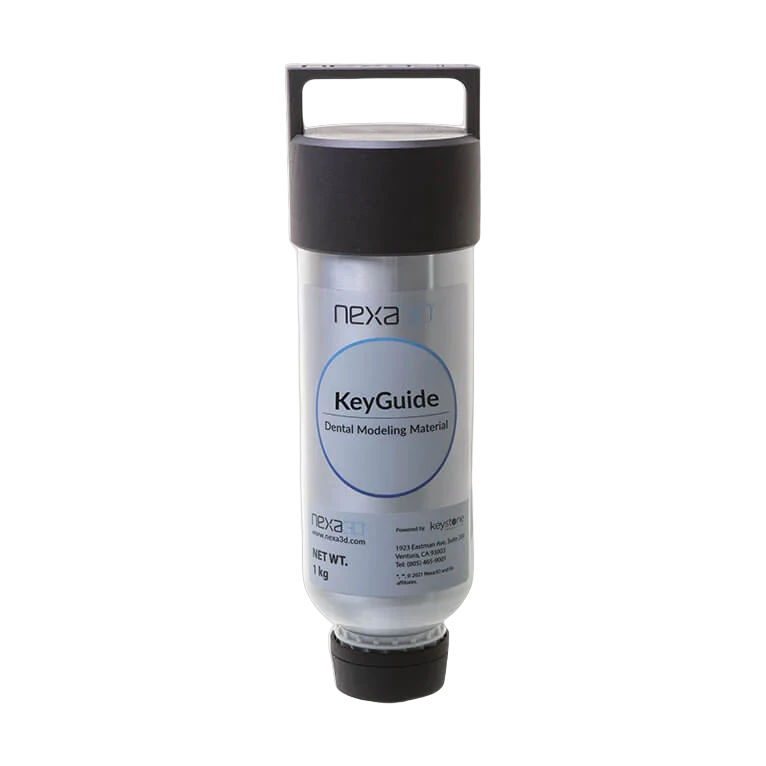

Nexa3D KeyGuide Resin 1kg For NX

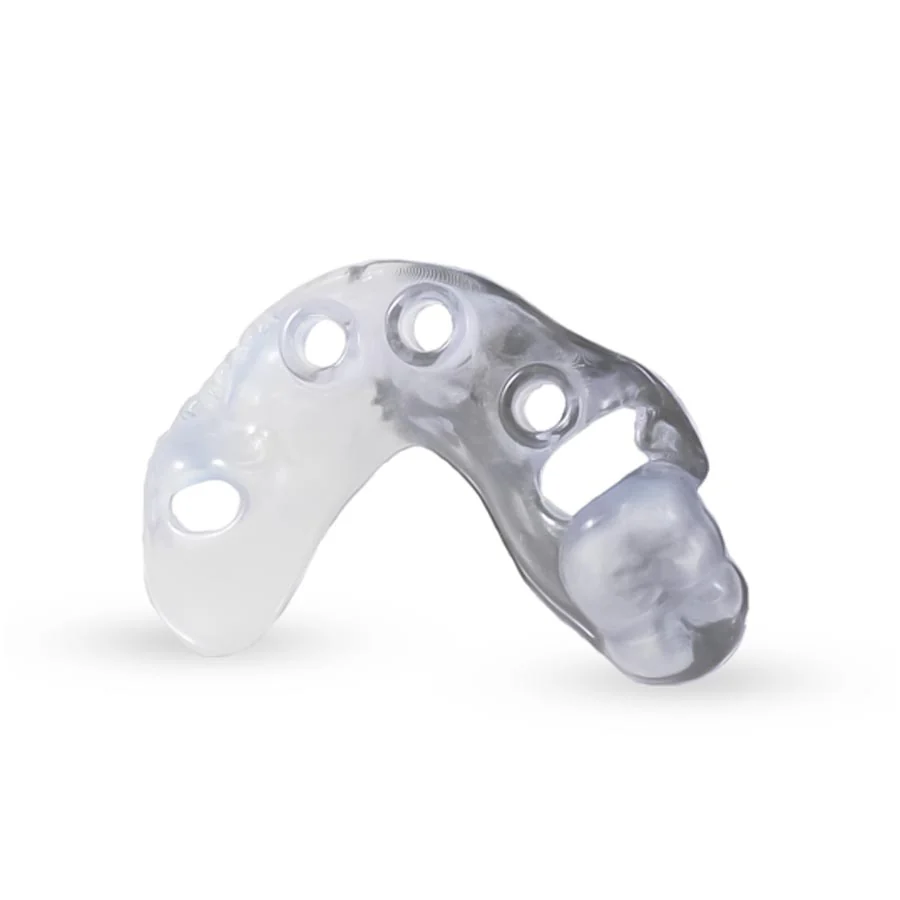

Stiff. Clear. Autoclavable. KeyGuide prints accurate surgical and pilot-drill guides on Nexa3D NXE-series LSPc printers — Class I biocompatible, with a 2400 MPa flexural modulus that keeps the guide from flexing under drilling load so the osteotomy follows the plan. Translucent for full intra-oral visibility, and steam-sterilizable before surgery.
1 kg bottle, validated print and post-cure profile included.
$270
What your surgical team actually checks
Stiff, clear, sterilizable
KeyGuide holds drill trajectory with a 2400 MPa flexural modulus and 105 MPa flexural strength, stays clear so the surgeon can confirm seating, and autoclaves through your normal instrument workflow. Class I biocompatible — ISO 10993-5 and 10993-10 pass.
A dental materials engineer on the line
Bringing guided surgery in-house? Our engineers run these KeyPrint workflows and will confirm exposure, post-cure and sleeve fit — sub-4h reply, NDA standard.
KeyGuide is a stiff, biocompatible (Class I) surgical-guide resin for printing accurate, autoclavable implant and pilot-drill guides on Nexa3D LSPc printers. Clear for maximum intra-oral visibility and stiff enough to hold drill trajectory under guided-surgery loads. Supplied in a 1 kg bottle for the NXE 400 / NXE 400 Pro.
Why surgeons and labs choose KeyGuide
A guide material that keeps the osteotomy on plan.
Holds drill trajectory
Flexural modulus 2400 MPa and flexural strength 105 MPa keep the guide from flexing under drilling load, so the osteotomy follows the planned path.
Class I biocompatible
Passes ISO 10993-5 (cytotoxicity) and ISO 10993-10 (irritation and sensitization) for safe short-term contact in the oral cavity.
Clear for visibility
A clear guide lets the surgeon confirm full seating on teeth or tissue and watch the site through the guide during placement.
Autoclavable
Guides can be steam-sterilized before surgery, so they go into the operatory through your normal instrument-processing workflow.
From plan to sterile guide
Validated print and cure profiles ship with the resin — no parameter guesswork.
Print on LSPc
Export the guide from your planning software and run KeyGuide on your Nexa3D NXE-series printer (LSPc, 385–405 nm) with the validated exposure profile.
Wash & post-cure
Wash in IPA, air-dry, then final-cure under a 250–390 nm unit to reach full stiffness and biocompatibility.
Sterilize
Fit-check on the model, insert sleeves if your protocol uses them, then autoclave the guide ready for surgery.
Physical & mechanical properties
| Property | Standard | Value |
|---|---|---|
| Flexural modulus | ASTM D790 | 2400 MPa |
| Flexural strength | ASTM D790 | 105 MPa |
| Biocompatibility — cytotoxicity | ISO 10993-5 | Pass |
| Biocompatibility — irritation / sensitization | ISO 10993-10 | Pass |
| Biocompatibility class | — | Class I |
| Color | — | Translucent (clear) |
Values from the Keystone KeyGuide technical data sheet. Printed-part properties depend on correct exposure and post-cure.
Typical applications
Indicated for guided-surgery and drill-guide appliances.
Building the rest of the dental workflow?
The KeyPrint family runs the same validated print and cure process.
Why source KeyGuide through Additive Plus
- Genuine Keystone KeyPrint resin, matched to Nexa3D LSPc print and cure profiles — not a re-labeled substitute.
- In-stock at our US facility; ships in 1–2 business days with lot documentation.
- Application engineers who run these dental workflows in-house — exposure, post-cure and sterilization support, sub-4h reply.
- Volume pricing and official purchase orders handled for multi-bottle and lab-group orders.
| Brand | Nexa3D |
| Available colors | Translucent |
| Weight | 1 kg |
| Country of origin | USA |
| Printing Materials | Resins |
| Platform | NX |
| Technology | LSPc, DLP, XiP |
| Resin Type | Dental |
| Application | Dental, Engineering, Medical |
Tell us your case volume and printer fleet — we'll set up standing lot supply, volume pricing and PO terms so a guide is never the reason a case slips.
Other products teams run alongside Nexa3D KeyGuide Resin 1kg For NX
CNPC Ti-6Al-4V Grade 5 powder for LPBF — made by CNPC Powder, 15–53 µm, sold in 10 kg containers.
- 10 kg container · $136/kg · $1,360
- Certificate of analysis (COA) for the lot, on request
- Ship date confirmed by email after you order
Manufacturer: CNPC Powder · materials engineer on call · order below or talk to an engineer first.
Made to order
· Ship date confirmed after you order
Semi-flex matte black resin (HDT60): no post-cure needed for impact-resistant jigs & fixtures
Availability: confirmed at order. Supplier stock for this line varies — we verify availability and lead time on every order before processing, and offer an equivalent or a full refund if an item cannot be supplied. Cubic Ink equivalents →
Made to order
· Available to order — we confirm the lead time by email within one business day of your order.
Nexa3D xMODEL15-Black is an economical 405 nm LSPc photopolymer for fast, high-detail concept and appearance models — 55 MPa tensile, 78–80 Shore D, with a smooth, finish-ready surface.
- ✓ High detail and a paintable, plate-ready finish
- ✓ Runs on Nexa3D XiP, XiP Pro and NXE 400 / NXE 400 Pro — 405 nm LSPc
- ✓ In US stock — ships in 2 business days, lot-matched for repeatable prints
In stock
· 2 Business Days
Currently not in stock. Leave a request and we will confirm availability, price and lead time.
Washing solvent for rinsing uncured resin off SLA and LSPc 3D-printed parts — holds around 3× the dissolved resin of IPA and has a higher flash point, so it is safer to handle and lasts longer between changes.
- ✓ ~3× the resin capacity of IPA — fewer changeouts, less waste
- ✓ Higher flash point than IPA · leaves no greasy residue · water-rinse after
- ✓ 5 L · US-made · available on request (not in stock)
Out of stock
· Not in stock — available on request
xPRO410 is a rigid, general-purpose LSPc photopolymer built on Henkel Loctite® PRO410 chemistry — supplied in a 1.5 kg smart cartridge that drops straight into the Nexa3D XiP and XiP Pro.
- ✓ Rigid general-purpose resin — 41 MPa tensile, Shore D 79
- ✓ Dimensional accuracy within 0.2% after post-cure
- ✓ 1.5 kg smart cartridge for XiP / XiP Pro (405 nm LSPc)
- ✓ In stock — ships in 1–2 business days from US inventory
In stock
· In stock — ships in 1–2 business days from US inventory.
In stock
· In stock — ships in 1–2 business days from our Los Angeles warehouse.
Rigid. Cleared. Stain- and abrasion-resistant. KeySplint Hard prints hard occlusal splints on the Nexa3D XiP desktop printer for bruxism therapy and cases where tooth immobilization is the priority — FDA 510(k)-cleared and Class IIa biocompatible, with a 1500 MPa flexural modulus that holds form under heavy clenching load.
Choose your shade: Light Violet, Translucent or Translucent Clear. 1 kg bottle tuned for XiP, validated print and post-cure profile included.
In stock
· In stock — ships in 1–2 business days
Crystal-clear resin for precision parts. Low viscosity = effortless flow & void-free prints.
Availability: confirmed at order. Supplier stock for this line varies — we verify availability and lead time on every order before processing, and offer an equivalent or a full refund if an item cannot be supplied. Cubic Ink equivalents →
Made to order
· Available to order — we confirm the lead time by email within one business day of your order.Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
Which printers is KeyGuide for NX compatible with?
Is KeyGuide biocompatible, and can it be autoclaved?
Is KeyGuide stiff enough for fully guided implant surgery?
Why is KeyGuide clear?
How do I wash and post-cure KeyGuide?
How should I store the resin and what is its shelf life?
Can I order a trial bottle or volume/PO pricing?
Place your order, or talk to an engineer first
Order Nexa3D KeyGuide Resin 1kg For NX direct, or talk to materials engineer
