In stock
- Lot-matched resin sealed and batch-traceable for repeatable prints
- Validated LSPc profile exposure and cure settings for your Nexa3D printer

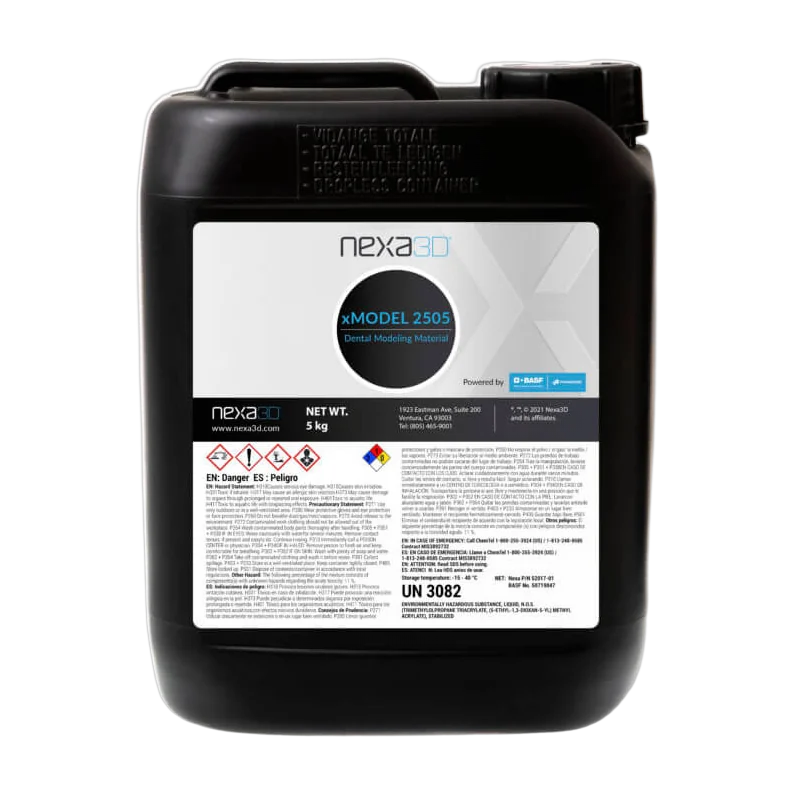

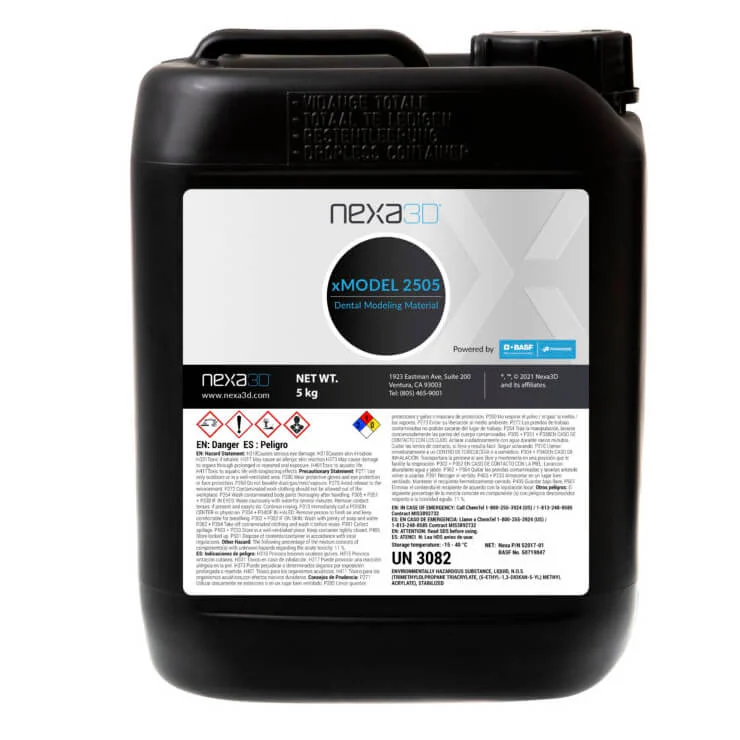

Nexa3D xMODEL 2505 Dental Model Resin – Thermoforming Grade for NXE 400 | 5 kg
High-resolution dental model resin — beige, meth-acrylate based, formulated with BASF Forward AM. Built for dental models, removable dies and thermoformed appliance formers on the Nexa3D NXE 400 and NXD200, with curing profiles developed for 100 µm and 50 µm layer heights and room-temperature processing. Printed models wash in water only, with no finishing detergents required, then UV post-cure. Supplied in 5 kg bottles from US stock.
$501
What your process engineer actually checks
What the data sheet actually covers
xMODEL 2505 is a dental MODEL material — models, removable dies and thermoforming formers. Nexa3D publishes cure profiles for 100 µm and 50 µm on the NXE 400 and NXD200, plus mechanical data to ASTM D638 and D790. It carries no ISO 10993 or medical device certification, so we do not position it for patient contact.
A materials engineer on the line
Questions on cure settings, finishing or switching from another resin? Our engineers run Nexa3D LSPc resins in-house. Sub-4h reply, NDA standard.
Nexa3D xMODEL 2505 is a beige, meth-acrylate dental model resin formulated with BASF Forward AM for high-resolution models, removable dies and thermoforming formers. It prints on the Nexa3D NXE 400 and NXD200 with published cure profiles at 100 µm and 50 µm, and finished models wash in water alone — no finishing detergents.
Why dental labs choose xMODEL 2505
Model-grade stiffness, two validated layer profiles and a water-only wash.
2500 MPa Young’s modulus
Model-grade stiffness. Dies and arch models keep their geometry under thermoforming pressure and repeated seating on the bench.
50 µm and 100 µm profiles
Nexa3D publishes cure settings at both layer heights, so you trade surface detail against throughput without re-deriving exposure.
Water wash, no detergents
Printed models rinse in plain water before UV cure. No finishing detergent inventory and one less solvent step on the lab bench.
Formulated with BASF Forward AM
54 MPa tensile at break and 83 MPa flexural strength, from a lot-traceable chemistry developed with BASF Forward AM.
How we supply xMODEL 2505
From vendor validation to the cure chamber in your lab.
Formulated & tested
xMODEL 2505 is developed with BASF Forward AM and validated on the NXE 400 and NXD200 at 100 µm and 50 µm before it reaches our catalogue.
Stocked & lot-matched
5 kg bottles ship from US stock in two business days, batch-traceable so a lab can repeat a model run months later on the same chemistry.
Print, wash & cure
Roll the bottle with ceramic beads for around 30 minutes, pour slowly into the vat, wash models in water only, then UV post-cure.
Physical and mechanical properties
| Property | Method | Value |
|---|---|---|
| Young’s modulus | ASTM D638 | 2500 MPa |
| Tensile stress at break | ASTM D638 | 54 MPa |
| Elongation at failure | ASTM D638 | 4% |
| Flexural strength | ASTM D790 | 83 MPa |
| Flexural modulus | ASTM D790 | 2150 MPa |
Printed properties depend on part geometry, orientation and post-cure. Values are typical, not a specification. Mechanical and physical properties depend heavily on printing parameters and part geometry; validated workflows may need adjusting for unusually thick or thin geometries.
Typical applications
Where dental labs put xMODEL 2505 to work.
Compatible printers & post-processing
xMODEL 2505 runs on the Nexa3D NXE 400 and the NXD200, with curing profiles developed for 100 µm and 50 µm layer heights. The resin is processed at room temperature — no bottle or vat pre-heating. Mix thoroughly before every print job: roll the bottle with ceramic beads for around 30 minutes, then pour slowly into the vat and let trapped bubbles clear before starting the build. Post-processing differs from most other Nexa3D LSPc resins — models wash with water only, with no finishing detergents required, and are then UV post-cured. Filter reclaimed resin back into the bottle rather than leaving it standing in the vat. xMODEL 2505 is not qualified for the XiP or XiP Pro desktop platforms.
Not sure xMODEL 2505 is the right resin?
Three alternatives from the same Nexa3D LSPc line.
Why source xMODEL 2505 through Additive Plus
- Genuine Nexa3D xMODEL 2505 — lot-matched 5 kg bottles from US stock, dispatched in two business days
- Validated LSPc exposure and cure profiles for the NXE 400 and NXD200 at 100 µm and 50 µm
- Materials engineers who run Nexa3D LSPc resins in-house — sub-4h reply, NDA standard
- Volume pricing and official purchase orders supported for dental lab production accounts
Downloads
| Brand | Nexa3D |
| Available colors | Beige |
| Weight | 5 kg |
| Country of origin | USA |
| Printing Materials | Resins |
| Technology | LSPc |
| Package | 5 kg bottle |
| Material form | Liquid photopolymer resin |
| Printer | NXD200, NXE 400 |
| Tensile Strength | 54 MPa |
| Tensile Modulus (MPa) | 2500 MPa |
| Elongation at Break (%) | 4% |
| Flexural Strength (MPA) | 83 MPa |
| Flexural Modulus (MPa) | 2150 MPa |
| Resin Type | Dental, General |
| Application | Engineering, Manufacturing |
Product videos
We stock the full Nexa3D LSPc resin line and support official purchase orders and volume pricing. Tell us your printer and monthly volume and we'll match the right resin and quantity.
