FGF 3D Printers
FGF (Fused Granulate Fabrication) 3D printers use cost-effective plastic pellets instead of filament, making them the ideal solution for large-scale parts and industrial applications. Designed for speed, efficiency, and flexibility, FGF machines allow you to print massive components at a fraction of the material cost. Perfect for automotive, aerospace, furniture, and prototyping industries, these printers deliver power, performance, and savings—available now for businesses ready to scale up production.
Heron AM configured with the High Accuracy (HA) extruder head — Caracol's 6-axis robotic large-format additive platform. 2 kg/h through 1–5 mm nozzles at up to 350°C, pellet-fed with optional hybrid CNC milling. EN9100 and ISO 9001 certified. Priced by configuration.
- ✓ 6-axis robotic LFAM — freeform geometries up to 15 m, beyond any gantry
- ✓ High Accuracy head: 2 kg/h, 1–5 mm, 350°C — fine detail, best surface finish
- ✓ EN9100 + ISO 9001 certified · lead time confirmed at quote
Made to order
· Lead time confirmed per configuration at quote. Talk to a specialist for a schedule.
Heron AM configured with the High Flow (HF) extruder head — Caracol's 6-axis robotic large-format additive platform. 30 kg/h through 5–14 mm nozzles at up to 450°C, pellet-fed with optional hybrid CNC milling. EN9100 and ISO 9001 certified. Priced by configuration.
- ✓ 6-axis robotic LFAM — freeform geometries up to 15 m, beyond any gantry
- ✓ High Flow head: 30 kg/h, 5–14 mm, 450°C — highest throughput, largest parts
- ✓ EN9100 + ISO 9001 certified · lead time confirmed at quote
Made to order
· Lead time confirmed per configuration at quote. Talk to a specialist for a schedule.
Heron AM configured with the High Versatility (HV) extruder head — Caracol's 6-axis robotic large-format additive platform. 12 kg/h through 2–8 mm nozzles at up to 450°C, pellet-fed with optional hybrid CNC milling. EN9100 and ISO 9001 certified. Priced by configuration.
- ✓ 6-axis robotic LFAM — freeform geometries up to 15 m, beyond any gantry
- ✓ High Versatility head: 12 kg/h, 2–8 mm, 450°C — broadest application span
- ✓ EN9100 + ISO 9001 certified · lead time confirmed at quote
Made to order
· Lead time confirmed per configuration at quote. Talk to a specialist for a schedule.
Large-format pellet extrusion 3D printer — 71×47×43 in / 1800×1200×1100 mm enclosed build, raw polymer granules, 1–8 mm nozzle selection, up to 15 kg/h. Optional 450°C high-temp nozzle for PEI+CF and engineering compounds. Material cost 5–10× lower than equivalent filament.
- ✓ Pellet feedstock — 5–10× lower material cost vs. filament at the same polymer
- ✓ 71×47×43 in / 1.8×1.2×1.1 m enclosed build — ~6× the FGF800, runs on single-phase 220 V
- ✓ Lead time: 8–10 weeks — configured to order, installed and trained on-site
Made to order
· Ships in 8–10 weeks from order placement. Need it sooner? Talk to a specialist.
Hybrid additive + subtractive large-format pellet 3D printer — 94×79×53 in / 2400×2000×1350 mm bed, raw polymer granules, 3–16 mm nozzles, up to 30 kg/h. Optional 450°C nozzle and integrated CNC milling. Material cost 5–10× lower than filament.
- ✓ Print + mill in one cell — near-net print, then machined surfaces without a second setup
- ✓ 94×79×53 in / 2.4×2.0×1.35 m bed — up to 30 kg/h, three-phase industrial
- ✓ Lead time: 8–10 weeks — configured to order, installed and trained on-site
Made to order
· Ships in 8–10 weeks from order placement. Need it sooner? Talk to a specialist.
Flagship hybrid additive + subtractive pellet 3D printer — 138×94×39 in / 3500×2400×1000 mm bed with integrated 5-axis CNC milling, raw polymer granules, 3–16 mm nozzles, up to 30 kg/h. Optional 450°C nozzle. Material cost 5–10× lower than filament.
- ✓ Print + 5-axis finish-machine in one setup — no crane move to a separate mill
- ✓ 138×94×39 in / 3.5×2.4×1.0 m bed — the largest one-piece molds Kings builds
- ✓ Lead time: 8–10 weeks — configured to order, installed and trained on-site
Looking for a smaller machine? Kings FGF800 from $34,200 · or have us print the part on our FGF line.
Made to order
· Ships in 8–10 weeks from order placement. Need it sooner? Talk to a specialist.

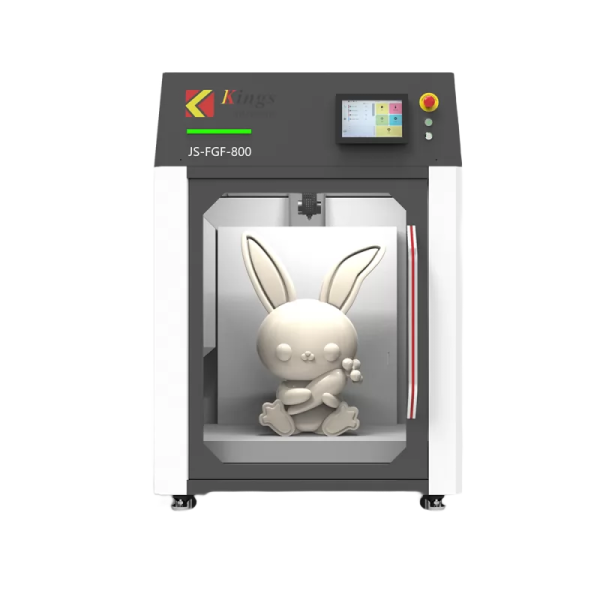

Large-format pellet extrusion 3D printer — 31×24×31 in / 800×600×800 mm, raw polymer granules, 0.4–2 mm nozzle selection. Optional 450°C nozzle for PEEK/PEKK/ULTEM. Material cost 5–10× lower than equivalent filament.
- ✓ Pellet feedstock — 5–10× lower material cost vs. filament at the same polymer
- ✓ Optional 450°C nozzle — PEEK, PEKK, ULTEM at 800×600×800 mm scale
- ✓ Lead time: 8–10 weeks — configured to order, installed and trained on-site
Made to order
· Ships in 8–10 weeks from order placement. Need it sooner? Talk to a specialist.Not sure which system fits?
Tell us your application. We'll send our top recommendation.
