Kings FGF2435 is commonly utilized in various industries such as sculpture making, furniture designing, toy manufacturing, art crafts, mold production, plaques, and landscape signs. It is particularly suitable for these applications due to its ability to directly convert raw materials into the print bed in a granular form. This feature allows for the printing of large projects, resulting in faster turnaround times and increased reliability. Additionally, Kings FGF2435 offers low material costs, fast printing speeds, and produces final products with high strength.
FGF2435 by Kings is an advanced technology that combines 3D printing and milling into one machine, reducing manufacturing costs by up to 90%. It is widely used in industries like space, aerospace, naval, and automotive.
- Printing technology – FGF
- Printing material – plastic pellet
- Nozzle Heating Method – four-zone intelligent heating
- Printing area – 138x94x39 in / 3500x2400x1000mm

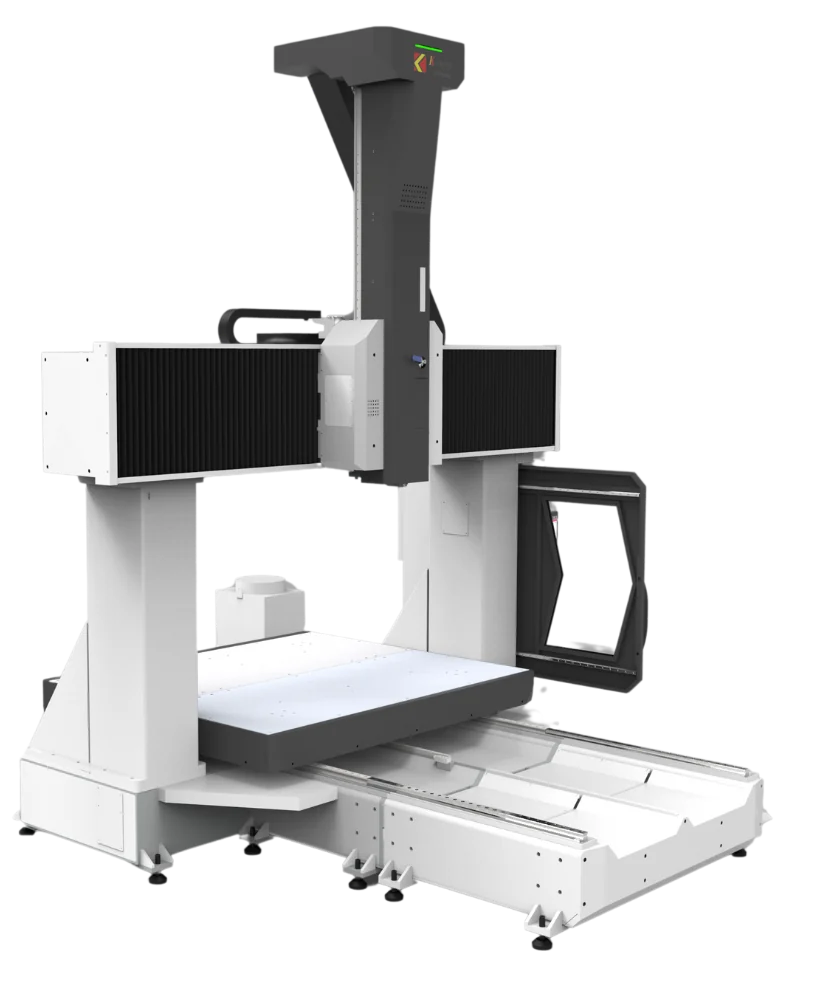

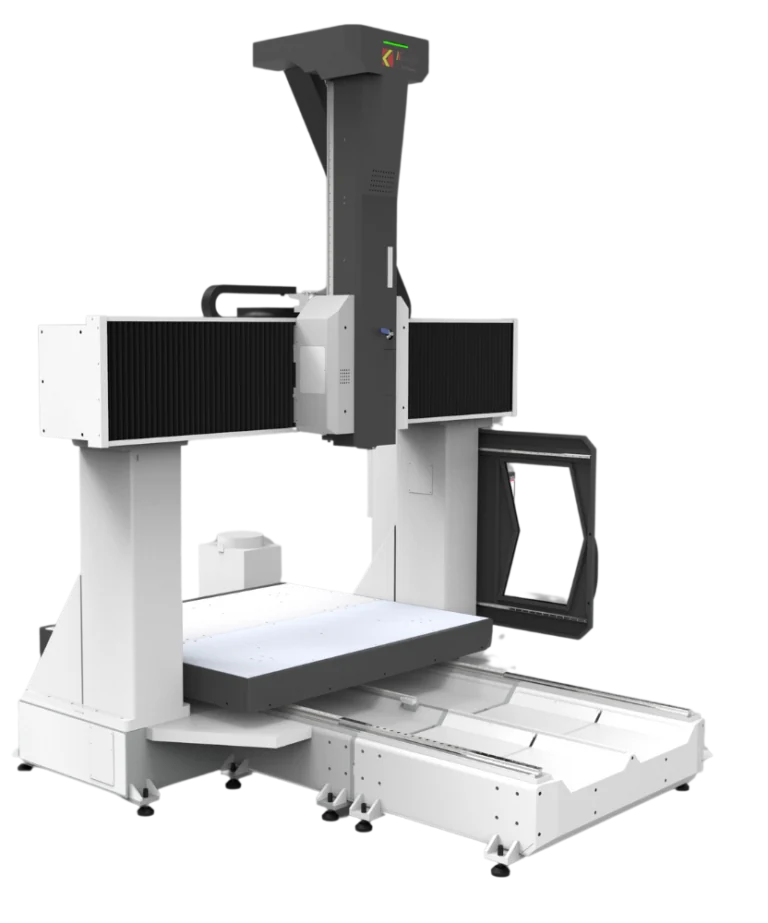

Kings FGF2435 3D Printer
Efficient Industrial FGF 3D Printer. Large Format. Open Platform.
Details
| Weight | 24251 lbs |
|---|---|
| Dimensions | 286.5 × 154 × 172.6 in |
| Build Volume | 138x94x39 in / 3500x2400x1000mm |
| Brand | |
| Rated Power Consumption | 10kW |
| 3D printers | FGF |
| Printing material | Polymer composites |
| Machine model | FGF-1600 |
| Molding technology | Fused granular fabrication |
| Working surface temperature | ≤120 degrees Celsius |
| Workbench contact surface | Magnetic platform/tempered glass |
| Optional nozzle diameter | 0,12-0,47in 3-12mm |
| The maximum temperature of the nozzle | ≤350 degrees Celsius (500 degrees Celsius is optional) |
| Nozzle heating method | Four-zone intelligent heating |
| Printing connection method | SD/USB/WiFi |
| Slicing supported formats | STL/OBJ/AMF/3MF |
| Compressed air pressure | 0.6MPA |
| Materials | PLA/PETG/ABS/PC/PA/HDPE/TPU/TPV/EVA |
| Material particle diameter | 0,039-0,197in 1-5mm |
| Storage hopper volume | 132,3Lb 60kg |
| Automatic feeder | Integrated |
| Chamber heating | Option |
| Drive mode | Servo motor |
| Power supply voltage | Single-phase AC 220V |
Description
Kings FGF2435 converts raw material directly to the print bed in a granular form. It is designed to print big projects, resulting in shorter turnaround times and more reliability with low material cost, fast printing speed, and the final product with high strength. It is widely used for sculpture making, furniture designing, the toy industry, art crafts, mold manufacturing, plaques, landscape signs, etc. FGF2435 by Kings is an advanced technology that combines 3D printing and milling into one machine, reducing manufacturing costs by up to 90%. It is widely used in industries like space, aerospace, naval, and automotive.
MULTI-ZONE HEATING BUILD PLATE
- The build plate has multiple heating zones that can be controlled independently. This allows for selective heating of different areas to prevent unnecessary power consumption. The build plate can reach a maximum temperature of 145°C.
- The build plate is designed to release stress and maintain a flat surface, ensuring the stability of the workpiece. When a single area of the build plate is heated to 100°C, the flatness error is ≤0.2mm/㎡.
ADVANCED PROCESS CONTROL
- The Advanced Process Control system includes a self-developed, all-digital bus-type high-end CNC device. It supports the self-developed NCUC bus protocol and EtherCAT bus protocol, allowing for compatibility with bus-type full-digital servo drive units, absolute servo motors, and remote I/O units. It also integrates a handheld unit interface. The system features a dual IPC unit structure, with high-end CNC system functions such as high-speed and high-precision machining control, five-axis linkage control, multi-axis and multi-channel control, two-axis synchronous control, and error compensation. The system has a user-friendly and humanized HMI, as well as a unique intelligent APP platform and network communication capabilities for digital workshops.
Kings FGF2435 3D Printer ADVANTAGES

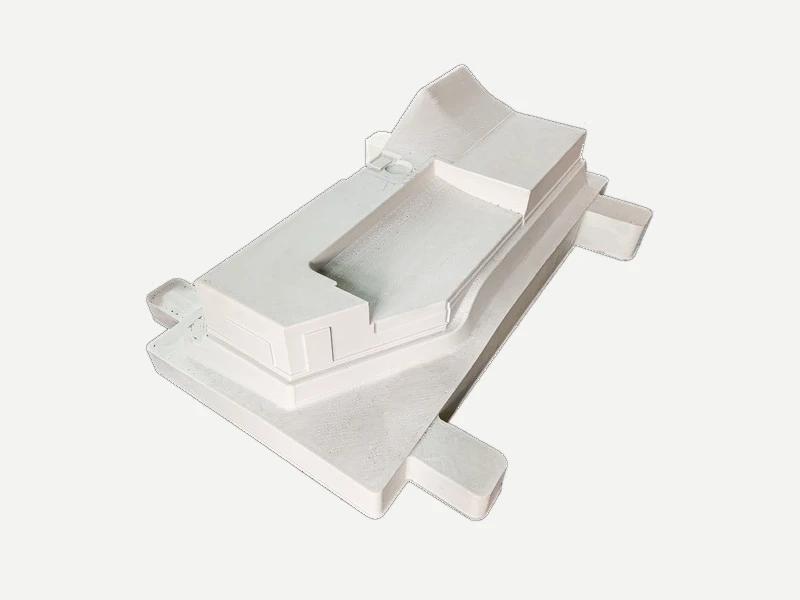

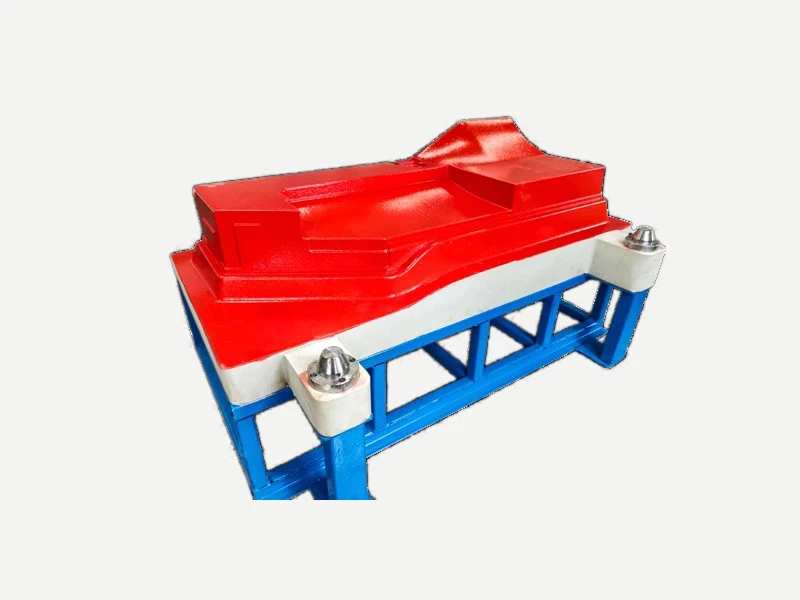

HIGH SPEED MOLD MANUFACTURING. 1 WEEK INSTEAD 1 MONTH
The traditional process of manufacturing aluminum steel molds typically takes 1-2 months. However, with Kings’ integrated manufacturing process, which involves both adding and subtracting materials, molds can be produced and put into production within just 1-2 weeks. This allows for the timely adaptation of molds to keep up with product design updates, significantly reducing the product design time and R&D cycle for businesses. It also improves workflow efficiency in creative applications, resulting in faster output of finished products.
A PRINTED VASE EXAMPLE
Here is an example of a vase that was printed using Kings FGF 3D printer and you can check the weight of the vase and the printing speed.
Size of the vase | 641 x 631 x 1250mm |
Weight | 11.2 kg |
Line width | 5 mm |
Layer thickness | 2 mm |
Printing time | 6 hours |
WIDE RANGE OF MATERIALS AND REDUCED MATERIAL COST
Another advantage of using Kings FGF 3D printers is the lower material cost. These printers use an extrusion-based process, which allows for the direct conversion of raw materials onto the print bed. This means that the products produced can be used outside. Additionally, the rapid additive and subtractive prototyping process used by these printers minimizes waste material, resulting in high material utilization. Overall, this leads to lower material costs and improved reliability, as well as shorter turnaround times.
LARGE BUILD VOLUME. 3D PRINTING FOR LARGE PARTS
The large build volume, allowing for the printing complex projects in a single print job. One of the advantages of using Kings FGF printers is their ability to accommodate large printing sizes. These printers offer incredibly large printing and milling sizes, with the largest printing size reaching 3500*2400*1000mm. This makes them suitable for various applications such as printing large parts, functional testing, mold making, and creating full-scale prototypes. With this capability, Kings FGF printers provide users with the flexibility to create larger and more complex objects.
TYPICAL APPLICATIONS

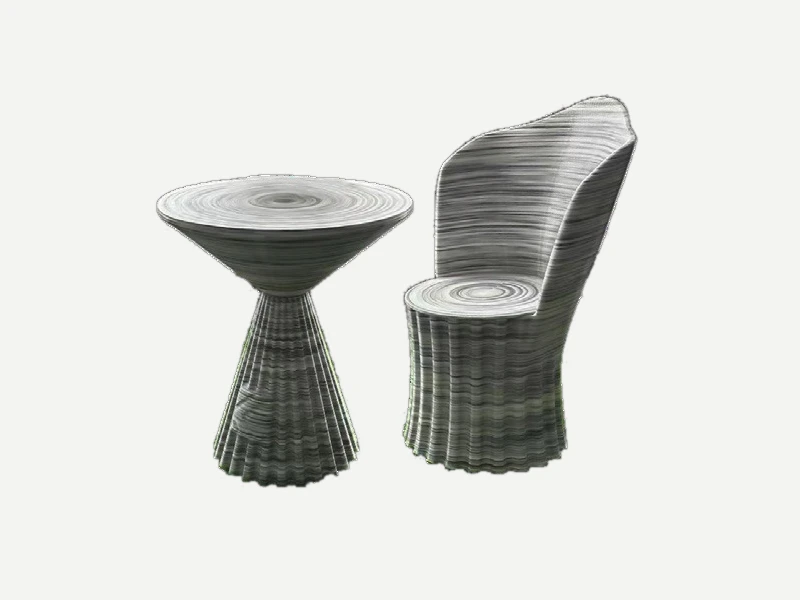

FURNITURE AND DESIGN. In response to the increasing and varied market demand, we have introduced our FGF solution, which offers a more cost-effective and time-saving option. Service providers in the cutting-edge industry are utilizing 3D printing technology for the production of complex geometries. This technology is widely used in various industries such as sculpture making, furniture design, toy manufacturing, art crafts, mold production, and even the creation of landmarks.
OVERSIZE DISPLAYS. These displays are created using 3D printing technology, which allows for the production of complex and intricate designs. They are commonly used in industries such as advertising, marketing, and event planning to create eye-catching and attention-grabbing displays that effectively promote brands and products. The use of FGF technology in the production of oversize displays offers a cost-effective and time-saving solution for businesses looking to create impactful visual experiences.
Generally, Kings 3D has successfully catered to the demands of the heavy industry, where there is a significant need for fast and large-scale production. This includes various applications such as bicycle manufacturing, automotive production, yacht building, rail construction, and marine engineering.
In the video you can see how the FGF 3D printer works:
