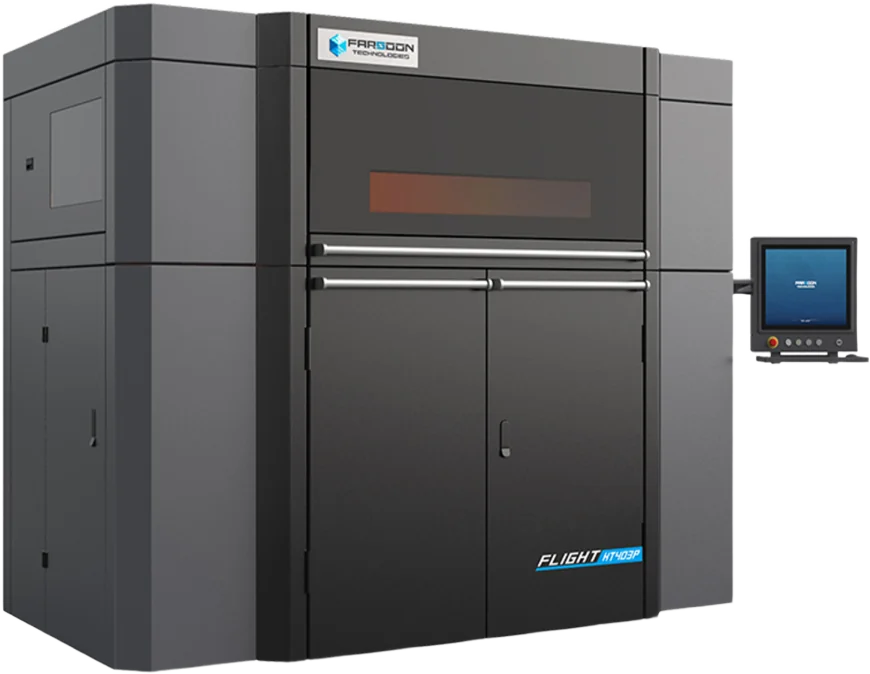

Farsoon Technologies — Flight® 403P Series

Introducing FLIGHT® Technology



Farsoon is one of the first machine manufacturers to develop production-targeted industrial LPBF solutions using robust Fiber Lasers. The FLIGHT® Technology unlocks the next level of laser powder bed fusion productivity for industrial-quality parts offering extremely fine details. Also, thanks to the advanced laser powder bed fusion technology, additive agents and other consumables are not required; therefore, enabling lower operational cost and sustainable manufacturing.

  • Powerful single 500-watt fiber laser enable superior production speed
  • Industrial-scale build envelope up to 400 x 400 x 540 mm
  • Featured details as small as 0.3mm
Categories: ,

Description

Farsoon is one of the first machine manufacturers to develop production-targeted industrial LPBF solutions using robust Fiber Lasers. The Flight® Technology unlocks the next level of laser powder bed fusion productivity for industrial-quality parts offering extremely fine details. Also, thanks to the advanced laser powder bed fusion technology, additive agents and other consumables are not required; therefore, enabling lower operational cost and sustainable manufacturing.

FIBER
Equiped with powerful fiber lasers in place of the standard CO2 lasers, Flight® HT403P is capable of delivering greatly increased power to the powder
bed. Due to the more robust and stable nature of a fiber laser system, Flight® Technology also provides improved laser longevity which is key when
considering ROI for manufacturing applications.


FAST
With robust laser power, improved energy distribution to the material, and smaller laser spot size, Flight® Technology is able to achieves the full
sintering of powder in a significant short amount of time. With scanning speed of over 20m/s (66 ft/s) as well as the large build volume, Flight®
HT403P is able to achieve extreme sintering speeds that pushes the additive manufacturing productivity to a new level.


FINE
Developed with a new set of unique scanning algorithms and a powerful dynamic optical system, Flight® Technology is able to achieve a more
homogenous energy distribution over the processing surface. This results in improved feature detail compared to other plastic powder-based
technologies with feature details as small as 0.3mm (0.012 inch) while still achieving the part property benefits of standard laser sintering.


OPEN PLATFORM
Like all Farsoon systems, FLIGHT® HT403P is offered with fully open machine parameters and unlocked matreial choices. In addition with its
increased power and energy absorption characteristics Flight® Technology will be capable of accessing a much different range of process-able
materials and operational flexibility as compared to standard laser sintering systems, which allows for increased freedom for future AM material and
application development

Industrial Applications with Flight® 403P Series

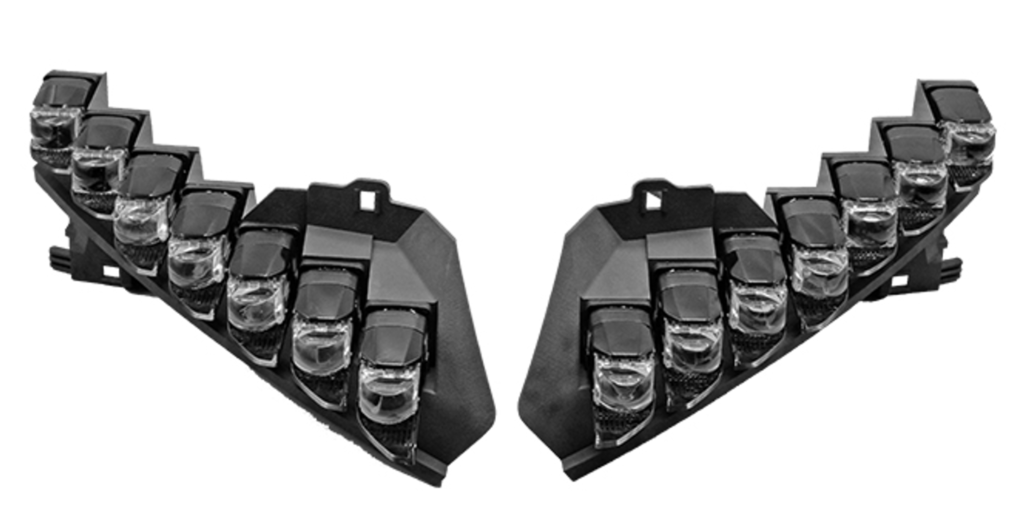

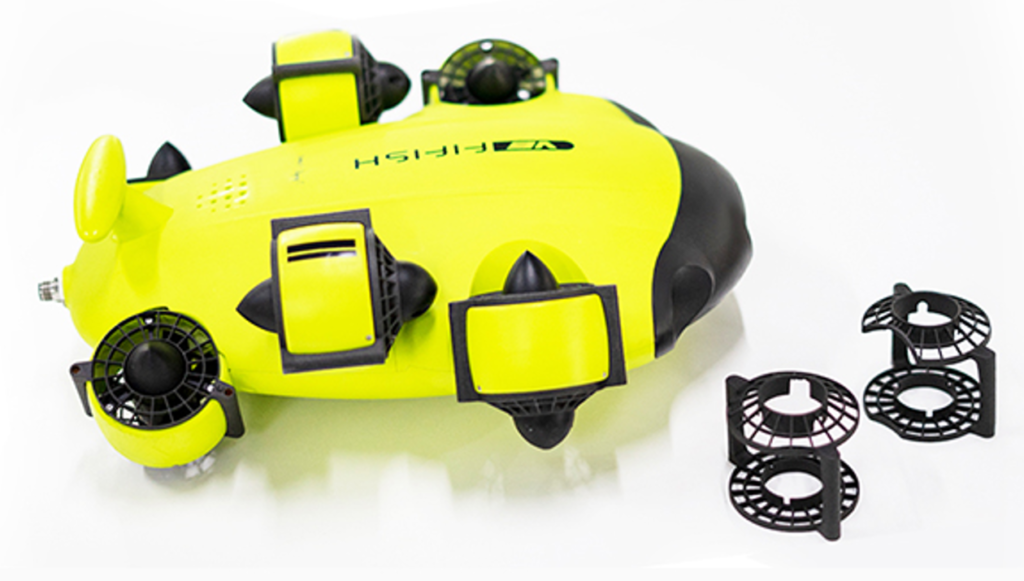

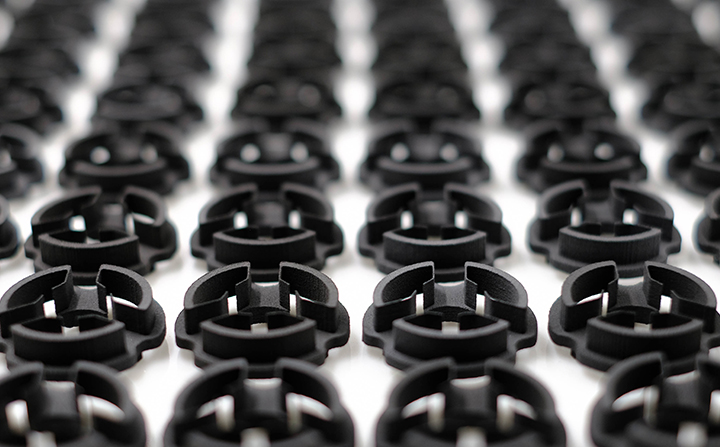

The optimal performance of Flight® 403P Series combining extreme sintering speed and high feature resolution has opened up many potential markets and applications for true series production, such as electronic components, robotics, specialized tools & models, battery units, filter modules as well as many consumer products.

Additional information

External Dimensions (L×W×H)

2470×1500×2145 mm ( 97.2×59.1×84.4 in )

Build Cylinder Size1 (L×W×H)

400×400×450 mm ( 15.7 × 15.7 × 17.7 in ) or 400×400×540 mm ( 15.7 × 15.7 × 21.3 in)

Laser Spot Size

Approx. 100 μm contour, Approx. 550 μm fill

Net Weight

Approx. 3000 KG ( 6613.9 lb)

Laser Type

Fiber Laser, 1×500W

Scanner

High-precision three-axis digital galvo system

Layer thickness

Volume

Up to 6 L/h

Scanning Speed

Max. 20 m/s (65.6 ft/s)

Max. Chamber Temperature

220°C ( 428 ℉ )

Thermal Field Control

Multi-zone heater & intelligent temperature control systems

Temperature Regulation

Continuous real-time build surface temperature monitoring & optimization

Operating system

64 bit Windows 10

Software

BuildStar, MakeStar®

Data File Format

STL

Key Software Features

Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions

Inert Gas Protection

Nitrogen

Power Supply

EUR/China: 380-400V, 50/60Hz, three-phase
US: transformer sold with machine

Operating Ambient Temperature

22 – 28 °C (71.6-82.4 ℉)

Materials

FS3201PA-F, FS3300PA-F, FS3401GB-F, LUVOSINT®, TPU X92A-1064 WT
