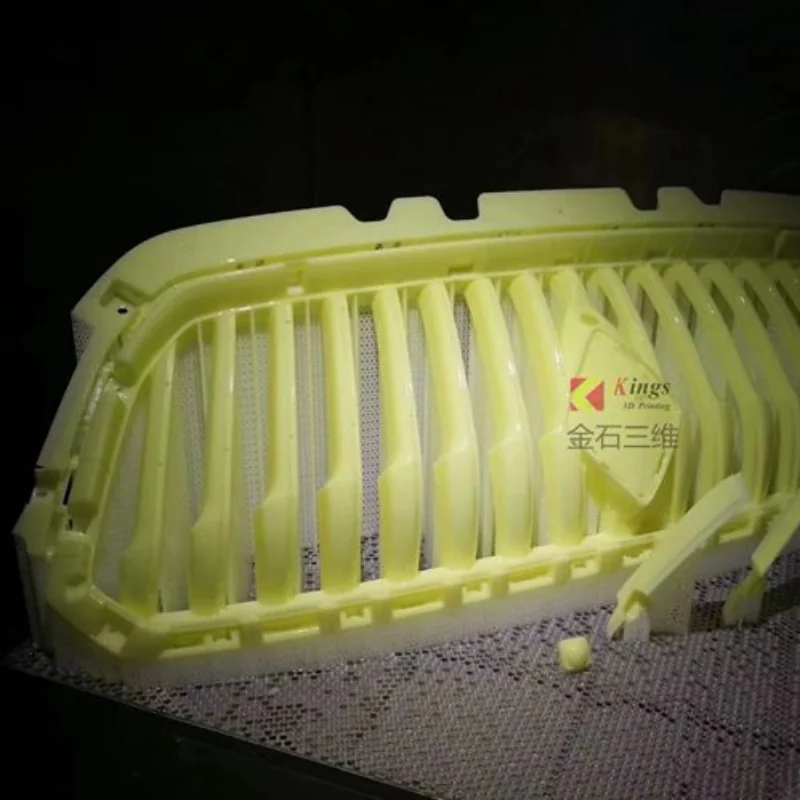

KS608A is a high tough SLA resin for accurate and durable parts, which has all the benefits and convenience associated with KS408A but is significantly stronger and resist to higher temperature. KS608A is in light yellow color. It’s applicable for a wide range of applications, ideal for functional prototypes, concept models and low volume production parts inthe field of automotive, architecture and consumer electronics industries. KS608A UV Resin is a commonly used 3D printing material with accuracy and durability. Similar to the plastic properties of ABS, it is used in stereolithography (SLA) 3D printers.

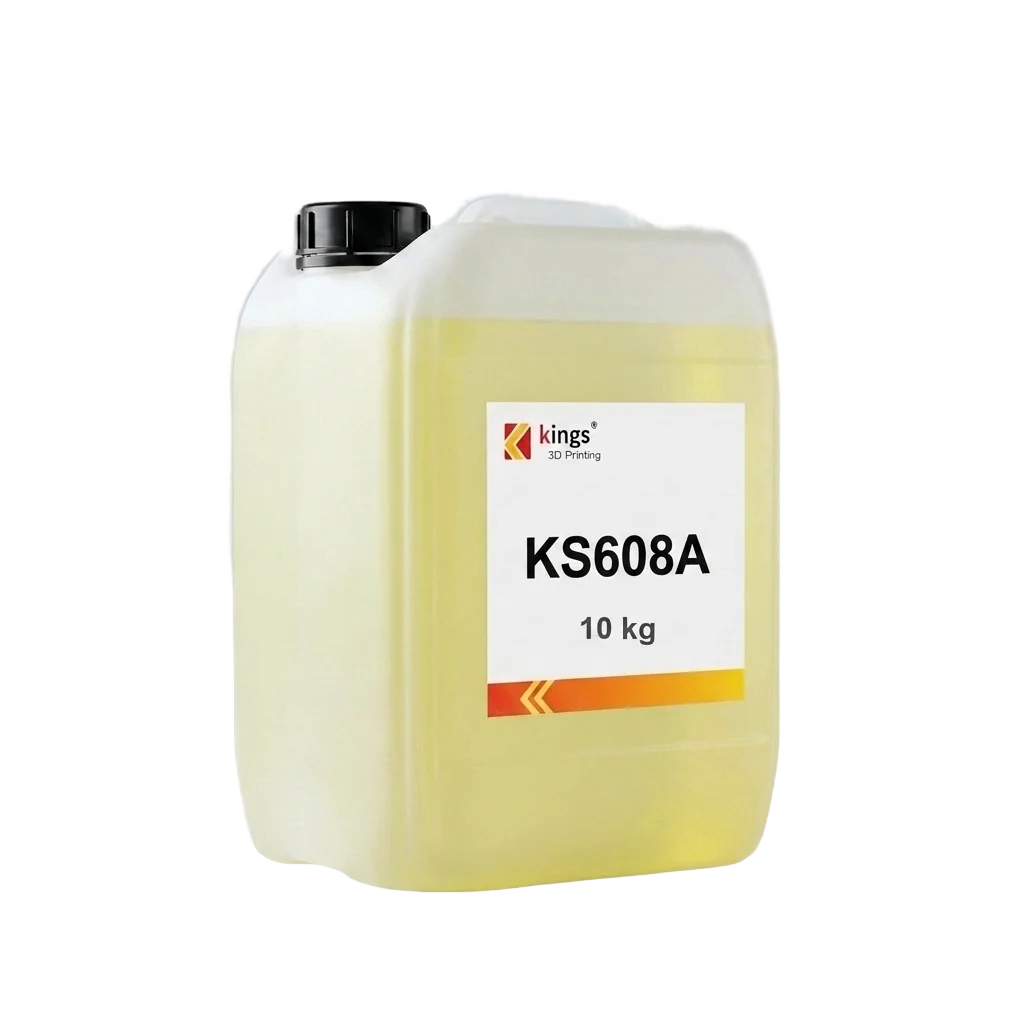

KS608A UV SLA Resin
KS608A UV Resin is a high tough SLA resin resistant to high temperatures for accurate and durable parts.
Details
| Brand | |
|---|---|
| Country of origin | China |
| Appearance | Light yellow |
| Density | 1.11-1.14g/cm³ at 25 ℃ |
| Viscosity | 355-455 cps at 28 ℃ |
| Dp | 0.0053-0.0061in / 0.135-0.155mm |
| Ec | 9-12 mJ/c㎡ |
| Building layer thickness | 0.0019-0.0059in / 0.05-0.15mm |
| Hardness, Shore D | 76-82 (ASTM D 2240) |
| Flexural modulus, Mpa | 2,650-2,760 (ASTM D 790) |
| Flexural strength, Mpa | 65- 74 (ASTM D 790) |
| Tensile modulus, MPa | 2,160-2,360 (ASTM D 638) |
| Tensile strength, MPa | 25-30 (ASTM D 638) |
| Elongation at break | 12 -20 % (ASTM D 638) |
| Impact strength, notched lzod, J/m | 58 – 70 (ASTM D 256) |
| Heat deflection temperature, ℃ | 58-68 (ASTM D 648 at 66 PSI) |
| Glass transition, Tg，℃ | 55-70 (DMA，E”peak) |
| Density, g/cm3 | 1.14-1.16 (UV Postcure) |
Description
TYPICAL FEATURES
– Liquid resin`s medium viscosity, so easy recoating, easy clean parts and machines.
– Improved strength retained, improved dimensions retention of parts in humid condition.
– Need minimal part finishing.
– Long shelf life in machine.
TYPICAL BENEFITS
– Need less part finishing time, easier post-curing.
– Buliding accurate and high tough parts with an improved dimensional stability.
– High quality controls for vacuum casting parts.
– Color is more close to the ABS.
– Outstanding machinable SLA material.
PHYSICAL AND MECHANICAL PROPERTIES
INDUSTRIAL APPLICATIONS
