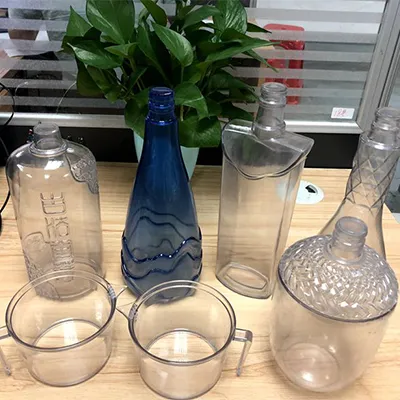

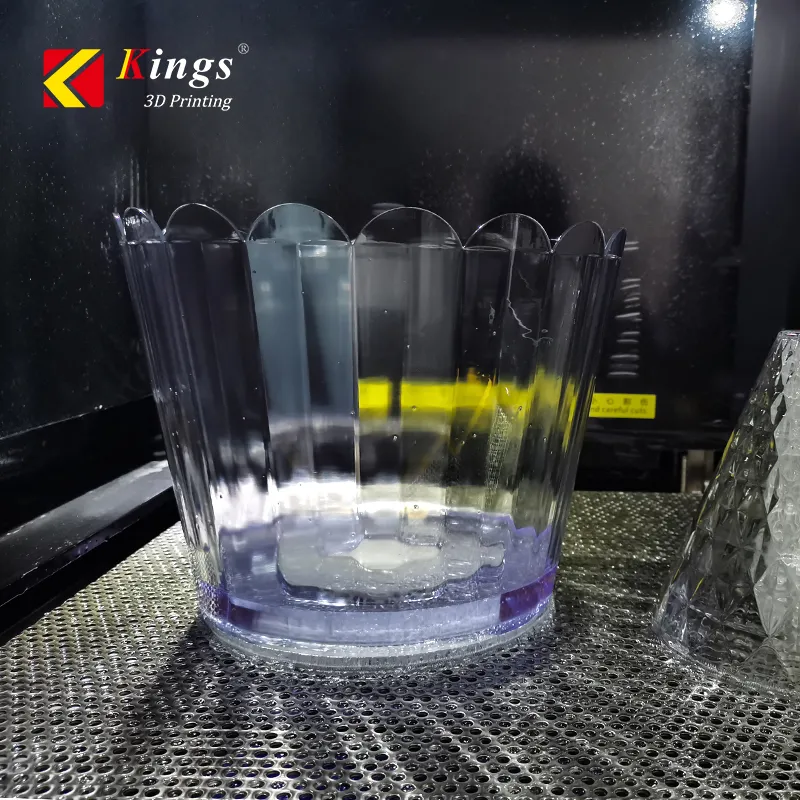

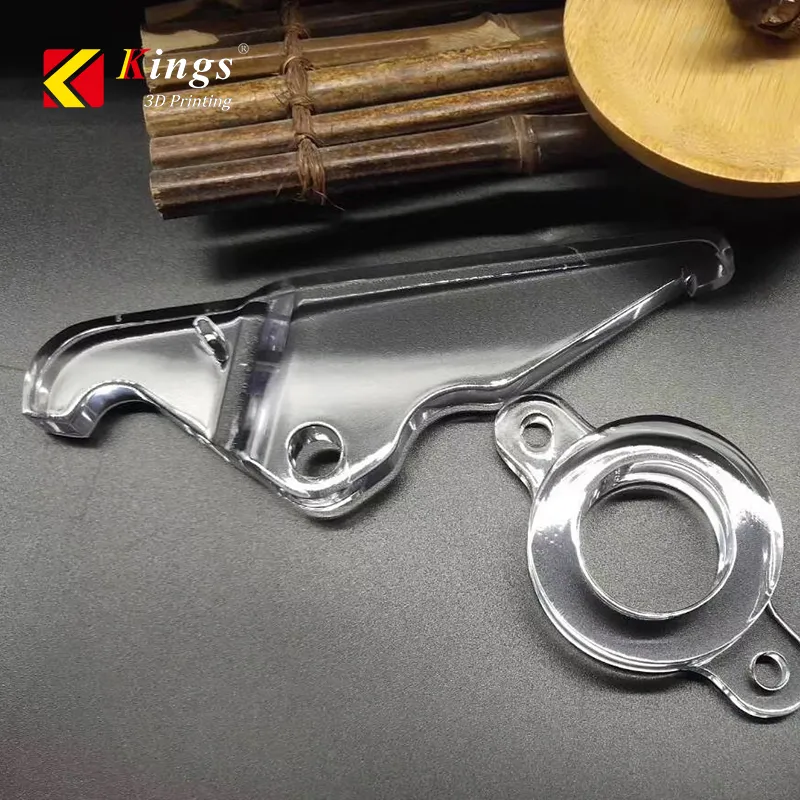

KS158T UV Resin is an optically transparent resin with properties similar to PMMA, with high transparency and accuracy for quickly prodcuing clear, functional and accurate parts with acrylic appearance. It’s fast to build and easy to use. The ideal application is transparent assemblies, bottles, tubes, automotives lenses, lighting components, fluid flow analysis and etc., and also tough funcitonal prototypes.
KS158A Transparent UV SLA Resin
KS158T UV SLA Resin is an optically transparent SLA resin ideally applicable for parts with acrylic appearance and light components.
Details
| Brand | |
|---|---|
| Country of origin | China |
| Appearance | Transparent |
| Density | 1.12g/cm3 at 25 ℃ |
| Viscosity | 408 cps at 26 ℃ |
| Dp | 0.0071in / 0.18mm |
| Ec | 6.7 mJ/c㎡ |
| Building layer thickness | 0.0039in / 0.01mm |
| Hardness, Shore D | 72-78 (ASTM D 2240) |
| Flexural modulus, Mpa | 2,680-2,775 (ASTM D 790) |
| Flexural strength, Mpa | 65- 75 (ASTM D 790) |
| Tensile modulus, MPa | 2,170-2,385 (ASTM D 638) |
| Tensile strength, MPa | 25-30 (ASTM D 638) |
| Elongation at break | 12 -20 % (ASTM D 638) |
| Impact strength, notched lzod, J/m | 58 – 70 (ASTM D 256) |
| Heat deflection temperature, ℃ | 50-60 (ASTM D 648 at 66 PSI) |
| Glass transition, Tg，℃ | 55-70 (DMA，E”peak) |
| Density, g/cm3 | 1.14-1.16 (UV Postcure) |
Description
TYPICAL FEATURES
– The medium viscosity of the liquid resin makes the re-coating as well as the machine and parts cleaning easier.
– Improved strength and dimension retention in humid condition.
– Good grid strength, so need minimal part finishing.
TYPICAL BENEFITS
– Superior clear,building parts with outstanding clarity and excellent accuracy.
– Need less part finishing time,easier post-curing.
PHYSICAL AND MECHANICAL PROPERTIES
INDUSTRIAL APPLICATIONS
