OptimScan-5M Plus 3D scanner is a high-precision 3D inspection scanner with narrow-band blue light source and upgraded high-resolution industrial lens, it provides better detail performance in scanning and smoother data quality. Three sets of high-resolution industrial lenses are used according to different size object, making it more flexible and adapt- able. It is widely applied in reverse engineering, quality inspection and quality control.
- Country of manufacture – China
- Scan Speed – ≤ 1.5 s
- Design – Flexible structure for machine driven shopfloor environment
- Dimensions – 17.12×11.81×7.87 in / 435×300×200 mm
- Weight – 14.99 lbs / 6.8 kg
Three product types are available: 5M Plus-100; 5M Plus-200; 5M-Plus-400 varying by single scan range, single shot accuracy and point distance values.

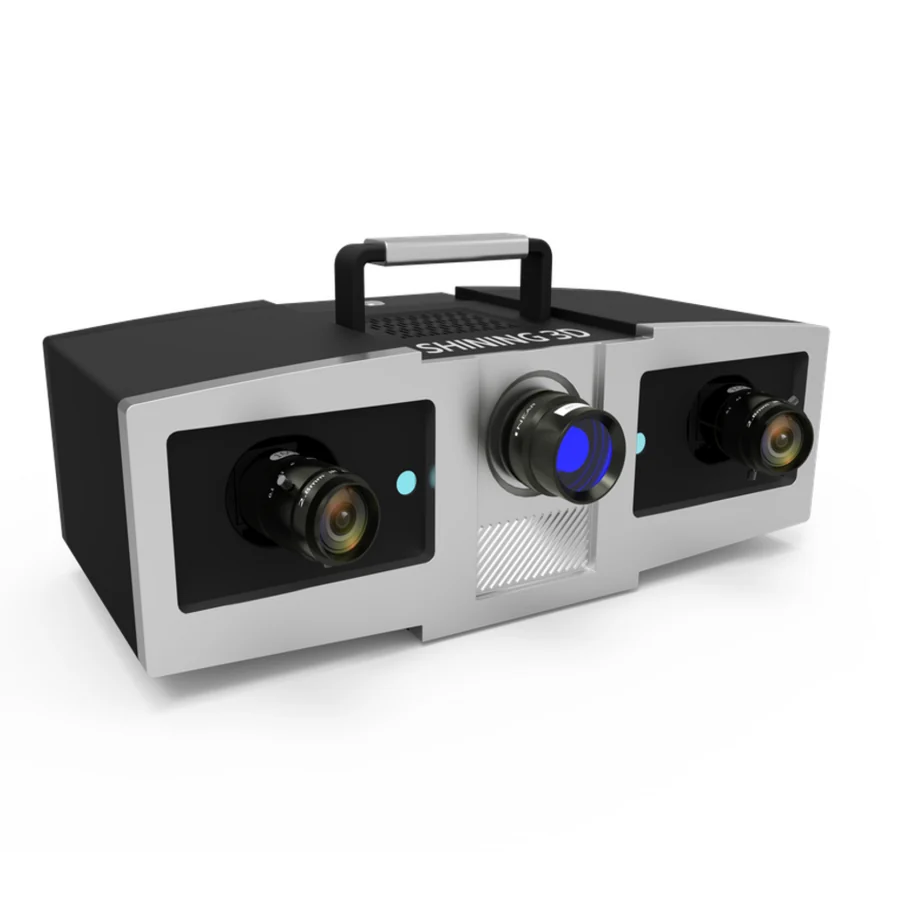

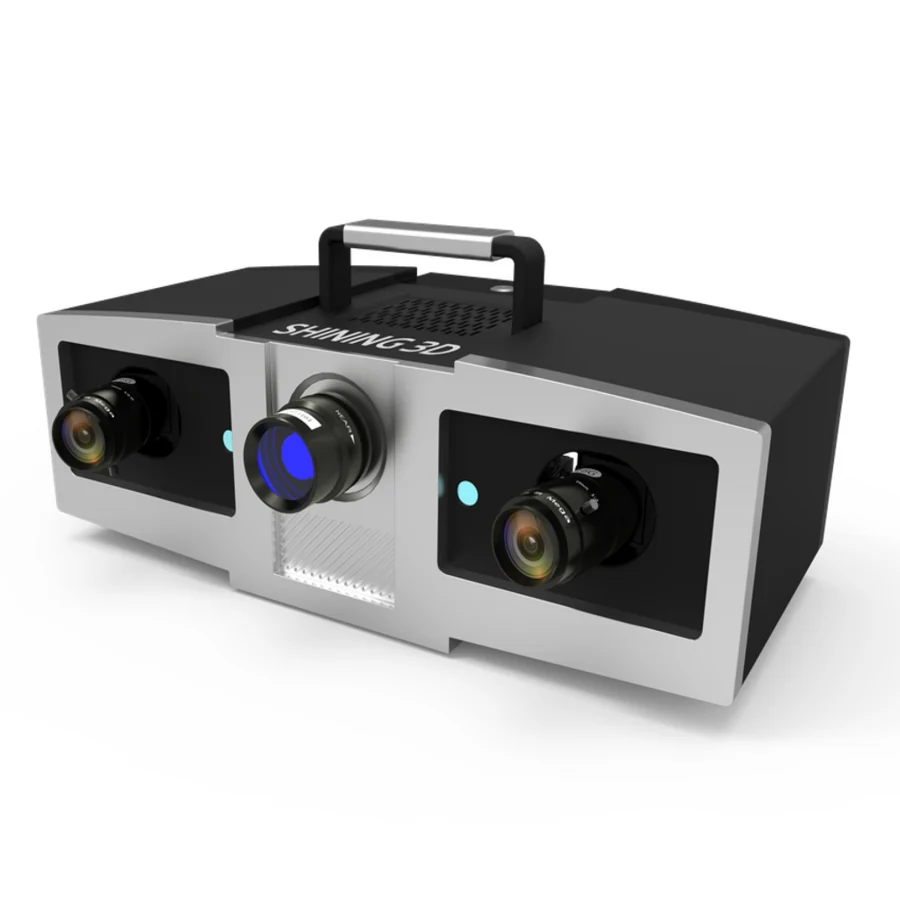

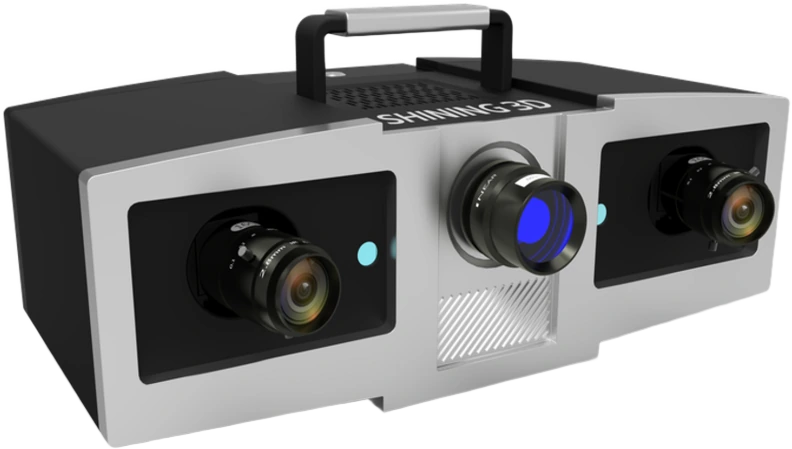

OptimScan-5M Plus 3D scanner
OptimScan-5M Plus 3D scanner: high-precision 3D inspection solution providing detailed scanning performance and smoother data quality.
Details
| Brand | |
|---|---|
| Country of origin | China |
| Scan Method | Non-contact structure light scanning |
| Point Distance | 5M Plus-100: 0.00157in / 0.04mm |
| Single Scan Range | 5M Plus-100: 3.93×2.95in / 100x75mm |
| Single Shot Accuracy | 5M Plus-100: 0,00019in / 0.005mm |
| Working Distance | 22.04in / 560mm |
| Light Source | Blue light (LED) |
| Scan Rate | ≤1.5s |
| Camera Resolution | 5.0 MP x 2 |
| Operating temperature range | 0~40 °C (32~104°F) |
| Operating humidity range | 10~90 % RH |
| Recommended PC configuration | Graphics card: NVIDIA GTX 1080 or above; Video memory: ≥4 G; Processor: above i7 8700; Memory: ≥32 GB |
| Data transfer interface | USB 3.0 |
| Dimensions | 17.12×11.81×7.87in / 435×300×200mm |
| Weight | 14.99lbs / 6.8kg |
Description
OptimScan-5M Plus 3D scanner is a high-precision 3D inspection scanner with narrow-band blue light source and upgraded high-resolution industrial lens, it provides better detail performance in scanning and smoother data quality. Three sets of high-resolution industrial lenses are used according to different size object, making it more flexible and adapt- able. It is widely applied in reverse engineering, quality inspection and quality control. OptimScan-5M Plus is the ideal companion for a fully automated, machine driven shopfl oor environment. It´s fl exible structure allows to use it on a fixed tripod as well as in conjunction with robotic systems. The innovative blue light 3D scanning technology is ideal for the precise scanning of small to medium sized filigree and complex objects with an outstanding accuracy capacity powered by three sets of 5.0 mega pixel cameras. The versatility and simplicity of the software enable the OptimScan 5M Plus to adapt perfectly to demanding batch inspection tasks as well as single case inspection jobs. In terms of data processing, OptimScan 5M Plus comes with an easy-to-use intuitive operation software and the scanning data can be imported into any mainstream inspection software in the market.
3D inspection & Printing
design
education
digital archiving
culture & art
vr & ar
OptimScan-5M Plus 3D Scanner Features & Applications
HIGH RESOLUTION
Three sets of 5 megapixel high resolution cameras and 1080P projection are used to obtain high precision features.
HIGH ACCURACY
Single shot accuracy can reach up to 0.005mm, scanner provides the function of environmental vibration detection and effectively ensure high quality data and precision.
MULTIPLE SCAN RANGE
The system realizes different scanning range by switching of different lenses to ensure a finer scanning performance.
HDR FUNCTION
The HDR function helps to scan high contrasted objects like black and white objects to get complete data.
ONE-CLICK INTEGRATION MODULE FUNCTION
The system integrates the “one-click” automatic markers alignment module and the GREC global deviation control module, which effectively reduces alignment errors and get high-quality data with high precision.
COMPATIBLE WITH MAINSTREAM SOFTWARE
Support multiple data formats Support mainstream reverse design or 3D inspection software
WORKFLOW WITH THIRD-PARTY SOFTWARE
3D INSPECTION PROCESS
Import Data
Support a variety of data model formats, compatible with data captured by various mainstream scanner and CAD digital data of various mainstream design software.
Alignment Compare
The RPS reference positioning system and the reference alignment function achieve high-precision automatic alignment. It can effectively ensure the accuracy of deviation analysis. Multiple deviation analysis functions can be used to meet the different needs.
Measurement Evaluation
It supports dimensions of ASMEY14.5GD&T tolerance and geometric. The software can also automatically calculate the deviation between reference and actual value, and get the accurate calculation result.
Generate Report
Automatically generate inspection reports based on predefined templates. Analysis images and calculation results can be quickly exported. it improves inspection efficiency
REVERSE ENGINEERING PROCESS
Data Processing
Data processing method like align, optimize, merge, holes fill, simplify, and smooth can obtain high-quality triangular mesh models.
Feature Extraction
Automatically classify the mesh into different colored geometric regions based on curvature and features of the scan data, extract design parameters, and automatically create sketch profiles.
Exact Fit
Mesh-based fitting algorithms create NURBUS surfaces, easily and quickly creating 3D free-form bodies from free-form shapes of meshes.
CAD Conversion
Create CAD features, hybrid solid and surface models from scan data, it covers different objects to ensure model accuracy.
