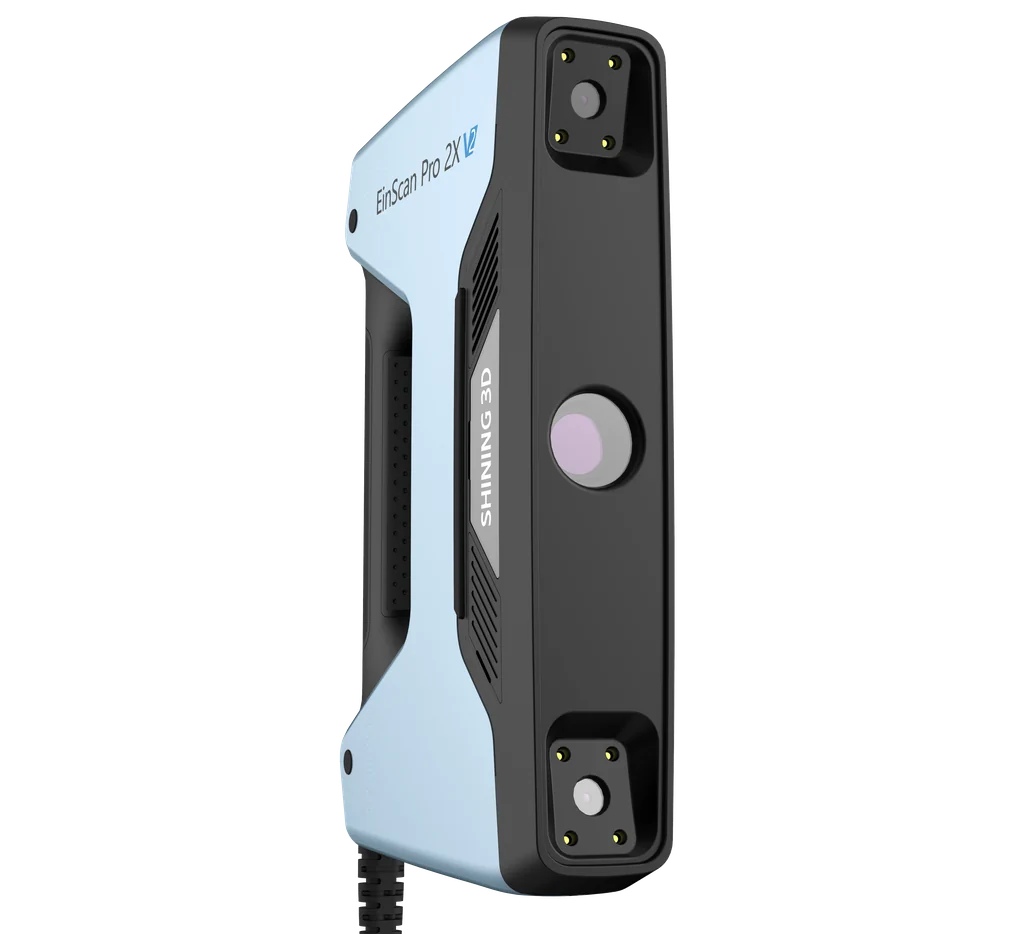

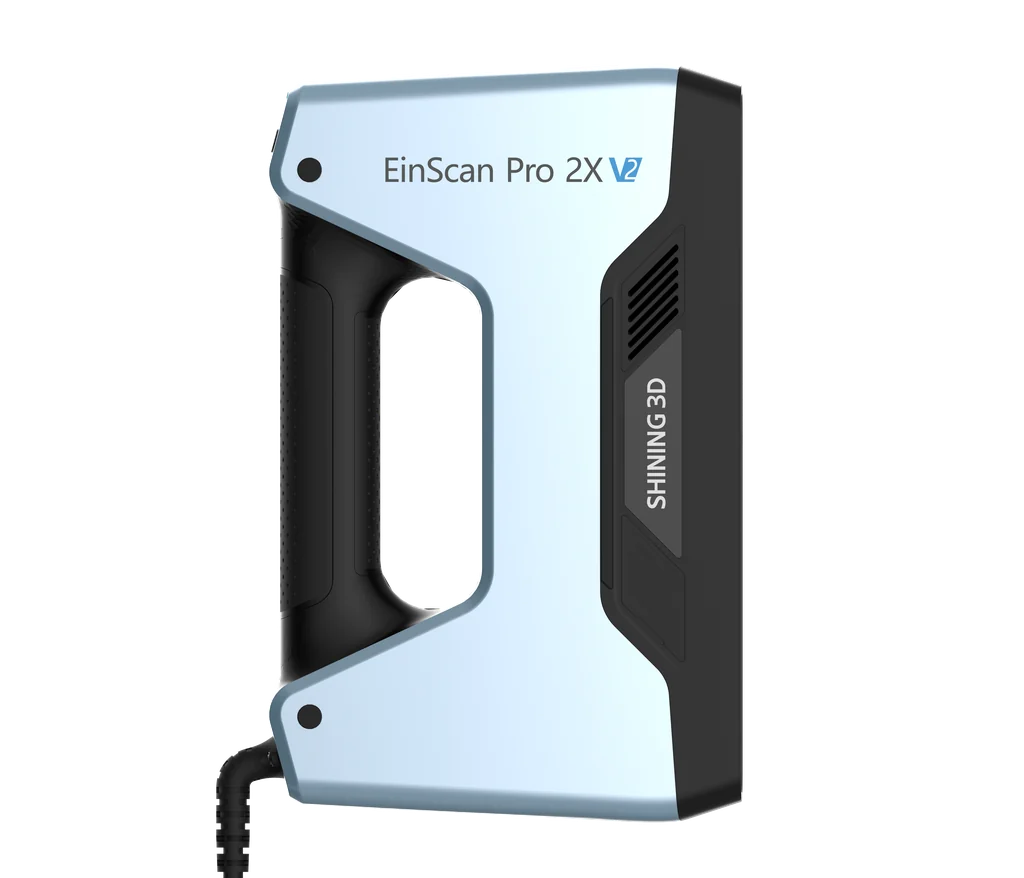

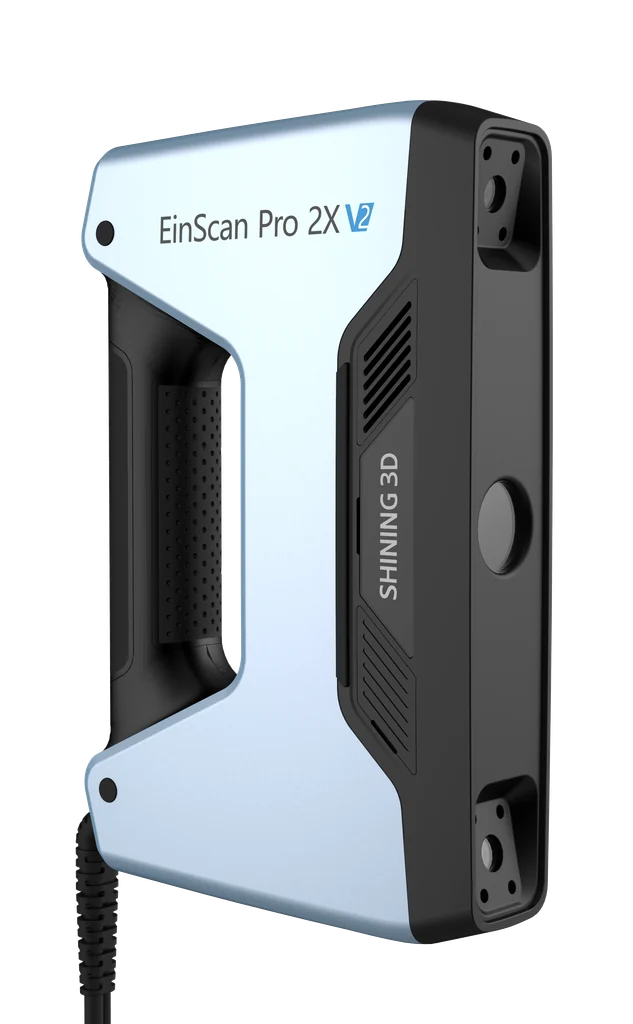

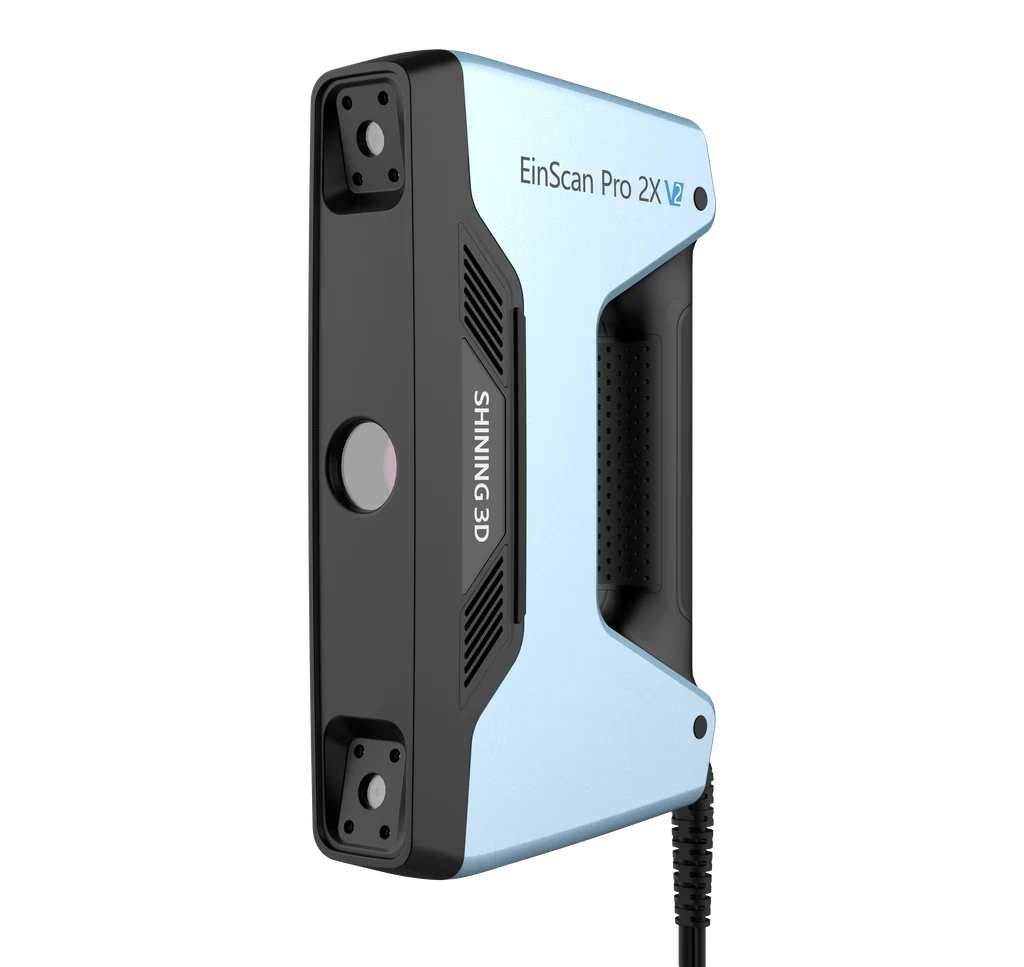

Portable Handheld Shining EinScan Pro 2X V2
The Shining EinScan Pro 2X is a versatile handheld 3D scanner that combines portability with high-quality performance. It is ideal for a range of applications, including body scanning, reverse engineering, product design, and 3D printing. The scanner features improved speed and accuracy for capturing intricate details, with multiple scanning and alignment modes to suit various projects. Whether you’re scanning small objects or creating detailed 3D models for CAD applications, the EinScan Pro 2X offers reliable results and flexibility, making it an excellent choice for both professionals and enthusiasts. Its ability to handle both handheld and fixed scanning options makes it perfect for body scanner applications and more.
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Verstaile scan and align modes
Scanning modes:
- Handheld Rapid Scan
- Handheld HD Scan

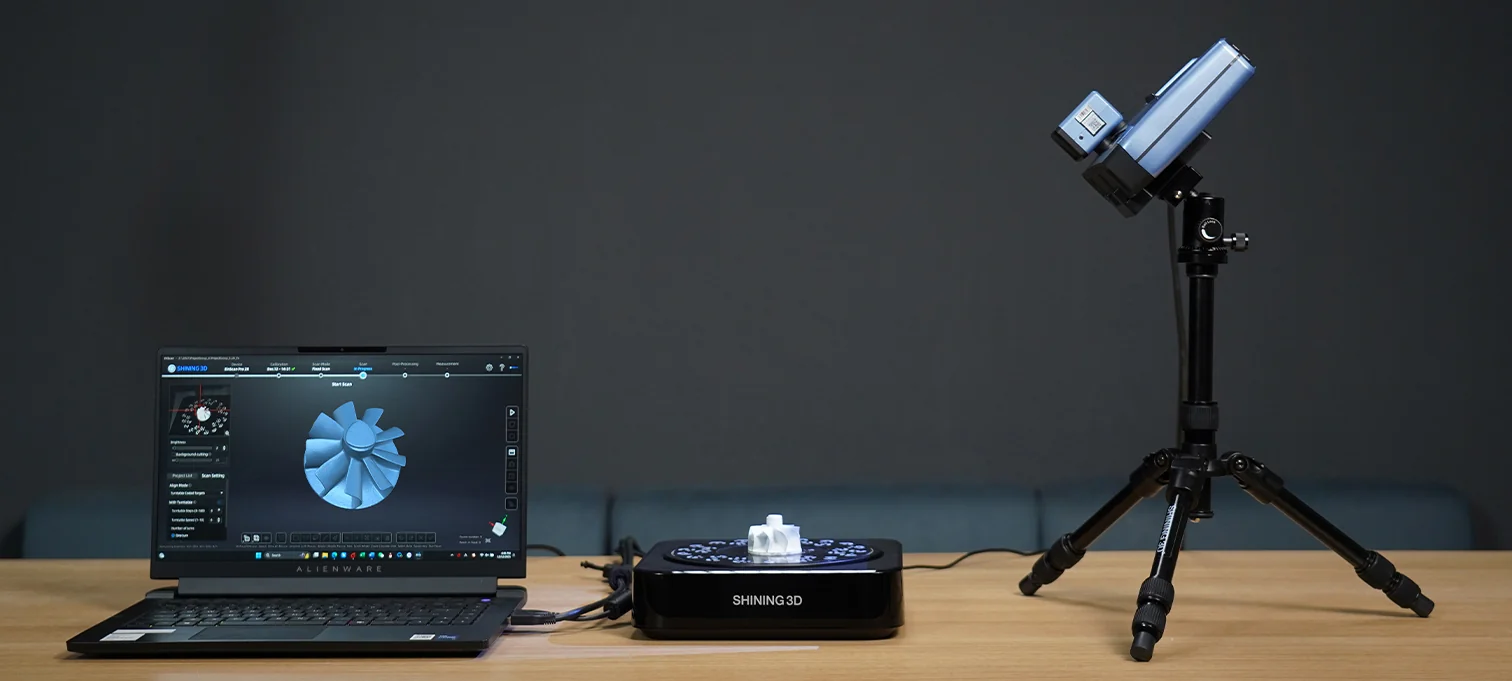

- Fixed Scan with a turntable
- Fixed Scan without a turntable
Align Modes:
- Feature alignment
- Marker alignment
- Texture alignment
- Turntable coded-targets alignment
- Global markers alignment
Each mode is optimized for different scanning scenarios and provides varying levels of accuracy and detail. The scanner can capture intricate details and textures, making it suitable for various applications such as product design, reverse engineering, heritage preservation, and digital entertainment.
The EinScan Pro 2X is also compatible with the EinScan Pro 2X Plus module, which enables the scanner to capture even higher accuracy and detail. Additionally, it can be integrated with the Solid Edge SHINING 3D Edition software for a complete solution in 3D scanning, design, and simulation.
Modular Design: Scans Objects of All Sizes
The EinScan Pro 2X V2 can capture objects of all sizes with ease. Whether you need to scan a car door or the intricate details of small industrial components, the EinScan Pro 2X V2 provides unmatched precision and efficiency for a variety of applications.
The Color Pack and Industrial Pack are optional add-ons for the EinScan Pro 2X V2, offering various scanning experiences and applications.
Color Pack
The EinScan Pro 2X V2 can help you easily digitize artifacts, sculptures, and artworks. With the Color Pack add-on, you can obtain lifelike and realistically reproduced 3D models, accompanied by rich details.
Industrial Pack
The EinScan Pro 2X V2 can achieve high-accuracy scanning in fixed mode, with a single-shot accuracy of up to 0.04mm. The high-quality data makes reverse engineering a breeze.
Texture Mapper Lite
Download the free software Texture Mapper Lite to combine scanned data and photogrammetry using digital camera photos, and create a photorealistic texture 3D model.
EXScan Pro: Powerful and Intuitive Software
The EinScan Pro 2X V2 comes with EXScan Pro software to ensure your scanning experience is as simple and user-friendly as
possible, catering to both beginners and experienced users. It boasts a set of useful features for the Fixed mode, the Handheld
mode, and for the Post-processing workflow
Handheld Scanning
- Auto Cutting Plane
- Marker/ Point Cloud Editing
- Flexible Point Distance
- Scan Rewind
- Data quality indicator
Overall
- Texture Mapper Lite
- Free Shining3D digital cloud space
- Supports 3Dconnexion SpaceMouse
User-Friendly Post-Processing
- Hole-filling
- Mirror
- Scale
- Object Mover
- Quick Alignment
- Marker/ Point Cloud / Mesh measurement
- Multiple Data Display types
- Model Display
Fixed Scanning
- One-click Scan
- Background Cutting
- Real-time Marker Recognition
Seamless Integration with Multiple Software Platforms
Currently, EXScan Pro software seamlessly integrates with five third-party applications: Geomagic ControlX, Geomagic DesignX, Geomagic Essentials, QuickSurface, and VeriSurf. This integration enhances the ease and convenience of your subsequent data processing.
You can also switch to Texture Mapper Lite directly within EXScan Pro to edit your textures and make them more realistic and accurate.
Multiple Applications
Reverse Engineering
The EinScan Pro 2X V2 can achieve high-accuracy scanning in fixed mode, with a single-shot accuracy of up to 0.04mm. The high-quality data
makes reverse engineering a breeze.
Art & Heritage
The EinScan Pro 2X V2 can help you easily digitize artifacts, sculptures, and artworks. With the Color Pack add-on, you can obtain lifelike and realistically reproduced 3D models, accompanied by rich details.
Education & Research
Whether you want to scan anatomical models, work on DIY projects, or explore the world of Jurassic dinosaurs, the EinScan Pro 2X V2 is ready to assist
you in the classroom.
Virtual Display
Using EinScan 2X V2, you can efficiently create detailed and vivid digital replicas. Use your 3D models for special effects, e-commerce, video game development, and more.
You can view the models scanned by Handheld Pro 2X clicking on the buttons below:
- Brand Shining 3D
- Scan Mode Handled HD Scan I Handled Rapid Scan, Fixed Scan with Turntable, Fixed Scan without Turntable
- Scan Accuracy Up to 0.045mm I up to 0.1 mm, 0.04 mm, 0.04 mm
- Volumetric Accuracy 0.3mm/m
- Scan Speed 3.000.000 points/s I 1.500.000 points/s, Single Scan < 1s, Single Scan < 1s 10FPS I 30FPS
- Align Mode Feature Alignment I Markers Alignment, Turntable Coded Targets, Feature Marker Markers Alignment I Texture Alignment, Feature, Marker, Marker Hybrid Alignment I Feature Alignment, Manual Alignment, Manual Alignment Hybrid Alignment
- Point Distance 0.2mm-2mm I 0.2mm-2mm, 0.16 mm, 0.16 mm
- Light Source LED
- Texture Scan Yes (with Add-on; Color Pack)
- Output Formats OBJ, STL, ASC, PLY, P3, 3MF
- Single Scan Range 150x120mm-250x200mm
- Depth of Field ±100 mm
- Outdoor Operation Set up the shelter or cover to avoid direct sunlight
- Special Scan Object For the transparent, highly reflective or some dark objects, please spray powder before scanning
- Software Included ExScan Pro, Solid Edge SHINING 3D Edition
- Weight 1.13kg
- OS System Support Win10, 64bit
