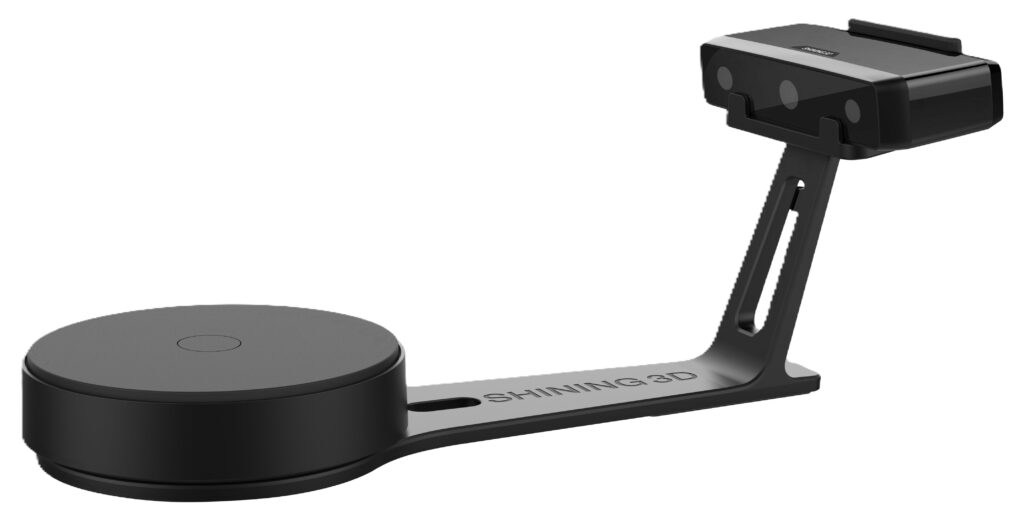

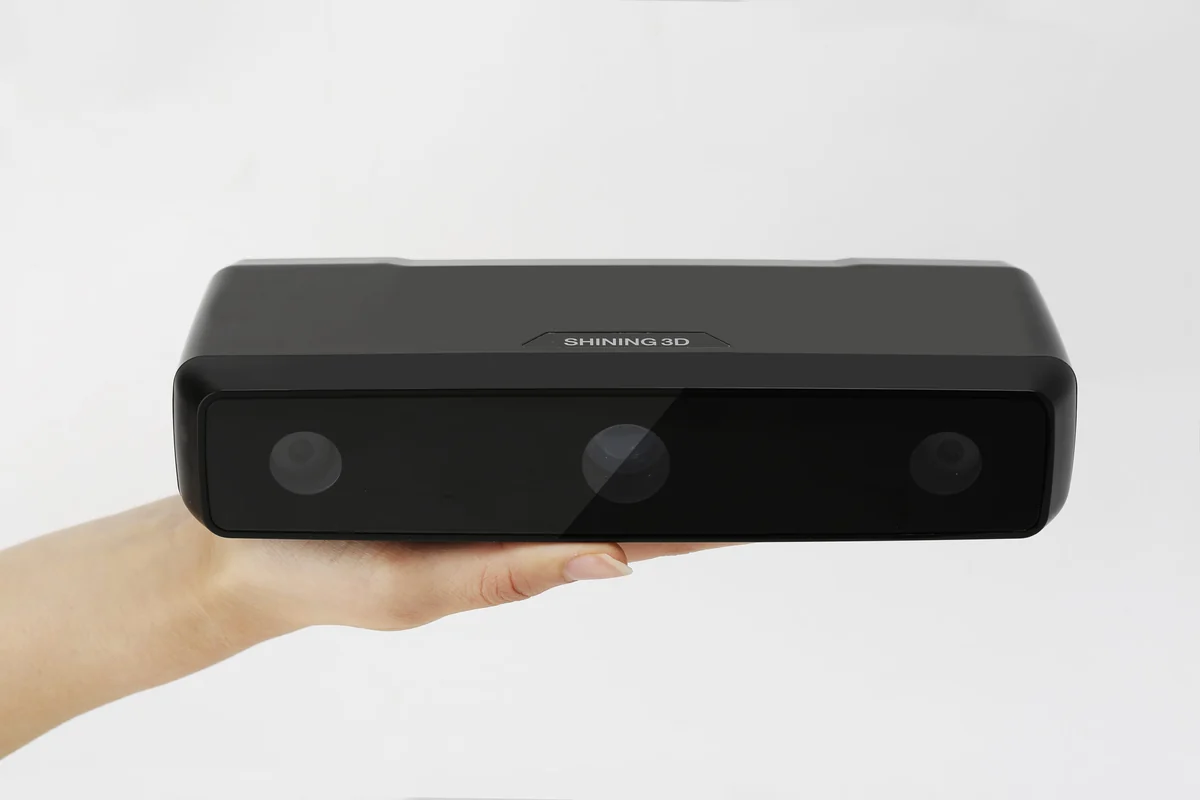

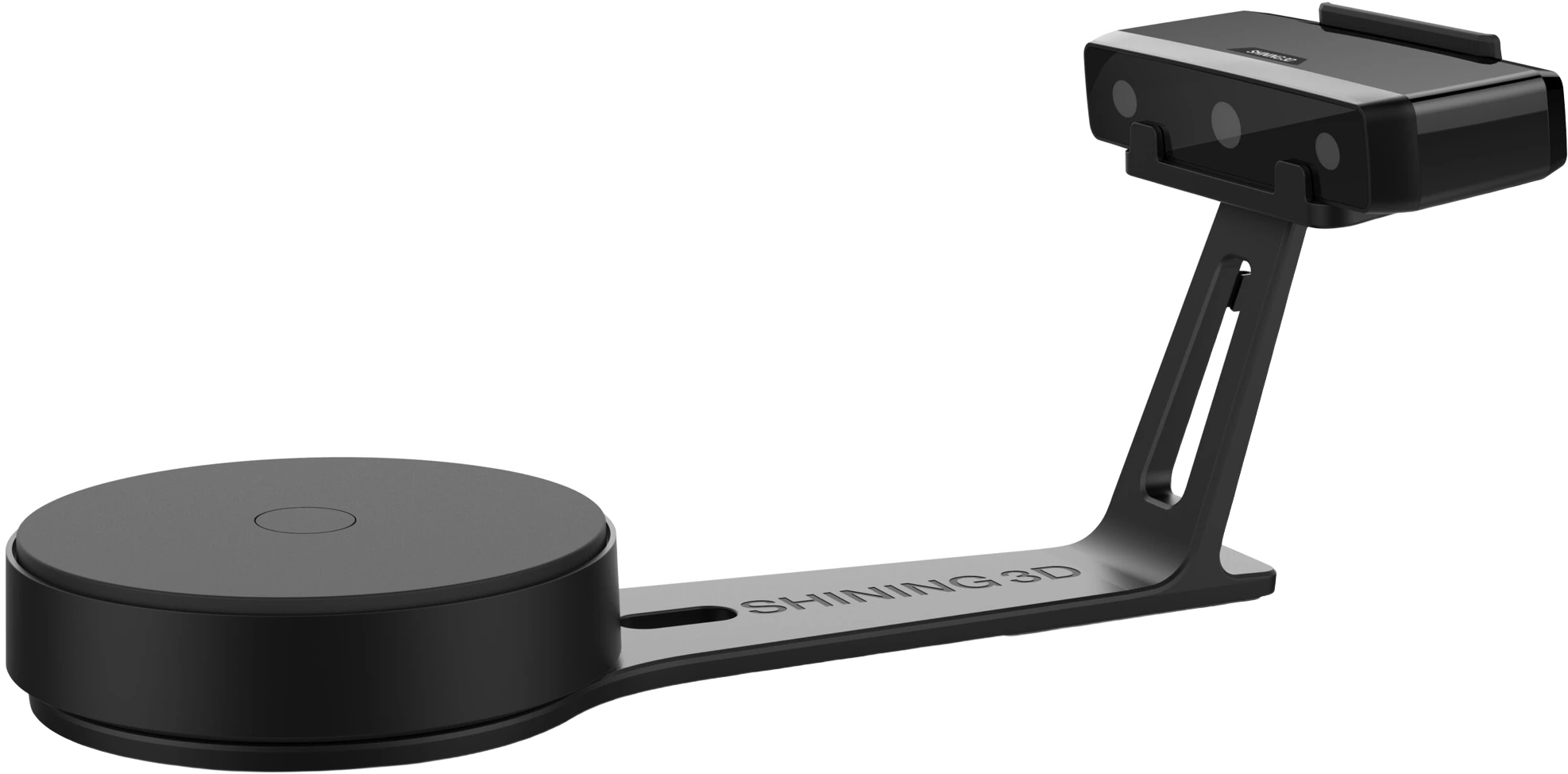

Shining EinScan-SE V2 3D Scanner

ask for details

The EinScan-SE V2 3D Scanner captures 3D objects using structured light technology, creating digital models with ease, accuracy, and affordability. It is used in design, archaeology, art, and education for objects of various sizes.

.

Improves the Efficiency of High-quality 3D Modeling | Multifunctional 3D Scanner

.

Basic Information

.

Country of manufacture – China

Speed – Rapid Scan

Design – Ergonomic

Single Scan Range – 200x150mm

Weight – 4.2 kg

Shining EinScan-SP V2 - Brochures
Download

Description

The EinScan-SE V2 3D Scanner is a device used to capture three-dimensional objects and create digital models of them. It uses structured light technology to project a pattern onto the object and then captures the deformation of the pattern to calculate the shape and texture of the object. The scanner can capture objects of various sizes, ranging from small items like jewelry to larger objects like furniture. It is commonly used in fields such as product design, archaeology, art, and education. The EinScan-SE V2 3D Scanner is known for its ease of use, accuracy, and affordability

Enhance your scanning capabilities with the EinScan SE/SE V2, a versatile tool perfect for educators and individuals alike. Designed with simplicity in mind, even non-technical users can easily navigate the 3D scanning process. With a wide scanning range, you can capture objects of all sizes, from small trinkets to large items. The EinScan SE/SE V2 is not only user-friendly but also cost-effective, making it an ideal choice for those on a budget.

Advantages

Extensive scanning range from small to large

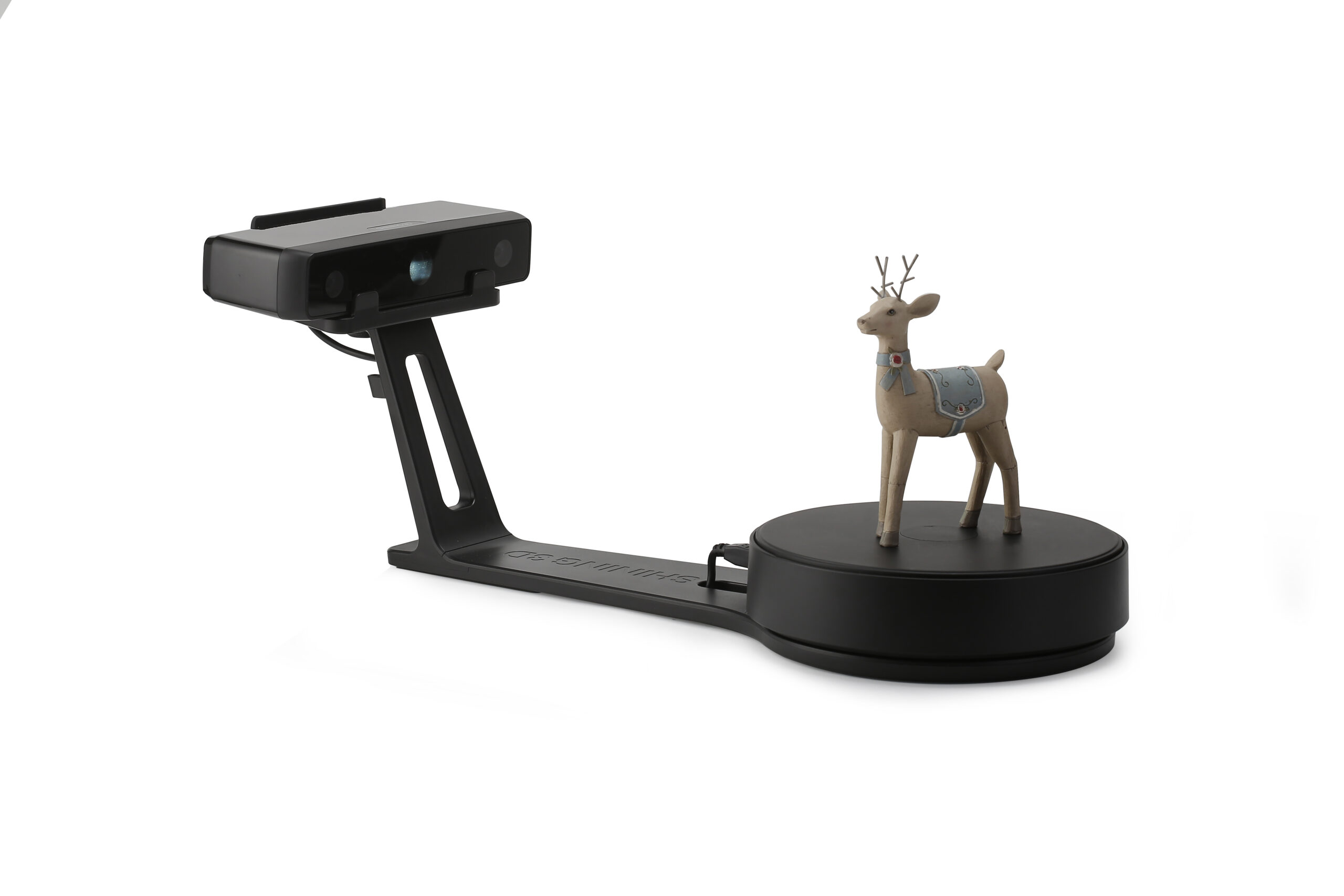

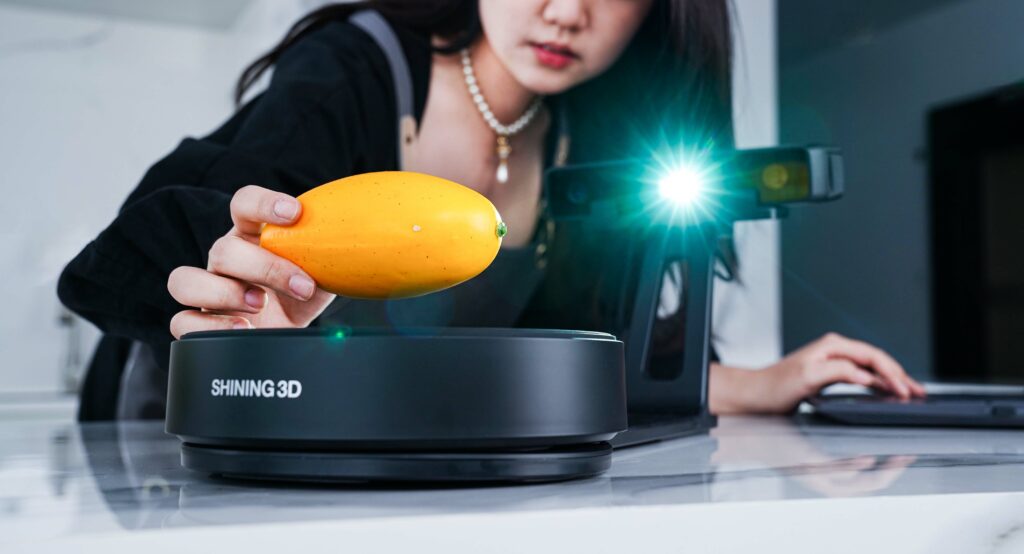

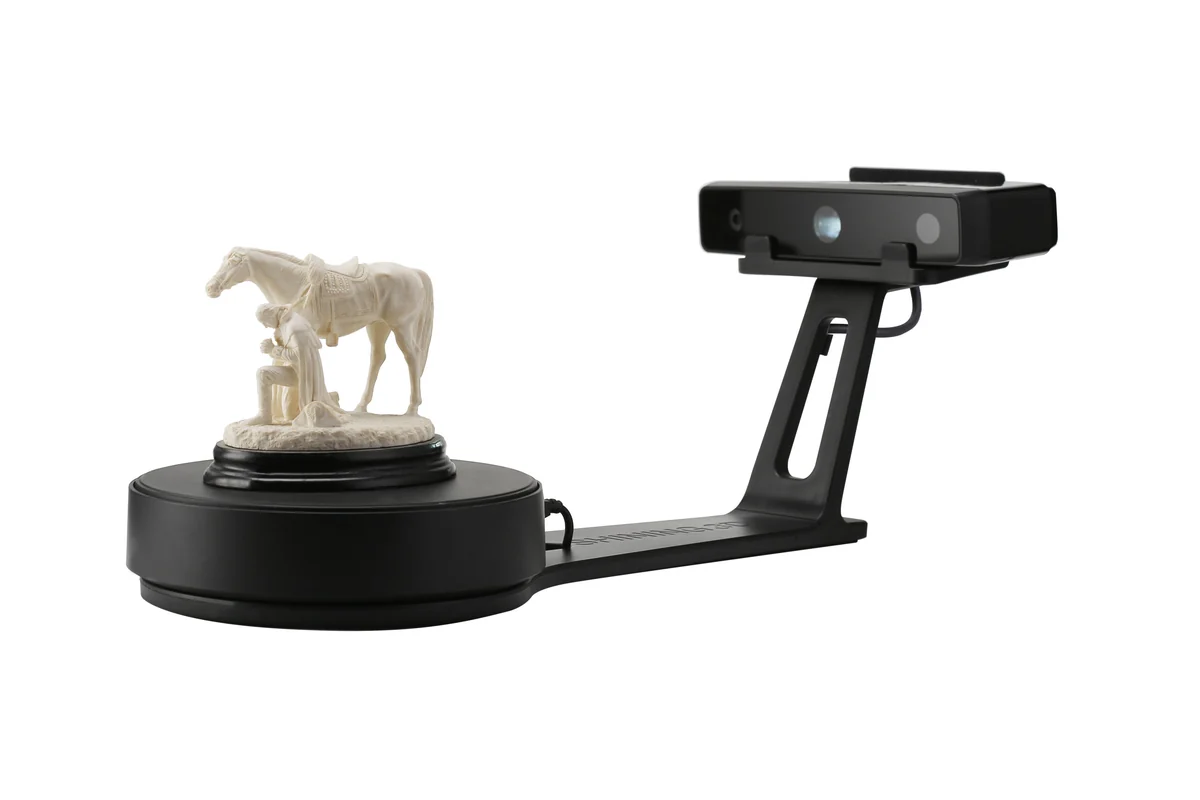

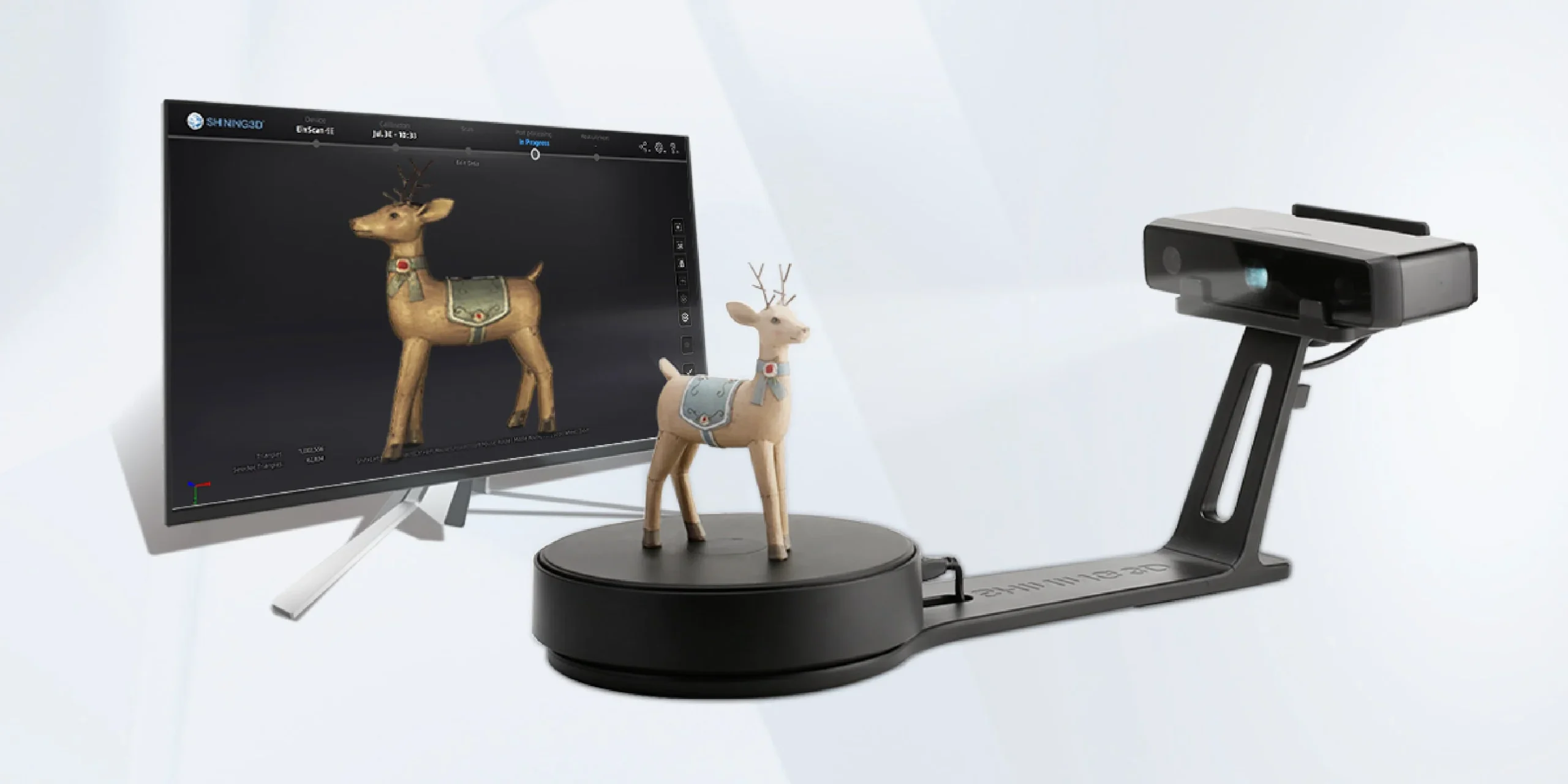

Experience the power of the EinScan SE/SE V2, a cutting-edge 3D scanning tool that will revolutionize your scanning capabilities. With its extensive scanning range, you can capture objects of all sizes, from small trinkets to large items. Whether you prefer automatic scanning with a turntable or manual scanning with a tripod, the EinScan SE/SE V2 has got you covered.

Easy operation

This device is designed with ease of use in mind. With a user-friendly workflow and one-click scanning, even non-technical users can effortlessly navigate the 3D scanning process. Say goodbye to complex settings – the EinScan SE/SE V2 features automatic calibration, making it a breeze to get started.

High Accuracy




The EinScan Pro 2X 2020 delivers high accuracy in its scans. Under the Fixed Scan Mode, it can achieve a single scan accuracy of up to 0.04 mm. When using markers, the volumetric accuracy under handheld scanning modes is up to 0.045mm+0.3mm/m.

Capturing Fine Details

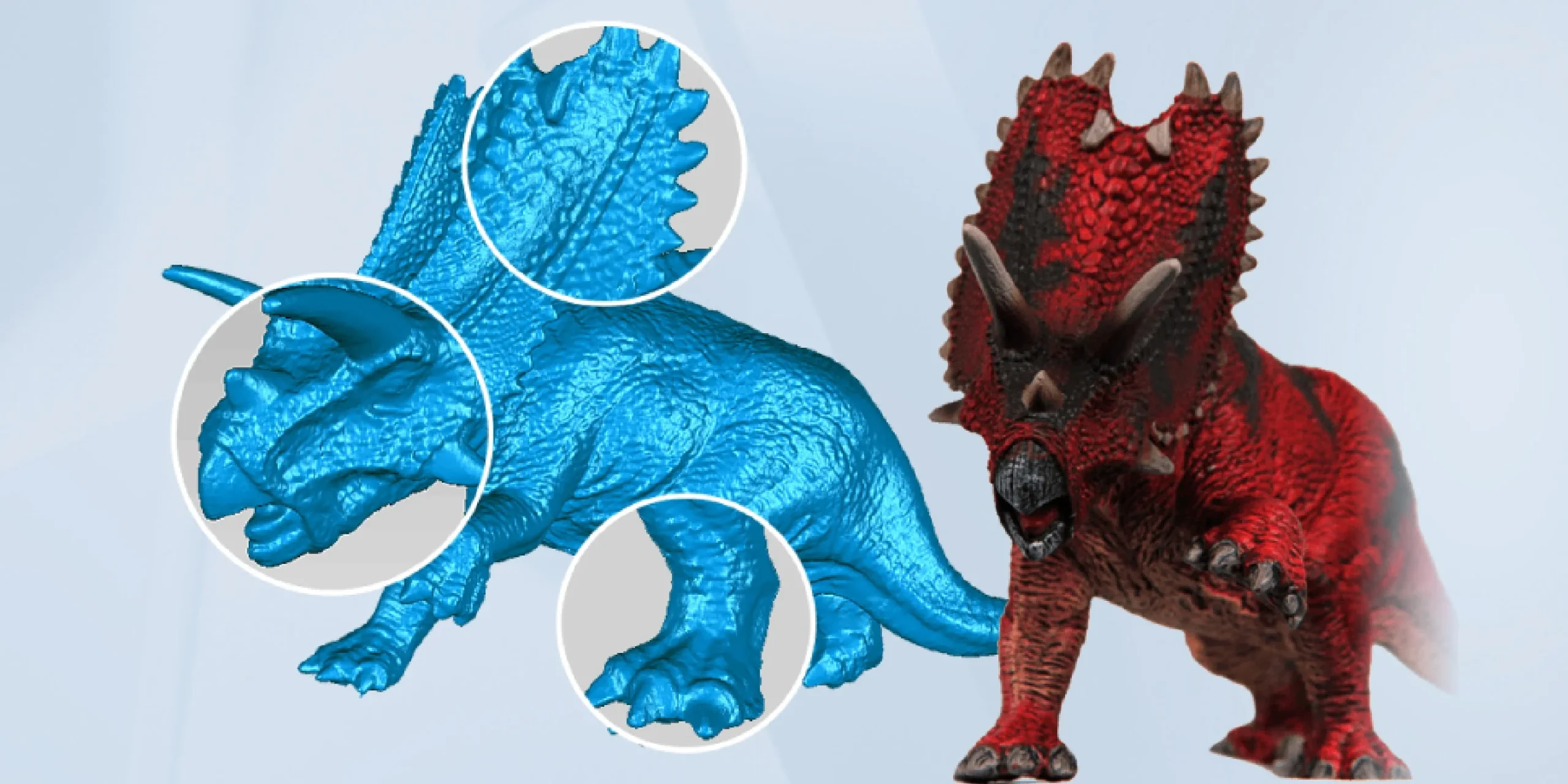

This scanner is capable of capturing even the finest details. Under the Handheld Rapid Scan and Handheld HD Scan modes, it has a minimum point distance of 0.2mm, resulting in high-resolution 3D data.

Modular Design for Diverse Applications

For a wider range of scanning experiences and applications, the EinScan Pro 2X 2020 offers optional add-ons, such as the Color Pack and Industrial Pack. These modules enhance the versatility of the scanner and cater to different scanning needs.

Versatile Scan Modes and Align Modes

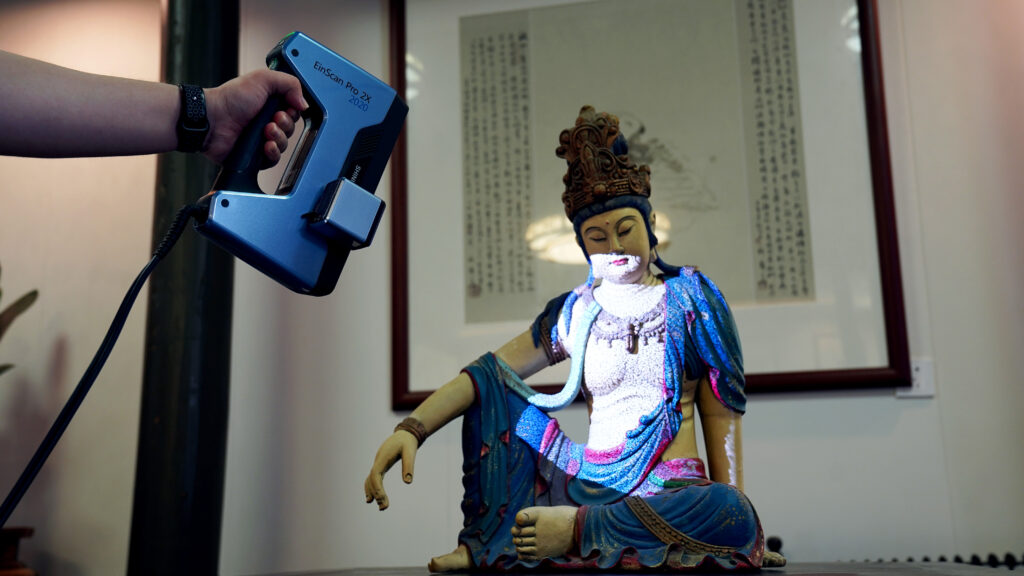

The EinScan Pro 2X 2020 supports various scan modes, including Handheld Rapid Scan, Handheld HD Scan, Fixed Scan without Turntable, and Fixed Scan with Turntable. It also offers multiple alignment modes, such as feature alignment, marker alignment, texture alignment, turntable coded targets alignment, and manual alignment.

features

  • Scan Speed. (Handheld Rapid Scan) The EinScan Pro 2X offers a scanning speed of 30 frames per second, allowing it to capture up to 1.5 million points per second.
  • Scan Accuracy. (Auto Scan / Fixed Scan) With an accuracy of 0.04 mm, the EinScan Pro 2X ensures precise and reliable scanning results in both auto scan and fixed scan modes.
  • Volumetric Accuracy. (Handheld Rapid Scan) The handheld rapid scan mode of the EinScan Pro 2X provides a volumetric accuracy of 0.1 mm plus 0.3 mm per meter, ensuring high-quality and accurate 3D data.
  • Minimum point spacing. (Handheld HD / Rapid Scan) The handheld HD and rapid scan modes of the EinScan Pro 2X allow for a minimum point spacing of 0.2 mm, enabling the capture of fine details with exceptional clarity.
  • Outstanding scanning performance. The EinScan Pro 2X delivers outstanding scanning performance, combining incredible scanning speed and efficiency to ensure fast and accurate data capture.
  • High Accuracy. The scanner is known for its high accuracy, allowing for the precise capture of fine details, ensuring that every aspect of the scanned object is accurately represented.

You can view the models scanned by Handheld Pro HD Mode clicking on the buttons below:

Additional information

Weight 9,3 lbs
Dimensions 22,4 × 8,3 × 8,3 in
Scan Mode

Fixed Scan with Turntable, Fixed Scan without Turntable

Scan Accuracy

=<0.1mm

Minimum Scan Volume

30mmx30mmx30mm

Maximum Scan Volume

Fixed Scan: 700mmx700mmx700mm Turntable: 200mmx200mmx200mm

Camera Resolution

1.3MP

Color Scan

Supported

Scan Speed of a single shot

<1s

Single Scan Range

200x150mm

Align Mode

Feature Align, Manual Align, Turntable Align

Point Distance

0.17mm~0.2mm

Light Source

White LED

Output Formats

OBJ, STL, ASC, PLY, 3MF

Outdoor Operation

Set up the shelter or cover to avoid direct sunlight

Special Scan Object

For the transparent, highly reflective or some dark objects, please spray powder before scanning

Software Included

ExScan Pro, Solid Edge SHINING 3D Edition

Weight

4.2g

OS System Support

Win10, 64bit
