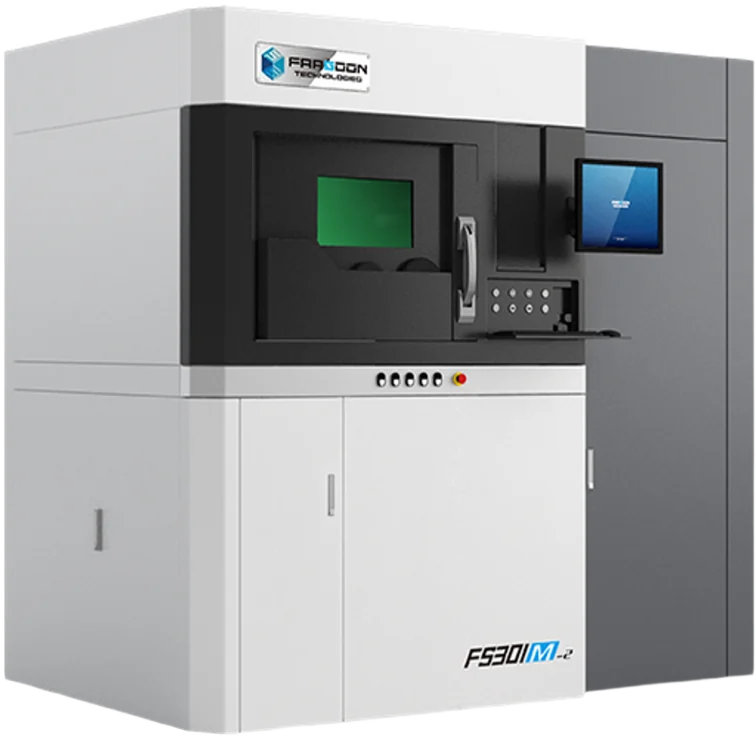

Farsoon FS301M
Introducing FS301M System
By taking the pain points from our customers which focus around productivity, safety, stability, and ease of use, it led us to co-innovating with Farsoon’s key partners from various industries such as aerospace and tooling, Farsoon has created a system truly suited for industry. By working closely with these industry partners, the FS301M was designed to meet desired user operations, including production speed, powder management, machine factory layout, quality of finished parts, ease of operation and serviceability.
User-oriented, High Quality Metal Production System.
- Description
- Additional information
- cross-sell
Description
Versatile build envelope of 305 x 305 x 400 mm
Highly productive single or dual 500-watt lasers
Outstanding quality & performance DESIGN FOR HIGH-QUALITY AM PRODUCTION

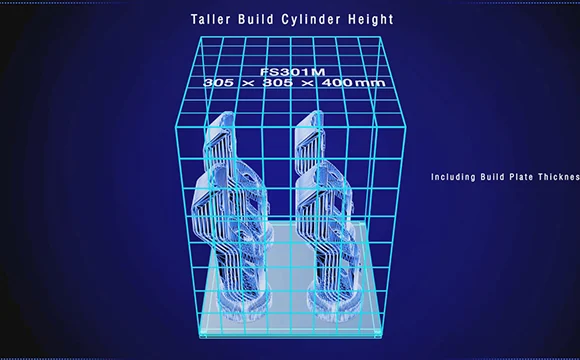

Featuring an expanded build cylinder of 305 ×305 ×410mm, FS301M is well suited for larger-sized application within a single build. Dual-laser scanning strategy and calibration algorithms enhance the build efficiency by precisely controlling dual-laser’s operation with full coverage of the build area, achieving intelligent distribution of each laser while building a single large part or multiple smaller parts. Paired with truly open parameters, FS301M offers ultimate control for metal AM production. Advanced 3-axis digital galvo system, powerful build process control & real-time monitoring, excellent air tightness design of FS301M ensure the best quality of the printed part.
ENHANCED USER OPERATION

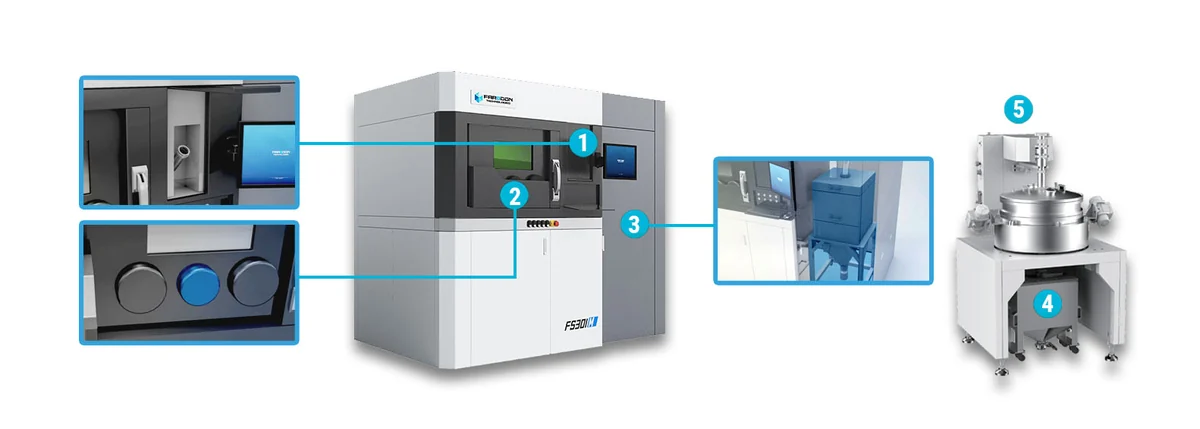

With an integrated powder-loading dock, FS301M achieves a fully sealed material handling operation under an inert atmosphere for streamlined workflow and improved environmental safety. A shared material container is used during loading, unloading and sieving process, offering convenient powder handling and transportation between the stations. Advanced features such as pre-heated base plate, electric leveling, and vision system ensure more robust process and quality control.
COMPACT MACHINE FOOTPRINT
FS301M features a machine footprint as small as 3.61 sqm with an integrated, long-lasting filtration system of operation time up to 1500 hours. With designated operation access from only the front and the rear, FS301M achieves one of the most compact installation space among similar sized PBF systems on the market. In an additive factory setting, FS301M enables high density layout with minimal side distance to achieve maximum throughput per floor area at economical additive production cost.
QUALITY
Paired with truly open parameters, FS301M offers ultimate control for metal AM production. Advanced 3-axis digital galvo system, power build process control & real time monitoring, excelent air tightness design of FS301M ensure the best quality of the printed parts.
Industrial Applications with FS301M

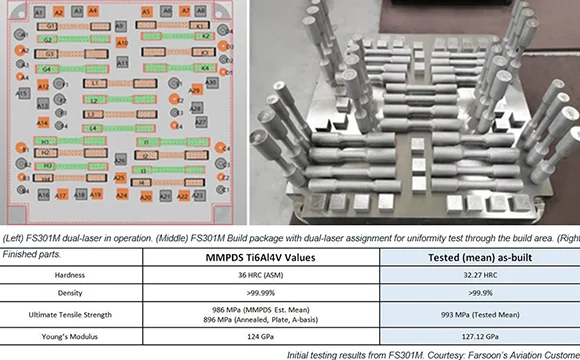

Farsoon’s openness to truly co-innovate by working with industry customers allows FS301M to be a truly user-friendly system. Created to meet the demanding requirements with an end use aviation customer in the U.S., the testing data from the joint process development on the FS301M for Ti6Al4V Titanium shows industry-leading performance for additive and near-wrought properties.

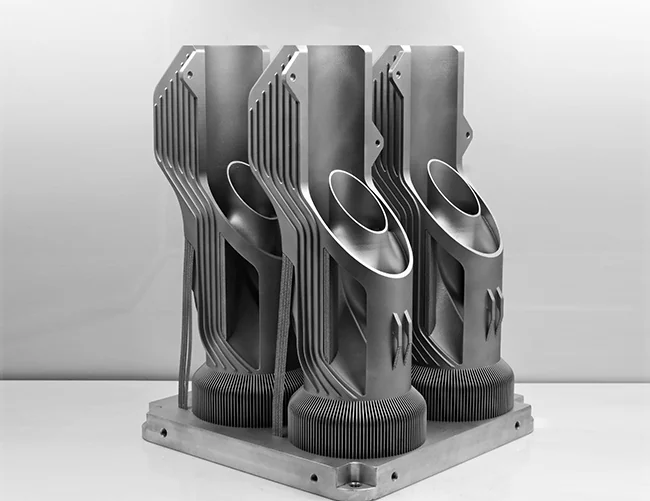

Machine: FS301M-2 Material: Aluminum Size: 158 x 136 x 360 (H) mm each Layer thickness: 0.05 mm Build Time: 96 Hours
Thanks to the advanced Farsoon metal additive manufacturing, engineers are able to explore brand new design of this heat exchanger component with structural integration, light-weighting and mechanical strength. With this innovative design, the engineers are able to achieve total build time of 96 hours with 0.05mm layer thickness. The as-printed part features excellent surface quality that will only require easy post-processing, like heat-treatment, wire-cutting and sand blasting.

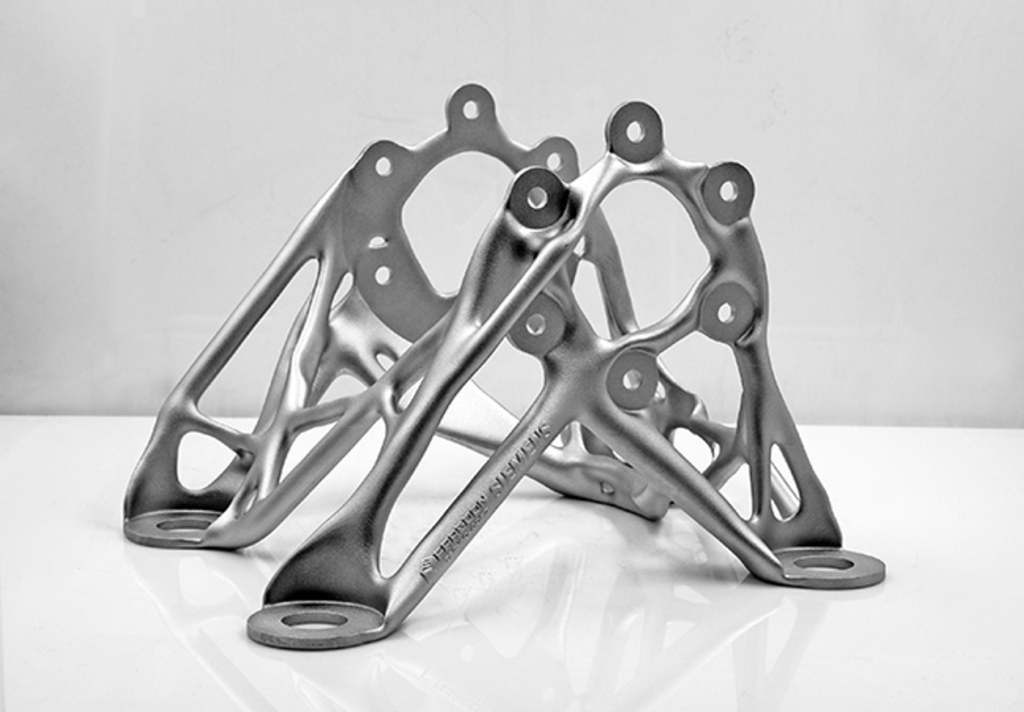

Machine: FS301M-2 Material: Aluminum Size: 275 x 245 x 191 (H) mm Build time: 43 hours
This aluminum Gearbox mount is a key component on Siemens sponsored Formular Race Car; the design is optimized using Siemens NX software and fabricated by Farsoon FS301M-2. Thanks to the advanced additive technology, the part has achieved simplified manufacturing process, light-weight of only 1.119 kg while meet the same structural strength requirement. It also featuring excellent surface finish of 3um on vertical and 5um on horizontal.
Additional information
| Brand | |
|---|---|
| Country | China |
| External Dimensions (L×W×H） | 2360×1530×2150 mm (92.9×60.2×84.6 in) |
| Build Volume | 12.0×12.0×16.1 in, 305×305×410 mm |
| Installation Footprint (L×W×H) | 3500×3000×2800 mm ( 137.8×118.1×110.2 in ) |
| Net Weight | 2800 kg ( 6172.9 lb ) |
| Layer thickness | |
| Scanning Speed | Max. 15.2 m/s ( 49.9 ft/s ) |
| Laser Type | Dual Lasers, 2×500W (FS301M-2 dual-laser with full coverage of build area by each laser), Single Laser, 1×500W (FS301M) |
| Scanner | Dynamic focusing system |
| Inert Gas Protection | Argon/Nitrogen |
| Average Inert Gas Consumption in Process | 3-5 L / min |
| Operating system | 64 bit Windows 10 |
| Software | BuildStar, MakeStar® |
| Data File Format | STL |
| Key Software Features | Open machine key parameters, real-time build parameter modification, three-dimensional |
| Power Supply | EUR/China: 400V±10%, 3~/N/PE, 50Hz, 15A US: transformer sold with machine |
| Operating Ambient Temperature | 22-28°C (71.6-82.4℉) |
| Materials | 17-4PH, 316L, 420, AlSi10Mg, HAYNES 230, HX, IN718, TA15, Ti6Al4V |
| 3D printers | DLMS |
| Printing material | Metal |
