The Kings 2700Pro is a 3D printer that offers efficient and cost-effective prototyping solutions.
23 Innovative Technologies, High Speed SLA 3D Printing.

Printing technology – SLA
Printing material – Photopolymer resin
Laser type – Nd: YV04 (Three Lasers)
Printing area – 106x35x32 in / 2700x900x800 mm

The Kings 2700Pro SLA printer can produce huge parts in extreme detail allowing for the precise reproduction of CAD models rapidly and accurately. The size of the printer bed also allows batch printing of hundreds of smaller parts speeding up production time massively.

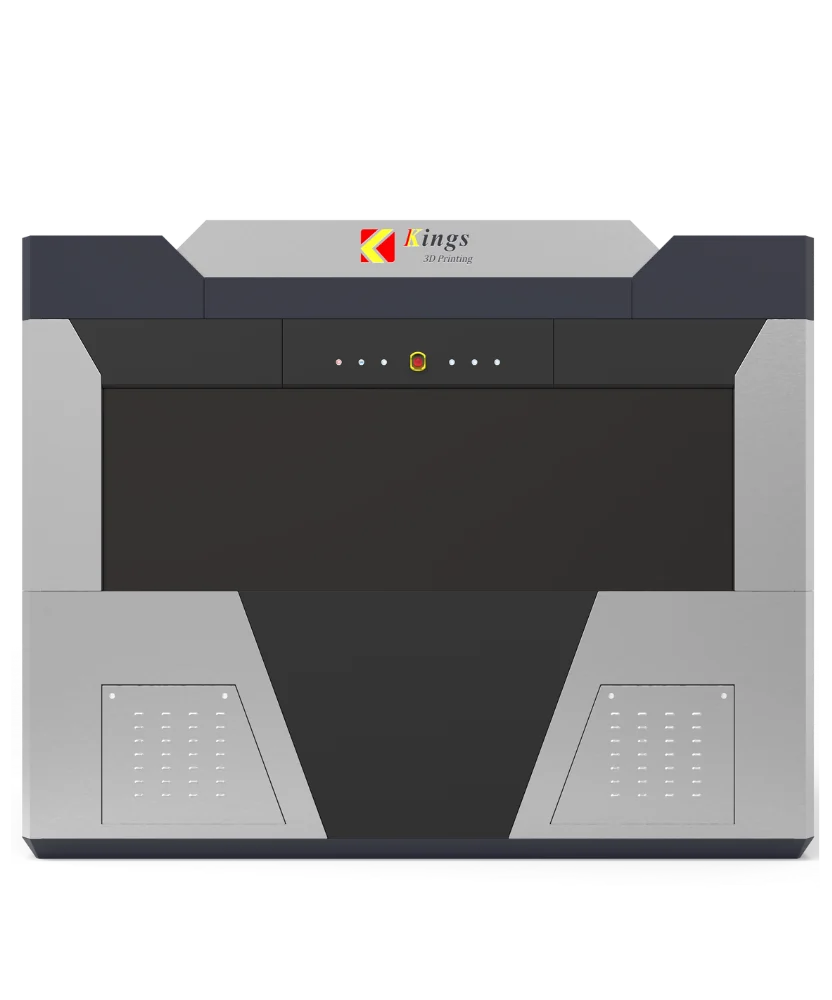

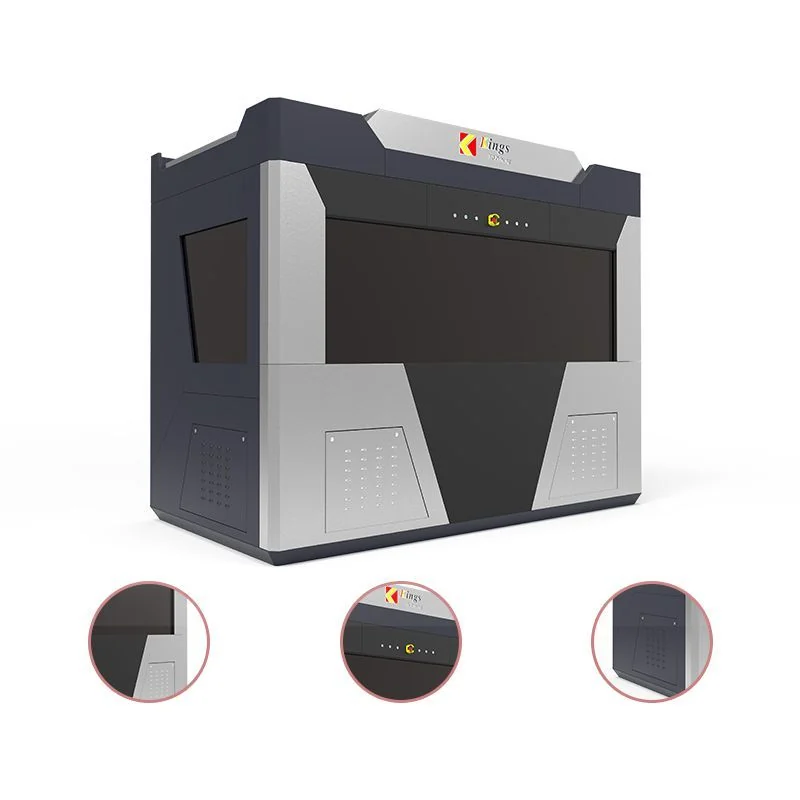

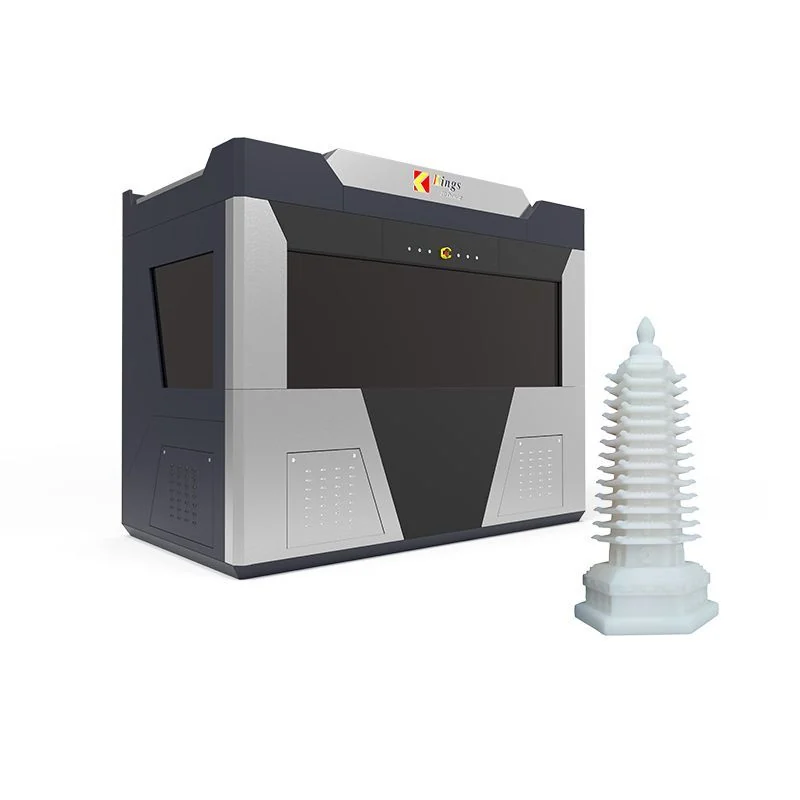

Kings 2700Pro SLA 3D Printer

The SLA 3D printer with large build volume for huge parts in extreme detail

Categories: 3D printers, SLA Tags: Automotive, Dental, Education, Entertainment, Healthcare, Light manufacturing, Manufacturing, Oil and Gas, Packaging

Kings 2700Pro SLA 3D Printer Brochure

Download

Details

Weight	7937 lbs
Dimensions	142 × 32 × 106 in
Brand	Kings 3D Printing Technology
Build Volume	106x35x32 in / 2700x900x800 mm
The Type of 3D Printer	SLA Kings 3D Printer 2700Pro
Weight	3600kg, 7937Lb
First Tank Resin	4299Lb 1950kg
3D Printer Dimensions	142x32x106in, 360x81x270cm
Rated Power Consumption	3.0KVA
3D printers	SLA
Printing material	Resin
Max Scanning Speed	8.0 m/s
Laser Type	Solid-state frequency tripled Nd: YV04
Wavelength	0.000014in
Resin Surface Power	≥300 mW
Vertical Resolution Ratio	0.00002in
Motion Control System	Closed-loop
Machine Control Software	KINGS 3D control software
lnput Data File Format	STL/SLC
Operating System	Windows 7/10
Electrical Requirement	200-240VAC 50/6OHz, single-phase,10A
Ambient Temperature	20-26C(72-79F)
Relative Humidity	<40%，non-condensing

Description

Kings 2700Pro is a large-format SLA 3D printer with THREE LASERS. It is known for its efficient and cost-effective prototyping capabilities. It features a high-speed scanning system, adjustable laser spot and power options, automatic parameter identification, and a full marble structure for stability and accuracy. Kings 2700Pro It is known for its groundbreaking speed and cost reduction in batch and large-scale production capabilities.

ENHANCED PRINTING EFFICIENCY

Intelligent high speed scanning system, 15m/s
Variable laser spot and variable power
Automatic identifying upskin and downskin withdifferentiated parameters
Different Parameter database with different layer thickness

LONG-TERM PRINTING STABILITY

Key components from international top brand: Optowave laser from Us, Scanlab galvanometer from Germany. Full marble structure for enhanced recoating and scanning stability. High stiffness light recoater to ensure recoating accuracy and efficiency. Compensation algorithm for multi-head system, ensuring uniform curing in the printing rang

KINGS 2700PRO SLA 3D PRINTER ADVANTAGES

INDUSTRIAL APPLICATIONS

AUTOMOTIVE. KINGS has invested heavily in research and development of printing materials specialized for the automotive industry.

LARGE PROTOTYPING. Kings 2700Pro Machine is gaining popularity due to the growing trend of larger 3D printing prototypes. With its large printing format, the Kings 800Pro can produce large-scale prototypes in one piece. Kings 3D is the first company in China to develop an SLA 3D printer with a printing volume of 106x35x32 in / 2700x900x800 mm. The Kings 2700Pro stands out from other brands due to its fast printing speed and long-term printing stability.

MANUFACTURING. Case parts, as well as complex configuration parts made of conventional materials requiring expensive and time-consuming machining can be successfully replaced by 3D printed parts and components. In this case, the required strength characteristics of parts are ensured with their lower weight and lower production costs.

HOME APPLIANCES. Home appliances are people’s daily necessity, including air conditioner, fridge, washer, acoustics, dust collector, electric fan, electric kettle, coffee pot, electric cooker, juicer, mobile phone and other small appliances. In the intensely competitive market, more and more manufacturers of home appliances apply 3D printing technology to print prototypes of the appliances, which improves design efficiency greatly.

HEALTHCARE. Each medical facility should have access to the latest tools in order to enhance patient care and provide the best possible experience. 3D printing technology offers personalized solutions in healthcare by improving workflow efficiency, enabling faster surgeries, enhancing identification and visualization, and providing innovative options for patients.

FUNCTION OF 3D PRINTER

The function of the 3D printer is to directly create objects of various shapes from computer graphics data without the need for machining or molds. This significantly reduces the production cycle of products and improves productivity. While there is still room for improvement, the market potential for 3D printing technology is enormous, and it is expected to become a prominent technology in the future manufacturing industry. Industrial 3D printers like the Kings 2700Pro are widely used in fields such as equipment manufacturing, aerospace, automobiles, and intelligent manufacturing. This latest generation of 3D printers has achieved groundbreaking speed, reducing costs by half while approaching the strength of metal. These printers excel in batch and large-scale production capabilities.
