Kings 600Pro Machine is the best choice because of medium printing size, flexible in printing prototype big and small.

23 Innovative Technologies, high speed SLA 3D Printing. .

Printing technology – SLA
Printing material – Photopolymer resin
Laser type – Nd: YV04 (Three Lasers)
Printing area – 24x24x16 in / 600x600x400 mm

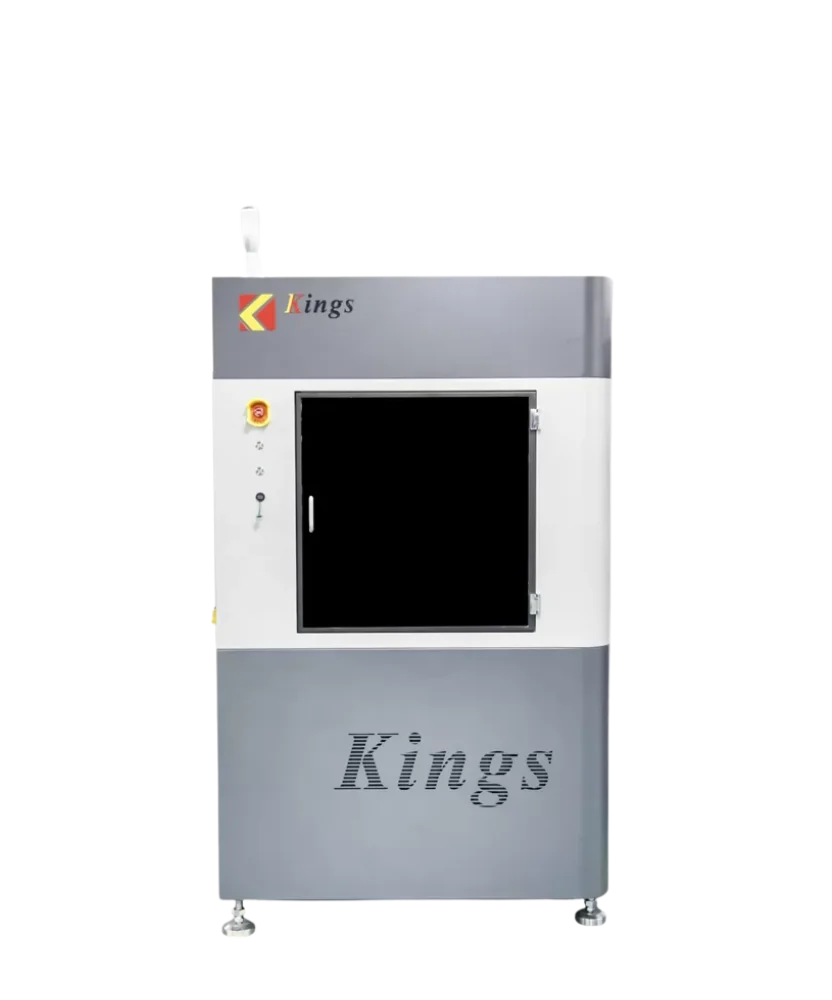

Kings 600Pro SLA 3D Printer

Industrial SLA 3D machine for printing complex shapes & high-detailed products in one piece.

Categories: 3D printers, SLA Tags: Automotive, Dental, Education, Entertainment, Healthcare, Light manufacturing, Manufacturing, Oil and Gas, Packaging

Details

Weight	2646 lbs
Dimensions	46.5 × 50.8 × 88.2 in
Brand	Kings 3D Printing Technology
Build Volume	24x24x16 in / 600x600x400 mm
Rated Power Consumption	1.5KVA
3D printers	SLA
Printing material	Resin
Laser Type	Solid-state frequency tripled Nd: YV04
Wavelength	0.000014in 355nm
Resin Surface Power	≥300 mW
Scanning Mode	Germanic galvanometer scanner
Variable Beam System	Galvo/Closed-loop
Beam Size	0.003-0.03in 0.075-0.8mm(Variable Beam)
Max Scanning Speed	15.0m/s
Motion Control System	Closed-loop
Machine Control Software	KINGS 3D control software
lnput Data File Format	STL/SLC
Operating System	Windows 7/10
Network Type and Protocol	Ethernet，TCP/IP
Electrical Requirement	200-240VAC 50/6OHz, single-phase,10A
Ambient Temperature	20-26C(72-79F)
Relative Humidity	＜40%，non-condensing
First Tank Resin	About 529lb 240kg
Main Sturcture	Marble recoater frame, marble elevator holder and marble scanning system base
Coating Mode	Intelligent position vacuum recoating
Vertical Resolution Ratio	0.00002in 0.0005mm
Repeat Positioning Accuracy	±0.004in ±0.01mm
Accuracy	L≤5.9in, ±0.004in L≤150mm, ±0.1mm L＞5.9in, ±0.004%L L＞150mm, ±0.1%L

Description

This printer is suitable for researching and developing resin materials, making it an excellent choice for material development and research purposes. The KINGS 600Pro Industrial SLA 3D Printer is a versatile machine that is specifically designed for industrial use. The most attractive feature of the Kings 600Pro SLA 3D printer is that it is almost unlimited in terms of product geometry. It can print a variety of products with particularly complex shapes and high-detailed skin lines in one whole piece.

IMPROVED PRINTING EFFICIENCY

Advanced high-speed scanning system with a speed of 15m/s
Variable beam size (0.075-0.8mm) and power
Automatic detection of upskin and downskin layers with customized parameters
Multiple parameter database with different layer thickness (0.05mm~0.25mm)

LONG-TERM PRINTING STABILITY

Utilizing top-quality components from renowned international brands, such as the Optowave laser from the US and the Scanlab galvanometer from Germany
Incorporating a full marble structure to enhance stability during recoating and scanning processes.
Equipped with a high-stiffness light recoater to ensure accurate and efficient recoating.

ADVANTAGES OF KINGS 600 PRO SLA 3D PRINTER

INDUSTRIAL APPLICATIONS

The Kings 600Pro SLA 3D printer is an efficient and cost-effective solution for prototyping. With its advanced features and capabilities, it is a powerful tool in the manufacturing industry, enabling fast, affordable, and high-quality production:

SHOE INDUSTRY. KINGS is a renowned manufacturer of 3D printers that specializes in providing efficient solutions for mass producing shoe models. With their cutting-edge technology, KINGS has revolutionized the process of making shoe models by reducing the time required to modify 3D files for printing by 5 hours.

Shoe prototype. Quickly checking the shoe design

3D printing is shaping new possibilities in footwear engineering, enabling footwear companies to create shoe models with clear lines, sharp edges and corners and also address the growing demand for customization.

Soft shoe model for fitting test

With KS198S rubber like resin, the 3D Printed shoe model can be used for checking design, and can also be tried on for fitting test.

Casting shoe model. Replacing wooden model

The use of 3D printed shoe molds can effectively replace the CNC-engraved wooden molds and perform sand casting, and the molds made have finer textures and patterns.

Direct printing of finished shoe soles

In the future, everyone can tailor their own shoe with 3D printing. It is more in line with the personal size, and at the same time can achieve a lighter and more comfortable sole structure.

3D printed models for quick mold

The 3D printed mold skips the casting process and directly uses it for the production of PU shoe soles. It can be used for plastic injection, PU and cold-pressed insole molds. It is temporarily not suitable for hot-pressed rubber, molded EVA and injection EVA.

3D PRINTING

Process Feature:One-piece modeling, batch printing
Modeling features: printing with any structure
Material utilization:Additive manufacturing, high utilization
Model development period:1-2 days
Labor cost:One operator can take care dozens of machine, just 3 days to learn
Environment:No pollution, no noise
Cost trend:Costs continue to decrease

CNC

Process Feature:Several rounds of carving, single model processing
Modeling features: carving with simple structure
Material utilization:Deductive manufacturing, high waste rate
Model development period:10-15 days
Labor cost:One operator can watch max 3 machines, and need 6+ month training
Environment:Strong vibration, high noise, dust pollution
Cost trend:Material cast is stable

MEDICINE. Each medical facility should have access to the latest tools in order to enhance patient care and provide the best possible experience. 3D printing technology offers personalized solutions in healthcare by improving workflow efficiency, enabling faster surgeries, enhancing identification and visualization, and providing innovative options for patients.

KEY FEATURES OF SLA 3D PRINTER FOR MEDICINE

Customized Component Production: 3D printing allows for the production of small batches or even individual parts without any additional costs or the need for extra time or tools.
Complex Geometric Shapes: Medical SLA 3D printers can easily produce intricate shapes using a variety of materials, including plastics and metals. This capability is especially useful in highly customized applications.
One-Piece Molding and High Accuracy: The ability to create objects in a single piece improves design efficiency, reduces costs, and shortens production time.
Gap Elimination: 3D printing eliminates the gaps between multiple components, making it easier to disinfect equipment and reducing the potential for bacterial growth.
Time and Cost Savings: By utilizing 3D scanning and X-ray technologies, medical professionals can quickly create detailed 3D models, saving both time and costs associated with traditional methods.

MEDICAL SLA 3D PRINTER FEATURES

3D printing can produce small batches of customized components -even only one part of one part at a time -no extra cost, no time or tools.
Medical SLA 3D printer can easily produce complex geometric shapes in plastics or metals. Add material manufacturing has performed well in high customized applications
All one-piece molding and high accuracy. This can improve design and reduce costs and shorten production time.
Eliminate the gap between multiple components, making it easier to disinfect the equipment, and it is difficult to breed bacteria.
By using 3D scanning and X-ray to quickly create detailed 3D models, the time and costs of medical professionals are saved.

APPLICATION CASES OF KINGS 600PRO IN MEDICAL FIELD

Orthopedic preoperative model

3D model is reconstructed according to the patient’s CT / MRI data, and a 1:1 physical model help with disease diagnosis, preoperative surgical plan design, and preoperative surgical operation.

Orthopedic surgery guide

Kings 600Pro 3D printed Orthopedic models can be used to assist in the preoperative simulation of craniofacial surgery, which effectively helps with the three-dimensional reconstruction of soft tissue morphological structures, and the positioning, moving and rebuilding of complex three-dimensional structures such as skulls, jaws, and sacrum. Common examples include skull models, jaw models, and outer ear models.

Orthodontics

High-precision dental model can be made through Kings 600Pro 3D printer, and personalized invisible braces for different patients can be produced accordingly.

Teaching and educational models

The models printed by Kings 600Pro SLA 3D printer convey a wealth of information that may be difficult to express in a standard anatomic drawing or a two-dimensional image such as a radiograph or CT/MRI slice. Complex anatomy can be shown to patients and their families by the referring physicians in a very tangible means which is less abstract to non-medically trained individuals than conventional imaging studies. Models of normal anatomy can be utilized early in medical education similar to conventional skeletons in the anatomy lab and library. The relatively low cost of 3D printed models compared to commercially available models make them a viable option for budget conscious departments.

Therapeutic Tools

Orthotics and can be created quickly and inexpensively based on exact patient measurements and requirements. This is particularly useful in patients who are rapidly growing or in disease processes that evolve over time. In areas of the country or world that have limited access to commercial prosthetics and orthotics, a Kings 600Pro medical 3D printer offers otherwise impractical or impossible therapeutic options.

INVESTMENT CASTING

Kings 600Pro SLA 3D printer offers rapid production of quick casting models, which is capable of producing a high-quality aesthetic finish with tight tolerances. And with KS168C castable resin -that are fully industry-tested, the casting models can be completed in days. The 3D printed casting models are with an internal hexagonal support structure which adds strength to the models, allows for easy drainage, facilitates collapse of the pattern during thermal expansion to help avoid shell cracking, and helps to reduce part volume, weight, and material needed to create a solid part.

Advantages of quick casting models

Turn-around time. Quick casting models can be printed by Kings 600Pro in as fast as one or two days, saving a lot of time.

Tolerances. Quick casting models can achieve tolerances +/- 0.1mm; this is not possible with the tooling utilized in traditional investment casting

Finish and detail. Quick casting models typically have a cosmetically superior finish to traditional casted parts, and allow for additional detail and geometries that are simply not possible with traditional investment casting

Tooling. Quick casting models offer a tool-free, fast, reliable and accurate alternative to models created using tooling, reducing the costs of creating patterns significantly.

RAPID PROTOTYPING

Kings SLA 3D Printer is not only used to make prototype to check the design before mass production, but also use to replace traditional mould in small batch production, personalized customization, and products with complicated structure. Meanwhile, Kings 600Pro Rapid Prototyping Machine is also used to print prototype for mould to test the function before final production.

Rapid Prototyping benefits

Fast and effective communication of design ideas
Effective validation of design fit, form, and function
Greater design flexibility, with the ability to run quickly through multiple design iterations
Fewer production design flaws and better end-products.

ART&CRAFT. DESIGN INDUSTRY

In the handicraft customization market, jewelry decorations, wood carvings and other handicraft-related gifts are beautiful but difficult to duplicate. Hollow and internally carved structures are difficult to complete by hand, which can be solved by applying 3D printing technology.

The most attractive feature of the Kings 600Pro SLA 3D printer is that it is almost unlimited in terms of product geometry. It can print a variety of products with particularly complex shapes and high-detailed skin lines in one whole piece.

Application: Animation 3D models, film and television props, art furniture decoration, toy, and other artistic creative fields.

Traditional ways:

Artistic models used to be made by manual clay models or by CNC machining, based on which metal mold is made if mass production of the product is needed.

Challenge:

Handmade clay model can easily break and deform
Large amount manual work involved
Limited shapes and structures
High cost in making one unit or small quantity of products

Kings 600Pro Art&Craft 3D Printer

Simplify the process: Kings 600Pro 3D printer can directly print finished models, prototypes for small batch production

Finest feature details: detail processing reaching 0.05mm.

Free form: almost no limit to the shapes and structures of the art works

Kings 600Pro SLA 3D Printer
