Rapid Prototyping 3D Printing: Make Inventions Super Fast!

Rapid prototyping with 3D printing has changed how engineering teams move from concept to physical part. The approach lets designers and engineers convert digital models into testable objects in hours or days, so they can validate a design and refine it before committing to tooling or full-scale production. Early physical feedback lets teams compare several design variations, check assumptions, and catch flaws while they are still cheap to fix. That shift lowers financial risk across the product lifecycle: from first concept check to functional testing, additive manufacturing shortens the loop between an idea and a decision.

The significance of the method goes past acceleration alone. It changes the risk profile of development: by producing physical parts early, teams identify and resolve design flaws at the point where they are easiest and cheapest to correct, rather than discovering them after tooling is cut. Multiple design variations can be explored in parallel, assumptions checked against real behavior, and decisions made with more certainty — which tends to produce better products that reach the market faster and at lower cost.

Modern rapid prototyping draws on several technologies, each suited to a specific need — FDM for early functional parts, resin printing for fine detail and surface quality, SLS for strong functional components, and advanced materials such as carbon fiber composites and technical ceramics for demanding conditions. Selecting among them depends on the required part strength, surface finish, geometric complexity, and, critically, the phase of the development cycle. This guide covers the principles, benefits, and core technologies, and how to fit them into a product development workflow.

How Rapid Prototyping With 3D Printing Works

Rapid prototyping rests on a few working principles that separate it from conventional manufacturing: speed over polish in the early stages, refinement across multiple cycles, and efficient use of material and machine time. Together they support continuous learning and adaptation as a design matures.

The typical workflow runs through five stages:

• CAD design. Engineers build a digital 3D model of the concept in dedicated software. This model captures the geometry that every later step depends on.
• Slicing. Software converts the 3D model into thin horizontal layers and generates the instructions the printer executes in sequence.
• Printing. The machine deposits or cures material layer by layer, building the part from the bottom up. Print time depends on part size, complexity, and technology — from a few hours for small components to considerably longer for large assemblies.
• Post-processing. Depending on the process, this covers support removal, surface finishing, curing, or heat treatment, bringing the part to the required quality for evaluation.
• Testing and evaluation. Teams check the part against specification, test mechanical behavior, review fit and user interaction, and gather feedback that feeds directly into the next iteration.

The empirical data from that final stage informs the next design revision, creating a compressed feedback loop that moves the design toward its intended form more quickly than analysis alone. This cycle of design, print, and test — repeated until the design converges — is the core of the method. Because each pass is short and inexpensive, teams can afford to be wrong early and often, treating each prototype as a question to be answered rather than a finished deliverable.

Core Benefits for Product Development

The advantages of rapid prototyping address specific problems in conventional development: long timelines, high early costs, limited design freedom, and weak communication between teams.

• Shorter development cycles. Work that once took weeks can compress into 24–48 hour cycles, with some components produced in a few hours. Teams can test several design variations and validate concepts before entering expensive manufacturing stages, which shortens time to market.
• Lower costs. The U.S. Department of Energy reports that 3D printing can reduce waste and material costs by almost 90% compared with traditional manufacturing while cutting manufacturing energy use in half. Companies also avoid tooling investment for early prototypes and catch errors before they become costly late-stage rework.
• More design freedom. 3D printing supports complex geometries that are difficult or impractical with conventional methods. Teams can compare variations without a large cost penalty and validate form, fit, and function without losing momentum.
• Clearer communication. A physical prototype conveys design intent better than a drawing or render. Designers, engineers, stakeholders, and test users can handle a real part and give grounded feedback, which reduces misalignment across departments.
• Earlier issue detection. Finding mechanical, usability, and geometric problems during prototyping — while they are inexpensive to fix — improves the quality of the final product and keeps flaws out of production designs.
• Simpler supply chains. In-house prototyping reduces dependence on external vendors and multi-step production planning, giving teams more control over timelines and faster response to feedback.

These benefits compound. Faster cycles make lower costs possible because fewer resources are spent chasing problems late; more design freedom feeds earlier issue detection because teams can afford to test riskier geometries; and clearer communication shortens the path to agreement on each revision. Taken together they move development from a sequence of large, irreversible commitments to a series of small, informed steps.

Key 3D Printing Technologies for Prototyping

Different technologies serve different prototyping needs, and each carries distinct advantages tuned to particular applications. Choosing the right one for the development stage matters as much as the design itself; what suits an early form-and-fit check may not hold up under functional testing, and a process that produces a convincing visual model may not deliver the mechanical strength a load test requires. Understanding where each process fits keeps teams from forcing one tool to cover the whole development cycle.

• FDM (Fused Deposition Modeling) — cost-effective functional prototypes and fit-and-form testing in durable thermoplastics.
• Resin (SLA/DLP) — high detail and smooth finishes for visual models and precision parts.
• SLS (Selective Laser Sintering) — strong, functional parts with complex geometries and no support structures.
• Advanced materials — carbon fiber composites for high strength-to-weight, and technical ceramics for extreme environments.

FDM: Cost-Effective Functional Prototypes

FDM is the most accessible rapid prototyping technology. It heats thermoplastic filament and extrudes it through a moving nozzle, building parts layer by layer. It suits functional prototypes tested for mechanical behavior, fit, and form. Its main strengths are low cost, availability, and a wide material range — from standard plastics to engineering-grade compounds with added durability, flexibility, or heat resistance.

Because material and equipment costs are low, FDM works well for early design validation and iterative testing, when design directions are still uncertain and several revisions are expected. Consider a new enclosure for an electronic device: with FDM a team can print multiple variations, check how buttons feel, confirm how a circuit board fits, and assess overall ergonomics. Parts can undergo mechanical stress testing, fit checks against other components, and functional validation in real use conditions, which helps catch mechanical issues before final dimensions are locked.

The ability to print several design variations at once and evaluate them under actual handling makes FDM a practical workhorse for iterative design. Prototypes can endure real-world handling and light mechanical loading, so design flaws surface while they are still manageable and inexpensive to fix. For teams working through many revisions of a mechanical part, that combination of low cost and testable output is difficult to match at the early stage.

Resin (SLA/DLP): High Detail and Smooth Finishes

Stereolithography (SLA) and Digital Light Processing (DLP) use light to cure photosensitive liquid resin, producing detailed parts with fine surface finish and good dimensional accuracy. They are the right choice when precision, surface quality, and appearance matter — consumer electronics, medical devices, and detailed cosmetic or jewelry models. Where FDM offers robust functionality, resin technologies lead on detail and finish, curing liquid photopolymer layer by layer to create objects that closely mimic the look and feel of a production part. Presenting a new cosmetic product concept, for example, a resin-printed prototype gives stakeholders a tactile and visual sense of the final design, which supports a more grounded review than a render can provide.

Industrial machines such as the Kings 850Pro large-format SLA printer produce parts with high speed and fidelity, and materials like UV Resin KS168C and KS608A (high accuracy, toughness, and low shrinkage) cover general detail work through castable patterns. Resin parts also serve as master patterns for traditional molding, allowing mold designs to be iterated before production tooling is committed, though resin materials generally have lower strength than FDM thermoplastics. Teams comparing machines can start with our guide to choosing the right SLA 3D printer, browse available resin 3D printers, and review the range of 3D printing resins.

SLS: Strong, Functional Parts Without Support Structures

Selective Laser Sintering is a powder-bed fusion process for functional, durable parts with complex geometries. A laser fuses nylon-based powder layer by layer, and the surrounding powder supports the part during the build, so no support structures are needed. That gives wide design freedom for internal features, snap-fit assemblies, lattice structures, and consolidated multi-part designs in a single build.

SLS suits functional prototyping and low-volume production where strength and consistency matter. Parts show isotropic mechanical properties — they hold strength in all directions — an advantage for load-bearing and mechanically stressed components. The matte surface also takes post-processing such as dyeing, coating, or vapor smoothing well.

Nylon powders form the backbone of SLS. KSPA12 nylon powder, in white and black, is a PA12 material with a balance of strength, toughness, and dimensional stability, used for housings, enclosures, brackets, and precision components across aerospace, automotive, and industrial work. The black variant suits end-use parts where appearance and UV resistance matter; white PA12 provides a clean base for dyeing. For higher stiffness and thermal resistance, KSPA12GB (glass-filled PA12) improves rigidity and reduces warping under load, which fits structural components, fixtures, and jigs. SLS also supports elastomers such as TPU for flexible, impact-resistant parts — gaskets, seals, protective housings, and ergonomic components that need rubber-like flexibility with industrial durability. Overall, SLS spans the gap between prototyping and production, yielding parts that look and perform close to final products without tooling costs.

Advanced Materials: Carbon Fiber and Ceramics

Modern 3D printing extends well beyond standard thermoplastics and resins. Advanced material processes let prototypes approach end-use properties, so engineers can validate performance before production. When standard materials cannot meet a requirement — extreme temperature resistance, specific chemical compatibility, or particular mechanical characteristics — advanced materials fill that gap and let teams test under realistic conditions.

These processes address specialized needs across industries. When a design depends on a property that standard plastics cannot provide, printing in an advanced material lets a team confirm the design will behave as intended before committing to production, reducing surprises during final manufacturing.

Carbon fiber composites deliver high strength-to-weight, stiffness, and durability in lightweight parts. By combining continuous or chopped carbon fibers with a thermoplastic matrix, the process produces prototypes with high stiffness and tensile strength, in some cases comparable to machined aluminum at a fraction of the weight. This is valuable for aerospace, high-performance automotive, and robotics, where structural integrity and weight are both critical. Because the prototype closely matches the properties of a production part, teams can test load-bearing capacity and confirm structural behavior early — for example, fit-testing a lightweight bracket for an aircraft or racing drone — without the cost or lead time of machined samples or early tooling.

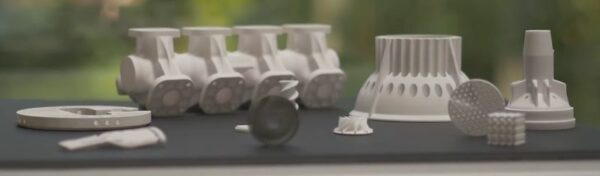

Ceramic printing extends prototyping into environments where standard materials fail. Technical ceramics offer high-temperature resistance, chemical inertness, biocompatibility, and specific thermal or electrical characteristics. Traditional ceramic manufacturing is slow, labor-intensive, and prone to cracking, which makes iteration difficult; printing complex ceramic geometries makes rapid iteration practical. The technology supports aerospace components such as heat shields, medical implants, and parts for chemical processing, letting engineers validate designs under extreme conditions and refine them without the usual cost and lead-time barriers. In medical and aerospace work, where performance and reliability leave little margin but designs still need optimization, the ability to iterate a ceramic part quickly is a meaningful advantage.

Integrating Rapid Prototyping Into Your Workflow

Getting value from rapid prototyping takes more than buying a printer. It requires fitting the technology into existing development processes with a clear method.

• Technology and material selection. Match the process to the immediate goal. Early concept validation often suits FDM; aesthetic evaluation calls for resin; pre-production functional testing may need carbon fiber or ceramics to represent end-use performance. Use a flexible approach and change technology as the design matures rather than assuming one process fits every stage.
• Design for Additive Manufacturing (DfAM). Design specifically for the process. Use internal lattices for weight reduction, integrated multi-part assemblies, and geometries that subtractive methods cannot produce. Designing as though a part will be machined or molded forfeits the advantages of additive manufacturing and can compromise print quality.
• Iteration management. Define what question each prototype should answer, what testing it should undergo, and what result justifies moving to the next stage. The value comes from managed cycles — design, print, test, analyze, refine — where each part informs a deliberate change.
• Cross-functional collaboration. The benefit grows when design, engineering, and manufacturing teams work together throughout. A physical prototype communicates more clearly than drawings and cuts through technical jargon, letting designers, engineers, marketing, and prospective users handle the same object and reach agreement sooner. Regular review sessions and shared ownership of iteration decisions speed alignment across teams.
• Risk mitigation through early validation. Validate critical assumptions while corrections are inexpensive. Test mechanical behavior, user interaction, and material performance on real prototypes rather than relying only on simulation, which prevents costly late-stage redesigns.

A phased approach ties these points together. Early concept work prioritizes speed and low cost with FDM; as designs mature, resin printing supports aesthetic and fine-feature validation; and for pre-production functional testing, carbon fiber or ceramics may be needed to represent end-use performance accurately. Matching the process to the question at hand, and changing it as the design advances, keeps each iteration productive. For a sector view of how these methods play out in practice, see our look at rapid prototyping in automotive development.

Conclusion

Rapid prototyping with 3D printing has reshaped product development, turning a linear, risk-prone process into an iterative one built on continuous refinement. Its value goes beyond speed: it shortens innovation cycles, lowers financial risk, and opens design options that conventional manufacturing constrained. The real leverage comes from knowing how to apply each process — matching FDM, resin, SLS, or an advanced material to the question a given prototype needs to answer, and pairing that choice with design practices built for additive manufacturing.

The advantage belongs to teams that treat rapid prototyping not as a preliminary step but as a core tool for learning, risk reduction, and delivering better final products. As these technologies continue to develop, they will keep shaping how new products are conceived, refined, and brought to market — with the next gains coming less from what teams can print and more from how well they integrate it into the way they work.
