3D PRINTED INSERT MOLD HOLDER FOR APSX-PIM

$500

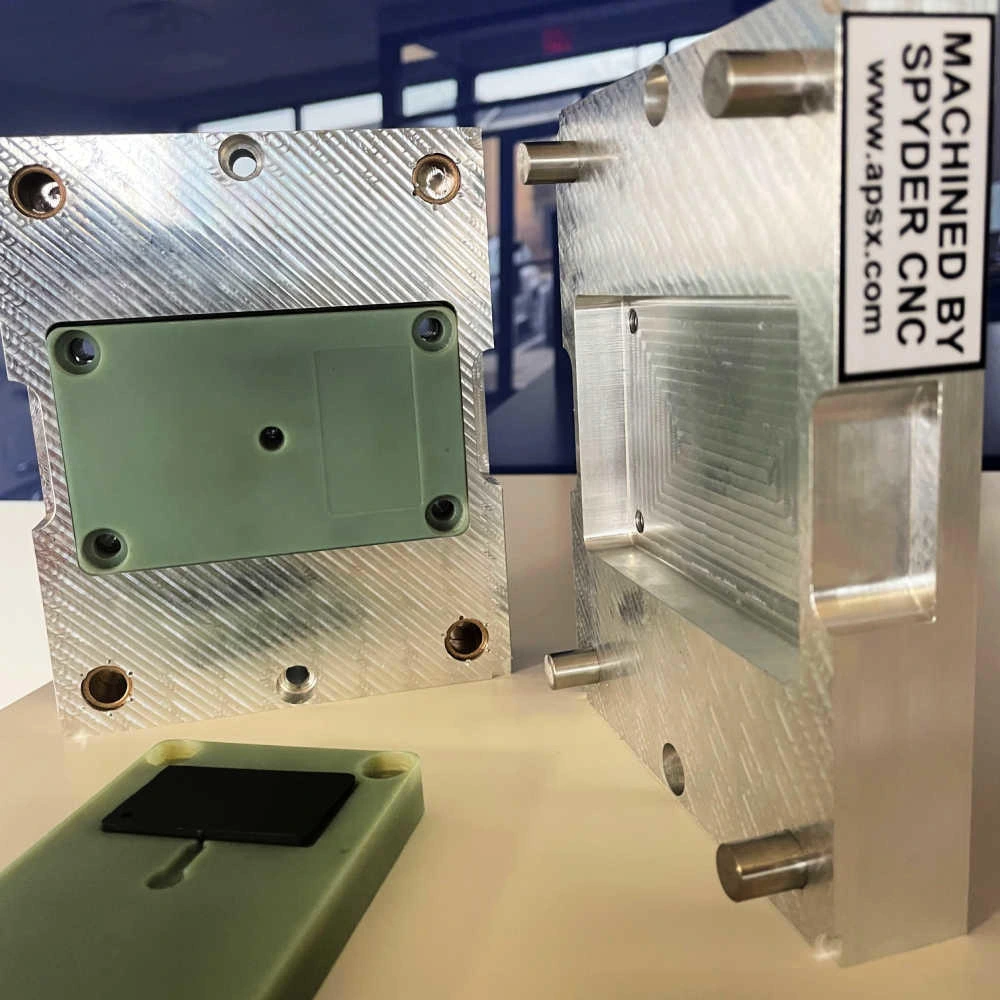

Standard size 6061 aluminum mold holder machined by the Spyder CNC for the APSX-PIM 3D Printed Insert Molds.

  • Technology:

    PIM (Plastic Injection Molding)

  • Platform:

    FIM

  • In stock

$500

Need an official request?

  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

APSX-PIM 3D Printed Insert Mold Frame: Ready-to-Use Platform

Key Features

  1. Plug-and-Play Assembly
    • Alignment pins/bushings pre-installed – focus solely on fabricating your 3D inserts

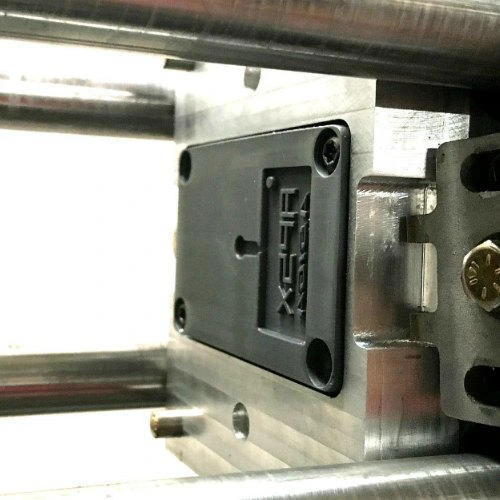

    • Dual-sided claw clamping system for secure mold mounting
  2. 3D Insert Requirements
    • Recommended Printers: Origin, FormLabs, Markforged, Stratasys, Asiga
    • Critical Material Properties:
      • High-temperature resistance
      • High thermal conductivity
    • Materials Supported:
      • PP (Polypropylene), PE (Polyethylene), TPE (Thermoplastic Elastomer) ONLY
      • Avoid engineering resins (PC, Nylon, etc.) requiring high pressure/temps
    • Accessory: 1/8″ high-temp silicone rubber sheet (available via McMaster-Carr)
    • Tolerance Warning: Pins/bushings require machine or manual press installationInstallation & SafetyNEVER hand-press components – risk of damage/injury

Critical Considerations

⚠️ Material Limitations

Use ONLY PP, PE, or TPE
Higher-performance resins require steel/aluminum molds due to pressure/temperature demands

⚠️ Temperature Management

  • No integrated sensor port for 3D inserts
  • Mold insulator strongly recommended to stabilize thermal performance

What’s Included

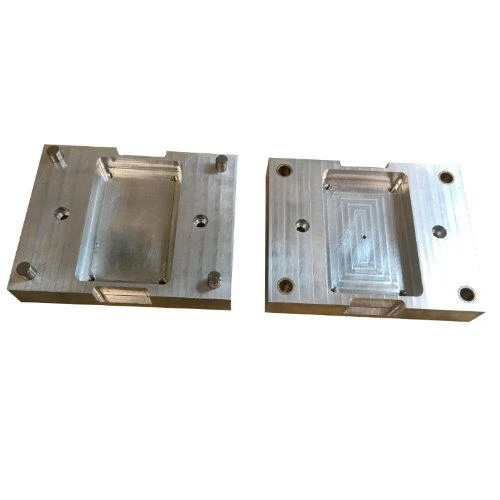

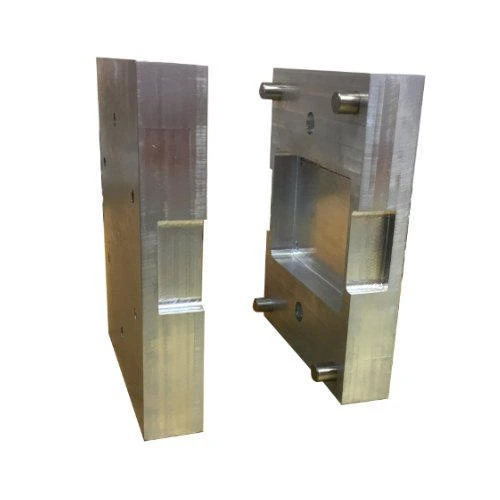

  • Aluminum mold frame with pre-installed pins/bushings
  • 4x clamping claws
  • Screws (1/4-20 round head)
  • B-side silicone rubber cushion
  • Excludes 3D printed inserts

Core Specifications

  • Dimensions: 4.8″ W × 6.0″ H × 2.0″ D
  • Included Hardware:
    • Pre-installed alignment pins & bushings
    • 4x clamping claws (1 set per multi-mold order)
    • A-side: Two 1/4-20 × 1/2″ screws
    • B-side: Two 1/4-20 × 5/8″ screws + silicone rubber cushion
  • Compatibility: Designed for user-fabricated 3D printed mold inserts
  • Brand APSX
  • Country of origin USA
  • Platform FIM
  • Technology PIM (Plastic Injection Molding)
