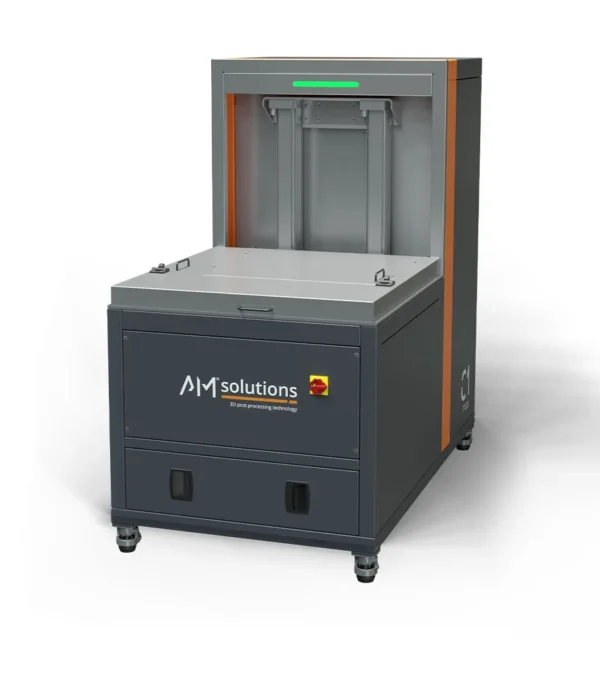

C1 Max Cleaning System

C1 Max: Safe, Automated Cleaning for Your Largest & Most Complex SLA Parts

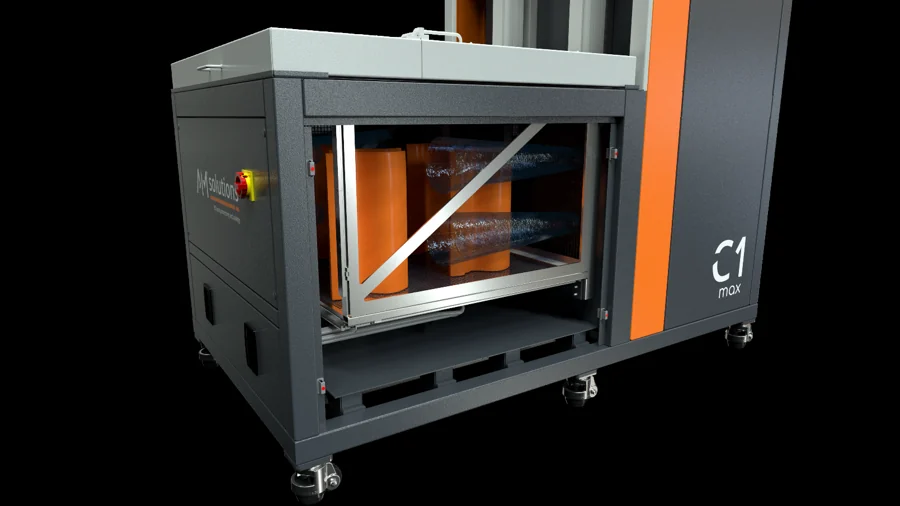

Stop struggling with hazardous solvents and manual cleaning of large 3D printed components. The C1 Max delivers automated, thorough cleaning for oversized SLA parts up to 750 x 750 x 550 mm—without using critical solvents like IPA. This advanced system combines chemical, thermal, and mechanical actions to gently clean intricate geometries and hard-to-reach areas while preserving part integrity.

Specially designed for large-format printers like the 3D Systems ProX 800 and SLA 750, the C1 Max simplifies support removal, reduces operating costs, and ensures consistent, high-quality results. With automated media management and recipe storage, it’s the smartest way to scale your post-processing for industrial applications.

Cleaning

.

Polymers

.

Key Features & Benefits

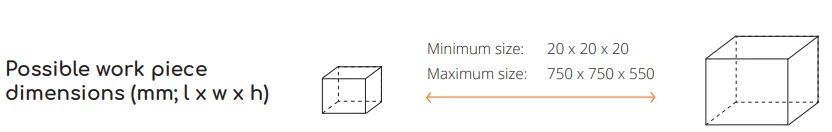

• Large-Scale Capacity: Processes massive parts up to 750 x 750 x 550 mm—ideal for automotive, aerospace, and tooling applications.
• Solvent-Free & Safe: Uses a proprietary, eco-friendly medium instead of hazardous solvents like IPA, enhancing workplace safety.
• Gentle Yet Thorough: The optimized combination of chemical, thermal, and mechanical actions cleans complex geometries without damaging delicate features.
• Easier Support Removal: Significantly simplifies manual support removal, saving time and reducing the risk of part damage.
• Fully Automated Operation: Automated build platform cleaning, fill-level monitoring, and media dosing ensure consistent results with minimal operator intervention.
• Plug-and-Play Compatibility: Ready for Kings 3D SLA, 3D Systems ProX 800 & SLA 750; upgradeable for Stratasys Neo® 800.

FAQs

The C1 Max is ideal for large-format SLA parts used in industries like automotive, aerospace, and manufacturing—especially complex components with intricate details or hard-to-reach areas that are difficult to clean manually.

It uses a specially developed, proprietary processing medium that combines chemical, thermal, and mechanical actions to dissolve and remove residues safely and effectively—eliminating the need for hazardous solvents.

Yes. It is compatible with different SLA 3D Printers – Kings 3D SLA, 3D Systems ProX 800 and SLA 750 printers and can be upgraded for use with the Stratasys Neo® 800, making it a versatile solution for multi-printer environments.

The cleaning process softens and partially dissolves support structures, making them easier to remove manually without damaging the part—saving time and reducing labor costs.

Yes. It features automated media dosing, fill-level monitoring, and programmable recipes for different part types. The intuitive design allows for easy loading/unloading of build platforms and quick media changes.

By automating the cleaning process, reducing solvent costs, and minimizing manual labor, the C1 Max lowers operating expenses while improving throughput and part quality.

The system continuously monitors key parameters like media concentration and temperature. Multiple stored recipes allow repeatable, optimized cycles for different part geometries.

The solvent-free process eliminates chemical hazards associated with IPA. The enclosed system and automated controls reduce operator exposure to residues and ensure safe, clean operation.
