In stock
- COA on request — PSD, sphericity, flow rate, chemistry
- Mutual NDA before any file or spec review

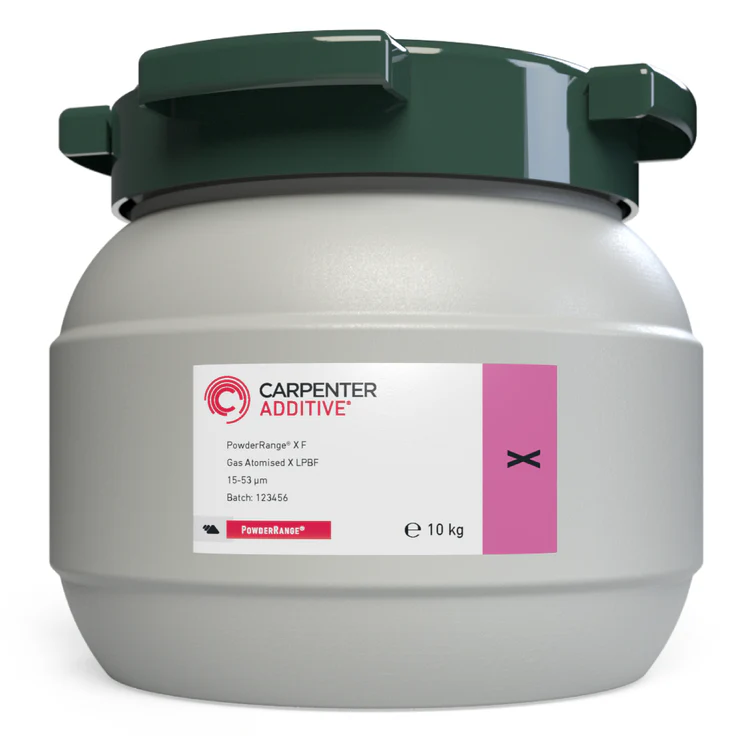

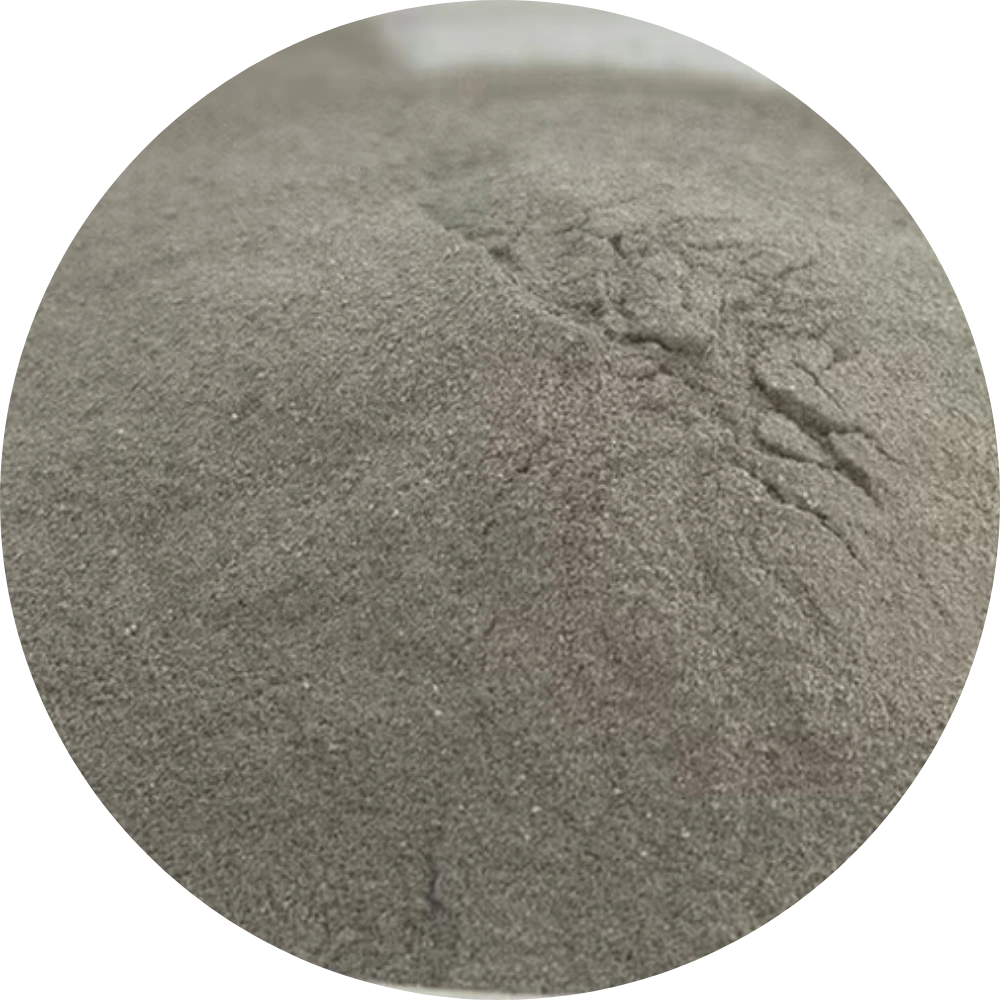

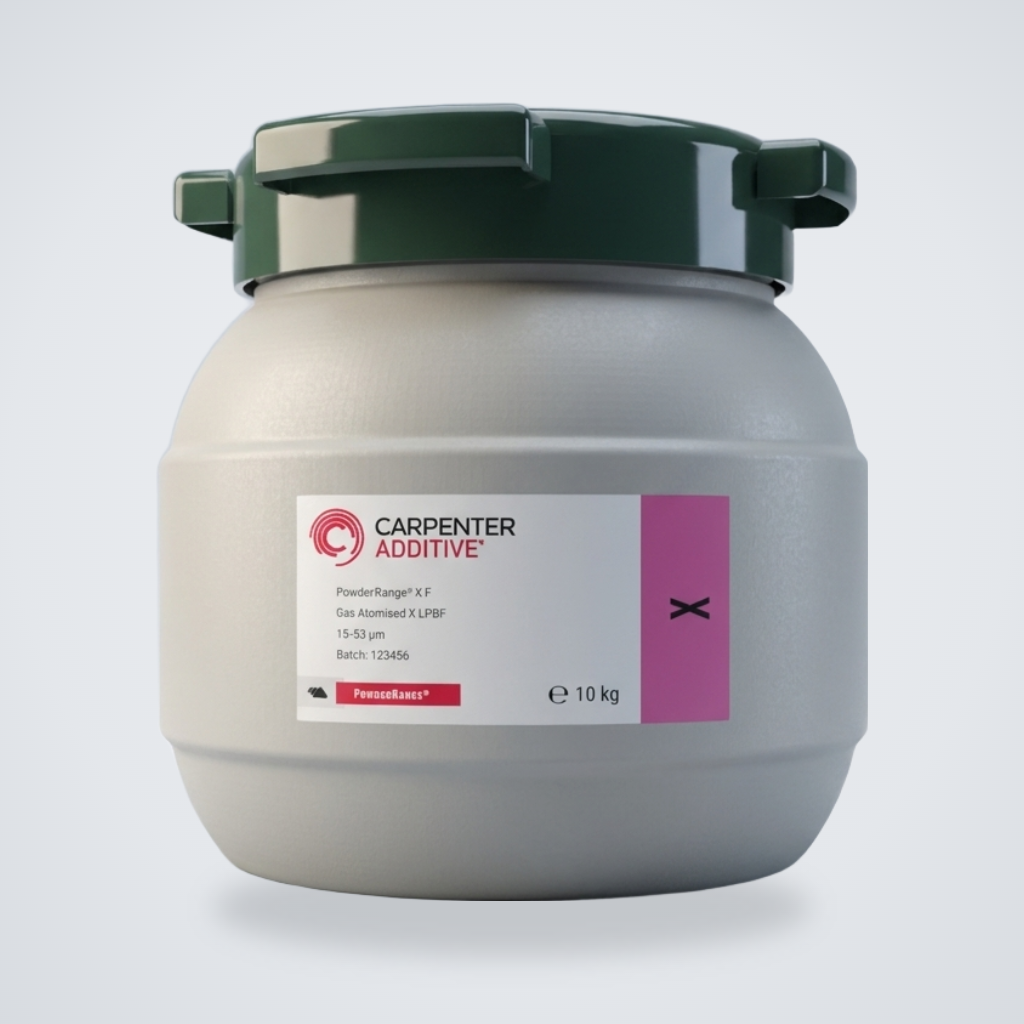

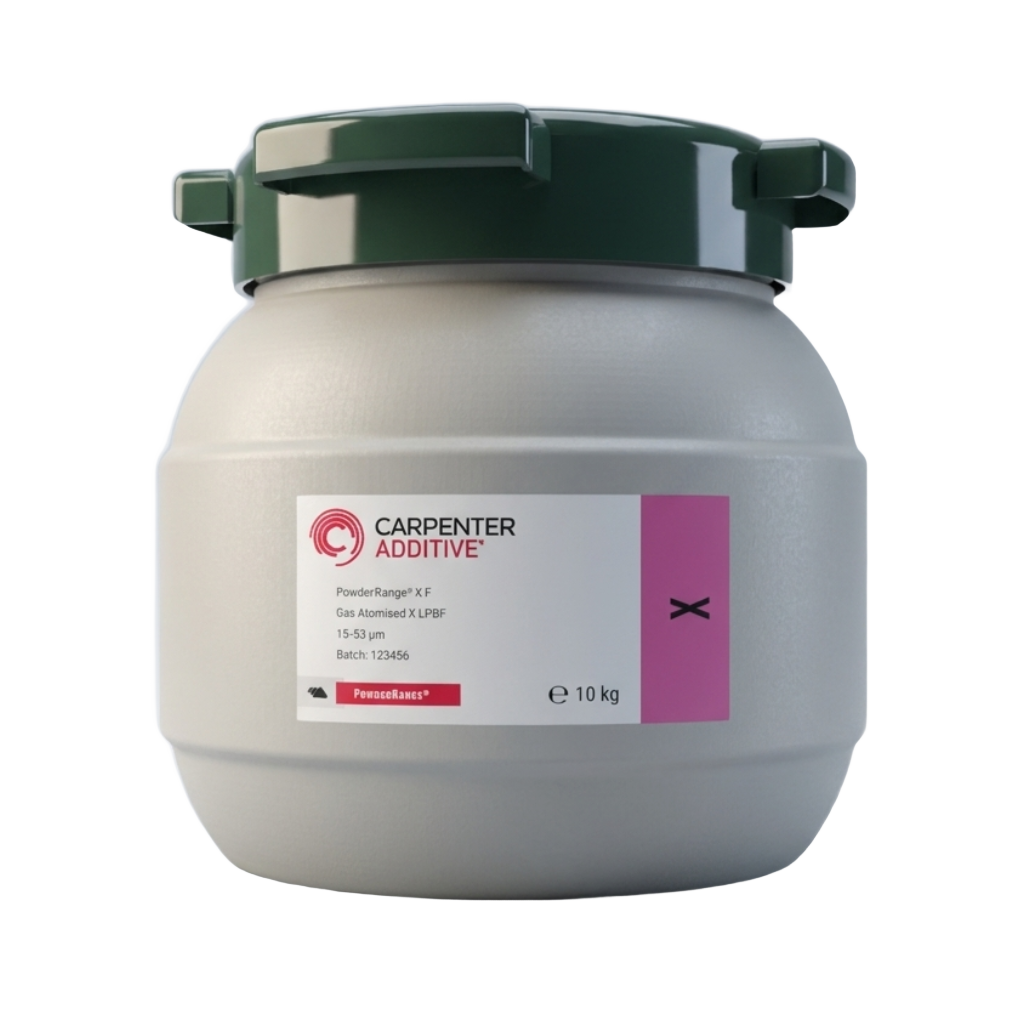

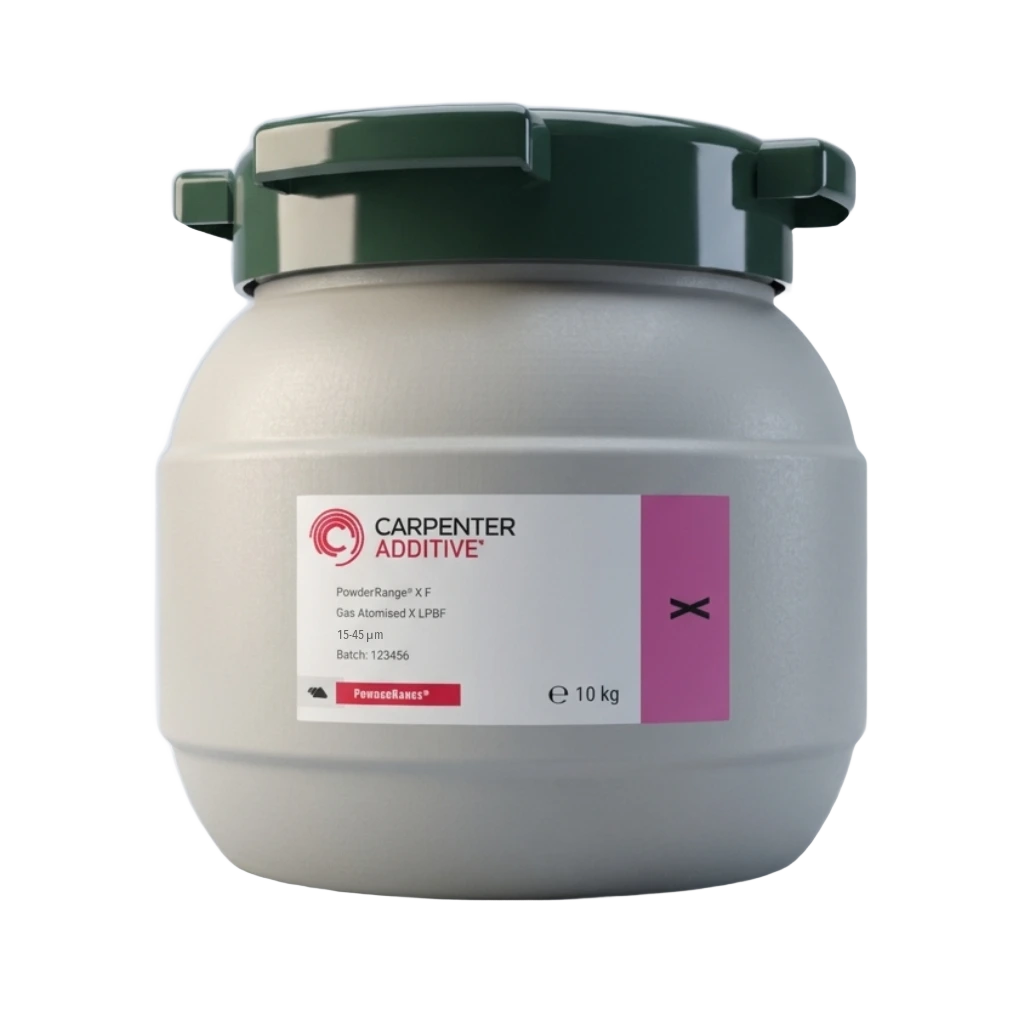

Hastelloy X Nickel Alloy Powder for LPBF — 15–45 µm, 10 kg
Carpenter Hastelloy X powder price: $1,105 per 10 kg ($110.50/kg)
Solid-solution nickel-chromium-iron-molybdenum superalloy with strength and oxidation resistance to 1204 °C (2200 °F). Carpenter tunes the chemistry for lower crack susceptibility than nominal alloy X, and as-built parts match wrought properties. Vacuum-induction-melted and argon-atomized (PowderRange X).
* Carpenter data with 30 µm layers and specific energy ≥ 59 J/mm³.
Which high-temperature nickel alloy is right for your build?
All of them are in our catalog at a published price. Pick by machine, timing and country of origin.
| Powder | Particle size | Origin | Availability | Good fit for | 10 kg | |
|---|---|---|---|---|---|---|
 Carpenter Additive 939WIN939 for AM | 15–45 µm · LPBF | Confirmed per lot | In stock | Hot-gas-path turbine parts; precipitation-hardenable | $1,745 | View |
 Carpenter Additive X (Hastelloy X) FThis page | 15–45 µm · LPBF | Confirmed per lot | In stock | Oxidation resistance to 1204 °C (2200 °F), LPBF | $1,105 | Add to cart |
 Carpenter Additive X (Hastelloy X) ECoarse cut | 45–106 µm · EBM | Confirmed per lot | In stock | Hastelloy X for electron-beam systems | $515 | View |
 Carpenter Additive GRX-810NASA ODS alloy | 15–45 µm · LPBF | Confirmed per lot | In stock | NASA ODS alloy: oxidation resistance to 1316 °C (2400 °F) | $4,955 | View |
Need a specific country of origin for a government or defense program? Ask before ordering and we will confirm it in writing for your lot.
What is in the container
Specification from the manufacturer. The certificate for your lot is available on request.
Specification
Type analysis, PowderRange X datasheet (Carpenter Additive). Single figures are nominal except where noted.
| Element | wt% |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 20.5–23.0 |
| Iron (Fe) | 17.0–20.0 |
| Molybdenum (Mo) | 8.0–10.0 |
| Cobalt (Co) | 1.00–2.50 |
| Tungsten (W) | 0.20–1.00 |
| Aluminum (Al) | 0.50 |
| Copper (Cu) | 0.50 |
| Manganese (Mn) | 0.50 |
| Silicon (Si) | 0.20 |
| Titanium (Ti) | 0.150 |
| Carbon (C) | 0.10 |
| Oxygen (O) | 0.10 |
| Phosphorus (P) | 0.040 |
| Nitrogen (N) | 0.030 |
| Sulfur (S) | 0.030 |
| Boron (B) | 0.010 |
| Hydrogen (H) | 0.005 |
| Powder property | Requirement |
|---|---|
| Above 53 µm | max 1 wt% (ASTM B214) |
| Below 15 µm | max 10 vol% (ASTM B822) |
| D10 / D50 / D90 | measured and reported on the lot certificate |
| Hall flow, apparent density | measured and reported (ASTM B213, B212) |
| Melting and atomization | Vacuum induction melted, argon gas atomized |

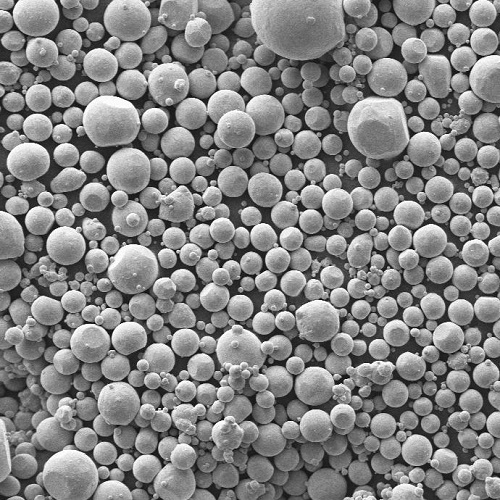

What the particles look like
From the manufacturer datasheet

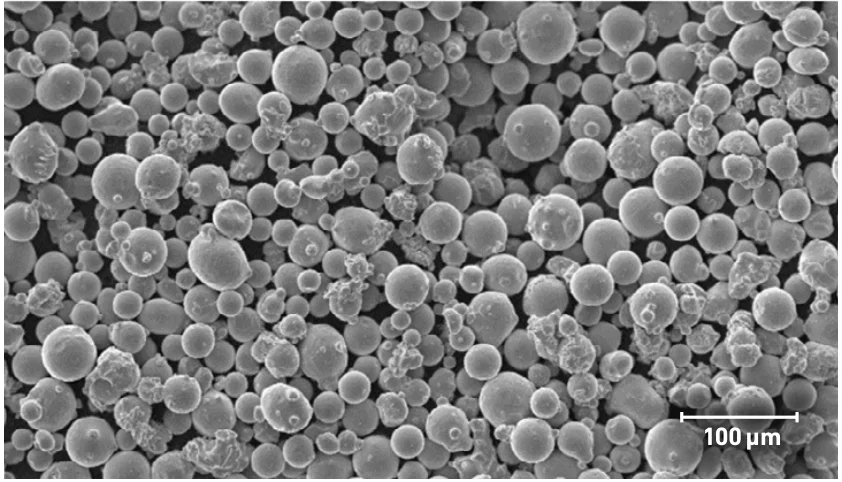

SEM image of typical PowderRange X powder, from the Carpenter Additive datasheet; scale bar 100 µm.
Each order ships with the Carpenter Additive certificate of analysis for its lot: chemistry, particle size distribution (D10/D50/D90) and density. Ask us if you need to see a recent certificate before ordering.
How the printed metal performs
Room-temperature tensile data published by Carpenter Additive for PowderRange X: average of at least 5 samples per orientation and condition. A guide for your own qualification, not design data. Condition names as in the datasheet.
| Condition | Orientation | Yield, MPa | UTS, MPa | Elongation | Impact, J | HRB |
|---|---|---|---|---|---|---|
| As-built | X–Y | 663 | 876 | 34% | 81 | 100 |
| Z | 577 | 780 | 43% | 99 | 99 | |
| Solution + age | X–Y | 393 | 816 | 41% | 82 | 92 |
| Z | 382 | 786 | 44% | 90 | 93 | |
| HIP + solution + age | X–Y | 379 | 811 | 44% | 95 | 92 |
| Z | 375 | 786 | 46% | 102 | 92 | |
| ASTM spec. minimum, per Carpenter | all | 240 | 655 | 35% | — | — |
Heat treatment
Carpenter datasheet, process guidance
- Solution anneal: 1177 °C (2150 °F) for 1 hour, then cool below 540 °C (1000 °F) fast enough to avoid precipitation; rapid air cool for thin parts, oil or water quench for heavy sections.
- Age is usually not needed; if used: 760 °C (1400 °F) for 3 hours, air cool, then 595 °C (1100 °F) for 3 hours, air cool.
- HIP to close porosity: at least 100 MPa (14.5 ksi) at about 1260 °C (2300 °F) for 240 minutes or more under inert gas, then solution treat.
- Not precipitation-hardenable. Machine with single-point carbide tools and a sulfur-base cutting fluid, removed before heat treatment.
Corrosion, comparative rating
From wrought-alloy experience; test your printed parts
| Humidity | Excellent | Sea water | Excellent |
| Salt spray | Excellent | Acetic acid | Excellent |
| Nitric acid | Good | Sulfuric acid | Good |
| Phosphoric acid | Good | Sodium hydroxide | Good |
| Sour oil/gas | Good |
Specifications, equivalent names and how Hastelloy X compares
Specifications
From the manufacturer datasheet
| Applicable | AMS7008 |
| Associated | UNS N06002, AMS5536, AMS5754, AMS5798, ASTM B572 |
Equivalent names on LPBF machines
“Similar materials” in the datasheet; for parameter selection only, not machine-maker approvals
| Generic | Hast X, Alloy X |
| EOS | NickelAlloy HX |
| SLM Solutions | HX |
How it compares
Published tensile data, X–Y direction unless noted, one representative condition per alloy. Conditions differ, so use this to shortlist, not to design.
| Alloy | Condition | Yield, MPa | UTS, MPa | Elongation | Choose it for | 10 kg |
|---|---|---|---|---|---|---|
| Hastelloy X | Solution + age | 393 | 816 | 41% | Oxidation resistance to 1204 °C (2200 °F) | $1,105 |
| Inconel 625 | Stress relieved | 648 | 1007 | 41% | Corrosion resistance; cryogenic to 1093 °C (2000 °F) | $1,145 |
| Inconel 718 | Solution + age | 1086 | 1425 | 13% | Strength up to 704 °C (1300 °F) | $985 |
Will it run on my printer?
Carpenter states that PowderRange X is compatible with all commercially available laser powder bed fusion equipment. Ask our materials engineer for starting parameters for your machine. The 45–106 µm E cut above is for electron-beam systems.
AO MetalA30 · A50 · A100Benchtop to production LPBF with open parameters. Ask our materials engineer for starting parameters.From $59,000 · A30See AO Metal printers →
FarsoonMetal LPBF lineOpen-platform LPBF from compact R&D frames to 16-laser production systems.FS121M · FS191M · FS200M · FS273M · FS301M · FS350M · FS422M · FS621M · FS721M · FS812M · FS1311M · FS1521MQuote on requestSee Farsoon metal printers →Machine names identify compatible equipment only. Additive Plus is not affiliated with these manufacturers, and the powder is not approved by them. Process parameters are tuned per machine.
Store sealed
Keep the container closed, dry and at room temperature until you load the printer.
Sieve
Sieve before loading and every time you reuse powder recovered from a build.
ATO Sieve · quoteLoad and purge
Fill the dispenser, close the chamber and purge with argon or nitrogen.
Print and relieve
Stress-relieve on the plate, then remove parts and supports.
Recover
Collect unfused powder, sieve it and return it to a sealed container.
Delfin Mistral 451 BL D2 — ATEX metal powder vacuum · $7,175Wear a respirator, gloves and eye protection when handling metal powder. Read the safety data sheet before first use.
Printed on AO Metal
Real builds on the LPBF printers we sell, and what teams make from this alloy.
Parts printed on AO Metal printers, which we sell. Alloys, parameters and powder lots differ from part to part; these photos show the process, not parts made from this specific powder lot.
- Turbine rotors
- Shafts
- Buckets
- Bolts
- Afterburner components
- Furnace hardware
Applications as listed by Carpenter Additive for PowderRange X.
Ordering, delivery and our promise
10 kg of 15–45 µm powder, sealed, traceable to its Carpenter lot certificate.
The ship date shows next to the Add to Cart button. Shipping cost is calculated at checkout.
Card or PayPal at checkout, an invoice, or a purchase order — choose how you buy next to Add to Cart.
100 kg and more: ask for a volume quote with your alloy, quantity and ship-to.
If the powder is not right, we make it right.
If your lot’s chemistry or particle size falls outside its certificate or this page, or it arrives damaged or wrong, tell us within 14 days of delivery. We replace it or refund you, and we pay for shipping both ways.
