In stock
- Validated cure profile + datasheet for the printers we sell
- Mutual NDA before any file or spec review
Nexa3D xESD-Black Resin 1.5 kg For XiP
Rigid black static-dissipative LSPc photopolymer in the 1.5 kg XiP format: surface resistivity of about 10⁷ Ω to ASTM D257, with measured part surface resistance of 10⁶–10⁸ Ω from a dispersed discrete carbon-nanotube network.
- ✔ 10⁶–10⁸ Ω measured surface resistance — inside the 10⁶–10⁹ Ω static-dissipative band
- ✔ 68.1 MPa tensile, 97.4 MPa flexural, Shore D 87, HDT 91.3 °C at 0.45 MPa
- ✔ 1.5 kg format for the Nexa3D XiP, Black — ships in 1–2 business days from US stock
$588
What your process engineer actually checks
Dissipative through the part, not on it
xESD carries a stable, uniformly dispersed network of discrete carbon nanotubes through the whole resin, so measured part surface resistance lands at 10⁶–10⁸ Ω consistently across a finished part instead of relying on a sprayed or dipped coating that abrades away in service. Surface resistivity is about 10⁷ Ω by ASTM D257 — inside the 10⁶–10⁹ Ω static-dissipative band — and because the dispersion does not settle, results repeat build after build and in every print axis.
A materials engineer on the line
Questions on resin compatibility, wash media or post-cure settings? Our engineers have run these materials on Nexa3D LSPc printers. Sub-4h reply, NDA standard. Use the Talk to materials engineer button above.

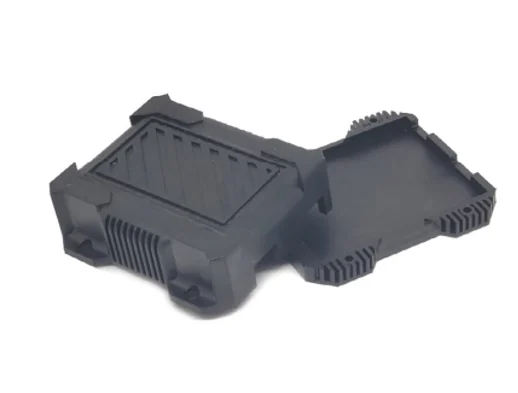

Nexa3D xESD-Black is a rigid static-dissipative LSPc photopolymer in the 1.5 kg format for the XiP 4K desktop printer. A stable, uniformly dispersed network of discrete carbon nanotubes — Mechnano MechT technology — holds surface resistivity at roughly 10⁷ Ω by ASTM D257, inside the 10⁶–10⁹ Ω static-dissipative band, and Nexa3D’s own xESD case study reports measured part surface resistance of 10⁶–10⁸ Ω. The dispersion does not settle and leaves no carbon trails, so ESD-safe jigs, fixtures, grippers, trays and enclosures print with isotropic dissipative behaviour instead of a surface coating.
Why engineers choose xESD
Electrical performance first, then the mechanicals — values from the Nexa3D xESD data sheet.
Surface resistivity ≈10⁷ Ω
ASTM D257 places xESD inside the 10⁶–10⁹ Ω static-dissipative band; measured part surface resistance runs 10⁶–10⁸ Ω across the geometry.
Isotropic, not a coating
The discrete carbon-nanotube network is dispersed through the resin and does not settle, so dissipative behaviour is uniform in every print axis and leaves no carbon trails.
68.1 MPa tensile, 2600 MPa modulus
Ultimate tensile strength of 68.1 MPa with 3.8% elongation at break and 24 J/m notched Izod — rigid fixtures that hold tolerance under daily handling.
97.4 MPa flex, HDT 91.3 °C
Flexural modulus of 1800 MPa and Shore D 87, with a 91.3 °C HDT at 0.45 MPa, keep trays and fixtures stable on a warm assembly line.
How we supply xESD
Every 1.5 kg unit arrives ready to run on the XiP — no parameter hunting.
Lot-coded & profiled
Each 1.5 kg unit ships sealed and lot-coded with the validated LSPc print profile for the XiP desktop printer.
Wash + post-cure dialed in
Wash in IPA or xClean, two intervals of two minutes, dry, then LED or wide-spectrum UV post-cure — the routine we run in-house so xESD lands on spec.
Stocked & shipped
Held in US stock and dispatched in 1–2 business days; 1.5 kg and 5 kg formats, with volume and PO orders handled by our materials desk.
Typical applications
Where a static-dissipative photoplastic earns its place on the floor.
Physical & mechanical properties
Typical values from the Nexa3D xESD technical data sheet. Post-processed properties are process-dependent.
| Property | Method | Value |
|---|---|---|
| Surface resistivity | ASTM D257 | ~10⁷ Ω (static-dissipative band 10⁶–10⁹ Ω) |
| Tensile modulus | ASTM D638 | 2600 MPa |
| Ultimate tensile strength | ASTM D638 | 68.1 MPa |
| Elongation at break | ASTM D638 | 3.8% |
| Flexural modulus | ASTM D790 | 1800 MPa |
| Flexural strength | ASTM D790 | 97.4 MPa |
| Notched Izod impact | ASTM D256 | 24 J/m |
| Shore hardness (D) | ASTM D2240 | 87 |
| HDT @ 0.45 MPa | ASTM D648 | 91.3 °C |
| Viscosity @ 25 °C | Liquid resin | 878.1 cP |
| Density @ 25 °C | Liquid resin | 1.1 g/cm³ |
| Base chemistry / colour | — | Urethane dimethacrylate · Black |
Compatible printers & workflow
- This 1.5 kg format is supplied for the Nexa3D XiP 4K desktop LSPc printer; the same xESD chemistry is stocked in a 5 kg bottle for NXE 400.
- Wash in IPA or xClean for two intervals of two minutes, dry, then LED or wide-spectrum UV post-cure; wash and cure stations are sold separately.
- Supplied in Black only.
Not sure xESD is the right resin?
Same LSPc workflow, different property target — compare within the Nexa3D line.
Downloads
Nexa3D xESD — Technical Data Sheet (PDF)
Nexa3D xESD — Safety Data Sheet (PDF)
Why source xESD through Additive Plus
- Nexa3D LSPc resins stocked and supported in the US by Additive Plus.
- Validated LSPc print profiles and post-cure settings ship with every unit.
- Volume pricing and official purchase orders handled by our materials desk.
- Under-24h response, dispatched in 1–2 business days from US stock.
| Brand | Nexa3D |
| Available colors | Black |
| Weight | 1.5 kg |
| Country of origin | USA |
| Printing Materials | Resins |
| Platform | XiP |
| Technology | LSPc |
| Resin Type | General |
| Application | Engineering, Manufacturing |
Product videos
We formulate and qualify. Custom variants on request.
Need a tuned resin, a filled or castable formulation, or a profile for a printer we don't list yet? Our materials team qualifies custom formulations and prints test specimens before you commit. Typical lead 2–4 weeks.
