In stock
- COA on request — PSD, sphericity, flow rate, chemistry
- Mutual NDA before any file or spec review

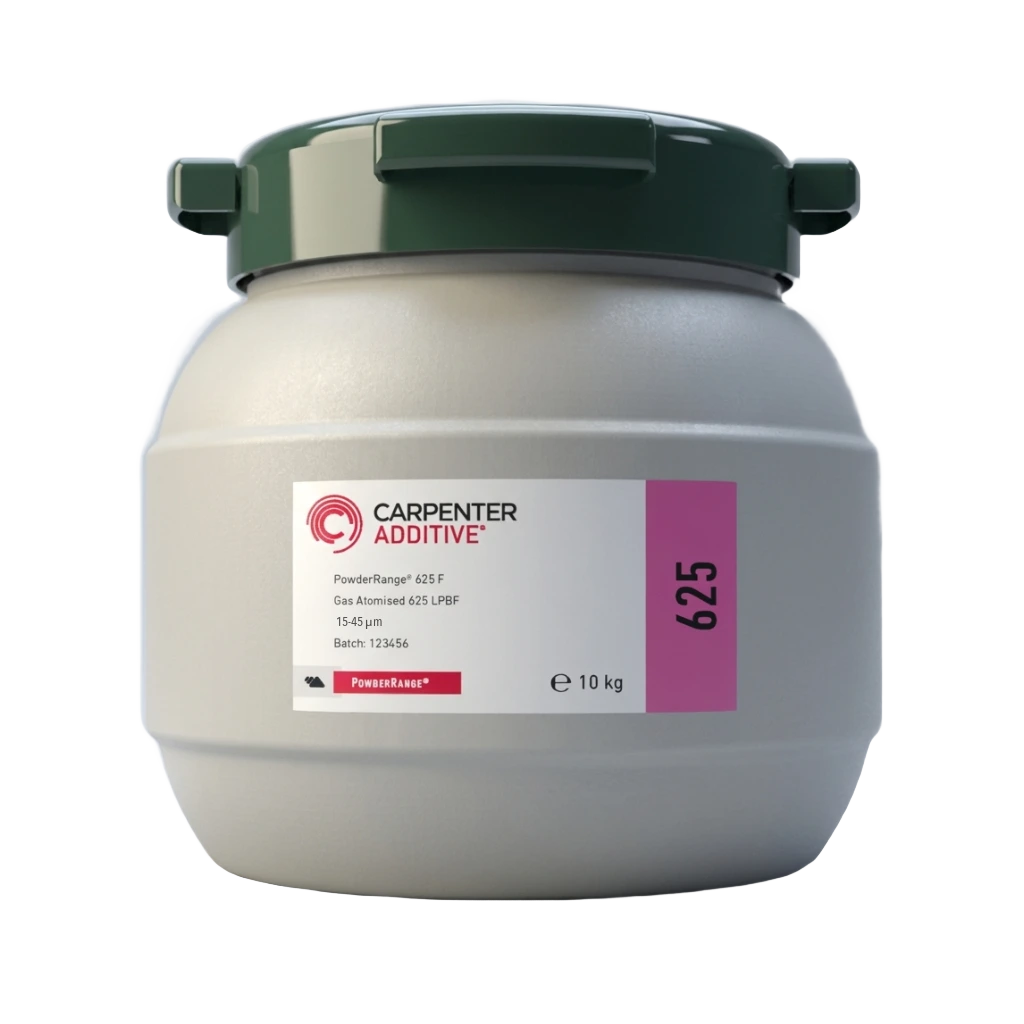

Inconel 625 Nickel Alloy Powder for LPBF — 15–45 µm, 10 kg
Carpenter Inconel 625 powder price: $1,145 per 10 kg ($114.50/kg)
Non-magnetic nickel-chromium-molybdenum superalloy with strength and toughness from cryogenic temperatures to 1093 °C (2000 °F) and excellent resistance to chloride stress-corrosion cracking. Vacuum-induction-melted and argon-atomized by Carpenter Additive (PowderRange 625).
* Carpenter data with 20–60 µm layers and specific energy ≥ 65 J/mm³.
Which Inconel 625 is right for your build?
All of them are in our catalog at a published price. Pick by machine, timing and country of origin.
| Powder | Particle size | Origin | Availability | Good fit for | 10 kg | |
|---|---|---|---|---|---|---|
 Carpenter Additive 625 FThis page | 15–45 µm · LPBF | Confirmed per lot | In stock | Programs that need a named mill and fast delivery | $1,145 | Add to cart |

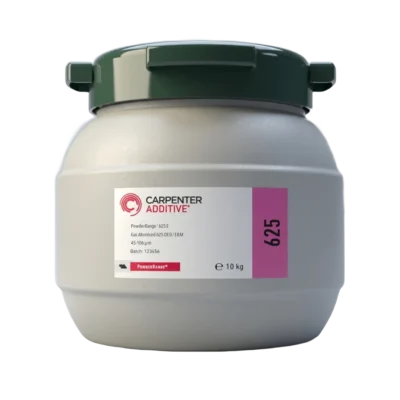

 Carpenter Additive 625 ECoarse cut | 45–106 µm · DED, EBM | Confirmed per lot | In stock | Directed energy deposition and electron-beam systems | $555 | View |

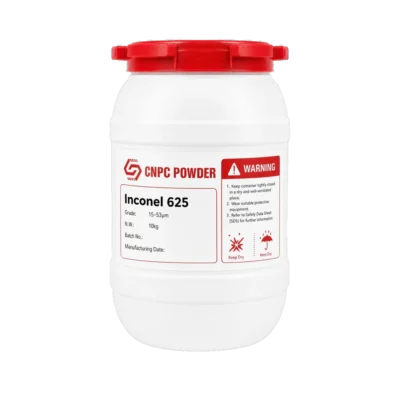

 CNPC Powder Inconel 625Named manufacturer | 15–53 µm · LPBF | China | Made to order | Lower LPBF price per kg | $910 | View |
Need a specific country of origin for a government or defense program? Ask before ordering and we will confirm it in writing for your lot.
What is in the container
Specification from the manufacturer. The certificate for your lot is available on request.
Specification
Type analysis, PowderRange 625 datasheet (Carpenter Additive). Single figures are nominal except where noted.
| Element | wt% |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 20.00–23.00 |
| Molybdenum (Mo) | 8.00–10.00 |
| Iron (Fe) | 5.00 |
| Niobium (Nb) | 3.15–4.15 |
| Cobalt (Co) | 1.00 |
| Manganese (Mn) | 0.50 |
| Silicon (Si) | 0.50 |
| Aluminum (Al) | 0.40 |
| Titanium (Ti) | 0.40 |
| Carbon (C) | 0.10 |
| Oxygen (O) | 0.030 |
| Nitrogen (N) | 0.020 |
| Phosphorus (P) | 0.015 |
| Sulfur (S) | 0.015 |
| Powder property | Requirement |
|---|---|
| Above 53 µm | max 1 wt% (ASTM B214) |
| Below 15 µm | max 10 vol% (ASTM B822) |
| D10 / D50 / D90 | measured and reported on the lot certificate |
| Hall flow, apparent density | measured and reported (ASTM B213, B212) |
| Melting and atomization | Vacuum induction melted, argon gas atomized |
What the particles look like
From the manufacturer datasheet

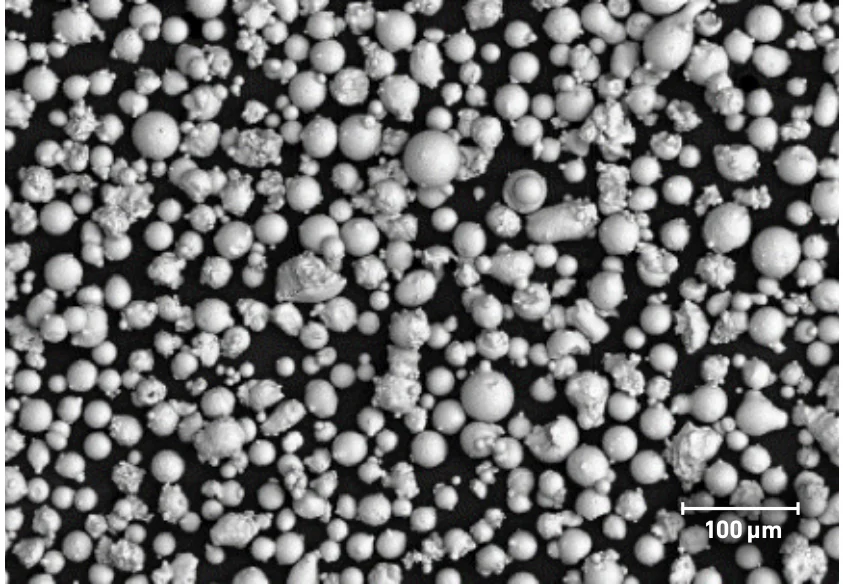

SEM image of typical PowderRange 625 powder, from the Carpenter Additive datasheet; scale bar 100 µm.
Each order ships with the Carpenter Additive certificate of analysis for its lot: chemistry, particle size distribution (D10/D50/D90) and density. Ask us if you need to see a recent certificate before ordering.
How the printed metal performs
Room-temperature tensile data published by Carpenter Additive for PowderRange 625: average of at least 5 samples per orientation and condition. A guide for your own qualification, not design data.
| Condition | Orientation | Yield, MPa | UTS, MPa | Elongation | Impact, J |
|---|---|---|---|---|---|
| As-built | X–Y | 745 | 1014 | 40% | 108 |
| Z | 614 | 910 | 49% | 134 | |
| Stress relieved | X–Y | 648 | 1007 | 41% | 99 |
| Z | 593 | 903 | 50% | 122 | |
| HIP | X–Y | 393 | 896 | 60% | 132 |
| Z | 372 | 883 | 62% | 133 | |
| ASTM F3056 minimum | all | 275 | 485 | 30% | — |
Heat treatment
Carpenter datasheet, process guidance
- Stress relief per AMS2774: 1038 °C (1900 °F) for 1 hour, air cool.
- Solution anneal instead, for higher ductility: 1177 °C (2150 °F), rapid air cool or faster.
- HIP per ASTM F3056: at least 100 MPa (14.5 ksi) at about 1141 °C (2087 °F) for 240 minutes in argon.
- Machining: low cutting speeds, rigid tools and workpiece, ample coolant, positive feeds.
Corrosion, comparative rating
From wrought-alloy experience; test your printed parts
| Humidity | Excellent | Sea water | Excellent |
| Salt spray | Excellent | Sour oil/gas | Excellent |
| Phosphoric acid | Excellent | Acetic acid | Excellent |
| Sodium hydroxide | Excellent | Nitric acid | Good |
| Sulfuric acid | Good |
Specifications, equivalent names and how Inconel 625 compares
Specifications
From the manufacturer datasheet
| Applicable | ASTM F3056 |
| Associated | UNS N06625, AMS5666F, AMS5599G, DIN NiCr22Mo9Nb |
Equivalent names on LPBF machines
“Similar materials” in the datasheet; for parameter selection only, not machine-maker approvals
| Generic | Inconel 625, Alloy 625, Nickel 625 |
| 3D Systems | LaserForm Ni625 |
| GE (Concept Laser) | Nickel 625 |
| EOS | NickelAlloy IN625 |
| Renishaw | In625-0402 |
| SLM Solutions | IN625 |
How it compares
Published tensile data, X–Y direction unless noted, one representative condition per alloy. Conditions differ, so use this to shortlist, not to design.
| Alloy | Condition | Yield, MPa | UTS, MPa | Elongation | Choose it for | 10 kg |
|---|---|---|---|---|---|---|
| Inconel 625 | Stress relieved | 648 | 1007 | 41% | Corrosion resistance; cryogenic to 1093 °C (2000 °F) | $1,145 |
| Inconel 718 | Solution + age | 1086 | 1425 | 13% | Strength up to 704 °C (1300 °F) | $985 |
| Hastelloy X | Solution + age | 393 | 816 | 41% | Oxidation resistance to 1204 °C (2200 °F) | $1,105 |
Will it run on my printer?
Carpenter states that PowderRange 625 is compatible with all commercially available laser powder bed fusion equipment. The 15–45 µm F cut is the LPBF cut; for DED and EBM, use the 45–106 µm option above. Ask our materials engineer for starting parameters for your machine.
AO MetalA30 · A50 · A100Benchtop to production LPBF with open parameters. Ask our materials engineer for starting parameters.From $59,000 · A30See AO Metal printers →
FarsoonMetal LPBF lineOpen-platform LPBF from compact R&D frames to 16-laser production systems.FS121M · FS191M · FS200M · FS273M · FS301M · FS350M · FS422M · FS621M · FS721M · FS812M · FS1311M · FS1521MQuote on requestSee Farsoon metal printers →Machine names identify compatible equipment only. Additive Plus is not affiliated with these manufacturers, and the powder is not approved by them. Process parameters are tuned per machine.
Store sealed
Keep the container closed, dry and at room temperature until you load the printer.
Sieve
Sieve before loading and every time you reuse powder recovered from a build.
ATO Sieve · quoteLoad and purge
Fill the dispenser, close the chamber and purge with argon or nitrogen.
Print and relieve
Stress-relieve on the plate, then remove parts and supports.
Recover
Collect unfused powder, sieve it and return it to a sealed container.
Delfin Mistral 451 BL D2 — ATEX metal powder vacuum · $7,175Wear a respirator, gloves and eye protection when handling metal powder. Read the safety data sheet before first use.

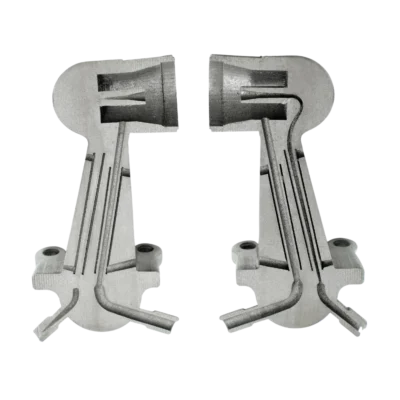

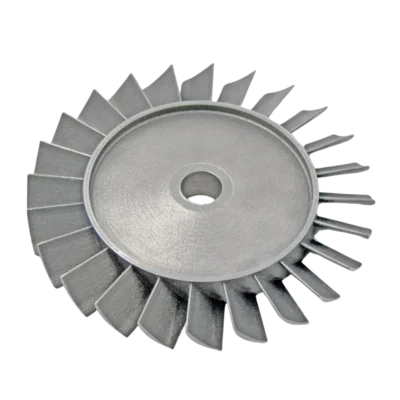

Printed on AO Metal
Real builds on the LPBF printers we sell, and what teams make from this alloy.
Parts printed on AO Metal printers, which we sell. Alloys, parameters and powder lots differ from part to part; these photos show the process, not parts made from this specific powder lot.
- Heat shields
- Furnace hardware
- Combustion liners and spray bars
- Gas turbine engine ducting
- Chemical plant hardware
- Marine and seawater applications
Applications as listed by Carpenter Additive for PowderRange 625.
Ordering, delivery and our promise
10 kg of 15–45 µm powder, sealed, traceable to its Carpenter lot certificate.
The ship date shows next to the Add to Cart button. Shipping cost is calculated at checkout.
Card or PayPal at checkout, an invoice, or a purchase order — choose how you buy next to Add to Cart.
100 kg and more: ask for a volume quote with your alloy, quantity and ship-to.
If the powder is not right, we make it right.
If your lot’s chemistry or particle size falls outside its certificate or this page, or it arrives damaged or wrong, tell us within 14 days of delivery. We replace it or refund you, and we pay for shipping both ways.
Complete the workflow
- ✓ 316L — stronger pitting and chemical resistance than 304 stainless
- ✓ Precision-ground flatness for consistent first-layer adhesion
- ✓ Made to order — choose your speed below: Express 2–3 wks, or Standard 6–8 wks (save ~45%)
- ✓ Conductive / antistatic build — no static build-up around ignition-sensitive powder
- ✓ For stainless, nickel & non-reactive AM powder — reactive metals need the inert unit
- ✓ In US stock · ships in 2 business days · genuine Delfin unit · ATEX docs on request

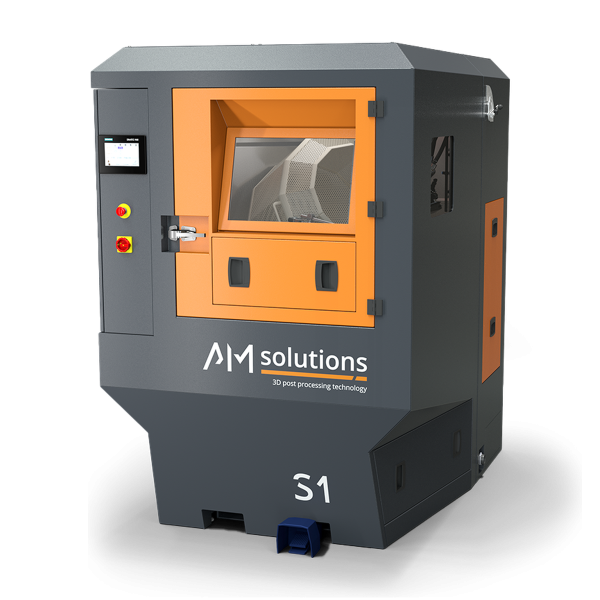

Automated 2-in-1 blasting cell that depowders and surface-finishes powder-bed 3D-printed parts in one enclosed, software-controlled cycle.
- ✓ Depowdering + surface finishing in one ATEX-compliant cell
- ✓ Polymer PBF (SLS, MJF, HSS, SAF) + de-powdered metal parts
- ✓ Lead time: 4–8 weeks — built to order · install + training included
- ✓ High tensile, fatigue & creep strength to 1300°F (704°C)
- ✓ Sold in small, workable volumes — no large mill minimums
- ✓ COA on request · in US stock, ready to ship
Other alloys in US stock now
Premium-grade LPBF powders, COA on request — add to cart or request a formal quote.
Carpenter Additive · Made in USAIN939 Nickel Alloy Powder for Metal 3D PrintingIn stock · ships in ~2 business days$1,745 / 10 kg · $174.50/kg
Carpenter Additive · Made in USAHastelloy X Powder for Additive ManufacturingIn stock · ships in ~2 business days$1,105 / 10 kg · $110.50/kg
Carpenter Additive · Made in AustriaAluminum Alloy Powder AlSi10MgIn stock · ships in ~2 business days$815 / 10 kg · $81.50/kg
Carpenter Additive · Made in USAM300 Maraging Steel Powder for Metal 3D PrintingIn stock · ships in ~2 business days$1,210 / 10 kg · $121.00/kgCommon questions
Don't see yours? Email [email protected] — NDA on request.
What is PowderRange 625 (Inconel 625) powder (15–45 µm)?
How is Inconel 625 heat treated after printing?
Inconel 625 or Inconel 718: which should I choose?
How corrosion-resistant is Inconel 625 powder?
Does Inconel 625 powder come with a certificate of analysis?
How fast does Inconel 625 powder ship, and how can I pay?
Can I reuse unfused Inconel 625 powder?
Place your order, or talk to an engineer first
Order IN625 Nickel Alloy Powder for Metal 3D Printing | LPBF Compatible - 10 kg / 22 lbs direct, or talk to materials engineer
