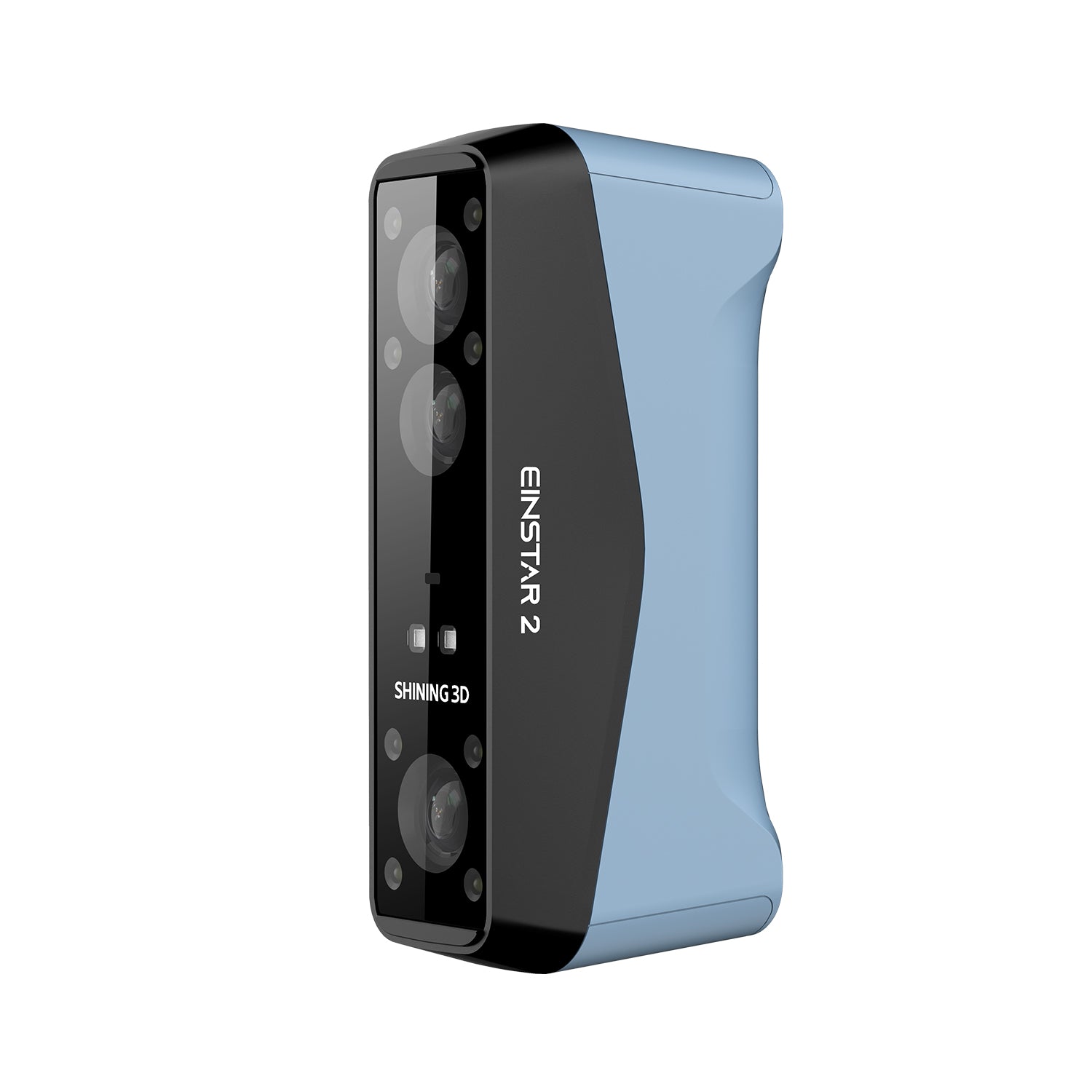

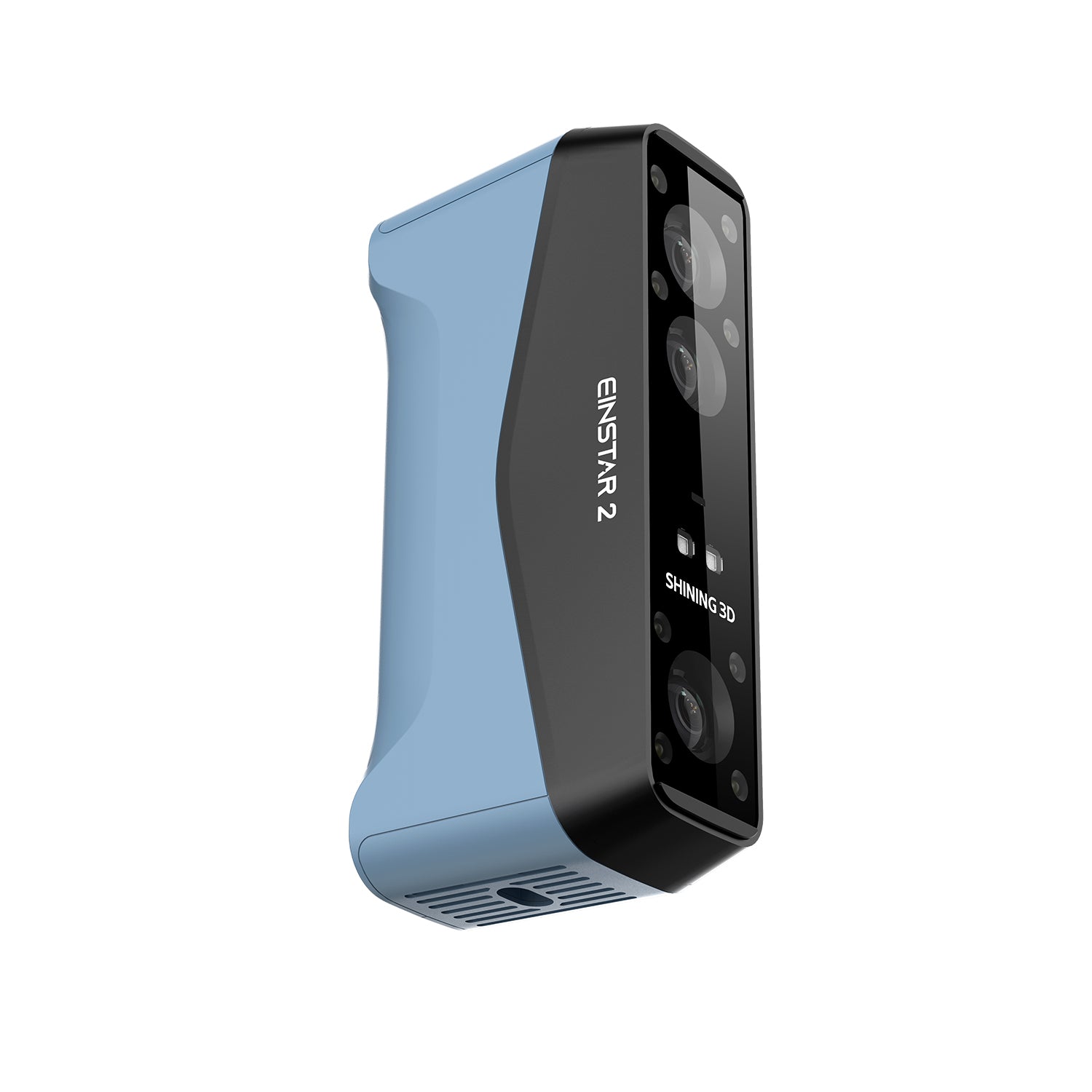

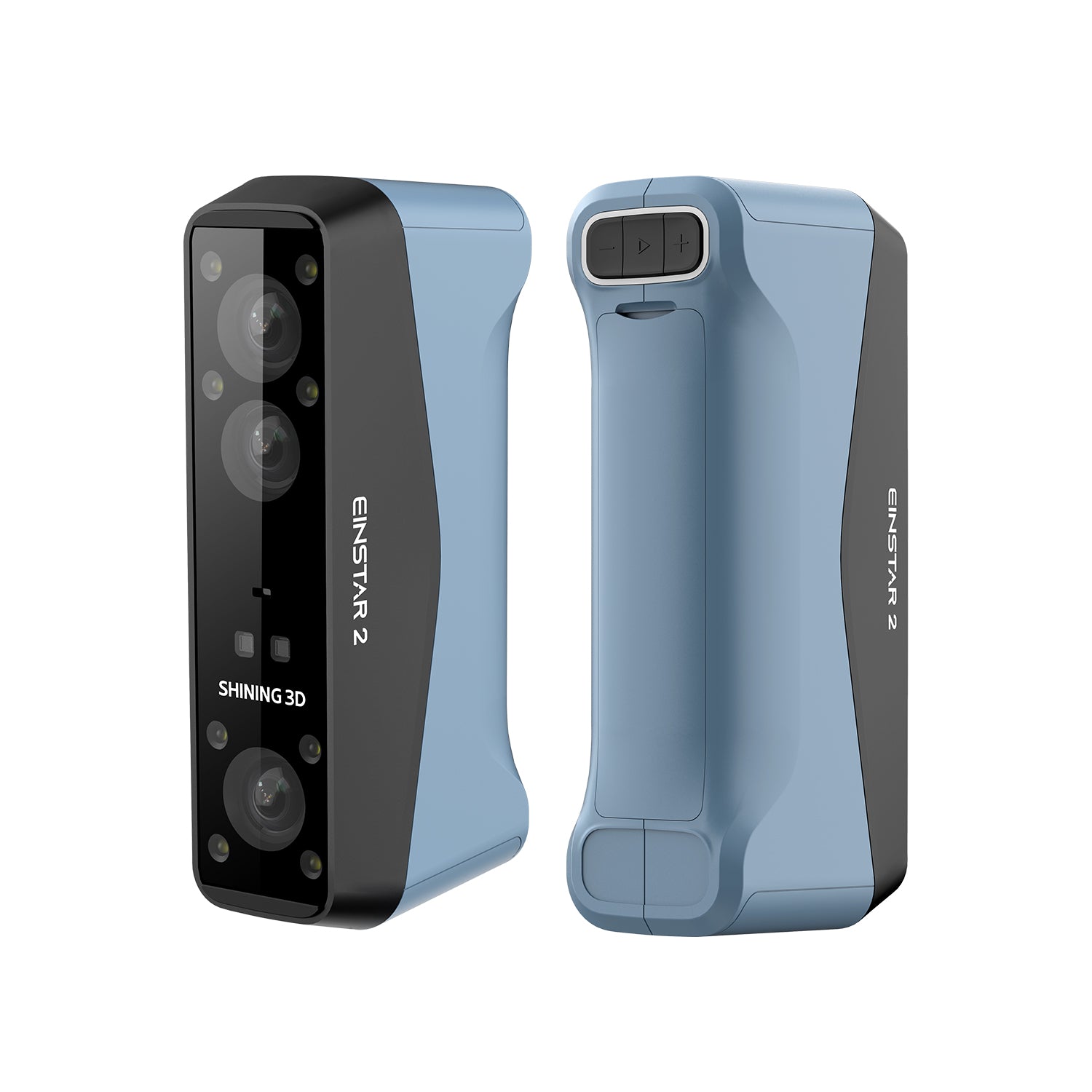

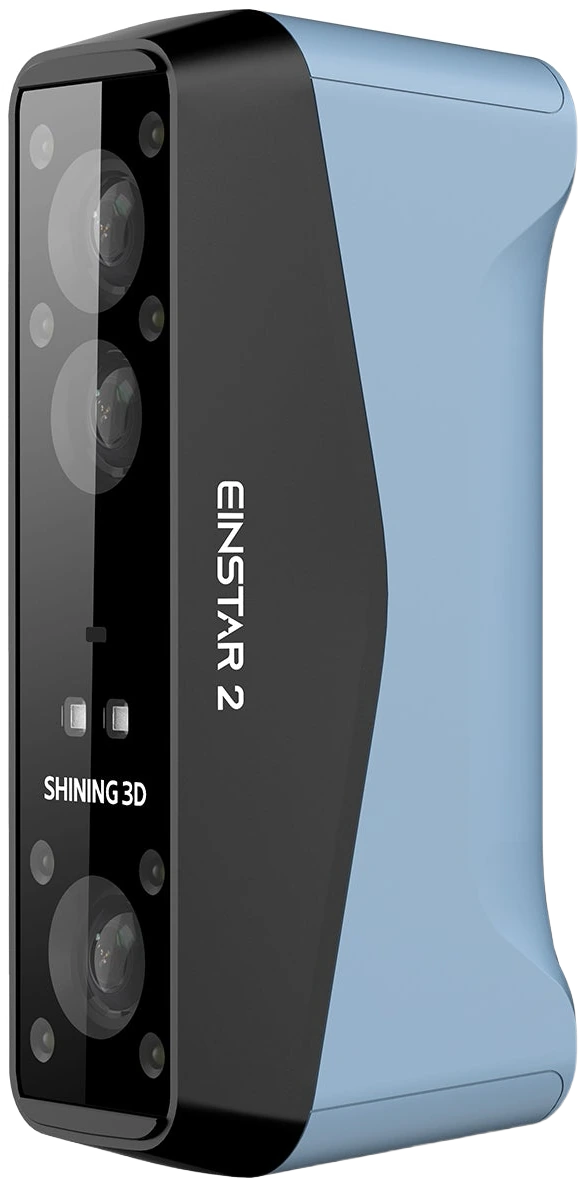

Shining 3D EINSTAR 2 Wireless Handheld 3D Scanner – Blue Laser + IR | 0.05 mm Resolution
Wireless handheld 3D scanner and the successor to the original Einstar — 17 blue laser lines for detail plus an IR mode for large objects and people, capturing from 5 mm details to 10 m scenes at 0.05 mm resolution, a full body in about 60 seconds.
- ✓ 0.05 mm resolution (Laser HD) · 17 parallel blue laser lines · 2.5M–4.8M points/s
- ✓ Dual mode: laser (small–medium detail) + IR (large objects, full body)
- ✓ Built-in Wi-Fi · swappable battery up to 3 h · 420 g · full body in ~60 s
- ✓ 1-year Shining 3D warranty · authorized US reseller
- ✓ Ships from California — arrives in 1–5 business days, depending on shipping speed
$1,249
What creators actually check
Detail and versatility in one
17 blue laser lines resolve detail at 0.05 mm resolution, while IR mode captures a full body in about 60 seconds — from 5 mm details to 10 m scenes. One wireless scanner covers detailed objects and people.
Authorized US reseller
Additive Plus is an authorized Shining 3D reseller in the US. First-line support comes from our team in California, warranty repairs are handled by Shining 3D, and you get a formal quotation on our letterhead with US invoicing.
The Shining 3D EINSTAR 2 is the wireless successor to the original Einstar handheld scanner. It pairs 17 blue laser lines for fine detail with an IR mode for large objects and full-body capture, handling subjects from 5 mm details to 10 m scenes at 0.05 mm resolution in Laser HD mode — and a full body in about 60 seconds in IR mode — with no cable to the PC.
Why creators choose the EINSTAR 2
Still Einstar — now with a blue-laser mode, built-in Wi-Fi, and faster processing.
The Einstar, upgraded
The EINSTAR 2 adds a 17-line blue-laser mode for finer detail on small objects than the original infrared structured-light Einstar, while keeping the same approachable, beginner-friendly workflow.
Detail and big objects both
Laser HD mode captures small to medium objects at 0.05 mm resolution; IR mode handles people, large objects, and scenes up to 10 m. One scanner covers a bracket and a full body. See specifications below.
Full body in ~60 seconds
Fast, eye-safe IR capture scans a whole person in about 60 seconds — suited for character work, avatars, prosthetic and orthotic starting scans, and body-based art.
Wireless, light, all-day
Fully wireless with built-in Wi-Fi and a swappable battery giving up to three hours of scanning. At 420 g it is easy to hold for a long session, and it works with no cable to the PC.
How you buy the EINSTAR 2 from Additive Plus
From an authorized Shining 3D reseller in the US.
Warranty
1-year Shining 3D warranty.
Support
First-line support from our team in California; warranty repairs by Shining 3D.
Ordering
Formal quotation on our letterhead, US invoicing. Ships from the Shining 3D warehouse in California and arrives in 1–5 business days, depending on the shipping speed you choose.
Scanning Performance
The EINSTAR 2 uses 17 parallel blue laser lines in Laser HD mode, with 0.05 mm resolution and up to 2,500,000 points/s, and switches to an IR VCSEL mode at up to 4,800,000 points/s for large objects and full-body scans. Shining 3D rates it for subjects from 5 mm details to 10 m scenes. In IR Rapid mode it can align on features, texture, or a hybrid of both without markers; Laser HD mode aligns on markers. See the full specification table below.
From a Part to a Person
Two modes make the EINSTAR 2 versatile for creators. In Laser HD it resolves mechanical parts, models, and detailed objects; in IR it captures people, furniture, and larger scenes quickly. Full-body capture in around 60 seconds suits character and avatar creation, art, cosplay, and starting scans for custom-fit work — and the same device still handles a small printed part when you need it.
Software & Output
The EINSTAR 2 runs on Shining 3D’s EXStar Hub software and exports STL, OBJ, PLY, 3MF, and ASC. STL and 3MF go straight into 3D-printing slicers, while OBJ and PLY carry color texture for design, art, and presentation. EXModel Personal for reverse engineering is available as a separate bundle.
Typical applications
A versatile scanner for creators and engineers alike.
Why Source the EINSTAR 2 Through Additive Plus
- Authorized Shining 3D reseller in the US
- 1-year Shining 3D warranty
- First-line support from our team in California; warranty repairs by Shining 3D
- Formal quotation on our letterhead, US invoicing
Not sure the EINSTAR 2 is the right scanner?
Compare it with the other entry and portable scanners we support.
Step up to professionalEinScan RigilCompare scanner →
Wireless entryEinstar VegaView scanner →
| Brand | Shining 3D |
| Country of origin | China |
| Scanner Type | Wireless handheld dual-source (blue laser + IR) 3D scanner |
| Resolution | Laser HD: 0.05 – 10 mm IR Rapid: 0.2 – 10 mm |
| Laser Lines | 17 parallel blue laser lines (Laser HD) |
| Scan Rate | Laser HD: 2,500,000 pts/s IR Rapid: 4,800,000 pts/s |
| Light Source | Blue laser + IR VCSEL |
| Object Size Range | 5 mm to 10 m |
| Full Body Scan | About 60 seconds |
| Alignment | IR Rapid: markers, features, texture or hybrid (marker-free possible) Laser HD: markers |
| Output Formats | STL, OBJ, PLY, 3MF, ASC |
| Software | EXStar Hub (EXModel Personal available as a separate bundle) |
| Battery | Swappable · up to 3 h scanning |
| Interface | Wi-Fi (built-in) · USB Type-C cable option |
| Weight | 0.92 lbs, 420 g (with battery) |
We scan for a living. Try it on your part first.
Tell us your part size, material and target accuracy — our applications engineer will recommend the right scanner.
Complete the workflow
Pocket-sized, wireless handheld 3D scanner with two light sources — blue laser lines (38 crossed + 7 parallel) for detail and IR for speed — with 0.05 mm resolution, marker-free laser scanning, and 5 MP full-color texture.
- ✓ 0.05 mm resolution (Laser HD) · 38 crossed + 7 parallel laser lines · 2.8M–4.8M points/s
- ✓ Blue laser (detail) + IR VCSEL (speed) · marker-free scanning by feature alignment
- ✓ Built-in Wi-Fi · swappable battery up to 3 h · 425 g · 5 MP color · scans in bright light
- ✓ 1-year Shining 3D warranty · authorized US reseller
- ✓ Ships from California — arrives in 1–5 business days, depending on shipping speed
A wireless, all-in-one handheld 3D scanner: the scanner, a 6.4″ touchscreen and the computer in one 535 g device. Scan, process and share without a laptop.
- HD Mode down to 0.05 mm point distance · Fast Mode for people and car-size objects up to 1.5 m away
- 48 MP color camera — geometry and texture in one pass
- 8-core CPU, 32 GB RAM, 512 GB SSD, Wi-Fi 6, 1.5–2 h battery
- 1-year Shining 3D warranty · support from our team in California
Tri-mode laser 3D scanner — wireless standalone, PC-wireless, or PC-wired — with up to 0.04 + 0.06 mm/m volumetric accuracy in Laser HD. Blue laser and IR VCSEL light sources in one all-in-one device, with marker-free laser scanning through Laser + IR hybrid tracking, for reverse engineering, product design, and art.
- ✓ 0.04 + 0.06 mm/m volumetric accuracy · up to 0.05 mm resolution (Laser HD)
- ✓ 25+25 crossed and 7 parallel blue laser lines + IR VCSEL — up to 4,800,000 points/s laser, 16,000,000 points/s IR
- ✓ Standalone wireless: 6.4″ 2K AMOLED, 32GB RAM, 1TB SSD, two replaceable batteries
- ✓ 1-year Shining 3D warranty · authorized US reseller
- ✓ Ship date confirmed by email after you order
Other products teams run alongside Shining 3D EINSTAR 2 Wireless Handheld 3D Scanner – Blue Laser + IR | 0.05 mm Resolution
- ✓ Software for FreeScan handheld & metrology scanners — UE Nova, UE Pro2, Trio, Trak Nova, Combo
- ✓ Intelligent noise/feature algorithm · real-time mesh + data-quality & laser-line color feedback
- ✓ Video Photogrammetry (VPG) up to 0.02 + 0.015 mm/m · bridges to EXModel, Geomagic, PolyWorks
- ✓ Delivered as a licensed download — issued to order; request licensing
In stock
· Delivered as a licensed download; issued to order

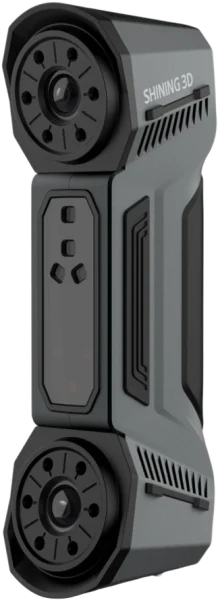

The Shining 3D FreeScan Combo is a dual-mode handheld 3D scanner combining blue laser and infrared VCSEL in a 620 g package, achieving up to 0.02 mm accuracy for metrology, reverse engineering and inspection.
