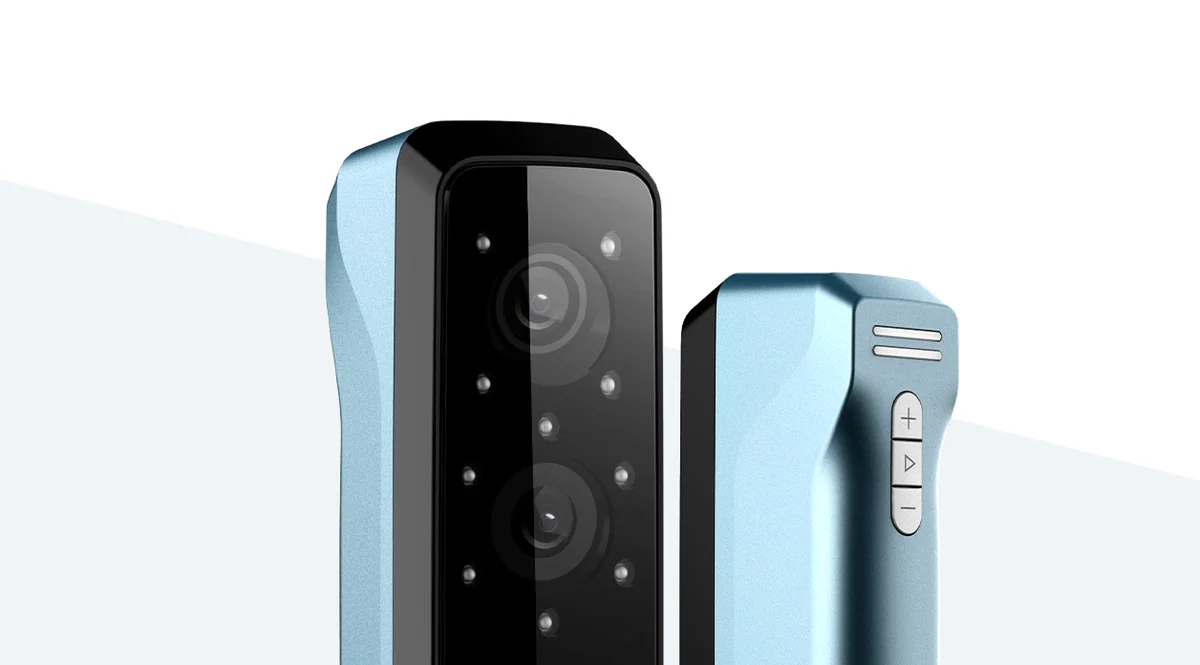

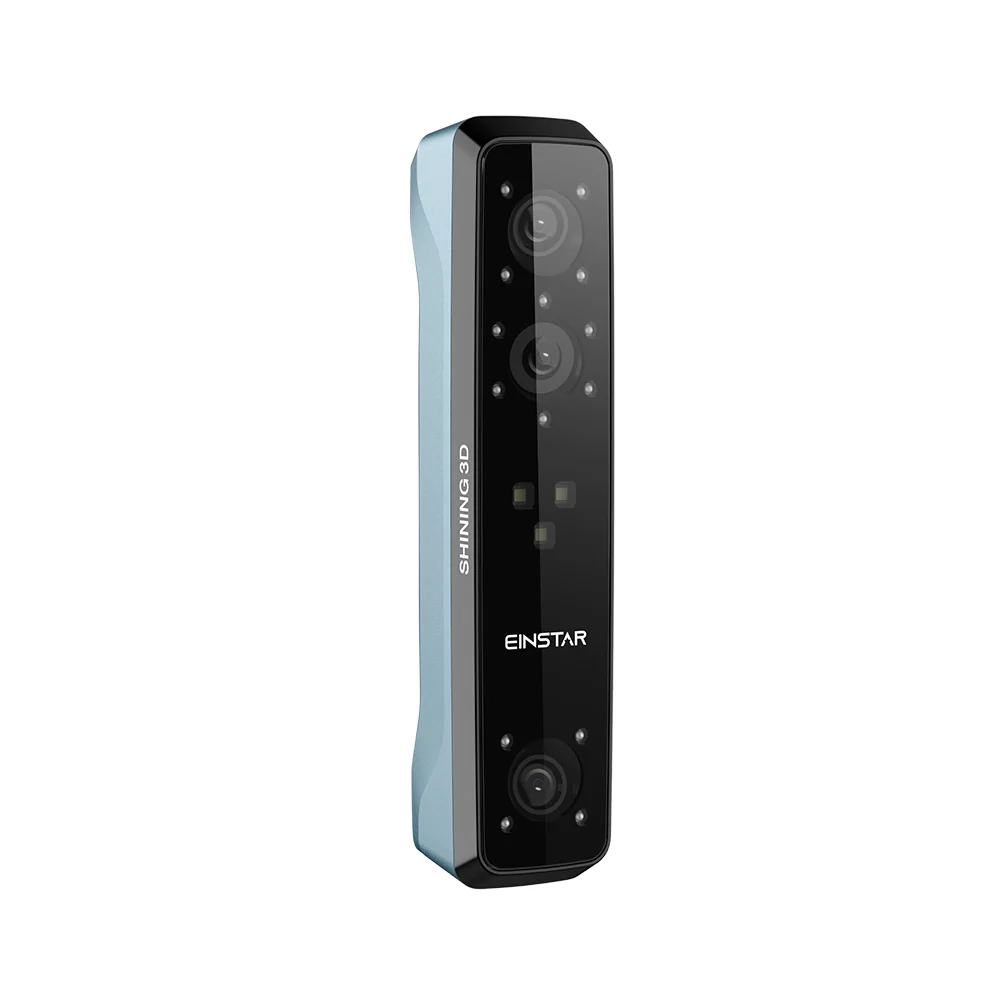

Shining 3D Einstar Handheld 3D Scanner – Full-Color Entry Model | 0.1 mm Point Distance
Structured-light handheld scanner with point distance down to 0.1 mm and a 160–1400 mm working range — full-color, markerless capture at an entry price for makers, students, and small design teams.
- ✓ Point distance 0.1–3 mm, up to 14 fps capture
- ✓ Full-color, markerless on most objects · infrared VCSEL suited to dark and shiny surfaces
- ✓ USB-tethered to Windows 10/11 or macOS (Apple Silicon) — no onboard computer required
- ✓ 1-year Shining 3D warranty
- ✓ Ship date confirmed by email after you order
$759
What creators actually check
High-density data at an entry price
Point distance down to 0.1 mm and up to 14 fps capture across a 160–1400 mm working range — enough detail for design reference, small-part reverse engineering, and print-ready meshes, with full-color texture from the built-in RGB camera.
Authorized US reseller
Additive Plus is an authorized Shining 3D reseller in the US. First-line support comes from our team in California; warranty repairs are handled by Shining 3D under the 1-year Shining 3D warranty. Formal quotation on our letterhead, US invoicing.
The Shining 3D Einstar is a full-color, markerless handheld 3D scanner built for makers, students, and small design teams — combining structured-light capture, point distance down to 0.1 mm, and a 160–1400 mm working range in a tethered, entry-priced package.
Why makers and design teams choose the Einstar
Full-color, markerless capture at an entry-level price.

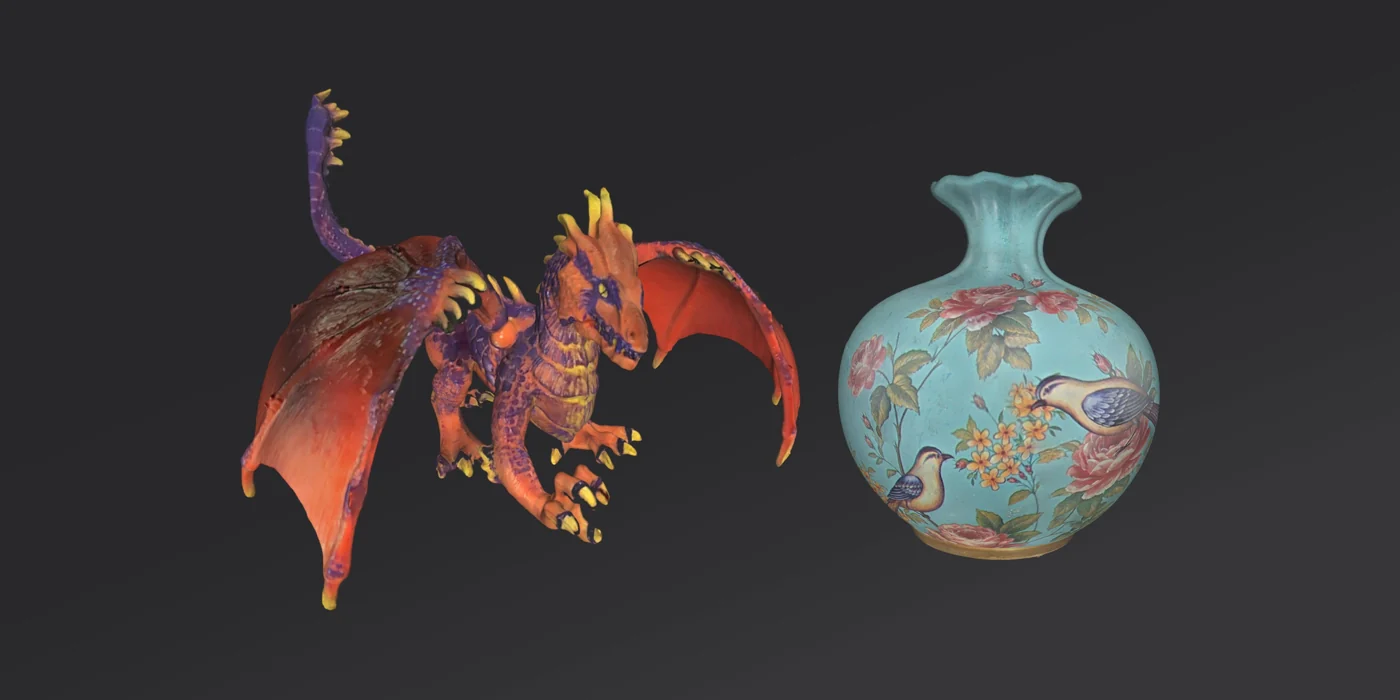

Full-color, markerless capture
A built-in RGB camera adds true color to every scan while three infrared VCSEL projectors keep setup markerless on most objects and is suited to black and shiny surfaces.
High-density data at an entry price

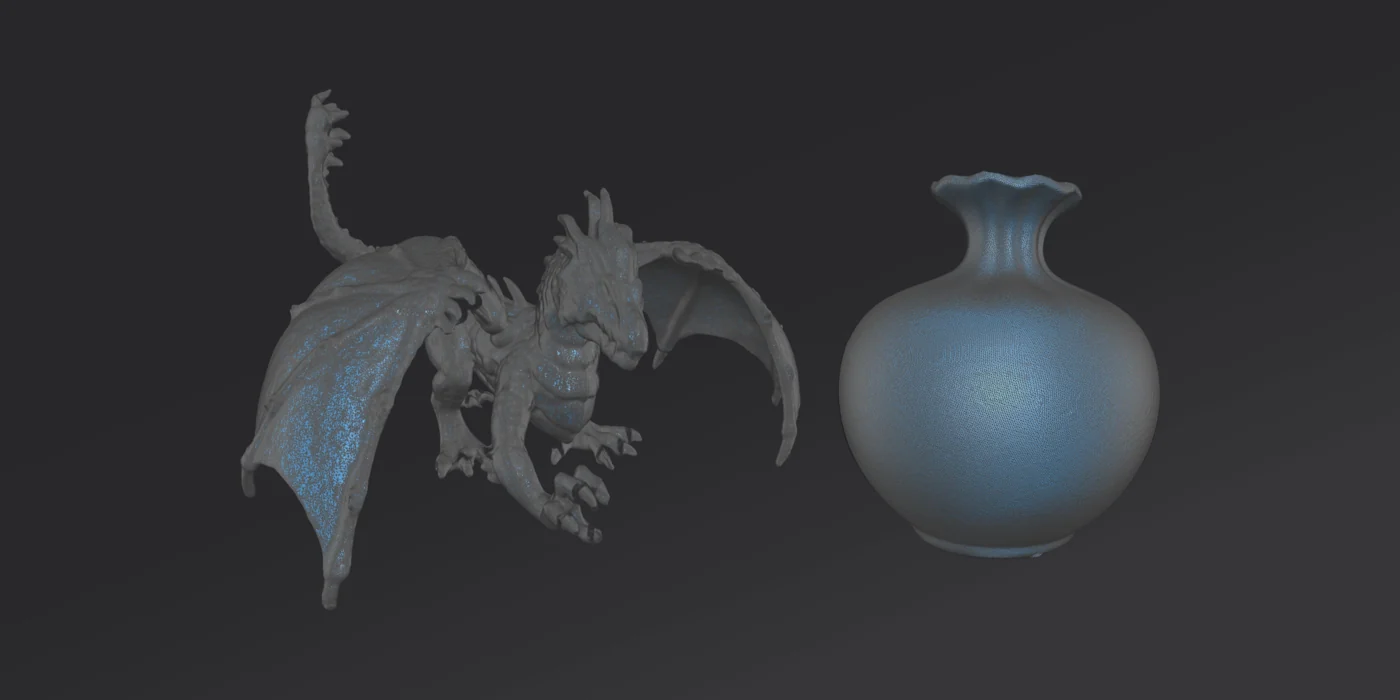

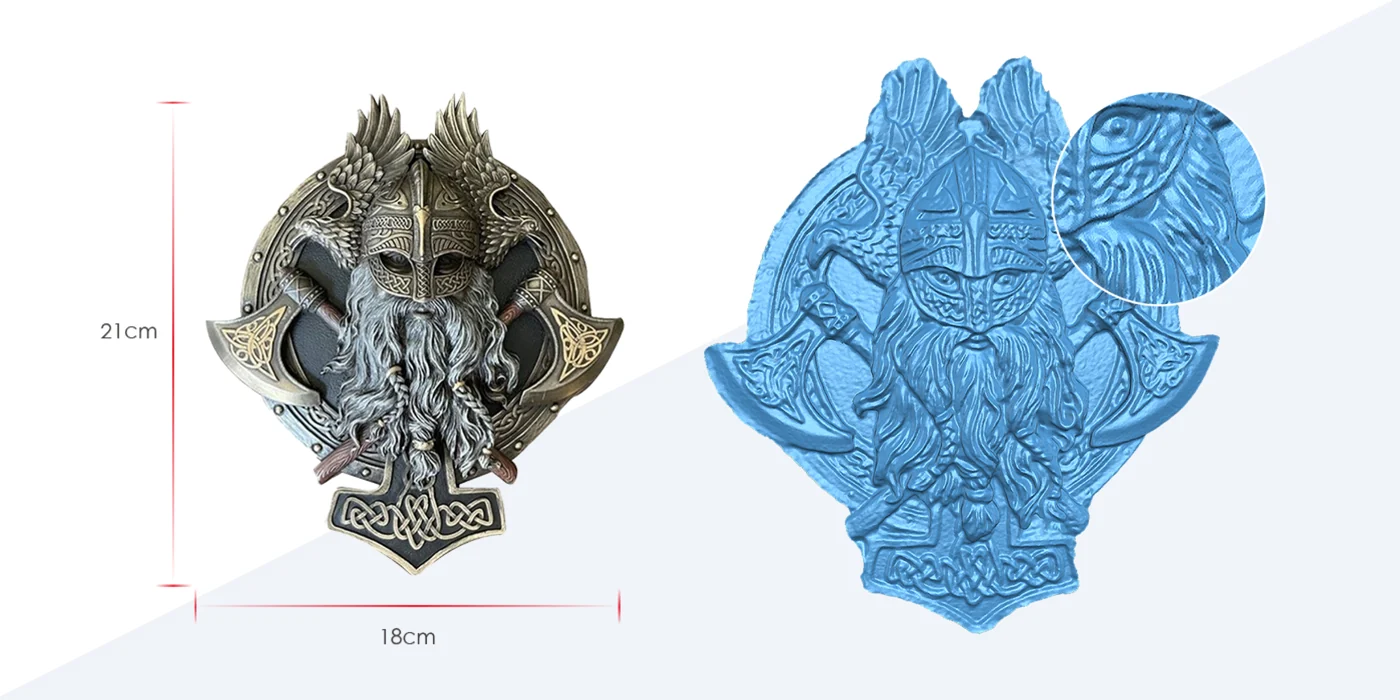

Point distance down to 0.1 mm and up to 14 fps capture put real detail on parts, faces, and props — enough resolution for design reference, printing, and small-object work. See full specifications below.
Works indoors and outdoors
A 434 × 379 mm field of view at the 400 mm optimal working distance and a 160–1400 mm range cover small objects through room-scale scans, indoors or outdoors.
Tethered simplicity, no dedicated rig
USB-tethered to a Windows 10/11 PC or an Apple Silicon Mac — no onboard computer to charge or configure. Plug in and scan straight into EXStar software.
How you buy the Einstar from Additive Plus
Warranty, support, and ordering.
Warranty
1-year Shining 3D warranty from the date of purchase.
Support
First-line support from our team in California; warranty repairs by Shining 3D.
Ordering
Formal quotation on our letterhead, US invoicing. Ship date confirmed by email after you order.
Scanning Performance

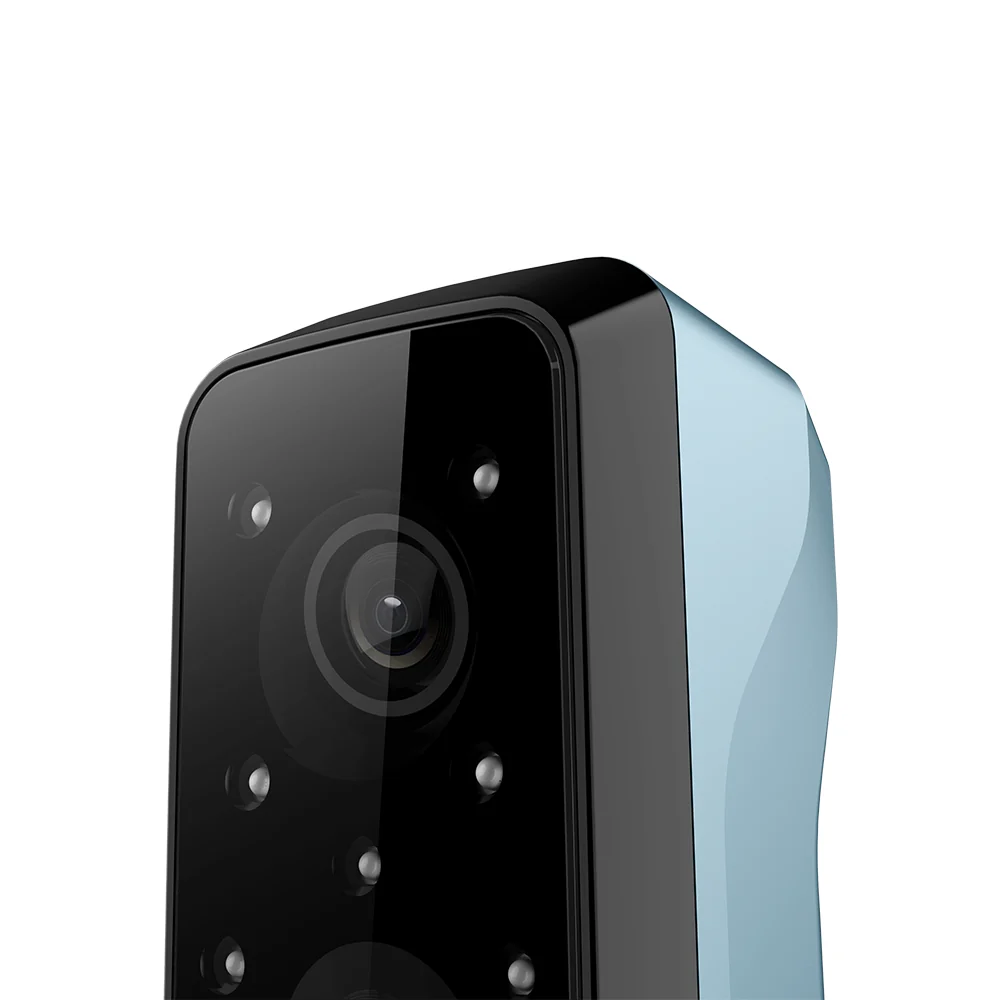

The Einstar captures with infrared VCSEL structured light across 3 projectors, 2 stereo depth cameras, and 1 RGB camera, resolving point distance from 0.1 to 3 mm. Scan speed reaches 980,000 points/s at up to 14 fps, and alignment supports feature, hybrid, texture, and global-marker modes for markerless capture on most objects. See the full specification table below.
Working Range & Portability
Working distance spans 160–1400 mm, with a 434 × 379 mm field of view at the 400 mm optimal distance — wide enough for a full head-and-shoulders scan or a tabletop object in one pass. At 500 g (1.1 lb) and 8.66 × 1.81 × 2.17 in (220 × 46 × 55 mm), the Einstar is light enough to hold one-handed through a full session, and outdoor scanning is supported. Shining 3D suggests objects from about 100 × 100 × 100 mm; the largest size depends on your computer’s RAM.
Software & Workflow
The Einstar tethers over USB 2.0 or above to a Windows 10/11 64-bit PC with an NVIDIA graphics card, or to an Apple Silicon Mac (M1 Pro or higher, macOS Ventura 13 or newer), running EXStar software for capture, alignment, and mesh processing. Export to OBJ, STL, PLY, 3MF, and P3 drops straight into common CAD, sculpting, and slicer workflows.
Typical applications
One entry-level scanner across making, design, and teaching.
Why Source the Einstar Through Additive Plus
- Authorized Shining 3D reseller in the US
- 1-year Shining 3D warranty
- First-line support from our team in California; warranty repairs by Shining 3D
- Formal quotation on our letterhead, US invoicing
Not sure the Einstar is the right scanner?
Compare it with the other entry and wireless scanners we support.
| Brand | Shining 3D |
| Country of origin | China |
| Scan Mode | Structured light scan |
| Light Source | Infrared VCSEL structured light (3 IR VCSEL projectors) |
| Point Distance | 0.1 – 3 mm |
| Effective Working Distance | 160 – 1400 mm |
| Optimal Working Distance | 400 mm |
| FOV (at optimal working distance) | 434 × 379 mm |
| Scan Speed | 980,000 points/s, up to 14 fps |

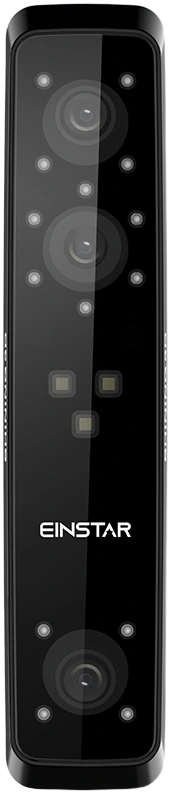

| Camera Configuration | 3 IR VCSEL projectors, 2 stereo depth cameras, 1 RGB camera |
| Data Alignment Mode | Feature, Hybrid, Texture, Global Markers (Global Markers in Object Scan Mode only) |
| Full Color Scanning | Yes — built-in RGB camera |
| Outdoor Scanning | Yes |
| Output Formats | OBJ, STL, PLY, P3, 3MF |
| Interface | USB 2.0 or above (tethered) |
| Supported OS | Windows 10/11 64-bit (NVIDIA GPU); macOS Ventura 13+ on Apple Silicon (M1 Pro or higher) |
| Weight | 1.1 lbs, 500 g |
| Dimensions | 8.66 × 1.81 × 2.17 in / 220 × 46 × 55 mm |
Product videos
We scan for a living. Try it on your part first.
Send us a sample part and we'll scan it on the actual system — handheld or metrology-grade — so you see the data quality before you buy. We can also run scan-to-CAD as a service while you evaluate.
Other products teams run alongside Shining 3D Einstar Handheld 3D Scanner – Full-Color Entry Model | 0.1 mm Point Distance
Handheld laser scanner with a 98-line marker-free mode and 0.02 mm accuracy with markers — Deep Hole Scan for holes, deep pockets, and fin walls.
- ✓ 98 laser lines for marker-free scanning of feature-rich parts
- ✓ Up to 3,010,000 points/s scan rate, point distance 0.01–3 mm
- ✓ Deep Hole Scan with 26 or single laser line
- ✓ 1-year Shining 3D warranty
- ✓ Ship date confirmed by email after you order
Made to order
· Ship date confirmed by email after you order
Pocket-sized, wireless handheld 3D scanner with two light sources — blue laser lines (38 crossed + 7 parallel) for detail and IR for speed — with 0.05 mm resolution, marker-free laser scanning, and 5 MP full-color texture.
- ✓ 0.05 mm resolution (Laser HD) · 38 crossed + 7 parallel laser lines · 2.8M–4.8M points/s
- ✓ Blue laser (detail) + IR VCSEL (speed) · marker-free scanning by feature alignment
- ✓ Built-in Wi-Fi · swappable battery up to 3 h · 425 g · 5 MP color · scans in bright light
- ✓ 1-year Shining 3D warranty · authorized US reseller
- ✓ Ship date confirmed by email after you order
Made to order
· Ship date confirmed by email after you order
- ✓ Mesh & point cloud to parametric CAD · Auto Surface, feature-based & hybrid modeling
- ✓ Patented LiveTransfer — full feature tree into SOLIDWORKS, NX, Solid Edge, Inventor, Creo; plus neutral STEP, IGES, DXF
- ✓ Accuracy Analyzer real-time deviation check · runs on Windows 10 / 11 (64-bit)
- ✓ Delivered as a licensed download; issued to order · 14-day trial available
In stock
· Delivered as a licensed download; issued to order — 14-day trial available; onboarding scheduled with your team
EXScan is the versatile scanning software for EinScan series 3D scanners — it drives capture with step-by-step guidance, aligns and cleans the scan, and exports a watertight mesh to STL, OBJ, PLY, ASC, 3MF, and P3 for reverse engineering, inspection, or 3D printing.
- ✓ Guided capture with Scan Rewind, Auto Cutting Plane, and a live data-quality indicator
- ✓ Full mesh post-processing — align, clean, fill holes, simplify, smooth, sharpen, texture
- ✓ Exports STL, OBJ, PLY, ASC, 3MF, P3 · one-click handoff to EXModel and Geomagic
- ✓ Delivered as a licensed download — issued to order
In stock
· Delivered as a licensed download — issued to order with your EinScan scanner; onboarding scheduled with your team
EXScan O&P is orthotics & prosthetics scanning software for the EinScan H2 handheld 3D scanner — preset body scan modes and an intelligent automatic alignment algorithm capture socket, limb, cranial, torso, foot, and seating scans, then export clean STL and OBJ meshes for your O&P CAD/CAM and design software.
- ✓ 8 preset O&P scan modes · cranial, face, upper/lower limb, torso, foot station, seating, socket
- ✓ Intelligent automatic alignment — real-time, step-by-step, minimal manual post-processing
- ✓ Exports STL and OBJ to CAD/CAM and specialized O&P design software
- ✓ Delivered as a licensed download — request editions and pricing
In stock
· Delivered as a licensed download; issued to order
Modular 3D metrology inspection software with PTB-certified measurement — compare scans to CAD, run full GD&T to ISO and ASME, and generate traceable reports on the desktop, on the scanner, or in an automated cell.
- ✓ Full-field deviation analysis vs. CAD · GD&T (ISO & ASME) · 2D + 3D dimensioning · cross-sections
- ✓ PTB-certified measurement · automated customizable reports · color deviation maps
- ✓ Desktop, on-device (FreeScan Omni), and automated (RobotScan) workflows · works with all Shining 3D metrology scanners
- ✓ Delivered as a license — request editions and pricing
In stock
· License delivered on purchase — onboarding scheduled with your team

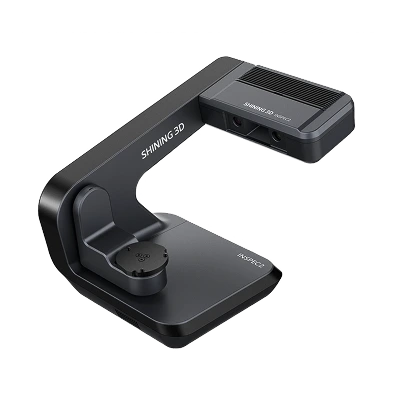

Blue-LED structured-light 3D inspection scanner with up to 0.005 mm accuracy, four industrial cameras, and one-click dual scan ranges — every system tested in Shining 3D's ISO 17025-accredited laboratory.
- ✓ 0.005 mm (small range) / 0.015 mm (large range) accuracy · VDI/VDE 2634 Part 2, ISO 10360
- ✓ Q12: 4 × 12.3 MP · Q9: 4 × 9 MP · dual FOV 160 × 110 / 430 × 300 mm · < 1 s per shot
- ✓ Manual, tripod + automatic turntable, or robot-integrated · optional dual-axis turntable · 3.5 kg
- ✓ 1-year Shining 3D warranty · authorized US reseller
- ✓ Ship date confirmed by email after you order
Made to order
· Ship date confirmed by email after you order

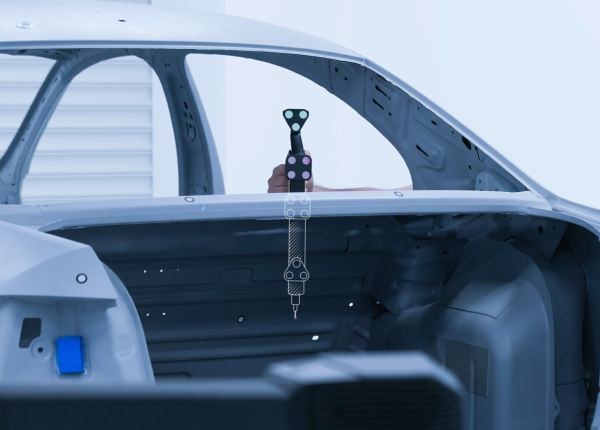

Optical 3D measuring and dynamic-tracking metrology system that pairs an infrared optical tracking bar with a large-FOV laser scanner and an optional FreeProbe contact probe — markerless measurement at 0.023 mm accuracy across parts from a 0.1 m feature to a 10 m assembly.
