Shining 3D FreeScan UE Pro2 Wireless Laser Handheld 3D Scanner – Metrology | 0.02 mm
Fully wireless, metrology-grade laser handheld 3D scanner — 0.02 mm accuracy, 50 laser lines at 3,460,000 points/s, and patented video photogrammetry (VPG) that eliminates the need for coded markers, with an integrated inspection module for QC on the move.
- ✓ 0.02 mm accuracy · 0.02 + 0.015 mm/m with photogrammetry · VDI/VDE 2634 Part 3 & ISO 10360, tested in Shining 3D’s ISO/IEC 17025 accredited lab
- ✓ 50 laser lines · 3,460,000 points/s · up to 180 fps · VPG, no coded markers needed
- ✓ Fully wireless · 950 g · indoors or outdoors · on-board inspection module
- ✓ 1-year Shining 3D warranty · authorized US reseller
- ✓ Ship date confirmed by email after you order
What your metrology engineer actually checks
Traceable to the standard
0.02 mm accuracy and 0.02 + 0.015 mm/m volumetric accuracy with photogrammetry, certified to VDI/VDE 2634 Part 3 and ISO 10360 and tested in Shining 3D’s ISO/IEC 17025 accredited lab. Shining 3D provides inspection reports and calibration certificates traceable to these standards.
Authorized US reseller
Additive Plus is an authorized Shining 3D reseller in the US. First-line support comes from our team in California; warranty repairs are carried out by Shining 3D. Every new unit carries a 1-year Shining 3D warranty.

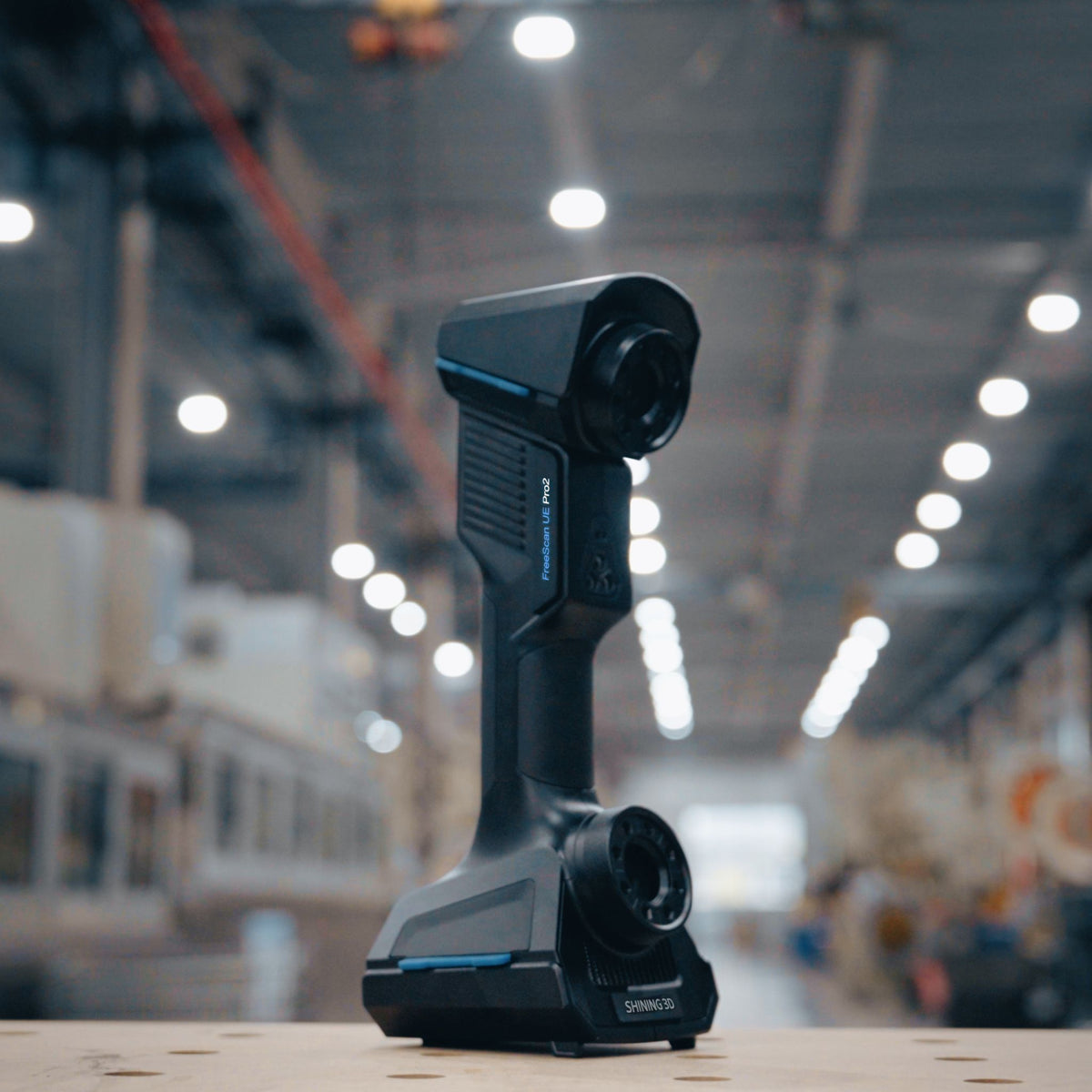

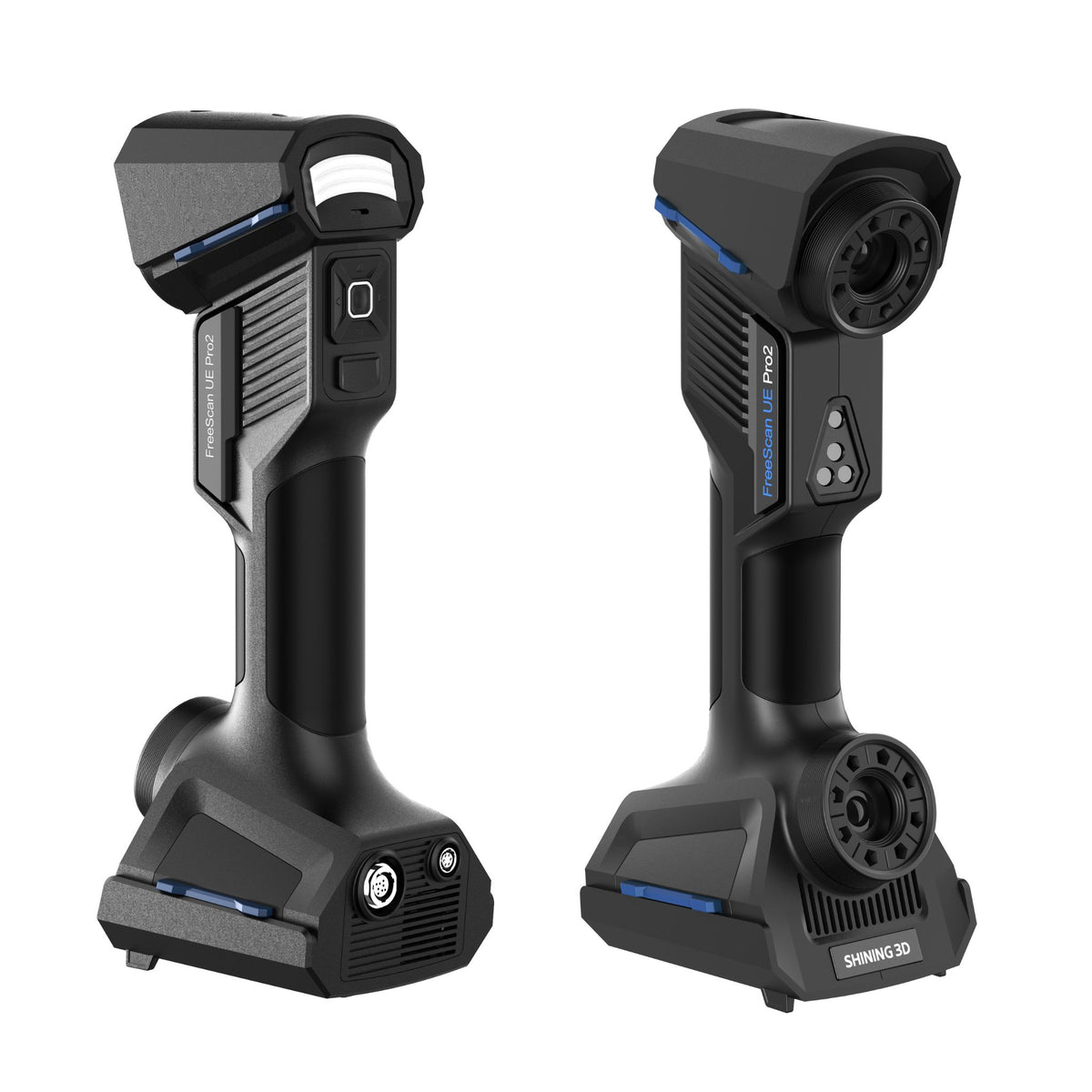

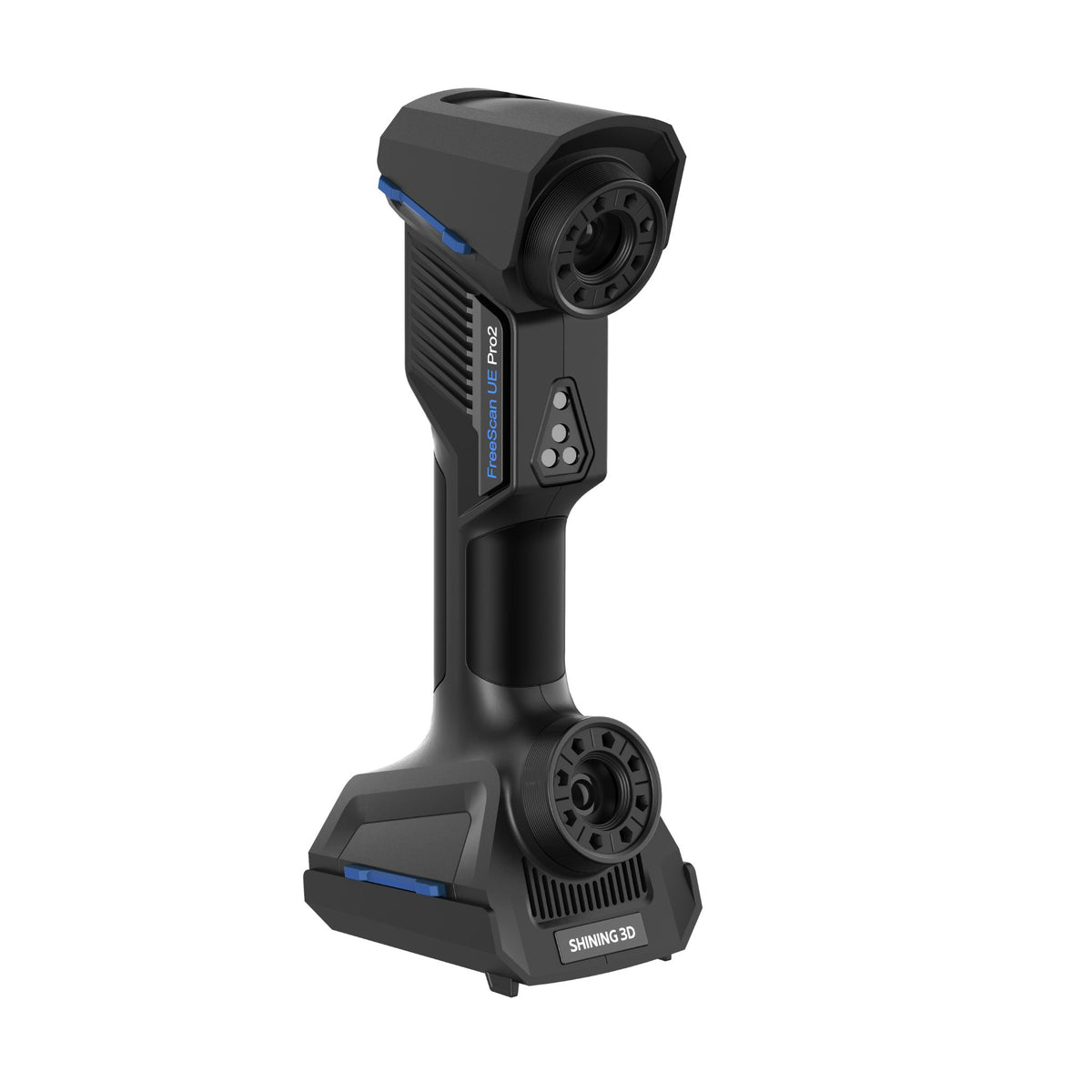

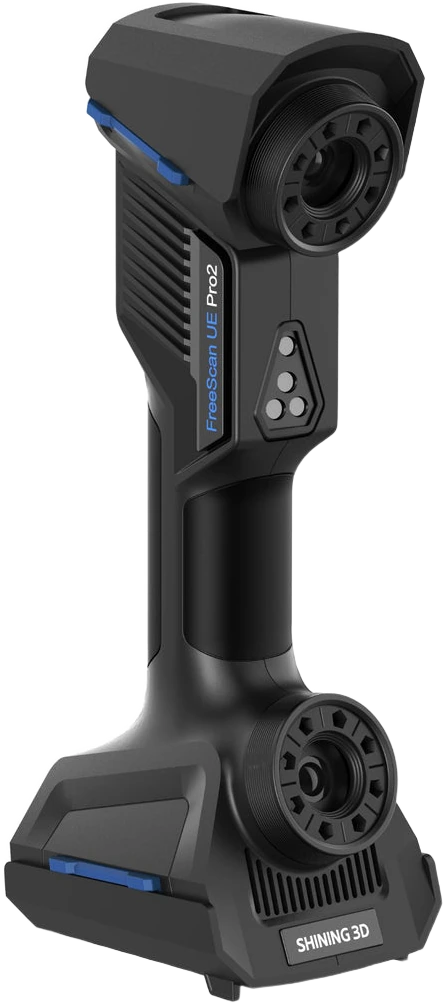

The Shining 3D FreeScan UE Pro2 is a fully wireless, metrology-grade laser handheld 3D scanner. It measures at 0.02 mm accuracy with 50 blue-laser lines at 3,460,000 points/s, uses patented video photogrammetry (VPG) that eliminates the need for coded markers, and carries an on-board inspection module so you can check parts on the move — indoors, outdoors, or on the shop floor.
Why metrology teams choose the FreeScan UE Pro2
Traceable accuracy, twice the speed of the previous generation, no cable.
Certified, traceable accuracy
0.02 mm accuracy and 0.02 + 0.015 mm/m with photogrammetry, tested to VDI/VDE 2634 Part 3 and ISO 10360 in Shining 3D’s ISO/IEC 17025 accredited lab.

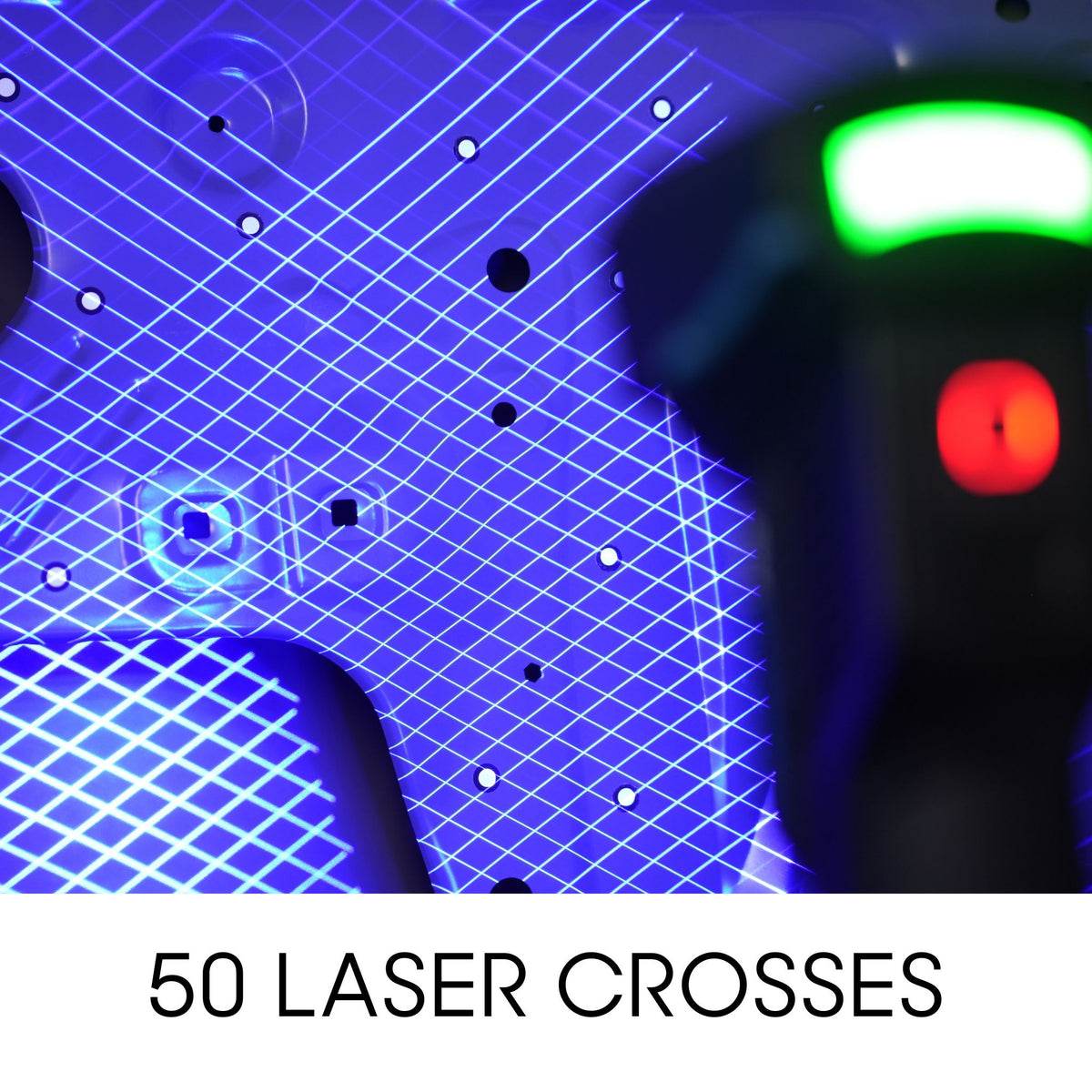

Fifty lines, twice the speed
50 laser lines capture at 3,460,000 points/s and up to 180 fps — double the previous generation. Switch to 7 parallel lines for fine detail or a single line for deep pockets.
Video photogrammetry (VPG)
Shining 3D’s patented video photogrammetry eliminates the need for coded markers and keeps volumetric accuracy consistent on large parts.

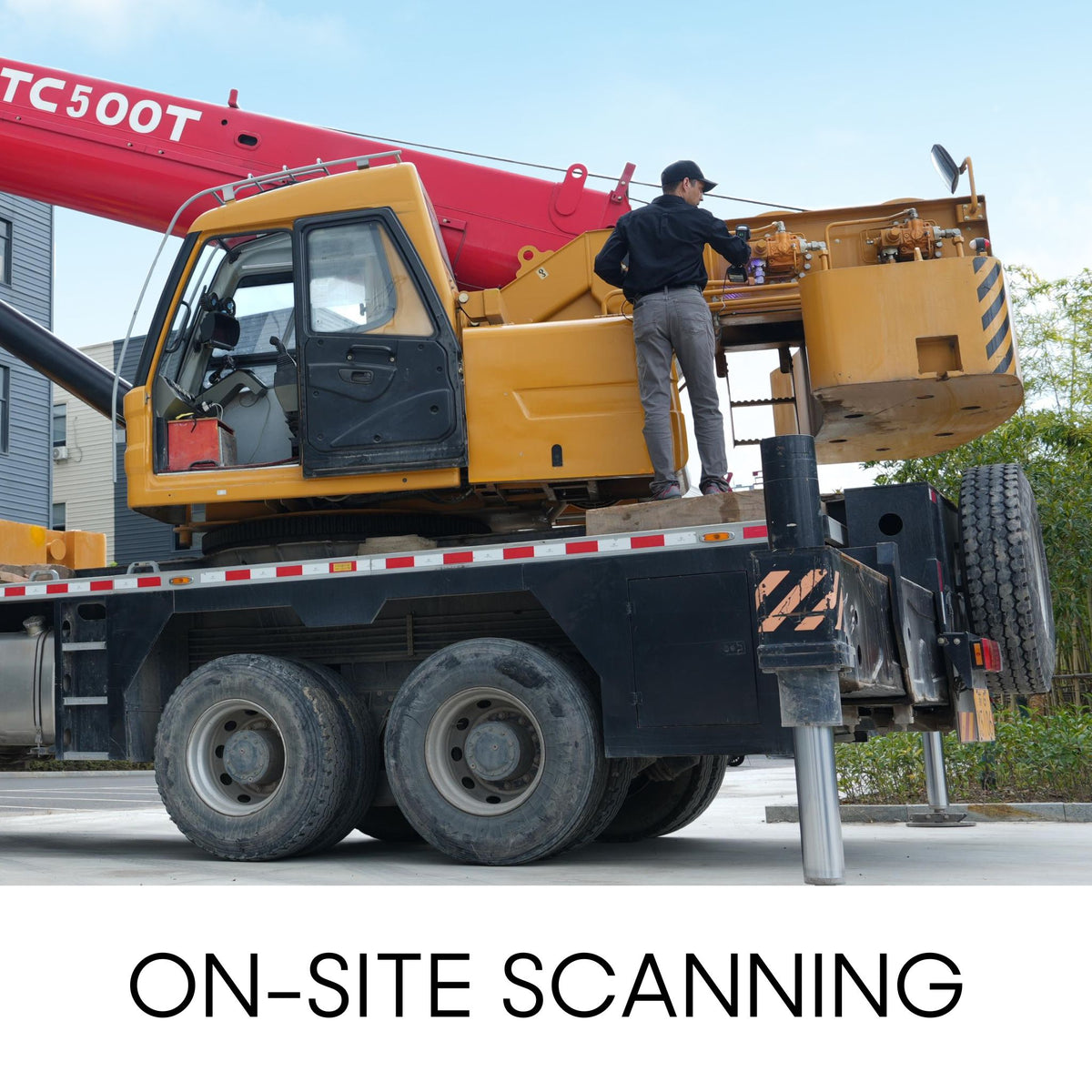

Wireless, inspect on the move
Fully wireless at 950 g with an integrated inspection module and embedded computing — run capture and check parts on the floor or in the field. Wireless mode runs from a power bank and needs a Wi-Fi router.
How you buy the UE Pro2 from Additive Plus
Warranty, support, and ordering.
1-year Shining 3D warranty
Every new UE Pro2 carries the standard 12-month Shining 3D warranty from the date of purchase.
First-line support in California
Our team in California provides first-line support; warranty repairs are carried out by Shining 3D.
Formal quotation, US invoicing
We issue a formal quotation on our letterhead and invoice in the US. Your ship date is confirmed by email after you order.
Metrology Performance
The FreeScan UE Pro2 measures at 0.02 mm accuracy and 0.02 + 0.015 mm/m volumetric accuracy with photogrammetry, with resolution from 0.01 to 10 mm and a 600 × 550 mm field of view. Fifty blue-laser lines capture at 3,460,000 points/s and up to 180 fps; a 7-line mode adds fine detail and a single line reaches deep pockets. Accuracy is certified to VDI/VDE 2634 Part 3 and ISO 10360, tested in Shining 3D’s ISO/IEC 17025 accredited lab. See the full specification table below.

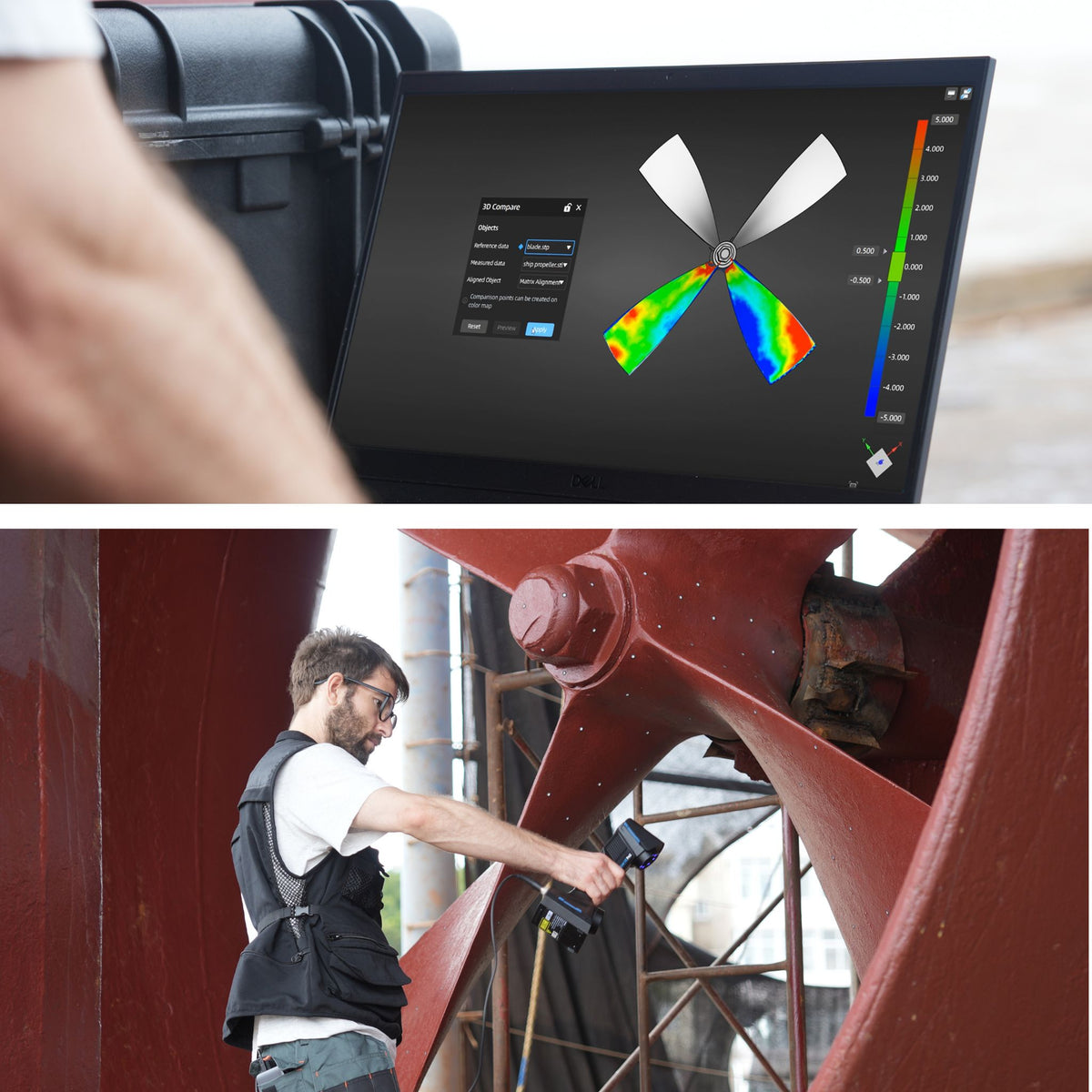

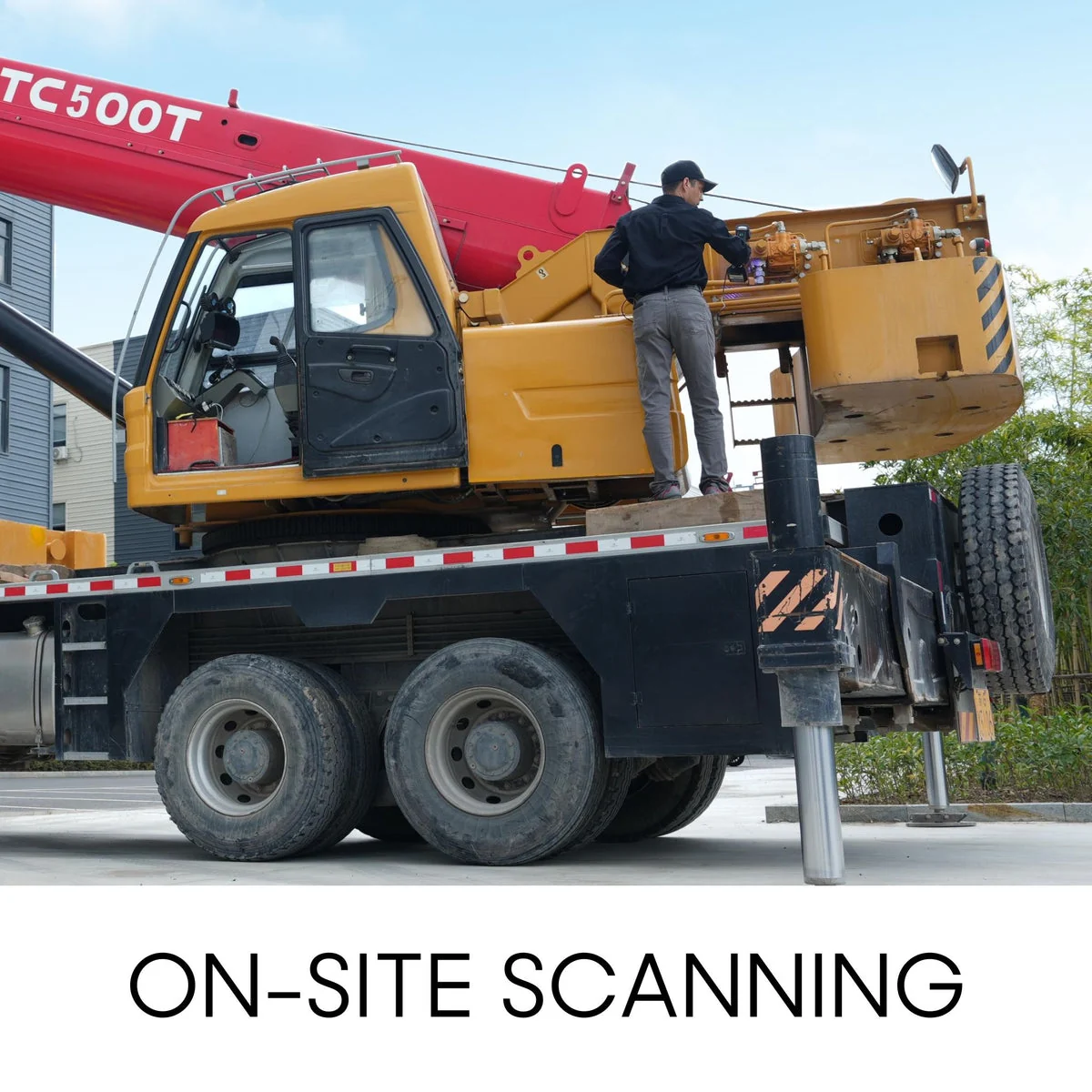

Wireless & On-Site Inspection
An integrated wireless module and embedded computing free the UE Pro2 from cables — it runs on a power bank (Shining 3D recommends USB-C PD 100W) and connects through a Wi-Fi router (Wi-Fi 6 recommended), so you can scan large parts, reach tight spots, and work outdoors. The on-board inspection module lets you run quality checks where the part is, rather than carrying it back to a metrology room, which shortens the loop between scan and decision.
Software & Workflow
Scanning runs in the native FreeScan software, with AI feature recognition for holes and slots and real-time mesh display. For inspection the UE Pro2 works with SHINING3D Inspect, PolyWorks Inspector, and Geomagic Control X; for reverse engineering, with EXModel and Geomagic Design X.
Typical applications
Portable inspection and reverse engineering across industry.
Why Source the FreeScan UE Pro2 Through Additive Plus
- Authorized Shining 3D reseller in the US
- 1-year Shining 3D warranty
- First-line support from our team in California; warranty repairs by Shining 3D
- Formal quotation on our letterhead, US invoicing
Not sure the UE Pro2 is the right scanner?
Compare it with the other metrology scanners we support.
Dual-mode handheldFreeScan ComboCompare scanner →
Dynamic trackingFreeScan Trak NovaView system →
| Brand | Shining 3D |
| Country of origin | China |
| Scanner Type | Wireless laser handheld metrology scanner |
| Accuracy | 0.02 mm |
| Volumetric Accuracy | 0.02 mm + 0.015 mm/m (with photogrammetry) |
| Scan Rate | 3,460,000 points/s (up to 180 fps) |
| Laser Lines | 50 (high-speed), 7 parallel (detail), 1 (deep pockets) |
| Point Distance | 0.01 – 10 mm |
| Maximum Field of View | 600 × 550 mm |
| Video Photogrammetry (VPG) | Yes — patented; eliminates the need for coded markers |
| Standards | VDI/VDE 2634 Part 3, ISO 10360; tested in ISO/IEC 17025 accredited lab |
| Software | FreeScan; compatible: SHINING3D Inspect, PolyWorks Inspector, Geomagic Control X / Design X, EXModel |
| Interface | Wireless (via Wi-Fi router; Wi-Fi 6 router recommended) |
| Power | Power bank (USB-C PD 100W recommended by Shining 3D) |
| Weight | 2.1 lbs, 950 g |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
