The EinScan Pro HD enhances the productivity of high-quality 3D modeling by offering impressive resolution for capturing fine details. It can handle dark and reflective metal surfaces with fewer limitations, and its fast scanning speed ensures high efficiency.

Improves the Efficiency of High-quality 3D Modeling | Handheld 3D Scanner

Country of manufacture – China
Speed – Rapid Scan
Design – Ergonomic
Single Scan Range – 209x160mm – 310x240mm
Weight – 1.13 kg

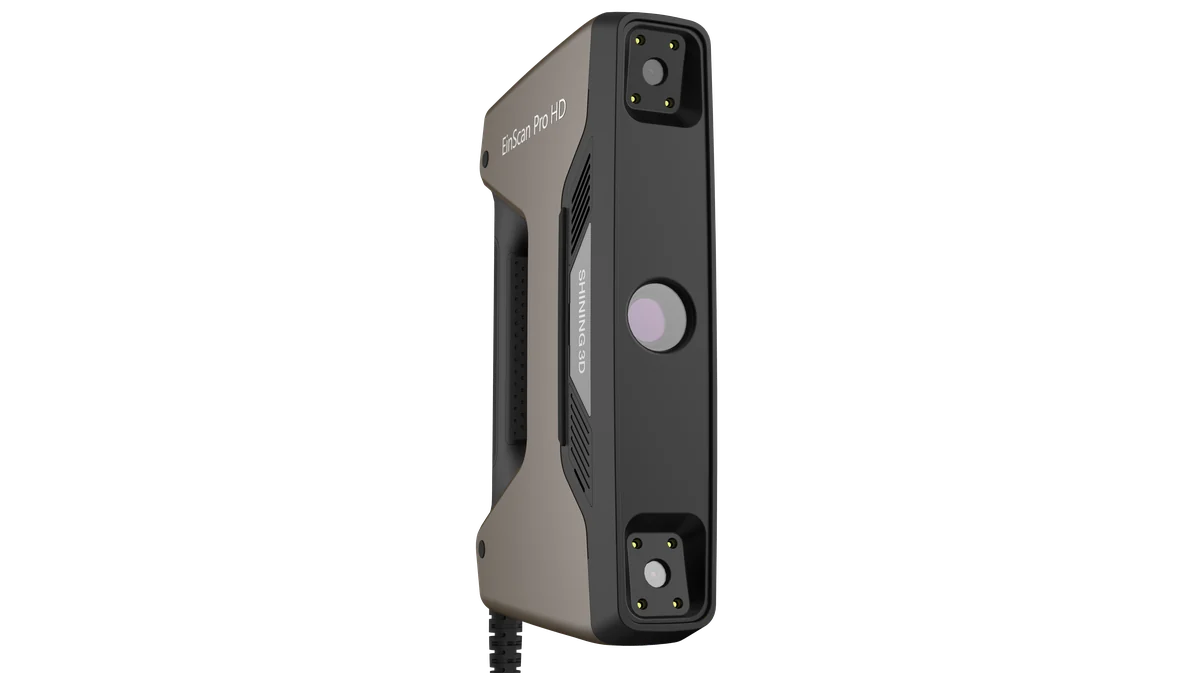

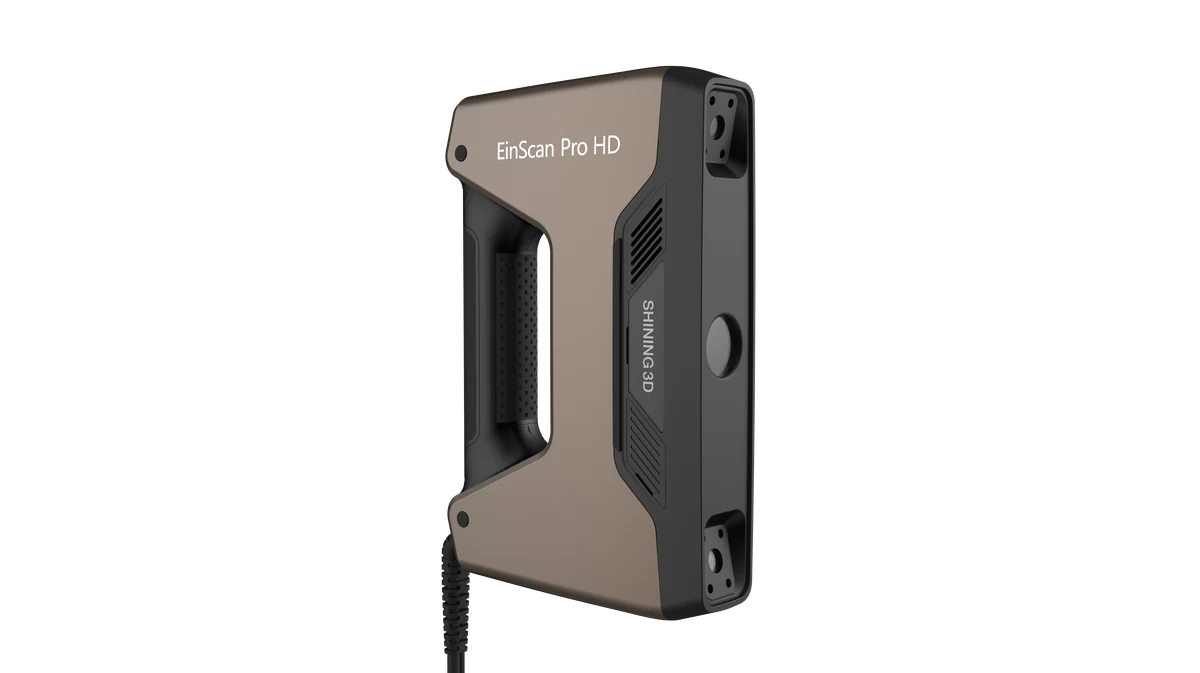

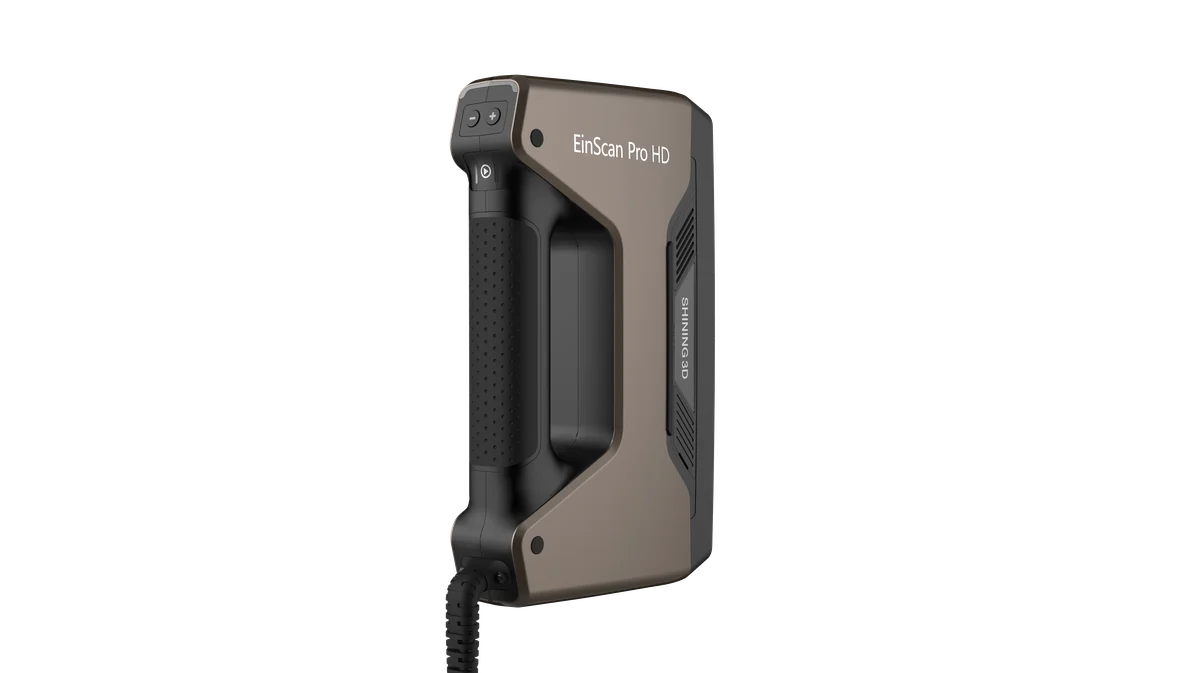

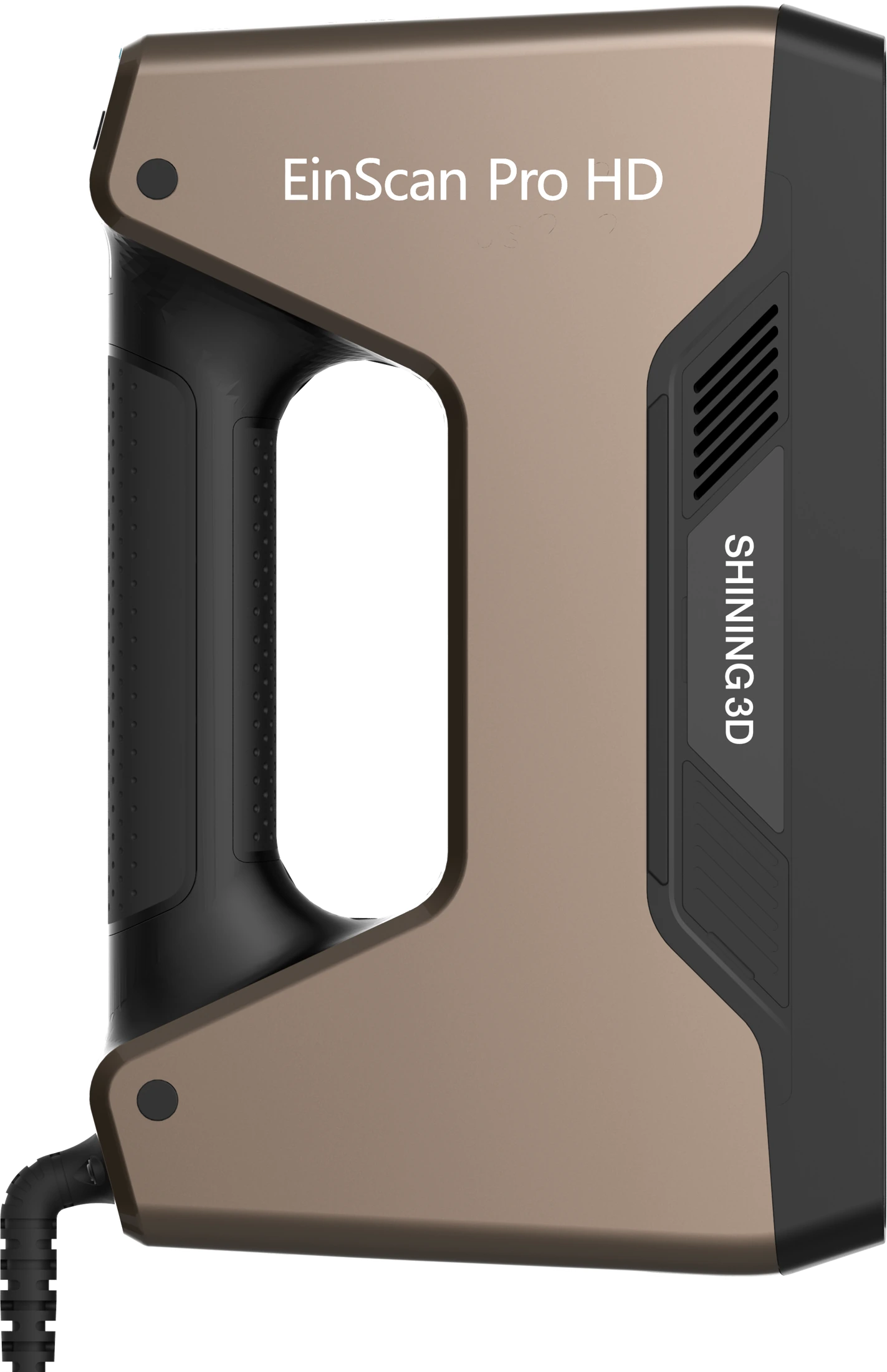

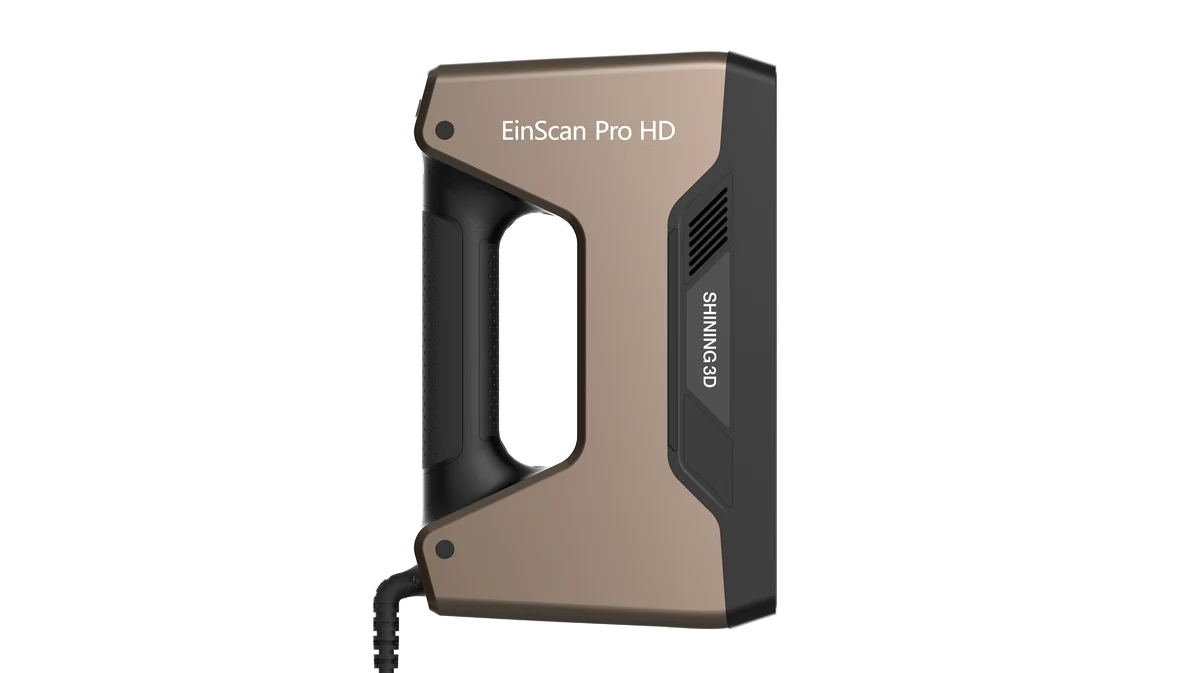

Shining 3D EinScan Pro HD

3D scanner with high resolution, accuracy and the ability to handle dark and casting metal surfaces.

Improves the Efficiency of High-quality 3D Modeling | Handheld 3D Scanner

Category: 3D scanners Tags: Automotive, Dental, Education, Entertainment, Healthcare, Light manufacturing, Manufacturing, Oil and Gas, Packaging

EinScan Pro HD - Guide

Download

Details

Weight	2.5 lbs
Dimensions	14.6 × 14.4 × 5.3 in
Scan Mode	Handled HD Scan I Handled Rapid Scan
Scan Accuracy	Up to 0.045mm I Up to 0.1mm
Volumetric Accuracy	0.3mm/m I 0.3mm/m
Scan Speed	3.000.000 points/s I 1.500.000 points/s 10FPS I 30FPS
Align Mode	Feature Alignment I Markers Alignment Markers Alignment I Texture Alignment Hybrid Alignment I Feature Alignment I Hybrid Alignment
Point Distance	0.2mm-3mm I 0.25mm-3mm
Light Source	LED
Texture Scan	Yes (with Add-on; Color Pack)
Output Formats	OBJ, STL, ASC, PLY, P3, 3MF
Single Scan Range	209x160mm-310x240mm
DOF	±100 mm
Working Center Distance	510mm
Outdoor Operation	Set up the shelter or cover to avoid direct sunlight
Special Scan Object	For the transparent or highly reflective objects, please spray powder before scanning.
Software Included	ExScan Pro, Solid Edge SHINING 3D Edition
Weight	1.13kg
OS System Support	Win10, 64bit
Brand	Shining 3D

Description

The EinScan Pro HD builds upon the multi-functional and modular design of the EinScan Pro series handheld 3D scanner to deliver unmatched performance in capturing high resolution and accuracy through handheld scanning. Its exceptional versatility and powerful optimizations make it the ultimate tool for high-efficiency and professional-grade 3D scanning.

With a new structure light projection modular, the EinScan Pro HD utilizes the stripe pattern scanning technique, traditionally used in Fixed Scan Mode, for its Handheld HD Scan Mode. This, combined with a minimum point distance setting of 0.2mm and an optimized algorithm, ensures high resolution and accuracy that is on par with fixed scan methods.

The modular design of the EinScan Pro HD also allows for a wide range of applications through its various scan modes and data alignments. Optional add-ons such as the Color Pack and Industrial Pack further extend the scanning capabilities. Multiple positioning methods, including feature alignment, marker alignment, turntable coded targets alignment, manual alignment, and texture alignment (with Color Pack), greatly enhance scanning efficiency without the need for additional preparation.

Advantages

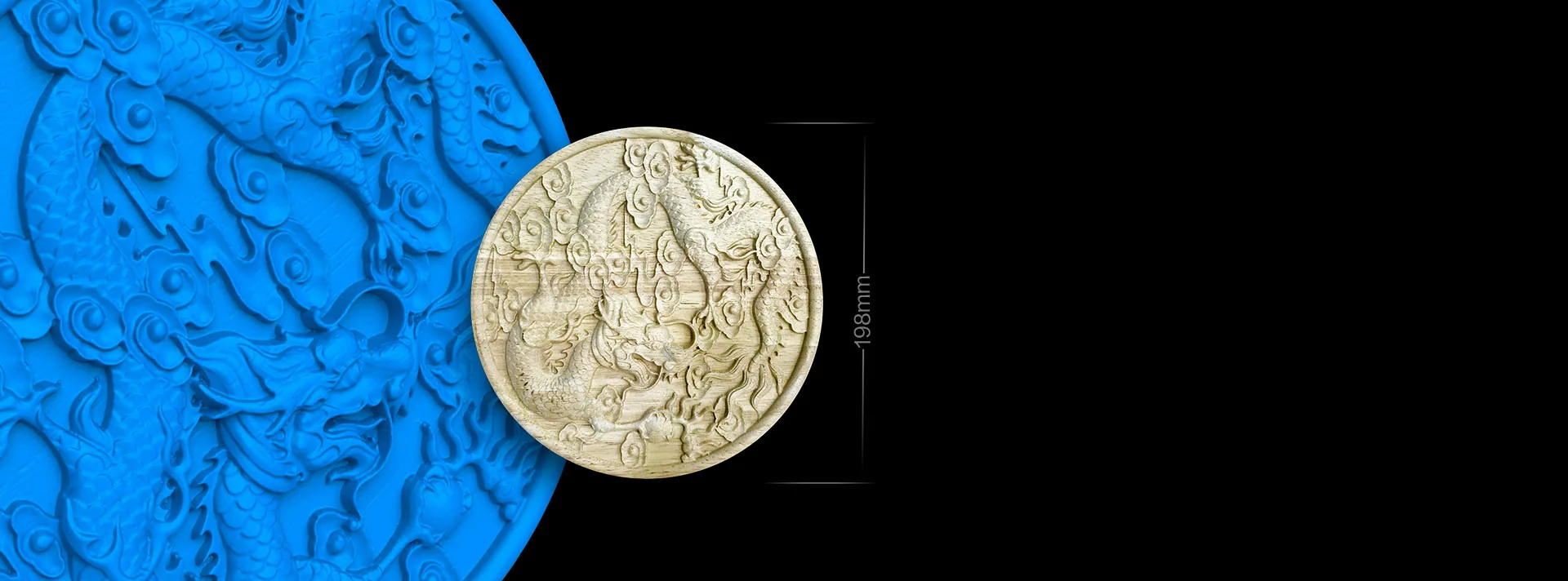

Impressive High Resolution for Fine Details

The EinScan Pro HD achieves impressive high resolution for capturing fine details through its innovative use of a new structure light projection modular. This modular incorporates the stripe pattern scanning technique, traditionally used in Fixed Scan Mode, into the Handheld HD Scan Mode. With a minimum point distance setting of 0.2mm and an optimized algorithm, the scanner delivers high resolution and accuracy that is comparable to fixed scan methods.

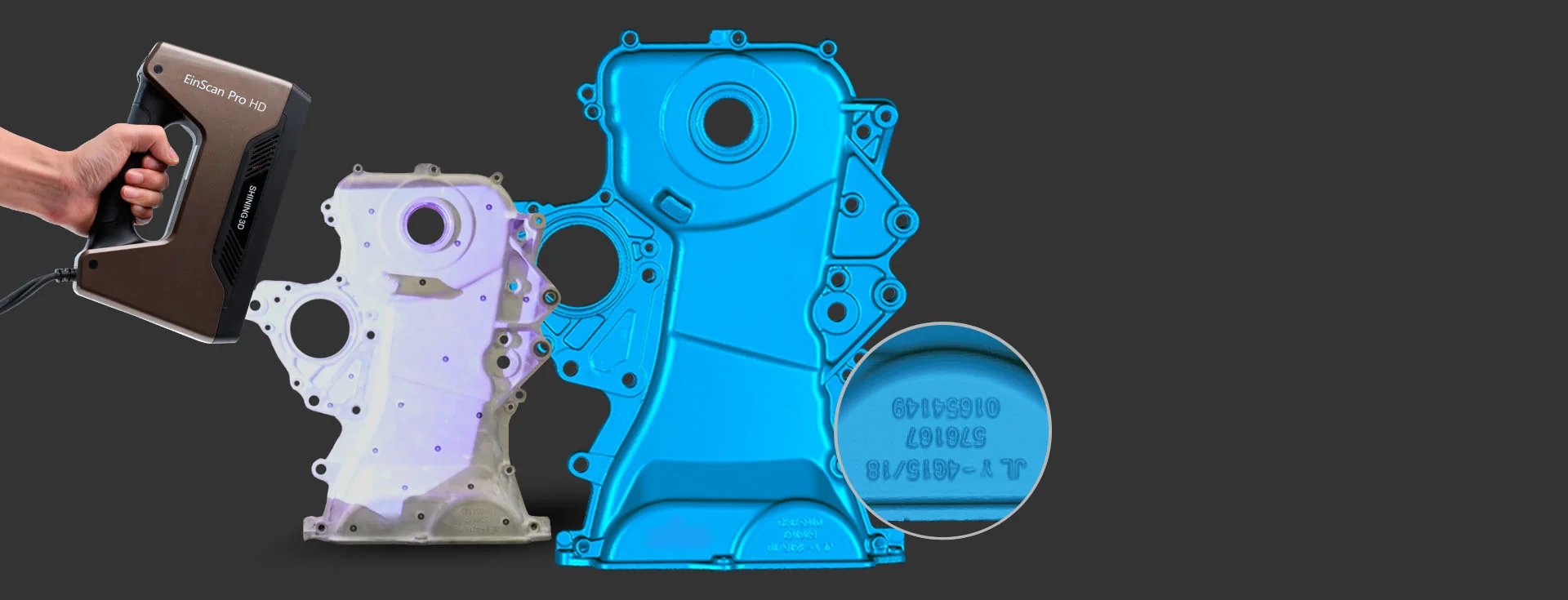

Less Limitations of Scan Objects

The EinScan Pro HD overcomes limitations in scanning objects by utilizing advanced lighting projection hardware and software algorithms. This allows for the scanning of a wider range of objects, including those with dark or black colors and casting metal surfaces. As a result, the scanner enhances its capability for creating high-quality 3D models.

Fast Scanning Speed and Data Transmission

The EinScan Pro HD offers impressive scanning speed and data transmission capabilities. It can process up to 3,000,000 points per second in handheld scan mode and complete a single frame in less than 0.5 seconds in Fixed Scan Mode. Additionally, the scanner utilizes USB 3.0 for fast and efficient data transmission.

High Accuracy for High Quality 3D Modeling

With various positioning methods, the EinScan Pro HD allows for scanning while either the scanner or objects are in motion. It provides exceptional accuracy of up to 0.04 mm in Fixed Scan Mode. In handheld scanning mode with marker alignment, the volumetric accuracy reaches up to 0.045mm+0.3mm/m.

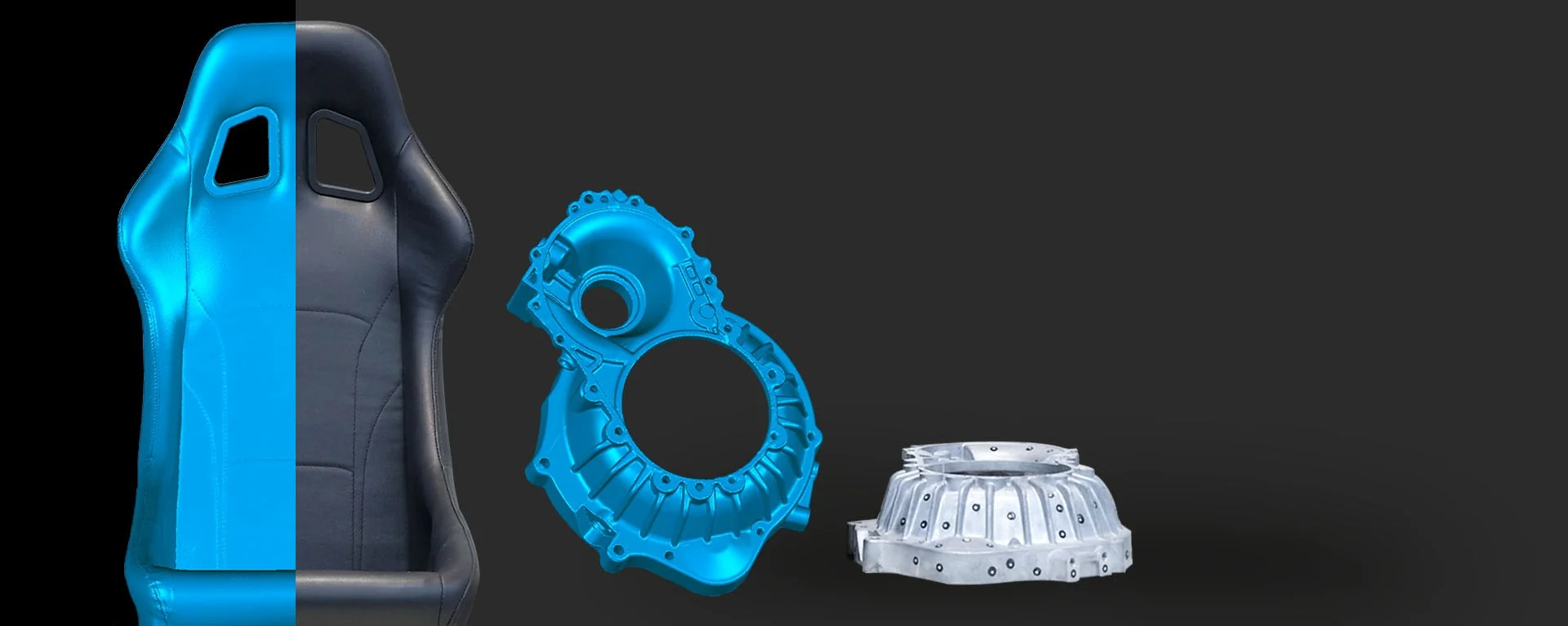

Modular Design for a Wide Range of Applications by Multi Scan Modes and Data Alignments

The versatility of the EinScan Pro HD is enhanced by its modular design, which allows for a wide range of applications. Optional add-ons such as the Color Pack and Industrial Pack further extend the scanning capabilities of the device. With multiple positioning methods available, including feature alignment, marker alignment, turntable coded targets alignment, manual alignment, and texture alignment (with Color Pack), the scanning efficiency is greatly improved, eliminating the need for additional preparation.

Take the Portable EinScan Pro HD Anywhere You Go. With its ergonomic design and lightweight construction, the Portable EinScan Pro HD can be conveniently taken with you wherever you go. Its plug-and-play functionality eliminates the need for complex installation, making it incredibly easy to use. Additionally, its compact size allows for unrestricted movement, providing you with a seamless scanning experience.

QuickSurface RE Solution is a powerful software developed by SHINING 3D that allows users to work with large meshes and convert them into editable CAD models. It offers a variety of interactive tools for hybrid parametric modeling, allowing users to create both organic and prismatic shapes that fit the meshes. The software also provides the option to export data in standard IGES or STEP file formats, or directly integrate fully parametric history trees into other CAD packages.
