3D scanners, Entry-level For Hobbyists
Shining 3D Einstar Vega Wireless Handheld 3D Scanner – Standalone Full-Color | 0.05 mm Resolution
Wireless standalone handheld 3D scanner with up to 0.05 mm resolution and a 100–1500 mm combined working range — full-color capture and an onboard 6.4″ touchscreen for PC-free scanning on the floor or in the field.
- ✓ Up to 0.05 mm resolution (HD Mode) · 100–1500 mm combined working range across two modes
- ✓ Standalone, PC-free: 6.4″ 2K OLED touchscreen, 8-core CPU, 32GB RAM, 512GB SSD onboard
- ✓ 48MP full-color capture · markerless feature, texture, and hybrid alignment
- ✓ Lead time: 2–4 weeks — configured to order
$1,999
Price held 7 days after order.
Install + training included
Tailored service plan
What your metrology engineer actually checks

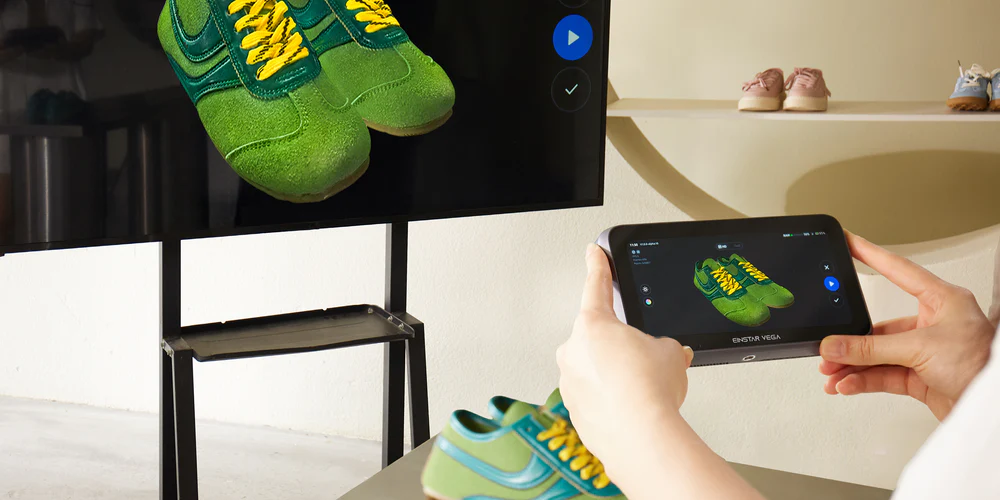

Standalone, PC-free scanning with full color
A 6.4″ 2K OLED touchscreen, 8-core CPU, and 512GB onboard storage run capture, alignment, and preview without a laptop — up to 0.05 mm resolution in HD Mode and a 48MP color camera for full-color texture. Every unit is checked before it ships.
An applications engineer on the line
Pre-sale sample scan of your actual parts, post-sale calibration and workflow support — from engineers who run these scanners, not a remote ticket queue. Sub-4h reply, NDA standard. Demo units available before you commit.
About this product

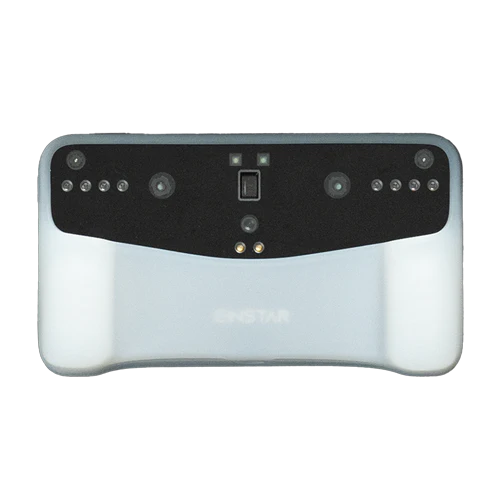

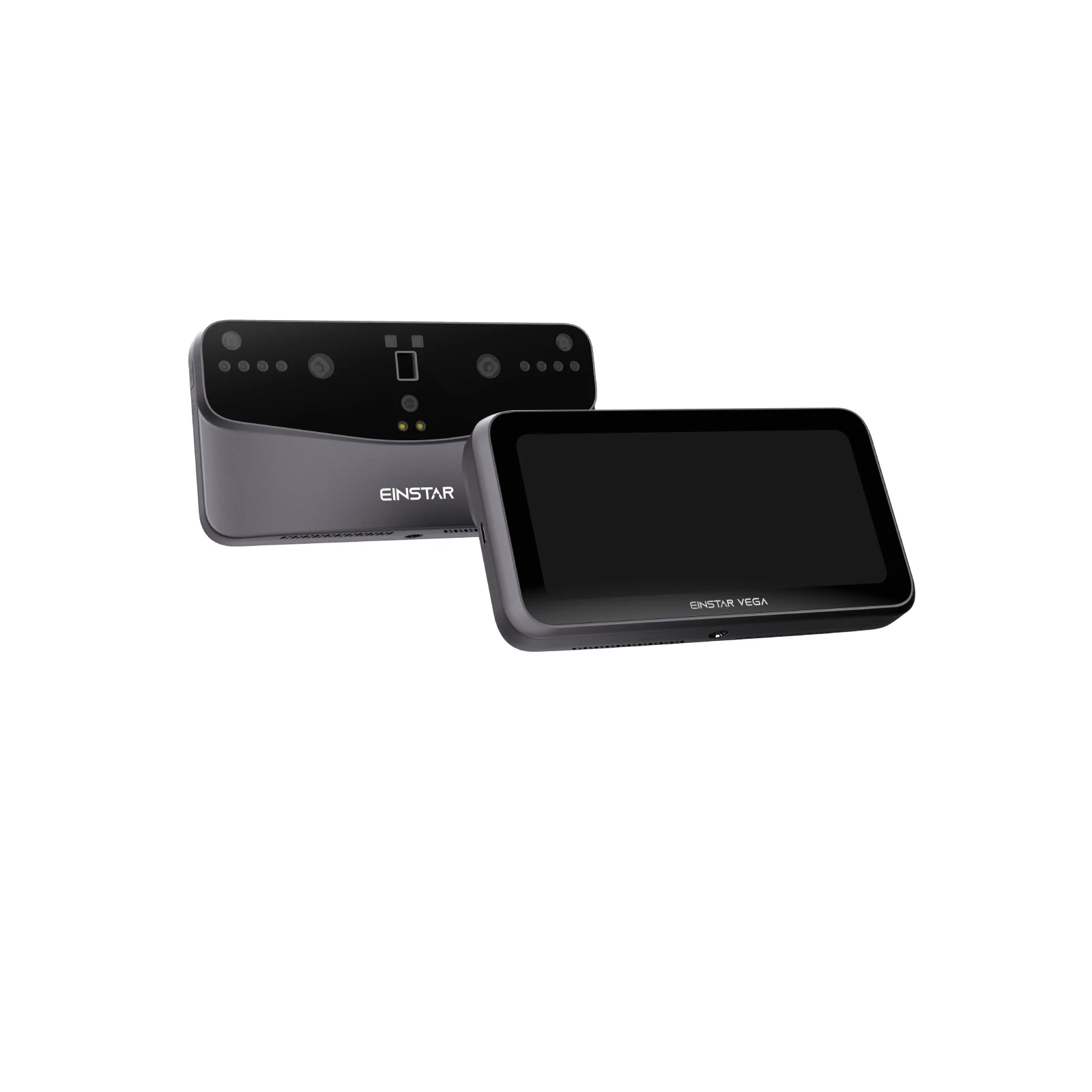

The Shining 3D Einstar Vega is a wireless, standalone handheld 3D scanner that pairs infrared MEMS and VCSEL structured light with a 48-megapixel color camera in one PC-free device — capturing full-color detail from 0.05 mm resolution up to a 1500 mm working range without a tethered laptop.
Why makers and product teams choose the Einstar Vega
Two light sources, one device, full color and no laptop required.

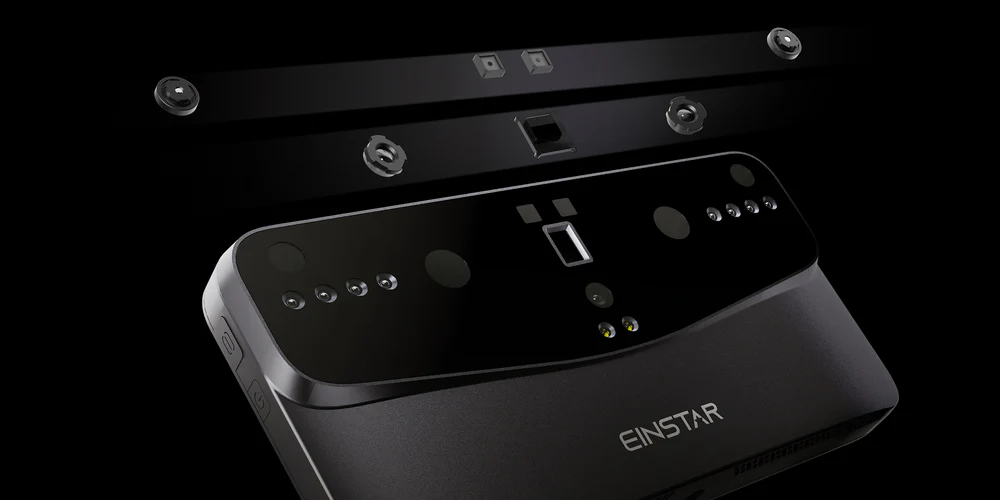

Dual-mode capture in one device

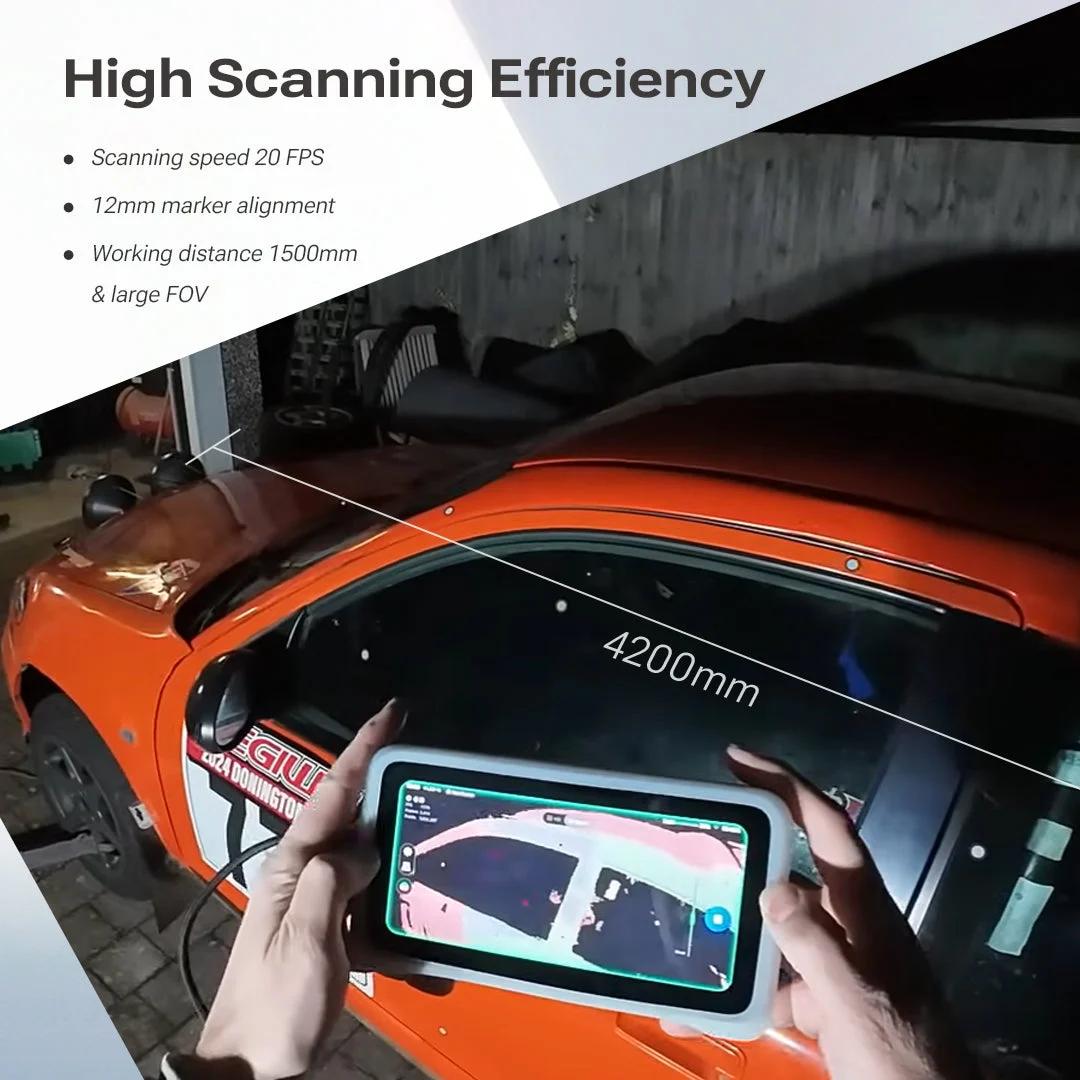

Switch between HD Mode for fine detail and Fast Mode for larger objects — down to 0.05 mm resolution at 100–350 mm, or up to 20 fps across 270–1500 mm.

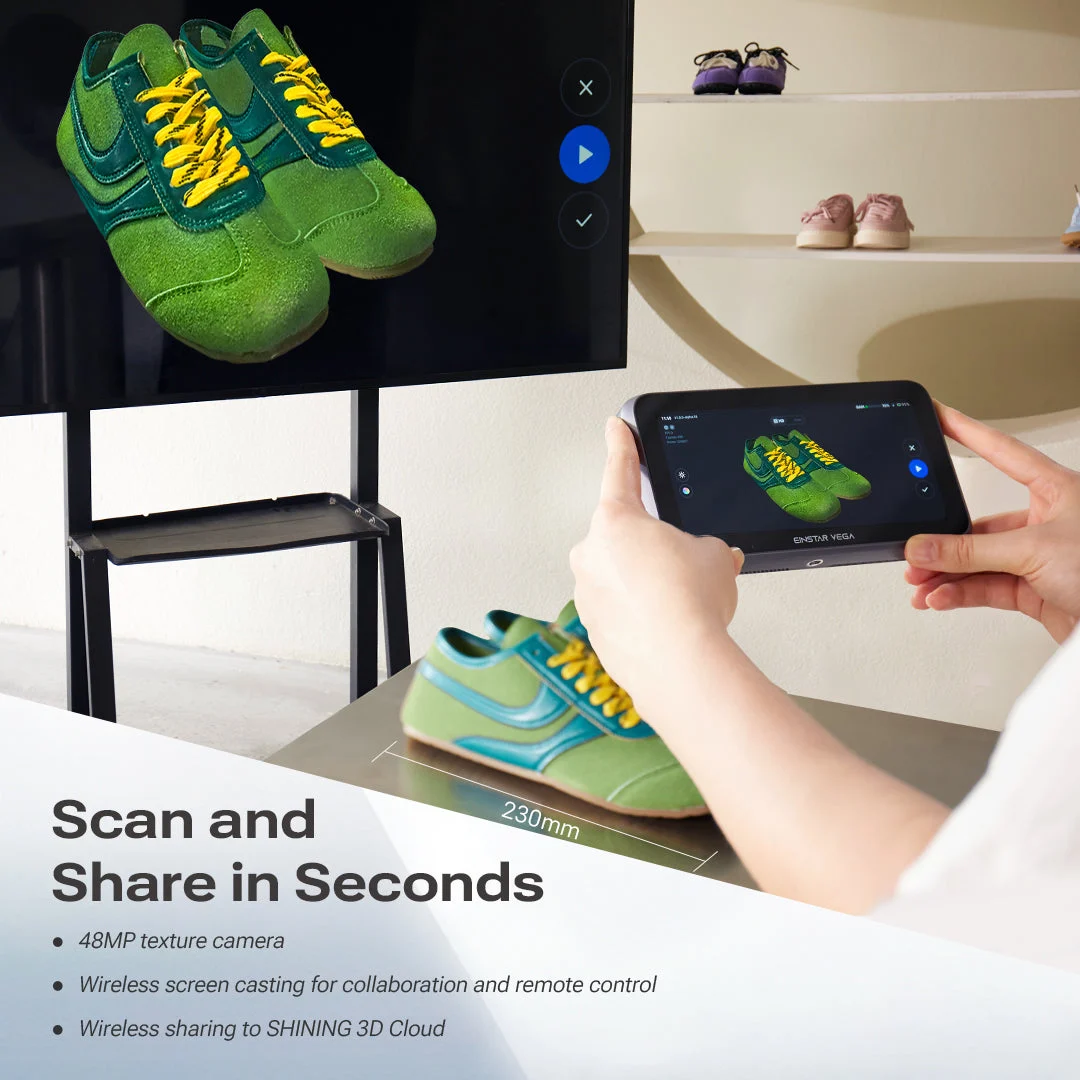

True-color capture, indoors or out
A 48MP RGB camera with real-time white balance and built-in fill light captures full color, and the infrared light source keeps working in up to 100,000 lux of direct sunlight.
Markerless alignment, fast setup
Feature, texture, and hybrid alignment modes get you scanning without stick-on markers on most parts. Scanning rewind and auto base-plane detection speed up capture.

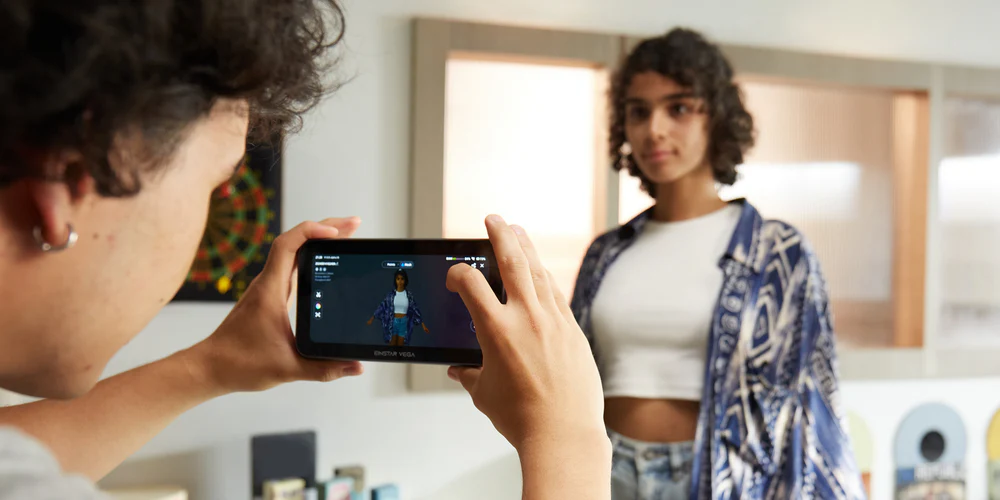

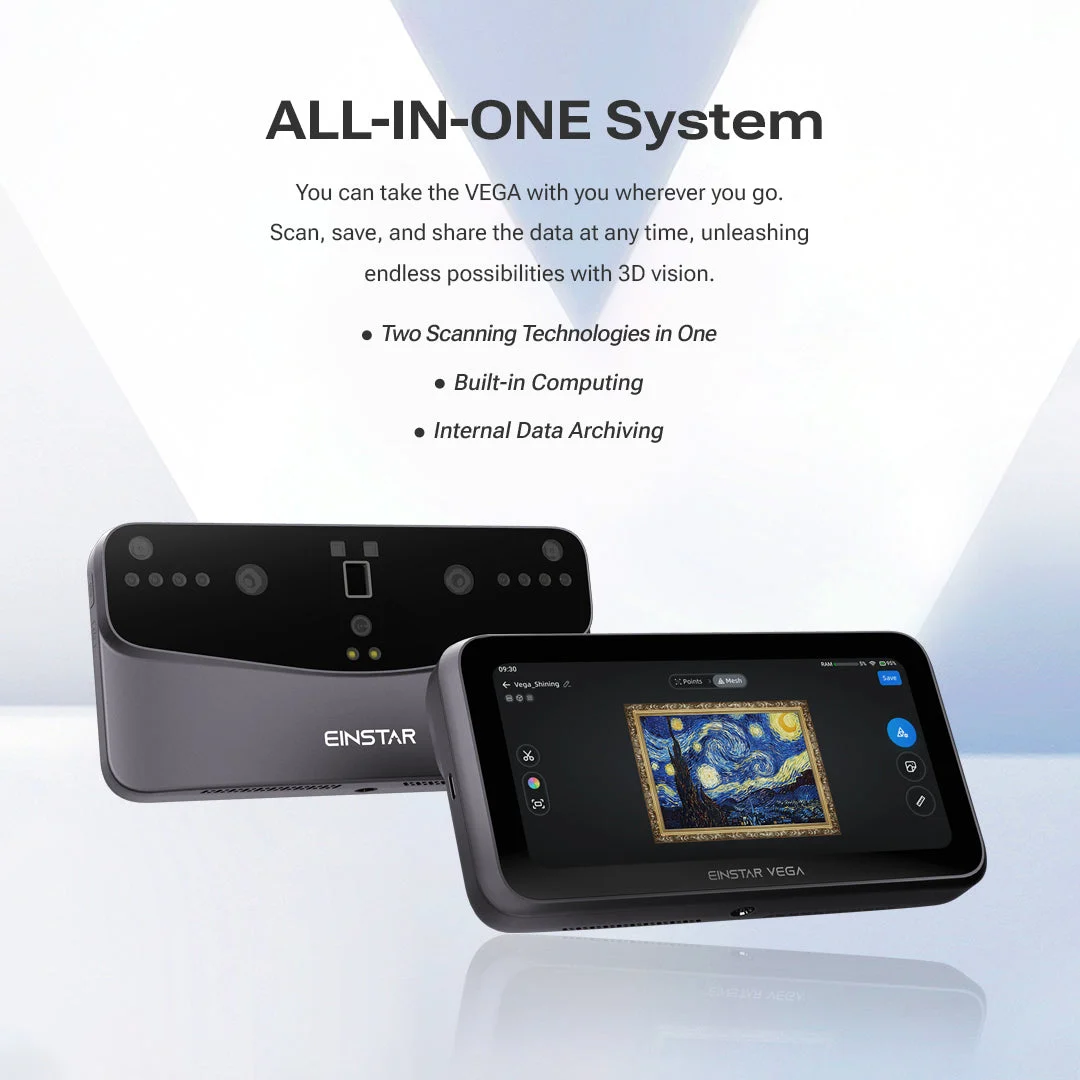

Standalone — no PC, no cables
An onboard 6.4″ 2K OLED touchscreen, 8-core CPU, 32GB RAM, and 512GB SSD run the full workflow on-device. A built-in 5000mAh battery keeps it scanning untethered.
How Additive Plus delivers your Einstar Vega
Calibrated, trained, and supported by engineers who scan every day.
Step 01
Calibrate & verify
Every unit is checked against its calibration board and accuracy confirmed before it ships — you receive a scanner that meets its stated spec on day one.
Step 02
Install & train
Remote or on-site onboarding on scan strategy, alignment modes, and export to your CAD or 3D-printing workflow — productive on the first real part, not week three.
Step 03
Sample scan & support
Send us a part and we scan it first, so you see Vega data on your geometry before you commit. Post-sale calibration and workflow support with a sub-4h reply.
Scanning Performance

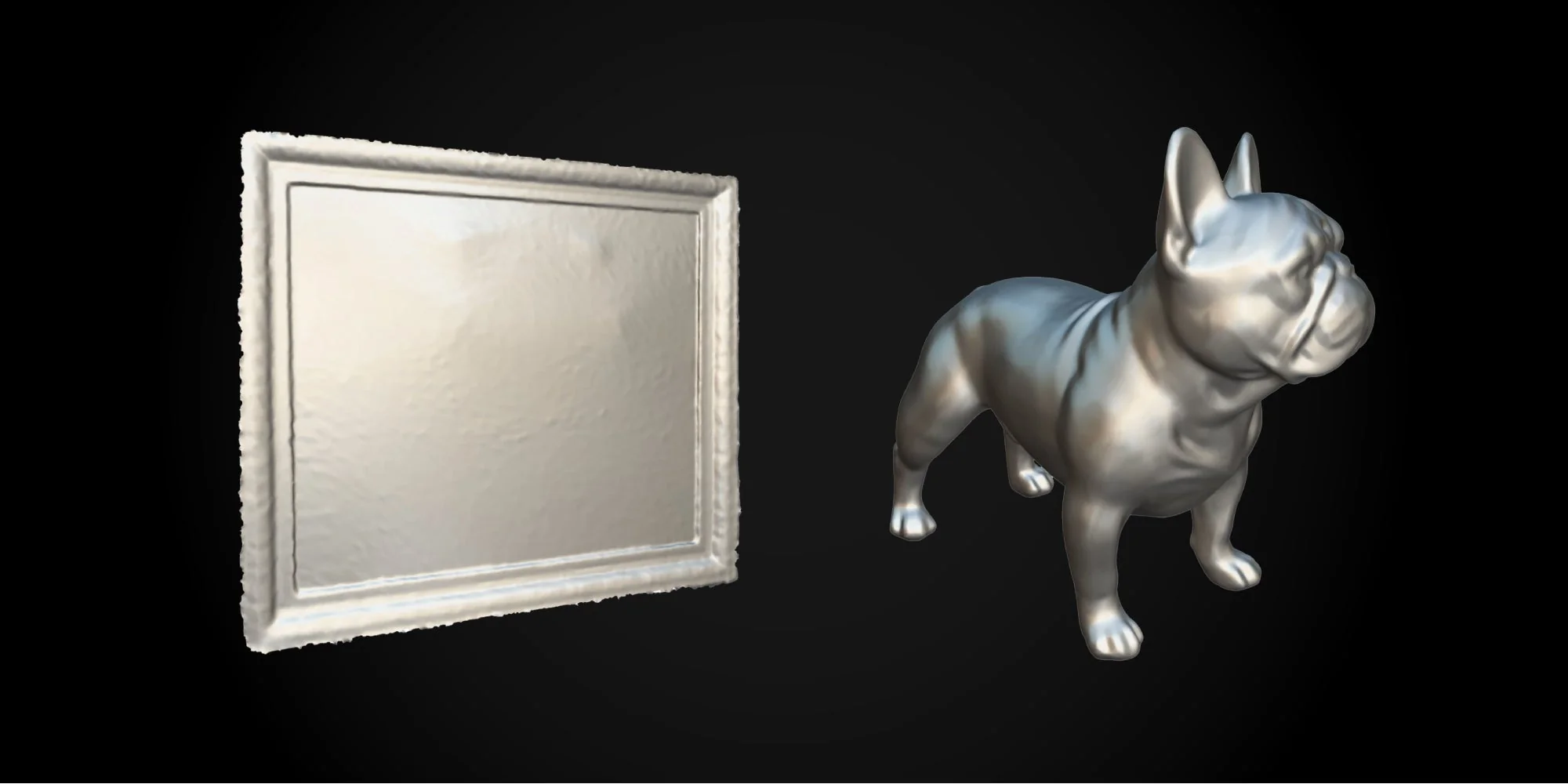

The Einstar Vega pairs an infrared MEMS projector for HD Mode with an infrared VCSEL projector for Fast Mode. HD Mode resolves fine features at 100–350 mm down to 0.05 mm point distance at up to 15 fps; Fast Mode covers 270–1500 mm at 0.5–10 mm point distance and up to 20 fps, so the same device handles small parts and larger objects. A 48MP RGB camera adds full-color texture to every scan. See the full specification table below.
Working Range & Portability
At 535 g with a built-in 5000mAh battery rated for 1.5–2 hours of continuous scanning, the Einstar Vega scans untethered — indoors, on a bench, or outdoors in direct sunlight. Wi-Fi 6 handles wireless data sharing and USB Type-C covers wired transfer or charging, and an external power bank extends longer sessions.

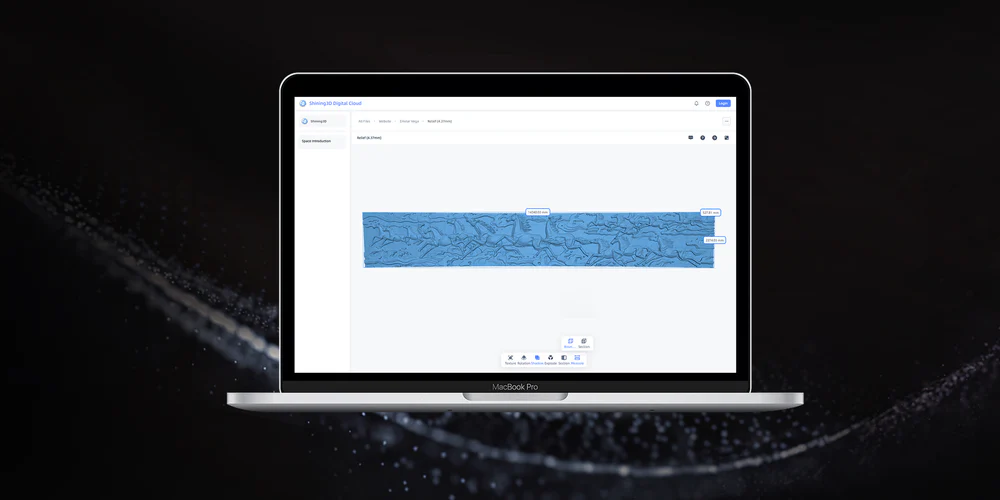

Software & Workflow

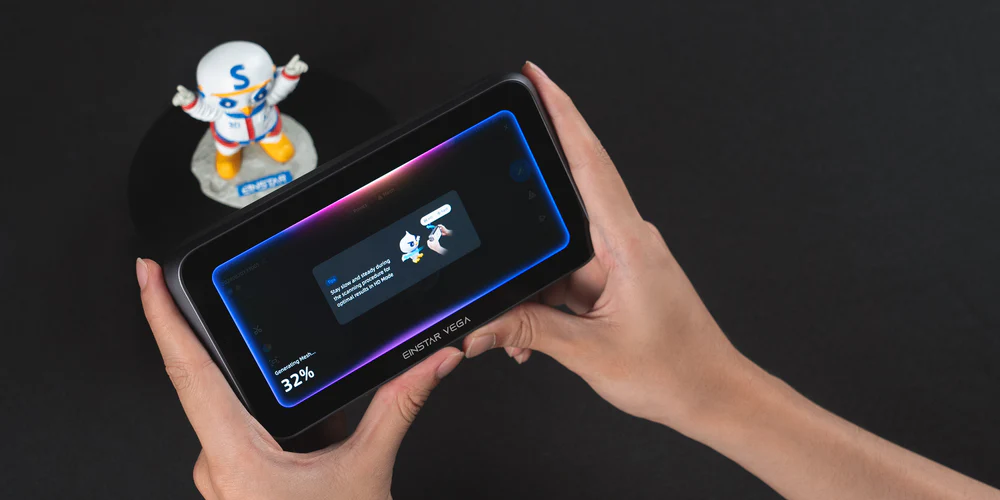

Onboard processing runs capture, alignment, and preview directly on the 6.4″ 2K OLED touchscreen, powered by an 8-core CPU, 32GB RAM, and 32GB eMMC plus 512GB SSD storage — no laptop required. Data alignment supports feature, texture, markers, and hybrid modes. Export to OBJ, STL, PLY, and ASC drops straight into CAD, reverse-engineering, and 3D-printing workflows, with the optional StarVision desktop app and 5GB of free SHINING 3D Cloud storage for further processing.
Typical applications
One scanner across design, inspection, and creative work.
Reverse engineering
Consumer products and small parts to CAD
Quality inspection
Scan-to-CAD comparison for prototypes
Design & prototyping
Real-world scan into 3D print workflow
Wearables & ergonomic fit
Body and object scanning for custom fit
Art & heritage
Full-color capture of objects and artifacts
Education & maker projects
Classroom and hobbyist 3D scanning
Why Source the Einstar Vega Through Additive Plus
- Authorized reseller — demo units and sample scans of your own parts before you commit
- Calibration verified before shipment; installation and training included
- Application engineers who run these scanners — scan strategy, alignment, and CAD/QC export support
- US-based support with a sub-4h response · 200+ AM and metrology systems delivered across 23 countries
Not sure the Vega is the right scanner?
Compare it with the other handheld scanners we support.
Entry levelEinstarView scanner →
Handheld upgradeEinstar 2Compare scanner →
All-in-one laserEinScan LibreView scanner →
Handheld upgradeEinstar 2Compare scanner →
All-in-one laserEinScan LibreView scanner →
Tell us your part size, material, and target accuracy — our applications engineer will recommend the right scanner and can run a sample scan of your actual geometry first. Sub-4h reply, NDA standard.
| Brand | Shining 3D |
| Country of origin | China |
| Scan Modes | HD Mode (infrared MEMS), Fast Mode (infrared VCSEL) |
| Light Source | HD Mode: Infrared MEMS structured light Fast Mode: Infrared VCSEL structured light |
| Resolution | HD Mode: 0.05 – 3 mm Fast Mode: 0.5 – 10 mm |
| Scan Speed | HD Mode: up to 15 fps Fast Mode: up to 20 fps |
| Effective Working Distance | HD Mode: 100 – 350 mm Fast Mode: 270 – 1500 mm |
| Camera Resolution | IR: 2 MP (HD), 1.3 MP (Fast) Color: 48 MP RGB |
| Data Alignment Mode | Feature, texture, markers, hybrid |
| Full Color Scanning | Yes — 48 MP RGB camera |
| Outdoor Scanning | Yes — up to 100,000 lux direct sunlight |
| Output Formats | OBJ, STL, PLY, ASC |
| Processor & Memory | 8-core CPU 2.4 GHz · 32GB LPDDR4 · 32GB eMMC + 512GB SSD |
| Display | 6.4″ 2K OLED touchscreen |
| Battery | Built-in 5000 mAh · 1.5–2 hrs continuous · power-bank charging supported |
| Interface | Wi-Fi 6, USB Type-C |
| Weight | 1.18 lbs, 535 g |
| Dimensions | 7.1 × 3.7 × 1.0 in / 180 × 95 × 26.5 mm |
| Certifications | IP50 |
Product videos
Want proof before you commit?
Send us your part and we'll scan it on the Einstar Vega in California — review the mesh and deviation on your own geometry before you buy.
Other products teams run alongside Shining 3D Einstar Vega Wireless Handheld 3D Scanner – Standalone Full-Color | 0.05 mm Resolution
3D Software Scan
Shining 3D EXScan O&P Software – Orthotics & Prosthetics Scan-to-Design | For EinScan H2
EXScan O&P is orthotics & prosthetics scanning software for the EinScan H2 handheld 3D scanner — preset body scan modes and an intelligent automatic alignment algorithm capture socket, limb, cranial, torso, foot, and seating scans, then export clean STL and OBJ meshes for your O&P CAD/CAM and design software.
- ✓ 8 preset O&P scan modes · cranial, face, upper/lower limb, torso, foot station, seating, socket
- ✓ Intelligent automatic alignment — real-time, step-by-step, minimal manual post-processing
- ✓ Exports STL and OBJ to CAD/CAM and specialized O&P design software
- ✓ Delivered as a licensed download — request editions and pricing
In stock
· Delivered as a licensed download; issued to order
Entry-level For Hobbyists
Shining 3D EINSTAR 2 Wireless Handheld 3D Scanner – Blue Laser + IR | 0.05 mm
Wireless handheld 3D scanner and the upgrade to the original Einstar — 17 blue laser lines for detail plus an IR mode for large objects and people, capturing from 5 mm parts to 10 m scenes at up to 0.05 mm, a full body in about 60 seconds.
- ✓ Up to 0.05 mm accuracy · 17 parallel blue laser lines · 2.5M–4.8M points/s
- ✓ Dual mode: laser (small–medium detail) + IR (large objects, full body)
- ✓ Fully wireless · replaceable battery ~3 h · 420 g · full body in ~60 s
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
All-in-One Laser 3D Scanner
Shining 3D EinScan Libre Wireless Handheld 3D Scanner – Standalone All-in-One | 0.04 mm Accuracy
Wireless standalone 3D scanner with 0.04 + 0.06 mm/m accuracy and a 500–1500 mm working range — onboard screen and PC-free operation for reverse engineering and inspection.
- ✓ Tri-mode capture — IR Rapid, IR Adaptive, Laser HD — up to 4,500,000 points/s
- ✓ 5.5 in OLED touchscreen, 1 TB onboard SSD, NVIDIA Jetson Orin NX — no laptop required
- ✓ Full-color 48 MP texture camera, markerless alignment, Wi-Fi 6 + USB-C
- ✓ Lead time: 2–4 weeks — configured to order
From $28999
Add to cart
On backorder
· Lead time: 2–4 weeks — configured to order
3D Software Scan
Geomagic Control X 3D Inspection Software – GD&T, Deviation Analysis & Reporting
Geomagic Control X is a standalone 3D metrology inspection software — compare 3D scan data to a CAD model, run full GD&T to ASME Y14.5 and ISO, and generate customizable, traceable inspection reports, with scanner-agnostic hardware support and visual-scripting automation.
- ✓ Scan-to-CAD full-field deviation color maps · CAD-free golden-part inspection · automatic feature recognition
- ✓ GD&T to ASME Y14.5 & ISO · 2D + 3D dimensioning · cross-section · multi-alignment · airfoil analysis
- ✓ Live Inspect · trend monitoring · visual-scripting automation · reports to Excel, Word, PowerPoint, PDF & XML
- ✓ Works with major 3D scanners & portable CMMs · delivered as a licensed download, issued to order
In stock
· Delivered as a licensed download; issued to order
3D Software Scan
Shining 3D FreeScan 3D Scanning Software – For FreeScan Series Scanners | Photogrammetry & Mesh
FreeScan is the scanning software for Shining 3D's FreeScan series 3D scanners — the data-acquisition application, not a scanner. A self-developed intelligent algorithm cleans the mesh as you capture, patented Video Photogrammetry (VPG) holds volumetric accuracy, and real-time quality feedback keeps every pass in range, then exports to EXModel, Geomagic, and PolyWorks.
- ✓ Software for FreeScan handheld & metrology scanners — UE Nova, UE Pro2, Trio, Trak Nova, Combo
- ✓ Intelligent noise/feature algorithm · real-time mesh + data-quality & laser-line color feedback
- ✓ Video Photogrammetry (VPG) up to 0.02 + 0.015 mm/m · bridges to EXModel, Geomagic, PolyWorks
- ✓ Delivered as a licensed download — issued to order; request licensing
In stock
· Delivered as a licensed download; issued to order
3D Software Scan
SHINING3D EXModel Scan-to-CAD Reverse Engineering Software – Lite & Pro
Scan-to-CAD reverse-engineering software that turns a 3D-scan mesh into a professional CAD solid model in a few steps — with seamless one-click import from Shining 3D scanners and export to IGES, STEP, and DXF for CAD/CAM, CNC, or 3D printing.
- ✓ Mesh to production-ready CAD solid · one-click auto-surfacing, feature-based & hybrid modeling
- ✓ One-click scan import from Shining 3D scanners — no export/import juggling
- ✓ Lite (IGES, DXF) and Pro (parametric STEP + full toolset) editions · 30-day free trial
- ✓ Delivered as a license — request editions and pricing
In stock
· License delivered on purchase — 30-day trial available; onboarding scheduled with your team
High-Precision 3D Inspection System
Shining 3D OptimScan-5M Plus Structured-Light 3D Scanner – Blue Light Metrology | 0.005 mm Accuracy
Blue-light structured-light metrology scanner with 0.005 mm single-shot accuracy and three interchangeable working ranges (100/200/400 mm) — a stationary benchtop system for dimensional inspection of small, high-precision parts.
- ✓ Two 5 MP cameras + 1080P blue-LED DLP projector, verified to VDI/VDE 2634 Part 3 in an ISO 17025-certified lab
- ✓ Automatic marker alignment and GREC global-deviation control minimize cumulative error across multi-scan datasets
- ✓ Interchangeable 100/200/400 lens configurations match accuracy and scan area to the part
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
Laser Handheld 3D Scanner
Shining 3D FreeScan Trak Nova Wireless Dynamic Tracking 3D Scanner – Metrology | 0.046 mm/m
Wireless dynamic-tracking metrology system combining an optical tracker, a large-FOV blue-laser scanner, and patented video photogrammetry (VPG) — markerless measurement up to 0.046 + 0.012 mm/m volumetric accuracy across objects from 5 mm to 50 m³.
- ✓ 0.046 + 0.012 mm/m volumetric accuracy · verified in an ISO/IEC 17025 accredited lab (VDI/VDE 2634 Part 3, ISO 10360)
- ✓ 50 laser lines · 6,140,000 points/s · dynamic tracking up to 3.5 m · markerless VPG
- ✓ Fully wireless, separable tracker + scanner · TE Nova 1.2 kg / UE Nova 1.6 kg
- ✓ Lead time: 4–6 weeks — configured to order
On backorder
· Lead time: 4–6 weeks — configured to orderFrom design and reverse-engineering teams running the Einstar Vega
Unedited feedback from product design and prototyping users.
★★★★★
Scanned a full car bumper handheld with the onboard screen — no laptop, no cables, and the mesh was clean enough to reverse-engineer straight away.
JT
Jason T. Product Designer · Consumer Goods
★★★★★
Full-color capture on the Vega saved us a separate photogrammetry pass — texture and geometry came out of one scan.
EM
Elena M. 3D Artist · Heritage Documentation
★★★★★
Battery lasts a full shift of scanning around the shop floor, and switching between HD and Fast mode covers both small parts and bigger fixtures.
MD
Marcus D. Manufacturing Engineer · Industrial Equipment
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
What accuracy can I expect from the Einstar Vega on a 1-meter part?
The Einstar Vega reaches down to 0.05 mm point distance in HD Mode for fine detail, with Fast Mode scanning larger areas at 0.5–10 mm point distance and up to 20 fps. On a 1-meter part, expect fine surface detail and edges to hold up well in HD Mode, while Fast Mode covers the bulk of the geometry quickly; combining both in one project on the onboard 6.4-inch screen gives you a complete, full-color mesh without a laptop. We can run a sample scan of your actual part so you see real results before you buy.

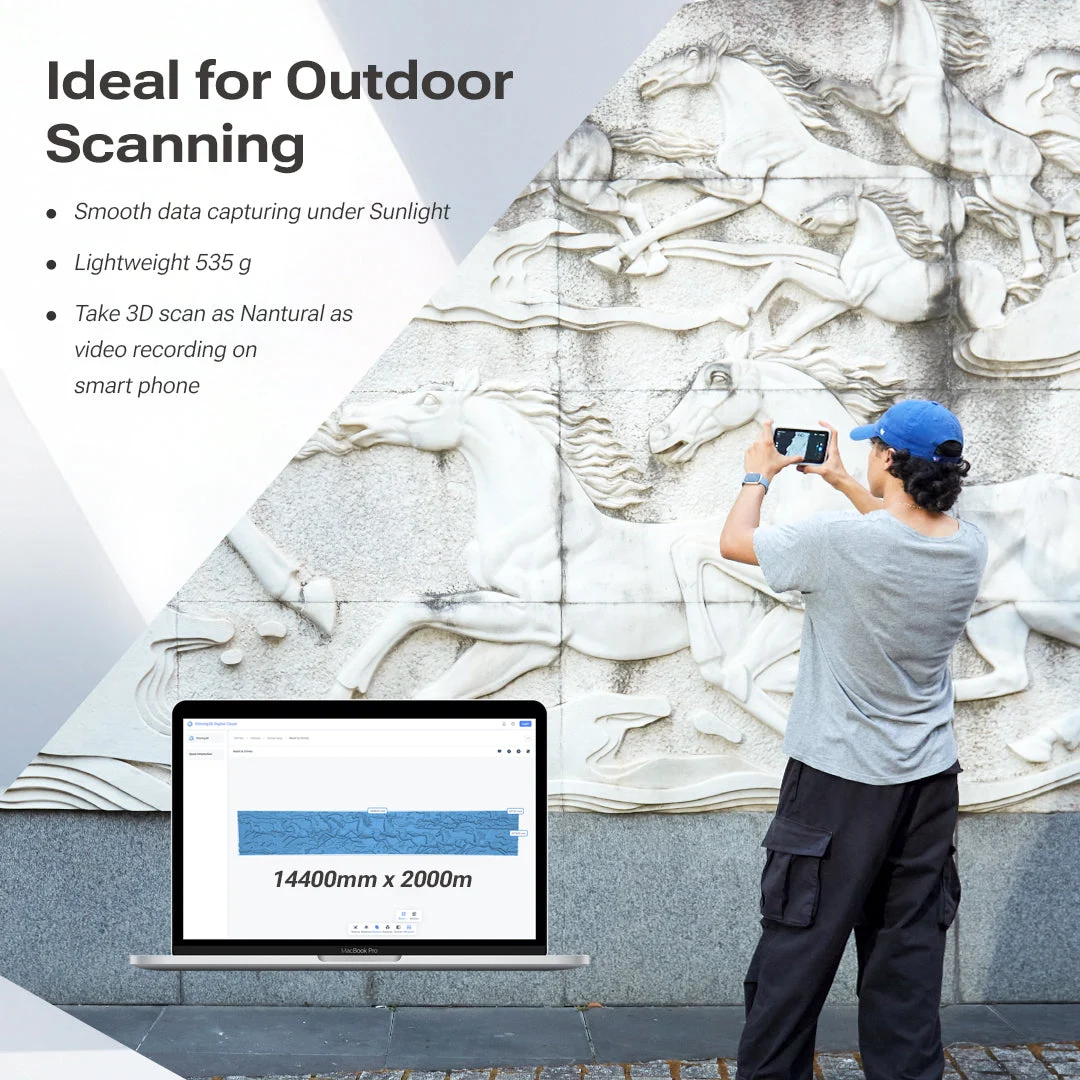

Does the Einstar Vega scan outdoors or in bright ambient light?
Yes. The Einstar Vega's infrared MEMS and VCSEL light sources are built to hold up in direct sunlight up to 100,000 lux, and a real-time white balance with built-in fill light keeps color capture accurate in low light too. This makes it practical for scanning vehicles, equipment, or parts on a shop floor with mixed lighting, not just a controlled studio setup. Full-color and geometry capture stay usable across both conditions without extra lighting gear.
Which CAD and QC software does the Einstar Vega export to?
The Einstar Vega exports OBJ, STL, PLY, and ASC files, which open directly in standard reverse-engineering, CAD, and 3D-printing software such as SolidWorks, Geomagic, Blender, and common slicers. Full-color meshes come out of the box in OBJ and PLY for texture work. Onboard processing handles capture and alignment; the optional StarVision desktop app on Windows or macOS is available for further mesh cleanup and export tuning if your workflow needs it.

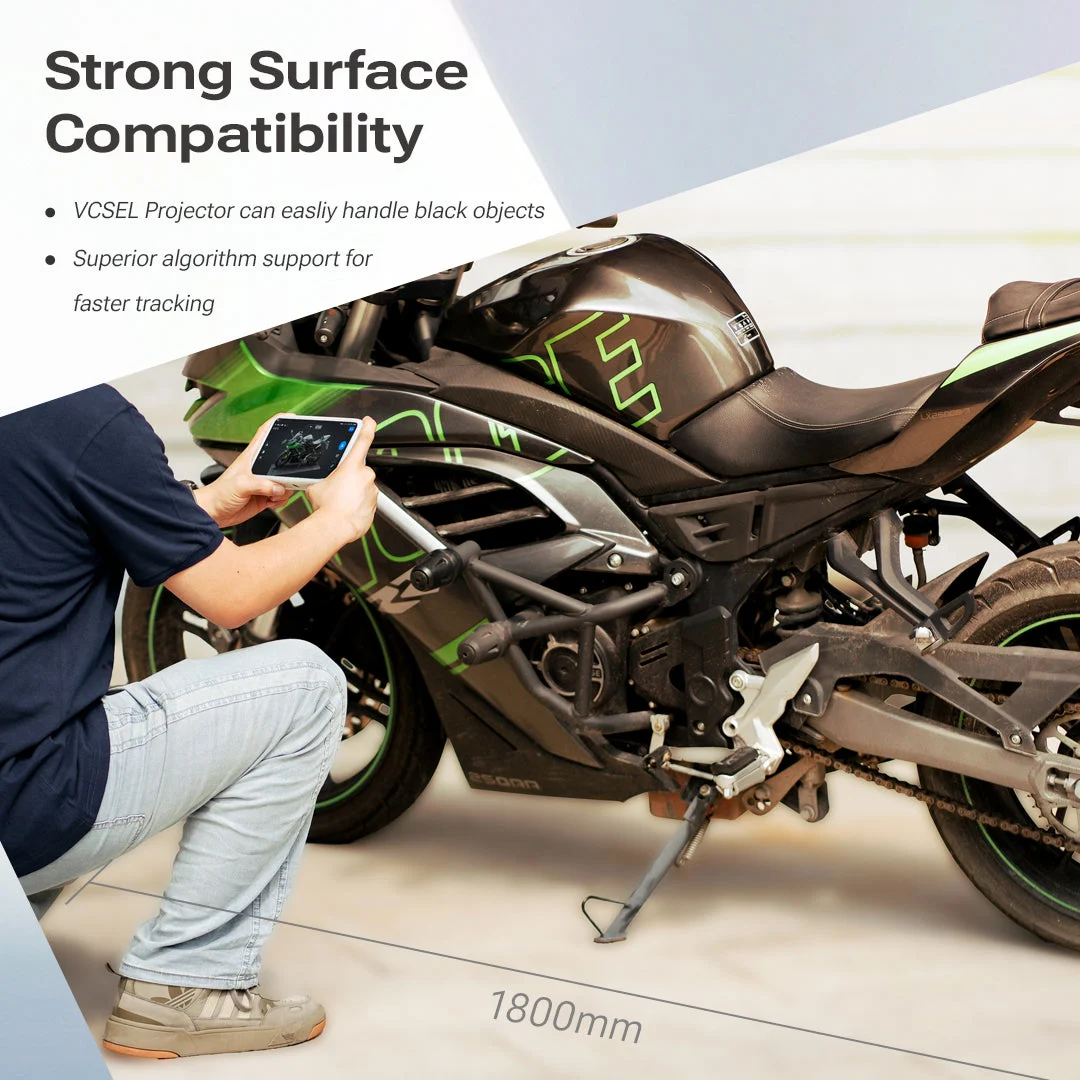

Can the Einstar Vega scan dark or reflective surfaces without spray?
In most cases, yes. The Einstar Vega's infrared structured light captures matte and moderately reflective surfaces without a spray coating, and feature, texture, and hybrid alignment modes give you options depending on the part's geometry and markings. Highly polished or mirror-finish metal may still need a light matting agent for complete coverage. Tell us your material and finish and we'll confirm markerless capture on your part before you commit.
What's the difference between the Einstar Vega's scan modes?
The Einstar Vega runs two modes you can switch between on the fly. HD Mode uses infrared MEMS light for fine detail at 100–350 mm working distance and down to 0.05 mm point distance, ideal for small parts and tight features. Fast Mode uses infrared VCSEL light for medium-to-large objects at 270–1500 mm and up to 20 fps, trading some resolution for speed and coverage. Both modes align into one mesh in the onboard software, so you capture detail and bulk geometry in a single session.
How often does the Einstar Vega need calibration?

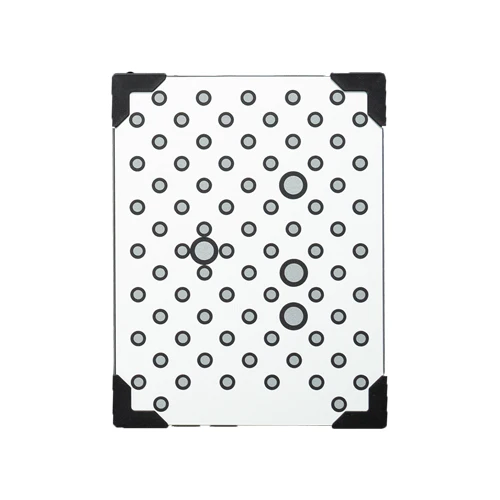

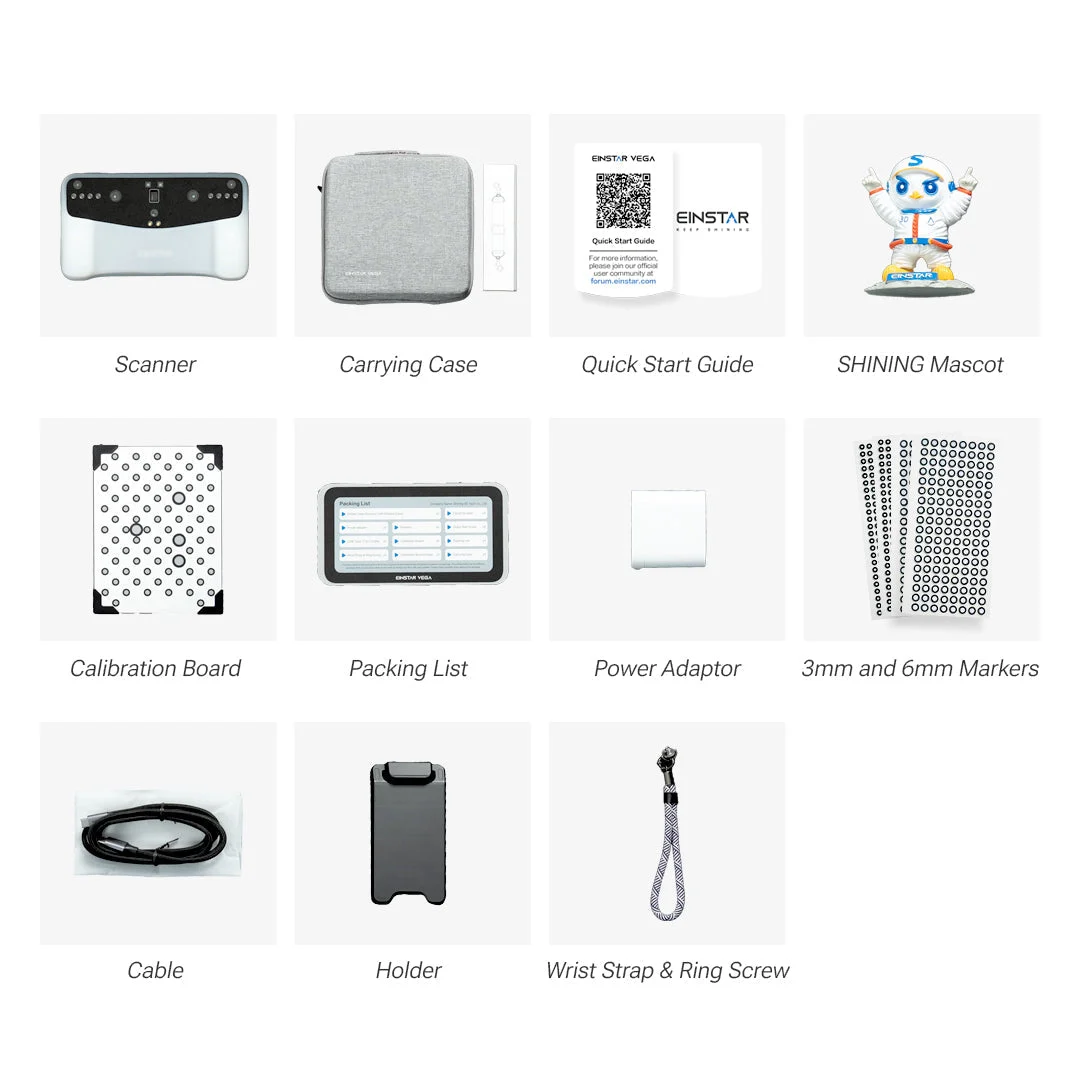

The Einstar Vega ships with a calibration board, and accuracy is verified before it leaves us. In normal use, recalibrate periodically or after transport, a temperature swing, or a knock — a short on-device routine against the board confirms the scanner is still in spec. Onboarding covers this workflow so your team can re-check calibration whenever a project calls for it.
What's the battery life, and does the Einstar Vega need a tethered PC?
The Einstar Vega runs standalone on a built-in 5000mAh battery for roughly 1.5–2 hours of continuous scanning, with external power-bank charging for longer sessions. It's a wireless, PC-free device by design — the onboard 6.4-inch 2K OLED touchscreen, 8-core CPU, 32GB RAM, and 512GB SSD run capture, alignment, and preview without a laptop. Wi-Fi 6 and USB Type-C cover wireless data sharing and wired transfer when you do want to move files to a PC.
