3D scanners, All-in-One Laser 3D Scanner, Professional For 3D Design
Shining 3D EinScan Rigil Tri-Mode Laser 3D Scanner – Wireless All-in-One | 0.04 mm Accuracy
Tri-mode laser 3D scanner with up to 0.04 + 0.06 mm/m volumetric accuracy and a 170–1500 mm working range — markerless blue-laser and IR VCSEL capture combined in one wireless, PC-free device for reverse engineering, inspection, and design.
- ✓ 0.04 + 0.06 mm/m volumetric accuracy · up to 0.05 mm resolution (Laser HD)
- ✓ Three modes in one: 25+25 crossed lasers, 7 parallel lasers, IR VCSEL — up to 16M points/s
- ✓ Standalone wireless: 6.4″ 2K AMOLED, 32GB RAM, 1TB SSD, dual swappable batteries
- ✓ Lead time: 2–4 weeks — configured to order
Price held 7 days after order.
Install + training included
Tailored service plan
What your metrology engineer actually checks
What your metrology engineer actually checks
Certified accuracy, traceable to a standard

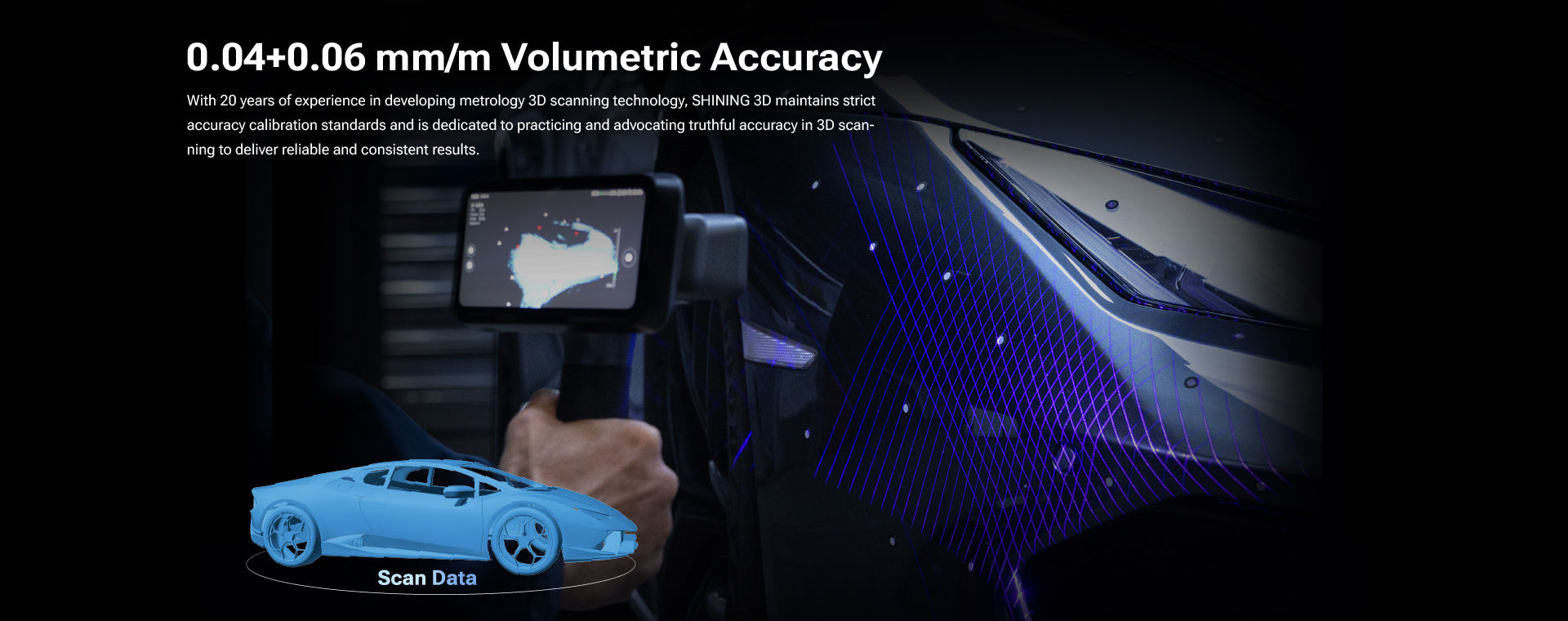

Up to 0.04 + 0.06 mm/m volumetric accuracy and 0.05 mm resolution in Laser HD give QC sign-off without a fight — fixed, calibrated numbers, not marketing estimates. Every unit is verified against its calibration plate before it ships.
An applications engineer on the line
Pre-sale sample scan of your actual parts, post-sale calibration and workflow support — from engineers who run these scanners, not a remote ticket queue. Sub-4h reply, NDA standard. Demo units available before you commit.
About this product

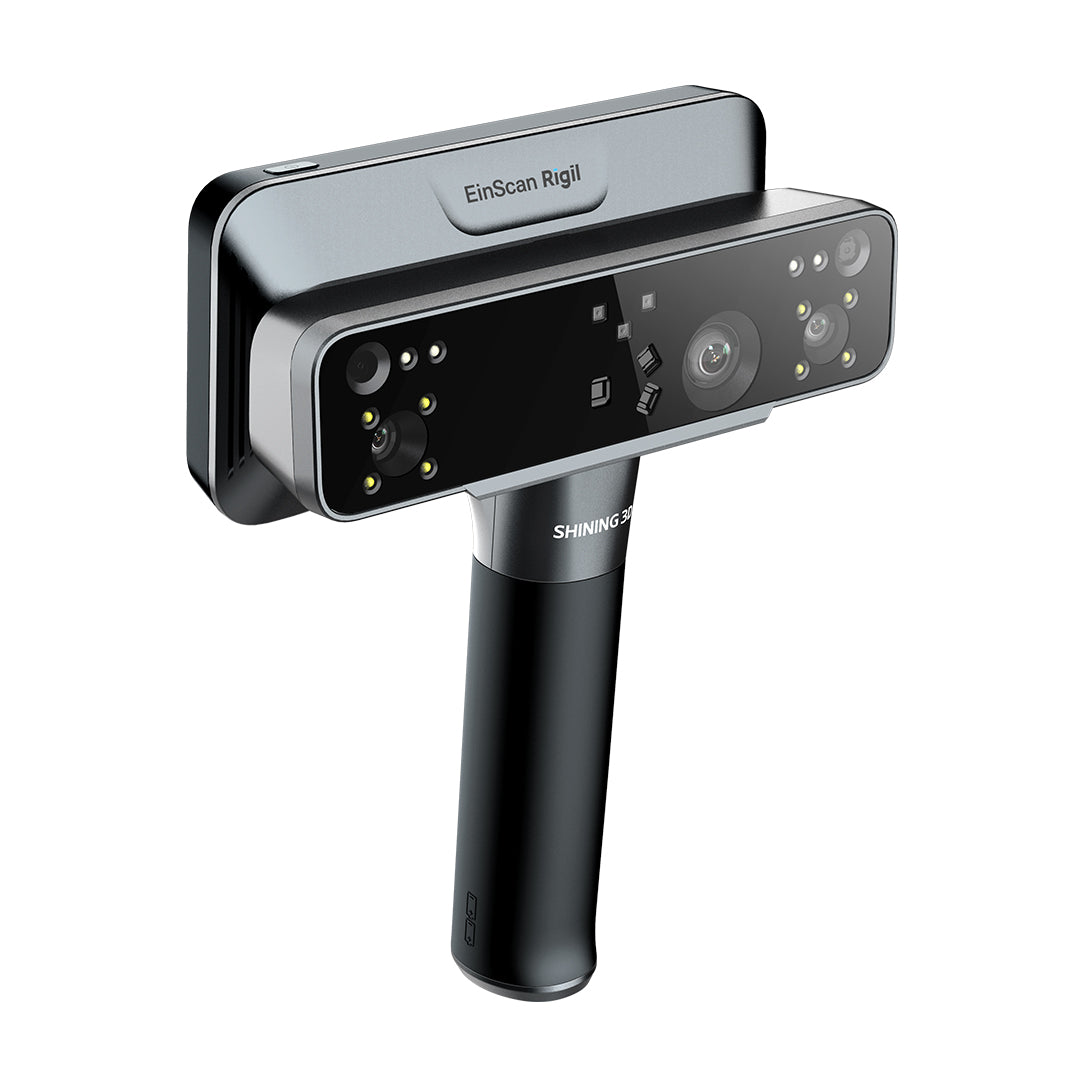

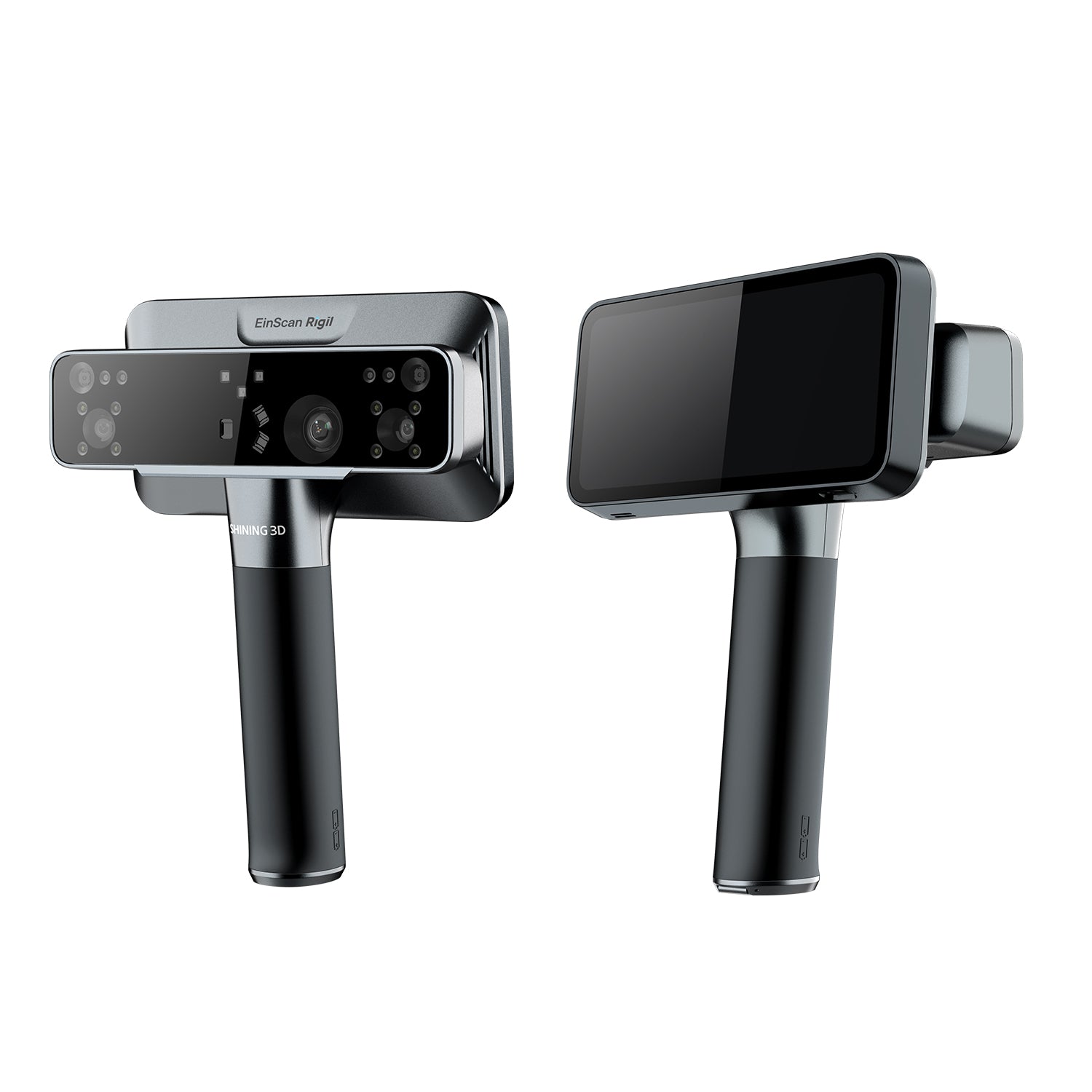

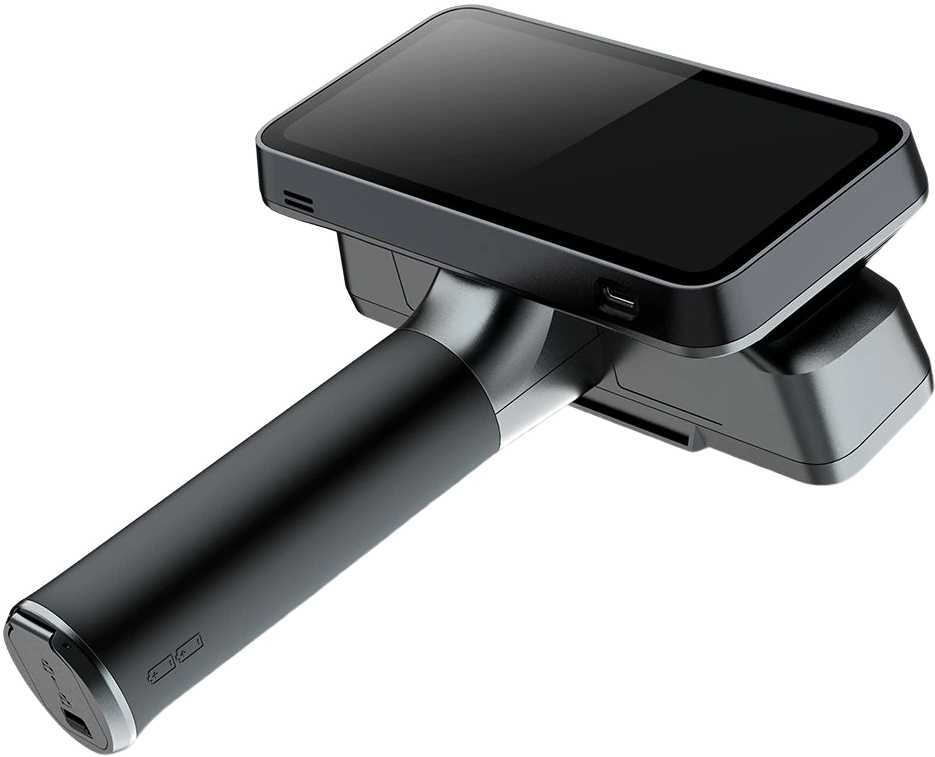

The Shining 3D EinScan Rigil is a tri-mode, all-in-one laser 3D scanner that combines 25+25 crossed blue laser lines, 7 parallel laser lines, and an infrared VCSEL in one wireless, PC-free device — capturing fine detail and large surfaces at up to 0.04 + 0.06 mm/m volumetric accuracy without markers.
Why metrology teams choose the EinScan Rigil
Three light sources, one device, calibrated accuracy you can sign off on.

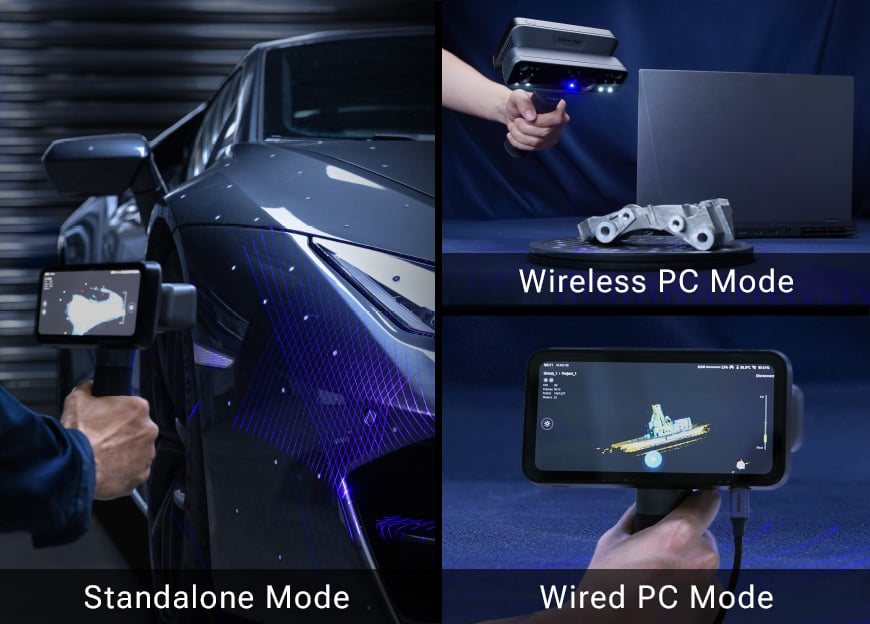

Tri-mode capture in one pass
Switch between Laser HD, Laser Fast, and IR Rapid within a single project — fine features, large surfaces, and dark or reflective parts, then merge every mode into one mesh.
Metrology-grade accuracy
Up to 0.04 + 0.06 mm/m volumetric accuracy and 0.05 mm resolution in Laser HD — traceable numbers for QC sign-off, not marketing estimates. See full specifications below.
Markerless, indoors or outdoors
Marker-free blue-laser and IR scanning holds up in bright sunlight and on dark or shiny surfaces — no spray, no stick-on targets, faster setup on real parts and vehicles.

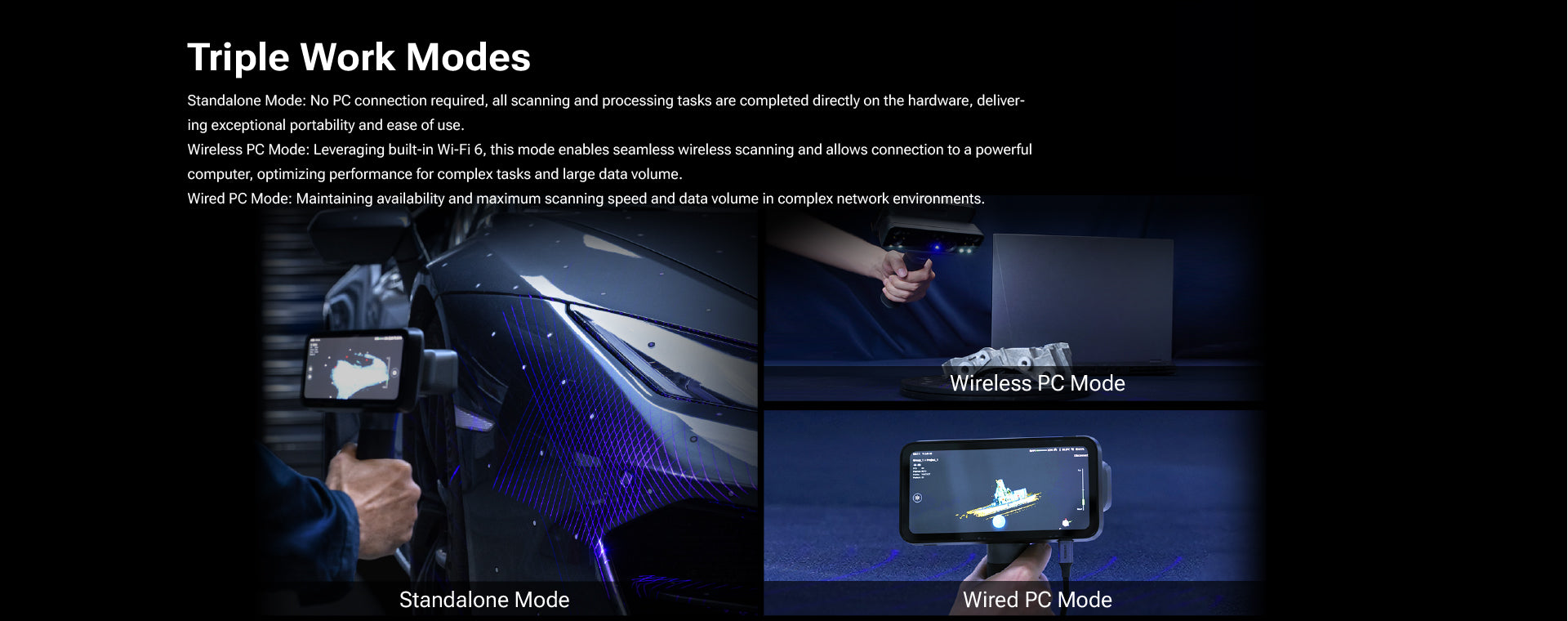

Standalone — no PC, no cables

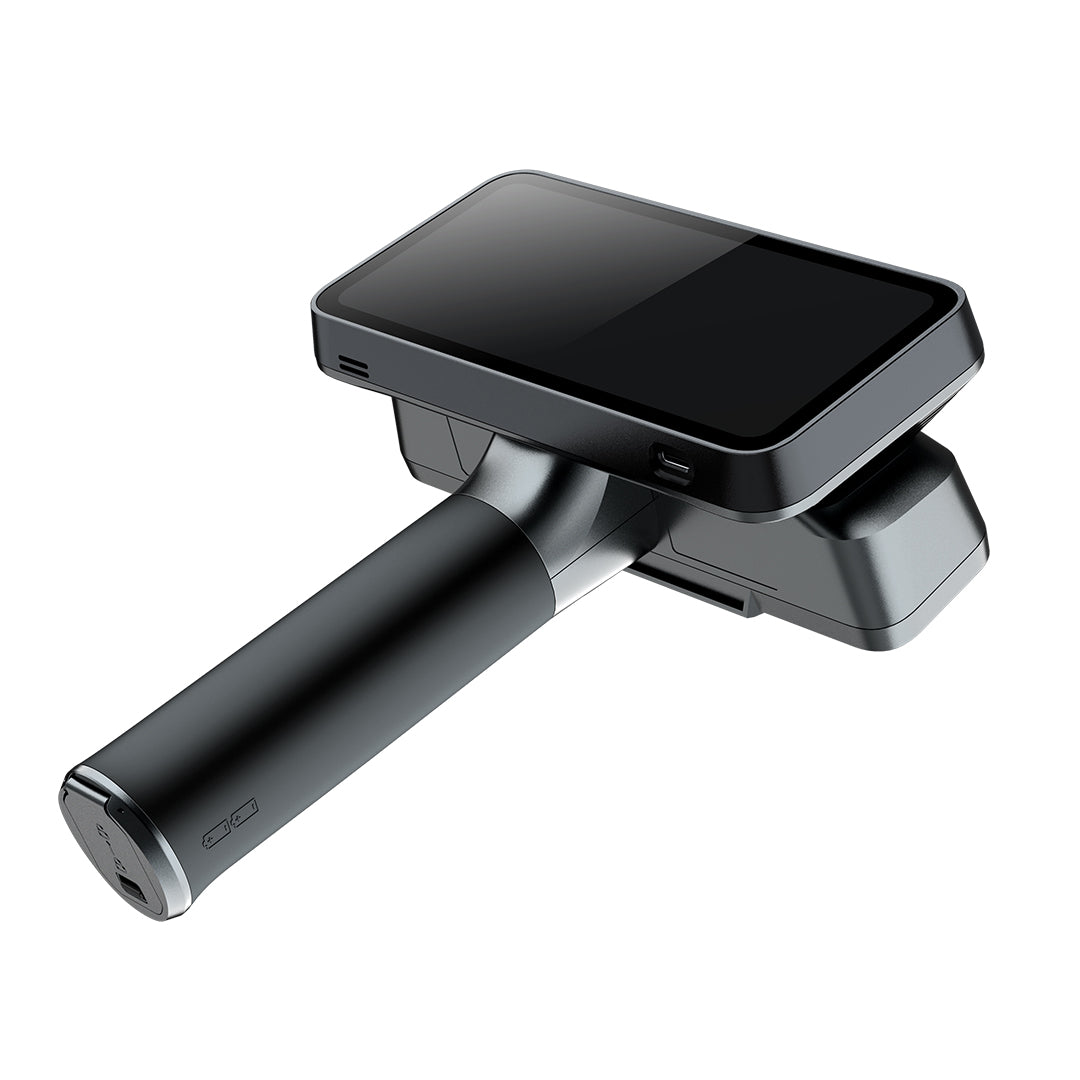

Onboard 6.4″ 2K AMOLED touchscreen, 8-core CPU, 32GB RAM, and 1TB SSD run the full workflow on-device. Dual swappable batteries keep scanning going anywhere.
How Additive Plus delivers your Rigil
Calibrated, trained, and supported by engineers who scan every day.
Step 01
Calibrate & verify
Every unit is checked against its calibration plate and volumetric accuracy confirmed before it ships — you receive a scanner that meets its stated spec on day one.
Step 02
Install & train
Remote or on-site onboarding on scan strategy, alignment modes, and export to your CAD/QC package — your team is productive on the first real part, not week three.
Step 03
Sample scan & support
Send us a part and we scan it first, so you see Rigil data on your geometry before you commit. Post-sale calibration and workflow support with a sub-4h reply.
Scanning Performance
The Rigil pairs two camera groups with three light sources: 25 + 25 crossed blue laser lines and 7 switchable parallel lines for high-detail geometry, plus an infrared VCSEL for rapid capture of large areas. Scan rate reaches 4,800,000 points/s with the crossed lasers and up to 16,000,000 points/s in IR Rapid. Volumetric accuracy is up to 0.04 + 0.06 mm/m in Laser HD. See the full specification table below.
Working Range & Portability
Working distance spans 170–550 mm in Laser HD and 160–1500 mm in IR Rapid, so the same device handles a turbine blade and a full vehicle body. At 870 g with two 5500 mAh replaceable batteries and Wi-Fi 6, the Rigil scans untethered — indoors, on the shop floor, or outdoors in direct sunlight.

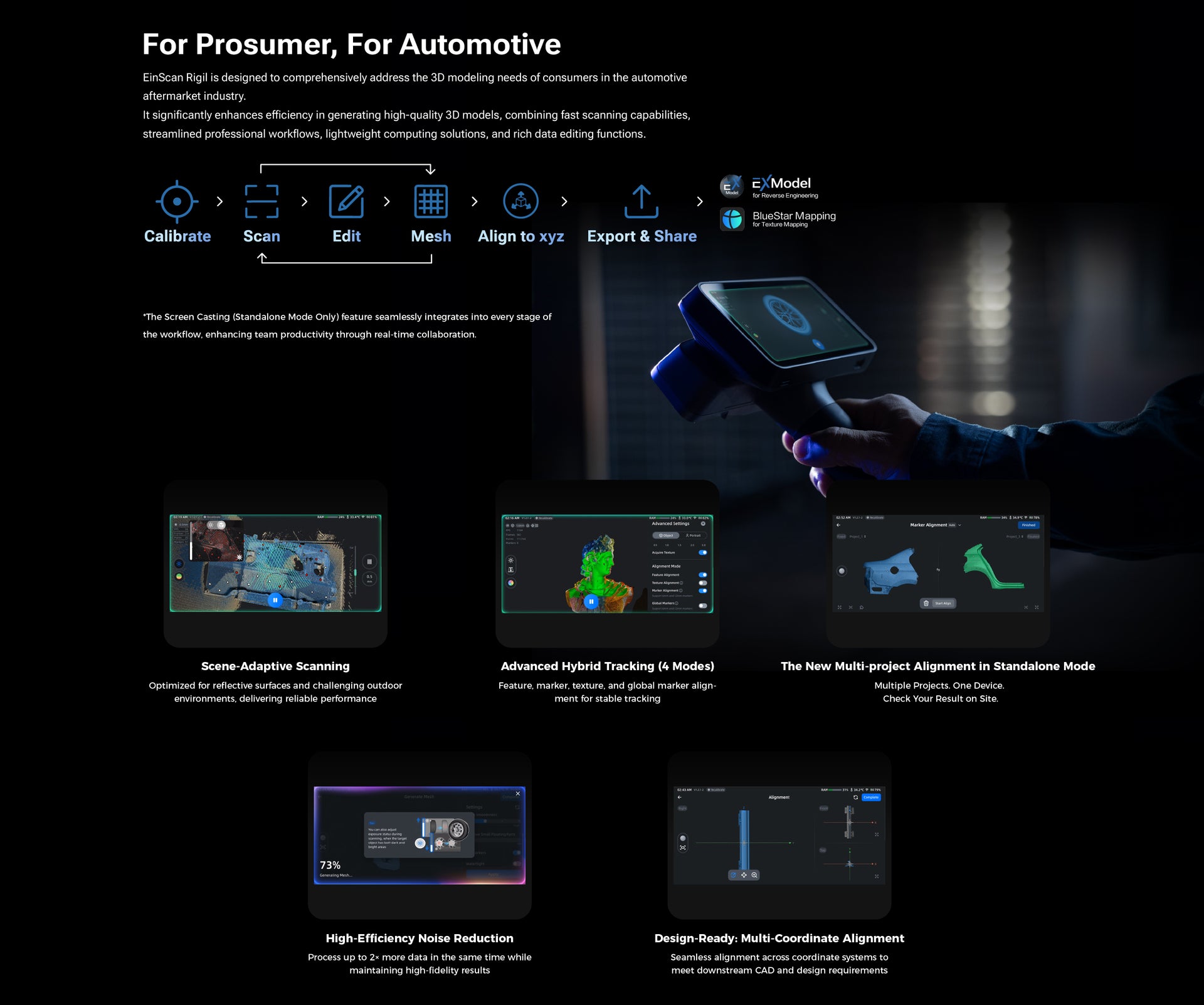

Software & Workflow
Onboard processing runs the capture, alignment, and preview directly on the 6.4″ 2K AMOLED screen; data alignment supports global markers, markers, features, texture, and hybrid modes. Export to STL, OBJ, PLY, 3MF, and ASC drops straight into reverse-engineering and inspection workflows. A 5 MP texture camera adds full-color capture for art, heritage, and documentation work.
Typical applications
One scanner across engineering, inspection, and creative work.
Reverse engineering
Legacy and modified parts to CAD
Quality inspection
Scan-to-CAD deviation and 3D QC
Automotive & aftermarket
Body, engine bay, custom fitment
Research & education
Metrology teaching and R&D
Art & heritage
Full-color capture of objects
Design & prototyping
Real-world scan into 3D print
Why Source the EinScan Rigil Through Additive Plus
- Authorized reseller — demo units and sample scans of your own parts before you commit
- Calibration verified before shipment; installation and training included
- Application engineers who run these scanners — scan strategy, alignment, and CAD/QC export support
- US-based support with a sub-4h response · 200+ AM and metrology systems delivered across 23 countries
Not sure the Rigil is the right scanner?
Compare it with the other wireless scanners we support.
All-in-one laserEinScan LibreView scanner →
Metrology laserFreeScan ComboCompare scanner →
Entry levelEinstar VegaView scanner →
Metrology laserFreeScan ComboCompare scanner →
Entry levelEinstar VegaView scanner →
Tell us your part size, material, and target accuracy — our applications engineer will recommend the right scanner and can run a sample scan of your actual geometry first. Sub-4h reply, NDA standard.
| Brand | Shining 3D |
| Country of origin | China |
| Scan Modes | Laser HD, Laser Fast, IR Rapid (tri-mode) |
| Light Source | 25 + 25 crossed blue laser lines 7 parallel blue laser lines IR VCSEL |
| Volumetric Accuracy | Laser HD: up to 0.04 + 0.06 mm/m IR Rapid: up to 0.1 + 0.4 mm/m |
| Resolution | Laser HD: 0.05 – 10 mm IR Rapid: 0.2 – 10 mm |
| Scan Speed | Crossed lasers: 4,800,000 pts/s Parallel lasers: 1,620,000 pts/s IR Rapid: 16,000,000 pts/s |
| Effective Working Distance | Laser HD: 170 – 550 mm IR Rapid: 160 – 1500 mm |
| Camera Resolution | 3D: 2.3 MP × 2, 1.3 MP × 2 Texture: 5 MP |
| Data Alignment Mode | Global markers, markers, features, texture, hybrid |
| Full Color Scanning | Yes — 5 MP texture camera |
| Outdoor Scanning | Yes |
| Output Formats | STL, OBJ, PLY, 3MF, ASC |
| Processor & Memory | 8-core CPU 2.4 GHz · 32GB LPDDR5 · 64GB eMMC + 1TB SSD |
| Display | 6.4″ 2K AMOLED touchscreen |
| Battery | 2 × 5500 mAh replaceable · 60W PD3.0 charging |
| Interface | Wi-Fi 6, USB Type-C |
| Weight | 1.9 lbs, 870 g |
| Dimensions | 9.2 × 7.1 × 2.9 in / 233 × 180 × 72.8 mm |
| Certifications | CE, FCC, RoHS, WEEE, FDA, SRRC, IP50 |
Want proof before you commit?
Send us your part and we'll scan it on the EinScan Rigil in California — review the mesh and deviation on your own geometry before you buy.
Other products teams run alongside Shining 3D EinScan Rigil Tri-Mode Laser 3D Scanner – Wireless All-in-One | 0.04 mm Accuracy
Entry-level For Hobbyists
Affordable Handheld Shining 3D Einstar Scanner
The Shining 3D Einstar is an affordable handheld 3D scanner that offers high-quality 3D data for various applications, including body scanning, 3D printing, and CAD modeling. Designed for users who need a portable, easy-to-use scanner, it provides accurate, detailed results while being accessible to everyone. Ideal for scanning small objects, body scans, or other 3D scanning tasks, the Einstar delivers professional-level performance at an entry-level price. Perfect for both beginners and experienced users looking to bring their 3D modeling and printing projects to life.
From $959
Add to cart
On backorder
Hybrid Light Source Handheld 3D Scanners
Handheld Shining 3D EinScan HX2
A handheld 3D body scanner that integrates blue LED and blue laser technologies.
On backorder
Laser Handheld 3D Scanner
Handheld FreeScan Trio 3D Scanner
The FreeScan Trio 3D Scanner is a marker-free 3D scanner featuring 98 laser lines and a triple 5MP camera system for efficient, high-precision scanning of parts, assemblies, and 3D CAD models. This handheld 3D scanner is perfect for bore measurement, 3D printing, and converting scanned data directly to CAD. It is also ideal for 3D scanning for small bore diameter, 3D room scanning, and 3D laser scanning applications, supporting industries like automotive, aerospace, and healthcare, as well as workflows like Bambu Labs.
On backorder
High-Precision 3D Inspection System
Handheld OptimScan-5M Plus 3D Scanner
The OptimScan-5M Plus 3D Scanner is a handheld 3D scanner offering high-precision 3D scanning for a range of applications, including 3D CAD scanning, dental 3D scanning, and additive manufacturing. Perfect for 3D scanning for bore measurement, this versatile tool excels in 3D scanning for small objects, Bambu Labs applications, and more. With superior data quality and performance, this 3D laser scanner is ideal for 3D printable 3D scanning, offering an efficient solution for industries requiring accurate and detailed scans, from dental scanner 3D to 3D printing.
On backorder
Multifunctional Handheld 3D Scanners
Handheld Shining 3D EinScan Pro HD
The Shining 3D EinScan Pro HD is a handheld 3D scanner designed for high-resolution 3D modeling, reverse engineering, and CAD applications. With enhanced accuracy and the ability to scan dark and reflective surfaces, including casting metal, this versatile scanner is perfect for a wide range of applications, from 3D printing to 3D scanning for CAD and 3D scanner for bore measurement. Its high-quality data capture makes it an excellent choice for industries requiring precision and detailed 3D scans.
On backorder
Entry-level For Hobbyists
Affordable Handheld Shining 3D Scanner Einstar Vega
The Shining 3D Einstar is an affordable handheld 3D scanner designed to make high-quality 3D data accessible to everyone. Ideal for body scanning, 3D printing, and CAD modeling, it delivers precise, detailed scans for a variety of applications. Whether you’re scanning small objects or creating 3D models for reverse engineering, the Einstar is an excellent tool for both professionals and hobbyists. Its easy portability and excellent scanning capabilities make it a versatile choice for body scanners and 3D printing projects, offering great value for users who want to create high-quality 3D models on a budget.
From $1999
Add to cart
On backorder
All-in-One Laser 3D Scanner
Wireless Handheld Shining 3D EinScan Libre Scanner
The Shining 3D EinScan Libre is a wireless, markerless, all-in-one 3D scanner that offers full-color and high-precision scanning for various applications, including 3D printing, CAD, and reverse engineering. Its versatility makes it ideal for a wide range of projects, whether scanning small objects, bore measurements, or larger environments. With easy setup and enhanced functionality, this scanner is designed for users needing a fast, efficient, and detailed 3D scanning solution. Enjoy the added benefit of a 1-year EXModel license and extended warranty with your purchase.
From $28999
Add to cart
On backorder
Metrology for quality control
Handheld FreeScan Trak Pro2 3D Scanner
The FreeScan Trak Pro2 is a 3D handheld scanner offering markerless optical 3D measurement with dynamic tracking for large workpieces. This 3D scanner for bore measurement, small bore diameter, and 3D printing delivers exceptional accuracy, with capabilities like 3D laser scanning and 3D room scanning. Ideal for industries such as automotive, aerospace, and ship maintenance, it also supports workflows like Bambu Labs and captures precise data for reverse engineering, quality control, and industrial applications.
On backorder
From engineering and inspection teams running the EinScan Rigil
Unedited feedback from metrology and reverse-engineering users.
★★★★★
Captured a full intake manifold in one session with all three modes merged, and the deviation map matched our CMM within tolerance.
DR
Daniel R. Metrology Engineer · Automotive
★★★★★
Markerless scanning outdoors in daylight actually works — we scanned a hull on the trailer with no spray and no targets.
PS
Priya S. Reverse Engineering Lead · Marine
★★★★★
The onboard screen means one person scans on the floor without dragging a laptop around. Cut our setup time roughly in half.
ML
Marcus L. R&D Manager · Industrial Equipment
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
What accuracy can I expect from the EinScan Rigil on a 1-meter part?
In Laser HD mode the EinScan Rigil delivers up to 0.04 + 0.06 mm/m volumetric accuracy, meaning error scales with part size — roughly 0.1 mm across a 1-meter object under good scanning conditions. Resolution reaches 0.05 mm, so fine features and edges stay sharp. Each unit is verified against its calibration plate before shipment, and we can run a sample scan of your actual geometry so you see real deviation numbers before you buy.
Does the Rigil scan in bright ambient light or direct sunlight?
Yes. The EinScan Rigil uses blue laser and infrared VCSEL light sources that hold up outdoors in direct sunlight, where many structured-light scanners struggle. This makes it practical for automotive bodywork, marine hulls, and large equipment scanned on the shop floor or outdoors. Markerless capture means you can start scanning without spray or stick-on targets in most conditions.
Which CAD and QC software does the Rigil export to?
The EinScan Rigil exports STL, OBJ, PLY, 3MF, and ASC, which import directly into standard reverse-engineering and inspection packages such as SolidWorks, Geomagic, Ansys, and common 3D-printing slicers. Data alignment supports global markers, markers, features, texture, and hybrid modes on the device. Our applications engineers can help set up the export path into your specific CAD or metrology workflow.
Can it scan reflective or dark surfaces without spray?
In most cases, yes. The Rigil's blue-laser and IR light sources capture dark, matte, and moderately reflective surfaces that trip up white-light scanners, so scanning spray is often unnecessary. Highly polished or mirror-finish surfaces may still need a light matting agent for full data. Tell us your material and finish and we will confirm whether the EinScan Rigil handles it markerless before you purchase.
What is the difference between the three scan modes?
The EinScan Rigil offers three modes you can combine in one project. Laser HD (25+25 crossed lines) captures the finest geometry at up to 0.05 mm resolution. Laser Fast (7 parallel lines) speeds up capture on larger areas. IR Rapid (infrared VCSEL) reaches up to 16,000,000 points/s and a 1500 mm range for big surfaces and fast roughing. Data from every mode merges into one mesh, so you use the right tool per feature without re-scanning.
Is calibration included, and how often is it needed?
Every EinScan Rigil ships with its calibration board, and we verify volumetric accuracy before the unit leaves us. In normal use you recalibrate periodically or after transport, temperature swings, or a knock — a quick on-device routine against the board. Installation and training cover the calibration workflow so your team can confirm the scanner is in spec whenever a QC job demands it.
What is the battery life, and does it support a tethered PC mode?
The EinScan Rigil runs standalone on two 5500 mAh replaceable batteries, so you swap a pack and keep scanning without a power outlet — ideal for field and floor work. It also runs in Wireless PC mode over Wi-Fi 6 or Wired PC mode over USB Type-C for restricted networks, and supports 60W PD3.0 charging. Onboard 32GB RAM, 1TB SSD, and the 6.4-inch 2K AMOLED screen run the full workflow with no laptop required.
