3D scanners, Hybrid Light Source Handheld 3D Scanners, Professional For 3D Design

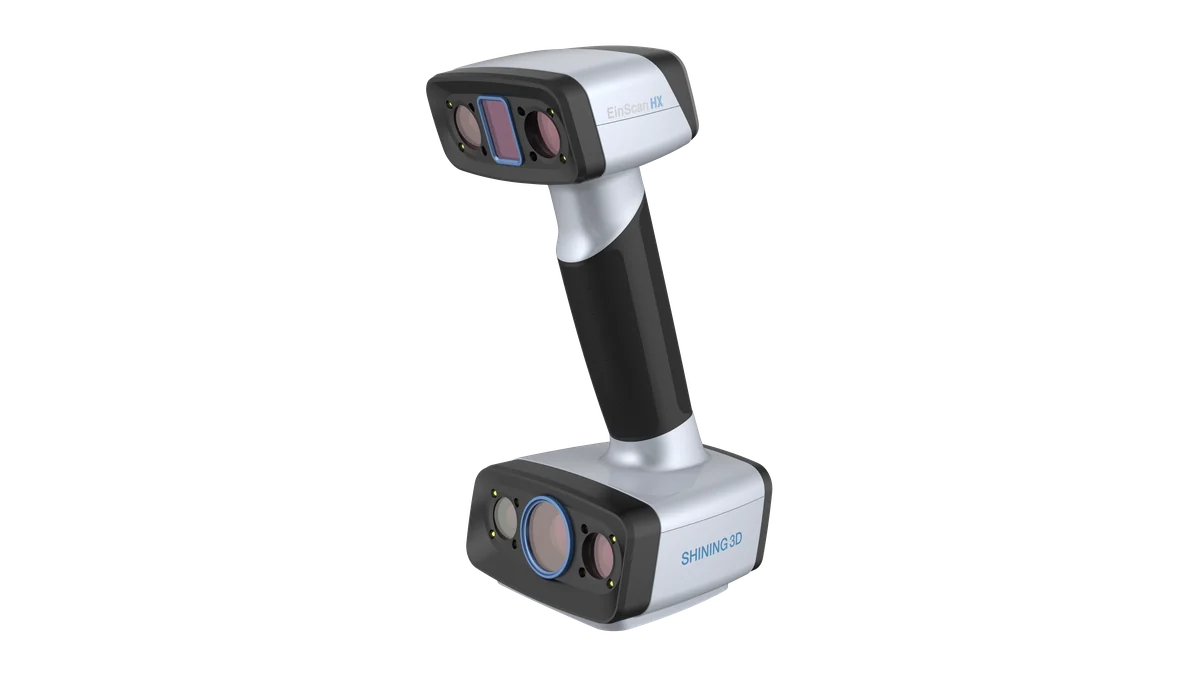

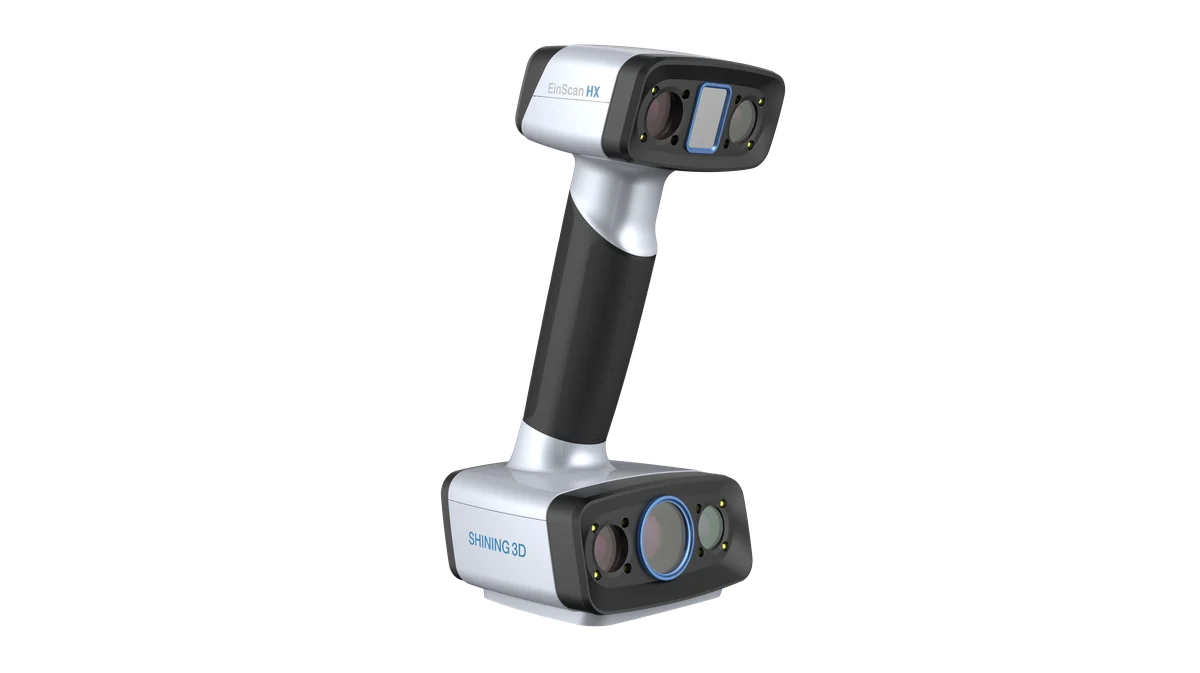

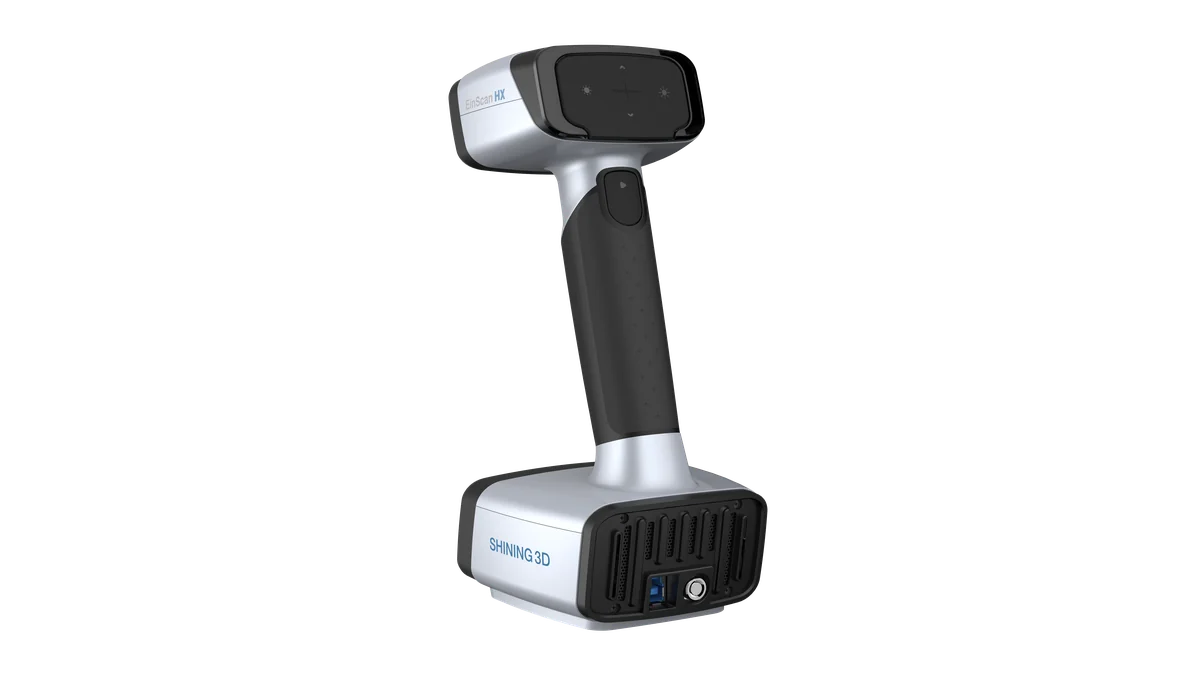

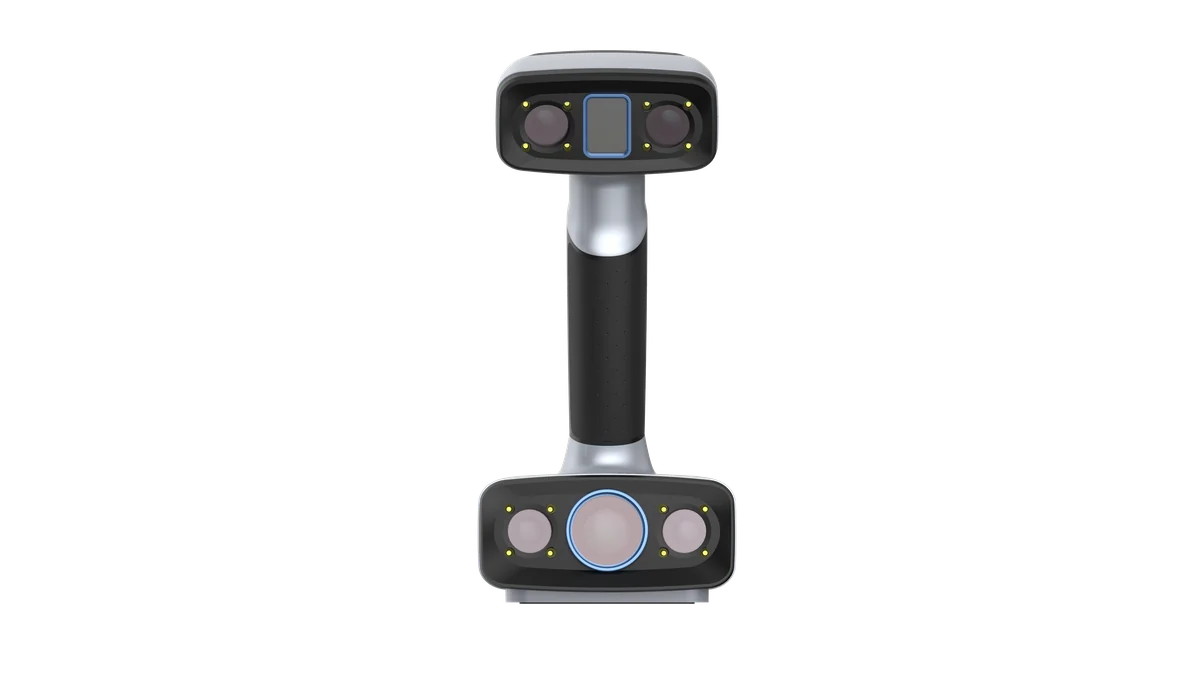

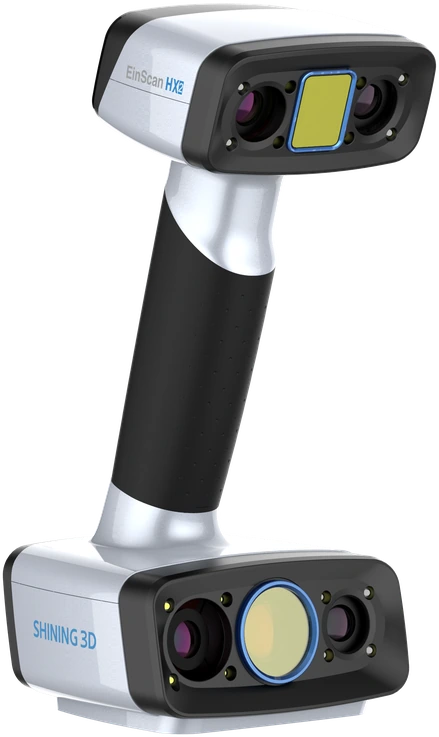

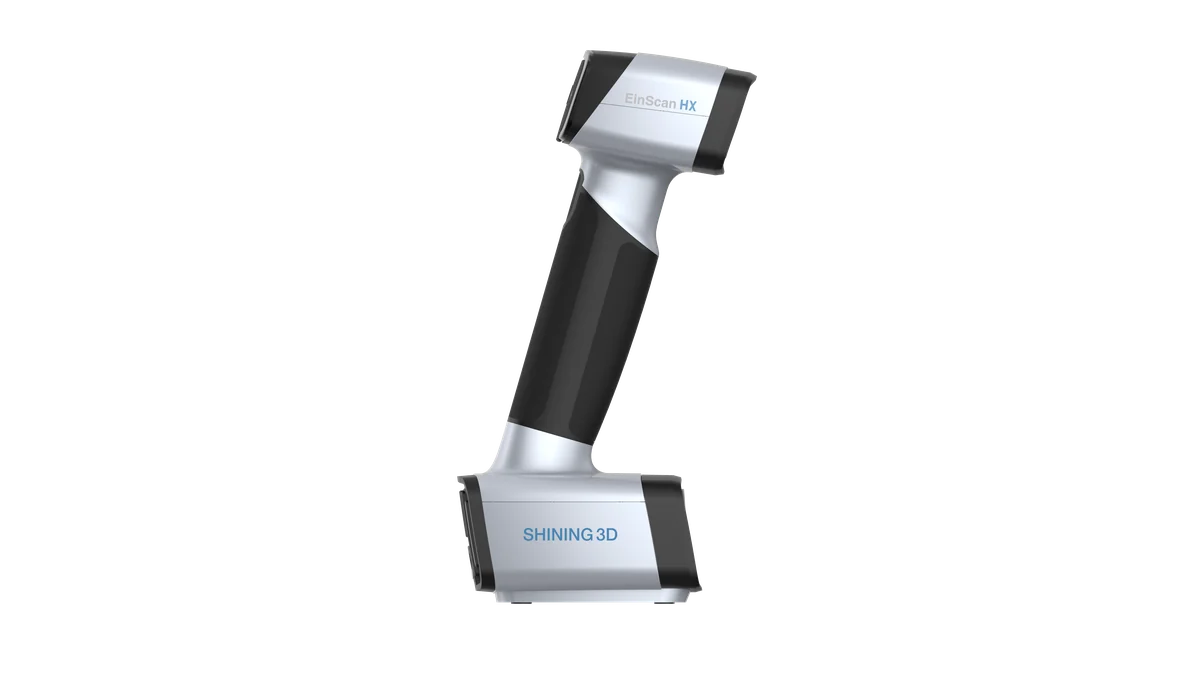

Shining 3D EinScan HX2 Handheld 3D Scanner – Dual Blue Laser + LED | 0.04 mm Accuracy
Hybrid handheld 3D scanner with up to 0.04 mm accuracy and a 350–700 mm working range — dual blue laser and LED light sources in one device for reverse engineering and inspection of small-to-mid-size parts.
- ✓ Up to 0.04 mm accuracy · 0.04 + 0.06 mm/m volumetric accuracy in Laser Scan mode
- ✓ Dual light source: 13 crossed blue laser lines for fine detail, blue LED for full-color rapid capture
- ✓ Up to 1,600,000 points/s at 120 FPS — feature, marker, texture, and hybrid alignment modes
- ✓ Lead time: 2–4 weeks — configured to order
Price held 7 days after order.
Install + training included
Tailored service plan
What your metrology engineer actually checks

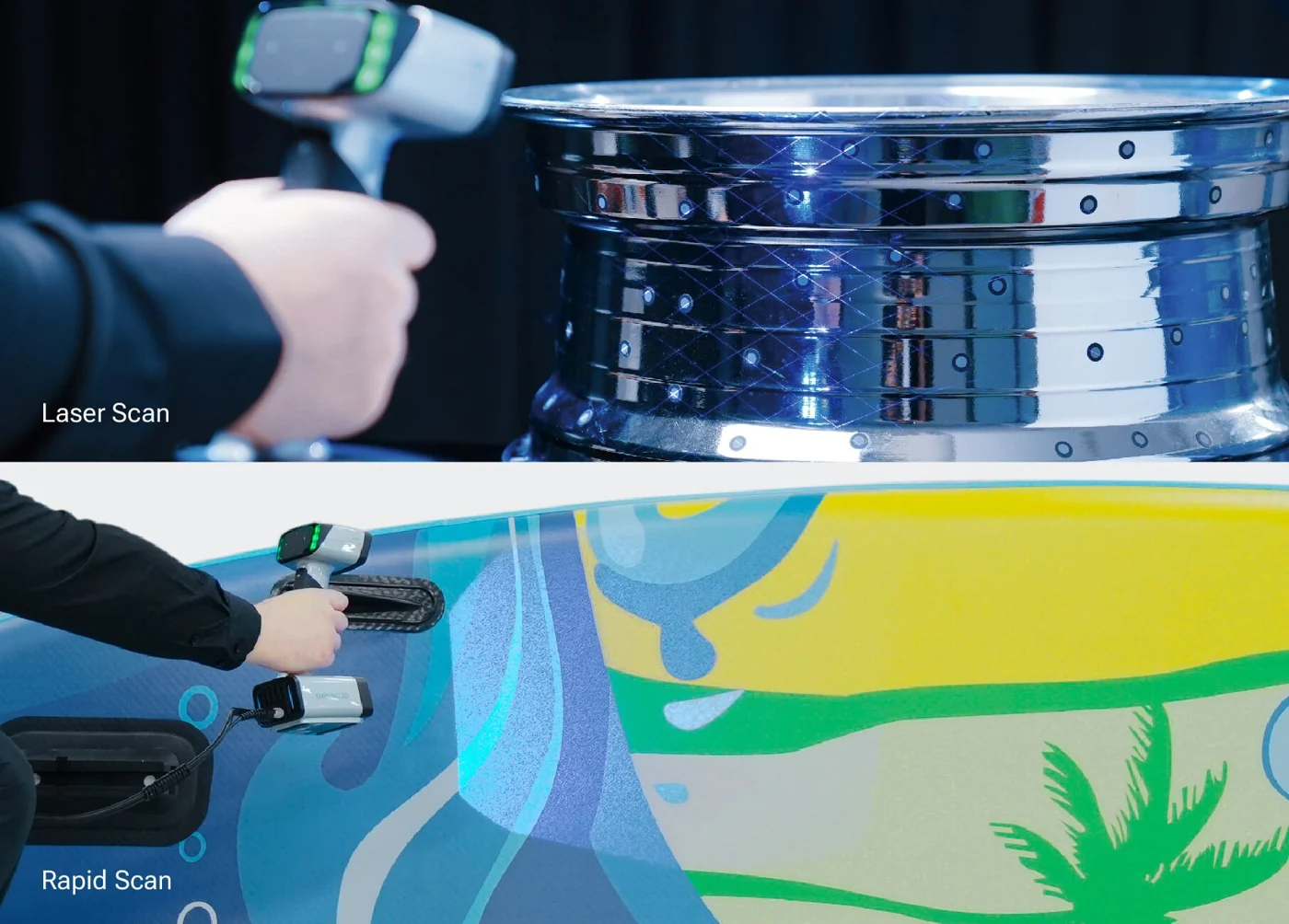

Two light sources, one scan session
Switch between Laser Scan's 13 crossed blue lines (up to 0.04 mm accuracy, 0.04 + 0.06 mm/m volumetric accuracy, 1,600,000 points/s) and Rapid Scan's blue LED for full-color capture — without swapping scanners or losing your place on the part.
An applications engineer on the line
Pre-sale sample scan of your actual parts, post-sale calibration and workflow support — from engineers who run these scanners, not a remote ticket queue. Sub-4h reply, NDA standard. Demo units available before you commit.
About this product
The Shining 3D EinScan HX2 is a hybrid handheld 3D scanner that pairs 13 crossed blue laser lines with a blue LED light source in one device — switching between up to 0.04 mm laser accuracy and full-color LED capture without changing scanners.
Why engineers choose the EinScan HX2
Two light sources, one scanner, no hardware swap mid-project.
Dual light source in one scanner
Switch between 13 crossed blue laser lines for fine-detail metrology and a blue LED for full-color texture capture — one device covers both without swapping hardware.
Metrology-grade accuracy
Up to 0.04 mm accuracy and 0.04 + 0.06 mm/m volumetric accuracy in Laser Scan mode — traceable numbers for QC sign-off, not marketing estimates. See full specifications below.
High-speed capture
Up to 1,600,000 points/s at 120 FPS in Laser Scan mode, with feature, marker, texture, and hybrid alignment options across both light sources.
Compact and lightweight
At 745 g and powered over USB 3.0, the HX2 stays maneuverable through long inspection and reverse-engineering sessions without a battery to manage.
How Additive Plus delivers your HX2
Calibrated, trained, and supported by engineers who scan every day.
Step 01
Calibrate & verify
Every unit is checked against its calibration plate and volumetric accuracy confirmed before it ships — you receive a scanner that meets its stated spec on day one.
Step 02
Install & train
Remote or on-site onboarding on scan strategy, alignment modes, and export to your CAD/QC package — your team is productive on the first real part, not week three.
Step 03
Sample scan & support
Send us a part and we scan it first, so you see HX2 data on your geometry before you commit. Post-sale calibration and workflow support with a sub-4h reply.
Scanning Performance
The HX2 pairs two light sources on one handheld body: 13 crossed blue laser lines for fine-detail, high-accuracy capture, and a blue LED for full-color rapid scanning. Laser Scan mode reaches up to 1,600,000 points/s at 120 FPS with 0.04 mm accuracy and 0.04 + 0.06 mm/m volumetric accuracy; Rapid Scan trades some resolution for full-color texture at 1,200,000 points/s and 20 FPS. See the full specification table below.
Working Range & Portability
Working distance is 470 mm in both modes, with a depth of field of 350–610 mm in Laser Scan and 200–700 mm in Rapid Scan — enough range to move around a part without repositioning constantly. At 745 g and 4.25 × 4.33 × 9.33 in (108 × 110 × 237 mm), the HX2 is light enough for extended handheld sessions, though it stays tethered to a PC over USB 3.0 rather than running on battery.
Software & Workflow
EXStar software drives alignment in feature, marker, texture, or hybrid mode depending on the active light source, then exports directly to OBJ, STL, ASC, PLY, P3, and 3MF for reverse-engineering, inspection, and 3D-printing pipelines. Rapid Scan’s built-in color camera adds full-color texture on the same mesh, no separate pass required.
Typical applications
Dual-mode capture for engineering, inspection, and design work.

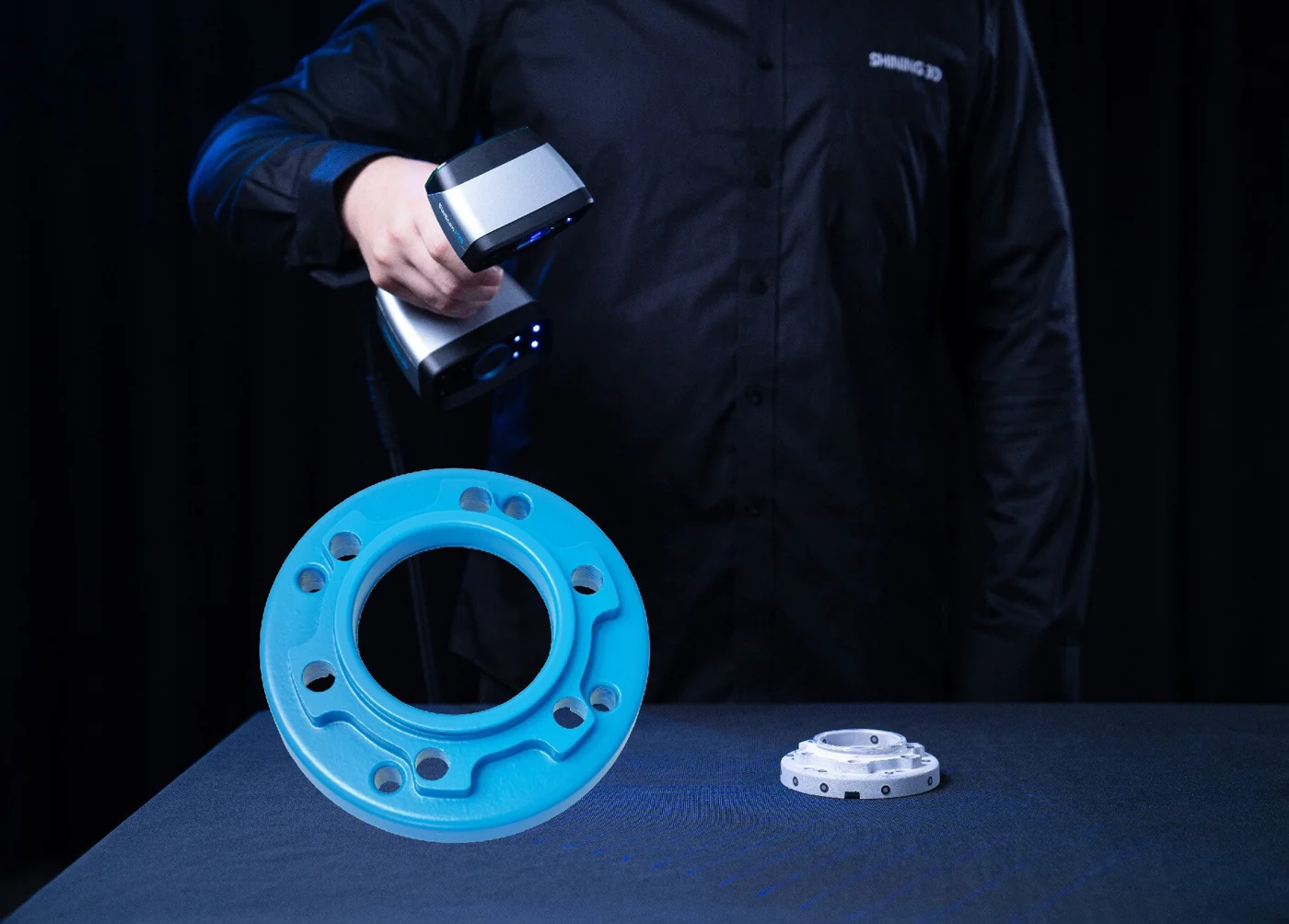

Reverse engineering
Legacy and modified parts to CAD
Quality inspection
Scan-to-CAD deviation and 3D QC

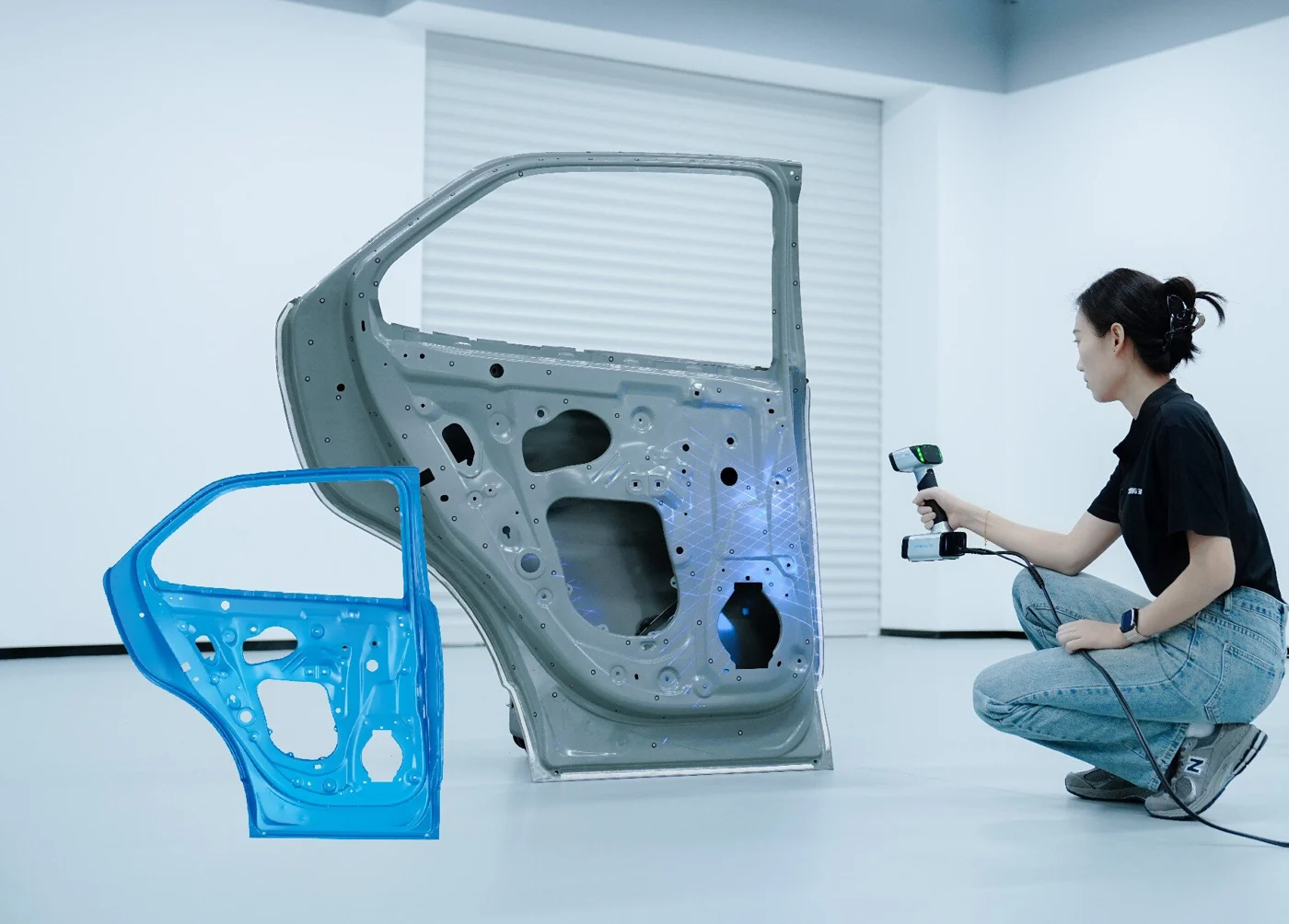

Automotive & aftermarket
Body panels, custom fitment parts
Product design & prototyping
Real-world part into 3D print-ready mesh
Full-color documentation
Rapid Scan texture capture
Tooling & mold repair
Worn tooling surfaces back to CAD
Why Source the EinScan HX2 Through Additive Plus
- Authorized reseller — demo units and sample scans of your own parts before you commit
- Calibration verified before shipment; installation and training included
- Application engineers who run these scanners — scan strategy, alignment, and CAD/QC export support
- US-based support with a sub-4h response · 200+ AM and metrology systems delivered across 23 countries
Not sure the HX2 is the right scanner?
Compare it with the other handheld scanners we support.
Hybrid LED + IREinScan H2View scanner →
Structured lightEinScan Pro HDView scanner →
Wireless tri-mode laserEinScan RigilCompare scanner →
Structured lightEinScan Pro HDView scanner →
Wireless tri-mode laserEinScan RigilCompare scanner →
Tell us your part size, material, and target accuracy — our applications engineer will recommend the right scanner and can run a sample scan of your actual geometry first. Sub-4h reply, NDA standard.
| Brand | Shining 3D |
| Country of origin | China |
| Scan Modes | Rapid Scan (Blue LED, full color) · Laser Scan (13 crossed blue laser lines) |
| Light Source | Rapid Scan: Blue LED Laser Scan: 13 crossed blue laser lines |
| Accuracy | Rapid Scan: up to 0.05 mm Laser Scan: up to 0.04 mm |
| Volumetric Accuracy | Rapid Scan: 0.05 + 0.1 mm/m Laser Scan: 0.04 + 0.06 mm/m |
| Resolution (Point Distance) | Rapid Scan: 0.25 – 3 mm Laser Scan: 0.05 – 3 mm |
| Scan Speed | Rapid Scan: 1,200,000 points/s, 20 FPS Laser Scan: 1,600,000 points/s, 120 FPS |
| Working Distance | 470 mm (both modes) |
| Depth of Field | Rapid Scan: 200 – 700 mm Laser Scan: 350 – 610 mm |
| Max FOV | Rapid Scan: 420 × 440 mm Laser Scan: 380 × 400 mm |
| Data Alignment Mode | Rapid Scan: Feature, Markers, Texture, Hybrid Laser Scan: Markers only |
| Full Color Scanning | Yes — built-in color camera (Rapid Scan mode only) |
| Output Formats | OBJ, STL, ASC, PLY, P3, 3MF |
| Certifications | CE, FCC, RoHS, WEEE, KC |
| Interface | USB 3.0 (tethered, no battery) |
| Weight | 1.64 lbs, 745 g |
| Dimensions | 4.25 × 4.33 × 9.33 in / 108 × 110 × 237 mm |
Product videos
Want proof before you commit?
Send us your part and we'll scan it on the HX2 in California — review the mesh and deviation on your own geometry before you buy.
Other products teams run alongside Shining 3D EinScan HX2 Handheld 3D Scanner – Dual Blue Laser + LED | 0.04 mm Accuracy
Laser Handheld 3D Scanner

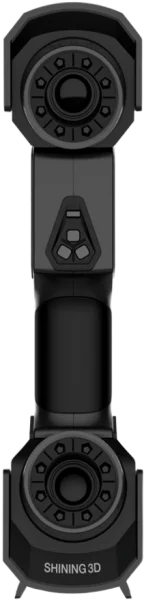

Shining 3D FreeScan UE Pro Laser Handheld 3D Scanner – Metrology-Grade | 0.02 mm Accuracy
Multi-line laser scanner with 0.02 mm accuracy and 200–300 mm working distance — built-in photogrammetry for markerless metrology on parts up to 600 x 550 mm.
- ✓ 26+7+1 switchable laser line modes for coverage, detail, and deep-pocket scanning
- ✓ Built-in scale-bar photogrammetry — no coded targets on the part
- ✓ Calibration verified before shipment; USB 3.0 tethered for stable, repeatable capture
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
All-in-One Laser 3D Scanner
Shining 3D EinScan Rigil Tri-Mode Laser 3D Scanner – Wireless All-in-One | 0.04 mm Accuracy
Tri-mode laser 3D scanner with up to 0.04 + 0.06 mm/m volumetric accuracy and a 170–1500 mm working range — markerless blue-laser and IR VCSEL capture combined in one wireless, PC-free device for reverse engineering, inspection, and design.
- ✓ 0.04 + 0.06 mm/m volumetric accuracy · up to 0.05 mm resolution (Laser HD)
- ✓ Three modes in one: 25+25 crossed lasers, 7 parallel lasers, IR VCSEL — up to 16M points/s
- ✓ Standalone wireless: 6.4″ 2K AMOLED, 32GB RAM, 1TB SSD, dual swappable batteries
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
All-in-One Laser 3D Scanner
Shining 3D EinScan Libre Wireless Handheld 3D Scanner – Standalone All-in-One | 0.04 mm Accuracy
Wireless standalone 3D scanner with 0.04 + 0.06 mm/m accuracy and a 500–1500 mm working range — onboard screen and PC-free operation for reverse engineering and inspection.
- ✓ Tri-mode capture — IR Rapid, IR Adaptive, Laser HD — up to 4,500,000 points/s
- ✓ 5.5 in OLED touchscreen, 1 TB onboard SSD, NVIDIA Jetson Orin NX — no laptop required
- ✓ Full-color 48 MP texture camera, markerless alignment, Wi-Fi 6 + USB-C
- ✓ Lead time: 2–4 weeks — configured to order
From $28999
Add to cart
On backorder
· Lead time: 2–4 weeks — configured to order
Entry-level For Hobbyists
Shining 3D EINSTAR Rockit Handheld 3D Scanner – Dual Blue Laser + IR | 0.05 mm
Pocket-sized, fully wireless handheld 3D scanner with dual light sources — 38 blue laser lines for detail and IR for speed — capturing objects from 5 mm to 5 m at up to 0.05 mm resolution, markerless, with full-color texture.
- ✓ Up to 0.05 mm resolution · 38 laser lines + 7 parallel · 2.8M–4.8M points/s
- ✓ Dual source: blue laser (detail) + IR (speed) · markerless in nearly every mode
- ✓ Wireless · replaceable battery ~3 h · 425 g · 5 MP color · scans in bright light
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
Laser Handheld 3D Scanner · Blue Laser / Infrared VCSEL
Shining3D FreeScan Combo 3D Scanner – 0.02mm Accuracy | Dual-Mode Laser + Infrared
The Shining3D FreeScan Combo is a dual-mode handheld 3D scanner combining blue laser and infrared VCSEL in a 620 g package, achieving up to 0.02 mm accuracy for metrology, reverse engineering and inspection.
- ✓ 0.02 mm point accuracy — traceable figures for first-article and in-process inspection
- ✓ Dual light source — 26-line blue laser + marker-free infrared VCSEL in one device
- ✓ Four scan modes — deep bores to large assemblies without switching hardware
- ✓ Authorized Shining3D reseller — US install, training and a demo on your parts included
On backorder
· Configured to order — US install, training and calibration included; contact for lead time.
Laser Handheld 3D Scanner
Shining 3D FreeScan Trak Nova Wireless Dynamic Tracking 3D Scanner – Metrology | 0.046 mm/m
Wireless dynamic-tracking metrology system combining an optical tracker, a large-FOV blue-laser scanner, and patented video photogrammetry (VPG) — markerless measurement up to 0.046 + 0.012 mm/m volumetric accuracy across objects from 5 mm to 50 m³.
- ✓ 0.046 + 0.012 mm/m volumetric accuracy · verified in an ISO/IEC 17025 accredited lab (VDI/VDE 2634 Part 3, ISO 10360)
- ✓ 50 laser lines · 6,140,000 points/s · dynamic tracking up to 3.5 m · markerless VPG
- ✓ Fully wireless, separable tracker + scanner · TE Nova 1.2 kg / UE Nova 1.6 kg
- ✓ Lead time: 4–6 weeks — configured to order
On backorder
· Lead time: 4–6 weeks — configured to order
Laser Handheld 3D Scanner
Shining 3D FreeScan UE Nova Wireless Laser Handheld 3D Scanner – Large-FOV Metrology with Integrated VPG | 0.072 mm
Fully wireless, metrology-grade blue-laser handheld 3D scanner for large parts — 0.072 mm accuracy, 50 laser lines at 4,600,000 points/s, and markerless capture through integrated video photogrammetry (VPG), with a field of view up to 102 × 87 in / 2600 × 2200 mm.
- ✓ 0.072 mm accuracy · 0.072 + 0.012 mm/m with VPG · ISO/IEC 17025 verified (VDI/VDE 2634 Part 3, ISO 10360)
- ✓ 50 blue-laser lines · 4,600,000 points/s · FOV up to 102 × 87 in / 2600 × 2200 mm
- ✓ Fully wireless · 3.5 lbs / 1.6 kg · markerless integrated VPG · normal, black & reflective surfaces
- ✓ Lead time: 4–6 weeks — configured to order
On backorder
· Lead time: 4–6 weeks — configured to order
Desktop 3D Scanner
Shining 3D EinScan-SE V2 Desktop 3D Scanner – Structured Light | 0.1 mm Accuracy
Structured-light desktop 3D scanner with ≤0.1 mm accuracy and up to 700 mm capture range — fixed and auto-turntable scanning for small parts, full-color texture, on one affordable system.
- ✓ ≤0.1 mm single-shot accuracy, 0.17–0.2 mm point distance
- ✓ Fixed mode up to 700 × 700 × 700 mm; turntable mode for 30–200 mm parts
- ✓ Full-color texture capture; OBJ, STL, PLY, 3MF, ASC export
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to orderFrom engineering and inspection teams running the EinScan HX2
Unedited feedback from metrology and reverse-engineering users.
★★★★★
Reverse-engineered a housing off a discontinued part in Laser Scan mode — the crossed laser lines held sharp edges other scanners smoothed over, and alignment stayed locked through the whole session.
MT
Marcus T. Reverse Engineering Engineer · Automotive Aftermarket
★★★★★
We run Rapid Scan for full-color inspection reports and switch to Laser Scan when a defect needs sub-0.05 mm confirmation. Having both light sources in one scanner cut our tooling budget.
EK
Elena K. Quality Engineer · Precision Manufacturing
★★★★★
Being tethered to a laptop is a minor tradeoff for the point density we get on small cast parts — 0.04 mm accuracy holds up against our CMM checks.
OP
Owen P. Metrology Technician · Foundry & Casting
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
How accurate is the EinScan HX2 on a 1-meter part?
The EinScan HX2 reaches up to 0.04 mm single-shot accuracy and 0.04 + 0.06 mm/m volumetric accuracy in Laser Scan mode, meaning error grows by roughly 0.06 mm per additional meter of travel. Over a 1-meter part, expect approximately 0.04–0.10 mm total deviation depending on alignment mode and surface condition. For QC sign-off, always verify against the included calibration board before a production run.
Does the EinScan HX2 work in bright ambient light or sunlight?
Laser Scan mode's crossed blue laser lines are more tolerant of workshop lighting than white-light scanners, but the HX2 is a tethered lab/shop-floor scanner, not rated for direct outdoor sunlight use. For bright shop environments, shade the part or dim overhead lighting. For scanning outdoors in direct sun or on large objects, an IR-based scanner such as the EinScan Rigil is the better fit.
What file formats does the EinScan HX2 export for CAD and QC software?
The HX2 exports OBJ, STL, ASC, PLY, P3, and 3MF directly from EXStar software, covering most reverse-engineering, inspection, and 3D-printing pipelines without an intermediate conversion step. STL and OBJ suit CAD reconstruction and printing; PLY and ASC point clouds drop into metrology software such as GOM Inspect or PolyWorks.
Can the EinScan HX2 scan dark or reflective parts without spray?
Blue laser handles shiny and dark surfaces better than white-light scanners, but very glossy metal or black plastic can still cause dropouts in both Rapid Scan and Laser Scan modes. For consistently reflective or transparent parts, a light matte or scanning spray remains the reliable way to get a complete, gap-free mesh.
What's the difference between Rapid Scan and Laser Scan mode on the HX2?
Rapid Scan uses the blue LED for full-color capture at up to 1,200,000 points/s (20 FPS), with feature, marker, texture, or hybrid alignment. Laser Scan switches to 13 crossed blue laser lines for up to 1,600,000 points/s (120 FPS) and a finer 0.05 mm minimum point distance, but drops to markers-only alignment and loses color. Use Rapid Scan for textured, colorful parts and Laser Scan for maximum detail and speed.
How often does the EinScan HX2 need calibration?
Additive Plus verifies volumetric accuracy against the included calibration board before every unit ships. After that, recalibrate whenever the scanner is dropped, moved between temperature extremes, or on a routine 6–12 month cycle for QC-critical use — the calibration board and EXStar's built-in routine make the check a five-minute task.
Is the EinScan HX2 wireless, or does it need a PC?
The HX2 connects over USB 3.0 to a Windows PC running EXStar software — it has no onboard battery or standalone mode, so it stays tethered to a laptop or workstation for every scan. For a battery-powered, PC-free alternative, Additive Plus also carries the wireless EinScan Rigil.
