Shining 3D FreeScan Trak Nova Wireless Dynamic Tracking 3D Scanner – Metrology | 0.02 mm
Wireless dynamic-tracking metrology system that pairs the UE Nova wide-range handheld laser scanner with the TE Nova and integrated video photogrammetry (VPG) — 0.02 mm accuracy and 0.062 mm volumetric accuracy over 12 m³, with most parts scanned without markers.
- ✓ 0.02 mm accuracy · 0.062 mm (12 m³) · 0.046 + 0.012 mm/m with VPG · VDI/VDE 2634 Part 3 & ISO 10360, tested in Shining 3D’s ISO/IEC 17025 accredited lab
- ✓ Field of view up to 2600 × 2200 mm · 3.5 m tracking range · resolution 0.01–10 mm
- ✓ Fully wireless, separable system · TE Nova 1.2 kg / UE Nova 1.6 kg · router included
- ✓ 1-year Shining 3D warranty · authorized US reseller
- ✓ Ship date confirmed by email after you order
What your metrology engineer actually checks
Traceable to the standard
0.02 mm accuracy, 0.062 mm volumetric accuracy over 12 m³ and 0.046 + 0.012 mm/m with VPG, certified to VDI/VDE 2634 Part 3 and ISO 10360 and tested in Shining 3D’s ISO/IEC 17025 accredited lab. Shining 3D provides inspection reports and calibration certificates traceable to these standards.
Authorized US reseller
Additive Plus is an authorized Shining 3D reseller in the US. First-line support comes from our team in California; warranty repairs are carried out by Shining 3D. Every new unit carries a 1-year Shining 3D warranty.
The Shining 3D FreeScan Trak Nova is a wireless dynamic-tracking metrology system that pairs the UE Nova wide-range handheld laser scanner with the TE Nova and patented video photogrammetry (VPG), all packed in one portable case. It measures at 0.02 mm accuracy and 0.062 mm volumetric accuracy over 12 m³ (0.046 + 0.012 mm/m with VPG), certified to VDI/VDE 2634 Part 3 and ISO 10360 in Shining 3D’s ISO/IEC 17025 accredited lab.
Why metrology teams choose the FreeScan Trak Nova
Traceable accuracy on large parts, without a stiff CMM or a wall of markers.

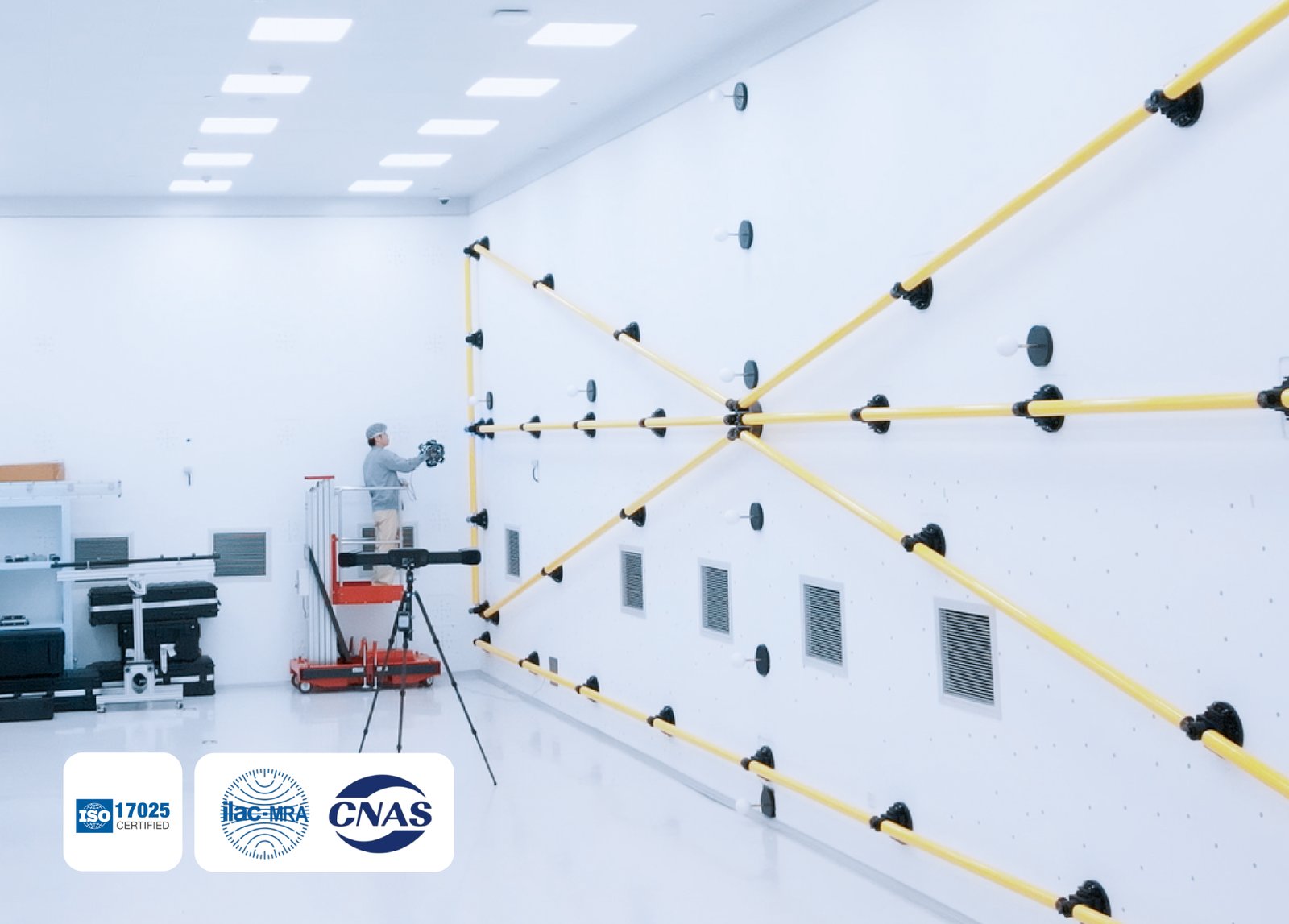

Certified, traceable accuracy
0.02 mm accuracy, 0.062 mm volumetric accuracy over 12 m³ and 0.046 + 0.012 mm/m with VPG, tested to VDI/VDE 2634 Part 3 and ISO 10360 in Shining 3D’s ISO/IEC 17025 accredited lab.

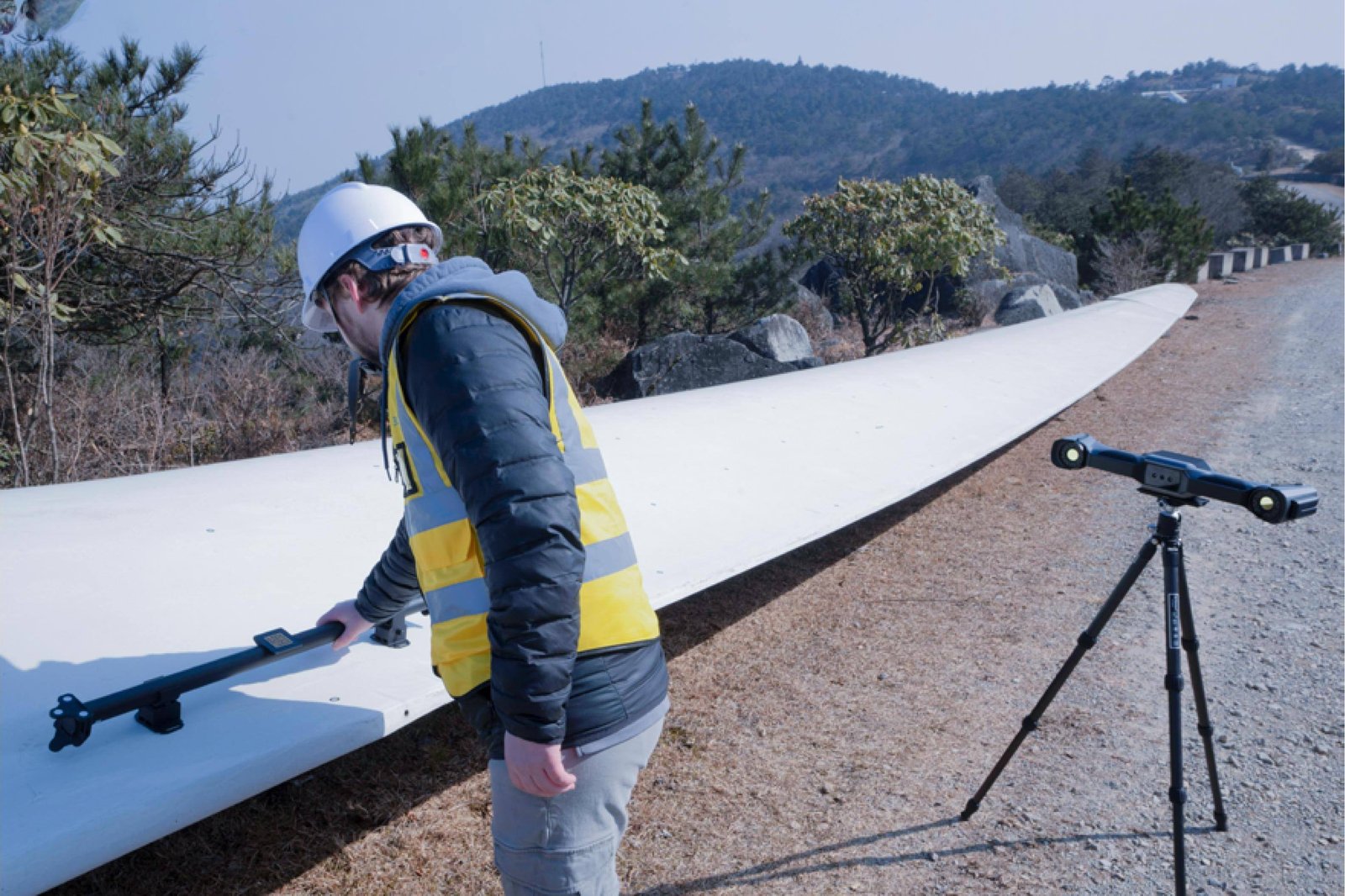

Dynamic tracking + VPG
Real-time dynamic tracking scans most parts without markers, and patented video photogrammetry removes the need for coded markers on large objects — less setup and freedom to move around the object.
Flexible, separable system
The UE Nova works on its own as a wide-range handheld laser scanner (field of view up to 2600 × 2200 mm) and, paired with the TE Nova, as a dynamic tracking system. Fifty laser lines cover large areas; 7 parallel lines and a single line handle fine detail and deep pockets.
Wireless, large working volume
Fully wireless with a separable tracker and scanner, a field of view up to 2600 × 2200 mm, and a 3.5 m tracking range — reach into tight spaces or walk around a large assembly.
How you buy the Trak Nova from Additive Plus
Warranty, support, and ordering.
1-year Shining 3D warranty
Every new Trak Nova carries the standard 12-month Shining 3D warranty from the date of purchase.
First-line support in California
Our team in California provides first-line support; warranty repairs are carried out by Shining 3D.
Formal quotation, US invoicing
We issue a formal quotation on our letterhead and invoice in the US. Your ship date is confirmed by email after you order.
Metrology Performance
The FreeScan Trak Nova reaches 0.02 mm accuracy, 0.062 mm volumetric accuracy over 12 m³, and 0.046 + 0.012 mm/m volumetric extension accuracy with VPG, with resolution from 0.01 to 10 mm. Fifty laser lines give fast coverage; a 7-line mode adds fine detail and a single line reaches deep pockets. Accuracy is certified to VDI/VDE 2634 Part 3 and ISO 10360, tested in Shining 3D’s ISO/IEC 17025 accredited lab. See the full specification table below.

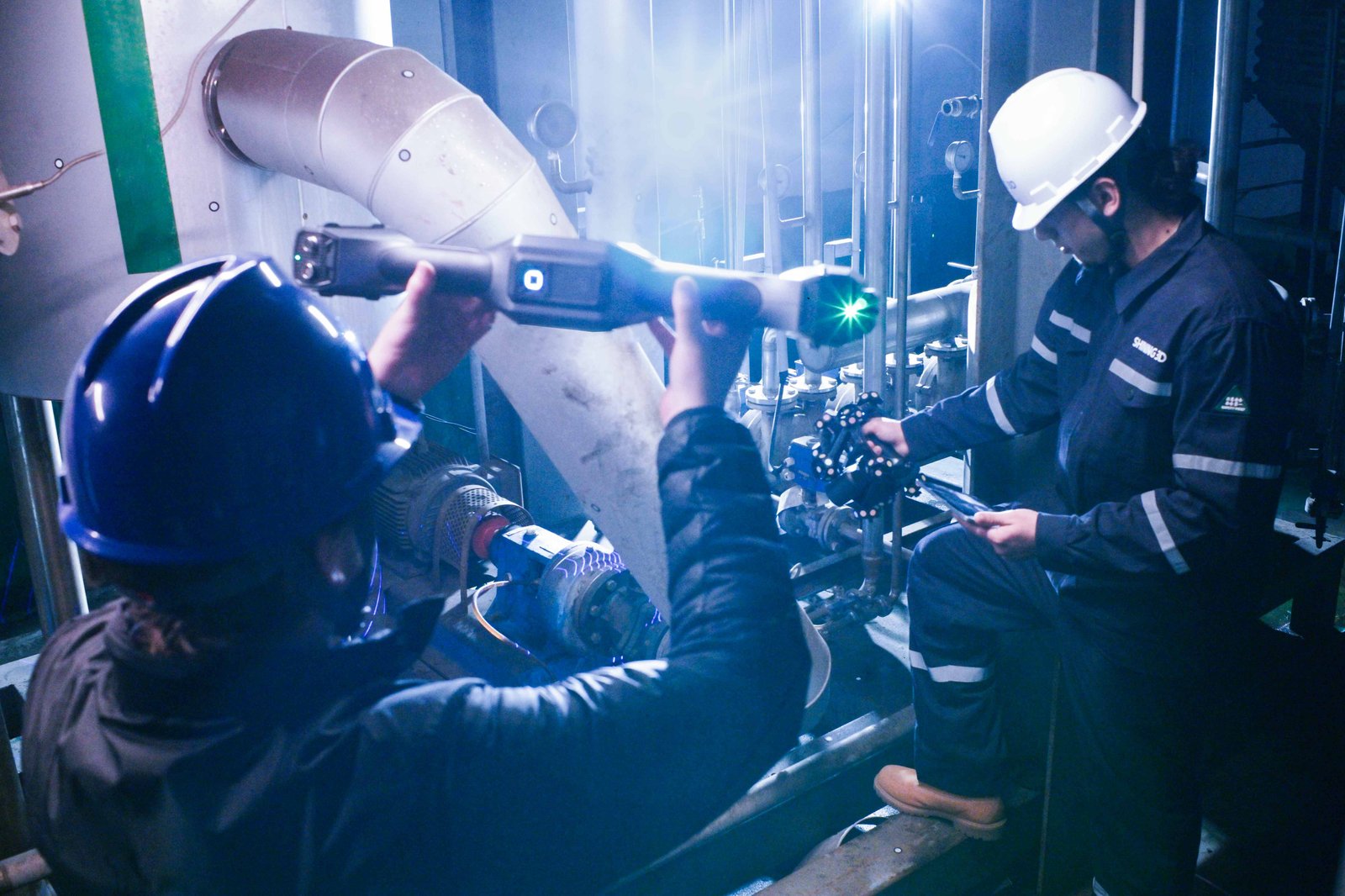

Dynamic Tracking & Working Range
The optical tracker follows the scanner in real time, so you move around the part instead of moving the part. The field of view reaches 2600 × 2200 mm and the tracking range is 3.5 m; Shining 3D offers Near, Standard and Far working modes for different distances. The units are light — 1.2 kg for the TE Nova and 1.6 kg for the UE Nova — and the whole system is wireless (router included), with a wired fiber-optic option.
Software & Workflow
The FreeScan Trak software fuses wide-range laser scanning of the overall structure with dynamically tracked detail into one dataset, and adds intelligent resolution and AI feature recognition for holes and slots. Compatible software includes SHINING3D Inspect, PolyWorks Inspector, Geomagic Control X, Geomagic Design X, EXModel Pro, and BlueStar Mapping.
Typical applications
Large-part inspection and reverse engineering across industry.
Why Source the FreeScan Trak Nova Through Additive Plus
- Authorized Shining 3D reseller in the US
- 1-year Shining 3D warranty
- First-line support from our team in California; warranty repairs by Shining 3D
- Formal quotation on our letterhead, US invoicing
Not sure the Trak Nova is the right system?
Compare it with the other metrology scanners we support.
Laser handheldFreeScan UE ProCompare scanner →
Stationary inspectionOptimScan-5M PlusView scanner →
| Brand | Shining 3D |
| Country of origin | China |
| System Type | Wireless dynamic tracking & scanning system (UE Nova wide-range scanner + TE Nova, VPG) |
| Accuracy | 0.02 mm |
| Volumetric Accuracy | 0.062 mm (12 m³) With VPG: 0.046 + 0.012 mm/m |
| Laser Lines | 50 (high-speed), 7 parallel (detailed), 1 (deep pockets) |
| Resolution | 0.01 – 10 mm |
| Max Field of View | 2600 × 2200 mm |
| Dynamic Tracking Range | Up to 3.5 m |
| Marker-Free Scanning | Yes for most parts — the tracker follows the scanner’s tracking targets (markers may be recommended for very large surfaces); VPG eliminates the need for coded markers |
| Object Size | S – XL (150 – 5000 mm, Shining 3D size classes) |
| Battery Life (wireless) | TE Nova up to 2.5 h · UE Nova approx. 1 h · swappable batteries |
| Standards | VDI/VDE 2634 Part 3, ISO 10360; tested in ISO/IEC 17025 accredited lab |
| Software | FreeScan Trak; compatible: SHINING3D Inspect, PolyWorks Inspector, Geomagic Control X / Design X, EXModel Pro, BlueStar Mapping |
| Interface | Wireless (Wi-Fi) & wired (fiber optic) |
| Weight | 1.2 kg / 1.6 kg, 2.6 lbs (TE Nova) / 3.5 lbs (UE Nova) |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
