Shining 3D AutoScan Inspec2 Automatic Desktop 3D Inspection Scanner – Metrology | 0.01 mm
Automatic desktop blue-light 3D scanner for small, intricate parts — 0.01 mm accuracy, a 3-axis turntable, one-click scanning with AI-assisted UltraScan software, and a PTB-certified inspection module.
- ✓ 0.01 mm accuracy · 0.05 mm point distance · 2 × 5 MP cameras · full-color scanning
- ✓ Automatic 3-axis turntable · automatic calibration · one-click scanning · up to 8 objects per scan
- ✓ PTB-certified inspection module · SHINING3D Inspect, PolyWorks, Geomagic · 5 kg desktop
- ✓ 1-year Shining 3D warranty · authorized US reseller
- ✓ Ship date confirmed by email after you order
What your quality engineer actually checks
Traceable accuracy on small parts
0.01 mm accuracy with 0.05 mm point distance, and an integrated PTB-certified inspection module that outputs the inspection report — automated small-part inspection on the bench.
Authorized US reseller
Additive Plus is an authorized Shining 3D reseller in the US. First-line support comes from our team in California, warranty repairs are handled by Shining 3D, and you get a formal quotation on our letterhead with US invoicing.

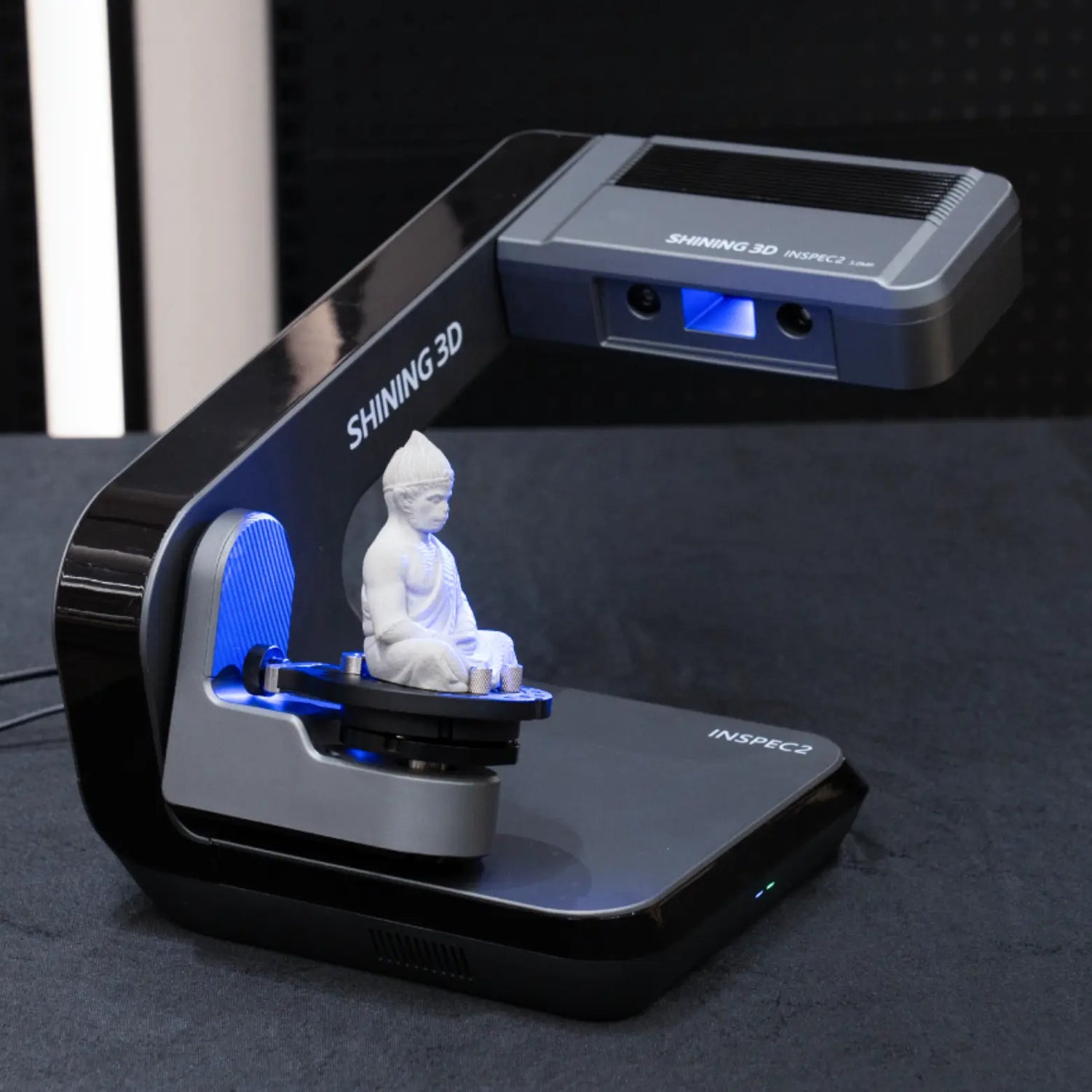

The Shining 3D AutoScan Inspec2 is an automatic desktop blue-light 3D inspection scanner for small, intricate parts. It reaches 0.01 mm accuracy on a 3-axis turntable with one-click, hands-free scanning, 2 × 5 MP cameras, full-color capture, and a PTB-certified inspection module that outputs the inspection report — metrology-grade scanning on the bench.
Why quality teams choose the AutoScan Inspec2
Metrology-grade small-part inspection that runs itself.
0.01 mm on small parts

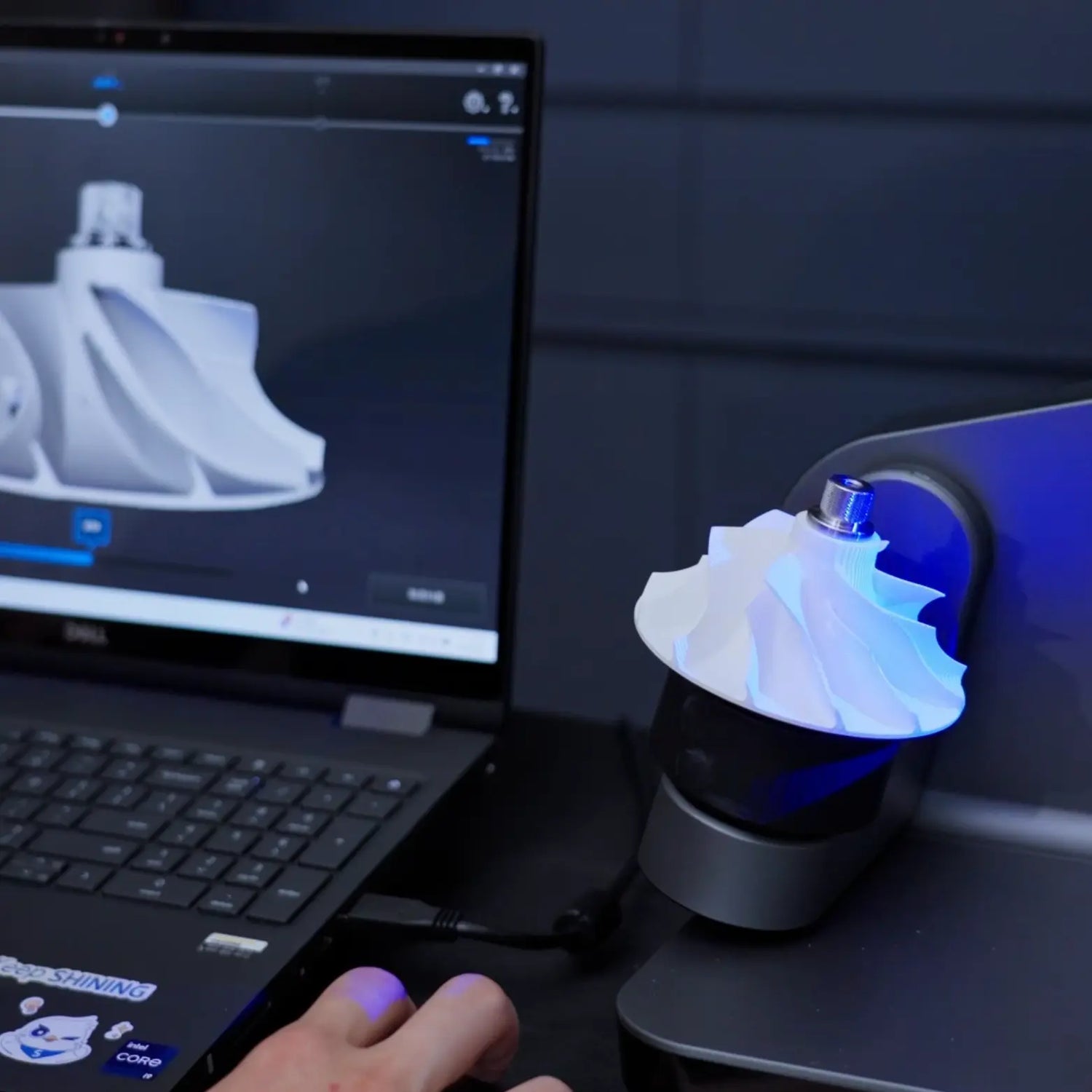

10-micron accuracy with 0.05 mm point distance captures fine features on connectors, impellers, and intricate components. The PTB-certified inspection module generates the inspection report. See specifications below.
Fully automatic, one click
Place the part, click once, and the 3-axis turntable and automatic calibration do the rest — hands-free capture from every angle, so an operator gets repeatable data with little manual handling.
AI software, full color
UltraScan software uses AI for effortless scanning and intelligent data completion, and a texture module adds true-to-life color — Intelligent Add-Scan fills in selected areas automatically for complete data.
Built-in inspection module
Integrates with the SHINING3D Inspect module to capture, analyze, and generate full inspection reports — and exports to PolyWorks, Geomagic Control X, and Design X for your existing workflow.
How you buy the AutoScan Inspec2 from Additive Plus
From an authorized Shining 3D reseller in the US.
Warranty
1-year Shining 3D warranty.
Support
First-line support from our team in California; warranty repairs by Shining 3D.
Ordering
Formal quotation on our letterhead, US invoicing. Ship date confirmed by email after you order.
Inspection Performance
The AutoScan Inspec2 uses a blue-LED light source and 2 × 5 MP cameras to reach 0.01 mm accuracy with 0.05 mm point distance across a 140 × 90 × 80 mm field of view. The 3-axis turntable moves the part automatically for hands-free, multi-angle scanning, and the integrated PTB-certified inspection module produces the inspection report. See the full specification table below.
Automated Desktop Workflow
At 5 kg, the AutoScan Inspec2 fits into a lab, workshop, or industrial environment. Automatic calibration takes one click, and one-click scanning means an operator loads a part and lets the turntable do the rest. Multi-object mode scans up to 8 objects in one run, and Flip Scan captures the other side of a part in a second project that merges with the first — useful for incoming and in-process QC of small parts.
Software & Inspection
UltraScan drives capture with AI-assisted data completion, and the SHINING3D Inspect module analyzes the result and generates inspection reports. For reverse engineering the data exports to EXModel and Geomagic Design X; for inspection it works with Geomagic Control X, PolyWorks Inspector, and SHINING3D Inspect. Output in STL, OBJ, and PLY fits standard CAD and QC pipelines.
Typical applications
Automated small-part inspection across production.
Why Source the AutoScan Inspec2 Through Additive Plus
- Authorized Shining 3D reseller in the US
- 1-year Shining 3D warranty
- First-line support from our team in California; warranty repairs by Shining 3D
- Formal quotation on our letterhead, US invoicing
Not sure the AutoScan Inspec2 is the right system?
Compare it with the other inspection scanners we support.
Stationary inspectionOptimScan-5M PlusCompare scanner →
Portable metrologyFreeScan UE Pro2View scanner →
| Brand | Shining 3D |
| Country of origin | China |
| Scanner Type | Automatic desktop blue-light 3D inspection scanner |
| Accuracy | 0.01 mm |
| Point Distance | 0.05 mm |
| Camera Resolution | 2 × 5 MP |
| Field of View | 140 × 90 × 80 mm |
| Turntable | Automatic 3-axis turntable |
| Alignment Mode | Feature, markers |
| Light Source | Blue LED |
| Full Color Scanning | Yes |
| Automation | Automatic calibration, one-click scanning, multi-object mode (up to 8 objects) |
| Inspection Module | SHINING3D Inspect — certified by PTB |
| Software | UltraScan (AI), SHINING3D Inspect, Geomagic Control X / Design X, PolyWorks, EXModel, BlueStar Mapping |
| Output Formats | STL, OBJ, PLY |
| Weight | 11 lbs, 5 kg |
| Certifications | CE, FCC, RoHS, WEEE, KC |
