Hybrid Light Source Handheld 3D Scanners, Professional For 3D Design, 3D scanners
Shining 3D EinScan Medixa All-in-One Wireless 3D Scanner – Orthotics & Prosthetics | RMS < 0.3 mm
All-in-one wireless 3D scanner built for orthotics and prosthetics — white-light and infrared VCSEL capture with RMS < 0.3 mm accuracy, on-device processing, and motion compensation for patients who can't hold still.
- ✓ RMS < 0.3 mm accuracy · 5 MP full-color texture · contact-free capture
- ✓ White light + IR VCSEL · body presets for face, cranial, torso, limbs, feet, socket, seating
- ✓ Wireless standalone: onboard processing, up to 3 h scanning, no PC required
- ✓ Lead time: 2–4 weeks — configured to order
Price held 7 days after order.
Install + training included
Tailored service plan
What your O&P clinician actually checks
What your O&P clinician actually checks
Accuracy on a real, moving patient
RMS < 0.3 mm with movement compensation that corrects subtle motion — reliable capture on infants, breathing torsos, and patients who cannot stay fully still. Contact-free, so there is no plaster and no distortion from casting.
An applications engineer on the line
We help set up the Medixa export path into your O&P CAD/CAM software and scan presets for the indications your clinic sees most. Demo before you commit, calibration and workflow support after. Sub-4h reply, NDA standard.
About this product
The Shining 3D EinScan Medixa is an all-in-one, wireless body 3D scanner built for orthotics and prosthetics. It combines white-light and infrared VCSEL capture with RMS < 0.3 mm accuracy, on-device processing, and movement compensation — so you can scan a limb, torso, or foot without a PC and without asking the patient to hold perfectly still.
Why O&P clinicians choose the EinScan Medixa
Purpose-built for a clinical body-scanning workflow, not adapted from an industrial tool.

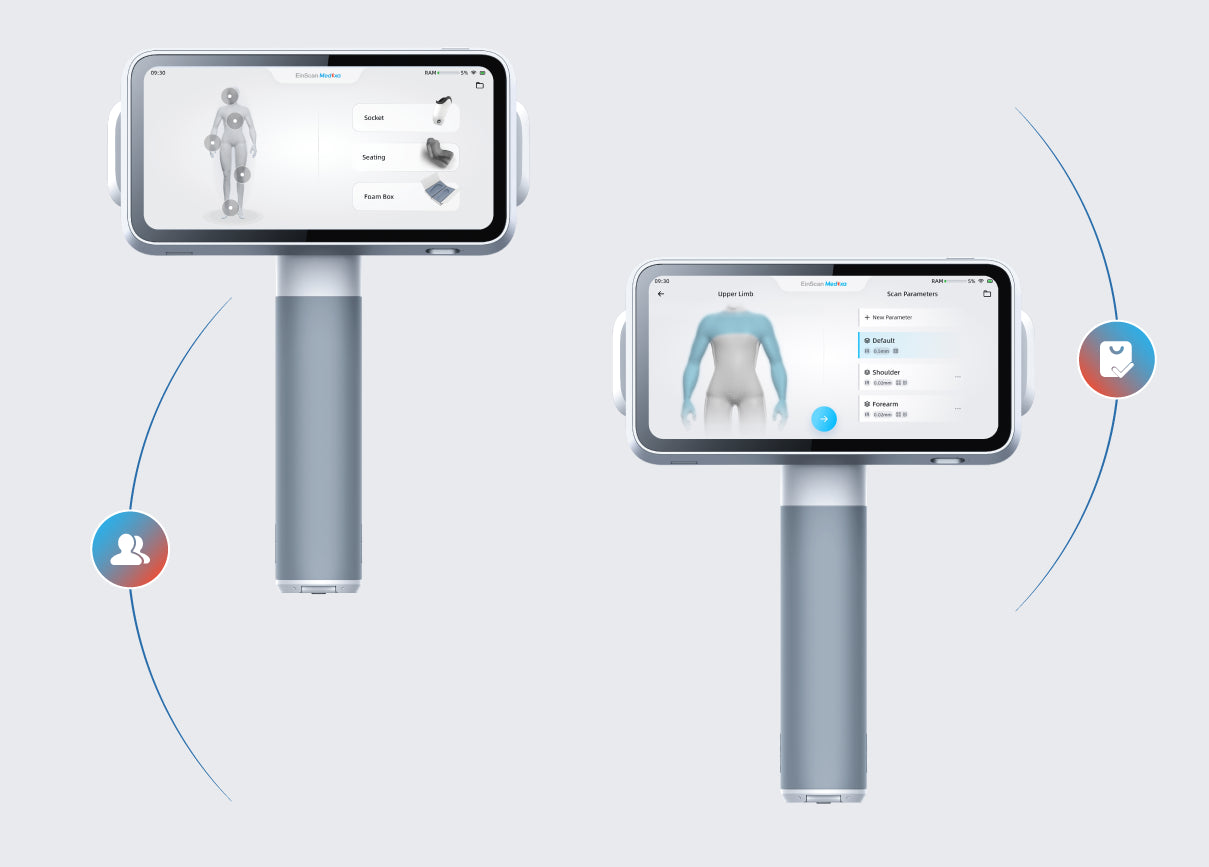

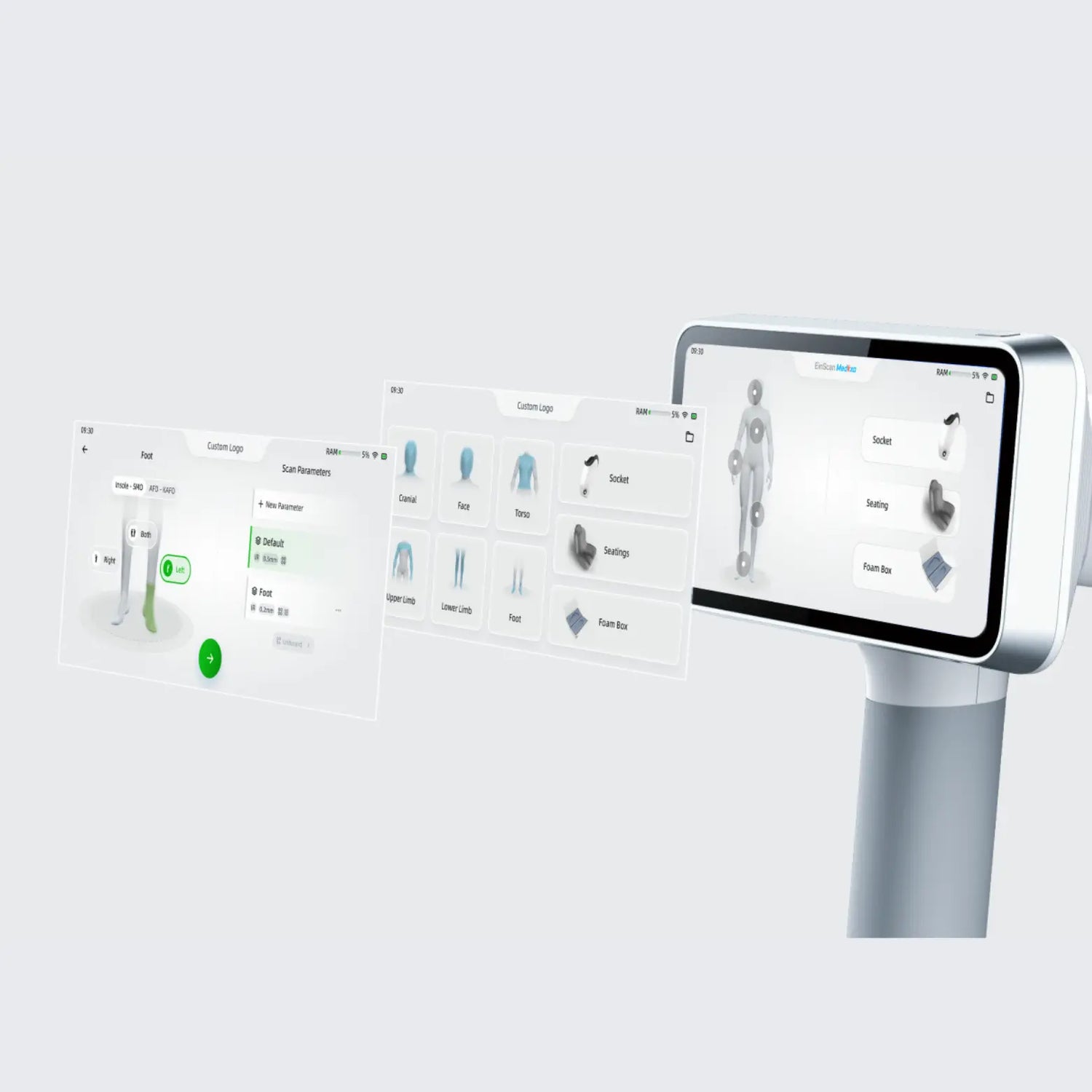

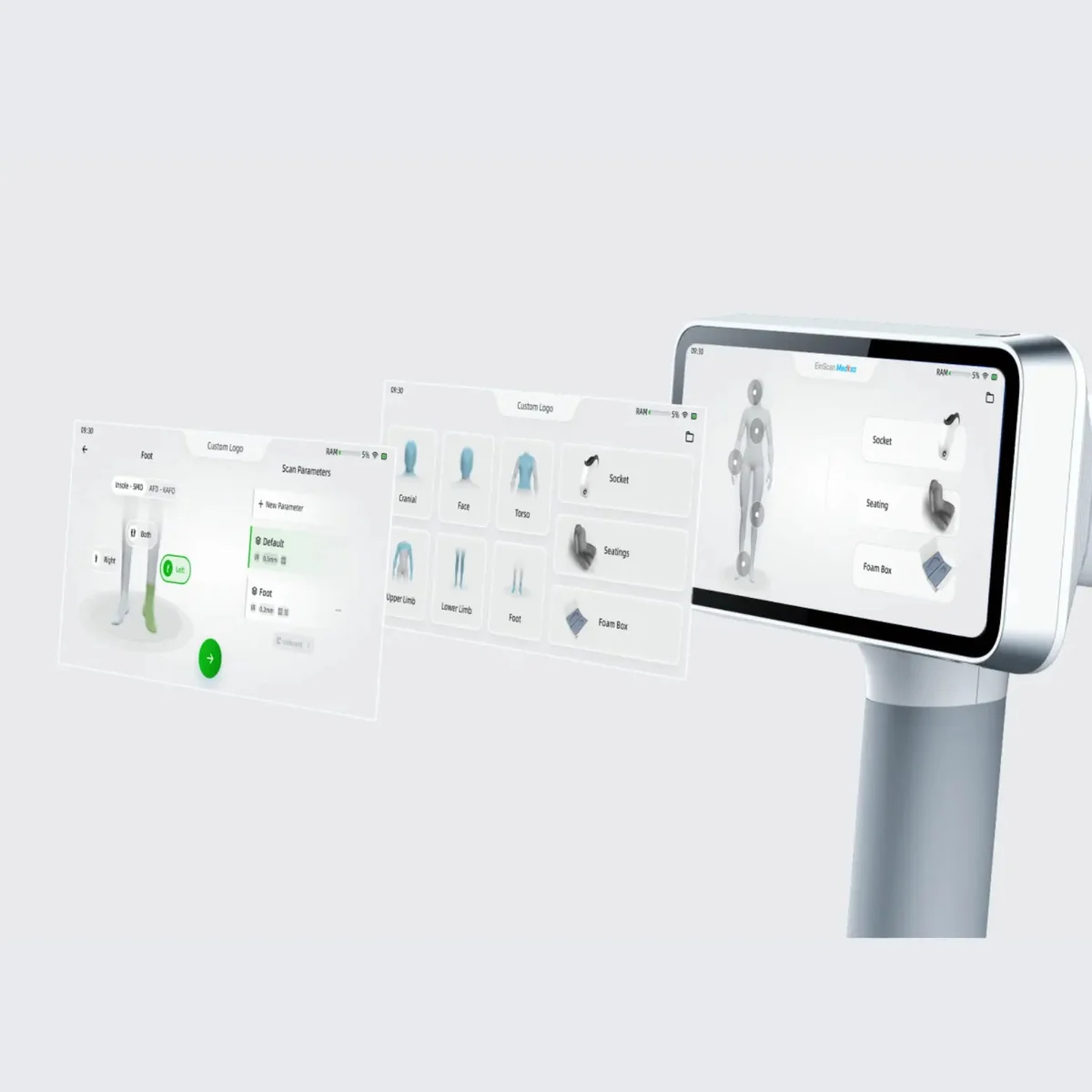

Presets for every body part
One-tap scan presets for face, cranial, torso, upper and lower limb, feet, socket, seating, and foam box remove guesswork and keep results consistent across operators.

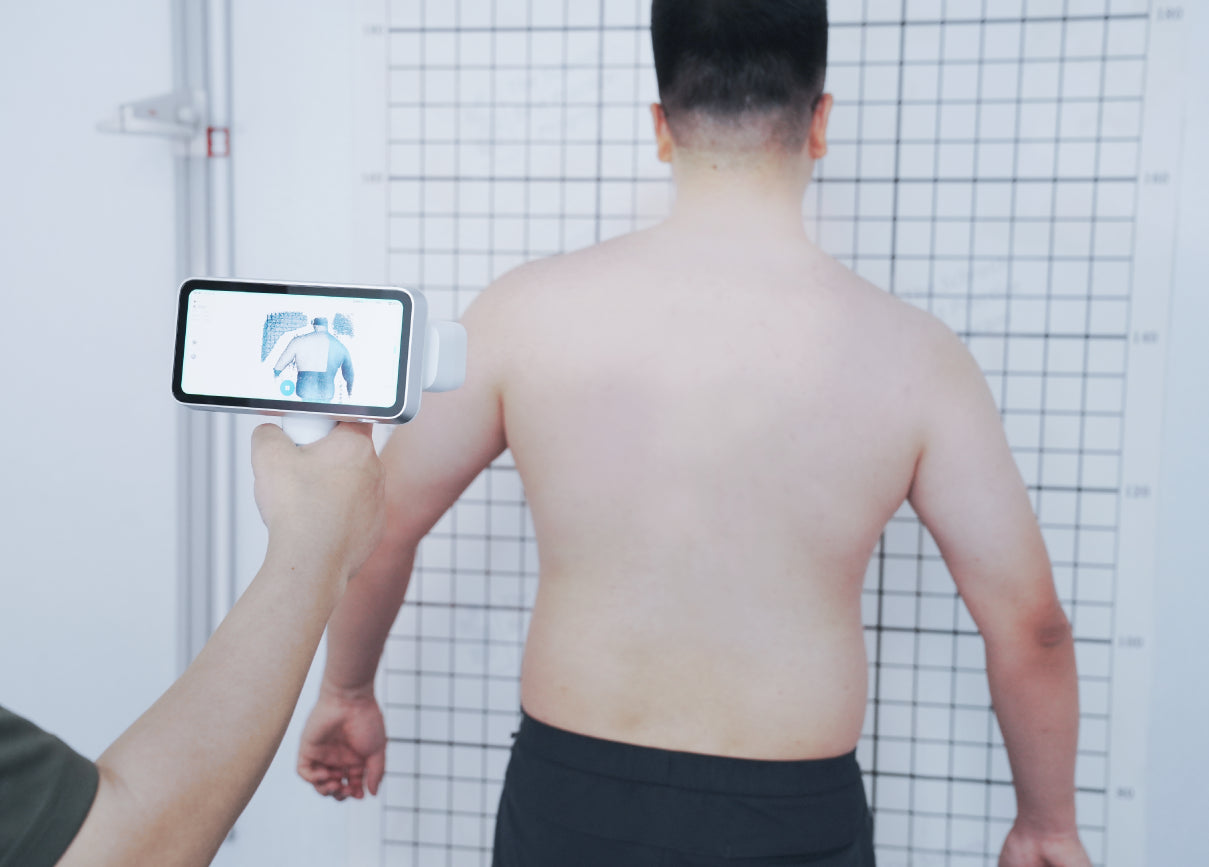

Accuracy on a moving patient
RMS < 0.3 mm with movement compensation that corrects subtle motion — practical for infants, breathing torsos, and patients who cannot stay fully still. See full specifications below.

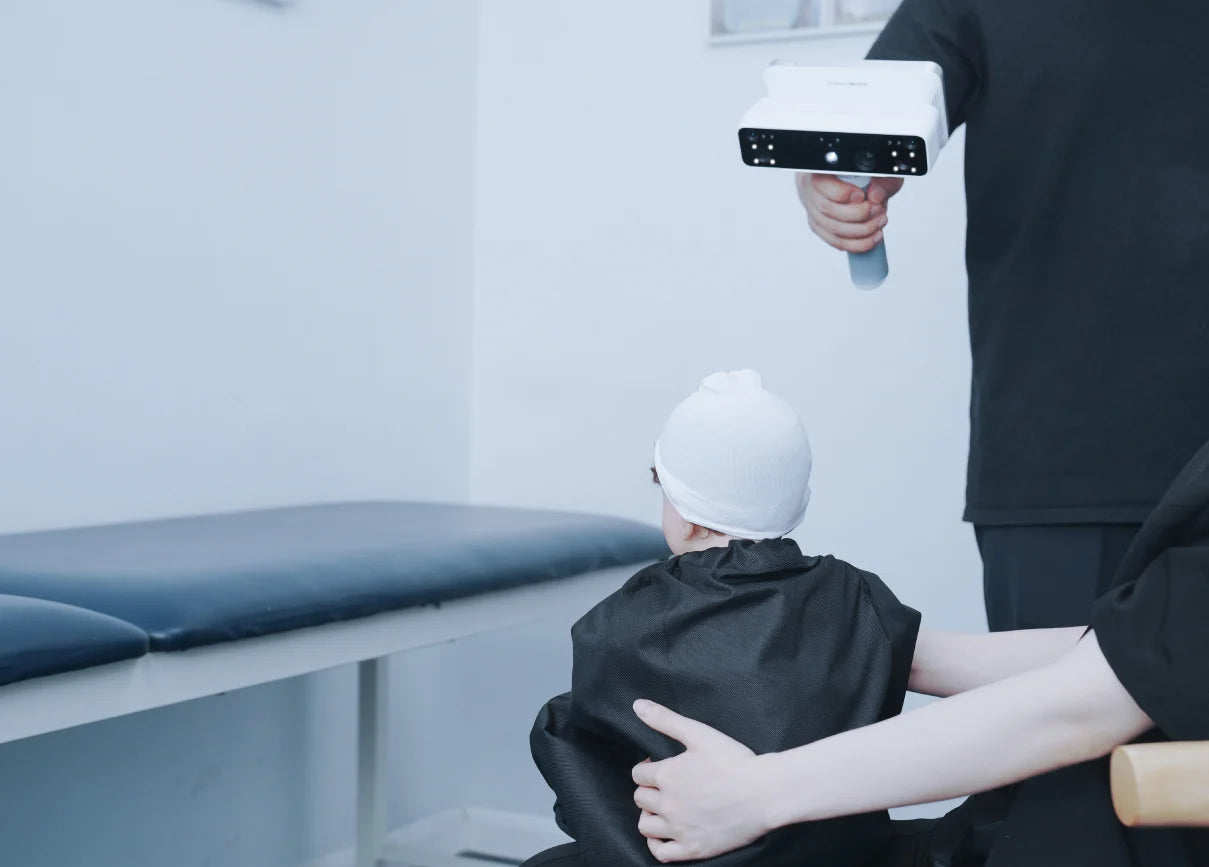

Contact-free, all skin tones
White-light and infrared VCSEL sources capture a wide range of skin tones and surfaces without contact — no plaster casting, and a 5 MP camera records clinician pen marks for design.
Wireless, standalone, PC-free
Onboard processing runs the full scan on the device. Two swappable batteries give up to 3 hours of continuous scanning, with USB-C charging while you work.
How Additive Plus delivers your Medixa
Set up, trained, and supported for a clinical workflow.
Step 01
Configure & verify
Every unit is checked and accuracy confirmed before it ships, and scan presets are set up for the indications your clinic scans most.
Step 02
Install & train
Onboarding on scanning technique, presets, and export into your O&P CAD/CAM software — your team is capturing usable data on the first patient, not week three.
Step 03
Sample scan & support
We can demo the Medixa on real geometry so you see the data quality before you commit, with post-sale calibration and workflow support and a sub-4h reply.
Scanning Performance
The EinScan Medixa captures at RMS < 0.3 mm accuracy with a 0.2–3 mm point distance. Its white-light field of view is 475 × 360 mm for detailed areas, while the infrared VCSEL field of view of 1090 × 1260 mm captures a full torso or limb quickly. A 5 MP texture camera adds full-color capture and records surface markings for design. Alignment supports feature, texture, hybrid, markers, and global markers. See the full specification table below.
Clinical Workflow & Integration
Medixa is built to replace plaster casting with a digital, contact-free capture that moves straight into design — the vendor reports typical case time dropping from around five hours to one. Output in STL, OBJ, and PLY integrates with common CAD/CAM and O&P design software, and the system supports hospital ordering-system integration and branded workflow customization. The optional FootStation 2 adds a dedicated foot-scanning setup for orthotics.
Working Range & Portability
At 953 g the Medixa is light enough for handheld body scanning around a seated or standing patient, and it runs untethered on two replaceable 5500 mAh batteries for up to three hours. Wi-Fi and USB-C keep data moving to your design station, and the scanner charges over USB-C while in use for uninterrupted clinic days.
Typical applications
One scanner across the orthotics and prosthetics clinic.

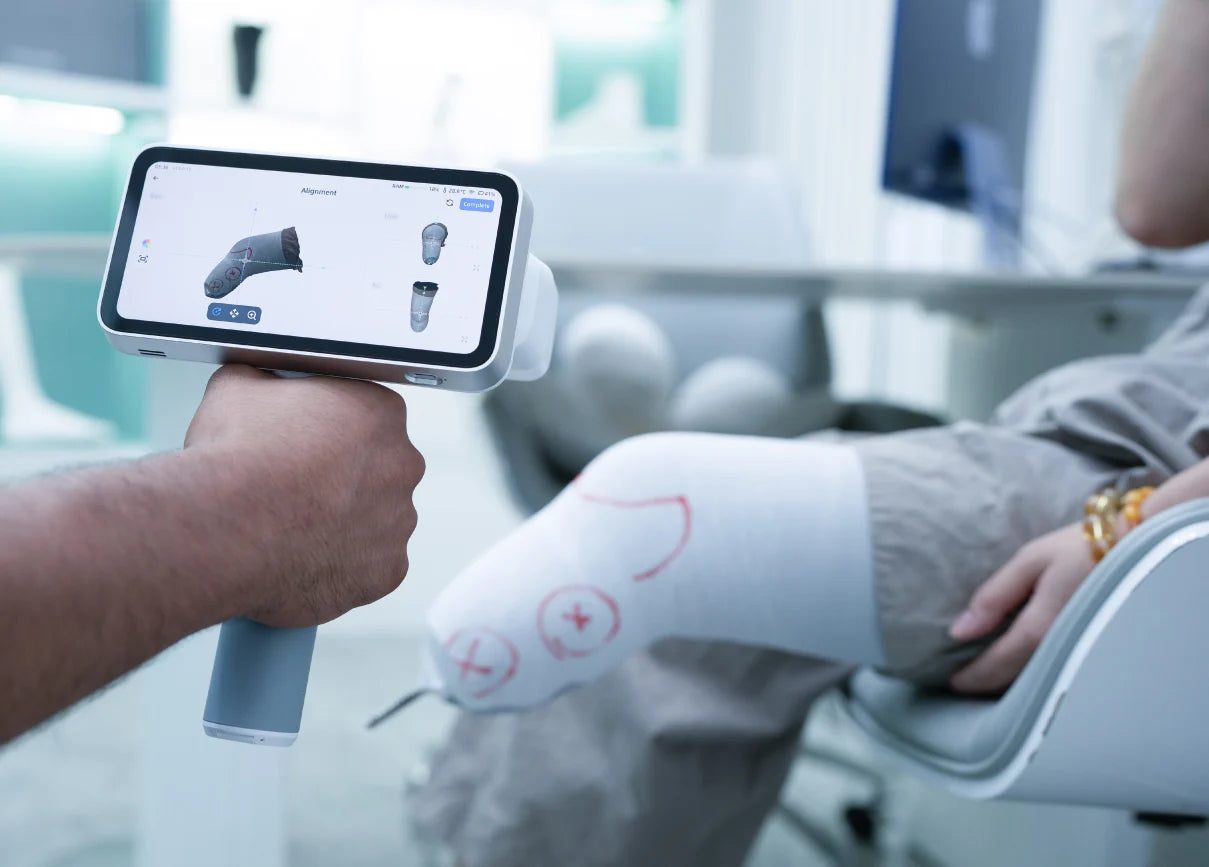

Prosthetic sockets
Residual-limb capture for socket design
Orthoses (AFO/KAFO)
Lower and upper limb bracing

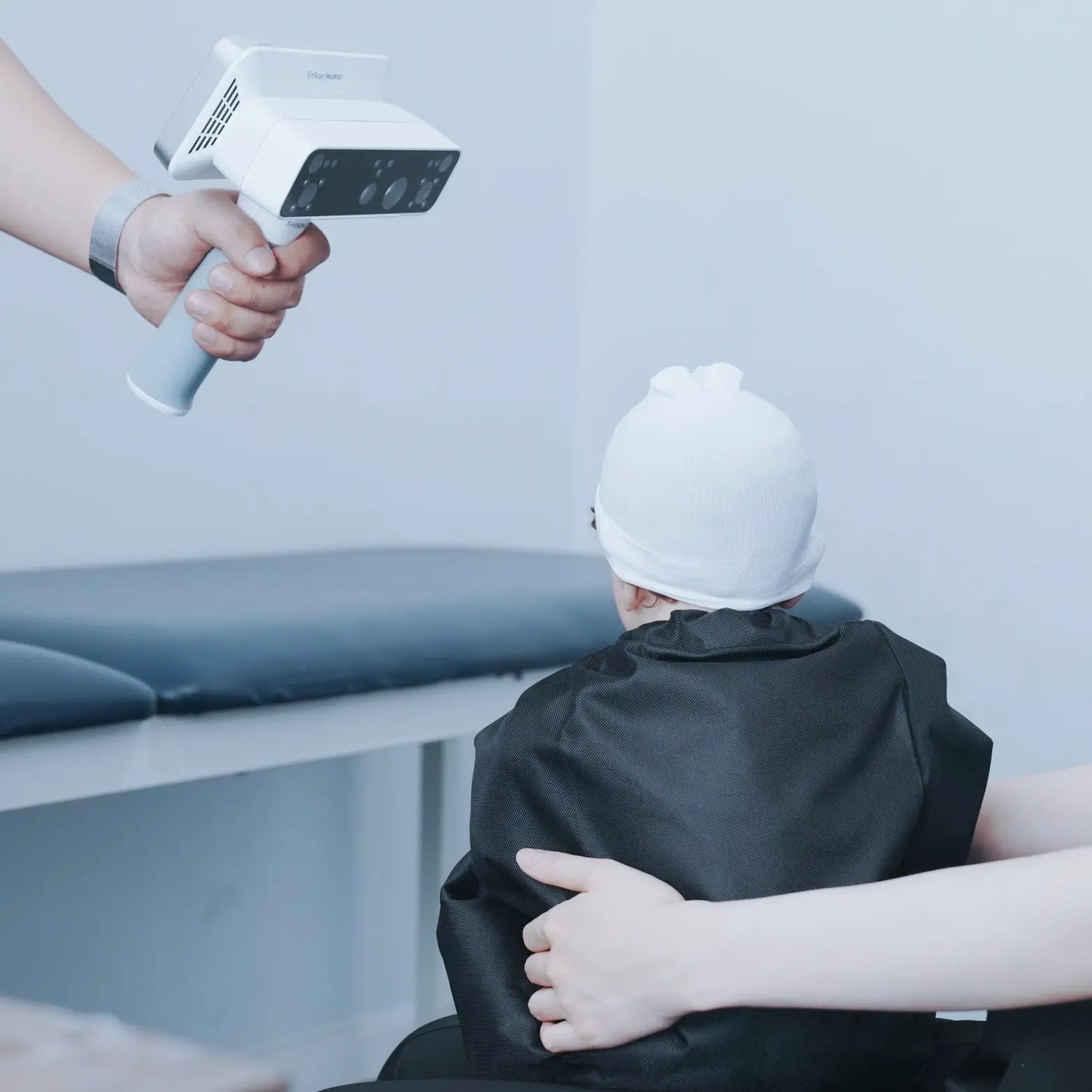

Cranial remolding
Infant cranial helmet capture
Foot orthotics
Custom insoles with FootStation 2
Spinal & scoliosis
Torso capture for TLSO bracing
Seating & positioning
Custom seating capture
Why Source the EinScan Medixa Through Additive Plus
- Authorized reseller — demo the scanner and see real capture quality before you commit
- Configuration verified before shipment; installation and training included
- Application engineers who set up the export path into your O&P CAD/CAM software
- US-based support with a sub-4h response · 200+ scanning and AM systems delivered across 23 countries
Not sure the Medixa is the right scanner?
Compare it with the other wireless scanners we support for body work.
Handheld hybridEinScan HX2View scanner →
All-in-one laserEinScan LibreCompare scanner →
Entry levelEinstar VegaView scanner →
All-in-one laserEinScan LibreCompare scanner →
Entry levelEinstar VegaView scanner →
Tell us the indications you scan and the design software you run — our applications engineer will confirm the Medixa fits your workflow and can arrange a demo on real geometry. Sub-4h reply, NDA standard.
| Brand | Shining 3D |
| Country of origin | China |
| Application | Orthotics & prosthetics (O&P), body scanning |
| Light Source | White light + Infrared VCSEL |
| Accuracy | RMS < 0.3 mm |
| Point Distance | 0.2 – 3 mm |
| Single Scan Area | White light: 475 × 360 mm IR VCSEL: 1090 × 1260 mm |
| Texture Camera | 5 MP full color |
| Data Alignment Mode | Feature, texture, hybrid, markers, global markers |
| Scan Presets | Face, cranial, torso, upper limb, lower limb, feet, socket, seating, foam box |
| Movement Compensation | Yes — corrects subtle patient motion |
| Full Color Scanning | Yes |
| Output Formats | STL, OBJ, PLY |
| Battery | 2 × 5500 mAh replaceable · up to 3 h continuous · USB-C charging in use |
| Interface | Wi-Fi, USB Type-C |
| Weight | 2.1 lbs, 953 g |
| Software Compatibility | CAD/CAM and O&P design software; hospital ordering system integration |
| Accessory | FootStation 2 (advanced foot scanning) |
Product videos
Want to see Medixa data first?
Book a demo and we'll scan a representative case so you can review the mesh and fit in your O&P design software before you commit.
Other products teams run alongside Shining 3D EinScan Medixa All-in-One Wireless 3D Scanner – Orthotics & Prosthetics | RMS < 0.3 mm
All-in-One Laser 3D Scanner
Shining 3D EinScan Rigil Tri-Mode Laser 3D Scanner – Wireless All-in-One | 0.04 mm Accuracy
Tri-mode laser 3D scanner with up to 0.04 + 0.06 mm/m volumetric accuracy and a 170–1500 mm working range — markerless blue-laser and IR VCSEL capture combined in one wireless, PC-free device for reverse engineering, inspection, and design.
- ✓ 0.04 + 0.06 mm/m volumetric accuracy · up to 0.05 mm resolution (Laser HD)
- ✓ Three modes in one: 25+25 crossed lasers, 7 parallel lasers, IR VCSEL — up to 16M points/s
- ✓ Standalone wireless: 6.4″ 2K AMOLED, 32GB RAM, 1TB SSD, dual swappable batteries
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
Desktop 3D Scanner
Shining EinScan-SE V2 3D Scanner
The EinScan-SE V2 Multifunctional 3D Scanner. Improves the Efficiency of High-quality 3D Modeling.
The EinScan-SE V2 3D Scanner captures 3D objects using structured light technology, creating digital models with ease, accuracy, and affordability.
It is used in design, archaeology, art, and education for objects of various sizes.
On backorder
Desktop 3D Scanner
Portable Handheld Shining EinScan Pro 2X V2
The Shining EinScan Pro 2X is a versatile handheld 3D scanner that combines portability with high-quality performance. It is ideal for a range of applications, including body scanning, reverse engineering, product design, and 3D printing. The scanner features improved speed and accuracy for capturing intricate details, with multiple scanning and alignment modes to suit various projects. Whether you're scanning small objects or creating detailed 3D models for CAD applications, the EinScan Pro 2X offers reliable results and flexibility, making it an excellent choice for both professionals and enthusiasts. Its ability to handle both handheld and fixed scanning options makes it perfect for body scanner applications and more.
On backorder
Entry-level For Hobbyists
Affordable Handheld Shining 3D Scanner Einstar Vega
The Shining 3D Einstar is an affordable handheld 3D scanner designed to make high-quality 3D data accessible to everyone. Ideal for body scanning, 3D printing, and CAD modeling, it delivers precise, detailed scans for a variety of applications. Whether you’re scanning small objects or creating 3D models for reverse engineering, the Einstar is an excellent tool for both professionals and hobbyists. Its easy portability and excellent scanning capabilities make it a versatile choice for body scanners and 3D printing projects, offering great value for users who want to create high-quality 3D models on a budget.
From $1999
Add to cart
On backorder
Metrology for quality control
Shining 3D FreeProbe 2 Wireless Metrology Probe for FreeScan Trak – Optical CMM Accessory | 0.025 mm
Wireless tactile metrology probe that extends a FreeScan Trak scanning system — reach hidden features, deep pockets, and reference points the scanner cannot see, capturing precise points at 0.025 mm accuracy without generating mesh.
- ✓ 0.025 mm point accuracy · ISO 10360 certified · ISO/IEC 17025 accredited-lab calibrated
- ✓ Pairs with FreeScan Trak Nova and FreeScan Trak ProW · SHINING3D Inspect, PolyWorks, Geomagic
- ✓ Wireless · lightweight · swappable tips + extension rods · up to 80 h battery (Pro)
- ✓ Lead time: 4–6 weeks — configured to order
On backorder
· Lead time: 4–6 weeks — configured to order
Entry-level For Hobbyists

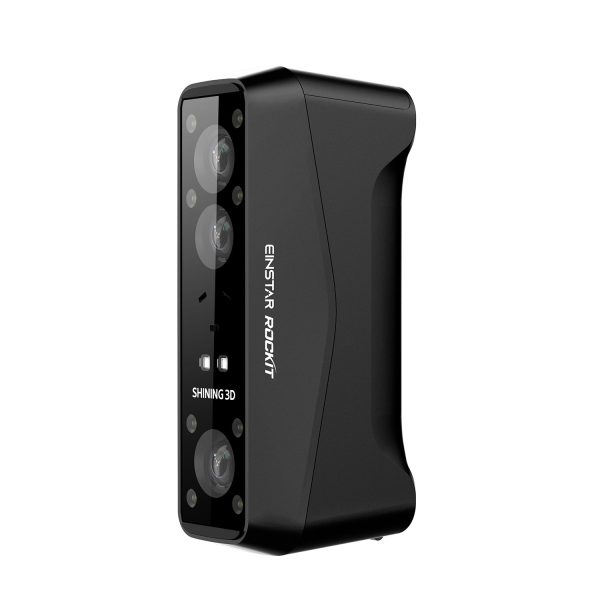

Shining 3D EINSTAR Rockit Handheld 3D Scanner – Dual Blue Laser + IR | 0.05 mm
Pocket-sized, fully wireless handheld 3D scanner with dual light sources — 38 blue laser lines for detail and IR for speed — capturing objects from 5 mm to 5 m at up to 0.05 mm resolution, markerless, with full-color texture.
- ✓ Up to 0.05 mm resolution · 38 laser lines + 7 parallel · 2.8M–4.8M points/s
- ✓ Dual source: blue laser (detail) + IR (speed) · markerless in nearly every mode
- ✓ Wireless · replaceable battery ~3 h · 425 g · 5 MP color · scans in bright light
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
Desktop 3D Scanner
Shining 3D EinScan SP V2 Desktop 3D Scanner – Structured Light | 0.05 mm Accuracy
Structured-light desktop 3D scanner with ≤ 0.05 mm accuracy and dual fixed + turntable scanning — full-color capture of objects from 30 mm to 1.2 m for reverse engineering, design, and 3D printing.
- ✓ ≤ 0.05 mm accuracy · 0.17–0.2 mm point distance · 24-bit color texture
- ✓ Fixed + Auto turntable modes · objects 30 mm to 1200 mm · 5 kg turntable load
- ✓ < 1 s single scan · < 45 s full 360° turn · EXScan S software
- ✓ Lead time: 2–4 weeks — configured to order
On backorder
· Lead time: 2–4 weeks — configured to order
All-in-One Laser 3D Scanner
Wireless Handheld Shining 3D EinScan Libre Scanner
The Shining 3D EinScan Libre is a wireless, markerless, all-in-one 3D scanner that offers full-color and high-precision scanning for various applications, including 3D printing, CAD, and reverse engineering. Its versatility makes it ideal for a wide range of projects, whether scanning small objects, bore measurements, or larger environments. With easy setup and enhanced functionality, this scanner is designed for users needing a fast, efficient, and detailed 3D scanning solution. Enjoy the added benefit of a 1-year EXModel license and extended warranty with your purchase.
From $28999
Add to cart
On backorder
From orthotics and prosthetics clinics running the EinScan Medixa
Unedited feedback from O&P practitioners and clinic teams.
★★★★★
Socket capture that used to mean plaster now takes a couple of minutes, and the data drops straight into our CAD.
SK
Sarah K. CPO · O&P Clinic
★★★★★
Movement compensation finally made pediatric cranial scans reliable — far fewer re-dos on wriggly infants.
TH
Tomás H. Orthotist · Pediatric Clinic
★★★★★
One device, no laptop cart. Our technicians were scanning confidently after a morning of training.
AM
Angela M. Clinic Manager · Rehabilitation
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
What accuracy does the EinScan Medixa achieve on a limb or torso?
The EinScan Medixa captures at RMS < 0.3 mm accuracy with a 0.2–3 mm point distance, which is well within the tolerance needed for socket, orthosis, and cranial design. Its infrared VCSEL field of view of 1090 × 1260 mm captures a full torso or limb in one pass, while the 475 × 360 mm white-light field adds detail where you need it. We can demo the scanner on representative geometry so you see real accuracy before you buy.
How does the Medixa handle patient movement during a scan?
The EinScan Medixa includes movement compensation that corrects subtle patient motion during capture, so scans of infants, breathing torsos, and patients who cannot stay fully still stay usable without repeated attempts. Combined with fast capture — the vendor cites capturing an area in under two minutes — it reduces re-scans and keeps the appointment short for the patient.
Which O&P design software does the Medixa export to?
The EinScan Medixa outputs STL, OBJ, and PLY, which import into common CAD/CAM and O&P design software used for socket, orthosis, cranial, and insole design. It also supports hospital ordering-system integration and branded workflow customization. Our applications engineers help configure the export path into your specific design package during onboarding.
Can it scan different skin tones and surfaces reliably?
Yes. The EinScan Medixa pairs white-light and infrared VCSEL sources specifically so it can capture a wide range of skin tones and surface types contact-free. The 5 MP texture camera records full color and any pen marks a clinician draws on the patient, which carry through to the design stage for accurate alignment and customization.
Does the Medixa replace plaster casting?
That is its purpose. The EinScan Medixa is designed to replace plaster casting with a digital, contact-free capture that moves straight into design — the vendor reports typical case time dropping from around five hours to one. You keep a precise digital record for follow-up care instead of storing physical casts, and there is no casting material or curing time in the appointment.
What scan presets does it include, and what is FootStation 2?
The EinScan Medixa ships with one-tap presets for face, cranial, torso, upper limb, lower limb, feet, socket, seating, and foam box, so parameters are set correctly for each indication. FootStation 2 is an optional accessory that provides a dedicated setup for capturing feet for custom orthotics. Presets keep results consistent between operators and shorten training.
Is the Medixa wireless, and how long does the battery last?
The EinScan Medixa is fully wireless and standalone — onboard processing runs the scan with no PC. It uses two replaceable 5500 mAh batteries for up to three hours of continuous scanning and charges over USB-C while in use, so a clinic can run a full day without interruption. At 953 g it is light enough for handheld capture around a seated or standing patient.
