Shining 3D EINSTAR Rockit Handheld 3D Scanner – Blue Laser + IR | 0.05 mm Resolution
Pocket-sized, wireless handheld 3D scanner with two light sources — blue laser lines (38 crossed + 7 parallel) for detail and IR for speed — with 0.05 mm resolution, marker-free laser scanning, and 5 MP full-color texture.
- ✓ 0.05 mm resolution (Laser HD) · 38 crossed + 7 parallel laser lines · 2.8M–4.8M points/s
- ✓ Blue laser (detail) + IR VCSEL (speed) · marker-free scanning by feature alignment
- ✓ Built-in Wi-Fi · swappable battery up to 3 h · 425 g · 5 MP color · scans in bright light
- ✓ 1-year Shining 3D warranty · authorized US reseller
- ✓ Ship date confirmed by email after you order
1519
What makers and designers actually check
Detail and color you can use
0.05 mm resolution with 38 crossed blue-laser lines plus 7 parallel lines for crisp geometry, and a 5 MP color camera for realistic texture — in a 425 g wireless device.
Authorized US reseller
Additive Plus is an authorized Shining 3D reseller in the US. First-line support comes from our team in California, warranty repairs are handled by Shining 3D, and you get a formal quotation on our letterhead with US invoicing.

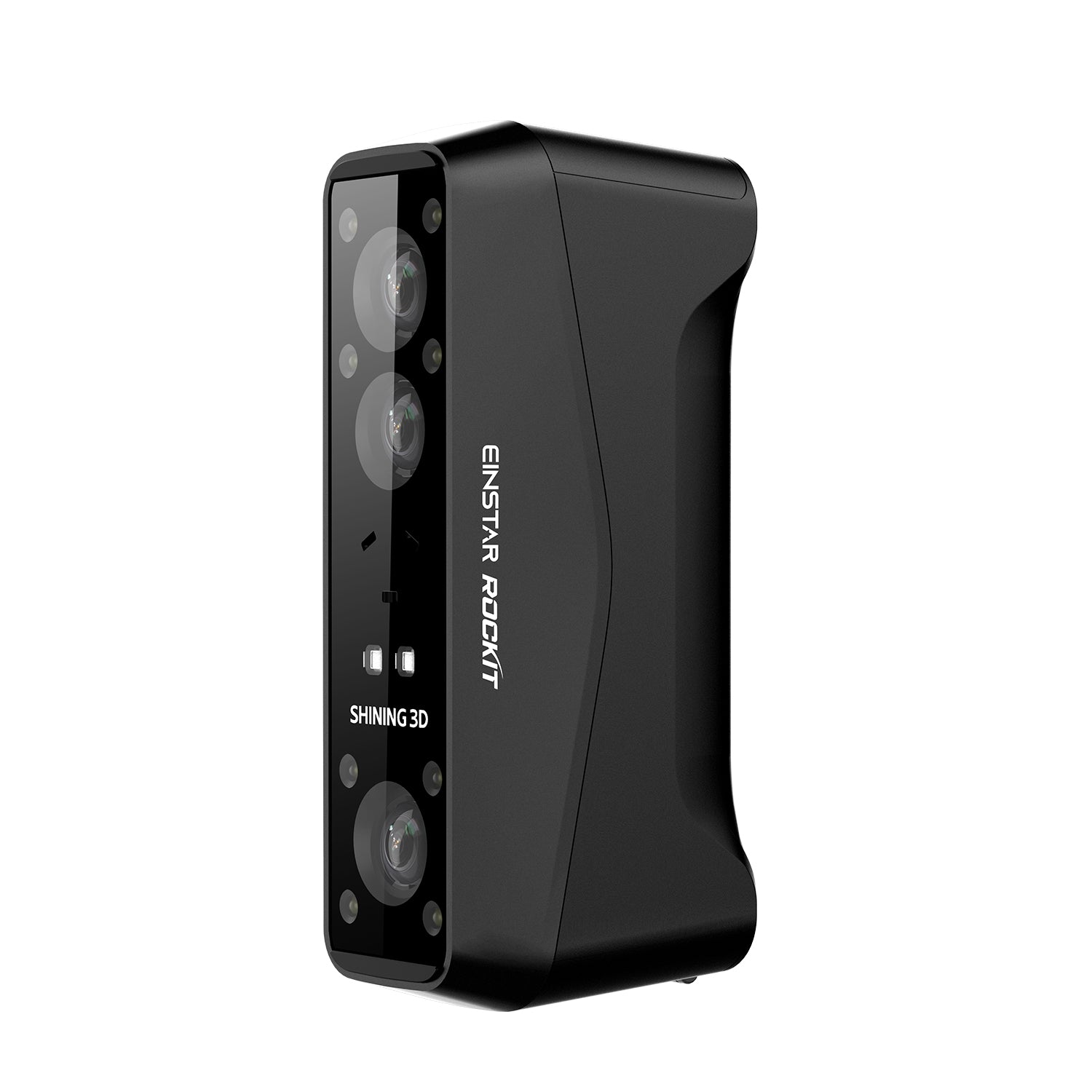

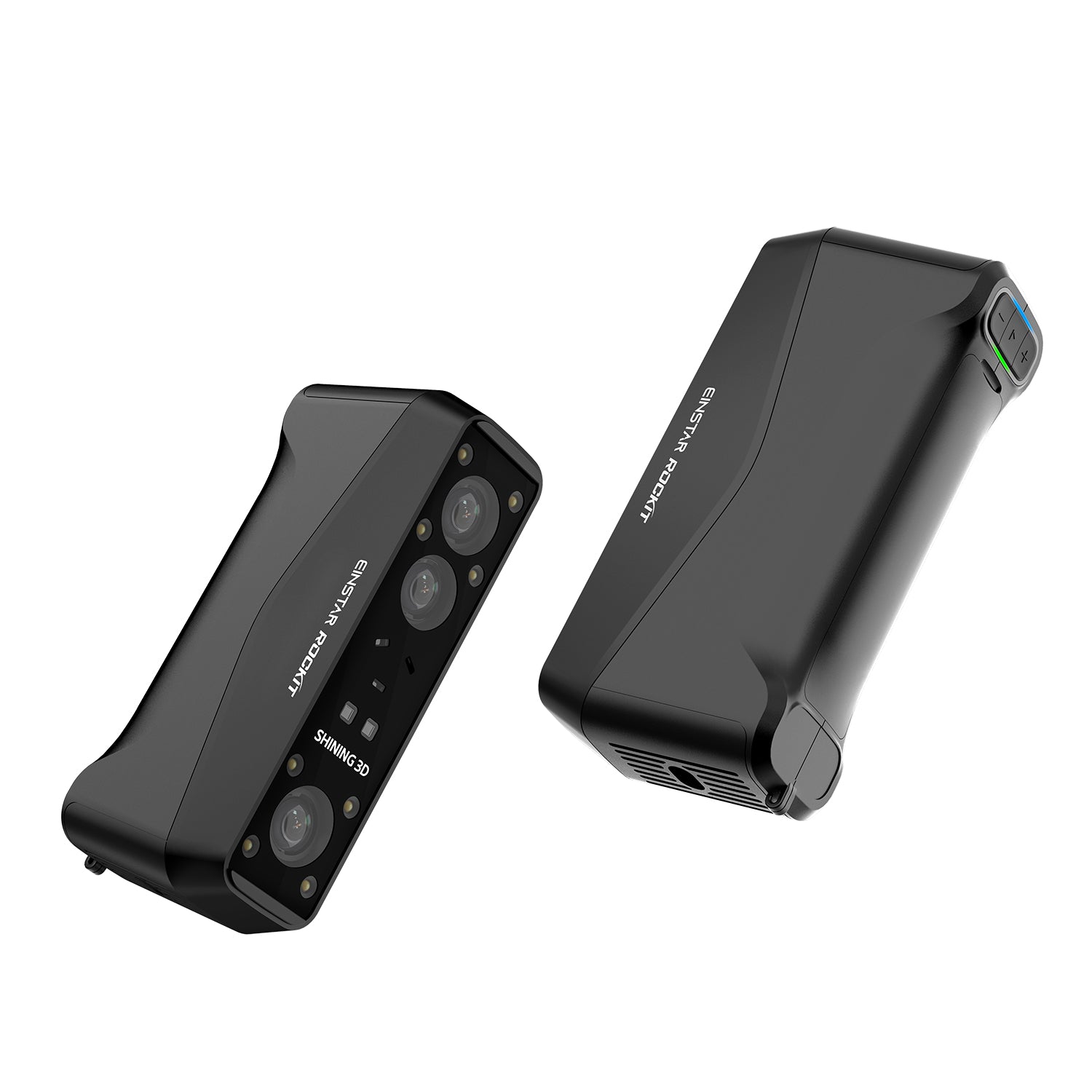

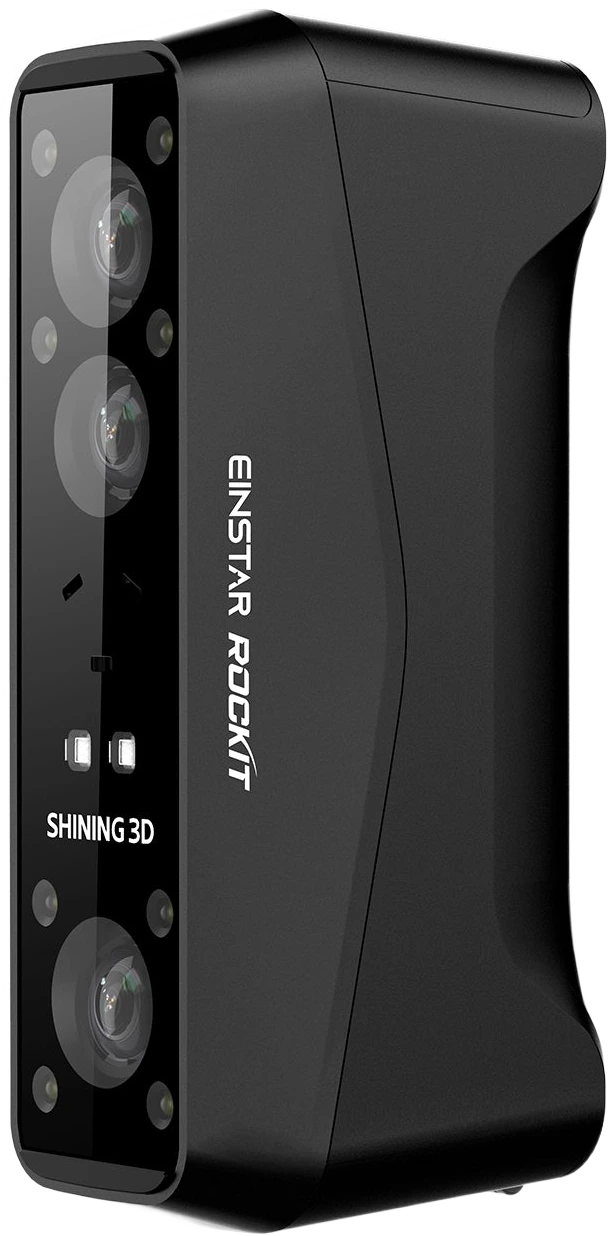

The Shining 3D EINSTAR Rockit is a pocket-sized, fully wireless handheld 3D scanner with two light sources in one device — blue laser lines for fine detail and infrared for fast, large-area capture. It captures detail down to a 5 × 5 × 5 mm minimum scan volume at 0.05 mm resolution, supports marker-free laser scanning, and records full-color texture with a 5 MP camera.
Why designers and makers choose the EINSTAR Rockit
Two light sources and pro-level detail in something that fits your pocket.
Two light sources, one device
Switch between 38 blue laser lines for high detail and IR for fast capture of large objects — precision when you need it, speed when you don’t.
Detail you can use
0.05 mm resolution and a 5 MP color camera capture crisp geometry and realistic texture, from a 5 mm minimum scan volume in laser mode up to large objects in IR mode. See full specifications below.

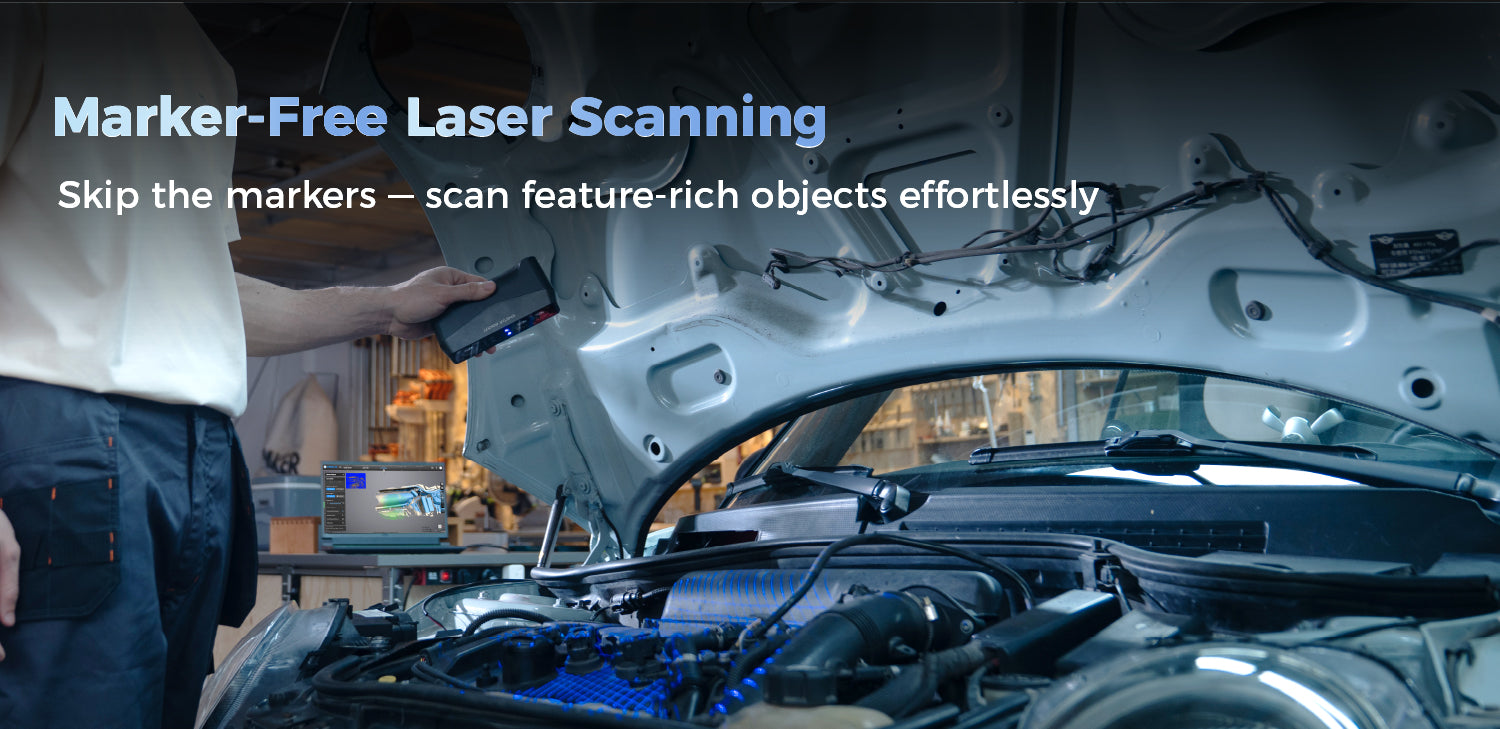

Marker-free, works in daylight
Marker-free laser scanning by feature alignment, plus hybrid texture and feature alignment in IR, cuts setup and cleanup. Laser HD holds up to 110,000 lux and IR to 70,000 lux, so it scans outdoors and under bright shop lights.
Truly pocket-portable
At 425 g with a swappable battery giving up to 3 hours and built-in Wi-Fi, the Rockit works completely off mains power — one hand, no cables, anywhere.
How you buy the EINSTAR Rockit from Additive Plus
From an authorized Shining 3D reseller in the US.
Warranty
1-year Shining 3D warranty.
Support
First-line support from our team in California; warranty repairs by Shining 3D.
Ordering
Formal quotation on our letterhead, US invoicing. Ship date confirmed by email after you order.
Scanning Performance

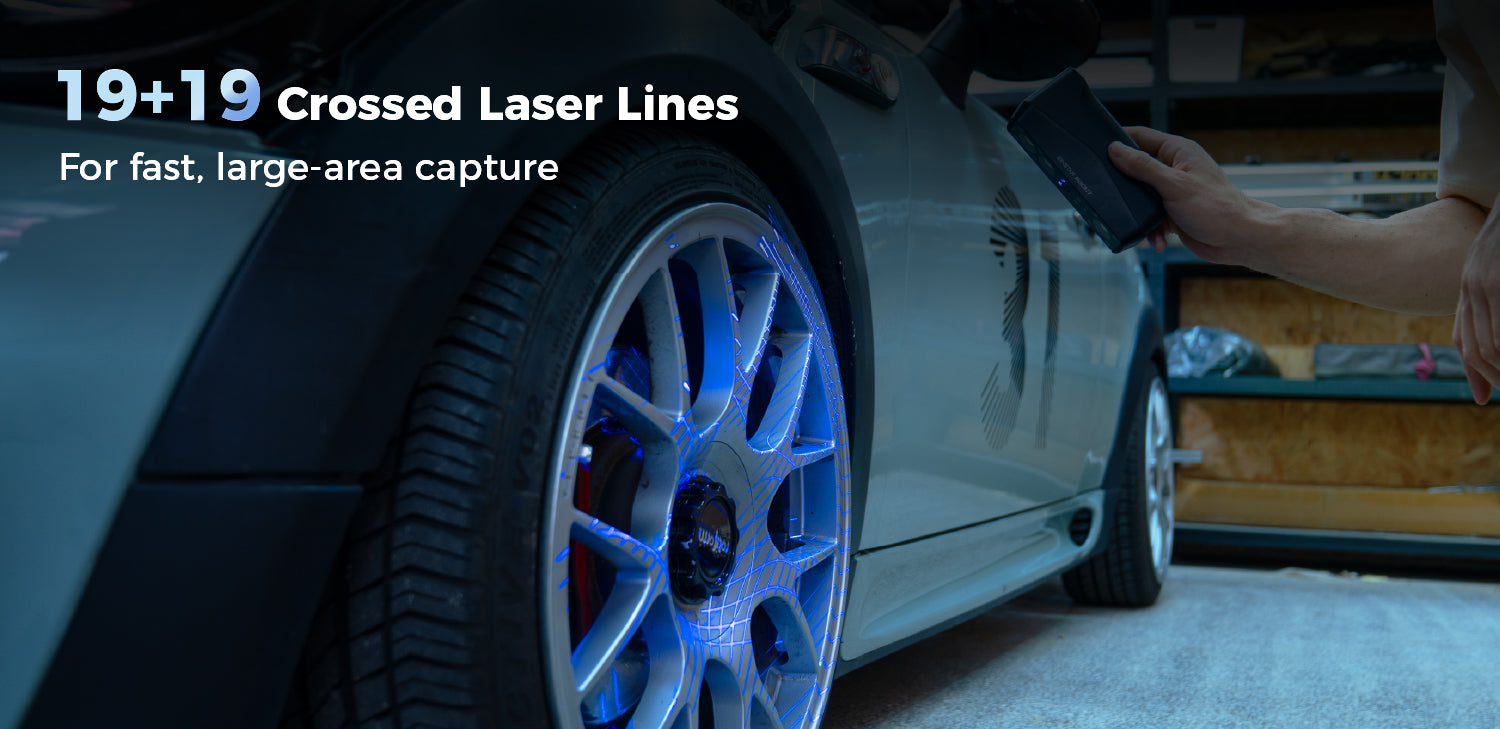

The EINSTAR Rockit pairs 38 blue-laser lines (19+19 crossed) and 7 parallel lines with an IR VCSEL. Laser HD captures at 2,800,000 points/s down to 0.05 mm resolution; IR mode reaches 4,800,000 points/s for fast capture of larger objects, and Shining 3D quotes scanning at up to 90 fps. Working distance runs 100–600 mm with the crossed laser lines (100–400 mm with the 7 parallel lines) and 160–1400 mm on IR, with a laser field of view up to 545 × 620 mm. See the full specification table below.
Portable & Wireless
The Rockit is built to leave the desk. Built-in Wi-Fi streams data without a cable to the PC (a USB Type-C cable is available if Wi-Fi interference occurs), and a swappable battery gives up to three hours of scanning. At pocket size and 425 g, it goes to the object — a car panel in the shop, a sculpture in a studio, a part on the bench.
Software & Output
The Rockit runs on Shining 3D’s EXStar Hub software and exports STL, OBJ, PLY, 3MF, and ASC. STL and 3MF drop straight into 3D-printing slicers, while OBJ and PLY carry the 5 MP color texture for design, art, and documentation. EXModel Personal for reverse engineering is available as a separate bundle.
Typical applications
A portable scanner for design, making, and everything in between.
Why Source the EINSTAR Rockit Through Additive Plus
- Authorized Shining 3D reseller in the US
- 1-year Shining 3D warranty
- First-line support from our team in California; warranty repairs by Shining 3D
- Formal quotation on our letterhead, US invoicing
Not sure the Rockit is the right scanner?
Compare it with the other entry and portable scanners we support.
| Brand | Shining 3D |
| Country of origin | China |
| Scanner Type | Handheld dual-source (blue laser + IR) 3D scanner |
| Resolution | Laser HD: 0.05 – 10 mm IR Rapid: 0.2 – 10 mm |
| Scan Rate | Laser HD: 2,800,000 pts/s IR Rapid: 4,800,000 pts/s |
| Laser Lines | 38 (19+19 crossed) + 7 parallel blue laser lines |
| Light Source | Blue laser + IR VCSEL |
| Working Distance | Laser (19+19 crossed): 100 – 600 mm Laser (7 parallel): 100 – 400 mm IR: 160 – 1400 mm |
| Max Field of View | Laser (crossed): 545 × 620 mm Laser (parallel): 355 × 425 mm IR: 1170 × 1385 mm |
| Minimum Scan Volume | Laser HD: 5 × 5 × 5 mm IR Rapid: 50 × 50 × 50 mm |
| Texture Camera | 5 MP RGB full color |
| Marker-Free Scanning | Yes — laser (feature alignment) and IR (feature / texture / hybrid); markers optional |
| Ambient Light Tolerance | Laser HD up to 110,000 lux · IR up to 70,000 lux |
| Output Formats | STL, OBJ, PLY, 3MF, ASC |
| Software | EXStar Hub (EXModel Personal available as a separate bundle) |
| Battery | Swappable · up to 3 h scanning |
| Interface | Wi-Fi (built-in) · USB Type-C cable option |
| Weight | 0.94 lbs, 425 g (with battery) |
We scan for a living. Try it on your part first.
Send us a sample part and we'll scan it on the actual system — handheld or metrology-grade — so you see the data quality before you buy. We can also run scan-to-CAD as a service while you evaluate.
Other products teams run alongside Shining 3D EINSTAR Rockit Handheld 3D Scanner – Blue Laser + IR | 0.05 mm Resolution
EXScan is the versatile scanning software for EinScan series 3D scanners — it drives capture with step-by-step guidance, aligns and cleans the scan, and exports a watertight mesh to STL, OBJ, PLY, ASC, 3MF, and P3 for reverse engineering, inspection, or 3D printing.
- ✓ Guided capture with Scan Rewind, Auto Cutting Plane, and a live data-quality indicator
- ✓ Full mesh post-processing — align, clean, fill holes, simplify, smooth, sharpen, texture
- ✓ Exports STL, OBJ, PLY, ASC, 3MF, P3 · one-click handoff to EXModel and Geomagic
- ✓ Delivered as a licensed download — issued to order
In stock
· Delivered as a licensed download — issued to order with your EinScan scanner; onboarding scheduled with your team
All-in-one wireless 3D scanner built for orthotics and prosthetics — white-light and infrared VCSEL capture with RMS < 0.3 mm accuracy, on-device processing, and motion compensation for patients who can’t hold still.
- ✓ RMS < 0.3 mm accuracy · 5 MP texture camera · contact-free capture
- ✓ White light + IR VCSEL · body presets for face, cranial, torso, limbs, feet, socket, seating
- ✓ Wireless standalone: onboard processing, up to 3 h scanning, no PC required
- ✓ 1-year Shining 3D warranty · authorized US reseller
- ✓ Ship date confirmed by email after you order
Made to order
· Ship date confirmed by email after you order
Optical 3D measuring and dynamic-tracking metrology system that pairs an infrared optical tracking bar with a large-FOV laser scanner and an optional FreeProbe contact probe — markerless measurement at 0.023 mm accuracy across parts from a 0.1 m feature to a 10 m assembly.
- ✓ 0.023 mm accuracy · 0.044 + 0.012 mm/m volumetric — VDI/VDE 2634 Part 3, tested in Shining 3D’s ISO 17025-certified lab
- ✓ 50 laser lines · 3,070,000 points/s · markerless optical tracking, marker scanning, and optional FreeProbe contact probe
- ✓ 25.6 × 22.8 in / 650 × 580 mm max FOV · objects up to 33 ft / 10 m
- ✓ 1-year Shining 3D warranty
- ✓ Ship date confirmed by email after you order
Made to order
· Ship date confirmed by email after you order

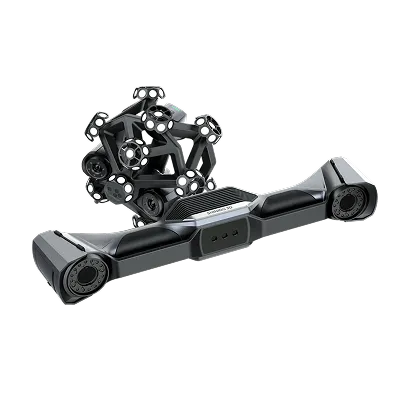

Wireless dynamic-tracking metrology system that pairs the UE Nova wide-range handheld laser scanner with the TE Nova and integrated video photogrammetry (VPG) — 0.02 mm accuracy and 0.062 mm volumetric accuracy over 12 m³, with most parts scanned without markers.
