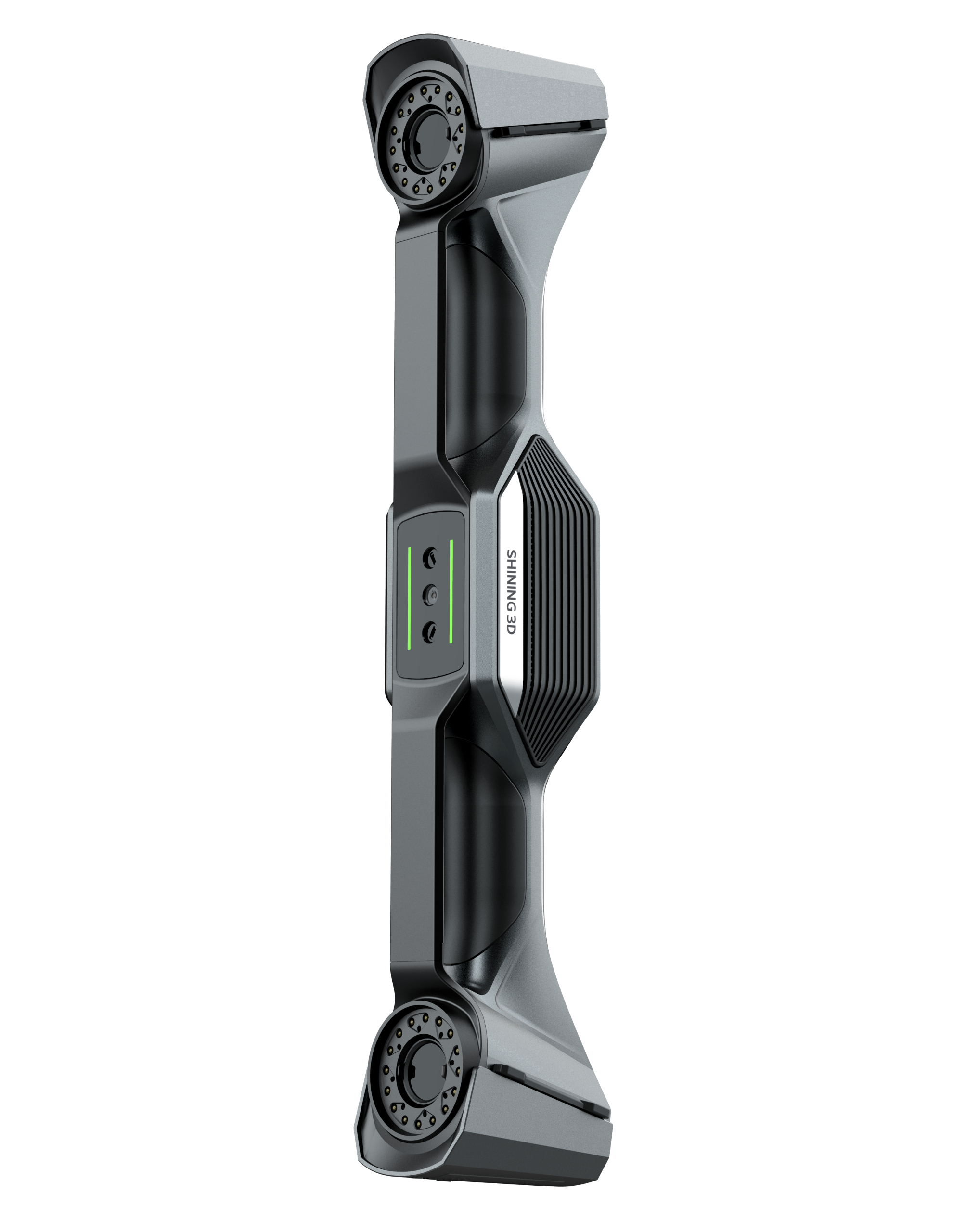

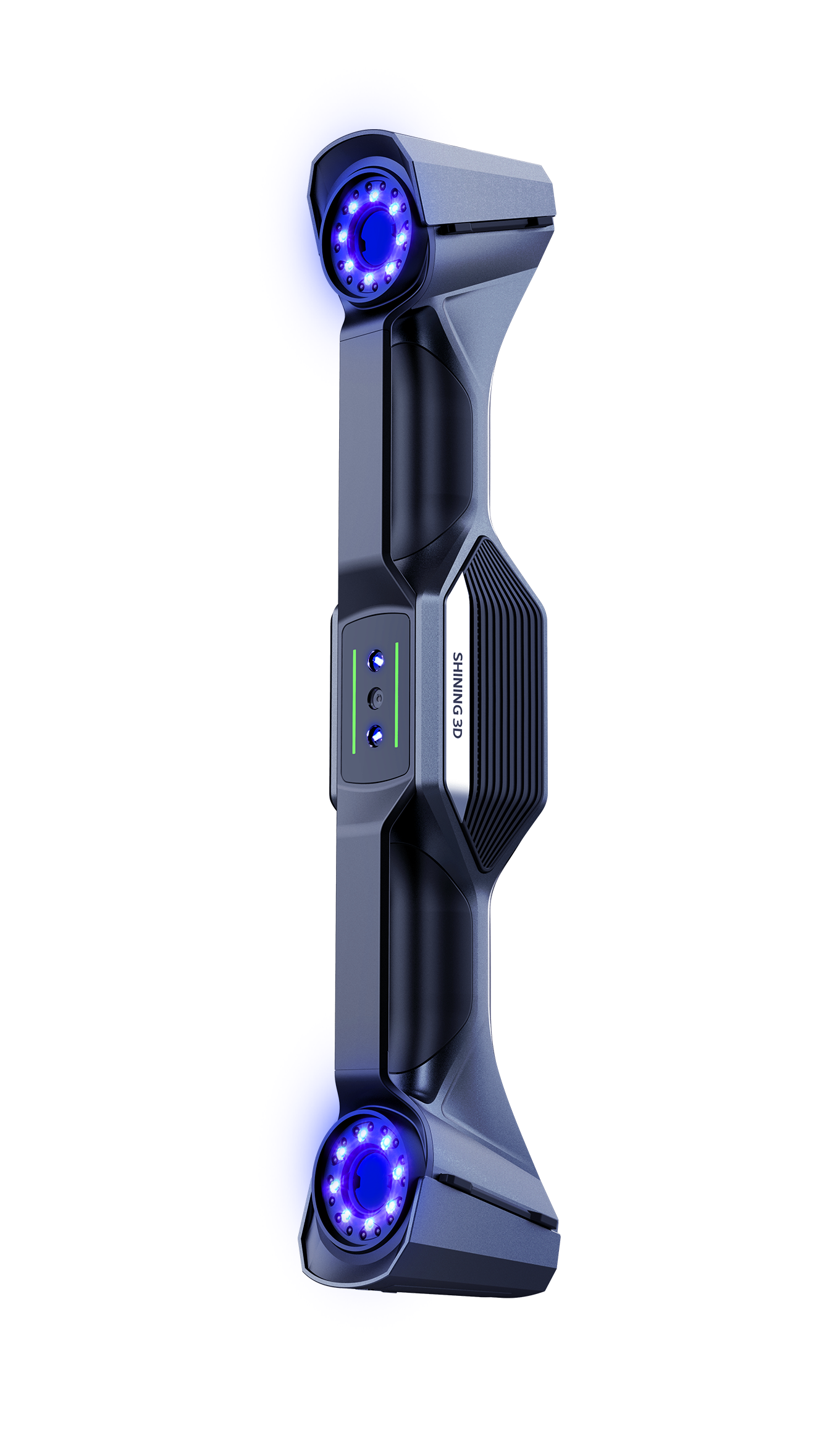

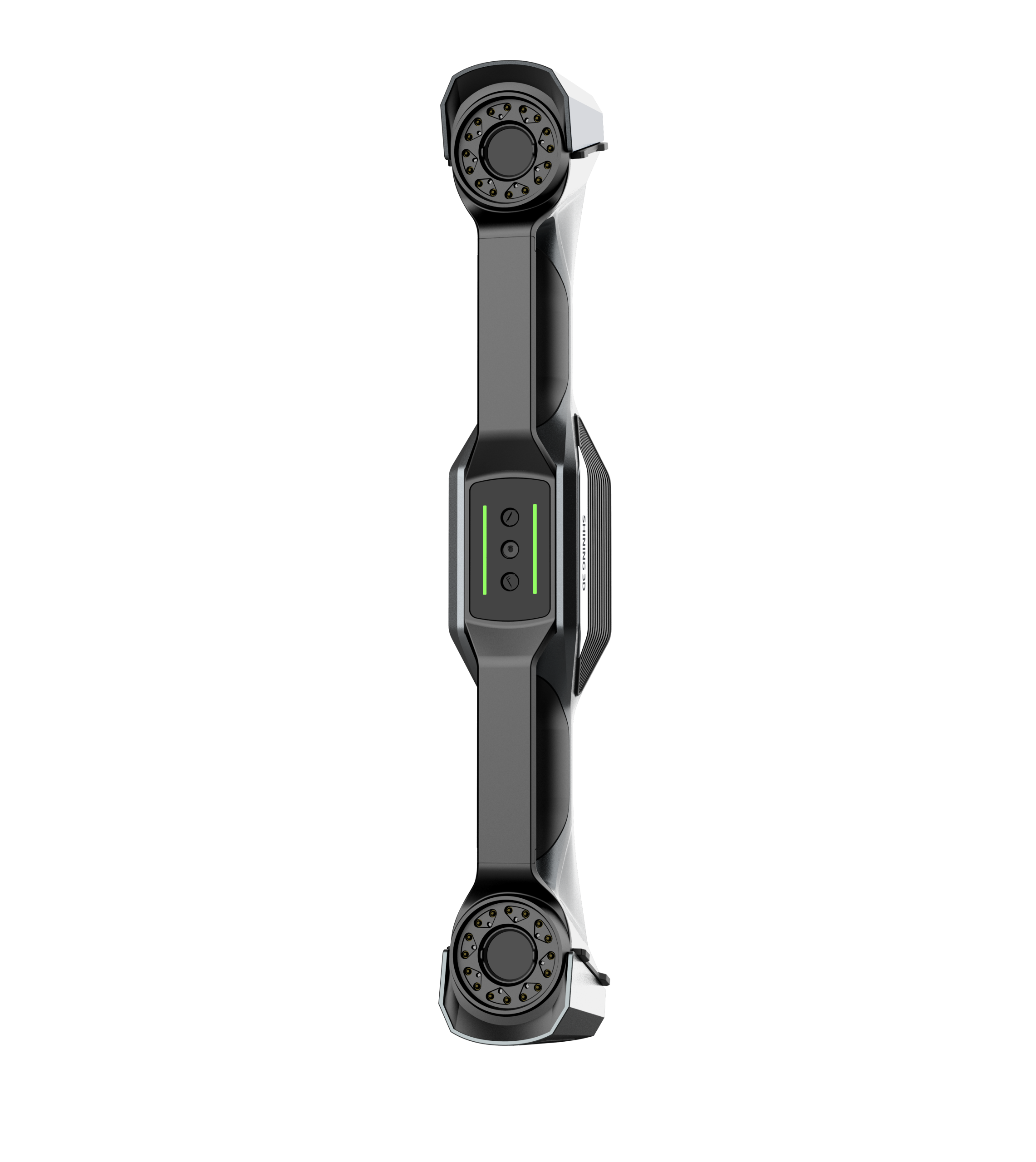

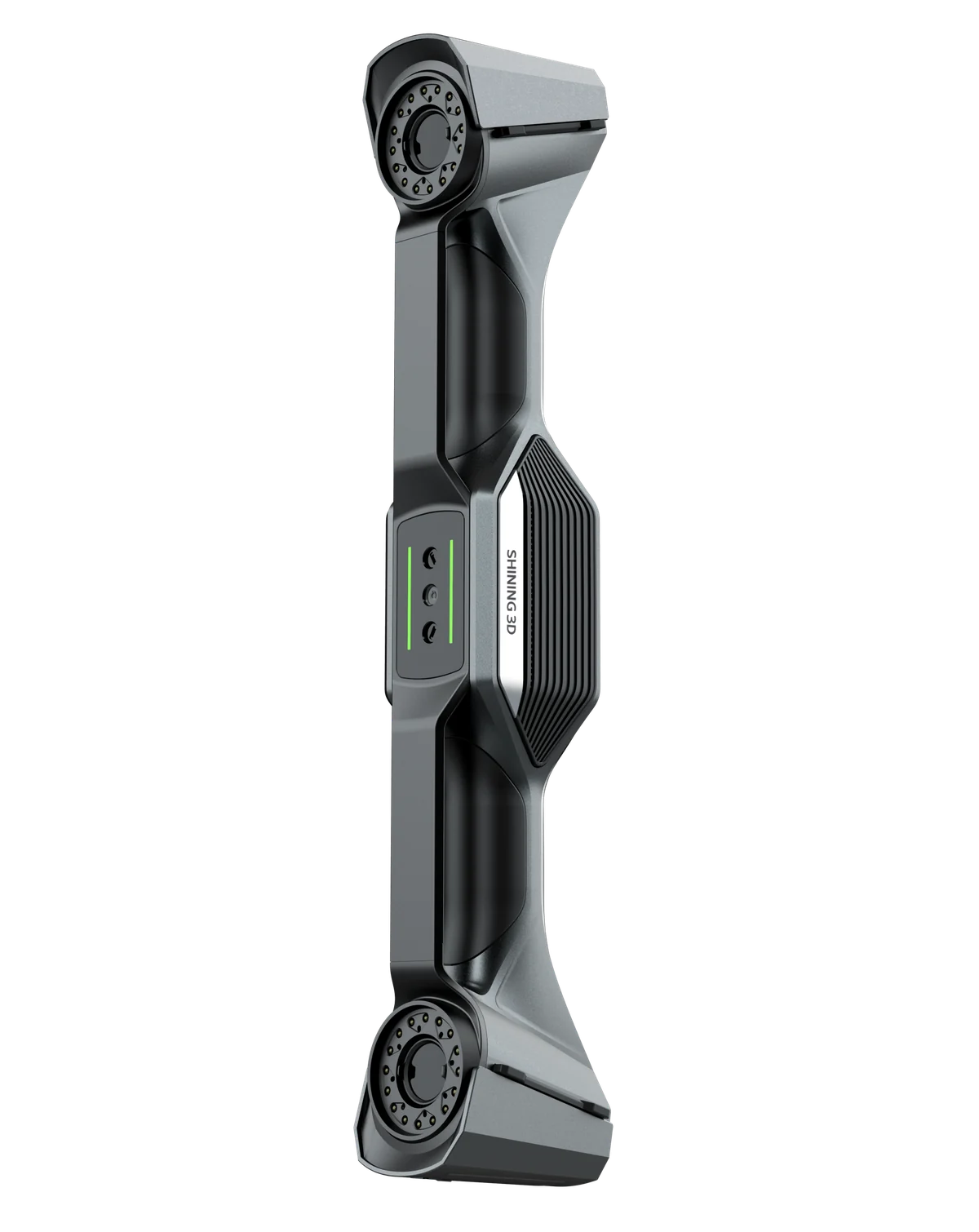

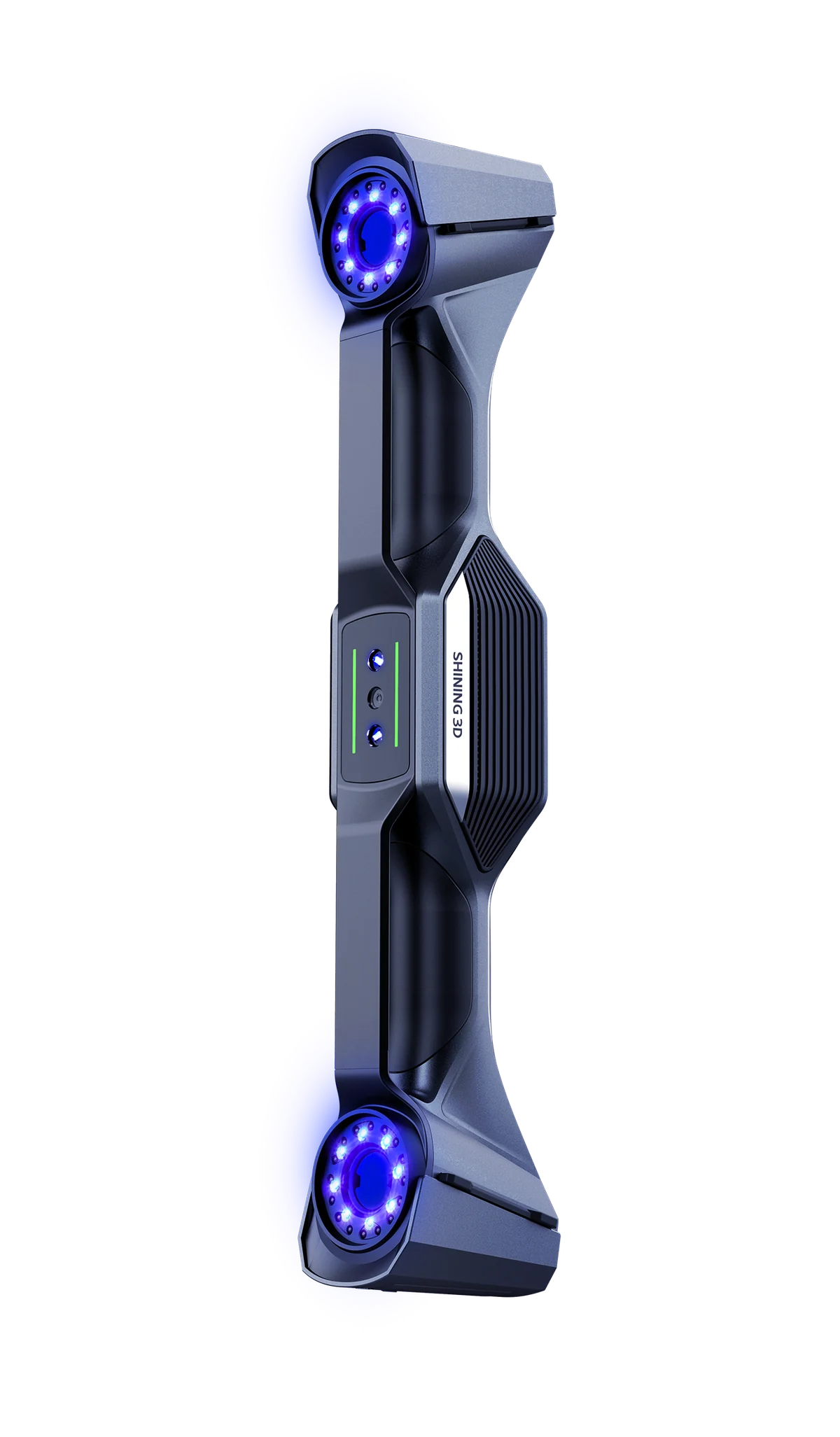

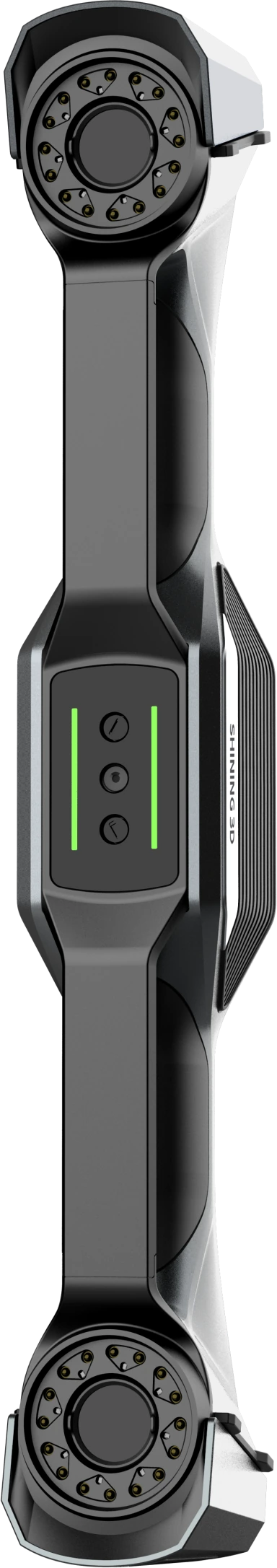

Shining 3D FreeScan UE Nova Wireless Laser Handheld 3D Scanner – Large-FOV Metrology with Integrated VPG | 0.072 mm
Fully wireless, metrology-grade blue-laser handheld 3D scanner for large parts — 0.072 mm accuracy, 50 laser lines at 4,600,000 points/s, and integrated video photogrammetry (VPG) with no coded markers, with a field of view up to 102 × 87 in / 2600 × 2200 mm.
- ✓ 0.072 mm accuracy · 0.072 + 0.012 mm/m with VPG · acceptance-tested to VDI/VDE 2634 Part 3 & ISO 10360 in Shining 3D’s ISO/IEC 17025 lab
- ✓ 50 blue-laser lines · 4,600,000 points/s · FOV up to 102 × 87 in / 2600 × 2200 mm
- ✓ Fully wireless · 3.5 lbs / 1.6 kg · integrated VPG, no coded markers · normal, black & reflective surfaces
- ✓ 1-year Shining 3D warranty
- ✓ Ship date confirmed by email after you order
What your metrology engineer actually checks
Large FOV without losing traceability
0.072 mm accuracy and 0.072 + 0.012 mm/m volumetric accuracy with VPG, across a field of view up to 102 × 87 in / 2600 × 2200 mm. Acceptance-tested to VDI/VDE 2634 Part 3 and ISO 10360 in Shining 3D’s ISO/IEC 17025 accredited lab, with calibration certificates traceable to international standards (subject to the actual certificates issued).
Authorized US reseller
First-line support from our team in California, with warranty repairs by Shining 3D under the 1-year Shining 3D warranty. Formal quotation on our letterhead and US invoicing; our applications engineer helps you choose the right configuration.
The Shining 3D FreeScan UE Nova is a fully wireless, metrology-grade blue-laser handheld 3D scanner built for large-volume inspection. It measures at 0.072 mm accuracy with 50 blue-laser lines at 4,600,000 points/s, uses SHINING 3D’s patented integrated video photogrammetry (VPG) with no coded markers required, and reaches a field of view up to 102 × 87 in / 2600 × 2200 mm for large castings, panels, and structures — with no cable to the PC.
Why metrology teams choose the FreeScan UE Nova
Large-FOV capture, traceable accuracy, no coded markers, no cable.
Certified, traceable accuracy
0.072 mm accuracy and 0.072 + 0.012 mm/m volumetric accuracy with VPG, tested to VDI/VDE 2634 Part 3 and ISO 10360 in an ISO/IEC 17025 accredited lab — acceptance-tested by Shining 3D.
Extra-large field of view
Up to 102 × 87 in / 2600 × 2200 mm field of view and a 2300 mm depth of field (300–2600 mm), with 50 blue laser lines capturing 4,600,000 points/s. Near, Standard, and Far FOV modes adapt to part size.
No coded markers with integrated VPG
SHINING 3D’s patented video photogrammetry is built in — no coded markers required — and works with a calibration rod for real-time marker verification, delivering volumetric accuracy of 0.072 mm + 0.012 mm/m on large parts.
Wireless, inspect anywhere
Fully wireless at 3.5 lbs / 1.6 kg with hot-swappable batteries and built-in computing for on-device processing. A wired fiber-optic mode is available when you need it — work on the floor, in the field, or in the metrology room.
How you buy the FreeScan UE Nova from Additive Plus
Warranty, support, and ordering — what we put in writing.
1-year Shining 3D warranty
Standard 12-month Shining 3D warranty from the date of your purchase.
First-line support from California
Our team in California is your first line of support; warranty repairs are handled by Shining 3D.
Formal quotation, US invoicing
Formal quotation on our letterhead and US invoicing. Ship date confirmed by email after you order.
Large-Volume Metrology Performance
The FreeScan UE Nova measures at 0.072 mm accuracy and 0.072 + 0.012 mm/m volumetric accuracy with video photogrammetry, with a resolution of 0.5–10 mm and a field of view up to 102 × 87 in / 2600 × 2200 mm. Fifty blue laser lines capture 4,600,000 points/s, with a 2300 mm depth of field (300–2600 mm). Acceptance testing to VDI/VDE 2634 Part 3 and ISO 10360 is performed in Shining 3D’s ISO/IEC 17025 accredited lab. See the full specification table below.
Integrated VPG & Flexible Field of View
Integrated video photogrammetry builds a global reference frame as you scan, so large panels, castings, and structures are captured without coded markers. Three flexible FOV modes let one scanner cover the range: Near (300–800 mm) for detail, Standard (600–1500 mm) for general work, and Far (1200–2600 mm) for the largest parts. The scanner is compatible with normal, black, and reflective surfaces.
Software & Workflow
The UE Nova is compatible with SHINING3D Inspect, PolyWorks, Geomagic Control X, Geomagic Design X, EXModel Pro, and BlueStar Mapping. That supports deviation analysis, GD&T, and first-article reporting for large-scale component inspection and reverse engineering. VPG works with a calibration rod for real-time marker verification, and the scanner comes with lens filters for outdoor scanning.
Typical applications
Large-part inspection and reverse engineering across heavy industry.
Why Source the FreeScan UE Nova Through Additive Plus
- Authorized Shining 3D reseller in the US
- 1-year Shining 3D warranty
- First-line support from our team in California; warranty repairs by Shining 3D
- Formal quotation on our letterhead, US invoicing
Not sure the UE Nova is the right scanner?
Compare it with the other metrology scanners we support.
Dynamic trackingFreeScan Trak NovaView system →
Inspection softwareSHINING3D InspectView software →
| Brand | Shining 3D |
| Country of origin | China |
| Scanner Type | Wireless blue-laser handheld metrology scanner |
| Accuracy | 0.072 mm |
| Volumetric Accuracy | 0.072 mm + 0.012 mm/m (with VPG) |
| Scan Rate | 4,600,000 points/s |
| Laser Lines | 50 blue-laser lines |
| Resolution | 0.5 – 10 mm |
| Maximum Field of View | 102 × 87 in / 2600 × 2200 mm |
| Depth of Field | 2300 mm (300–2600 mm) |
| Flexible FOV Modes | Near 300–800 mm · Standard 600–1500 mm · Far 1200–2600 mm |
| Video Photogrammetry (VPG) | Included — no coded markers required (integrated VPG) |
| Surfaces | Normal, black, and reflective |
| Standards | VDI/VDE 2634 Part 3 & ISO 10360 acceptance test (tested in Shining 3D’s ISO/IEC 17025 accredited lab) |
| Software | Compatible: SHINING3D Inspect, PolyWorks, Geomagic Control X, Geomagic Design X, EXModel Pro, BlueStar Mapping |
| Interface | Wireless + wired (fiber optic); hot-swappable batteries |
| Weight | 1.6 kg, 3.5 lbs |
| Certifications | CE, FCC, RoHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX |
