APSX Mud Base

APSX Mud Base

$1,127

Standard size 6061 aluminum MUD

  • Platform:

    FIM

  • In stock

$1,127

Request a quote
  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

This mold comes with the bushings and pins installed. You just need to print your Nexa3D xMOLD.  The pins and bushings are tight fit and need to be pressed in by the machine or a manual press not by hand.

Dimensions: 4.8″W x 6.0″H x 3.0″D
Pins, bushings are installed.

Download the Nexa3D propeller mold drawings (STL)

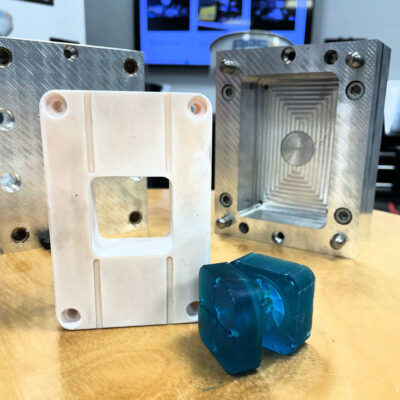

0000862_mud-base-for-nexa3d-xmold

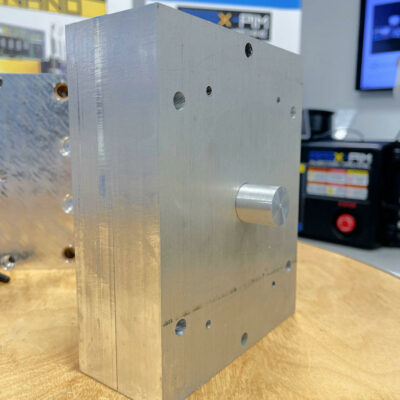

0000863_mud-base-for-nexa3d-xmold

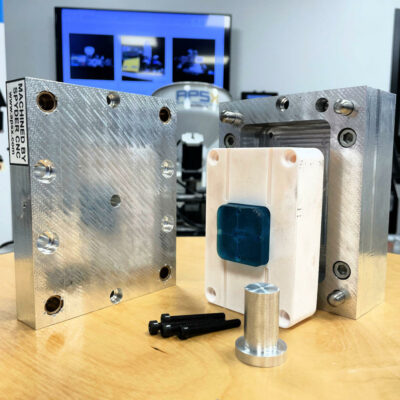

APSX Mud Base

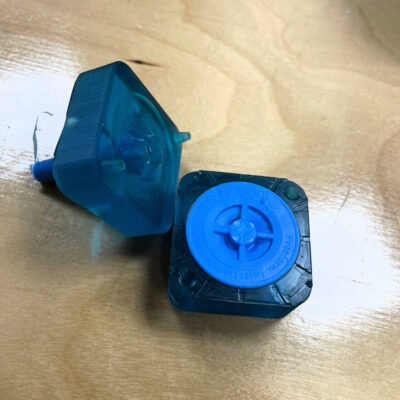

0000866_mud-base-for-nexa3d-xmold

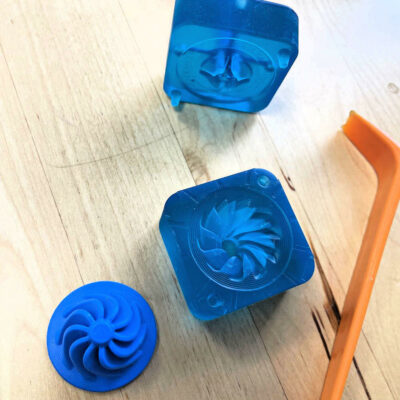

0000865_mud-base-for-nexa3d-xmold

Suggested parameters to start for PP material injection with nexa3D xMOLD for the propeller part:

Barrel temp 190C

Mold temp 30C or less than the room temperature to keep the fan ON all the time

Injection pressure 65 bars

Holding pressure 60 bars

Clamp force 1200 kg

Holding time: 11 secs

Cooling time: 45 secs

Clamp time: 9.5 secs

Cutoff amount: 10 cu-cm. 30% higher than the total shot volume estimated

First stage: 2 cu-cm. 25% of the total shot volume estimated

Valve 1st position: 170

Valve 2nd position: 200

Hopper Multiplier: 75

  • Brand APSX
  • Country of origin USA
  • Platform FIM
