In stock
In every order
- Validated cure profile + datasheet for the printers we sell
- Mutual NDA before any file or spec review
Materials, DLP 3D Printing Materials, Engineering, Manufacturing, Resin 3D Printing Materials · LSPc, DLP, XiP

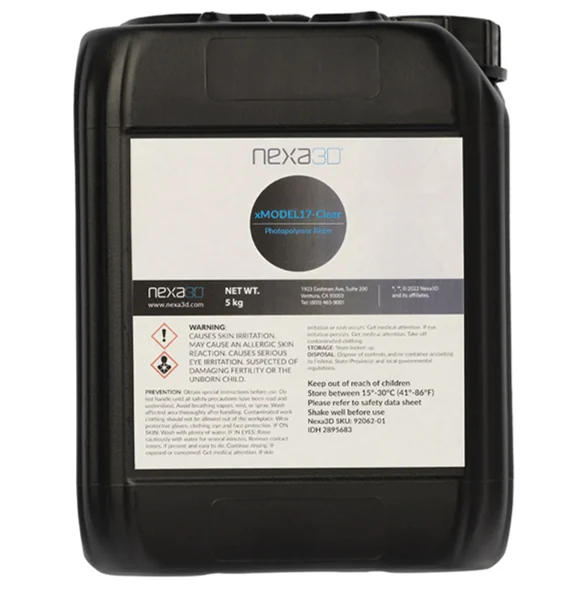

Nexa3D xMODEL17-Clear High-Clarity Prototyping Resin | 5 kg
xMODEL17-Clear is a high-clarity prototyping resin from Nexa3D — fine feature detail and transparency at very high print speed.
- ✓ High optical clarity for see-through models, fluidics, and light-transmitting prototypes
- ✓ Fine feature resolution with fast throughput on Nexa3D systems
- ✓ Genuine Nexa3D resin for NXE-series printers · 5 kg · ships from US stock in 2 business days
$647
Price held 7 days after order.
NDA standard
2 Business Days
Built for production teams
What your process engineer actually checks
Validated, load-and-print cure profiles
Every resin ships with a tested exposure/cure profile for the printers we sell and a datasheet covering viscosity, cure energy, mechanical properties, and shelf life. Dial the build in once, reorder the same chemistry.
An materials engineer on the line
Questions on layer adhesion, post-cure schedules, elongation, yellowing, or chemical resistance? A materials engineer answers directly. Most replies in under 4 hours, NDA standard.
About this product
Applications
- Figurines and Art pieces
- Lighting Applications
- Packaging concepts
PHYSICAL AND MECHANICAL PROPERTIES
| Tensile Modulus | ASTM D638 | 1213 MPa |
| Tensile Strength | ASTM D638 | 30 MPa |
| Elongation at Break | ASTM D638 | 22% |
| Flexural Modulus | ASTM D790 | 1467 MPa |
| Flex Strength | ASTM D790 | 57 MPa |
| Notched Izod | ASTM D256 | 47 J/m |
| HDT 0.45 MPa | ASTM D790 | 47 C |
| Water Absorption | ASTM D570 | 0.24% |
downloads
| Brand | Nexa3D |
| Available colors | Clear |
| Weight | 5 kg |
| Country of origin | USA |
| Printing Materials | Resins |
| Platform | NX |
| Technology | LSPc, DLP, XiP |
Don't see your resin?
We formulate and qualify. Custom variants on request.
Need a tuned resin, a filled or castable formulation, or a profile for a printer we don't list yet? Our materials team qualifies custom formulations and prints test specimens before you commit. Typical lead 2–4 weeks.
Other products teams run alongside Nexa3D xMODEL17-Clear High-Clarity Prototyping Resin | 5 kg
Composite Tooling · FFF
Zetamix 316L Steel Filament 1,75mm
Print 316L stainless-steel parts on a standard FFF printer, then sinter to dense, corrosion-resistant functional metal.
- ✔ Excellent corrosion resistance, ductile and well suited to functional parts
- ✔ Print → debind → sinter to dense 316L on a desktop FFF printer
- ✔ Genuine Zetamix by Nanoe · 500 g spool · lead time 10–20 business days (depending on order queue)
From $420
Add to cart
In stock
DLP 3D Printing Materials · LSPc, DLP, XiP
xMOLD Resin 5 kg
xMOLD is a high-performance dissolvable resin developed for Freeform Injection Molding (FIM). The resin is optimal prototyping injection molding parts without the hassle of complex mold design.
From $1960
Add to cart
In stock
Dental · LSPc, DLP, XiP
Nexa3D xMED412 Medical grade 3D Printing Resin
From $1750
Add to cart
On backorder
Engineering
Creatbot Wax Filament - 1kg
Castable wax filament for FDM 3D printing — prints burn-out-ready patterns with low ash and a smooth surface for investment casting in jewelry, dental, and small-metal-part production.
- ✓ ±0.02mm diameter tolerance — consistent extrusion, low jam risk
- ✓ Validated CreatBot F430 print profile + datasheet included
- ✓ In stock — request a quote for volume and lead time
In stock
Plastic Injection Molding Machine
Polypropylene (PP) CM500LN Natural Pellets - 2 lbs
Very High Flow Impact Copolymer for Thin-Wall Molding
Price is for a 2-lb unit. Minimum order: 5 units (10 lbs total).
From $75
Add to cart
In stock
· 1–2 Business Days
Cobalt Base · Metal LPBF
CoCrMo Powder - Cobalt Chrome Alloy for Metal 3D Printing | LPBF Compatible - 10 kg / 22 lbs
High-strength. Wear-resistant. Biocompatible. Genuine AVIMETAL CoCrMo cobalt-chrome (ASTM F75) for LPBF metal 3D printing.
- ✓ Gas-atomized, low-oxygen — full COA on every lot
- ✓ Non-magnetic / MRI-safe; strong value alternative
- ✓ Small workable volumes · fast dispatch from L.A.
Prints CoCrMo
From $1550
Get quote
In stock
· 10–20 business days
DLP 3D Printing Materials · LSPc, DLP, XiP
Nexa3D xMODEL35-Gray Resin 5kg
Rigid Resin with optimum combination of strength, stiffness and temperature resistance.
From $652
Add to cart
In stock
Composite Tooling · FFF, LFAM
Caracol PA6 Nylon Pellets – Structural GF Feedstock for Large-Format 3D Printing
Structural PA6 nylon pellets qualified for large-format additive manufacturing (LFAM) — high strength, wear resistance, and glass-fiber grades for load-bearing tooling at pellet cost.
- ✓ High strength and wear resistance — glass-fiber grades for structural loads
- ✓ Ships dry with a lot datasheet + a strict drying and extrusion schedule
- ✓ Lead time: 1–2 business days from L.A. stock — volume & PO on request
In stock
· 1–2 Business DaysFrom process engineers running Nexa3D xMODEL17-Clear High-Clarity Prototyping Resin | 5 kg
Unedited feedback from customers who reorder Nexa3D xMODEL17-Clear High-Clarity Prototyping Resin | 5 kg.
★★★★★
Cure profile loaded straight into our printer and hit spec on the first build. We stopped burning plates on test prints.
MK
Marcus K.
Process Engineer · Industrial Design
★★★★★
Asked about post-cure for a functional part on a Friday. A materials engineer replied Monday with actual elongation data.
PS
Priya S.
R&D Lead · Medical Devices
★★★★★
Batch-to-batch viscosity is identical. Surface finish is repeatable run after run — no resurprises.
DR
Diego R.
Production Lead · Consumer Products
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
Which printers is xMODEL17-Clear compatible with?
xMODEL17-Clear is formulated for Nexa3D NXE-series photoplastic printers and is a genuine Nexa3D resin validated for those systems. For the XiP desktop printer, order the 1.5 kg XiP version of xMODEL17-Clear instead.
Does xMODEL17-Clear stay clear over time?
xMODEL17-Clear prints with high optical clarity out of the wash-and-cure step. As with all clear photopolymers, final transparency and yellowing resistance depend on post-cure and finishing such as sanding and clear-coating; for the most optical result a clear coat is recommended. It is a prototyping resin, not a certified optical component.
What is xMODEL17-Clear used for?
It suits transparent prototypes where you need to see internal features or fluid flow — fluidic devices, lenses for form and fit review, light pipes, and clear housings. Fine feature detail and fast print speed make it a practical everyday clear resin.
Place your order, or talk to an engineer first
Order Nexa3D xMODEL17-Clear High-Clarity Prototyping Resin | 5 kg direct, or talk to materials engineer
