Made to order
- Validated cure profile + datasheet for the printers we sell
- Mutual NDA before any file or spec review

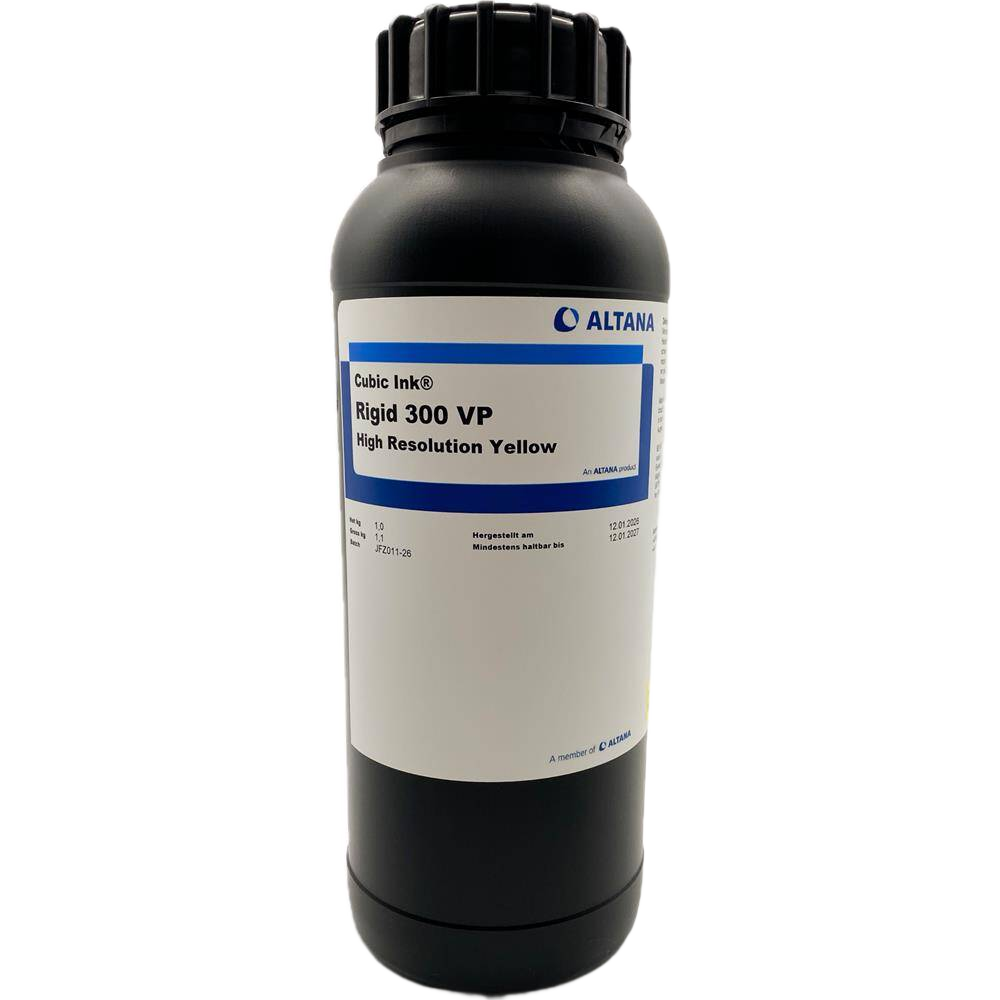

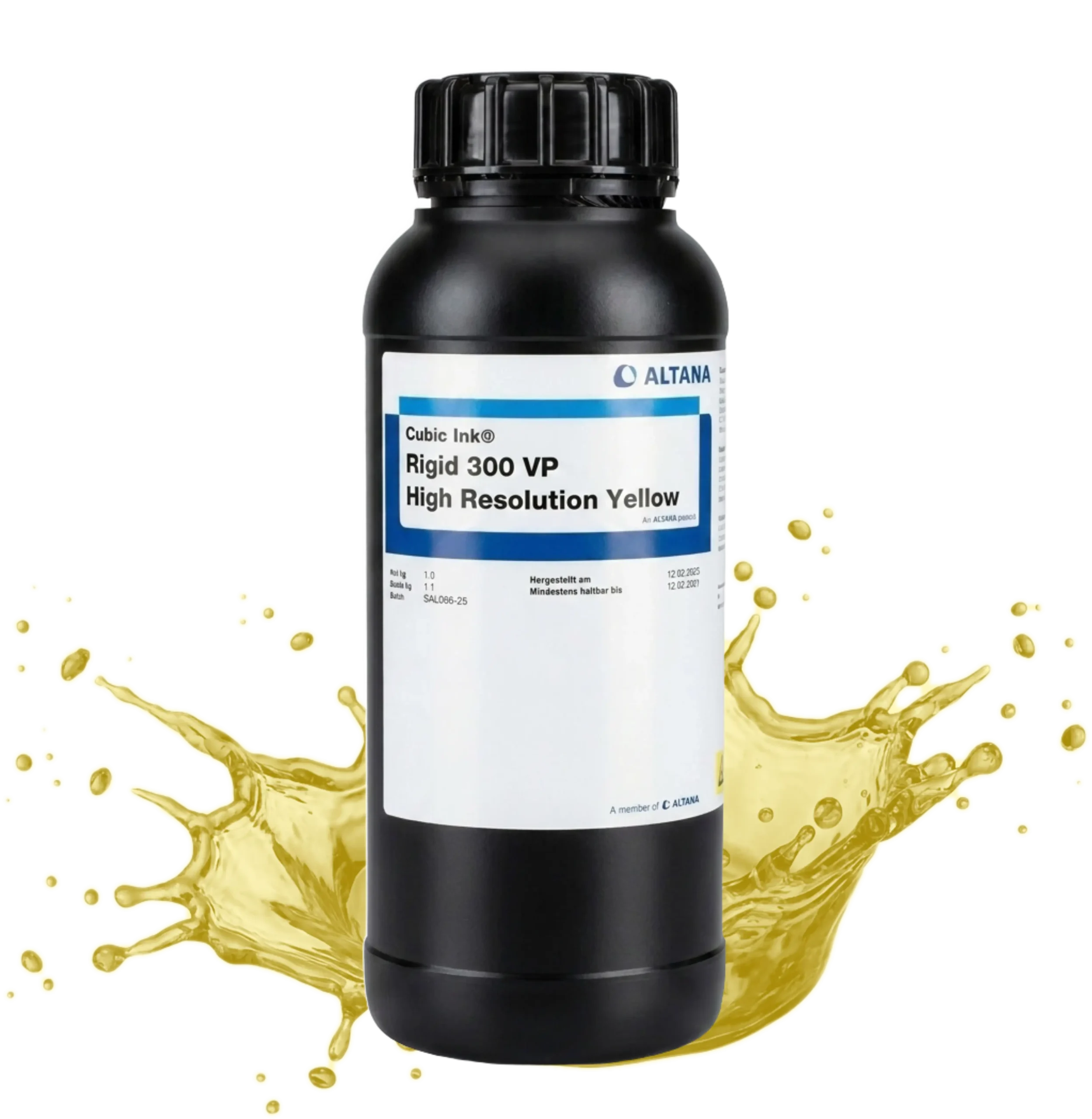

ALTANA Cubic Ink Rigid 300 VP High Resolution – Fine-Detail Precision Resin (DLP/LCD/mSLA)
Rigid resin engineered for outstanding printing resolution — ultra-thin layers and crisp XY detail at high print speed, with low water uptake for dimensional stability in fluids.
- ✓ Ultra-thin layers & crisp XY resolution — fine-detail precision parts
- ✓ 37 MPa tensile · 1900 MPa modulus · 8% elongation — rigid yet not brittle
- ✓ Very low water uptake (0.3%) & strong chemical resistance
- ✓ Fast printing thanks to high reactivity
What your process engineer actually checks
Resolution and stability we can validate
The ultra-thin depth of penetration, 37 MPa tensile and 0.3% water uptake come straight from the ALTANA TDS. We help set exposure and post-cure so fine features print crisp and stay dimensionally stable.
A materials engineer on the line
Factory-trained support, not a remote ticket queue. We help you dial in fine detail on your printer. Sub-24h reply, NDA on request.
ALTANA Cubic Ink Rigid 300 VP High Resolution is a rigid resin engineered for outstanding printing resolution — ultra-thin layers and crisp XY detail at high print speed, with low water uptake for dimensional stability in fluids.
Why engineers choose Rigid 300 VP
Fine-detail precision without brittleness.
Outstanding resolution
Ultra-thin layers and crisp XY detail (Dp 0.08–0.10 mm) for fine features and smooth surfaces.
Rigid yet not brittle
37 MPa tensile strength, 1900 MPa modulus, 8% elongation and 9.4% deflection at fracture.
Stable in fluids
Very low 0.3% water uptake and strong chemical resistance (mostly under 0.1% mass gain).
Fast printing
High reactivity enables quick exposure and high throughput on DLP/LCD systems.
Technical properties
Measured on yellow resin (TDS v2). Post-cured 2×30 min UV, Prusa CW1s.
| Property | Value | Method |
|---|---|---|
| Viscosity (25 °C) | 170 mPa·s | DIN EN ISO 3219 |
| Density | 1.05 g/mL | DIN EN ISO 15212-1 |
| Depth of penetration (405 / 385 nm) | 0.08 / 0.10 mm | — |
| Ultimate tensile strength | 37 MPa | DIN EN ISO 527-5A |
| Tensile modulus | 1900 MPa | DIN EN ISO 527-5A |
| Elongation at break | 8.0 % | DIN EN ISO 527-5A |
| Flexural strength / modulus | 57 / 1800 MPa | DIN EN ISO 178 |
| Izod, notched | 17 J/m | DIN EN ISO 180 |
| Shore hardness | 80 D | DIN EN ISO 7619 |
| HDT-B | 52 °C | DIN EN ISO 75 |
| Water uptake (24 h) | 0.3 % | Internal |
| Color | Translucent yellow | — |
A similar option to Loctite PRO9274
Same fine-detail class, with higher strength and modulus.
| Property | Loctite PRO9274 | Cubic Ink Rigid 300 VP HR |
|---|---|---|
| Ultimate tensile strength | 33 MPa | 37 MPa |
| Tensile modulus | 1500 MPa | 1900 MPa |
| Elongation at break | 7 % | 8.0 % |
| HDT (0.45 MPa) | 52 °C | 52 °C |
| Shore hardness | 80 D | 80 D |
Higher tensile strength, modulus and elongation at the same hardness and HDT. Talk to us about the best fine-detail fit for your parts.
Typical applications
Where fine detail matters.
How you run it
Print → wash → UV post-cure.
LCD / DLP / mSLA at 385 or 405 nm, ultra-thin layers. Stir before use.
Wash
Cubic Ink Cleaner 400 or IPA; dry with compressed air.
Post-cure
UV post-cure (2×30 min, Prusa CW1s or equivalent) for full properties.
| Size | 1 kg, 5 kg |
| Brand | ALTANA Cubic Ink |
We formulate and qualify. Custom variants on request.
Need a tuned resin, a filled or castable formulation, or a profile for a printer we don't list yet? Our materials team qualifies custom formulations and prints test specimens before you commit. Typical lead 2–4 weeks.
