Optical analyzer - Inverse macroscope
QATM QEYE 800 Optical Weld Inspection Analyzer – 8.5 MP Macroscope, 35× Zoom
Compact optical analyzer and inverse macroscope for standard-compliant weld-seam inspection and macro analysis — 8.5 MP 4K camera, 35× combined zoom and Intelligent Area Illumination.
- ✔ 8.5 MP 4K camera · 20× optical / 35× combined zoom
- ✔ Field of view 80×60 mm to 2.3×1.7 mm · IAI LED illumination
- ✔ DIN EN ISO 5817 weld reports · Qpix Control2 (shared with hardness testers)
- ✔ Lead time: configured to order — request current timeline
Price held 7 days after order.
Install + training included
Tailored service plan
Built for weld-QC and metallography teams
What your metallography lab actually checks
Weld inspection to the standard

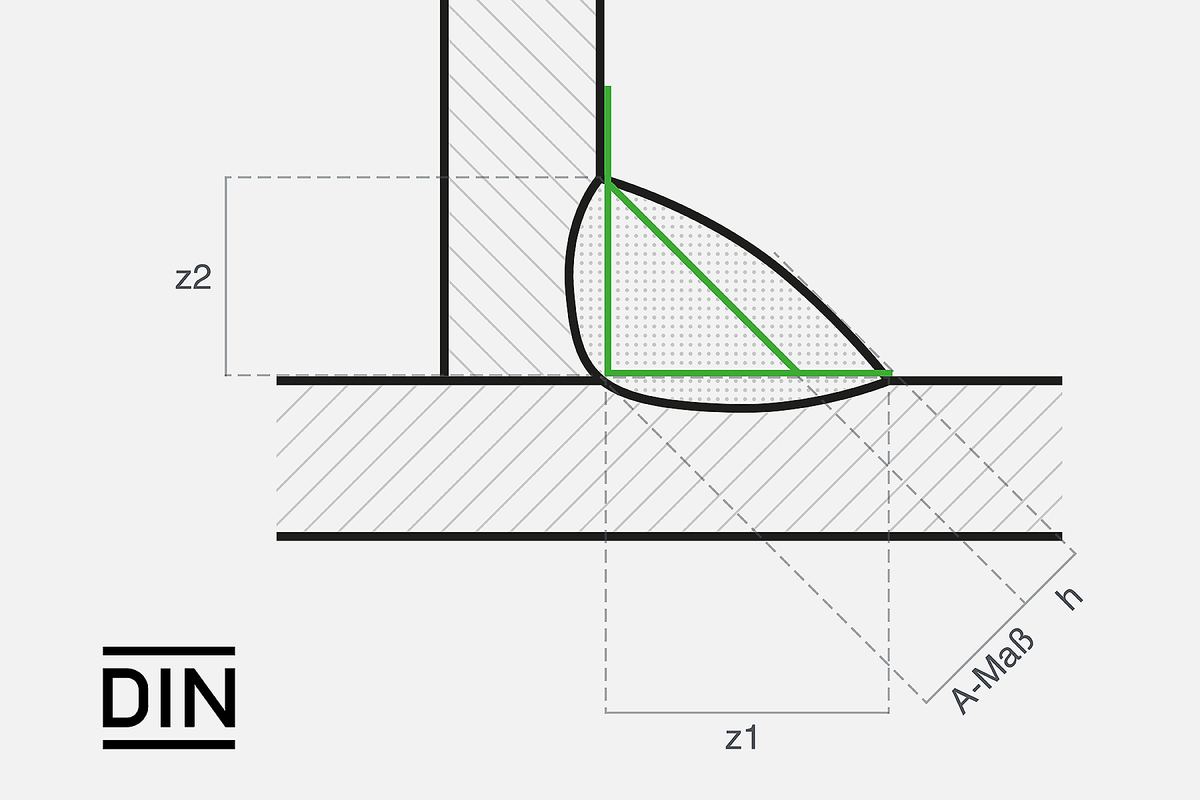

Qpix Control2 ships with the A-dimension, depth of burn-in, evaluation limits and a DIN EN ISO 5817-compliant report, plus templates and the QATM standard catalog. Intelligent Area Illumination removes grinding reflections so measurements are fast and defensible.
An applications engineer on the line
Template setup, calibration and shared hardness-and-macro reporting from engineers who run materials characterization in-house. Sub-4h reply, NDA standard.
8.5 MP
4K camera
35×
Combined zoom
80–2.3 mm
Field of view
IAI LED
Illumination
ISO 5817
Weld standard
About this product

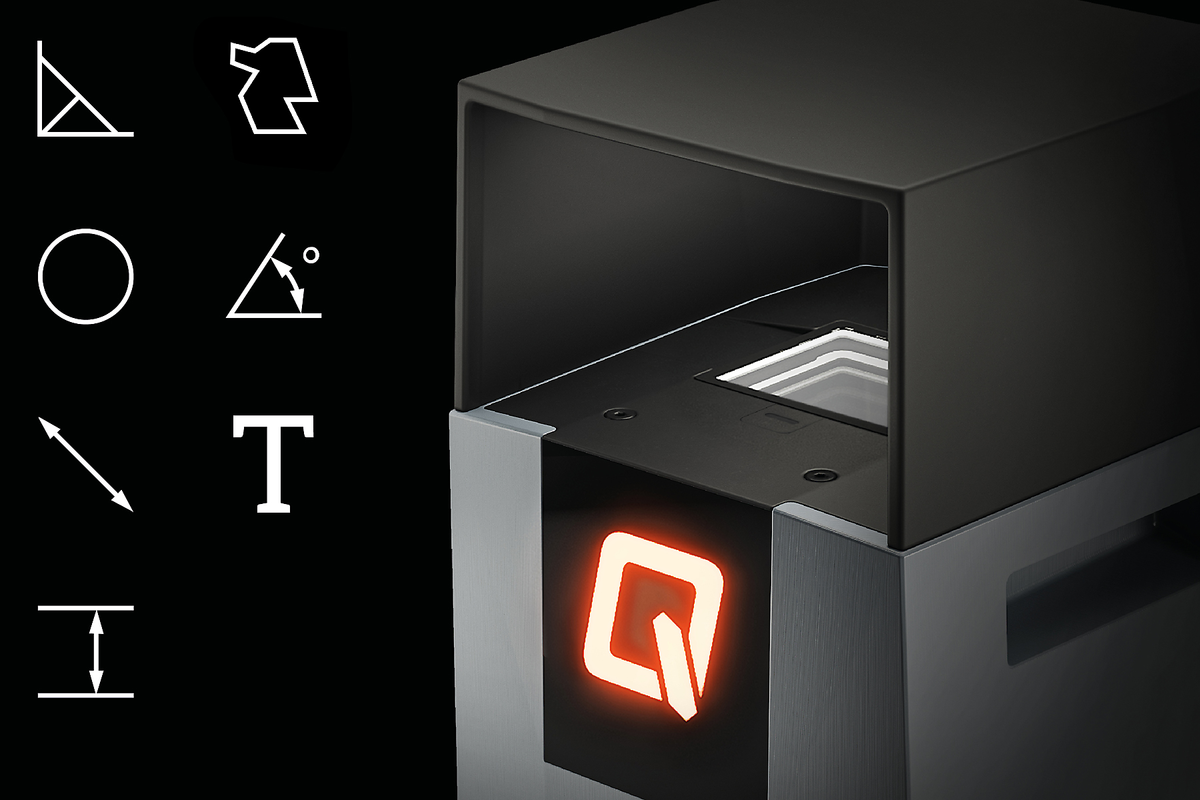

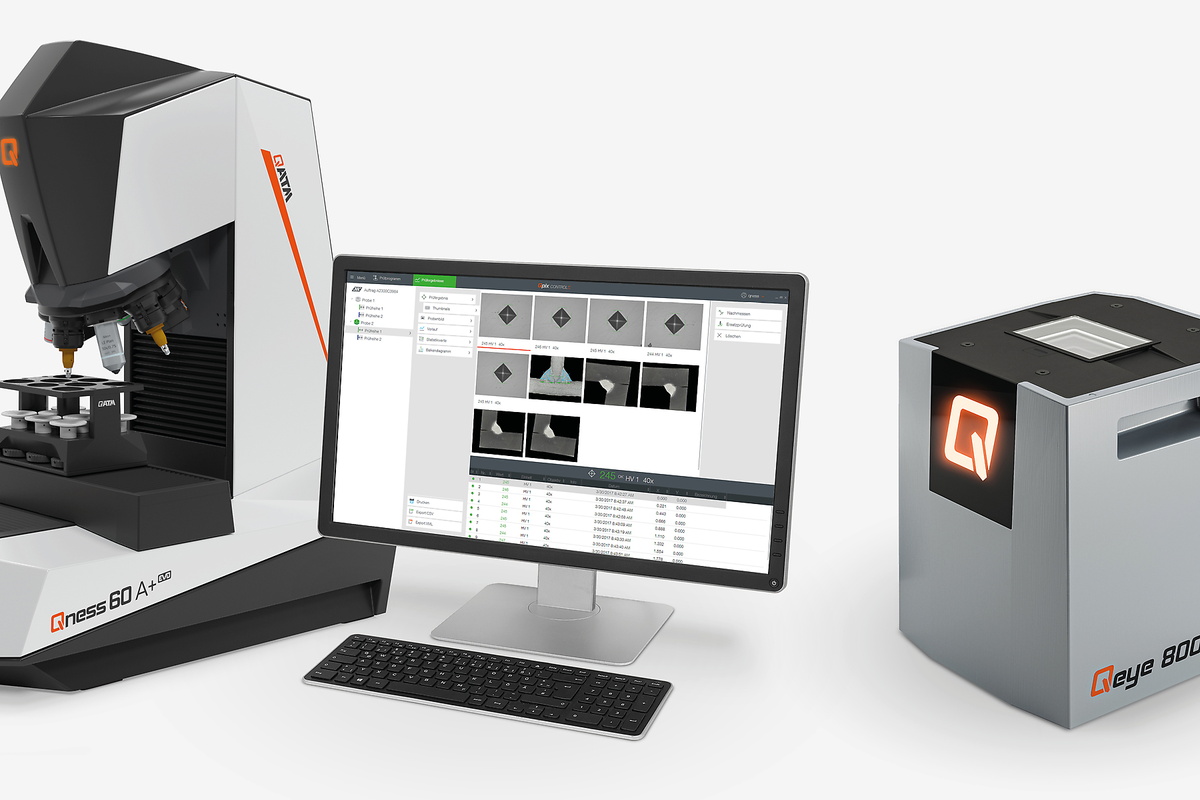

The QATM QEYE 800 is a compact optical analyzer and inverse macroscope for fast, standard-compliant weld-seam inspection and macro analysis. An 8.5-megapixel 4K camera with 20× optical and 35× combined zoom, a wide 80×60 mm to 2.3×1.7 mm field of view, and Intelligent Area Illumination let you measure lengths, angles and areas on a specimen in seconds — driven by Qpix Control2, the same software as QATM hardness testers.
Why metallography and weld-QC labs choose the QEYE 800
Standard-compliant weld and macro measurement in one small, fast unit.
8.5 MP, 35× combined zoom

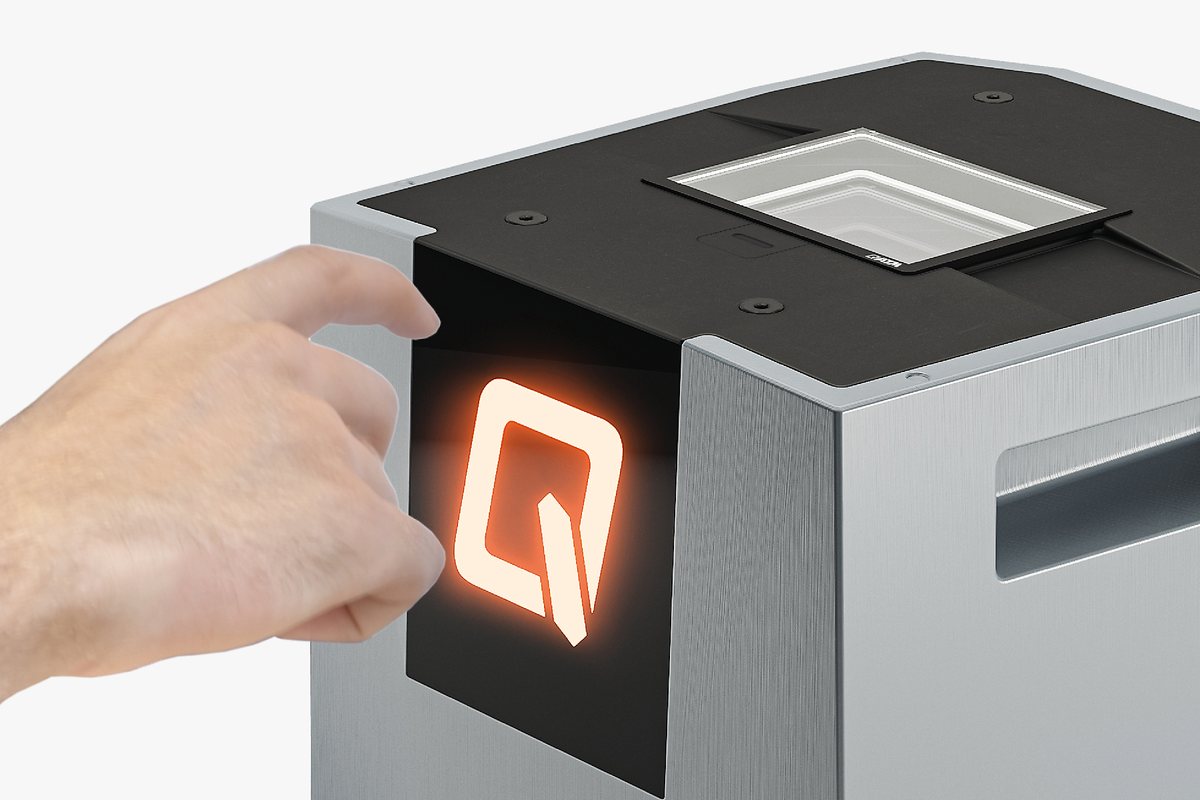

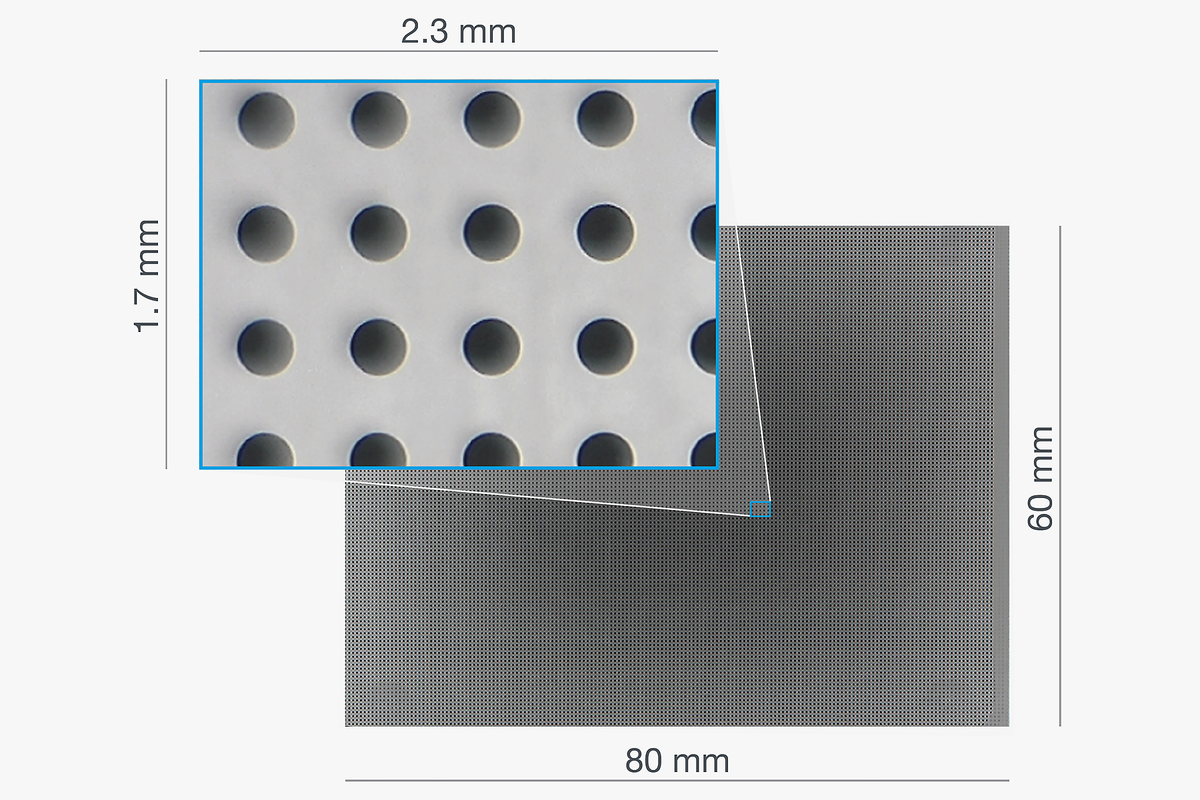

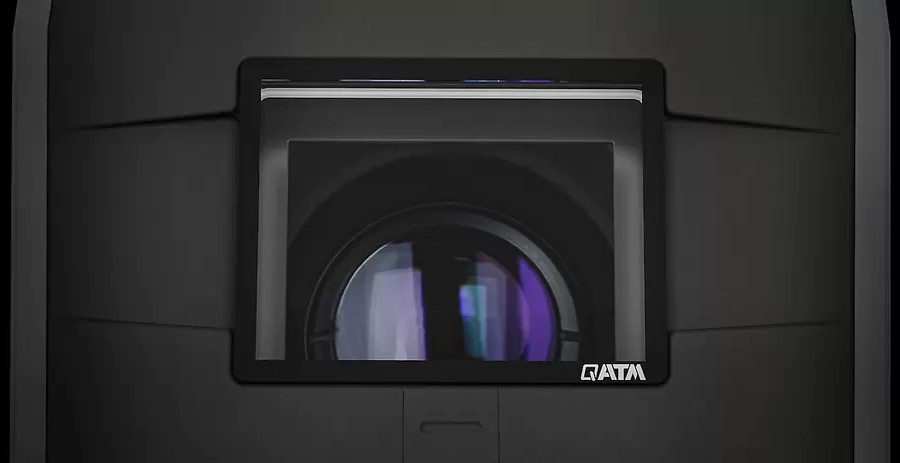

A 4K color camera with 20× optical plus digital zoom resolves the smallest weld detail while keeping the whole specimen in view — field of view 80×60 mm down to 2.3×1.7 mm.
Intelligent Area Illumination

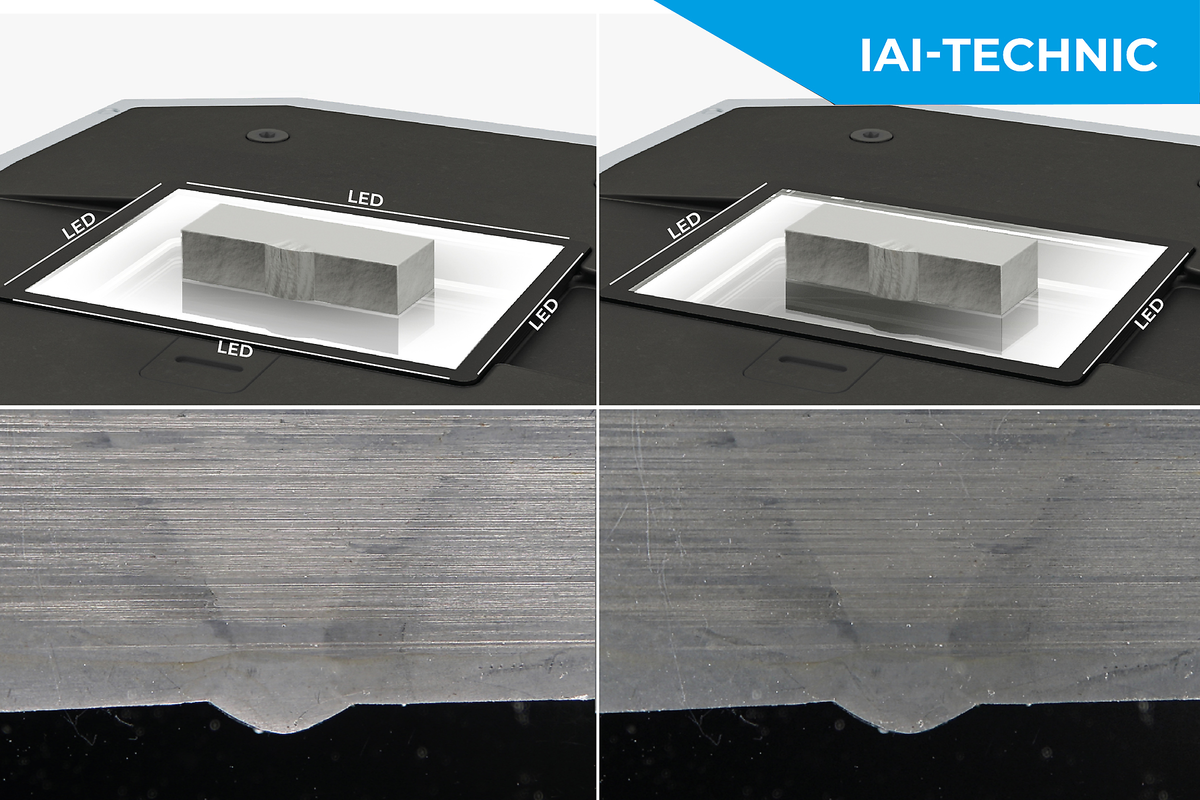

Four LED profiles (left, right, front, rear) switch independently, so grinding reflections and stray light no longer disturb the measurement — faster, more precise inspection.
Weld inspection to DIN EN ISO 5817

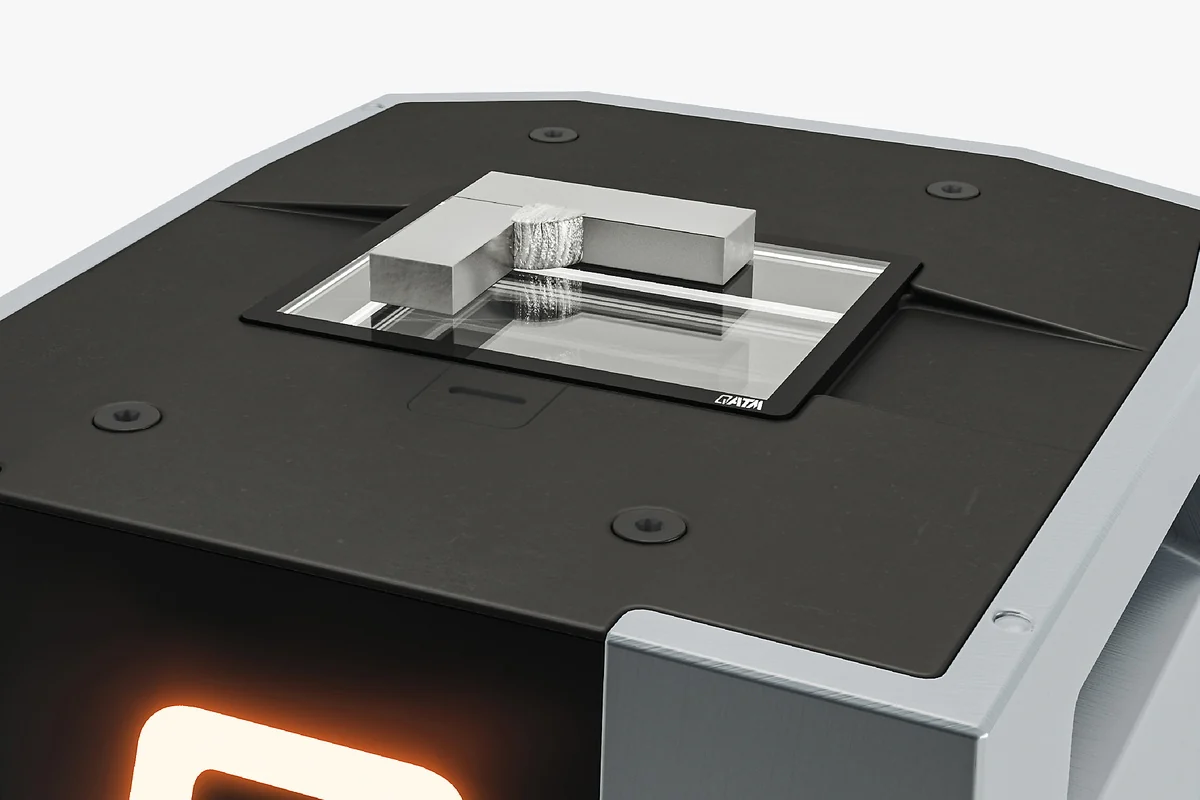

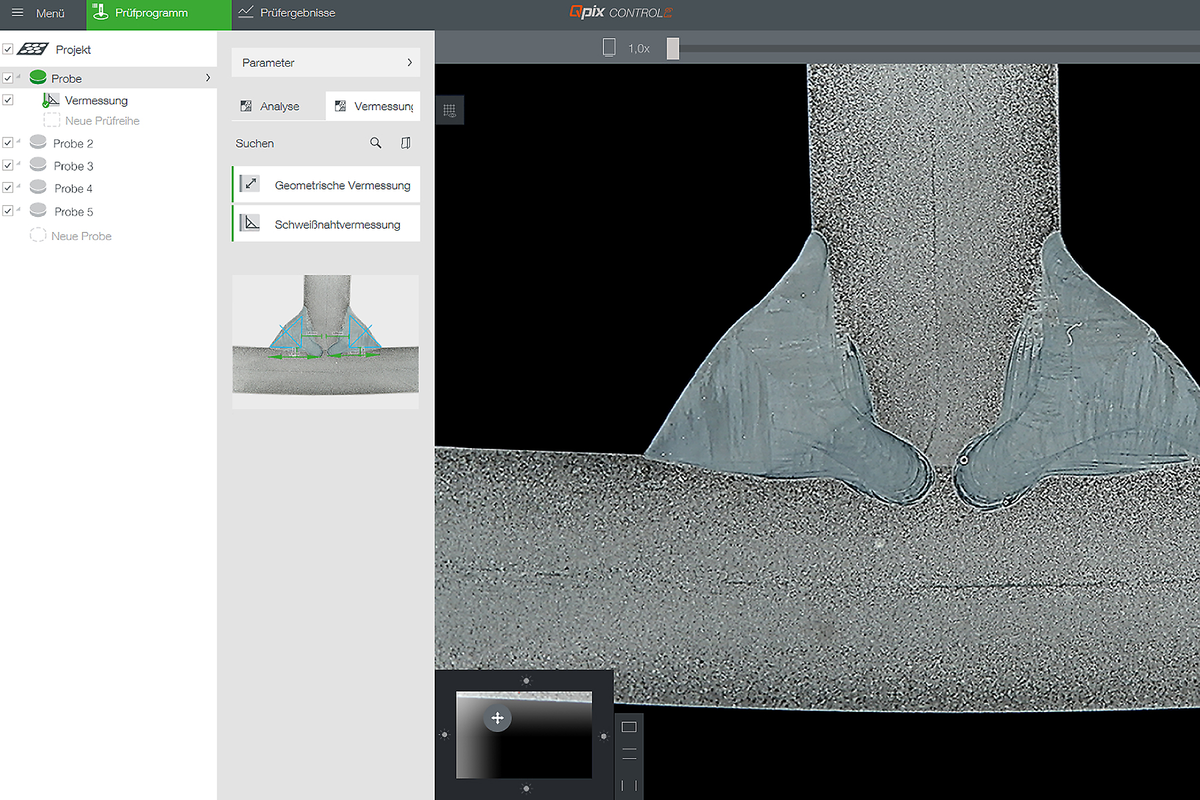

Qpix Control2 includes the A-dimension, depth of burn-in, evaluation limits and a standard-compliant report — plus templates and the QATM standard catalog preinstalled.
One software with hardness testing

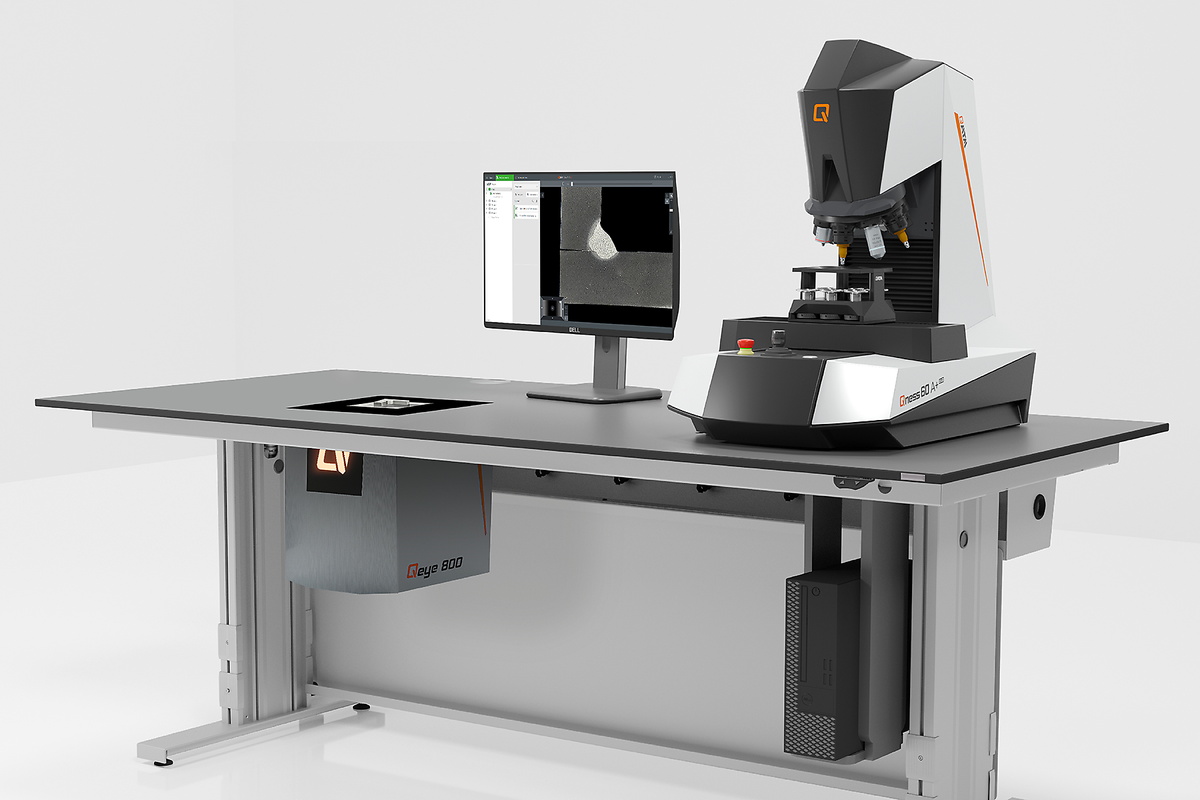

Macro analysis and hardness testing share Qpix Control2 on a single PC — live image, 3D SmartView and one uniform reporting system across your QATM line.
How Additive Plus supports it
A configured, installed analyzer with your inspection templates ready to run.
Step 01
Configure to your work
We set up the sample carriers, illumination profiles and Qpix Control2 templates for your weld or macro specimens before it ships.
Step 02
Install & train
Factory-trained engineers install, calibrate with the object micrometer and train your team on measurement and reporting.
Step 03
Method & QC support
We help build the SOP — DIN EN ISO 5817 weld reports, macro templates and, where relevant, a shared hardness-and-macro workflow.
What the QEYE 800 offers
Full technical specifications are in the Specifications tab. Key capability:
| Parameter | QEYE 800 |
|---|---|
| Camera | 8.5 MP, 4K Ultra HD color, USB 3.0 |
| Zoom | 20× optical · 35× combined (optical + digital) |
| Field of view | 80×60 mm to 2.3×1.7 mm · manual focus for non-planar parts |
| Illumination | Intelligent Area Illumination — 4 independent LED profiles |
| Software | Qpix Control2 (shared with QATM hardness testers) |
| Standards | Weld inspection per DIN EN ISO 5817 |
Typical applications
Fast optical measurement and inspection in the metallography lab.
Weld seam inspection
A-dimension, burn-in, ISO 5817
Macro-etch analysis
Structure & defect review
Coating & case depth
Layer thickness measurement
Hardness-test integration
Shared Qpix reporting
AM part cross-sections
Porosity & fusion review
QC documentation
Standard reports & templates
Complete your metallography line
The QEYE 800 sits at the end of a QATM sample-prep and testing workflow.
Hardness testingQATM QNESS 10/60 MView system →
Grinding & polishingQATM QPOL 250 BOTView system →
Brinell hardnessBrinell Testing PlantView system →
Grinding & polishingQATM QPOL 250 BOTView system →
Brinell hardnessBrinell Testing PlantView system →
Tell us what you inspect — weld seams, macro-etch, coatings or AM cross-sections — and your standard, and our applications engineer will confirm the right QEYE configuration and pair it with sample prep and hardness testing. Sub-4h reply, NDA standard.
Why source the QEYE 800 through Additive Plus
- Authorized channel for QATM lab equipment — sales, installation, training and service in one place.
- Full metallography line — sample prep, hardness testing and optical analysis from one partner, on one Qpix software.
- Method development on your specimens — DIN EN ISO 5817 weld reports, macro templates and calibration.
- <24h response from engineers who run materials characterization in-house. NDA standard.
| Brand | QATM |
| Zoom | optical: 1x - 20x, digital: 30x - 35x |
| Camera | 4K Ultra HD - 8.5 megapixel - USB 3.0 |
| Illumination | IAI - LED unit (Intelligent Area Illumination) |
| Software | Qpix Control2 |
| Machine operation | external PC system (Windows 11 64-bit) |
| Dimensions glass sample carrierr (L x W x H) | 95 x 75 x 2 mm (3.7 x 3.0 x 0.08“) |
| Max. sample weight | 5 kg (11 lbs) |
| Interface | 1 x USB 3.0 |
| Power supply | 100 - 240 V ~1/N/PE, 50 - 60 Hz |
| Power Consumption | Idle: ~35 W Operation: ~60W Max. ~100 W |
| Dimensions | 220 x 220 x 260/365* mm (8.7 x 8.7 x 10.2/14.3“) *inkl. Qeye cover |
| Space requirement | 300 x 300 mm (11.8 x 11.8“) |
| Weight | 16 kg (35.3 lbs) |
| Ambient temperature | 18 - 28 °C (64 - 82 °F) |
| Humidity maximum | maximum 70 % - non-condensing |
Product videos
From weld-QC and metallography labs running the QATM QEYE 800
Unedited feedback from inspection teams.
★★★★★
Weld macro reports to ISO 5817 that used to take a microscope and manual measuring now take seconds, with a clean standard report.
DH
Dieter H. Weld QC Inspector · Steel fabrication
★★★★★
Running macro and hardness in the same Qpix software on one PC simplified our reporting a lot.
CB
Carla B. Lab Manager · Metallography
★★★★★
The switchable LED illumination finally killed grinding reflections — measurements are consistent operator to operator.
IR
Ivan R. Quality Engineer · Plant engineering
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
What is the QATM QEYE 800 used for?
The QEYE 800 is an optical analyzer and inverse macroscope for measuring and inspecting weld seams, solder joints and macro-sections directly on the specimen. It captures a high-resolution image and lets you measure lengths, angles, circles and polygons in seconds. It is widely used in steel construction, plant engineering and general materials testing where weld shape, penetration depth and defects must be assessed reliably.
Does the QEYE 800 support weld inspection to DIN EN ISO 5817?
Yes. The Qpix Control2 software includes the tools required for DIN EN ISO 5817 weld inspection as standard — the A-dimension, depth of burn-in, evaluation limits and a standard-compliant inspection report. Individual customer templates and the QATM standard catalog are preinstalled, so routine weld reports are fast and consistent.
What magnification and field of view does it offer?
The QEYE 800 uses an 8.5-megapixel 4K color camera with 20× optical zoom and 35× combined optical-plus-digital zoom. The field of view varies from 80×60 mm down to 2.3×1.7 mm, so you can keep the whole specimen in view or zoom to the smallest detail. Autofocus and brightness are automatic, and the focus plane can be adjusted manually for non-planar parts.
What is Intelligent Area Illumination?
Intelligent Area Illumination (IAI) is the QEYE's LED lighting system with four profiles — left, right, front and rear — that can be switched on or off individually and smoothly. This lets you light the specimen to suppress grinding reflections and stray light, which makes weld and macro measurements faster, more precise and more repeatable between operators.
Can it share software with a hardness tester?
Yes. The QEYE 800 runs on Qpix Control2, the same software as QATM hardness testers, so hardness testing and optical macro analysis run on one PC with a uniform reporting system, live image and 3D SmartView. If you already run a QATM hardness tester, the QEYE integrates into the same workflow rather than adding a separate software island.
What is included with the QEYE 800?

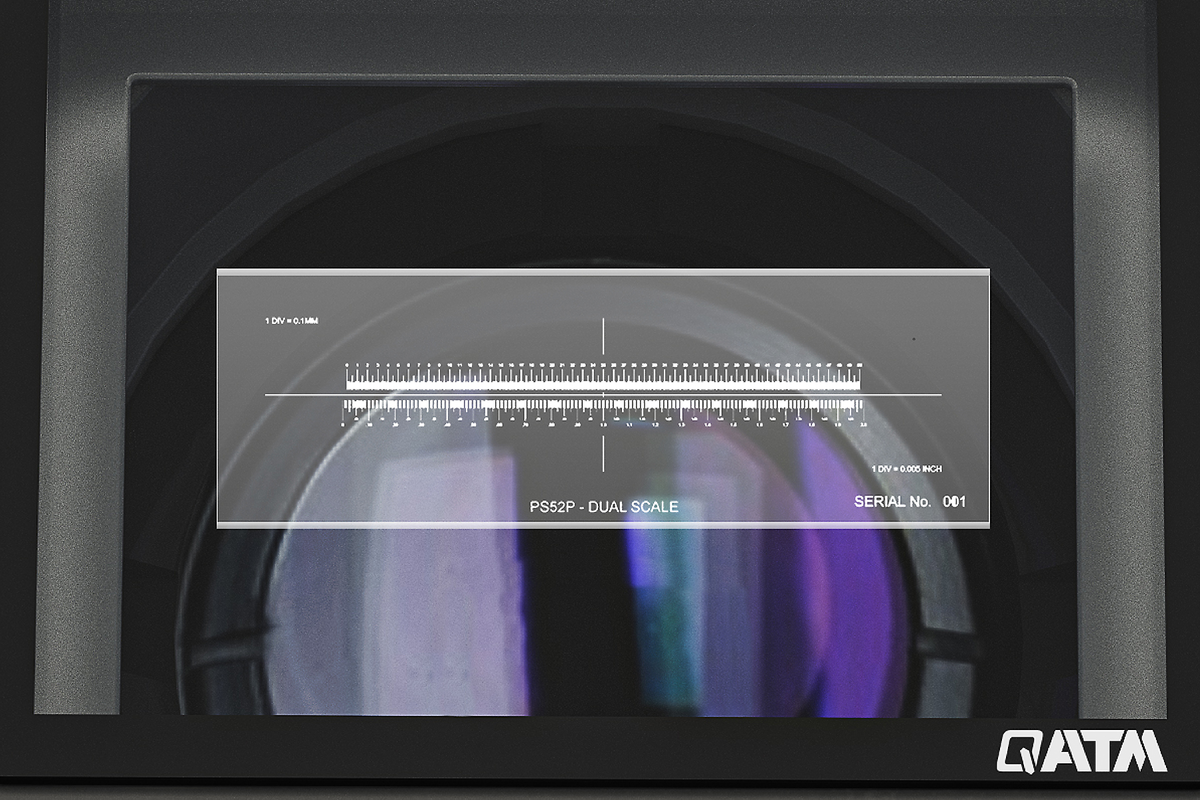

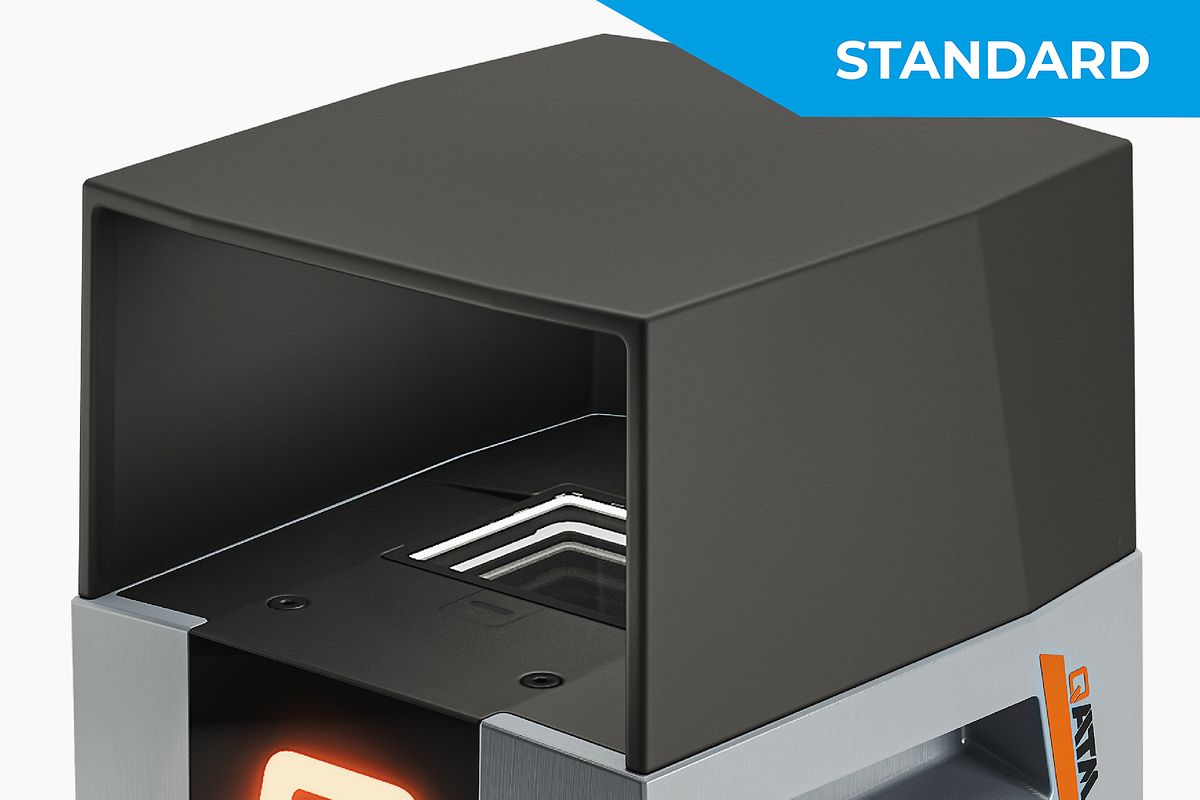

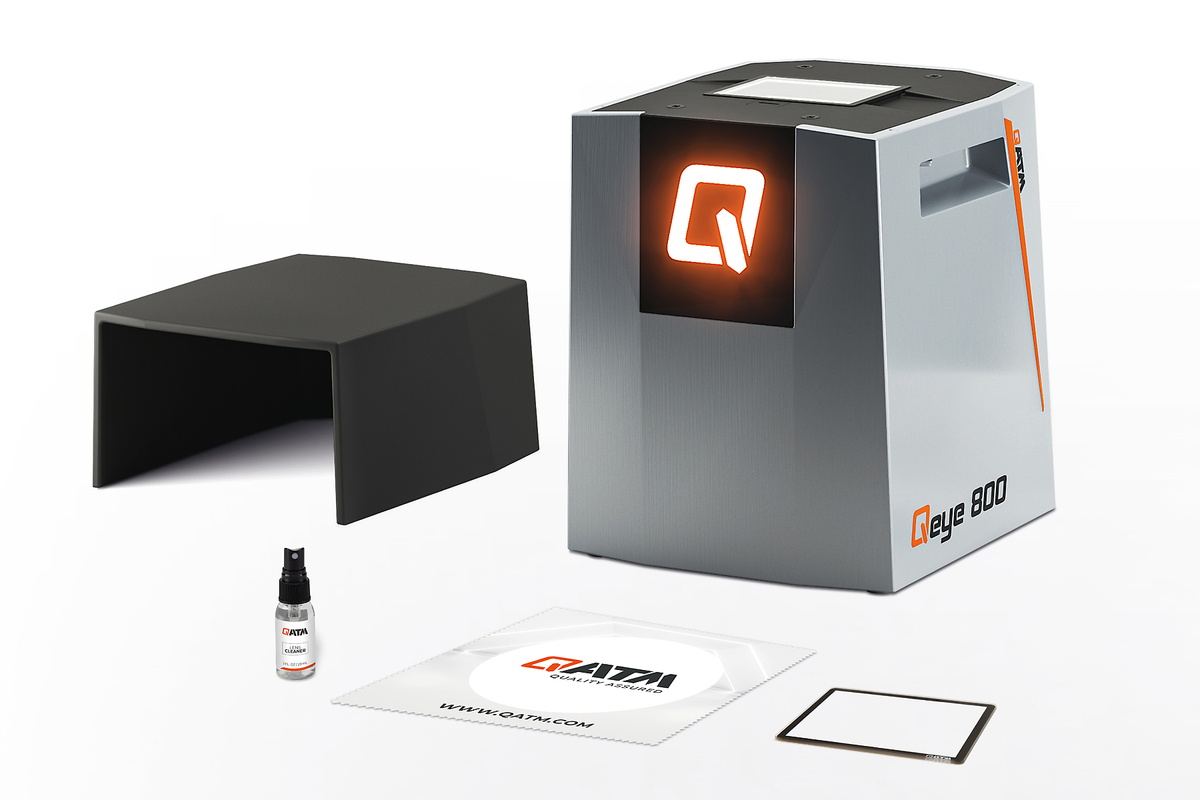

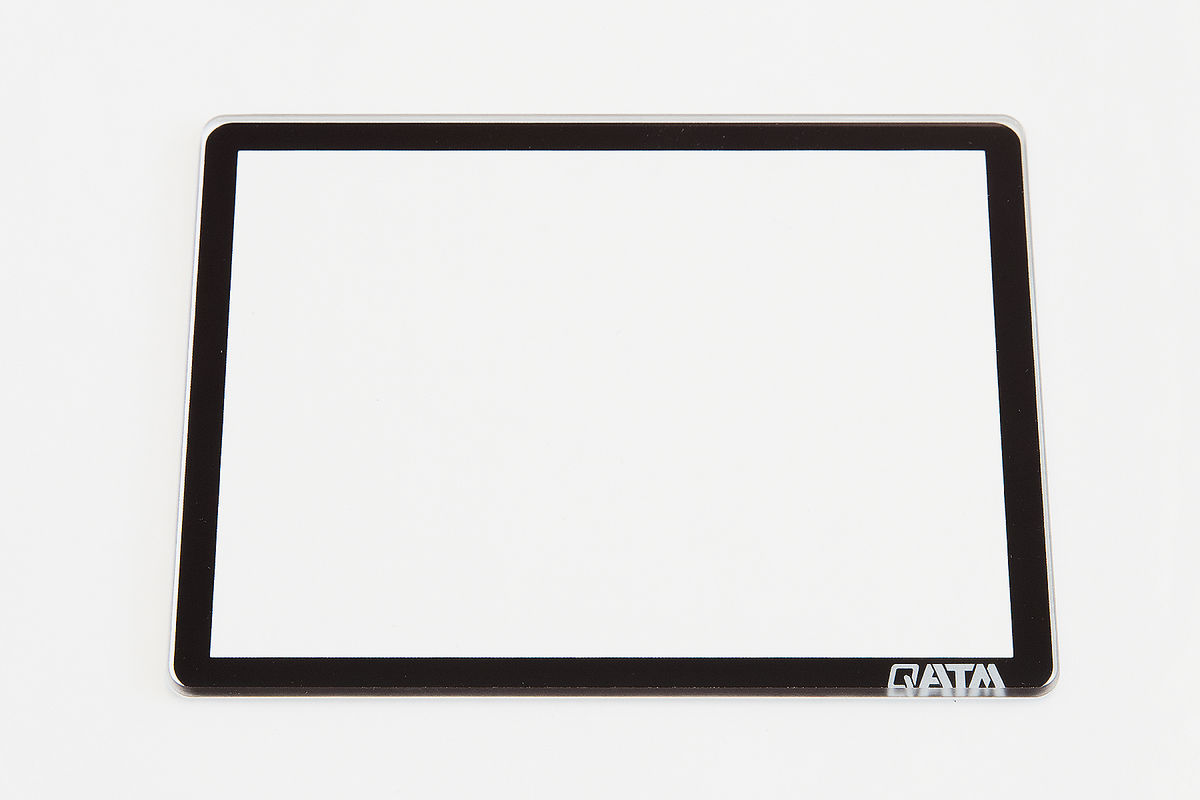

Every QEYE 800 ships with the shielding cover that eliminates stray light, and a 50 mm object micrometer (0.1 mm resolution) for verifying optical magnification. Borosilicate glass sample carriers with an anti-reflective coating are available in sets of five, optionally in tempered glass, and a UKAS-certified micrometer is available as an option. Additive Plus configures the templates and calibration for your work before delivery.
What is the lead time, and can Additive Plus set it up?
The QEYE 800 is configured to order; request a quote for the current lead time. Additive Plus is an authorized QATM channel and handles installation, object-micrometer calibration and operator training, then helps build your SOP — DIN EN ISO 5817 weld reports and macro templates. We can also pair it with QATM sample-prep and hardness testing for a complete metallography line. Sub-4h reply, NDA standard.
