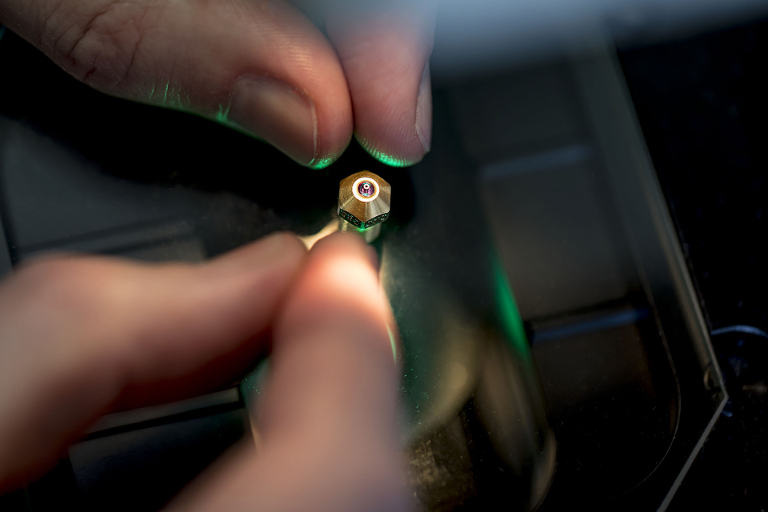

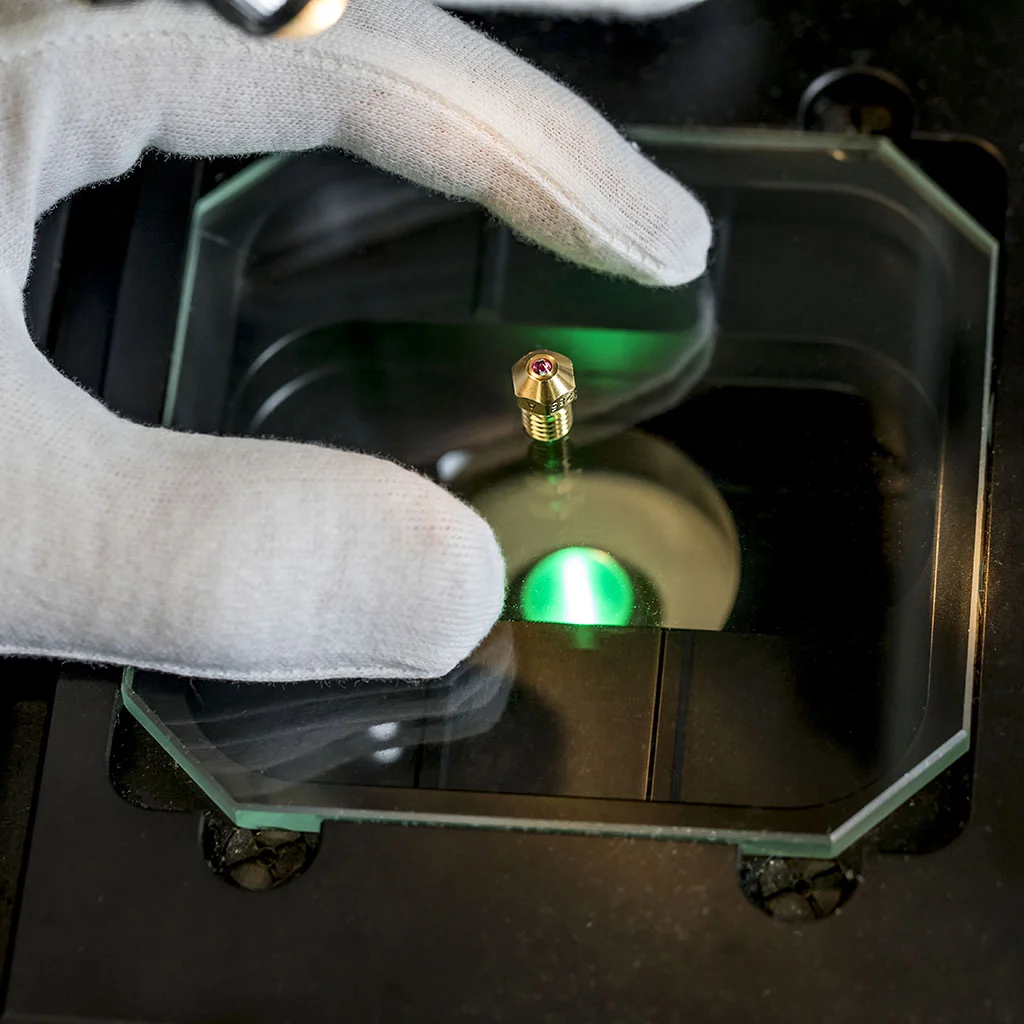

3DVerkstan Olsson Ruby 0.8 mm Nozzle for 1.75 mm Filament – Wear-Resistant Abrasive Nozzle
Genuine 3DVerkstan Olsson Ruby 0.8 mm nozzle for 1.75 mm filament — a synthetic-ruby tip in a brass body for abrasive composites.
- ✓ 0.8 mm orifice · 1.75 mm filament · standard M6 (E3D V6 / Olsson) thread
- ✓ Ruby tip resists carbon fiber, glass fiber, steel, and boron carbide fills
- ✓ Made to order — typically ships in 1–2 weeks
$90
Built for abrasive materials
Ruby tip, brass body

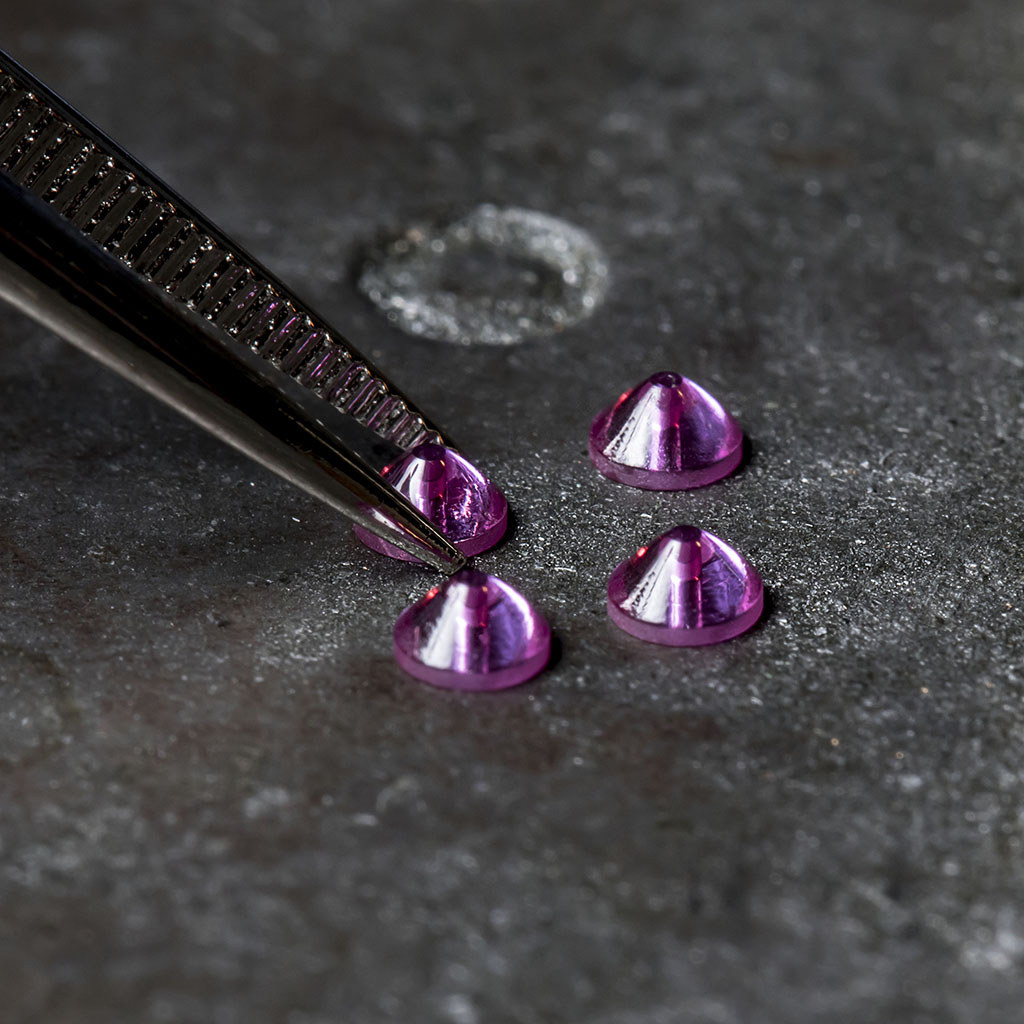

The 0.8 mm orifice is synthetic ruby — hard enough for carbon fiber, glass fiber, steel-fill, and even boron carbide — set in a brass body that conducts heat for high throughput. One nozzle handles both standard and abrasive filaments.
A materials engineer on the line
Choosing a nozzle diameter or dialing in an abrasive composite? Our engineers run these materials — sub-4h reply, NDA on request.
Compatibility & Specifications
The 3DVerkstan Olsson Ruby is a 0.8 mm hardened nozzle for 1.75 mm filament, with a synthetic-ruby orifice set in a brass body. The ruby tip resists abrasion from filled and composite filaments, while the brass body keeps heat conductivity — and throughput — high. It uses the standard M6 nozzle thread, so it fits hotends built around the E3D V6 / Olsson geometry, including the Ultimaker 2 / 2+ (via the Olsson block) and V6-based printers. The 0.8 mm orifice suits faster printing and higher extrusion flow.
Built for Abrasive Materials
The ruby orifice was originally developed for printing boron carbide (B4C), one of the hardest known materials. In practice it prints PLA, ABS, CPE/PET and nylon, plus abrasive composites filled with carbon fiber, glass fiber, steel, wood, tungsten, and phosphorescent pigment — where a standard brass nozzle would wear open in hours. One nozzle covers both standard and abrasive jobs.
Why Source Through Additive Plus
Genuine 3DVerkstan Olsson Ruby, supported by a team that runs these materials. This is a made-to-order item — typically 1–2 weeks — and every order ships with a response in under 24 hours.
| Brand | 3DVerkstan |
