QATM OPAL 410 Automatic Hot Mounting Press – Hydraulic, Water-Cooled | Ø 25.2–40 mm
The QATM OPAL 410 is a fully automatic, hydraulic hot mounting press that embeds metallographic and AM specimens in thermosetting resin before grinding and polishing — mould assemblies Ø 25.2–40 mm, 20–200 °C, up to 450 bar.
- ✔ Fully automatic cycle — set pressure, heating and water-saving cooling, then press start
- ✔ Two mounts at once with a spacer; six selectable pressures by sample size

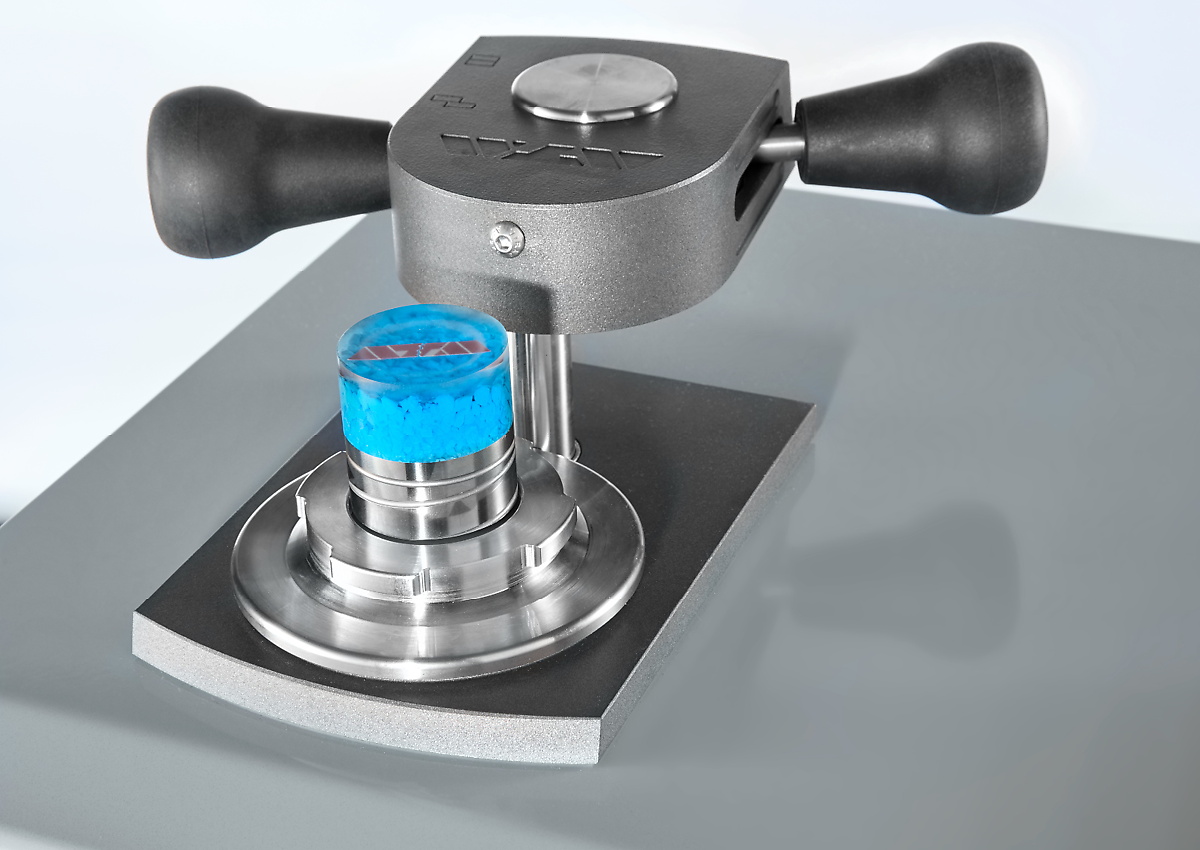

- ✔ Tool-free bayonet closure; solid powder-coated aluminium, water-cooled, quiet hydraulics
- ✔ Lead time: configured to order — request the current timeline
What your metallography lab actually checks
Edge retention to the surface
Hot compression mounting keeps AM and coated samples tight to the resin, so surface layers, edges and thin coatings survive grinding without rounding — exactly what matters when you measure layer thickness or near-surface porosity.
An applications engineer on the line
Method setup, consumable selection and troubleshooting from engineers who run sample prep and materials characterization in-house. Sub-4h reply, NDA on request.
The QATM OPAL 410 is a fully automatic hot mounting press. It embeds metallographic and additive-manufacturing specimens in thermosetting resin so edges stay flat and protected through grinding and polishing — a clean, repeatable mount is the foundation of every reliable cross-section.
Why labs choose the OPAL 410
Hands-off hot mounting with edge retention you can trust.
Fully automatic program

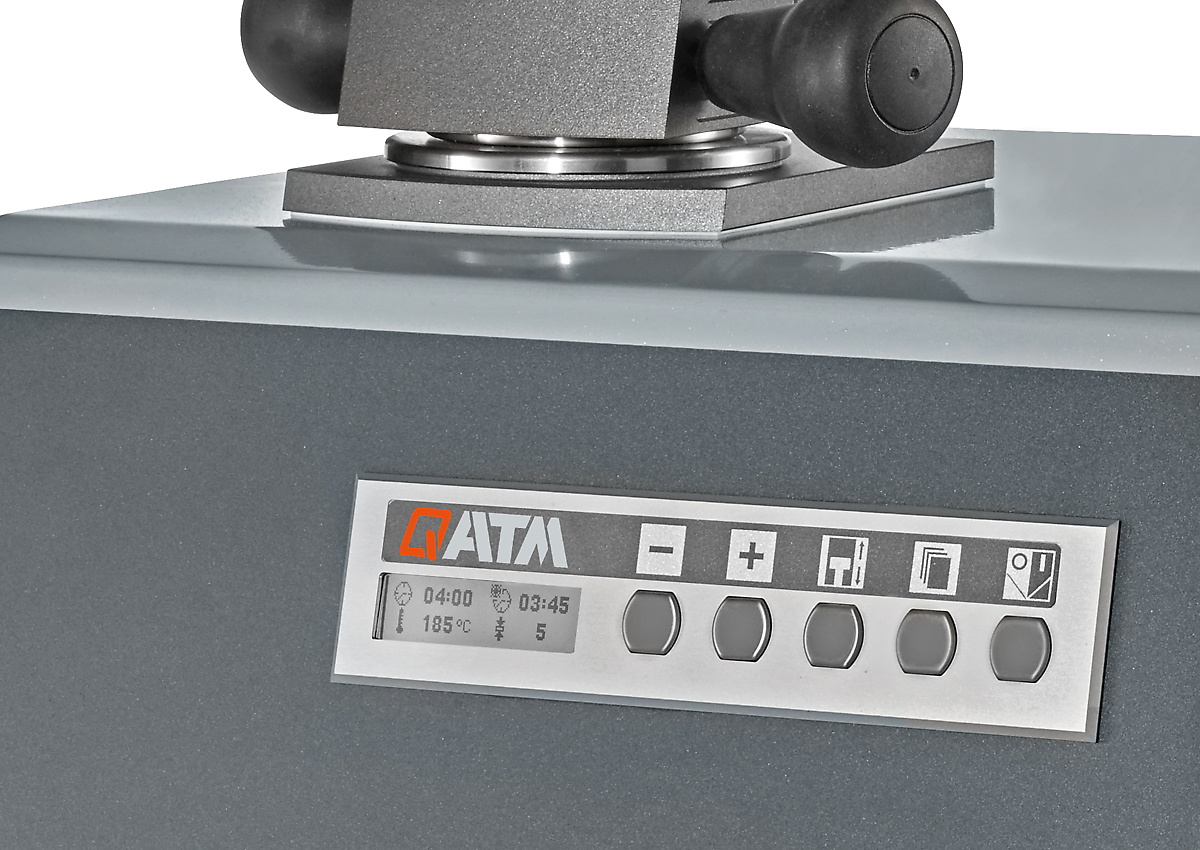

Set pressure, heating and cooling once, press start. Parameters can be adjusted live during the cycle.
Edge retention
Hot compression mounting holds the sample tight to the resin so surface layers and coatings don’t round off when you grind.
Water-saving cooling
Continuous or pulsed water cooling — pulsed mode cuts water consumption markedly.
Two mounts per cycle

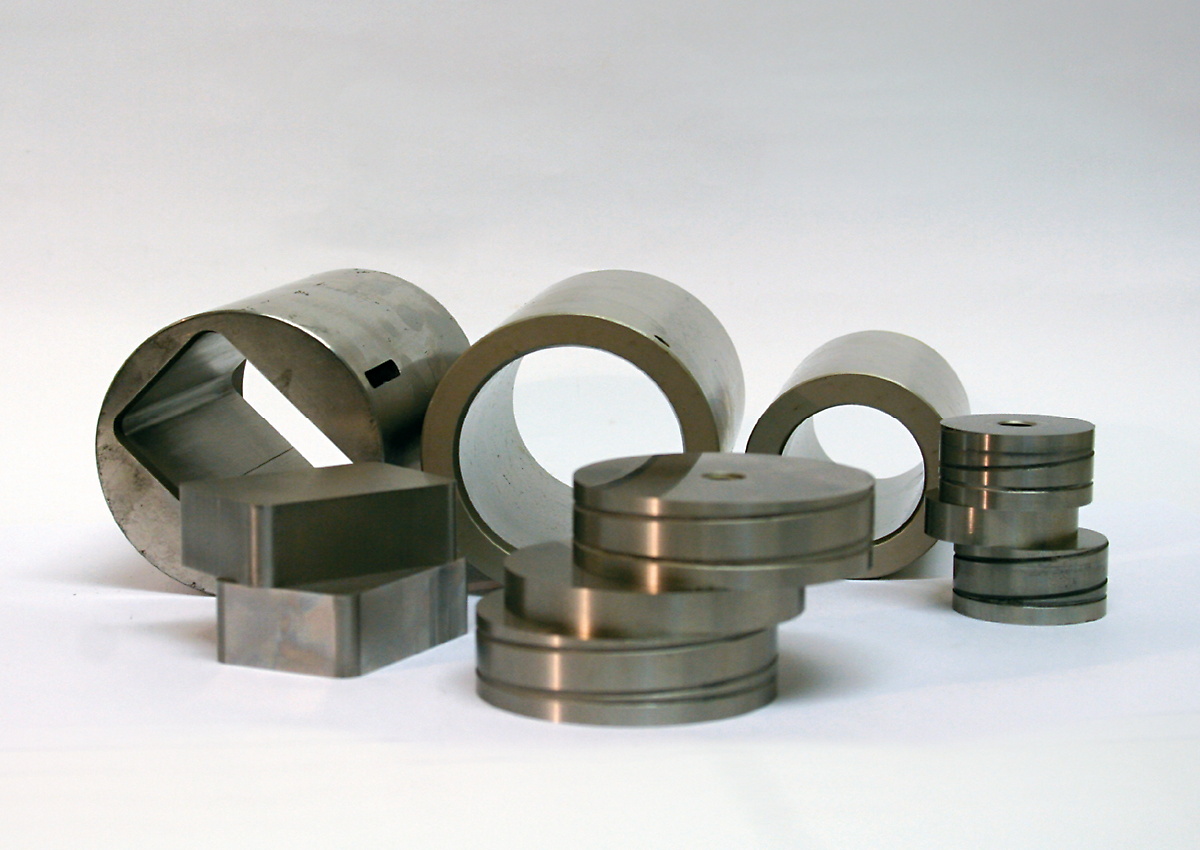

Mould assemblies Ø 25.2–40 mm in six sizes; run two mounts at once with a spacer.
How Additive Plus delivers the OPAL 410
Not a drop-shipped box — configured, installed and supported.
Configured to your specimens
We match wheels, consumables, holders and mould sizes to your materials and sample sizes before the machine ships.
Installed and trained on-site
Delivery, setup and operator training at your lab. Your team runs a first preparation cycle with us on the line.
Validated methods, ongoing support
Saved preparation methods dialed in for your alloys, plus method help and service from engineers who run sample prep in-house.
Key specifications
Automatic hydraulic hot mounting press, Ø 25.2–40 mm mould assemblies, 20–200 °C thermostat, up to 450 bar, 4× 500 W heating, ~40 kg. See the full Specifications tab below for every value.
Typical applications
Where the OPAL 410 earns its place in the lab.
Not sure the OPAL 410 is the right mount?
Compare the closest machines in the QATM line.
Why source the OPAL 410 through Additive Plus
- Authorized QATM channel — sales, installation, training and service from one partner
- Full prep chain: sectioning, mounting, grinding, polishing, etching and optical analysis
- Mould assemblies and resins matched to your specimens before shipping
- Method help from engineers who run metallographic prep in-house
- <24h response · 200+ systems delivered across 23 countries
| Brand | QATM |
| Mold assembly | ø 25.2 - 40 mm (6 different sizes) |
| Closure system | bayonet |
| Thermostate range | 20-200°C |
| Heating time | variable 0-30 min |
| Cooling time | variable 0-30 min |
| Max. pressure in mold assembly depending on mold assembly's size | 450 bar |
| Connection power | 3.1 kVA |
| Heating power | 4x 500 W |

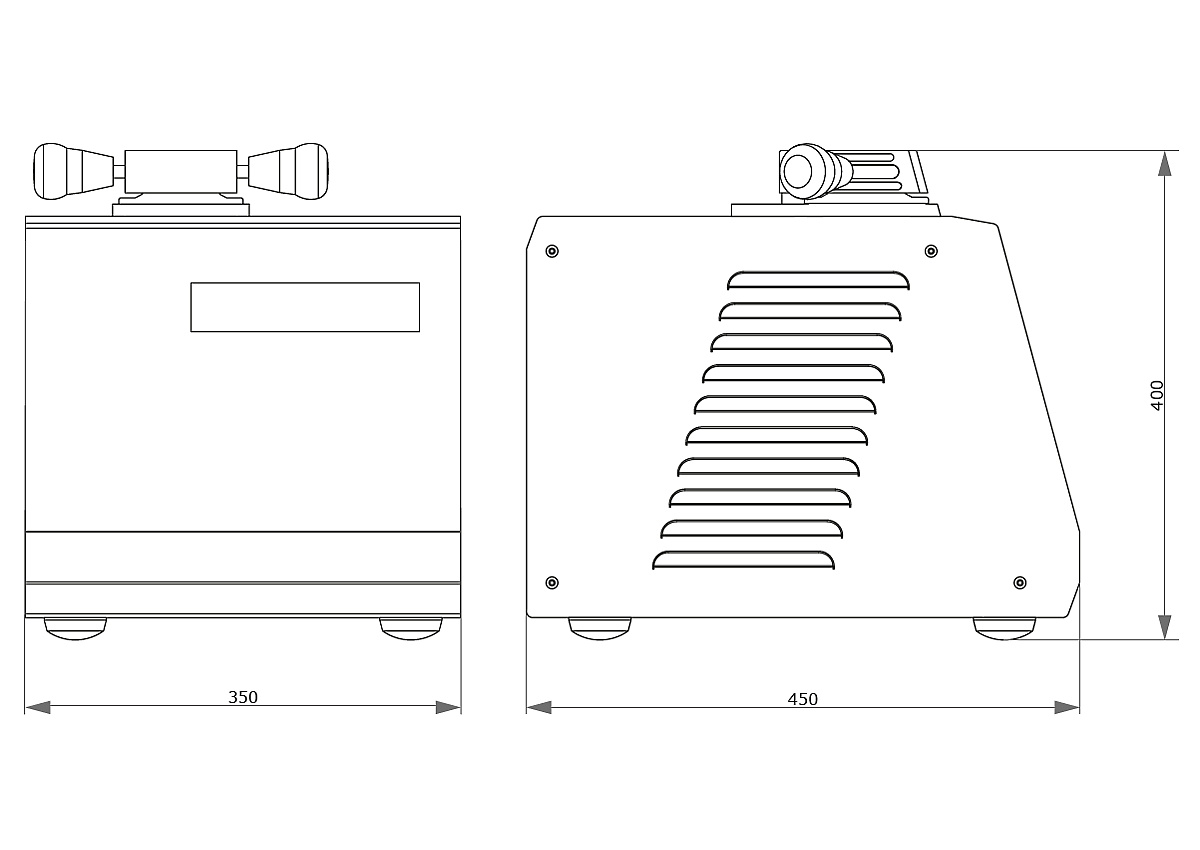

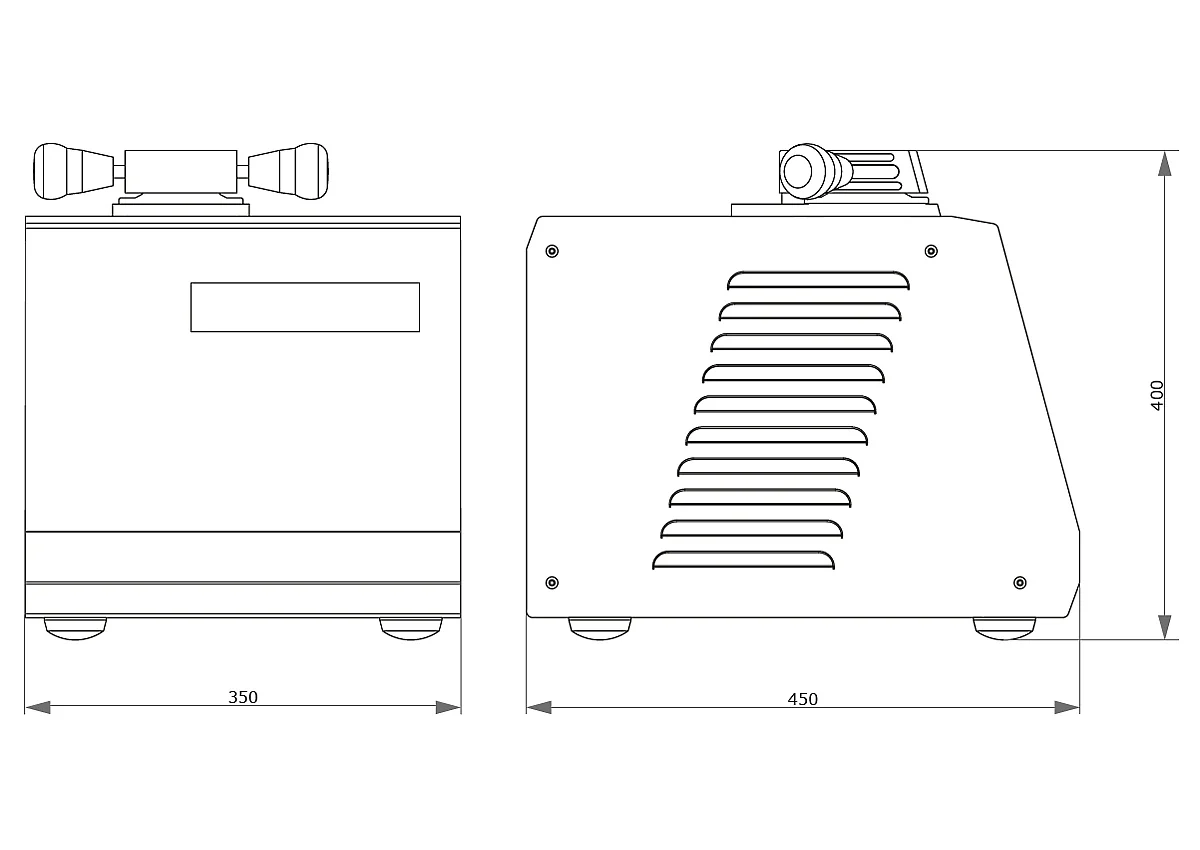

| W x H x D | 350 x 400 x 450 mm / 13.78 x 15.75 x 17.72 in |
| Weight | ~ 40 kg |
