Mounting, UV Mounting Devices

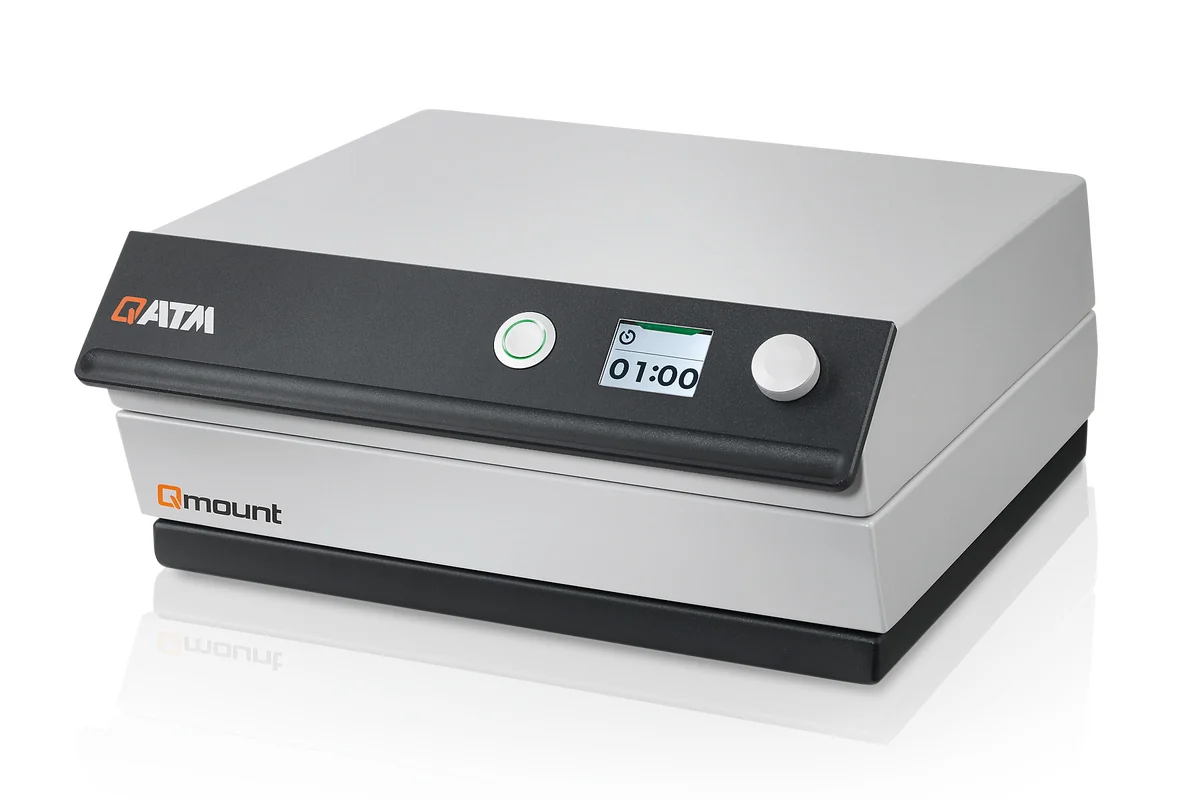

QMOUNT
The Qmount is a modern device for the light-curing-based mounting of materialographic samples.
Lot # and price held 7 days after order.
NDA standard
Ships in 1–2 business days
Spec-match guarantee on every lot
Built for production teams
What your process engineer actually checks
Locked, traceable lot chemistry
Every lot ships with a COA documenting PSD, sphericity, flow rate, apparent density, and full chemistry — and a lot number you can trace. Aerospace and medical teams reorder 4+ times without re-qualifying.
Qualified parameters, not just powder
Validated parameter sets for EOS M 290, Renishaw 500Q, SLM 280, and our own AO Metal LPBF ship with the order. Load the profile and hit density on the first build — no parameter-development burn.
A materials engineer on the line
Questions on ferrite content, flowability, recyclate ratios, or HIP response? A materials engineer answers directly — not a contact-form bot. Most replies in under 4 hours, NDA standard.
About this product
PRODUCT ADVANTAGES
• UV mounting in the shortest possible time (60 seconds)
• Highly efficient, long-life LED technology
• Robust machine design
• Easy handling
• Connectable suction unit (optional)
• UV mounting in the shortest possible time (60 seconds)
• Highly efficient, long-life LED technology
• Robust machine design
• Easy handling
• Connectable suction unit (optional)
FEATURES
The integrated ventilation guarantees low polymerisation temperatures of approx. 70 – 90 ° C. A robust design with a powder-coated aluminum housing and high-quality components enable high sample volumes. The hood is equipped with cushioned hinges to close it gently.

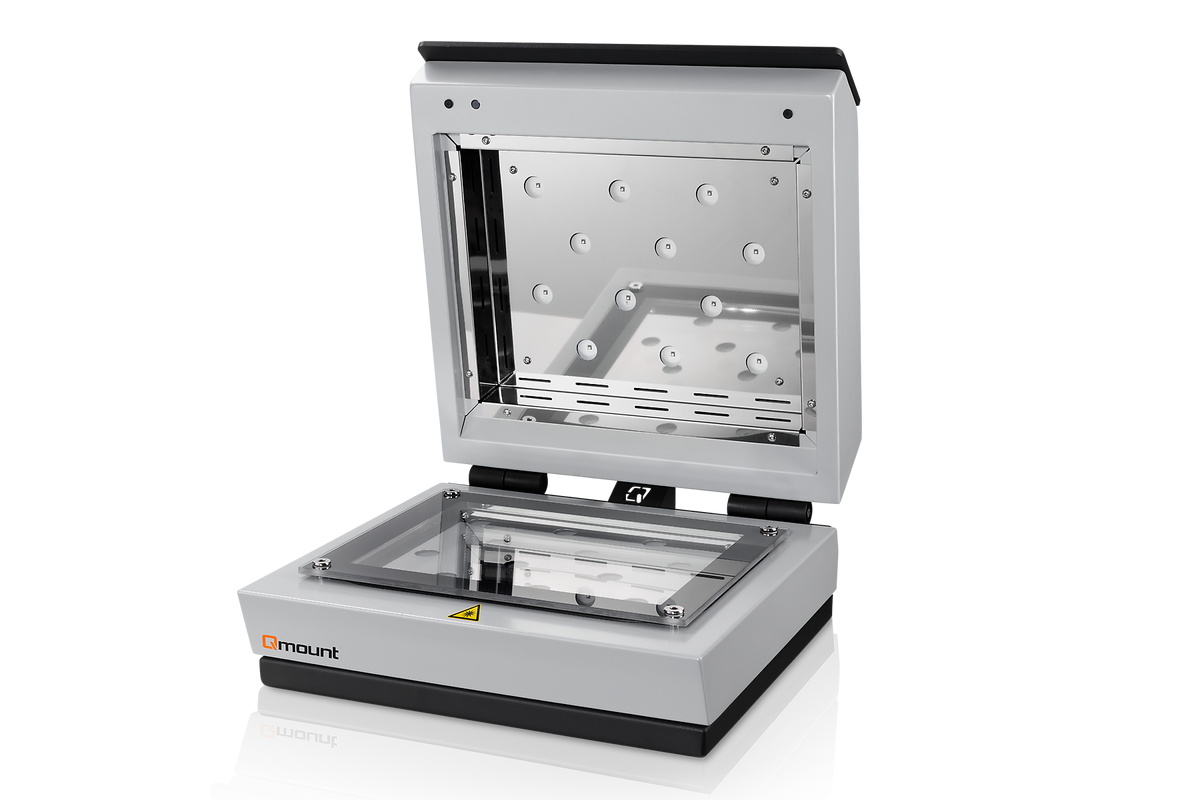

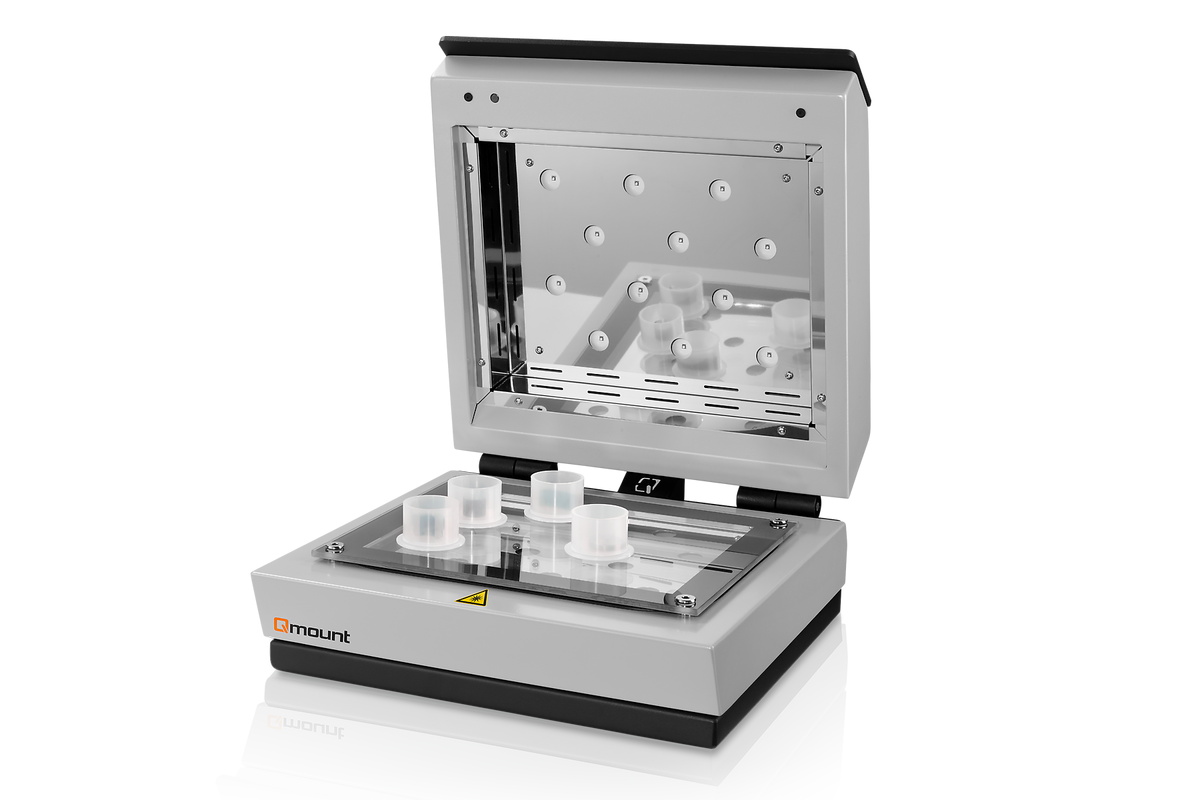

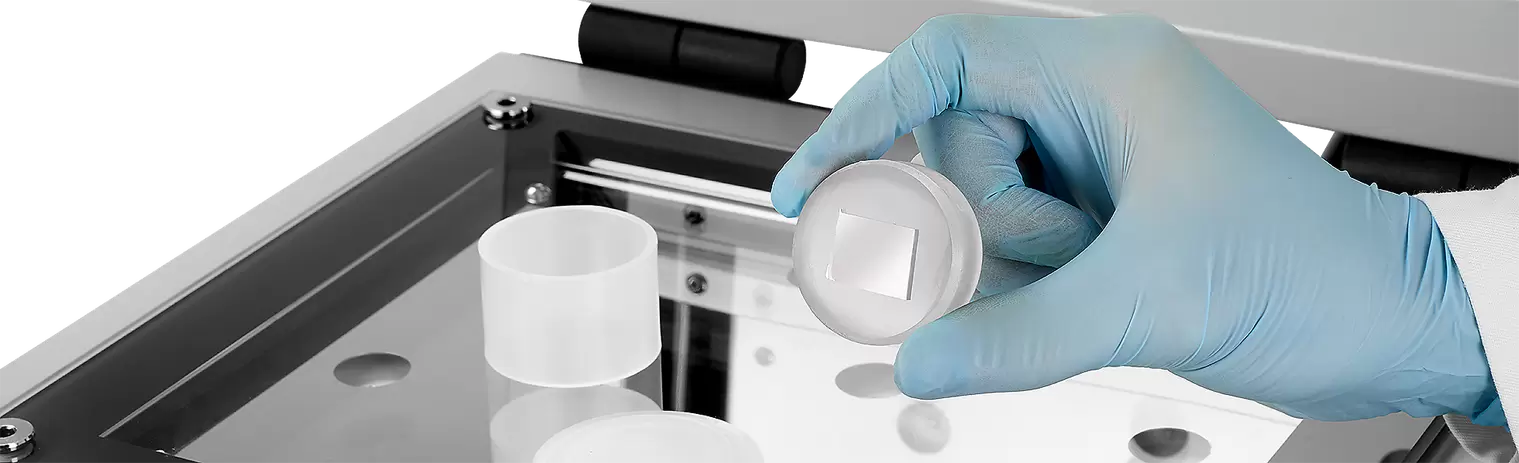

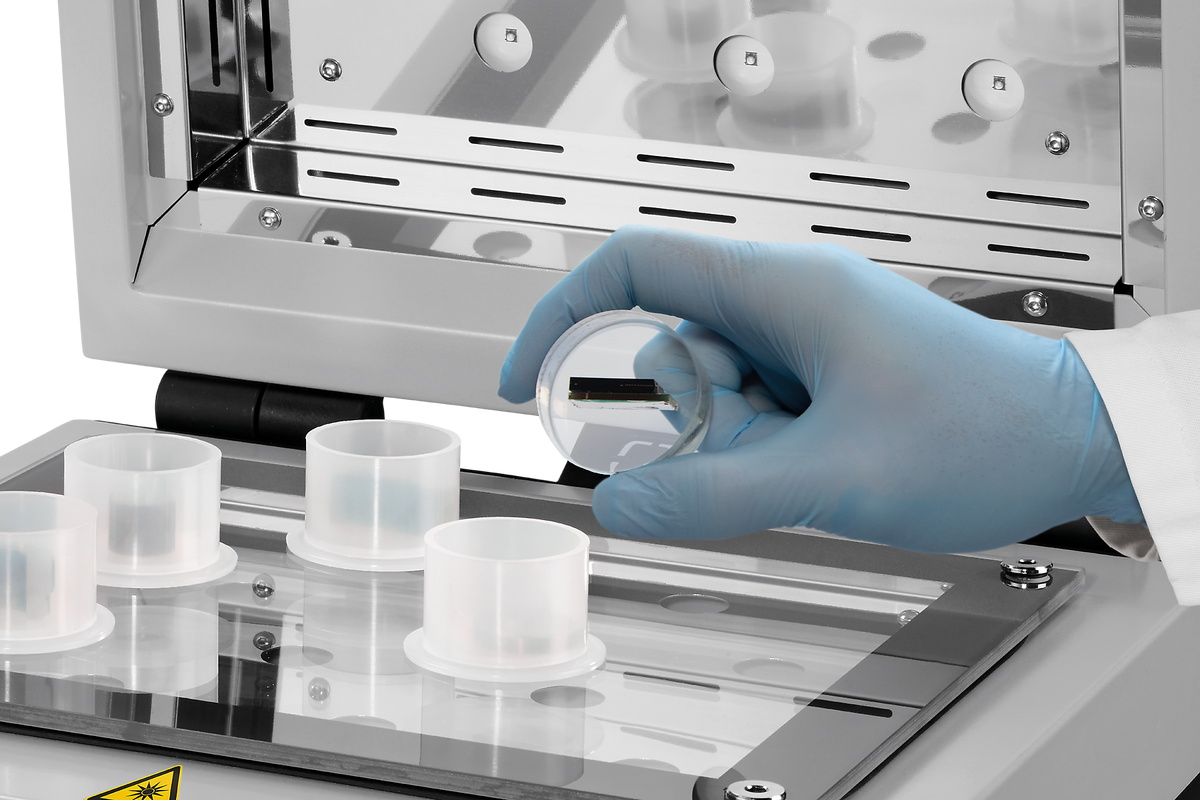

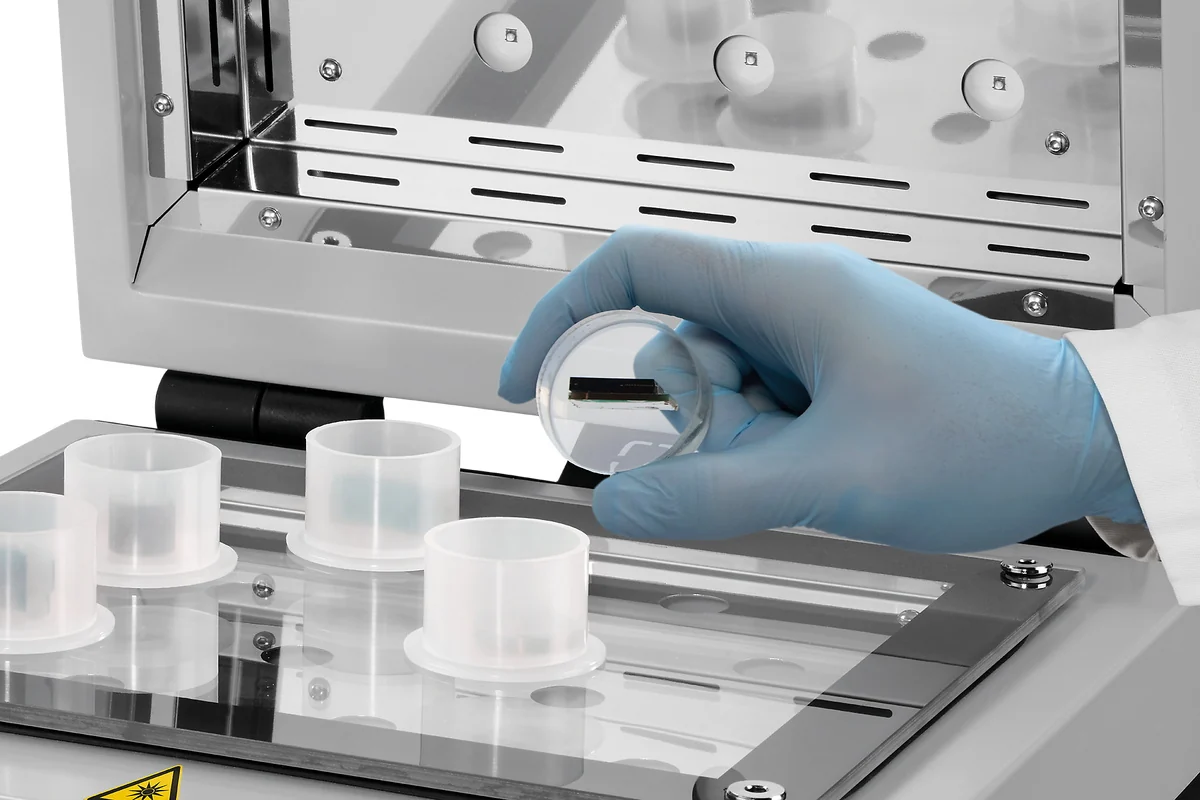

The device contains a scratch-resistant glass plate (200 x 260 mm) which enables the simultaneous curing of up to 12 samples with a diameter of 40 mm. The work area is easy to clean due to the simple design.

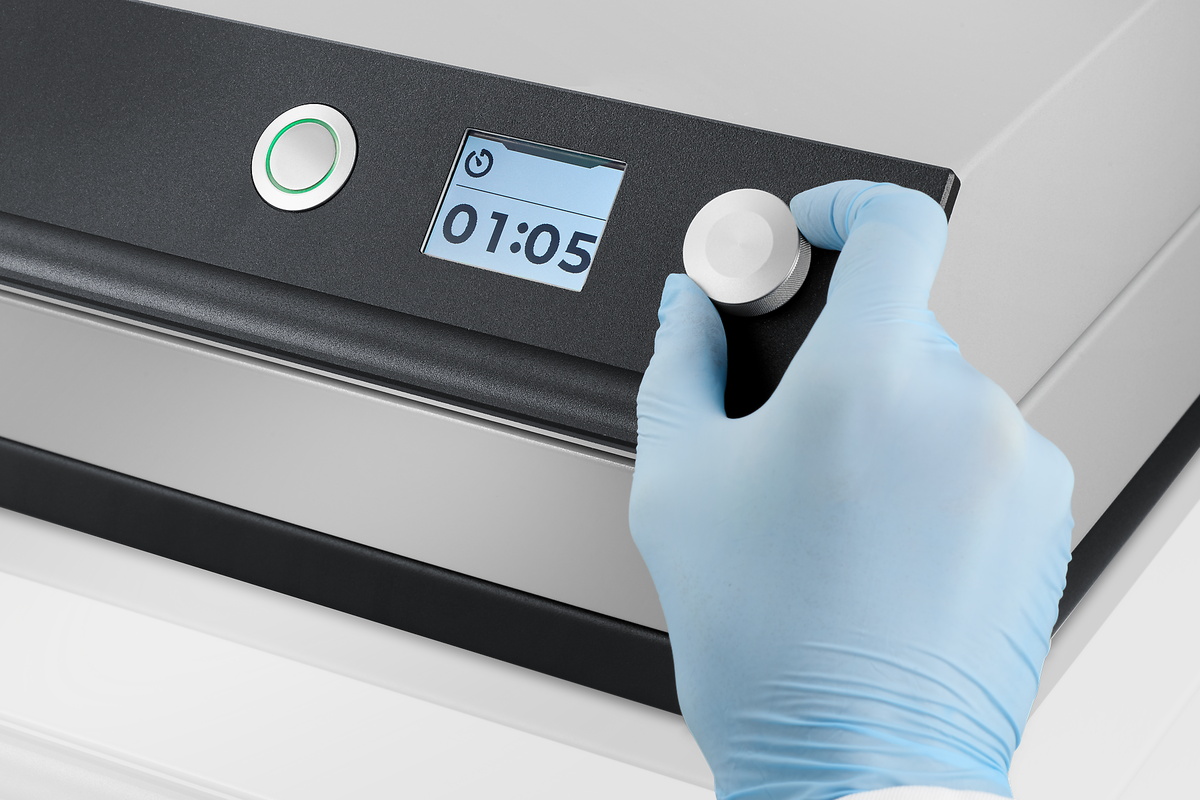

The process parameters are clearly shown on a color display and can be continuously adjusted using a rotary knob. The mounting process is started, paused or ended using the QATM start-stop button. An acoustic signal informs the user at the end of the process.
Due to the very short process times, the Qmount opens up the possibility of producing transparent, materialographic standard mountings of various materials very quickly and cost-effectively.

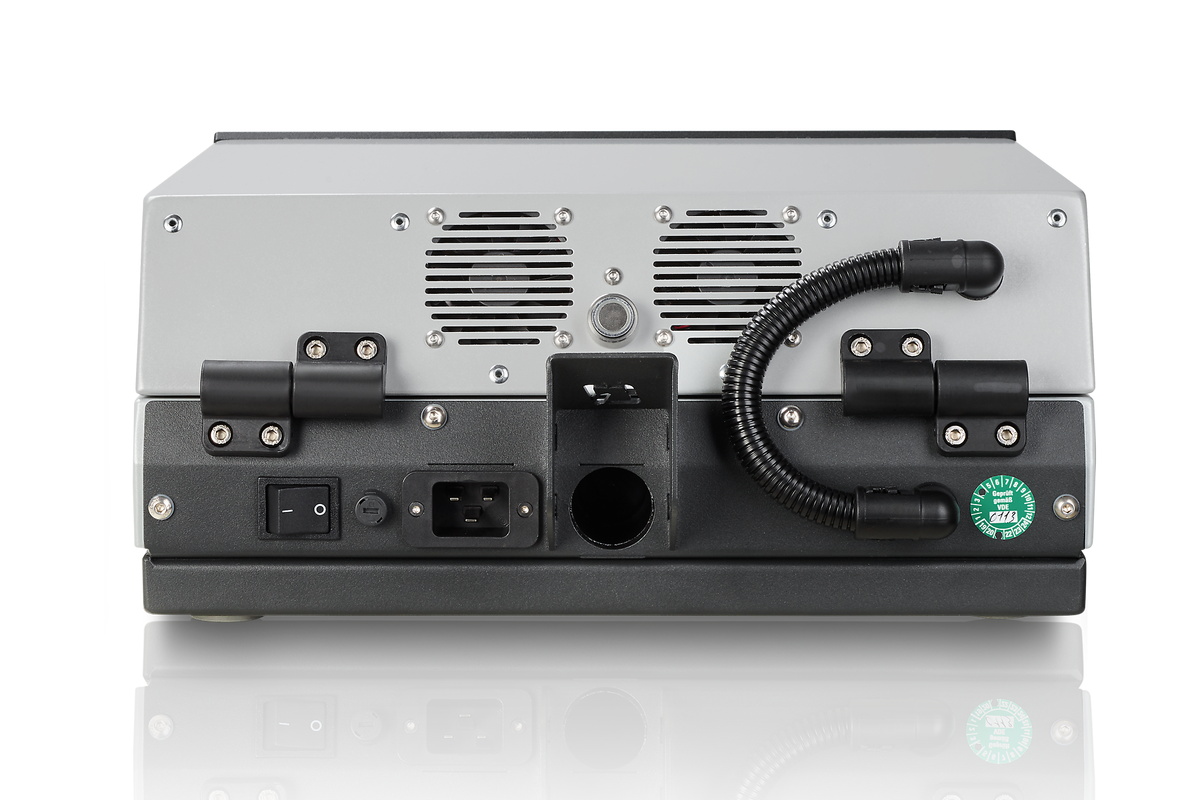

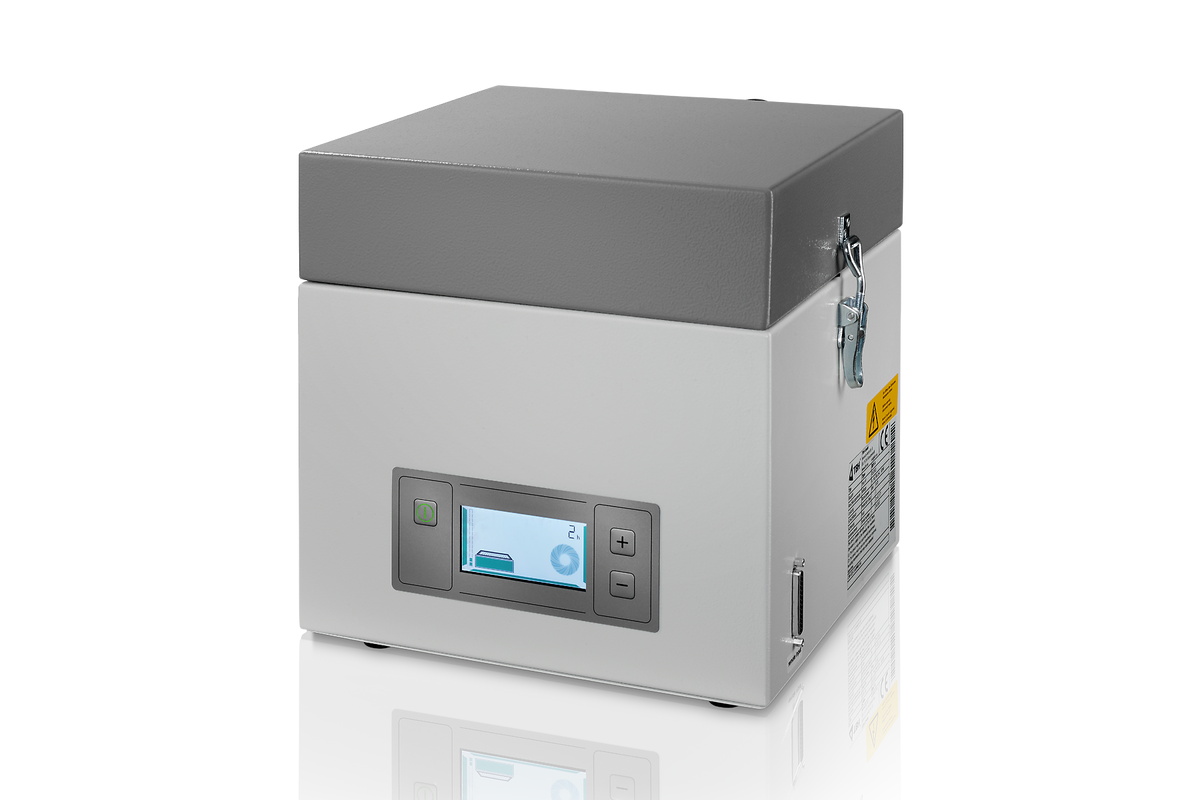

As standard, the device is equipped with a connection for external suction to filter the vapors and odors and to increase work safety. A suitable suction device with activated carbon filter is available in the QATM accessories.
The integrated ventilation guarantees low polymerisation temperatures of approx. 70 – 90 ° C. A robust design with a powder-coated aluminum housing and high-quality components enable high sample volumes. The hood is equipped with cushioned hinges to close it gently.
The device contains a scratch-resistant glass plate (200 x 260 mm) which enables the simultaneous curing of up to 12 samples with a diameter of 40 mm. The work area is easy to clean due to the simple design.
The process parameters are clearly shown on a color display and can be continuously adjusted using a rotary knob. The mounting process is started, paused or ended using the QATM start-stop button. An acoustic signal informs the user at the end of the process.
Due to the very short process times, the Qmount opens up the possibility of producing transparent, materialographic standard mountings of various materials very quickly and cost-effectively.
As standard, the device is equipped with a connection for external suction to filter the vapors and odors and to increase work safety. A suitable suction device with activated carbon filter is available in the QATM accessories.
MOUNTING IN A SHORT TIME
The compact laboratory device is equipped with specially developed and durable LED boards, which irradiate the samples highly efficiently with UV radiation of a very narrowly tolerated wavelength range (emission maximum at lambda = 365 nm) and allow standard samples to cure within 60 seconds.
The compact laboratory device is equipped with specially developed and durable LED boards, which irradiate the samples highly efficiently with UV radiation of a very narrowly tolerated wavelength range (emission maximum at lambda = 365 nm) and allow standard samples to cure within 60 seconds.
| Brand | QATM |
| Max. sample support surface | 200 x 260 mm / 7.87 x 10.24 in |
| Max. sample height | 40 mm |
| Wavelength | 365 nm |
| Adjustable curing time | 0 - 100 min |
| Polymerization temperature (depending on application) | 70- 90 °C |
| Connection voltage | 100 - 240 V 50/60 Hz (1Ph/N/PE) |

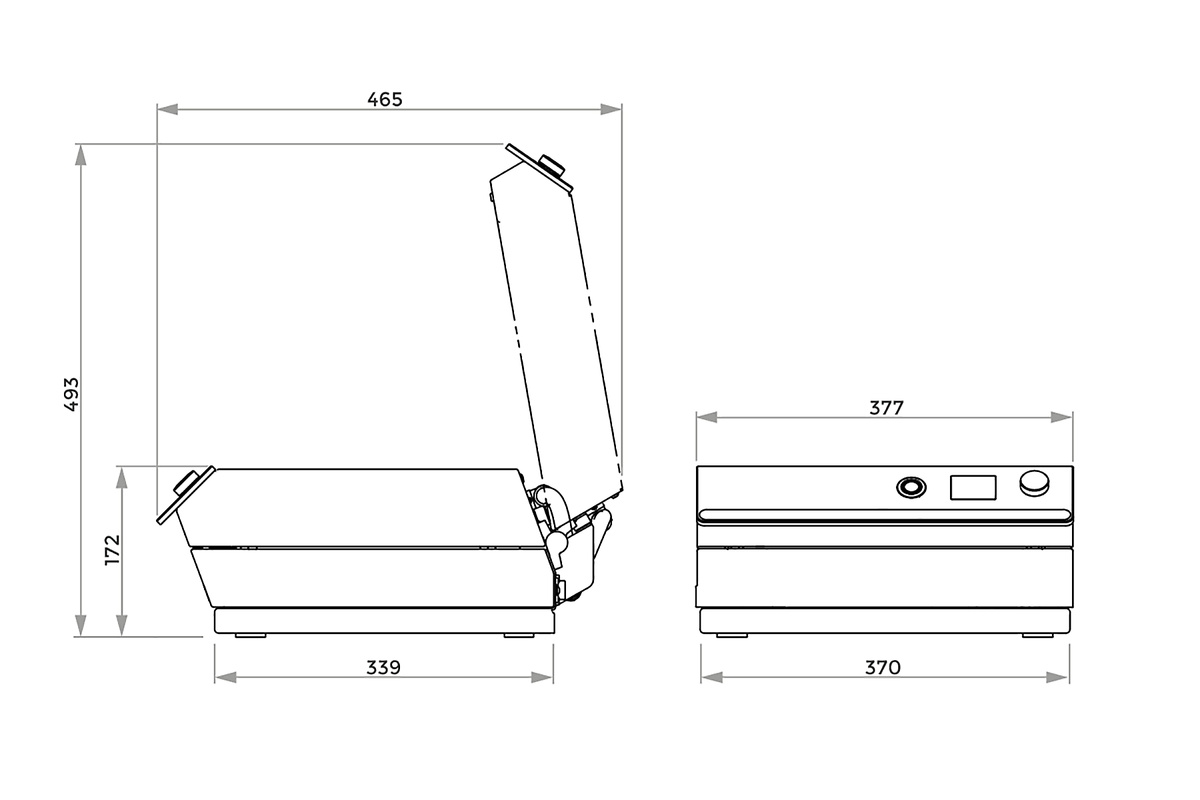

| Dimensions (WxHxD) | 377 x 172 x 436 mm / 14.84 x 6.77 x 17.17 in |
| Weight (depending on equipment) | 14,5 kg |
