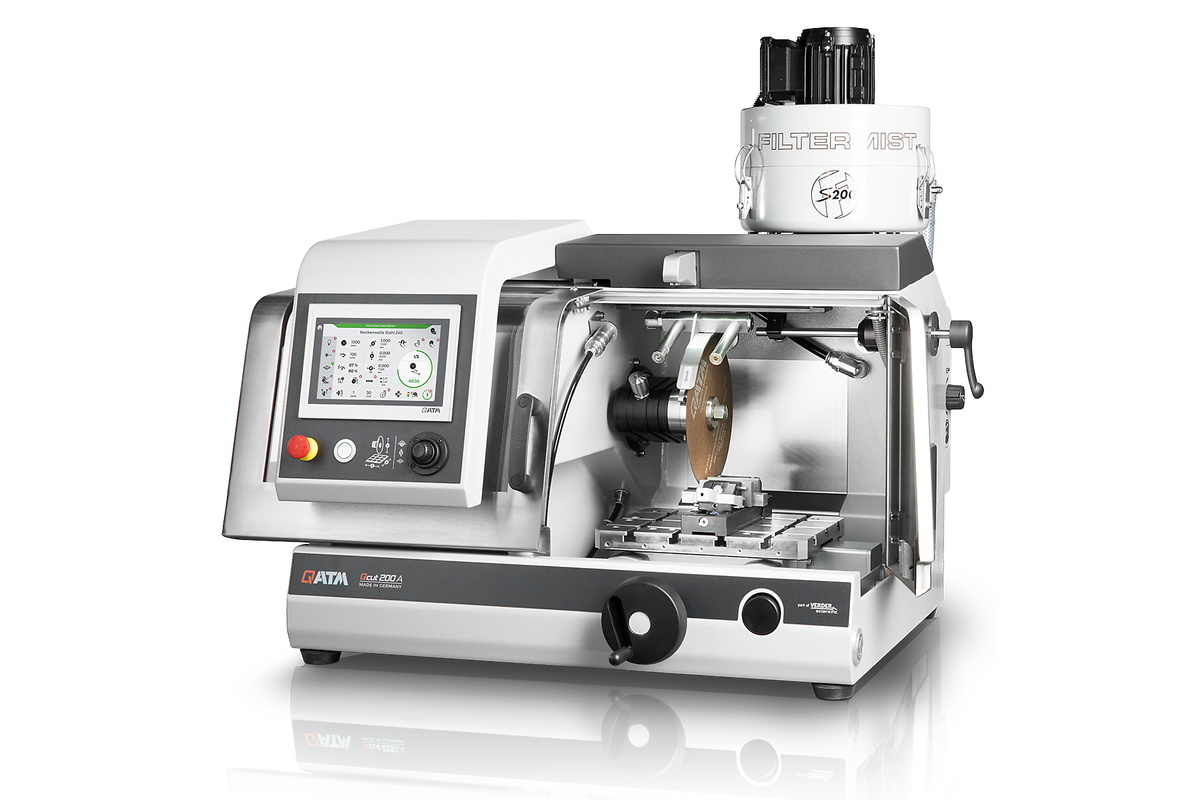

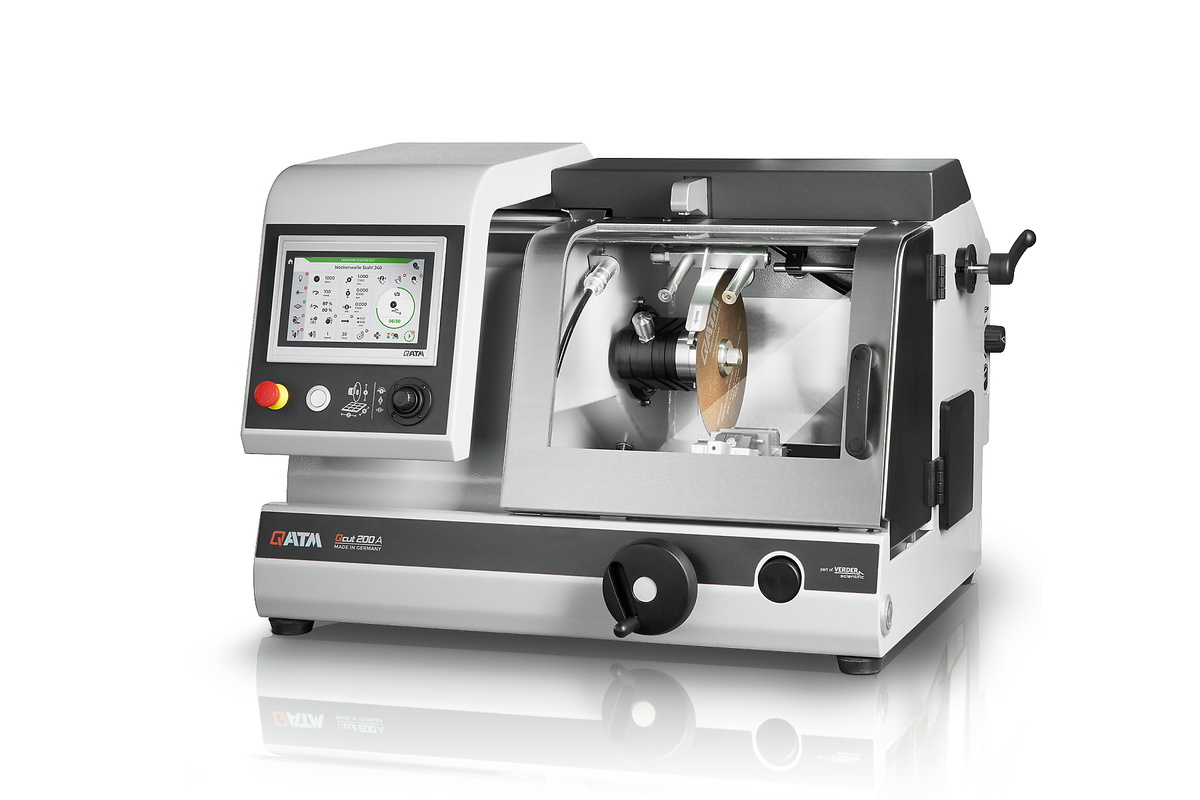

QCUT 200 A

Description

PRODUCT ADVANTAGES

• Fully automatic precision axes with backlash free bearings
• New cooling system with approx. 25% higher flow rate than comparable machines which reduces the cut-off wheel wear by up to 15%
• Automatic cleaning function
• New software functions for grinding applications
• Simplified cut-off wheel change

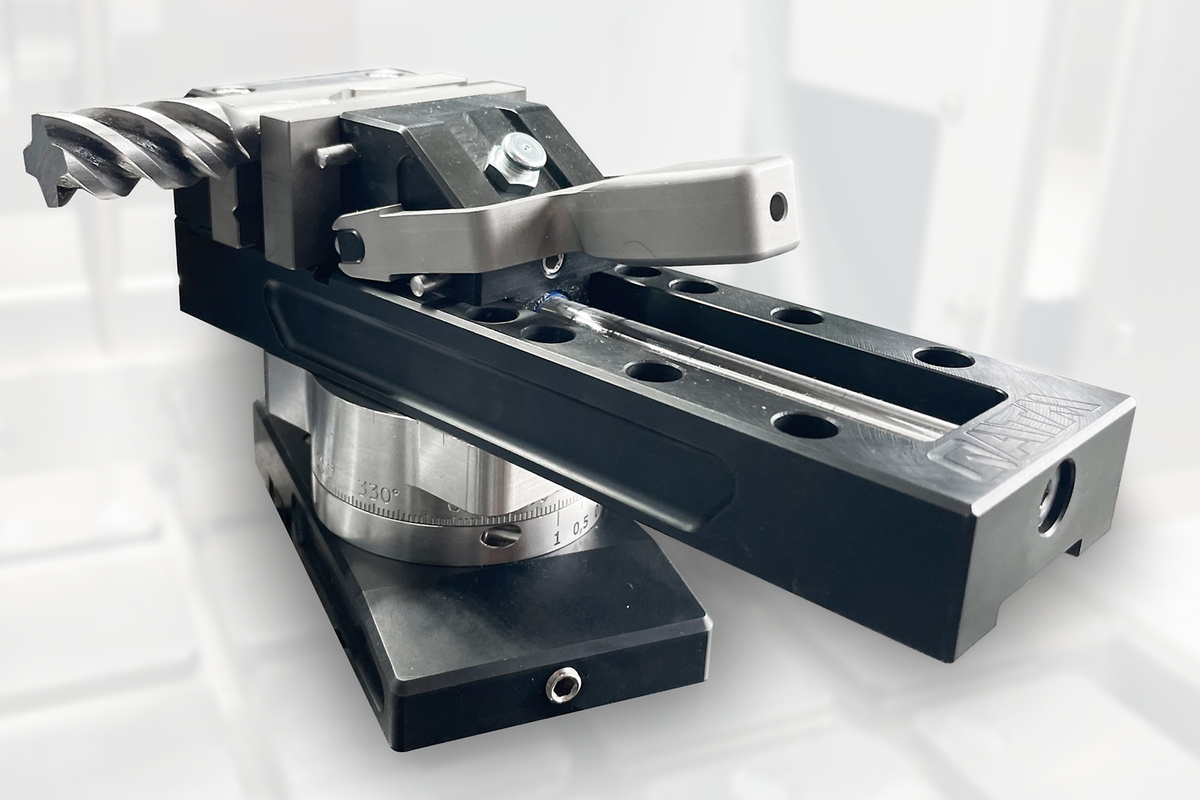

• New modular adaptable turning device

• Fully automatic precision axes with backlash free bearings
• New cooling system with approx. 25% higher flow rate than comparable machines which reduces the cut-off wheel wear by up to 15%
• Automatic cleaning function
• New software functions for grinding applications
• Simplified cut-off wheel change
• New modular adaptable turning device

FEATURES

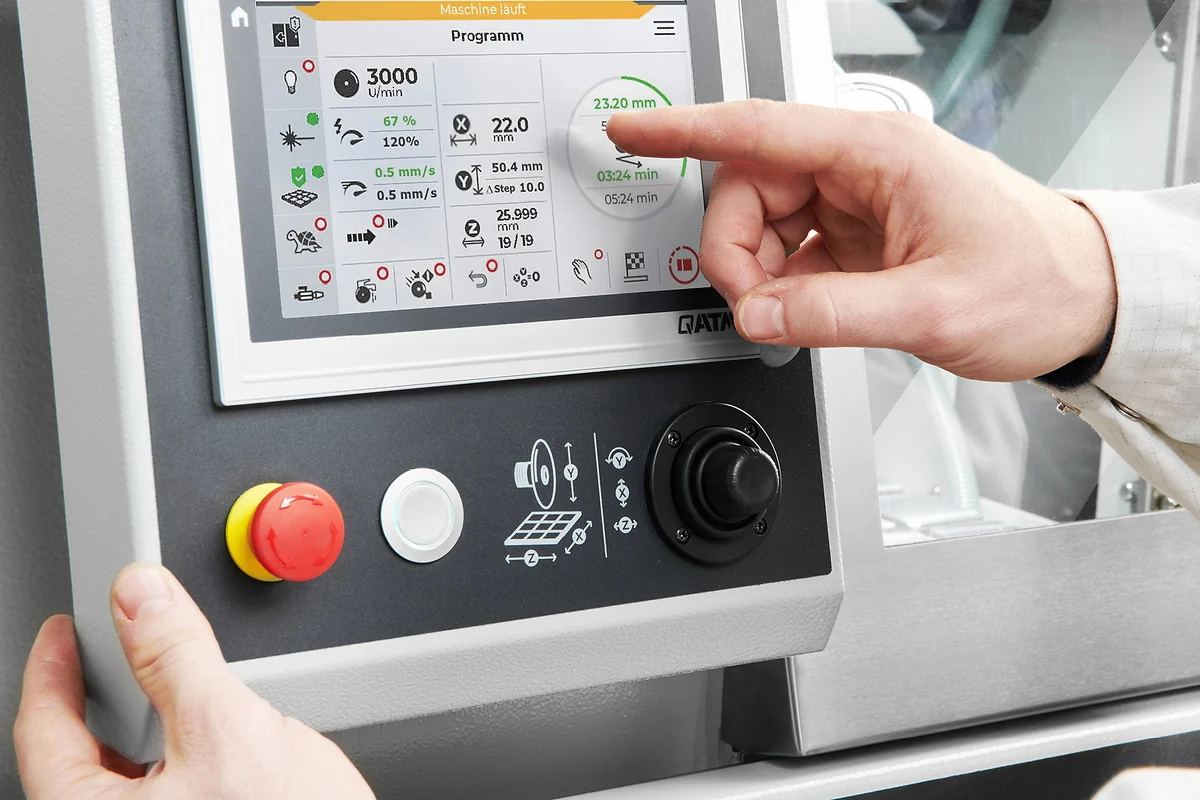

The large 7“ touch display is ergonomically arranged and easy to operate via the user-friendly software. The joystick ensures comfortable movement of the automatic axes.

Via the optional flow monitoring, constant cooling can be ensured when cutting sensitive samples with long cutting processes. The cutting process is automatically interrupted when a critical threshold value is reached.

Due to the enabling switch, the machine can only be positioned via the two-hand control when the door is open. This eliminates the risk of crushing for the machine operator.

In addition to the proven automatic component detection, the machine also has a new type of exit detection (auto-stop function). Thus, the start and end points of the cutting process are automatically detected and process times are shortened.

Depending on the geometry of the component, the travel or chop cut is used to minimize the contact area between the component and the cut-off wheel. The step cut functions separate the workpiece layer by layer and optimize the angle of action for a material friendly cut. They are therefore particularly suitable for solid material.

The large 7“ touch display is ergonomically arranged and easy to operate via the user-friendly software. The joystick ensures comfortable movement of the automatic axes.

Via the optional flow monitoring, constant cooling can be ensured when cutting sensitive samples with long cutting processes. The cutting process is automatically interrupted when a critical threshold value is reached.

Due to the enabling switch, the machine can only be positioned via the two-hand control when the door is open. This eliminates the risk of crushing for the machine operator.

In addition to the proven automatic component detection, the machine also has a new type of exit detection (auto-stop function). Thus, the start and end points of the cutting process are automatically detected and process times are shortened.

Depending on the geometry of the component, the travel or chop cut is used to minimize the contact area between the component and the cut-off wheel. The step cut functions separate the workpiece layer by layer and optimize the angle of action for a material friendly cut. They are therefore particularly suitable for solid material.

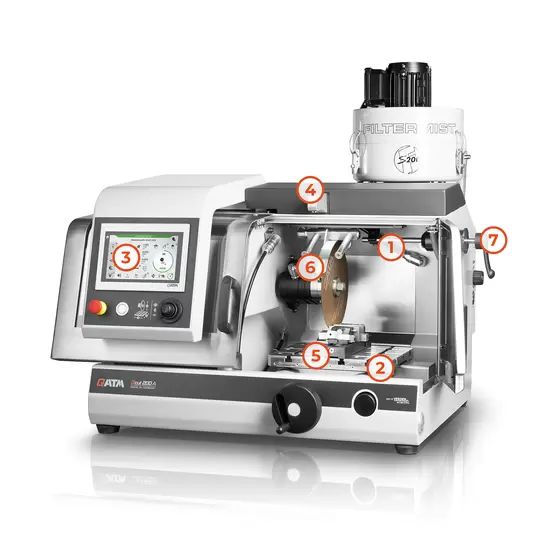

EXTENSIVE RANGE OF CLAMPING TOOLS

1. Cutting chamber flushing

Automatic cleaning of the cutting chamber

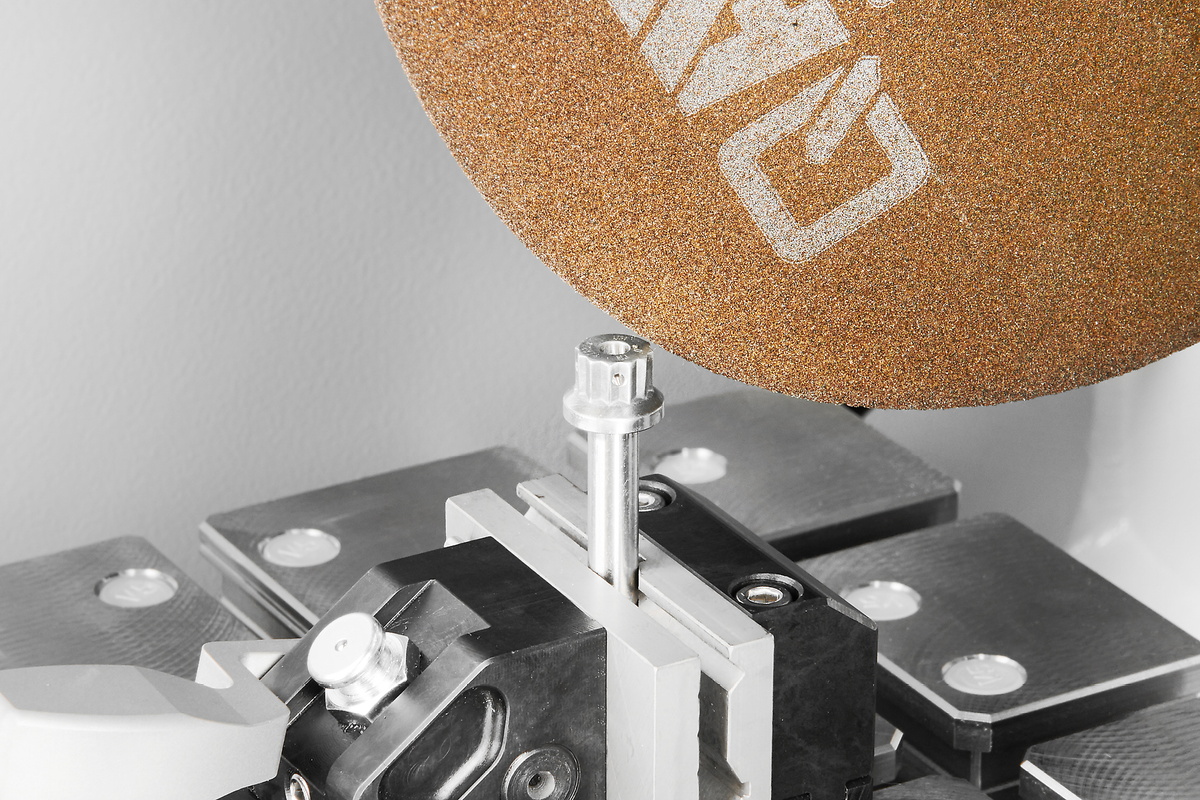

2. Large machine table

Axes can be positioned backlash-free
Easy grooves for simple mounting of QATM clamping devices
T-slots 8 mm for individual clamping devices
Max. W x H: 300 mm x 210 mm

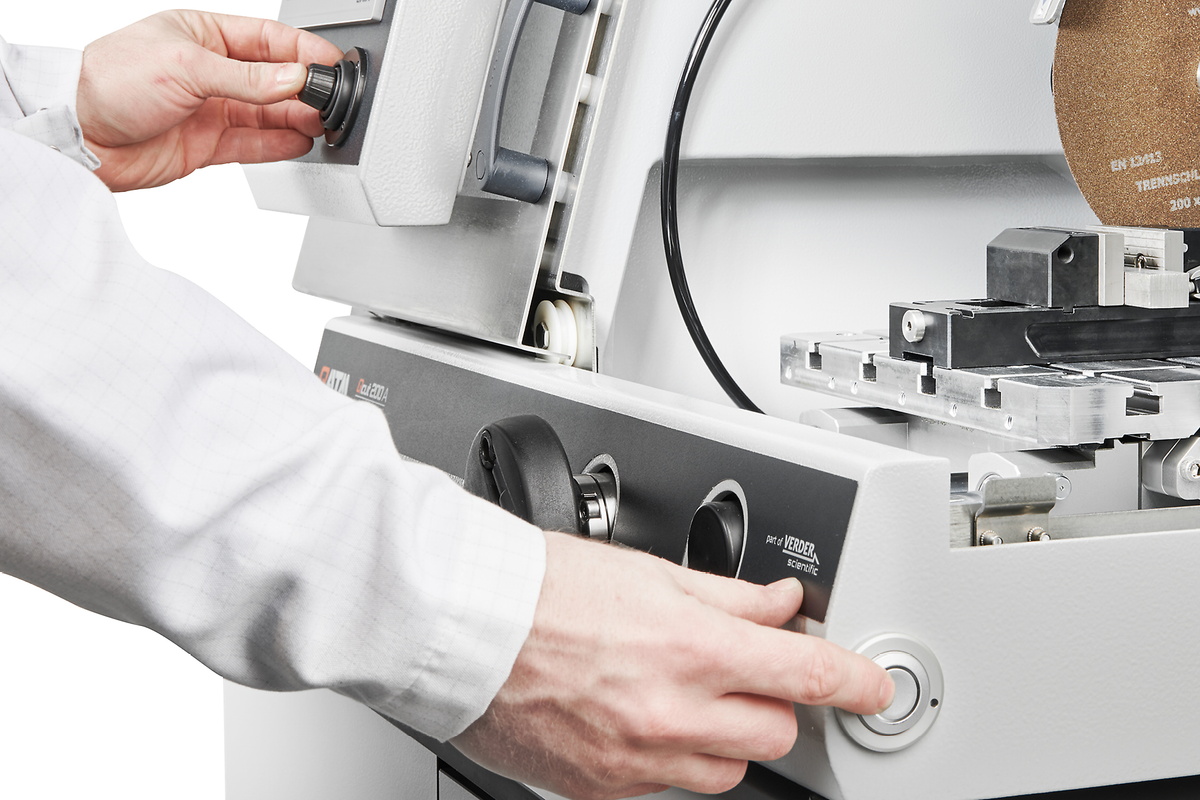

3. Ergonomic control panel

Large 7“ TFT touch display
Joystick for manual operation
4. Line laser

For exact component part positioning before cutting
Included as standard
5. Accessories

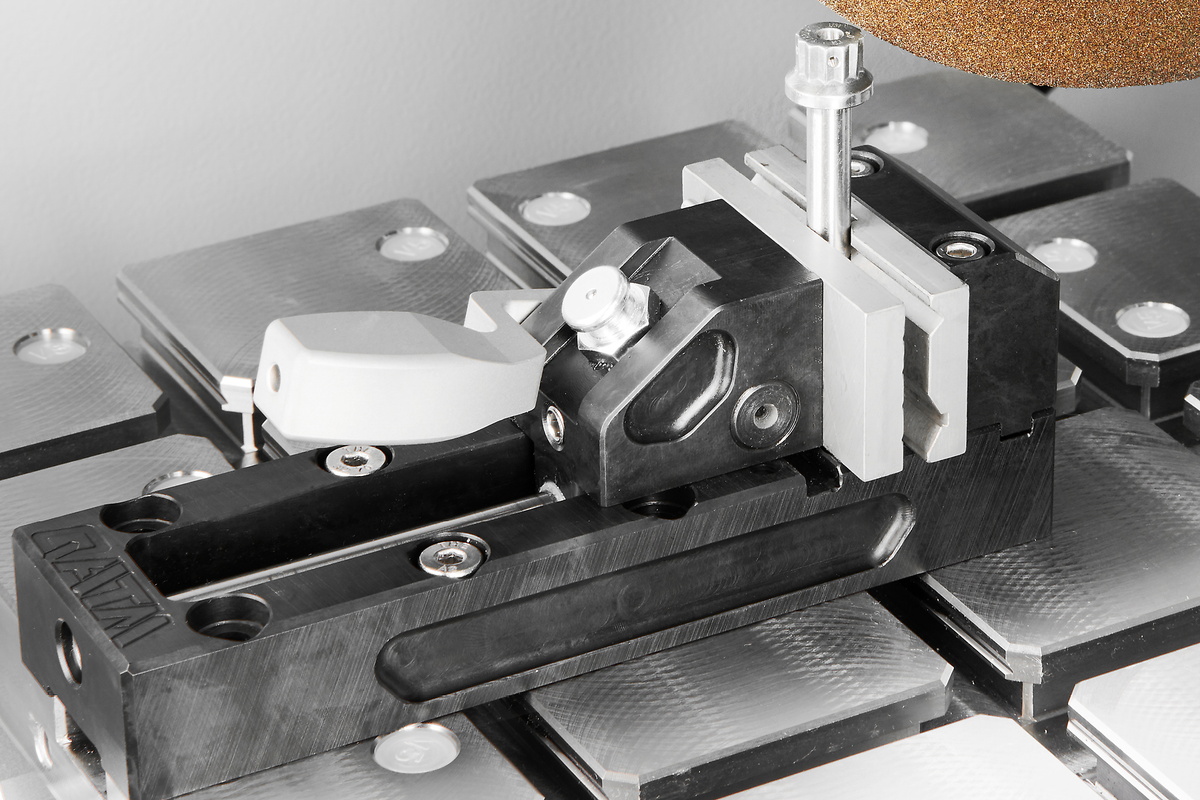

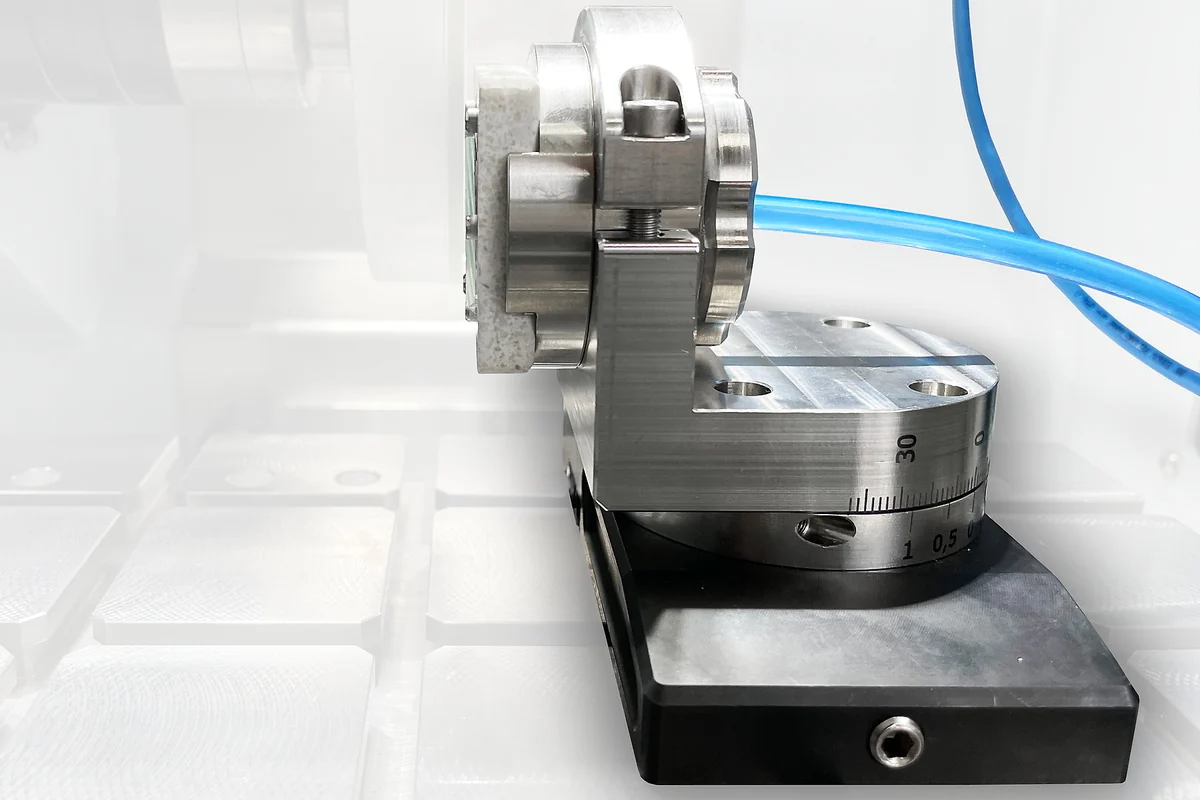

Clamping possibility individually expandable with turning device or further clamping devices

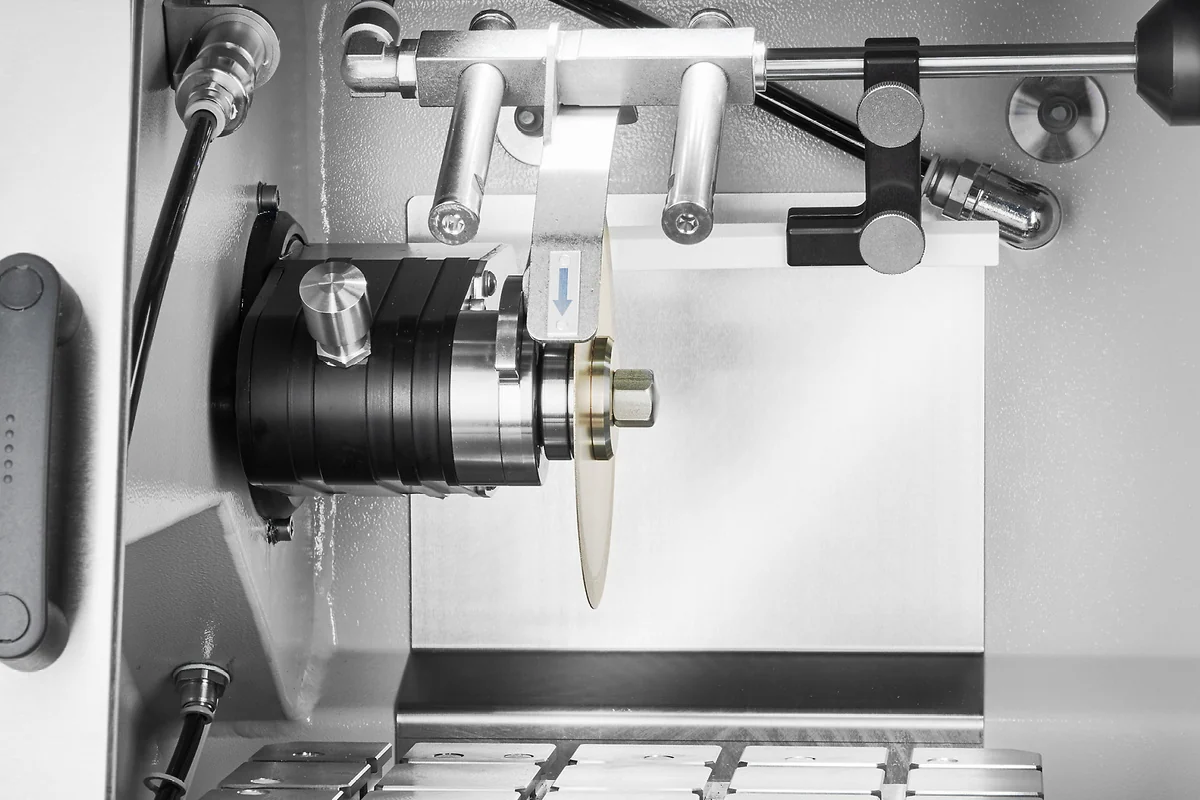

6. Cut-off wheel lock

Simplified cut-off wheel change via locking function
With integrated lubrication option
7. Dressing device

For sharpening diamond cutting and grinding wheels
Can be operated manually from the outside

1. Cutting chamber flushing

Automatic cleaning of the cutting chamber
2. Large machine table

Axes can be positioned backlash-free
Easy grooves for simple mounting of QATM clamping devices
T-slots 8 mm for individual clamping devices
Max. W x H: 300 mm x 210 mm
3. Ergonomic control panel

Large 7“ TFT touch display
Joystick for manual operation
4. Line laser

For exact component part positioning before cutting
Included as standard
5. Accessories

Clamping possibility individually expandable with turning device or further clamping devices
6. Cut-off wheel lock

Simplified cut-off wheel change via locking function
With integrated lubrication option
7. Dressing device

For sharpening diamond cutting and grinding wheels
Can be operated manually from the outside
