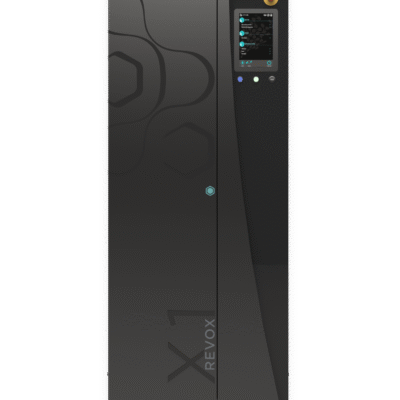

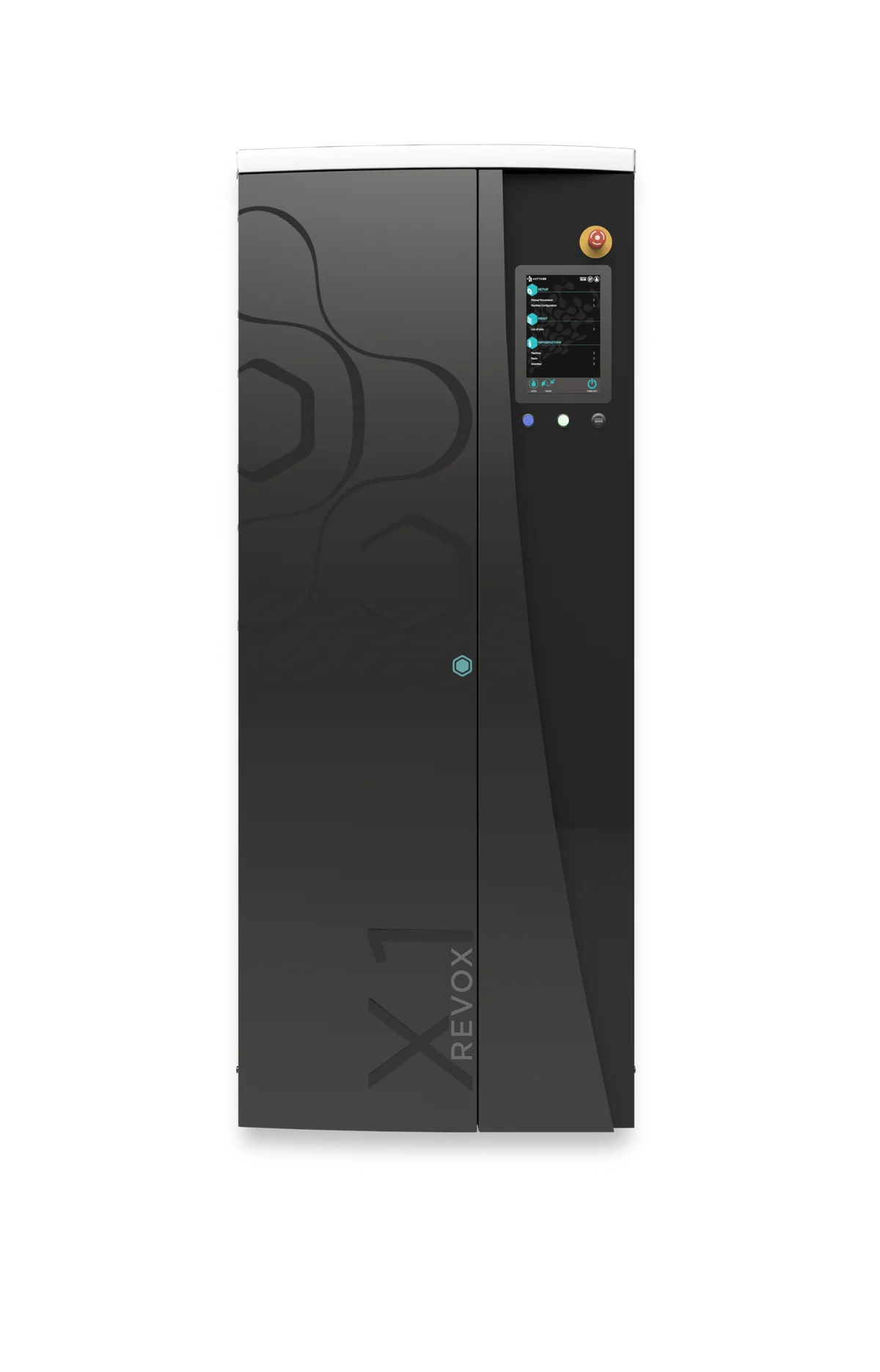

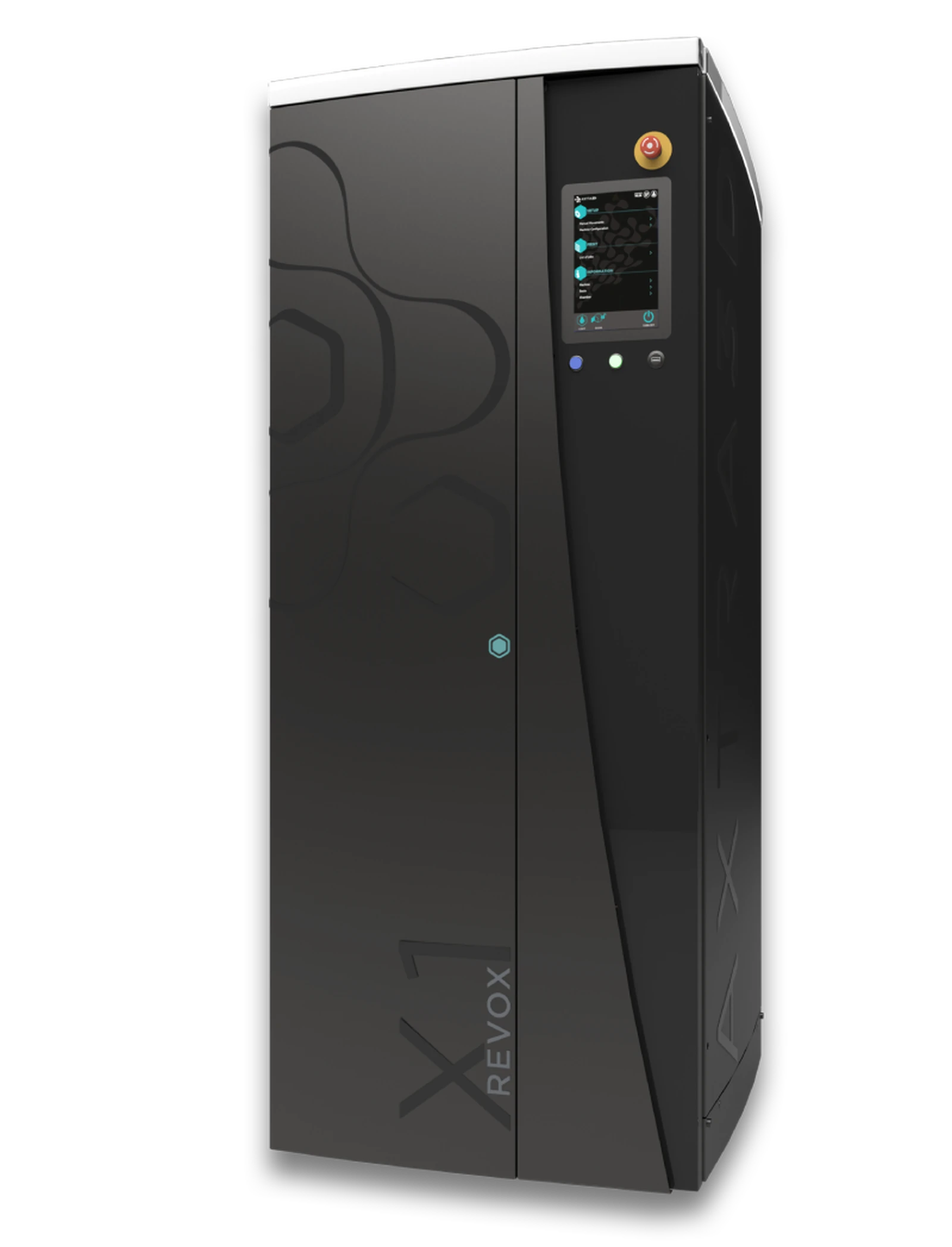

Axtra3D Revox X1 4K DLP Industrial Resin 3D Printer – Production Entry | 249×140×495 mm
The Axtra3D Revox X1 is a production-grade 4K DLP resin 3D printer — the same chassis and TruLayer separation as the flagship Lumia X1, at an entry price point for teams that can work within DLP part quality on a 9.8×5.5×19.5 in / 249×140×495 mm build volume.
- ✔ Production 4K DLP at 405 nm — 65 µm XY resolution
- ✔ TruLayer separation runs large cross-sections and filled, viscous resins
- ✔ Open or closed 405 nm material configurations
- ✔ Lead time: configured to order — request a quote for delivery & installation
Price held 7 days after order.
Install + training included
Tailored service plan
What your production engineer actually checks
What your production engineer actually checks
Production DLP that releases big parts
The Revox X1 pairs a 4K DLP engine with TruLayer separation, so it prints large cross-sections and filled resins that trip up conventional DLP — production output without the size ceiling, at an entry price.
An applications engineer on the line
Factory-trained engineers, not a ticket queue. Straight advice on where DLP tops out, resin selection and production support in under 24h — we run resin production ourselves. NDA standard.
About this product
The Axtra3D Revox X1 is a production-grade 4K DLP resin 3D printer — the same chassis and TruLayer separation as the flagship Lumia X1, at an entry price point for teams that can work within DLP part quality on a 249×140×495 mm build volume.
Why engineers choose the Revox X1
Production DLP with the Lumia chassis — without the hybrid light engine or its price.
Production-grade 4K DLP
A high-energy-density 4K DLP engine with pixel-shifting at 405 nm — production output at an entry price, for teams that can accept DLP part quality at 65 µm XY.
TruLayer adaptive separation
Sensors in a glass plate below the vat detach each cured layer and cancel suction forces — the same separation system as the Lumia X1, so viscous and filled resins run cleanly.
No cross-section size limit
Because TruLayer removes hydrostatic suction on separation, part size doesn’t cap the build — run large or bulky parts that standard DLP struggles to release.
Open or closed material options
Offered in open and closed 405 nm configurations across filled and unfilled resins — choose the material freedom your workflow needs.
How Additive Plus delivers it
Matched to your parts and budget, installed by engineers who run these systems.
Step 01
Confirm the fit
We check that DLP part quality meets your spec — and flag when the Lumia X1’s hybrid engine is worth the step up.
Step 02
Install & train on-site
Engineers install the Revox X1, set up the HPS Slicer, and train your team on the workflow.
Step 03
Dial in & support
We help tune exposure and post-cure for your resins and stay on the line for production support — sub-4h reply, NDA standard.
Compatible Materials
405 nm resins, offered in open and closed configurations. Any biocompatibility or dental clearance comes from the validated resin, not the printer.
- Types: filled and unfilled 405 nm resins across a wide viscosity range
- Configurations: open (bring your own qualified resin) or closed (turnkey validated profiles)
- Workflow: HPS Slicer, .STL input, eye-level 10" touchscreen
System & Process Specifications
- Build volume: 9.8×5.5×19.5 in / 249×140×495 mm
- Light engine: 4K DLP projector, 405 nm, pixel-shifting (no laser)
- XY resolution: 65 µm
- Layer thickness: 25–200 µm (material / design dependent)
- Separation: TruLayer adaptive layer separation
- Interface: eye-level 10" touchscreen · Warranty: 18 months · See the full Specifications tab below.
Where the Revox X1 runs
Production-grade DLP resin parts on a budget.

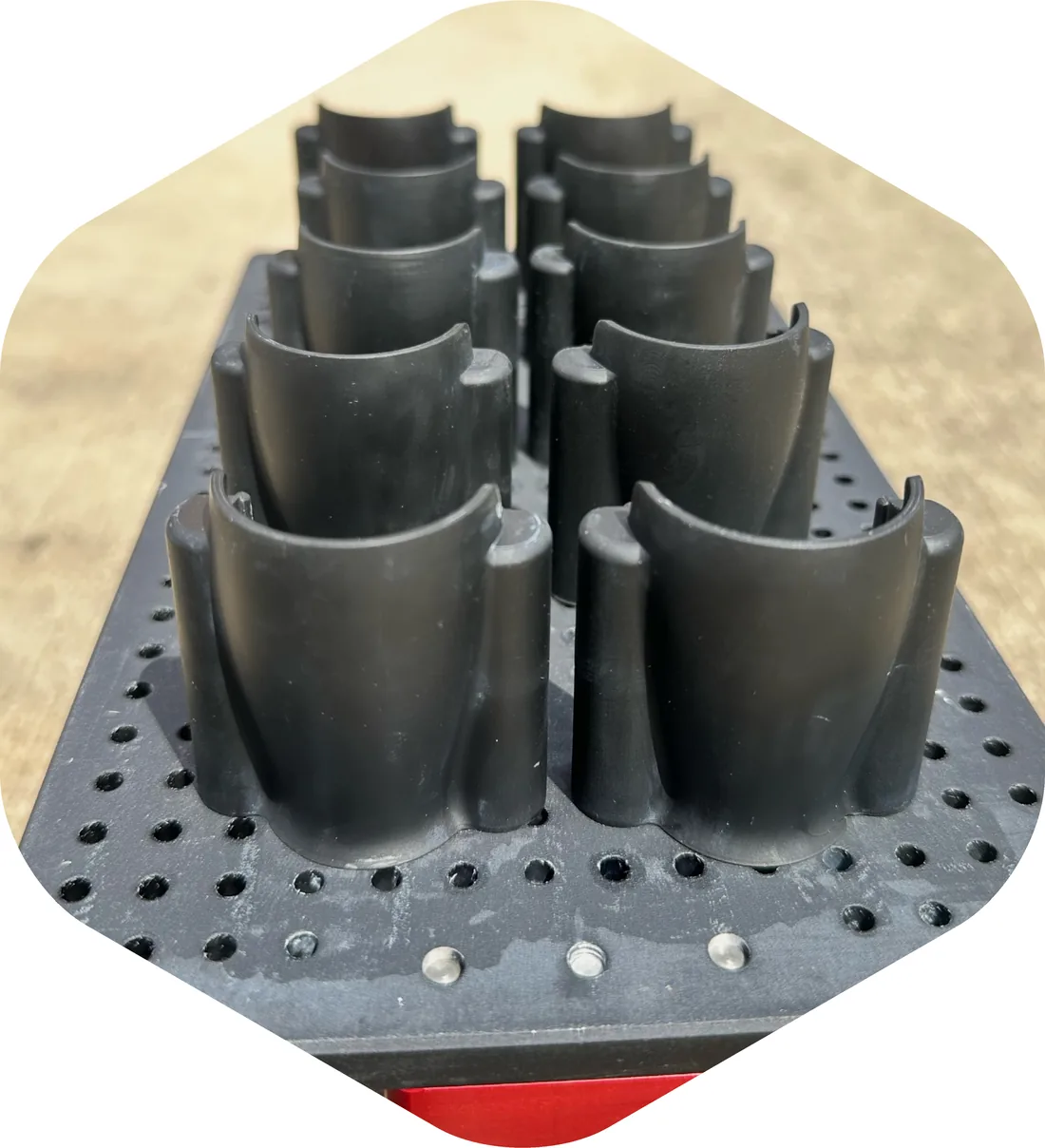

Production parts
End-use and short-run resin parts
Prototyping
Fast, repeatable functional prototypes

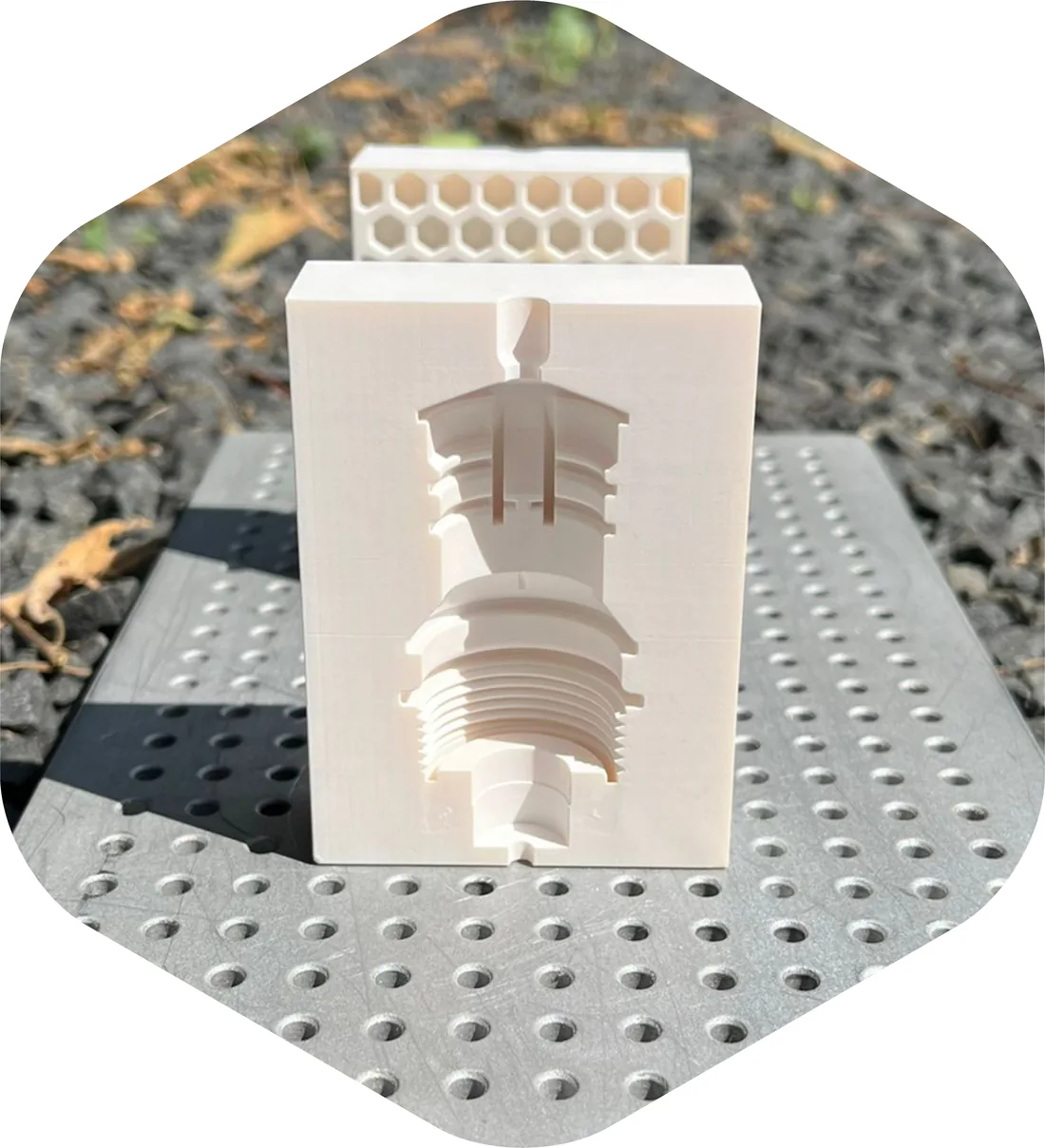

Tooling & fixtures
Jigs, fixtures and light-duty tooling
Jewelry & casting
Detailed castable patterns

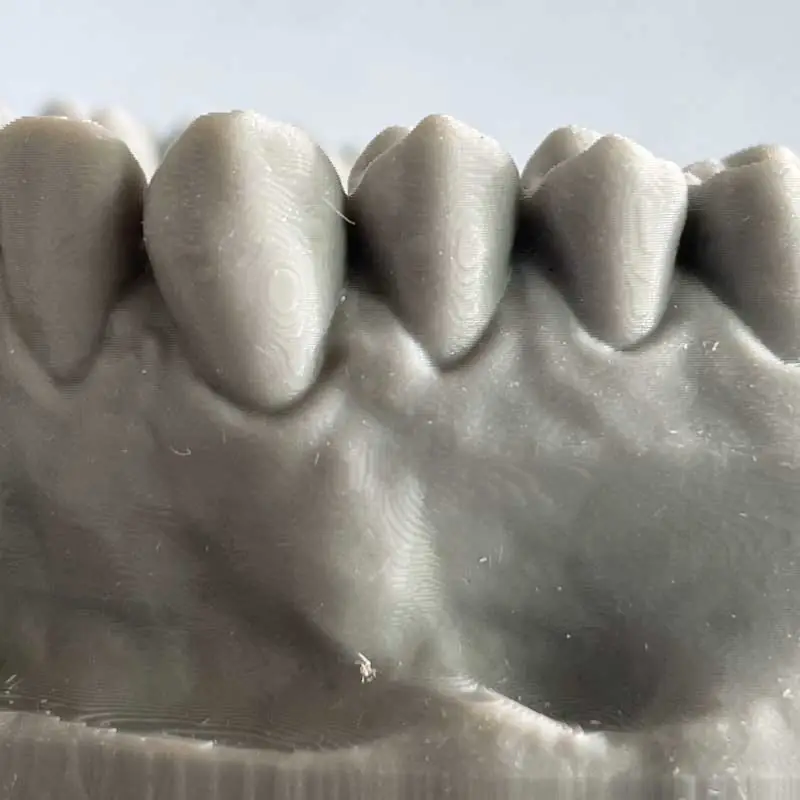

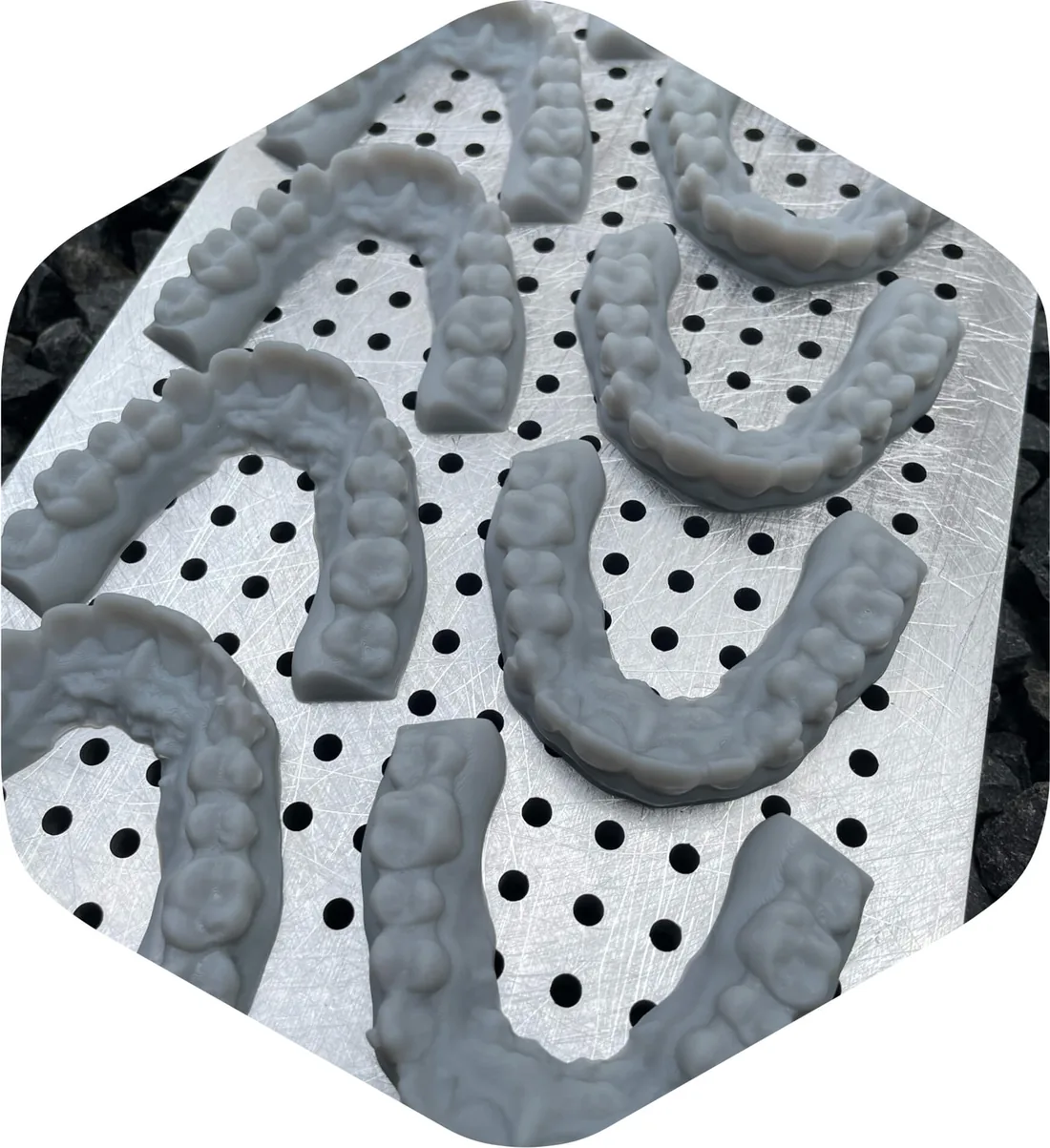

Dental models
Models and appliances via validated resins
Large / bulky parts
TruLayer releases big cross-sections
Not sure the Revox X1 is enough?
Compare it with the hybrid flagship and other industrial resin systems.
Step upAxtra3D Lumia X1View printer →
LSPcNexa3D XiP ProCompare printer →
As a serviceSLA parts serviceGet a quote →
LSPcNexa3D XiP ProCompare printer →
As a serviceSLA parts serviceGet a quote →
Tell us your parts and resins — an applications engineer will confirm whether the Revox X1 hits your quality bar or whether the Lumia X1 is the better call. Sub-4h reply, NDA standard.
Why Source the Revox X1 Through Additive Plus
- Honest guidance on when DLP is enough and when to step up to HPS
- Resin and configuration selection matched to your parts
- Install, software setup and operator training included with the system
- Leasing and financing available for capital equipment
- <24h response · 200+ AM systems delivered across 23 countries
| Brand | Axtra3D |
| Build Volume | 9.8×5.5×19.5 in / 249×140×495 mm |
| Technology | 4K DLP resin (TruLayer) |
| Light source | 4K DLP projector |
| Max Resolution | 65 µm XY |
| Wavelength | 405 nm |
| Layer thickness | 25–200 µm |
| Material | Open & closed 405 nm resins |
| Warranty | 18 months |
| Country of origin | USA |
Product videos
Print a benchmark part first
Send us your STL and resin — we'll print a Revox X1 benchmark and share detail, surface finish and cycle time before you commit to a system.
Other products teams run alongside Axtra3D Revox X1 4K DLP Industrial Resin 3D Printer – Production Entry | 249×140×495 mm
Business 3D Printers · DIW / SLE hybrid paste extrusion

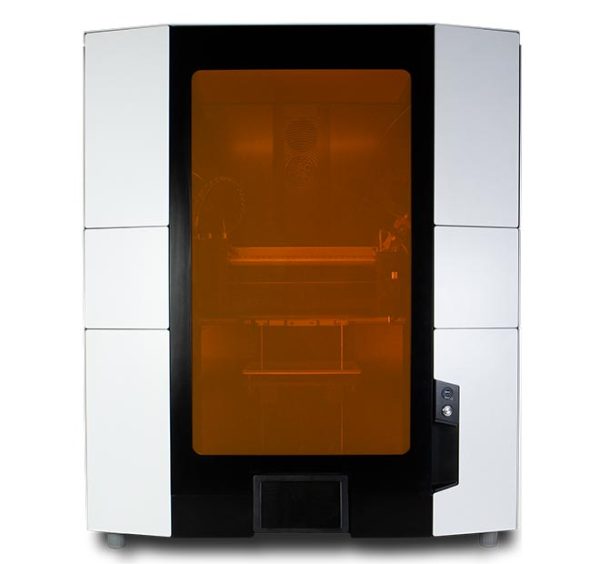

Sygnis Sygpast Hybrid DIW Paste-Extrusion 3D Printer – Silicones, Ceramics & 2K | 250×250×250 mm
Sygpast is Sygnis's flagship hybrid Direct Ink Writing (DIW) 3D printer — it extrudes silicones, polyurethanes and ceramics through an interchangeable liquid head while a second thermoplastic head prints supports, with in-line UV and IR curing and closed-loop quality control across a 9.8×9.8×9.8 in / 250×250×250 mm build volume.
- ✔ Hybrid: SLE liquid head + FFF support head in one build
- ✔ Two-component (2K) silicones & polyurethanes; freely dopeable ceramics
- ✔ In-line UV 365/405 nm + IR curing; profilometer + IR-camera QC
- ✔ Request a quote for pricing, configuration & lead time
Prints Ceramics, Conductive / battery materials, Pastes & gels, Polyurethanes (1K & 2K), Silicones
From $96045
Add to cart
On backorder
· Lead time: configured to order — request a quote for delivery and installation.
Business 3D Printers · DIW
SYGNIS F-NIS 23151 3D Printer
A simple, reliable desktop DIW platform for printing silicones, ceramic pastes and photopolymers — ideal for proof-of-concept and proprietary-material R&D.
- 230×150×150 mm tempered-glass bed, heated to 120 °C · pneumatic extrusion to 4 bar
- Prints any one-component paste or semi-liquid — silicones, ceramics, resins, conductive pastes
- Three versions — add UV (365/405 nm) and a heated printhead as your work demands
From $11,705 · six configurations. Built to order — pick your version and place the order, or talk to an engineer first. NDA standard.
From $11705
Get quote
On backorder
Business 3D Printers · Metal LPBF
Farsoon FS200M-2
A medium-sized LPBF system with dual 500-watt lasers ideal for medium to high series metal production.
Prints 316L, 420, AlSi10Mg, Maraging Steel Grade 300, ST1
In stock
Business 3D Printers · Metal LPBF
Farsoon FS621M
Industrial Scale Metal Laser Sintering System with 1.1 Meter Z Height.
Prints 316L, AlSi10Mg, HAYNES 230, HX, IN625, IN718, TA15, Ti-6Al-4V
In stock
Business 3D Printers
Bambu Lab A1 Multi-Color FDM 3D Printer – AMS lite | 256×256×256 mm
The easy, quiet multi-color maker — full-auto calibration, best-in-class print quality and up to 4 colors with AMS lite, in a 256 mm open-frame printer.
- Multi-color with AMS lite — up to 4 colors
- Full-auto calibration — no manual tuning
- Quiet operation — print anywhere
- US additive experts · ships from US stock · pay over time with PayPal
From $399
Get quote
In stock
Business 3D Printers · SLS
Farsoon 252P Series SLS 3D Printer – Open Platform | 250×250×320 mm
Production-grade SLS platform for polymer R&D and small-batch manufacturing. Available in three chamber configurations — HT252P (428°F/220°C), ST252P (536°F/280°C) and UT252P (644°F/340°C) — the 252P processes PA12, PA11, PA6, TPU, PPS, PEEK and PAEK on a fully open-parameter platform.
- ✓ Eight-zone radiant heating — bed uniformity ≤ 2°C, no cold-corner warping
- ✓ Fully open parameters — laser, speed, layer thickness, temperature all user-accessible
- ✓ PEEK / PAEK capable (UT252P) — 644°F/340°C max chamber, rare at this build class
- ✓ Lead time: configured to order — US install, operator training and validated profiles included
Prints FS3201PA-F, FS3300PA-F, FS3401GB-F, LUVOSINT® TPU X92A-1064 WT
On backorder
· Configured to order — US install, training and validated profiles included; contact us for current lead time.
QLS
ALTANA Cubic Ink Rigid 300 VP High Resolution – Fine-Detail Precision Resin (DLP/LCD/mSLA) | 1 kg & 5 kg
Rigid resin engineered for outstanding printing resolution — ultra-thin layers and crisp XY detail at high print speed, with low water uptake for dimensional stability in fluids.
- ✓ Ultra-thin layers & crisp XY resolution — fine-detail precision parts
- ✓ 37 MPa tensile · 1900 MPa modulus · 8% elongation — rigid yet not brittle
- ✓ Very low water uptake (0.3%) & strong chemical resistance
- ✓ Fast printing thanks to high reactivity
Two bottle sizes: 1 kg — $216.60 · 5 kg — $175.56/kg (volume saving). Invoiced per kg; USD reference.
From $216
Add to cart
In stock
· Made to order · ships in ~10 business days
Business 3D Printers · FGF
Heron AM HF Robotic Large-Format Pellet 3D Printer – High Flow | Caracol LFAM
Heron AM configured with the High Flow (HF) extruder head — Caracol's 6-axis robotic large-format additive platform. 30 kg/h through 5–14 mm nozzles at up to 450°C, pellet-fed with optional hybrid CNC milling. EN9100 and ISO 9001 certified. Priced by configuration.
- ✓ 6-axis robotic LFAM — freeform geometries up to 15 m, beyond any gantry
- ✓ High Flow head: 30 kg/h, 5–14 mm, 450°C — highest throughput, largest parts
- ✓ EN9100 + ISO 9001 certified · lead time confirmed at quote
On backorder
· Lead time confirmed per configuration at quote. Talk to a specialist for a schedule.From teams running the Axtra3D Revox X1
Unedited feedback from production and studio leads.
★★★★★
We needed production DLP without the flagship price. The Revox hits our tolerance and TruLayer means big parts actually release.
OO
Owen O. Production Engineer · Consumer products
★★★★★
Started on the Revox, and Additive Plus was straight with us about where DLP tops out. No overselling.
LP
Lena P. R&D Lead · Industrial design
★★★★★
Runs our castable resin cleanly, plate after plate. For the price it's been a workhorse.
DS
Diego S. Studio Owner · Jewelry
Common questions
Don't see yours? Email [email protected] — NDA standard, typical reply within 4 hours.
How is the Revox X1 different from the Lumia X1?
The Revox X1 and Lumia X1 share the same chassis, build volume and TruLayer separation system. The difference is the light engine: the Lumia X1 uses Hybrid PhotoSynthesis (laser + 4K DLP) for 50 µm SLA-grade resolution, while the Revox X1 is 4K DLP only at 65 µm XY. The Revox is the lower-cost entry model for teams that can accept DLP part quality; the Lumia is the choice when you need finer detail or the hybrid speed.
What is the Revox X1's resolution and part quality?
The Revox X1 uses a high-energy-density 4K DLP projector with pixel-shifting at 405 nm, giving 65 µm XY resolution and layer thicknesses of 25–200 µm. That is production-grade DLP quality — excellent for functional parts, tooling and castable patterns. For dental margins, fine jewelry detail or the smoothest walls, the hybrid Lumia X1 at 50 µm is the step up.
What build volume does the Revox X1 have?
Current Axtra3D specifications list the Revox X1 build volume as 9.8×5.5×19.5 in / 249×140×495 mm — the same tall envelope as the Lumia X1, suited to production plates and long parts. (Some early pre-launch material cited a different figure; Additive Plus confirms the current envelope with Axtra3D before your order.)
Is the Revox X1 open or closed for materials?
The Revox X1 is offered in both open and closed 405 nm configurations. Open lets you run your own qualified resins across a wide viscosity range, including filled formulations that TruLayer handles well; closed gives turnkey validated profiles. An Additive Plus engineer will help you pick the configuration that matches your material strategy.
When should I choose the Lumia X1 instead?
Step up to the Lumia X1 when you need SLA-grade resolution (50 µm vs 65 µm), the finest surface finish, or the extra throughput of the hybrid laser + DLP engine on large or detailed production runs. If your parts pass at 65 µm DLP, the Revox X1 delivers the same TruLayer reliability for less. We will tell you honestly which one fits your parts.
What post-processing does the Revox X1 need?
As with all resin printers, parts require washing and UV post-curing after the build; a wash station and cure unit are required and not included. Additive Plus can supply compatible post-processing and advise on the wash solvent and cure profile for each resin so finished parts reach their intended mechanical properties.
What lead time and support come with the Revox X1?
The Revox X1 is configured to order — request a quote and an engineer will confirm the schedule. Delivery includes on-site installation, HPS Slicer setup, operator training, and help tuning exposure and post-cure for your resins. The system carries an 18-month warranty, and leasing and financing are available for capital equipment.
