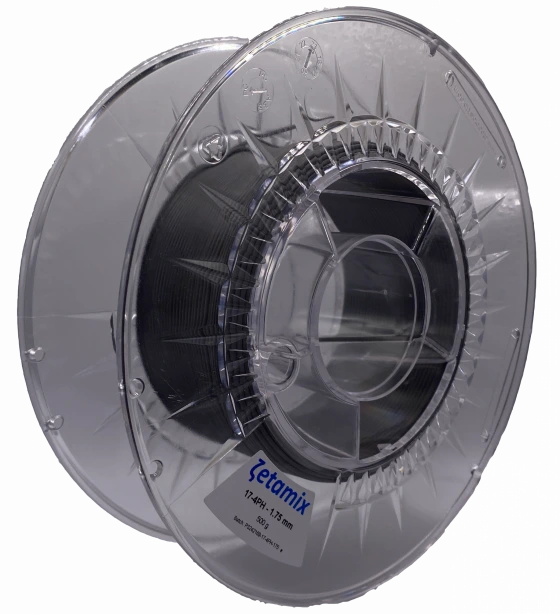

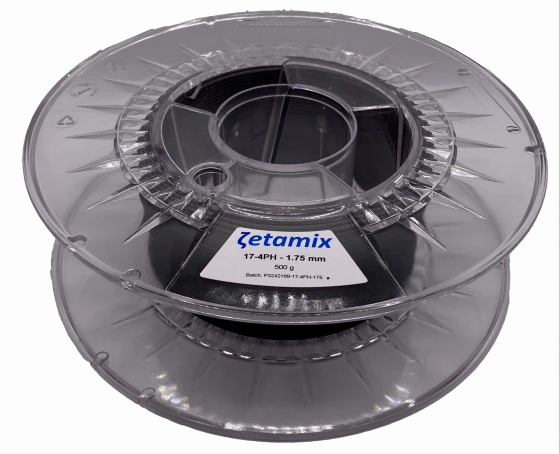

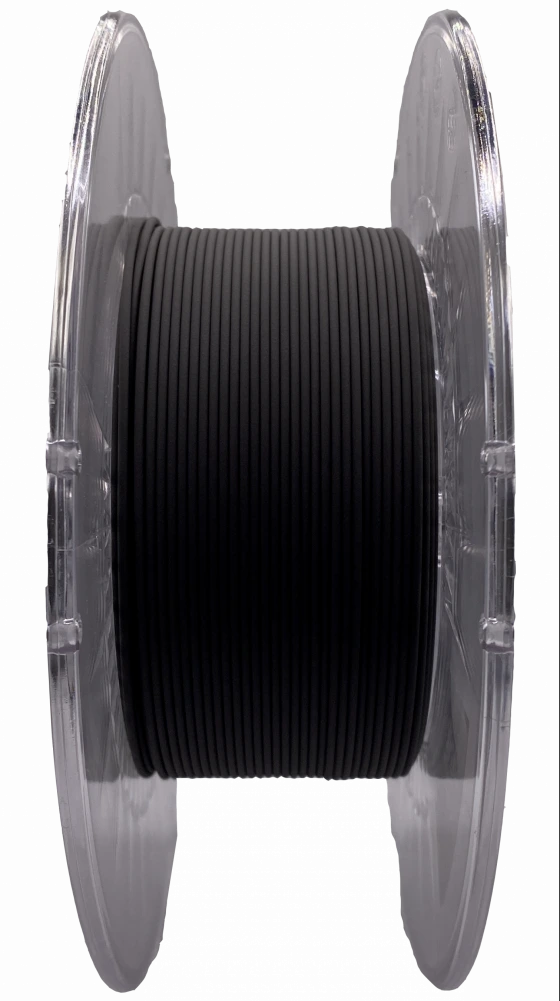

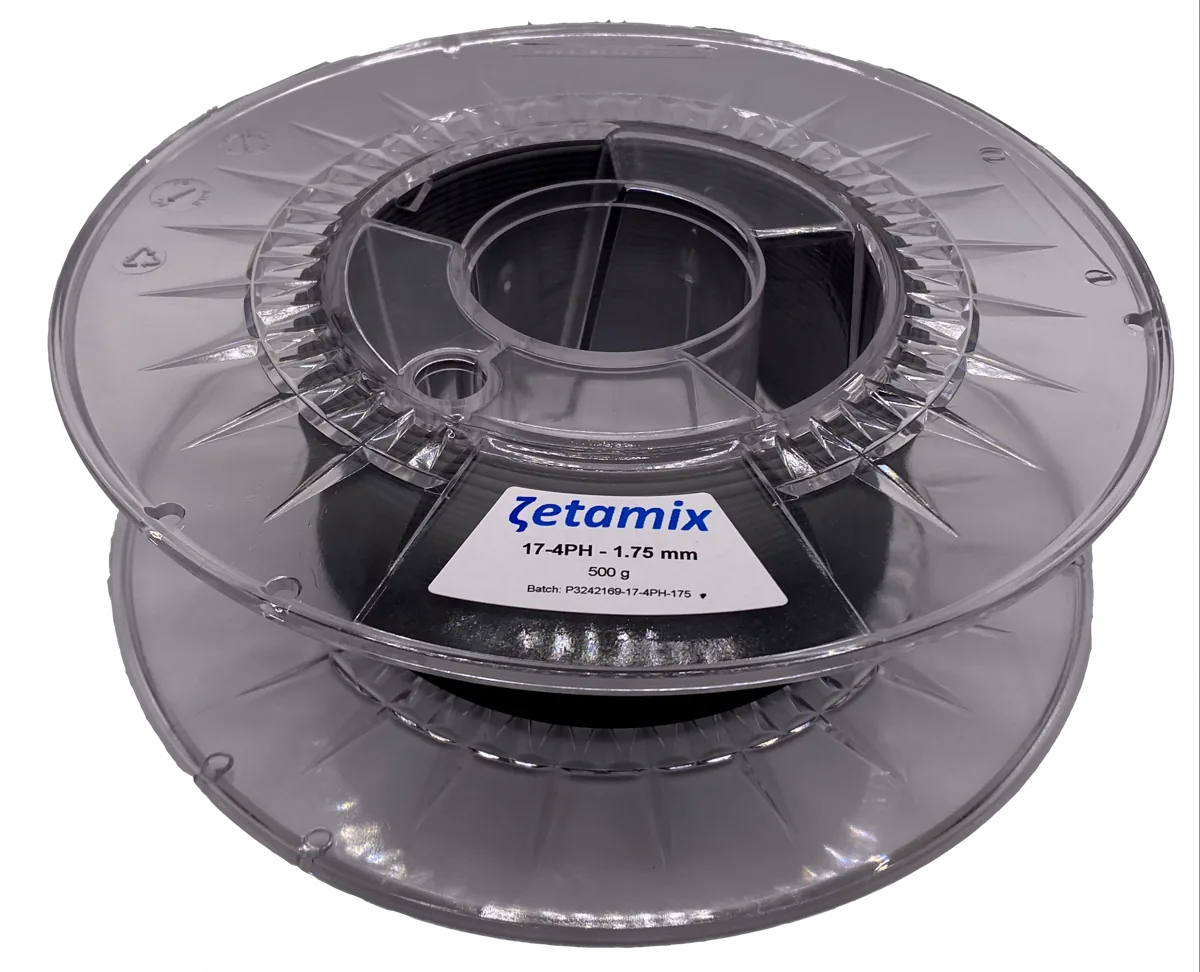

Zetamix 17-4PH Stainless Steel Filament 1,75mm
- ✔ High strength and hardness (precipitation-hardenable), good corrosion resistance
- ✔ Print → debind → sinter to dense metal — ideal for functional and tooling parts
- ✔ Genuine Zetamix by Nanoe · 500 g spool · lead time 10–20 business days (depending on order queue)
$420
What your process engineer actually checks
Green part to fully dense, predictably
Every spool ships with a datasheet and validated debind/sinter parameters, so green parts reach target density with predictable shrinkage. Lock the cycle once, reorder the same feedstock.
A materials engineer on the line
Questions on debind schedules, sinter shrinkage, density, or warpage on bound-metal/ceramic FFF? A materials engineer answers directly — not a contact-form bot. Most replies in under 4 hours, NDA standard.
Zetamix 17-4 PH stainless steel filament lets you 3D-print precipitation-hardening stainless steel on a standard FFF printer, then debind and sinter to a dense metal part — the same print → debind → sinter workflow we run in-house on our 3DCeram M.A.T. With heat treatment it reaches HRC 40+ and tensile strength comparable to wrought 17-4 PH, at ~92% metal content by mass.
Why engineers choose Zetamix 17-4 PH Stainless Steel filament
Precipitation-hardening stainless steel you print on a standard FFF machine — strength and hardness of wrought 17-4 PH after sintering and heat treatment.
After sintering and a precipitation heat treatment, parts reach HRC 40+ for wear-facing and load-bearing service.
Tensile strength comparable to wrought 17-4 PH with heat treatment, at ~92% metal content by mass.
Stable in marine and chemical environments — holds mechanical properties in aggressive, high-stress conditions.
Predictable 118.2% / 117.2% shrinkage and a fixed debind-and-sinter cycle give repeatable dimensions and properties.
17-4 PH stainless steel filament properties after sintering
- Composition: precipitation-hardening stainless steel, ~92% metal by mass
- Density after sintering: >90% of theoretical
- Tensile strength: comparable to wrought 17-4 PH (with heat treatment)
- Hardness: precipitation-hardenable to HRC 40+ with heat treatment
- Corrosion resistance: marine and chemical environments
- Linear shrinkage: scale the model by 118.2% (X/Y) and 117.2% (Z)
- Filament: 1.75 mm · 500 g spool
Full specifications are listed in the Specifications tab. Mechanical values are process-dependent — final properties vary with print, debind, sinter and heat-treat parameters.
From spool to dense metal part
Three stages — the same workflow we run in-house.
Design & scale
Scale the model by 118.2% (X/Y) and 117.2% (Z) for sintering shrinkage. Minimum wall 1 mm, minimum feature 1.5 mm, maximum unsupported overhang 35°.
Print on FFF
Print the green part on any standard FFF machine with a grooved drive gear and flexible build plate. 3 wall layers, 20–100% infill, 100% fan from the second layer.
Debind, sinter & heat-treat
Chemical debind 24 h in acetone at 40 °C, thermal debind 10 °C/h from 50 to 650 °C in Ar/H₂, then sinter 50 °C/h to 1350 °C with a 2 h hold (0.5 LPM at 0.2 bar). Precipitation heat-treat to HRC 40+. No furnace? We run this for you.
Where 17-4 PH stainless steel is used
Engineers print 17-4 PH when they need a hardenable, corrosion-resistant metal part on demand.
See real builds in our Zetamix case studies →
No sintering furnace or debinding station? Talk to our team — we’ll help you get set up. Get in touch →
See Zetamix 17-4 PH in action
Watch how Zetamix ceramic and metal filaments go from spool to dense, sintered part — the same FFF print → debind → sinter workflow we run in-house.
Choose your Zetamix material
Every Zetamix filament prints on a standard FFF 3D printer — we print and validate them in-house on our 3DCeram M.A.T. system — then debind and sinter to a dense ceramic or metal part. The highlighted row is the material on this page; compare the range below:
| Material | Type | Stands out for | Best for | From |
|---|---|---|---|---|
| Alumina | Technical ceramic | Electrical insulation, ~1550°C | Insulators, high-temp tooling | $495 |
| White Zirconia | Technical ceramic | Toughness & flexural strength | Wear & structural parts | $485 |
| Black Zirconia | Technical ceramic | Zirconia strength, black finish | Aesthetic + technical parts | $550 |
| Silicon Carbide | Technical ceramic | Extreme hardness & thermal | Abrasive / high-temp parts | $550 |
| Porcelain | Ceramic (art) | Glazeable, classic finish | Art, tableware, decorative | $225 |
| 316L | Stainless steel | Corrosion resistance, ductile | Functional metal parts | $420 |
| 17-4 PH | Stainless steel | High strength, hardenable | Tooling & functional parts | $420 |
| H13 | Tool steel | Hot hardness & wear | Dies, inserts, tooling | $420 |
| TiO2 | Specialty ceramic | Specialty technical ceramic | Niche functional parts | $550 |
| Brand | Zetamix by Nanoe |
| Printing Materials | Metal Filaments |
| Technology | FFF |
| Application | Composite Tooling, Engineering, Jigs & Fixtures, Manufacturing |
We source and qualify. Custom feedstock on request.
Need a specific bound-metal or ceramic filament, or parameters for a printer we don't list yet? Our materials team qualifies the feedstock and verifies sinter behavior before you commit. Typical lead 3–4 weeks.
