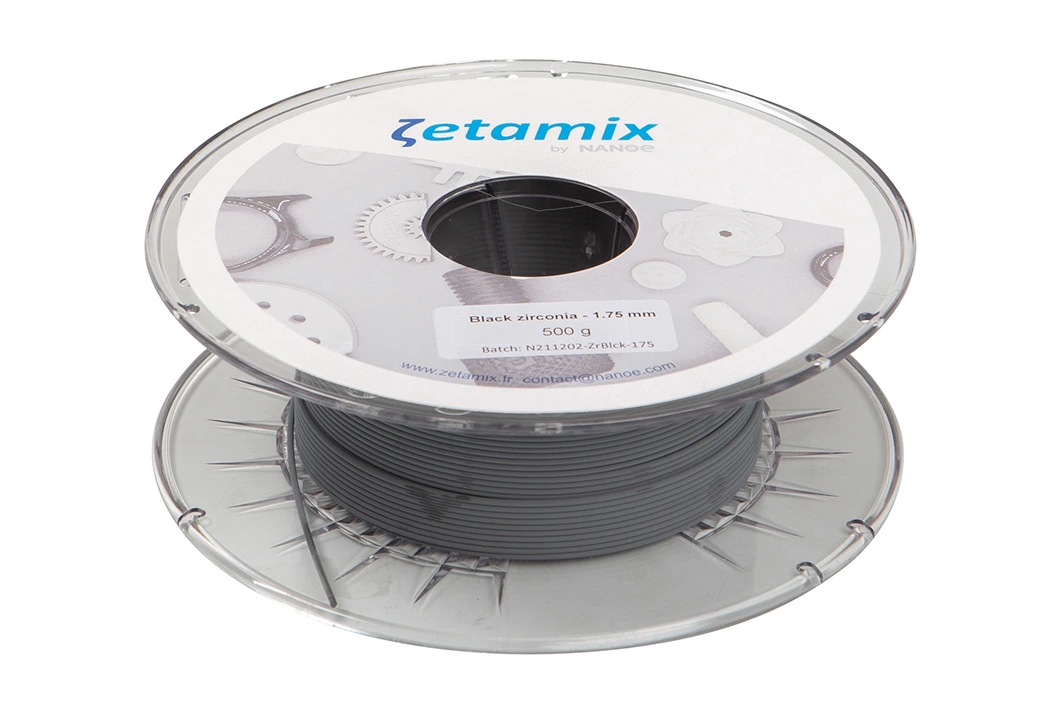

Zetamix Black Zirconia Filament 1,75mm
$535
Black zirconia filament: Print FDM ceramic parts → sinter into high-strength black components with luxury finishes for premium applications.
-
Compatible platform:
FFF
-
Type:
Ceramic Filaments
Need an official request?
- Description
- Details
- Materials
- Documents
- Videos
- Review
Description
Zetamix Black Zirconia Filament enables direct production of advanced black ceramic components using standard FDM 3D printers. Create parts with outstanding mechanical strength, deep black aesthetics, and premium surface finishes—ideal for luxury goods, high-wear tooling, and demanding applications requiring both sophisticated appearance and exceptional performance.
Why Engineers & Manufacturers Choose Zetamix Alumina
Premium Black Aesthetics
- Deep, consistent black color after sintering
- Can be finished with matte, brushed, or high-polish mirror surfaces
- Ideal for luxury consumer goods and high-visibility components
- Maintains color integrity through finishing processes
Exceptional Mechanical Properties
- Outstanding bending strength: 400-1000 MPa
- High hardness: 19 GPa
- 98-99% density after sintering for maximum durability
- Excellent impact and wear resistance
Versatile Application Range

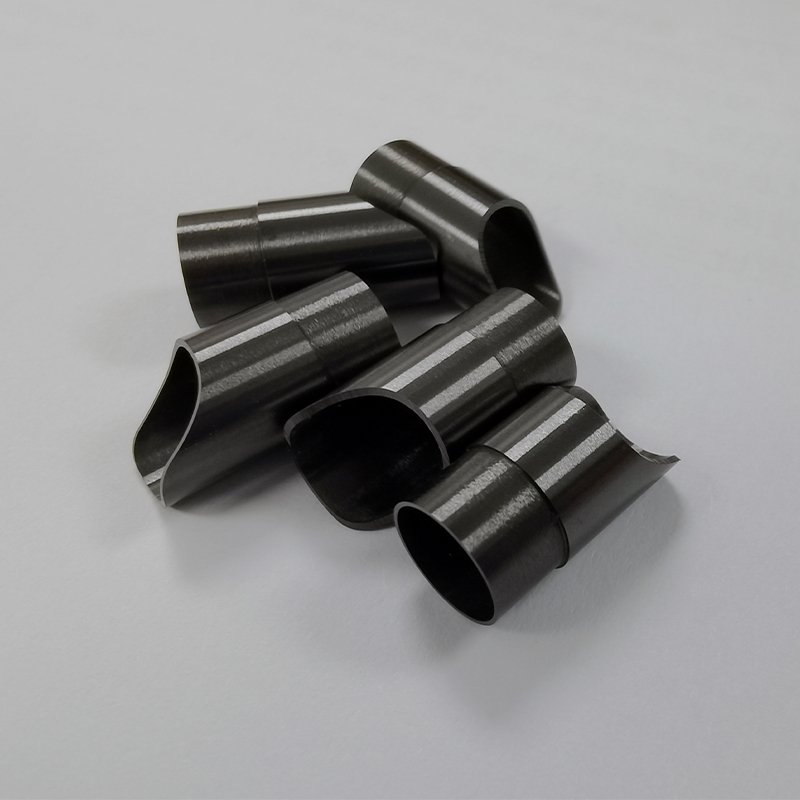

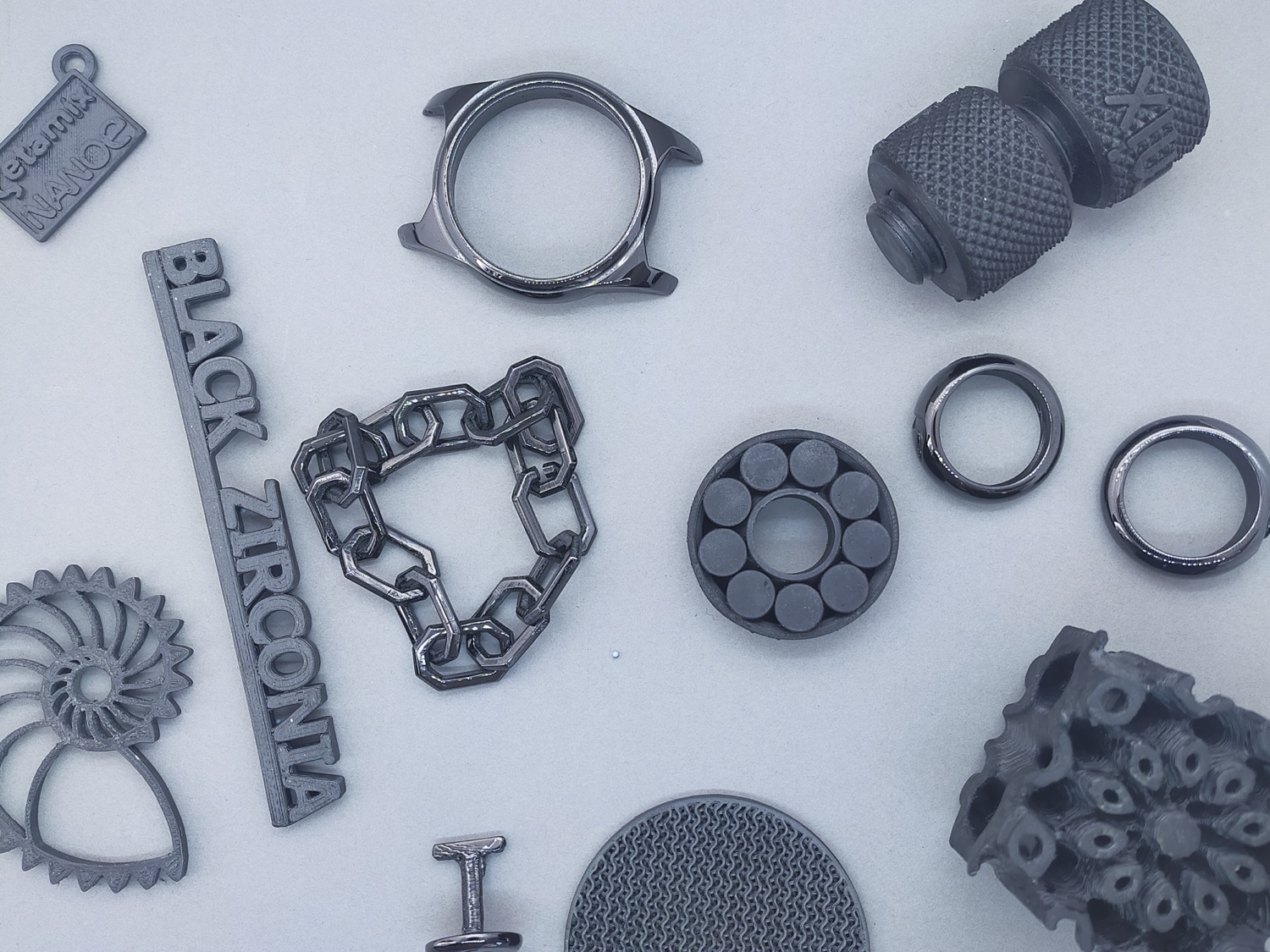

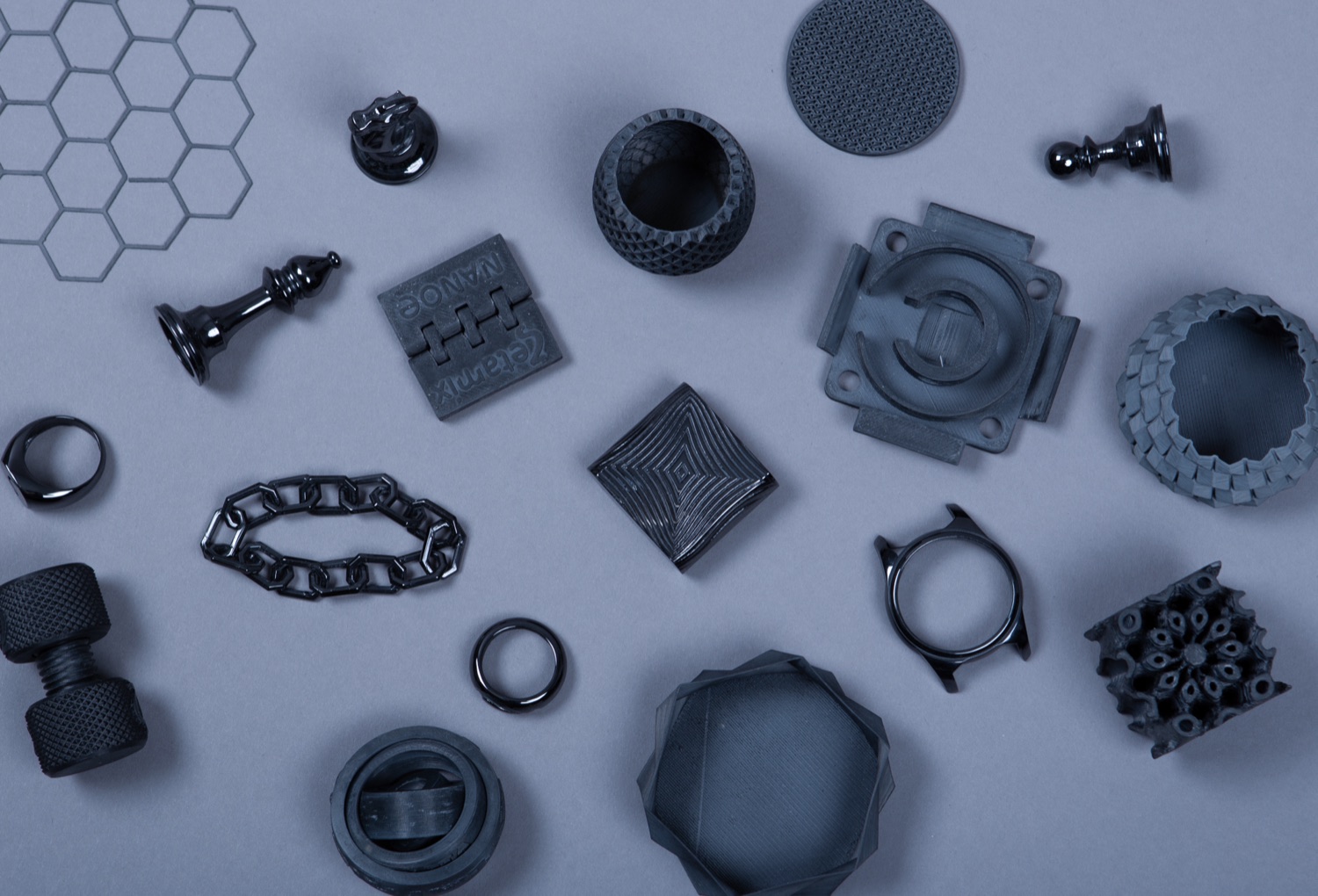

- Luxury goods and premium consumer products
- High-wear tooling and manufacturing fixtures
- Technical components requiring strength and aesthetics
- Architectural and design elements
Material Properties After Sintering
- Density: 98-99% of theoretical density
- Bending Strength: 400-1000 MPa
- Hardness: 19 GPa
- Color: Deep black, consistent throughout
Your Path to Premium Black Ceramic Parts
1. Design for Ceramic Manufacturing
- Scale models by 127.4% (X/Y/Z) for sintering shrinkage
- Minimum part size: 6mm cube | Minimum wall: 1mm
- Minimum pin diameter: 2.3mm | Minimum hole: 0.6mm (vertical)
- Maximum overhang: 40° unsupported, 15° for ceilings
2. Precision Printing Protocol
- Use grooved drive gears to prevent filament grinding
- Print on flexible build plates for easy removal
- 100% fan speed for optimal surface quality
- 1mm retraction at 20 mm/s recommended
- Minimum 2 wall layers with 5-100% infill density
3. Controlled Debinding & Sintering
- Chemical Debinding: 6h acetone bath at 40°C (>5% mass loss)
- Thermal Debinding: 8°C/h ramp to 500°C (≈2.5 days) or accelerated cycle available
- Sintering: 50°C/h to 1475°C with 2h hold in air atmosphere
FAQs
What makes black zirconia different from white zirconia?ics?
Black zirconia contains cobalt iron oxide pigment that provides the deep black color while maintaining the same exceptional mechanical properties as white zirconia—perfect for applications where black aesthetics are required.
What finishing options are available for black zirconia?
Black zirconia can be finished as-sintered (matte black), brushed for satin finish, or polished to high gloss. The black color remains consistent through all finishing processes.
What applications is black zirconia best suited for?
Luxury watch components, black consumer electronics, high-end jewelry, architectural details, premium kitchenware, and any application requiring both black aesthetics and ceramic performance.
How does the strength compare to other ceramics?
Black zirconia offers exceptional bending strength (400-1000 MPa) and hardness (19 GPa), making it significantly stronger than most technical ceramics and ideal for functional, high-wear applications.
Does the black color affect the material properties?
No, the black pigment is integrated during manufacturing and does not compromise the exceptional mechanical properties of the zirconia matrix.
What design limitations should I consider?
Similar to white zirconia: maximum printed size determined by furnace, minimum wall: 1mm, minimum feature: 0.6mm. Follow the same design guidelines as white zirconia.
Can I achieve different shades of black?
The material produces a consistent deep black. Different surface finishes (matte, brushed, polished) will affect the appearance but not the base color.
How long does the complete process take?
Printing varies by model. Chemical debinding takes 6h + 2h drying, thermal debinding ≈60h (or 23h accelerated), and sintering ≈29h including ramp times and holding.
What safety precautions are necessary?
tandard ceramic filament handling—use in well-ventilated areas, wear FFP2 masks during printing and handling. The sintered black zirconia is safe for handling.
What’s the shelf life of the filament?
One year when stored in original vacuum-sealed packaging in cool, dry conditions.
Black zirconia contains cobalt iron oxide pigment that provides the deep black color while maintaining the same exceptional mechanical properties as white zirconia—perfect for applications where black aesthetics are required.
Black zirconia can be finished as-sintered (matte black), brushed for satin finish, or polished to high gloss. The black color remains consistent through all finishing processes.
Luxury watch components, black consumer electronics, high-end jewelry, architectural details, premium kitchenware, and any application requiring both black aesthetics and ceramic performance.
Black zirconia offers exceptional bending strength (400-1000 MPa) and hardness (19 GPa), making it significantly stronger than most technical ceramics and ideal for functional, high-wear applications.
No, the black pigment is integrated during manufacturing and does not compromise the exceptional mechanical properties of the zirconia matrix.
Similar to white zirconia: maximum printed size determined by furnace, minimum wall: 1mm, minimum feature: 0.6mm. Follow the same design guidelines as white zirconia.
The material produces a consistent deep black. Different surface finishes (matte, brushed, polished) will affect the appearance but not the base color.
Printing varies by model. Chemical debinding takes 6h + 2h drying, thermal debinding ≈60h (or 23h accelerated), and sintering ≈29h including ramp times and holding.
tandard ceramic filament handling—use in well-ventilated areas, wear FFP2 masks during printing and handling. The sintered black zirconia is safe for handling.
One year when stored in original vacuum-sealed packaging in cool, dry conditions.
- Brand Zetamix by Nanoe
- Printing Materials Ceramic Filaments
- Technology FFF
- Chemical symbol ZrO2 ∙ Y2O3
- Sintering type Solid State Sintering
- Printing temperature 180°C
- Sintering Temperature 1475°C under air
- Shrinkage 21.5% ±1% (x y and z)
- Density 98-99%
- Specific Gravity [g.cm-3 ] 3.5
- Melt Flow Rate [g/10(min)] 14
- Melt Volume Rate [cm3 /10(min)] 50
- Moisture Absorption 24 hours [%] <0,1%
- Moisture Absorption , 7 days [%] <0,3%
- Shore D 45
