Loctite 3D IND147 High Temp Black 1 kg
Loctite 3D IND147 High Temp Black 1 kg - Image 2

Loctite 3D IND147 High Temp Black 1 kg

$260

Extreme-temp resin: HDT230°C for molding/dies. Stiff, dimensionally stable & production-ready.

  • In stock

$260

Need an official request?

  • Description
  • Details
  • Materials
  • Documents
  • Videos
  • Review

Description

Engineered to conquer environments where conventional resins fail, LOCTITE 3D IND147 redefines high-temperature performance with an industry-leading heat deflection temperature (HDT) exceeding 230°C. This specialized photopolymer delivers unprecedented thermal stability for demanding tooling and molding applications, maintaining critical dimensional accuracy even under sustained heat exposure.

Revolutionary Thermal Performance

  • 230°C+ HDT: Withstands direct contact with molten materials and high-pressure steam
  • Zero-deformation rigidity: Exceptional stiffness prevents warping during repeated thermal cycles
  • Thermo-mechanical integrity: Retains toughness while resisting creep under mechanical stress

Precision-Engineered for Critical Applications

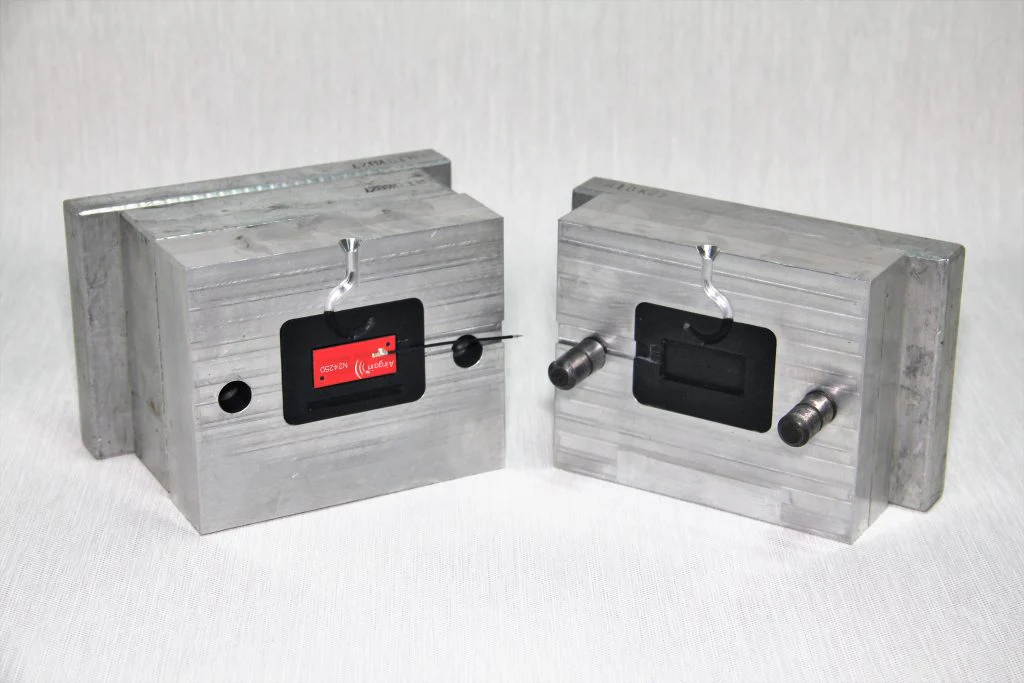

  • High-temp tooling: Molds for silicone casting, low-pressure PU, and customized molds
  • Functional prototyping: Directly test parts under end-use thermal conditions
  • Custom cavity fabrication: Create bespoke molds for short-run production
  • Uncompromised Output Quality
  • Production-grade surface finish: Near-injection-molded aesthetics without post-processing
  • Micron-level stability: ≤0.1% dimensional deviation across 50+ thermal cycles
  • Cross-industry compatibility: Automotive test fixtures, consumer goods tooling, industrial molding

Compatible with open-source DLP/SLA systems (385-420nm).

  • Brand Henkel Loctite
  • Available colors Black
  • Print Feature High Temp
  • Young's Modulus (MPa) 1150 ± 160 / 3190 ± 80
  • Tensile Stress at Break (MPa) 31 ± 2 / 67 ± 16
  • Elongation at Break (%) 6 ± 2 / 2.4 ± 0.7
  • Flexural Modulus (MPa) 1170 ± 100 / 3690 ± 60
  • IZOD Impact (Notched, J/m) 14.6 ± 0.1
  • Shore Hardness (3s) 94
  • HDT@0.46 MPA (°C) 235-291
  • HDT at 1.82 MPa 136-163
  • Water Absorption (24hr) % 0.24
  • Water Absorption (48hr) % 0.39
  • Water Absorption (72hr) % 0.78
  • Solid Density g/cm3 1.25 / 1.27
  • Heat Capacity J/(g*K) 1.3
  • Poisson’s Ratio 0.30 ± 0.03
  • CTE (-30°C to 45°C) µm/(m·K) 114
  • Tg °C 205-212
